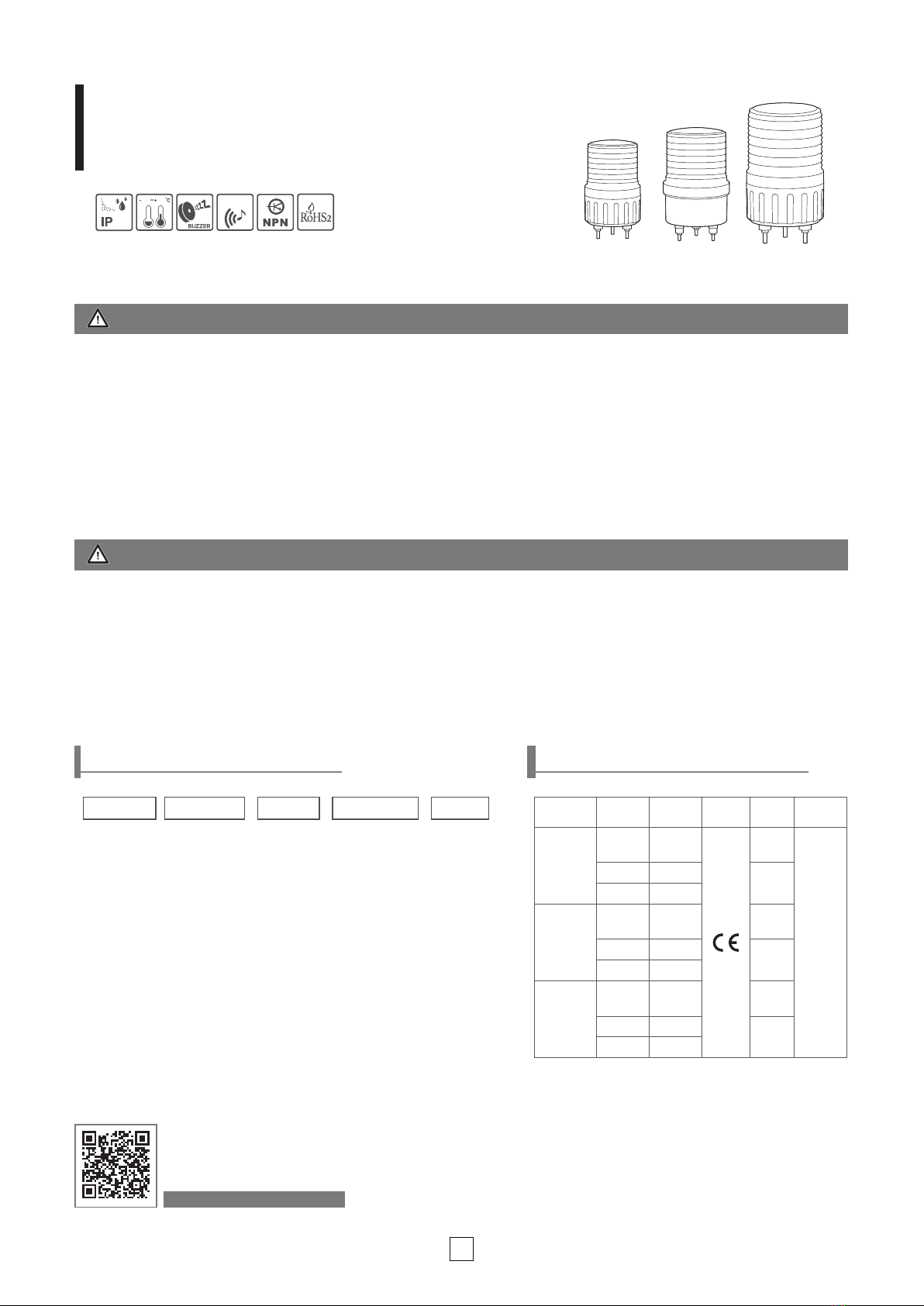

Qlight SMCL80 User manual

1
Multiple Color LED Steady/ Flashing Signal Lights
SMCL80/ 100/ 125
5030
44
90d B
• Built-in buzzer : Max.90dB at 1m
• Protection rating : IP44
• Ambient operating temperature : -30°C to +50°C
Model
number
Voltage Current Certicate Weight Color
SMCL80
DC12V
~24V
Max.
0.235A
0.18kg
R-Red
A-Amber
G-Green
AC110V 0.065A
0.28kg
AC220V 0.035A
SMCL100
DC12V
~24V
Max.
0.390A
0.23kg
AC110V 0.095A
0.32kg
AC220V 0.045A
SMCL125
DC12V
~24V
Max.
0.410A
0.27kg
AC110V 0.105A
0.36kg
AC220V 0.055A
SMCL80 - BZ - 3 - 220 - RAG
[Model
number] [Buzzer] [Color] [Voltage] [Color]
| | | | |
• SMCL80
• SMCL100
• SMCL125
• (Blank)
- No buzzer
type
• BZ
- Built-in
buzzer type
• 2-2colors
• 3-3colors
• 12/24
- DC12V~24V
• 110 - AC110V
• 220 - AC220V
R-Red
A-Amber
G-Green
Please scan the QR code for more
detailed product information
www.qlight.com
Product Specications
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Ordering Specications

2
SMCL80 SMCL100 SMCL125
Ø119
Ø10 CABLE ENTRY
Ø10 CABLE ENTRY
Ø10 CABLE ENTRY
Ø83 Ø101
42 84
13315
9246
15212
12
103
158
48
PCD60
PCD50
PCD85
360°/3-M4 BOLT 360°/3-M4 BOLT
360°/3-M5 BOLT
• SMCLseries can be wired with either external contact or transistor.
•
When using a transistor, please choose the NPN transistor which best matches the voltage and product type, then connect them correctly according
to the wiring diagram below.
• External power line - UL1015 AWG18(0.75sq) x 2C 400mm
• External signal line - UL1007 AWG22(0.3sq) 400mm
• This product can be wired regardless of polarity.
Wiring Instructions
Red
Amber
Green
Brown
Gray
Black
White
Black
Red
Amber
Green
Brown
Black
Gray
White
Black
Red
Amber
Green
Buzzer
Red
Amber
Green
Buzzer
Red
Amber
Green
(EXTERNAL CONTACT)
Power
Power
Common
Common
Common
Common
Fuse
Flash
Flash
Steady
Steady
(EXTERNAL TRANSISTOR-NPN)
Fuse
Dimensions
(Units : mm)
• First, remove the ange nuts from bolts and place the
product through the mounting surface holes.
• Fasten the ange nuts on the opposite side of the
mounting surface until the product is tightened
securely.
Parts Denition/ Installation
Lens(AS)
LED unit
Housing (ABS)
Reector
(Heat resistant ABS)
Rubber spacer
Flatw asher
Flange nut

Dimensions
SMCL80
TWS80 TWA80
SMCL100
SMCL125
SWP125 SWM125
Mounting Accessories (Sold Separately)
• Please refer to the dimensions below for installation of mounting brackets
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website (www.qlight.com).
3
PCD 85PCD 60PCD 50
3-Ø5 HOLES 3-Ø6 HOLES3-Ø5 HOLES
Min. Ø5 CABLE ENTRY Min. Ø5 CABLE ENTRY Min. Ø5 CABLE ENTRY
SMCL80 SMCL125 SMCL100
Mounting Hole Specications
• Machine holes on the mounting surface referring to
the diagram below.

Qlight Co., Ltd. www.qlight.com | [email protected]
Head Ofce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea Tel. [phone] Fax : [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone]
Qlight Overseas Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team Ofce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. [phone] Fax. [phone]
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales Ofce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. [phone] Fax. [phone]
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - SMCL80 -1911A
