R&G BRG0013 User manual

Page 1of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]

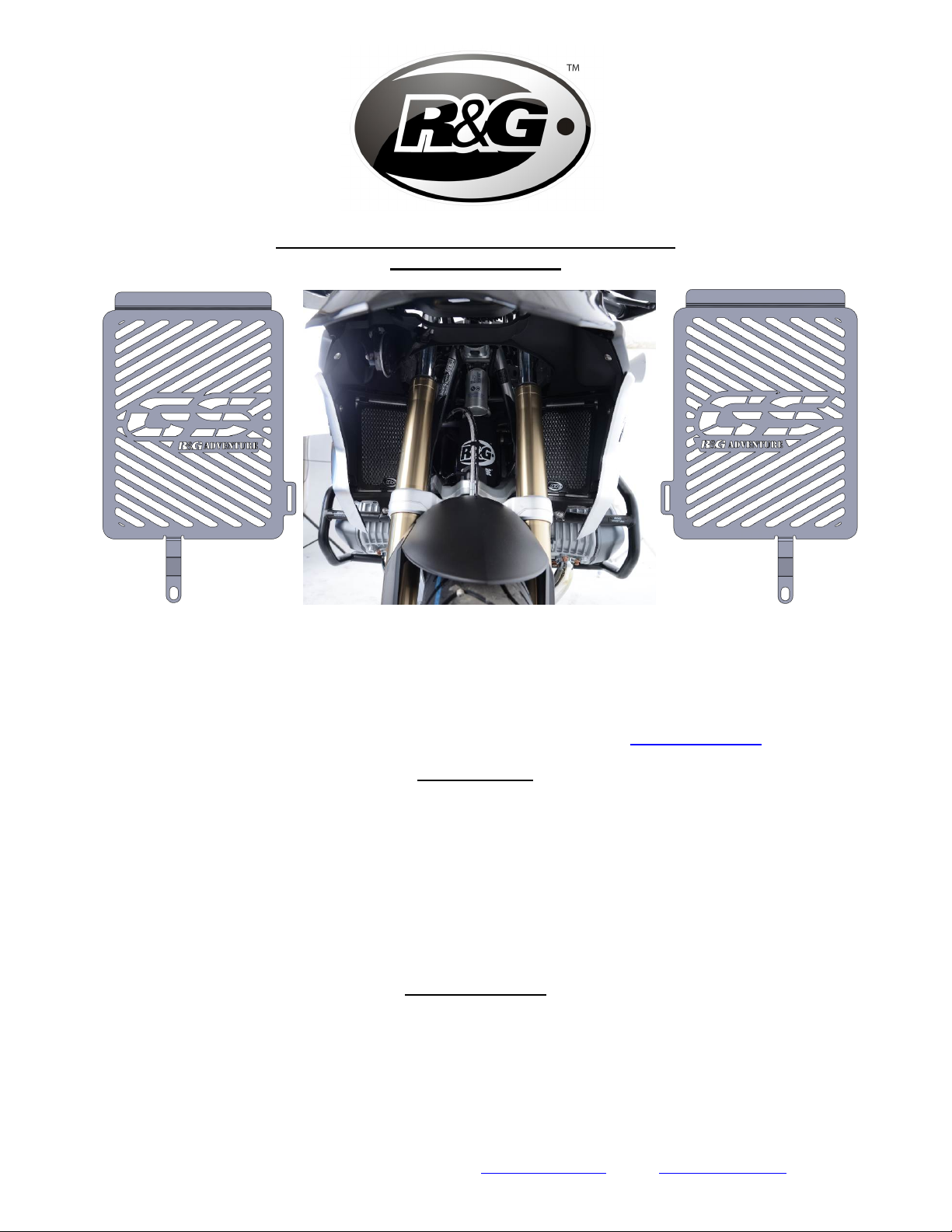

Fitting Instructions for BRG0013 Radiator Guard
BMW R1250GS 2018
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the rubber washers
should be thrown away!
THE PARTS SHOWN MAY BE REPRESENTATIVE ONLY (FOR CLARITY OF INSTRUCTIONS ONLY)
Digital copies of these instructions are available to download from www.rg-racing.com
This kit contains:
2x Radiator Guard (BRG0013 Left & Right)
2x 100mm Lengths of self-adhesive Foam
2 x R&G Bubble Sticker
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
TOOLS REQUIRED
T20 Torx bit
Scissors

Page 2of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5

Page 3of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
FITTING INSTRUCTIONS
•To fit the radiator guards to the bike cut the foam strip provided into 10mm wide pieces and stick them to the back of the
radiator guard frames, so that they sit between the radiator guard and the radiator.
•Remove the bolt that secures the plastic radiator surround in place on the back side of the bodywork, as arrowed in picture 2.
•Gently pull the plastic radiator surround away from the bottom of the radiator (this can be removed to make it easier but is
not necessary) and slide the R&G Radiator Guard up behind it, as shown in picture 3.
•Position the radiator guard to cover the entire radiator, ensuring the two tabs at the top locate under the plastic radiator
surround at the top.
•Re-position the plastic radiator surround back in place parallel to the radiator. The plastic tab on the left side should locate
through the slot on the side of the radiator guard, as shown in picture 4.
•The lower mounting hole on the plastic radiator surround should now align with the radiator mount, sandwiching the
mounting hole of the radiator guard in between, as shown in picture 5. Re-fit the original bolt and tighten to the
recommended torque.
•Repeat the process for both sides of the bike.
•Check rad guards are correctly positioned and plastic panels are secure before riding.
ISSUE 1 11/01/19(DM)
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual
appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products
other than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits
the Products or undertakes other services it shall exercise reasonable skill and care and rectify any fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for
ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products R&G shall at its option either supply a replacement or refund the
purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good engineering
practice or if the defect arises from accident or neglect.
Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability
shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect the Buyer’s statutory rights.
R&G RACING RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct from us (customer must prove if
necessary). Otherwise to be returned to original vendor. Goods must be in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee
(25% of the gross value exc. P&P – at the prevailing price at time of purchase). The customer must pay any and all carriage charges. No returns of discontinued products, unless within 14 days
of purchase. This policy does not affect your statutory rights and does not refer to faulty goods.

Page 4of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
NOTICE DE MONTAGE POUR BRG0013 PROTECTION RADIATEUR
BMW R1250GS 2018
Notez que si les kits sont emballés avec des rondelles en caoutchouc servant à tenir les composants, ces rondelles doivent être
jetées !
LES PARTIES PRESENTÉES PEUVENT ETRE UNIQUEMENT REPRÉSENTATIVES (POUR LA CLARTE DES INSTRUCTIONS UNIQUEMENT).
Notice disponible au téléchargement sur www.rg-racing.com
Le kit contient
2x Protection radiateur (BRG001) (gauche et droite)
2x 100mm Longueurs de mousse autocollante
2 x Stickers en caoutchouc R&G
VALEURS DE SERRAGE RECOMMANDEES
M4 BOULON = 8Nm
M5 BOULON = 12Nm
M6 BOULON = 15Nm
M8 BOULON = 20Nm
M10 BOULON = 40Nm
OUTILS REQUIS
Clé Torx T20
Ciseaux

Page 5of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5

Page 6of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
NOTICE DE MONTAGE
•Pour installer la protection radiateur sur la moto, couper le bandeau de mousse fourni en pièces de 10mm puis collez-les au
bas du cadre de protection radiateur, de façon à ce qu’elles se placent entre la protection radiateur et le radiateur.
•Enlever le boulon qui fixe le contour de radiateur en plastique en place au bas du carénage, voir photo 2.
•Tirer le contour de radiateur du bas du radiateur (Il peut être retiré pour faciliter l’installation) puis glisser la protection
radiateur R&G derrière, voir photo 3.
•Positionner la protection radiateur pour cacher entièrement le radiateur, en veillant à ce que les 2 onglets du dessus se placent
sous le contour de radiateur en plastique du dessus.
•Repositionner le contour de radiateur en plastique en place en parallèle du radiateur. L’onglet en plastique du côté gauche on
doit se placer dans la fente du côté de la protection radiateur, voir photo 4.
•Le trou de fixation inférieur du contour de radiateur en plastique doit s’aligner avec le support radiateur, prenant en sandwich
le trou de fixation de la grille de protection radiateur entre deux, voir photo 5. Réinsérer le boulon d’origine puis serrer aux
valeurs de serrage recommandées
•Répéter le process des 2 côtés de la moto.
•Vérifier que les garde-boues soient correctement positionnés et que les panneaux plastique soient correctement fixés avant de
prendre la route.
ISSUE 1 11/01/19(DM)
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual
appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products
other than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits
the Products or undertakes other services it shall exercise reasonable skill and care and rectify any fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for
ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products R&G shall at its option either supply a replacement or refund the
purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good engineering
practice or if the defect arises from accident or neglect.
Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability
shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect the Buyer’s statutory rights.
R&G RACING RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct from us (customer must prove if
necessary). Otherwise to be returned to original vendor. Goods must be in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee
(25% of the gross value exc. P&P – at the prevailing price at time of purchase). The customer must pay any and all carriage charges. No returns of discontinued products, unless within 14 days
of purchase. This policy does not affect your statutory rights and does not refer to faulty goods.

Page 7of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Montageanleitung für BRG0013 Kühlerschutz
BMW R1250GS 2018
Hinweis für Kits mit Plastikunterlegscheiben an den Schrauben –Diese Plastikunterlegscheiben werden
nicht für den Einbau benötigt!
DIE UNTEN ABGEBILDETEN TEILE DIENEN LEDIGLICH ZUR ERKLÄRUNG.
Eine digitale Version dieser Montageanleitung kann auf folgender Seite heruntergeladen werden:
www.rg-racing.com
Inhalt des Kits:
2x Kühlerschutz (BRG0013 links & rechts)
2x 100mm selbstklebende Schaumstoffstreifen
2 x R&G Bubble-Aufkleber
ALLGEMEINE ANZUGSDREHMOMENTE
M4 SCHRAUBE = 8Nm
M5 SCHRAUBE = 12Nm
M6 SCHRAUBE = 15Nm
M8 SCHRAUBE = 20Nm
M10 SCHRAUBE = 40Nm
SIE BENÖTIGEN FOLGENDES:
T20 Torx-Einsatz
Schere

Page 8of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Abbildung 1
Abbildung 2
Abbildung 3
Abbildung 4
Abbildung 5

Page 9of 9BRG0013
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
MONTAGEANLEITUNG
•Um den Kühlerschutz am Motorrad zu montieren, schneiden Sie zuerst die mitgelieferten Schaumstoff-Streifen in 10 mm
breite Streifen und kleben Sie diese auf der Rückseite des Kühlerschutzrahmens, so dass sie zwischen dem Kühlerschutz und
dem Kühler angebracht sind.
•Entfernen Sie die Schraube, die die Kunststoffummantelung des Kühlers in Position befestigt (an der Rückseite der
Verkleidung) – siehe Abbildung 2.
•Die Kunststoffummantelung vorsichtig unten vom Kühler wegziehen (dies kann auch entfernte werden, um die Arbeit zu
erleichtern, ist aber nicht notwendig) und den R&G Kühlerschutz dahinter hochschieben – siehe Abbildung 3.
•Den Kühlerschutz positionieren, sodass der komplette Kühler abgedeckt ist. Bitte darauf achten, dass die zwei Laschen oben
unter der Kunststoffummantelung (oben) positioniert sind.
•Die Kunststoffummantelung wieder in Position bringen, parallel zum Kühler. Die Kunststofflasche an der linken Seite passt
durch die Längsöffnung an der Seite des Kühlerschutzes – siehe Abbildung 4.
•Die untere Montageöffnung an der Kunststoffummantelung sollte jetzt mit der Kühlerhalterung bündig sein, die
Montageöffnung des Kühlerschutzes dazwischen liegend – siehe Abbildung 5. Montieren Sie die Originalschraube wieder
und mit dem empfohlenen Anzugsdrehmoment befestigen.
•Diesen Vorgang an der anderen Seite des Motorrades wiederholen.
•Stellen Sie sicher, dass beide Kühlerschutze ordnungsgemäß positioniert sind und die Kunststoffverkleidungen sicher
befestigt sind bevor Sie mit dem Motorrad fahren.
AUSGABE 1 11/01/19(DM)
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such
state shall conform to the order. The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer
confirms it has chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it shall exercise reasonable skill and care and rectify any
fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products
R&G shall at its option either supply a replacement or refund the purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s
instructions and good engineering practice or if the defect arises from accident or neglect.
Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability shall be limited to the amounts
paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect the Buyer’s statutory rights.
R&G RACING RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct from us (customer must prove if necessary). Otherwise to be returned to
original vendor. Goods must be in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee (25% of the gross value exc. P&P – at the prevailing price at time of
purchase). The customer must pay any and all carriage charges. No returns of discontinued products, unless within 14 days of purchase. This policy does not affect your statutory rights and does not refer to faulty goods.
