Raven SC1™ HDU
Installation Manual for
Case IH Patriot 2250
(Steer Ready, MY 2017-
2019)
016-5032-107 Rev. A 8/2019 E33389

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-5032-107 Rev. A i
Chapter 1 Important Safety Information............................................................................. 1
General ............................................................................................................................................................................2
Instructions for Wire Routing .................................................................................................................................2
Chapter 2 Introduction............................................................................................................. 3
Preparing for Installation ..........................................................................................................................................3
Recommendations ................................................................................................................................................................. 3
Point of Reference .................................................................................................................................................................. 3
Updates ...........................................................................................................................................................................4
Kit Contents ...................................................................................................................................................................4
Chapter 3 Wheel Angle Sensor (WAS) Installation............................................................ 7
Chapter 4 Cab Component Installation.............................................................................. 11
Install the GPS Receiver Cable ..............................................................................................................................11
Install the Hydraulic Drive Unit (HDU) and SC1 ............................................................................................ 12
Install the SC1/HDU Harness ...........................................................................................................................................12
Mount the HDU ....................................................................................................................................................................16
Routine Operation .................................................................................................................................................... 18
System Diagram ........................................................................................................................................................ 19

Table of Contents
ii Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)

CHAPTER
1
016-5032-107 Rev. A 1
CHAPTER 1 IMPORTANT SAFETY
INFORMATION
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the SC1™ HD system.
• Follow all safety information presented within this manual.
• If you require assistance with any portion of the installation or service of your Raven equipment, contact your
local Raven dealer for support.
• Follow all safety labels affixed to the SC1 HD system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged safety
labels, contact your local Raven dealer.
When operating the machine after installing SC1 HD, observe the following safety measures:
• Be alert and aware of surroundings.
• Do not operate SC1 HD or any agricultural equipment while under the influence of alcohol or an illegal
substance.
• Remain in the operator’s position or a safe working distance away from the booms at all times when SC1 HD is
engaged.
• Disable SC1 HD when exiting from the operator’s seat and machine.
• Do not drive the machine with SC1 HD enabled on any public road.
• Determine and remain a safe working distance from other individuals. The operator is responsible for disabling
SC1 HD when the safe working distance has diminished.
• Ensure SC1 HD is disabled prior to starting any maintenance work on SC1 HD or the machine.
• When starting the machine for the first time after installing SC1 HD, be sure that all persons stand clear in case
a hose has not been properly tightened.
• The machine must remain stationary and switched off, with the booms unfolded and supported, during
installation or maintenance.
NOTICE
WARNING

CHAPTER 1
2 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)
GENERAL
• Always verify that the power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the equipment.
• Ensure that the power cable is the last cable to be connected.
• A minimum of 12 VDC is required for system operation with a maximum of 15 VDC.
INSTRUCTIONS FOR WIRE ROUTING
The word “harness” is used to mean all electrical leads and cables, bundled and unbundled. When installing
harness, secure it at least every 30 cm (12in) to the frame. Follow existing harness as much as possible and use
these guidelines:
Harness should not contact or be attached to:
• Lines and hoses with high vibration forces or pressure spikes
• Lines and hoses carrying hot fluids beyond harness component specifications
Avoid contact with any sharp edge or abrading surfaces such as, but not limited to:
• Sheared or flame cut edges
• Edges of machined surfaces
• Fastener threads or cap screw heads
• Ends of adjustable hose clamps
• Wire exiting conduit without protection, either ends or side of conduit
• Hose and tube fittings
Routing should not allow harnesses to:
• Hang below the unit
• Have the potential to become damaged due to exposure to the exterior environment. (i.e. tree limbs, debris,
attachments)
• Be placed in areas of or in contact with machine components which develop temperatures higher than the
temperature rating of harness components
• Wiring should be protected or shielded if it needs to route near hot temperatures beyond harness component
specifications
Harnessing should not have sharp bends
Allow sufficient clearance from machine component operational zones such as:
• Drive shafts, universal joints and hitches (i.e. 3-point hitch)
• Pulleys, gears, sprockets
• Deflection and backlash of belts and chains
• Adjustment zones of adjustable brackets
CAUTION

016-5032-107 Rev. A 3
IMPORTANT SAFETY INFORMATION
1
• Changes of position in SC1 HD and suspension systems
• Moving linkages, cylinders, articulation joints, attachments
• Ground engaging components
For harness sections that move during machine operation:
• Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or
rubbing, especially in articulation and pivot points
• Clamp harnesses securely to force controlled movement to occur in the desired harness section
• Avoid sharp twisting or flexing of harnesses in short distances
• Connectors and splices should not be located in harness sections that move
Protect harnesses from:
• Foreign objects such as rocks that may fall or be thrown by the unit
• Buildup of dirt, mud, snow, ice, submersion in water and oil
• Tree limbs, brush and debris
• Damage where service personnel or operators might step or use as a grab bar
• Damage when passing through metal structures
IMPORTANT:
• Avoid directly spraying electrical components and connections with high pressure water.
High pressure water sprays can penetrate seals and cause electrical components to corrode
or otherwise become damaged. When performing maintenance:
•Inspect all electrical components and connections for damage or corrosion. Repair or replace
components, connections, or cable as necessary.
•Ensure connections are clean, dry, and not damaged. Repair or replace components,
connections, or cable as necessary.
•Clean components or connections using low pressure water, pressurized air, or an aerosol
electrical component cleaning agent.
•Remove visible surface water from components, connections, or seals using pressurized air
or an aerosol electrical component cleaning agent. allow components to dry completely
before reconnecting cables.

CHAPTER 1
4 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)

CHAPTER
2
016-5032-107 Rev. A 3
CHAPTER 2 INTRODUCTION
Congratulations on your purchase of the SC1™ HDU system!
The following instructions are designed to assist with the proper installation of the SC1 HDU system. Refer to the
SC1 Calibration & Operation Manual (P/N 016-4010-005) for assistance with calibrating the software and using the
SC1 HDU system.
PREPARING FOR INSTALLATION
Before installing the SC1 HDU system, park the machine where the ground is level, clean, and dry. Turn off the
machine and leave it turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
RECOMMENDATIONS
Raven Industries recommends the following best practices when installing or operating the SC1 HDU system for
the first time, at the start of the season, or when moving the SC1 HDU system to another machine:
• Install the SC1 unit in the recommended location.
• Use part numbers to identify the parts.
• Do not remove the plastic wrap from a part until it is necessary for installation.
• Do not remove plastic caps from a part until it is necessary for installation.
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

CHAPTER 2
4 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)
UPDATES
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenprecision.com
KIT CONTENTS
This section contains a list of the components that are included in the SC1 HD kit. Before beginning the system
installation, compare the items in the kit with the components on this list. If you have questions about the kit,
contact your Raven dealer.
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)
-016-5032-107 Rev. A
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.
TABLE 1. Raven SC1 HD Installation Kit (P/N 117-5032-107)
Item Description Part Number Qty.
Sheet - Help/Warranty 016-0171-649 1
ECU - Hydraulic Drive Unit (HDU) 063-0173-887 1
ECU - SC1 Standard 063-0173-990 1
Bracket - HDU Mounting 107-0172-586 1

2
016-5032-107 Rev. A 5
INTRODUCTION
Cable - SC1/HDU 115-4010-119 1
Cable - WAS Adapter 115-4010-032 1
Cable - Steer-Ready Roof 115-4010-121 1
Terminator - 3-Pin J1939 Plug DT Series 408-4002-734 1
Washer - M6 Lock 313-1000-046 4
Nut - M6 Lock 312-4000-216 4
Nut - 1/4”-20 Flanged Lock 312-1001-168 4
TABLE 1. Raven SC1 HD Installation Kit (P/N 117-5032-107)
Item Description Part Number Qty.

CHAPTER 2
6 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)

CHAPTER
3
016-5032-107 Rev. A 7
CHAPTER 3 WHEEL ANGLE SENSOR (WAS)
INSTALLATION
NOTE: A factory steering cylinder with an internal WAS must be installed for the SC1 kit to function.
If a new steering cylinder is necessary, contact your local Case IH dealer and order P/N 51417100.

CHAPTER 3
8 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)

3
016-5032-107 Rev. A 9
WHEEL ANGLE SENSOR (WAS) INSTALLATION

CHAPTER 3
10 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)

CHAPTER
4
016-5032-107 Rev. A 11
CHAPTER 4 CAB COMPONENT
INSTALLATION

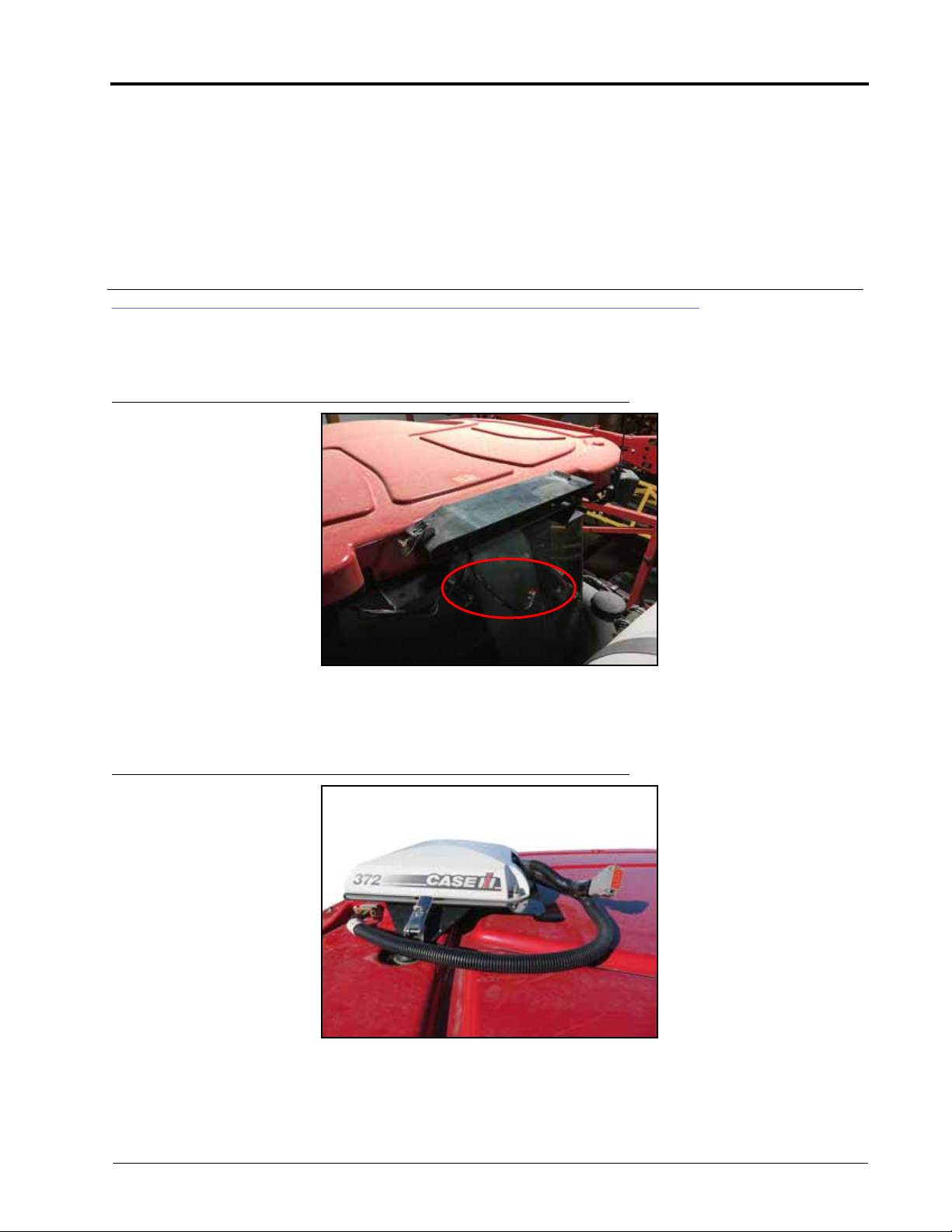

INSTALL THE GPS RECEIVER CABLE
1. Locate and disconnect the existing cable connected to the GPS receiver.

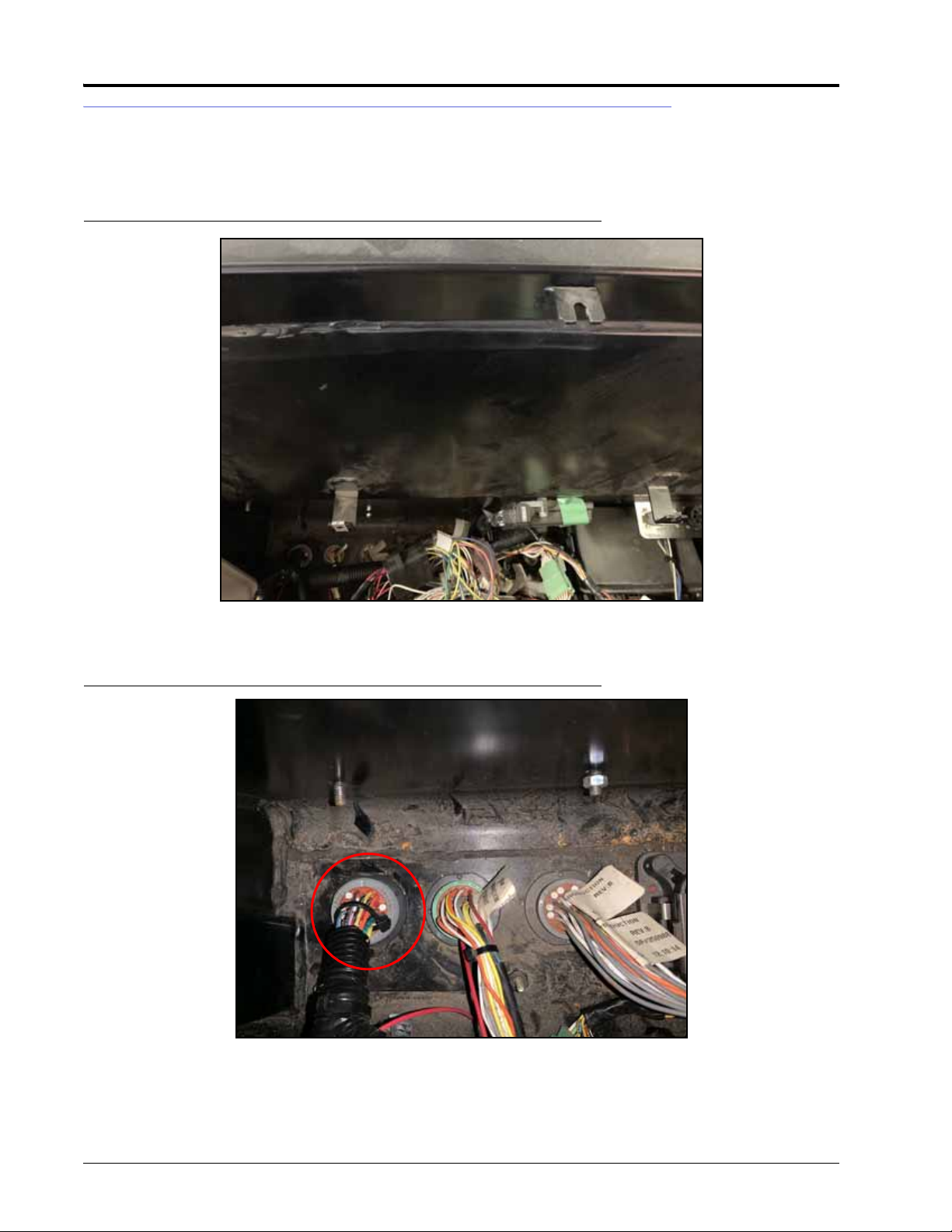

FIGURE 1. GPS Receiver Adapter Cable Connection
2. Connect the mating connector on the Steer-Ready Roof Cable (P/N 115-4010-121) to the existing roof harness.
3. Connect the remaining rectangular connectors to the GPS receiver.
FIGURE 2. GPS Receiver Adapter Cable Installed

CHAPTER 4
12 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)
INSTALL THE HYDRAULIC DRIVE UNIT (HDU) AND SC1
INSTALL THE SC1/HDU HARNESS
FIGURE 3. Access Panel to be Removed
1. Locate and remove the wall panel behind the operator seat.
FIGURE 4. Existing Machine XB-7 Bulkhead Connection
2. Locate the machine’s existing XB-7 bulkhead connection in the bottom, right of the cab.
3. From outside the cab, remove the nut and disconnect the machine’s 31-pin plug from the XB-7 bulkhead
connector.
4. From inside the cab, remove the XB-7 bulkhead connector from the hole in the cab wall.

4
016-5032-107 Rev. A 13
CAB COMPONENT INSTALLATION
5. Install the male 31-pin connector of the HDU harness (P/N 115-4010-119) in the hole in the cab wall and secure
it using the nut that was removed in step 3.
6. From outside the cab, connect the machine 31-pin connector on the installed HDU harness connector.
7. Connect the existing machine XB-7 bulkhead connector to the 31-pin connector of the HDU harness.
8. Inside the cab, connect the 40-pin connector of the HDU harness to the machine’s NAV CONNECTOR 1
connection.
FIGURE 5. Existing Machine XB-7 Bulkhead Connection
9. Locate the existing CAN terminator under the right arm rest.
FIGURE 6. Existing CAN Terminator
10. Remove the terminator and install one of the “To Machine Terminator” connectors on the HDU cable to the
mating connector on the existing machine cable.

CHAPTER 4
14 Raven SC1™ HDU Installation Manual for Case IH Patriot 2250 (Steer Ready, MY 2017-2019)
FIGURE 7. HDU Cable Connected
NOTE: If the machine is equipped with Raven CAN product control, skip to step 15 and install the provided
CANbus Terminator on the other “To Machine Terminator” connector.
11. Locate the machine CAN Diagnostic port at the rear, left of the cab.
FIGURE 8. Diagnostic Port
12. Remove the top panel to access the connector.
13. Locate the second CAN terminator.
