Rosenberg ECFanGrid FG-1601 Manual

ECFanGrid
TM
FG-1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
ECFANGRID MODULE
ECFANGRID RETROFIT KIT
ECFANGRID UNOBOX ARRAY

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
TABLE OF CONTENTS
Manufacturer reserves the right to discontinue or change specifications or designs without notice or obligation
1. ECFanGrid Block Diagram Configuration.
2. Safety Considerations.
3. Inspection on Arrival
4. Inspection Prior to Installation
5. Installation of Modules and Unoboxes
6. Installation of Constant Volume Control System
7. Interface of the Control System
8. EC Motor Connection Panel
9. ECFanGrid Constant Volume or Pressure Control
Schematic
10. ECFanGrid BMS Control with Modbus
11. Troubleshooting
12. Wiring Cabinet Architecture Schematic
9.

0 1 2 3 4 56 7 8 9
DATE DRAWN BY
VERIFIED BY
VERSION DATE NAME NORM
REFERENCE PROJECT
ROSENBERG CANADA LTD
FILE # OF DRAWING

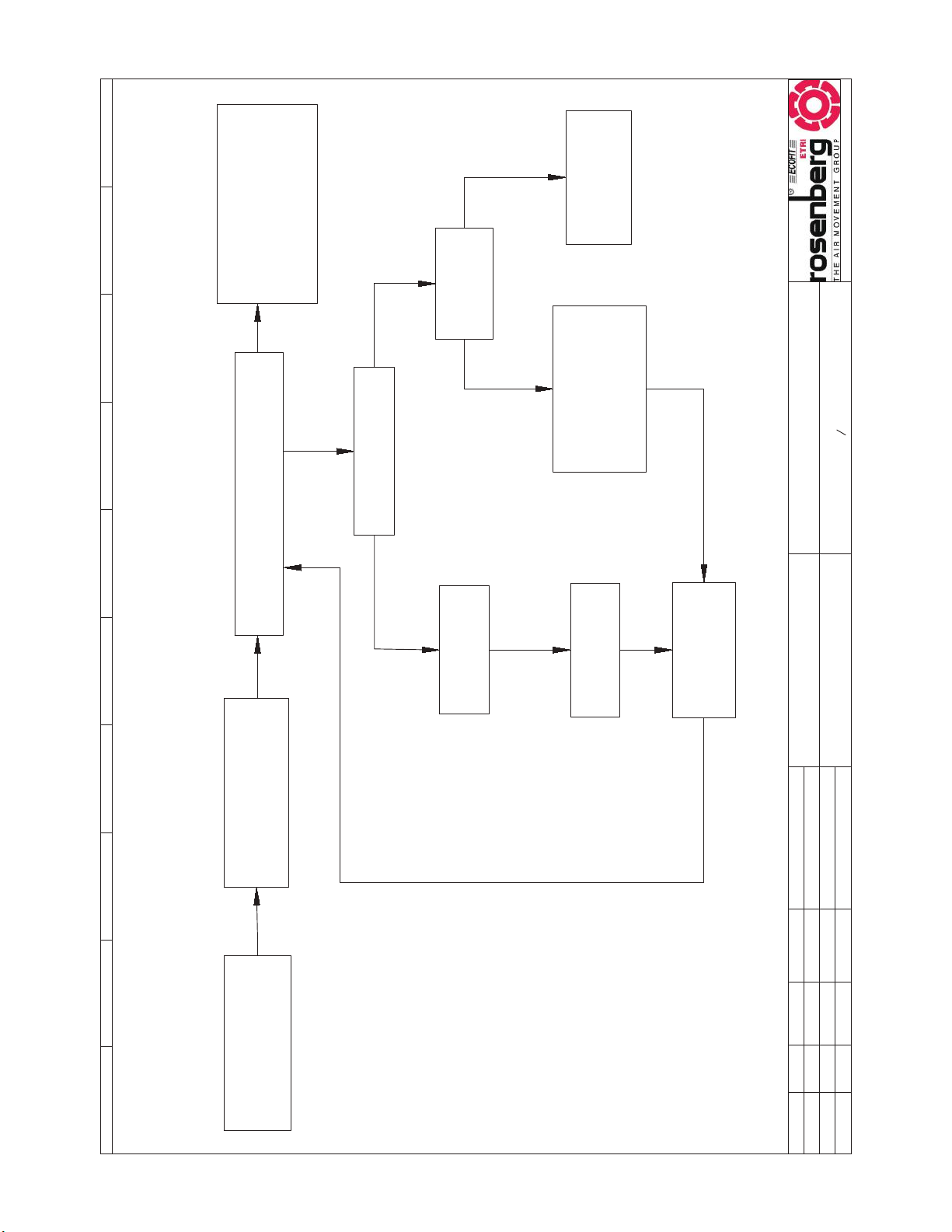

BLOCK DIAGRAM
FAN GRID CONFIGURATION
TYPICAL SYSTEM
1
1
AV05/12/171.0
ROSENBERG CANADA L.F.ORELLANA May 12, 2017
FANGRID TYPICAL CONFIGURATION
BLOCK DIAGRAM
Power Supplied
460V / 33K / 60Hz
Disconnect
Customer Supplied SYSTEM CONTROL PANEL LIGTHS
GREEN ==> ON
RED ==> ALARM
Current Supplied
460VAC 24VDC
Fan Motor(s)
0-10V Signal
RS 485
DTP-CRL Pressure Control
Alarm
Fan Cone (+)
Grid Area (-)

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
SAFETY CONSIDERATIONS
Hazards may exist within each Fan Module Unit because
it contains electrical and powerful moving components.
Only qualified service personnel should install or service
this equipment. Observe precautions as marked in
literature and on labels attached to each unit.
Main power must be disconnected via the main
disconnect and ‘locked out’ before performing any
service to at each unit(s) – failure to do so could result
in an electric shock which could cause personal injury or
death.
Improper installation, adjustment or alteration to a
unit(s) could cause property damage, personal injury or
death.
During Construction and/or Installation the following
Safety Codes must be observed:
฀Safety Shoes, Safety Glasses, Hard Hats and
Work Gloves must be worn.
฀Fire Extinguishers must be on Site for any
Cutting, Welding and/or Brazing, as required.
INSPECTION on ARRIVAL
All Rosenberg Fan Products are carefully constructed
and inspected prior to shipment to insure the highest
level of quality and performance.
A Visual Inspection of Fan Modules and/or UnoBoxes as
well as optional components should be carried out for
any damage that may have occurred during shipment or
material handling. In addition the Packing List should be
compared to the quantity of items received.
Should any damage be evident or if there is a
discrepancy, with regard to missing items – the Carrier’s
Bill of Lading should be signed indicating damage and
items missing.
INSPECTION prior to INSTALLATION
After all forms of Packaging have been removed from all
the Units, a further inspection of the Fan Wheel in all
cases is required to ensure freedom of rotation and that
there is an equal distance/clearance between the
Wheel Cone and the Inlet Cone through 360o.
If there is a discrepancy in freedom of rotation, the Fan
in question should not be installed and immediately
reported to the Sales Office located in Mississauga,
Ontario.
INSTALLATION of MODULES and UNOBOXES
Prior to installing Modules and/or UnoBoxes, the
supporting structure must be found to be level
horizontally and vertically plum.
Frame Construction with Modules begins with the
installation of the Inlet Cone Plate on to an Engineered
Structure, capable of carrying both static and dynamic
loads, resulting from the operating system. The next
step is to connect the Fan Assembly (Motor Cable
Connectors pointing to floor) with the (4) Struts to the
Inlet Cone Plate. The final assembly of each Module in
the FanGrid requires attaching the Inlet Cone to the
Cone Plate with the Pitot Tube connection pointing
down to the floor.
UnoBox Construction, requires connection angles at
each level, to provide stability at both the Inlet and
Outlet of each UnoBox.
FanGrid , requires that the Design of the Support
Structure, shall be suitable not only for static and
dynamic loads but also have a natural frequency
separation of at least 20% from the Fan System
operating speed/speed ranges.

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
INSTALLATION of CONSTANT VOLUME CONTROL
SYSTEM
A FANGRID System requires the measurement of
negative Air Pressure within the Space in front of the
Inlet Fans Area. The measurement device consists of ¼”
nylon tubing and 1/8” nylon tees forming a circular
‘Loop’ in the interior of the Space. The distance of the
circular ‘Loop’ from the Inlet Fan Face Area is calculated
by the following
Formula, where (a) and (b) represent the width and
height of the space:
INTERFACE of the CONTROL SYSTEM
The Flow Control of the FANGRID is established by the
connection of the circular ‘Loop’ and the ‘Pitot Ring’ on
each of the Inlet Cones to a DIFFERENTIAL PRESSURE
TRANSDUCER, which converts the Differential Pressure
with Calibration Factor (k-factor) of the Fan System.
ELECTRICAL CONNECTIONS
When installed, the FANGRID and optional Controls
shall be wired and electrically grounded in accordance
with local codes as well as with the National Fire
Protection Association (National Electrical Code),
ANSA/NFPA70 and/or the Canadian Electrical Code CSA
C22.1. The FANGRID installation must have an
uninterrupted, ground to minimize possible personal
injury, should any electrical fault occur. Failure to follow
this procedure could result in that the Installer being
liable for personal injury to others.
Electrical characteristics of each individual Fan in the
FANGRID, specifies maximum voltage and amperage
requirements, for optimum performance.
Required Line Voltage(s) and/or Control Voltage(s) are
detailed and specified in the attached APENDIX A, B, C &
D.
Pre START-UP Check
A – Lock-Out Main Power disconnect to the FANGRID,
prior Module or UnoBox check.
B – On outlet/discharge side check for visible damage
resulting from installation.
C – Check backdraft damper(s) for smooth operation, if
supplied and move dampers to ensure full range of
motion.
D – On inlet side check for damage to inlet cone plate
and inlet cone.
E – Rotate the fan wheel(s) by hand and ensure that
they are properly aligned with inlet cone.
F – Check VFD sizing and ratings for voltage and
horsepower.
G – Check in coming voltage at main disconnect against
phase to phase on three phase electrical system. – if is
not within 5% of Fan Nameplate Rating or 2% of phase
to phase, the condition must be corrected prior to start-
up.

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
START-UP PROCEEDURE
To ensure proper operation of the FANGRID as per
design, qualified personnel should perform the start-up
as outlined below:
1. Energize incoming main power to the FANGRID.
2. Bump-start the Fan(s) in the FANGRID, to
ensure Fan Rotation is correct – if not check motor
leads, for correct connection.
3. Perform start-up on AC Motor(s) which are VFD
controlled, as specified by the VFD Manufacturer –
adjust the Fan Motor(s) for the correct air volume/Hertz
4. Perform start-up on EC Motors(s) which are (0
to 10 vdc) controlled from Fan Motor.
5. Check if the Constant Volume or Constant Static
Pressure monitoring system is functioning (if supplied)

ECFanGridTM
FG - 1601
Installation, Operation and Maintenance Instructions

No. Terminal
Type
3 ~ 380 – 480 V -10% /+6%
50 / 60 Hz ± 5%
Type
3 ~ 200 – 240 V ± 10%
50 / 60 Hz ± 5%



Earth Ground
3 x L / PE 3 x L / PE
Mains
L1 Mains L1
L2 Mains L2
L3 Mains L3
1
Alarm
NO
alarm relay
make ON failure
max. 250VAC/4A or 42VDC/1,5A under ohmic load
2 COM COMMON
3 NC break ON failure
4
Analog 1
GND GND |UGND-PE|< 15V
5
(0-10V/PWM) rated value
0-10VDC; Permissible input signal 11V; input resistance 130k
PWM-frequency 500 Hz / PWM-amplitude = 10V
6 +10 V *
power
supply
± 5% / max. 6mA / short circuit protection
7
Analog 2
GND GND |UGND-PE|< 15V
8
(0-10V/PWM) actual value 0-10VDC; Permissible input signal 11V; input resistance 130k
PWM-frequency 500 Hz / PWM-amplitude = 10V
9 +24V *
power
supply
± 20% / max. 50mA / short circuit protection for 30s
10 +24V *
power
supply
11 ENABLE
1V
disabled
/

10V
enabled
(max. 30V)
/
input
resistance
4,7
k

12 A-OUT *
speed
out
0
-
10V
(max.
5mA
)
13 GND GND |UGND-PE|< 15V
14 RSA A-RS485
RS485 Bus IN / OUT (MODBUS RTU
|URSA-RSB | < 12V; |URSA-PE| < 6V; |URSB-PE| < 6V
15 RSB B-RS485
16 RSA A-RS485
17 RSB B-RS485

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
ECFanGrid–Constant Volume or Constant Pressure Schematic
EC FANGRID can be setup as a Constant Pressure or Constant Volume System wit h t h e combination of a
Differential Pressure Sensor and a Rosenberg Inlet Cone, supplied with multiple pressure taps.
+

ECFanGridTM
FG - 1601
Installation, Operation and Maintenance Instructions

 
 !"#$%&!'  ($ )
 !* +
 , !-. * 
 !'-$* //
!! '!' 0*$!! *!  !
12
 3  "#$ %  -2'  !   *  .$ - 4- 56 
7$  !.* ($ 

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
Fault
Possible Cause
Action
FAN WILL NOT
START OR RUN
NO Main Power or Incorrect
Voltage Phase-to-Phase
CHECK supply mains DIRECTLY at FAN TERMINALS
If Voltage is not within 6% of rated or 2% of phase-
to-phase, have the condition corrected.
Missing vdc SET POINT from
Analog 1
CHECK for 10vdc availability Between 10V and
GND Terminals at Analog 1
Missing ENABLE Signal
CHECK the 24VDC availability Between ‘ENABLE’
and GND Terminals
INTERNAL PROTECTIVE
FEATURE HAS TRIPPED
“Under voltage” – Incoming Voltage is below the
tolerance limit of the specified line voltage.
Check main supply and fusing
¾Failure is automatically reset after the
voltage rises above the minimum limit
“Over voltage” – Incoming Voltage is above the
tolerance level of the specified line voltage.
Check main supply and fusing
¾Failure is automatically reset after the
voltage falls under the maximum limit
“Locked Rotor”
Check Fan Impeller for overload caused by dirt or
foreign matter and freedom of rotation. Also check
motor Inlet Cone mounting hardware.
¾Manual Reset required
“Over temperature – electronics”
Air Flow and Ambient temperature too high
¾Failure is automatically reset after
temperature returns to a normal level

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017Rosenberg Fans Canada Ltd.
Fault
Possible Cause
Action
Fan rotates at max
speed –
independent of Set
Point
Fan is in Closed Loop Mode Contact Rosenberg Support to change parameter
with “EC-Param” Soft-Ware
Fan does not run
at max speed
Max Set Point is not present
on Analog 1.
Check Set Point according to pin connection and
increase.
Set Point on Analog 1 is too
high.
Limit Set Point according to pin connection.
Temperature dependant
power derating is activated.
Bring Air Flow and Ambient temperature to within
Nameplate limits.
Fan rotates with is
NO or NOT
ENOUGH Air Flow
RPM of Fan too low. Refer to “Fan does not run at max speed” above
Air Flow restricted
Check System duct elements (filtration, dampers,
duct fittings and size)
Actual System pressure is
higher than Calculated
Check Fan selection
Installation not favorable to
good design practice
Review resistance within the installation design
Vibration / Fan
Impeller rubbing
Inspect Impeller for clearance between Inlet cone
and Wheel cone.
Poor mounting arrangement
- resonance
Modify mounting support – add additional
hardware
Impeller build-up
Remove build-up and/or re-balance Impeller
“Over temperature – motor”
Air Flow and Ambient temperature too high
¾Failure is automatically reset after
temperature returns to a normal level
“Failure in power section”
Current or Voltage has risen to a critical level
¾
Manual Reset required

ECFanGrid
TM
FG - 1601
Installation, Operation and Maintenance Instructions
©2017 Rosenberg Fans Canada Ltd.
Noise
Defective bearings Isolate Fan immediately. Contact Rosenberg
Support
Fan operating in stall or
forbidden flow region Move Operating Point by reducing pressure losses
RCD-Switch or Fuse
tripping
Ground Fault or Short Circuit Check for Cable damage or the presence of
moisture
Defective Motor and/or
Electronic Head Contact Rosenberg Support

01 2 345 6 78 9
DATE
DRAWN BY
VERIFIED BY
VERSION DATE NAME NORM
REFERENCE PROJECT
FILE # OF DRAWING
POWER &CONTROL
ECFanGrid ECFanGrid
1 / 1
A.VAZQUEZ
05/24/171.0 ROSENBERG CANADA
L.F.ORELLANA
May 12, 2017
WIRING ARCHITECTURE
ECFanGrid
POWER & CONTROL
WIRING ARCHITECTURE
MAIN POWER
460V / 3ɸ / 60Hz
DISCONNECT
WITH FUSES SYSTEM CONTROL PANEL
Operating
"ON"
Alarm Main
Switch 1
Main
Switch 2
Enable
ON/OFF
Cable Entry from bottom of Cabinet
460VAC 460VAC 24VDC
Alarm ON
System ON
460VAC
FAN MOTOR N
24VCD
0-10VDC
FAN MOTOR N+1
P(+)
24VDC
Interior View Front View
TM.
P(-)
460VAC
HK DIFFERENTIAL
PRESSURE CONTROLLER
PNEUMATIC SIGNAL P(-)
PNEUMATIC SIGNAL P(+)
CONSTANT FLOW /
PRESSURE SETTING
