1. INTRODUCTION
2. SAFETY PRECAUTIONS
Thank you for choosing a Royal Sovereign trimmer. It has been designed and manufactured to provide
years of continuous service. For complete operating and maintenance information please read this
manual thoroughly. Upon receipt of your trimmer, please inspect the box, the machine and all other
contents for shipping damage. Damage should be brought to the immediate attention of the delivering
carrier (See page 7 for list of shipment elements).
Failure to comply with any of the following safety procedures could result in serious injury. Please read
all instructions carefully and keep for future reference. Royal Sovereign International Inc. cannot be held
responsible for any damages to people, animals or objects due to noncompliance with the safety norms
and recommendations of these documents.
1. Only a licensed electrician should install wiring and outlet for the trimmer.
2. Ensure the unit is plugged into a properly grounded outlet with the correct voltage.
3. Keep hands away from cutting blade when in operation.
4. Keep flammable and wet objects away from the machine.
5. Place machine on a level surface.
6. Avoid excessive sunlight, humidity and extreme temperatures.
7. Ensure the unit is turned off and unplugged from the outlet prior to moving and/or repairing.
8. Keep out of reach of children.
9. Only Royal Sovereign authorized maintenance and service technicians should make repairs.
10. Do not attempt to trim items that exceed total recommended material thickness for the unit.
11. When cleaning the machine, don't use flammable sprays or materials.
12. Do not touch the blade when in use or place foreign objects inside the machine.
13. Tampering with the protections (rear cover, safety cover, protector plate) and safety devices
is dangerous for the people using the machine and for those exposed to it. Royal Sovereign
International Inc. cannot be held responsible for any damages to people, animals or objects due to
tampering with the protections.
14. Pay attention to the danger notices on the trimmer.

RET Series
4
Dangerous areas and residual risks
All the areas around the machine in which people are at risk of injuries or health problems are
considered dangerous.
Pay close attention to hands when operating the trimmer.
During certain intervention procedures on the machine, which are pointed out each time in this manual,
residual risks for the operator may arise. Residual risks can be avoided by carefully complying with the
procedures of this manual and using the personal protection devices indicated. such as:



manufacturer.

Trimmer should only be operated by trained personnel
DO NOT PLACE HANDS NEAR THE CUTTING BLADE !
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
5

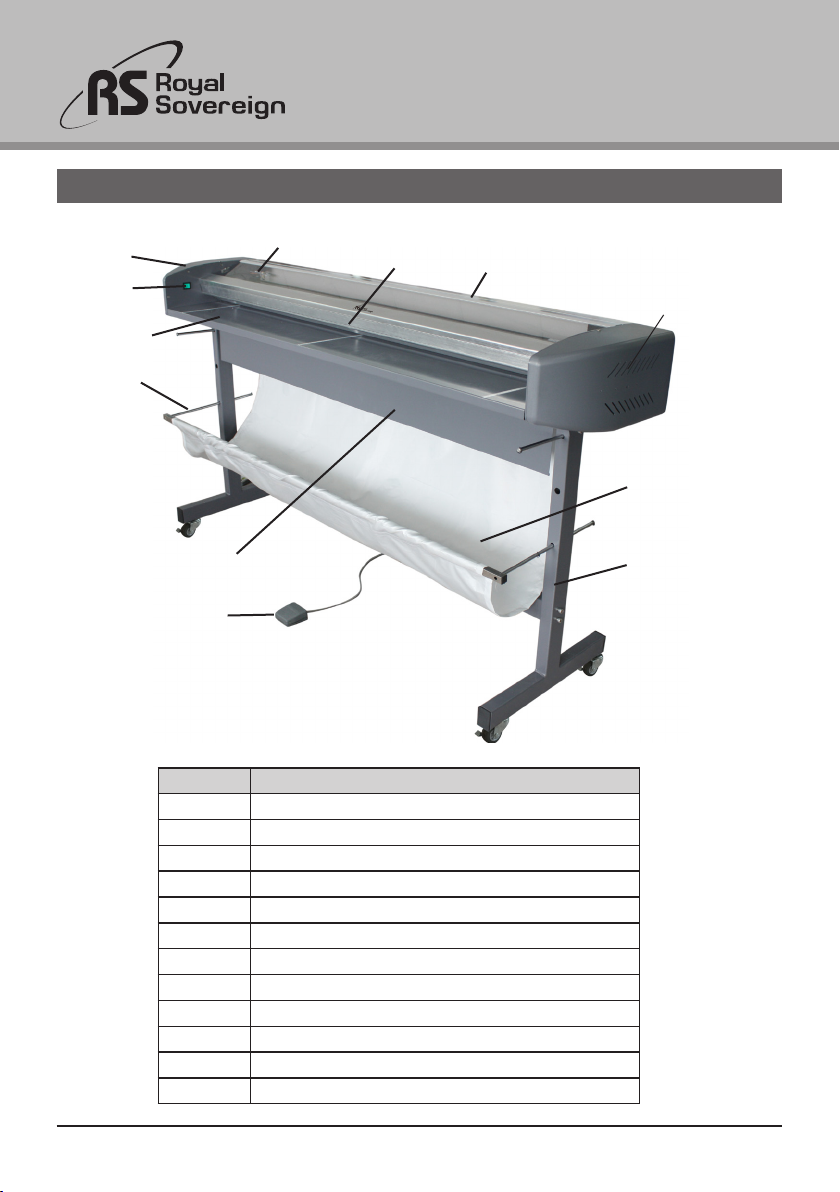

3. PRODUCT IDENTIFICATION
9
7
8
12 11 10
5
3
4
6
1
2
NO PART NAME
1 Left Side Cover
2 Power Switch
3 Feed Table Front
4 Fabric Holder Rod
5 Protection Plate
6 Foot Pedal
7 Floor Stand
8 Waste Catcher
9 Right Side Cover
10 Rear Cover
11 Activation Bar
12 Safety Cover

RET Series
6
4. INSTALLATION
Note: The trimmer should be installed by a trained service technician
The trimmer needs to be assembled by a trained installer.
The trimmer should only be used in an area with the following characteristics:




4.1 Electrical requirements
Royal Sovereign recommends that a licensed electrician ensures proper power installation to your trimmer
in accordance with electrical codes in your area.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
7

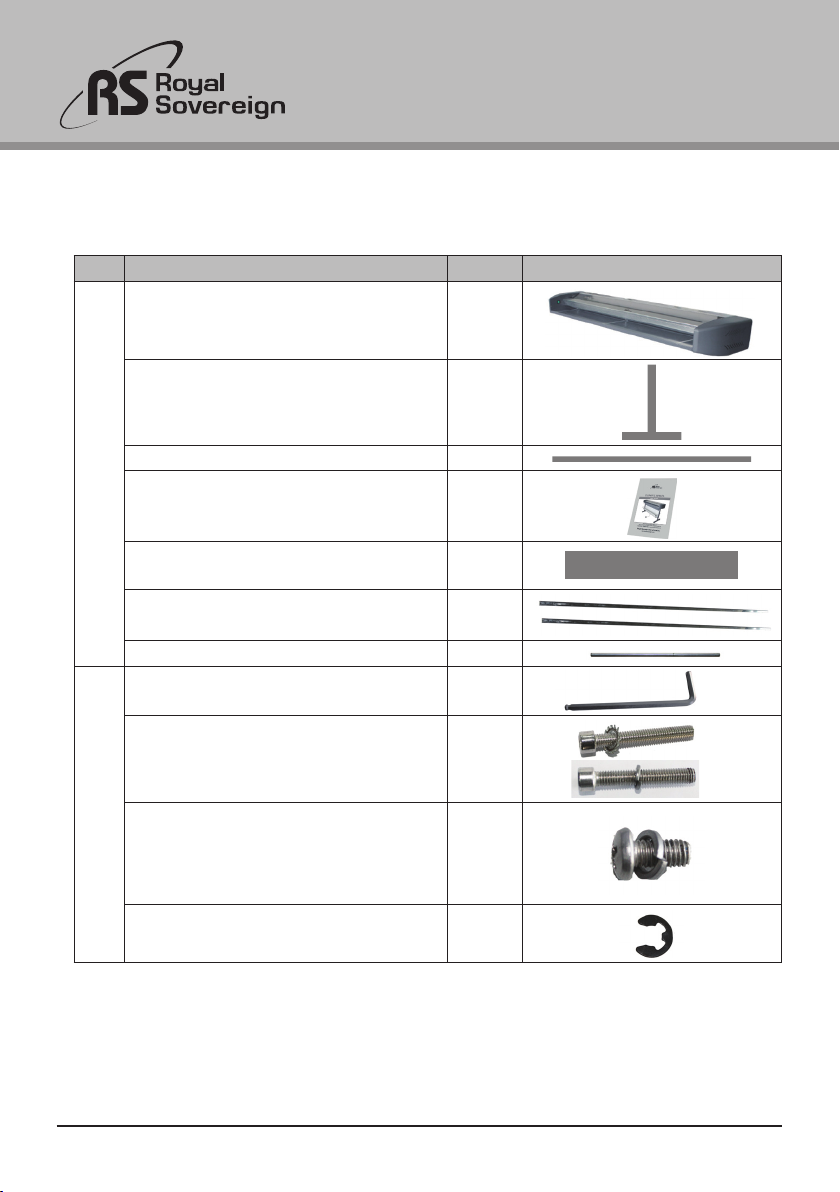

4.2 Box contents
Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a
claim is filed with the reseller immediately upon receipt of shipment.
Part Name Quantity Picture
Main
Box
Main Trimmer Assembly 1
Floor Stand Side Frame 2
Floor Stand Cross Bar 1
Owner's Manual 1
Protection Plate (RET-1652/RET-2002)
Protection Plate (RET-2502)
1
2
Wastecatcher Square Bars 2
Fabric Holder Bars 4
Tool
Box
L-wrench (4/6) 1 / 1
5/16 Hexa head bolt (M8*55mm)
Star washer (Ø8.2)
Spring washer (Ø8.2)
10
6
4
5/32 screw (M4*8mm) (RET-1652/2002/2502)
Spring washer (Ø4.1) (RET-1652/2002/2502)
3/4/6
3/4/6
E-ring (Ø8) 8
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
8

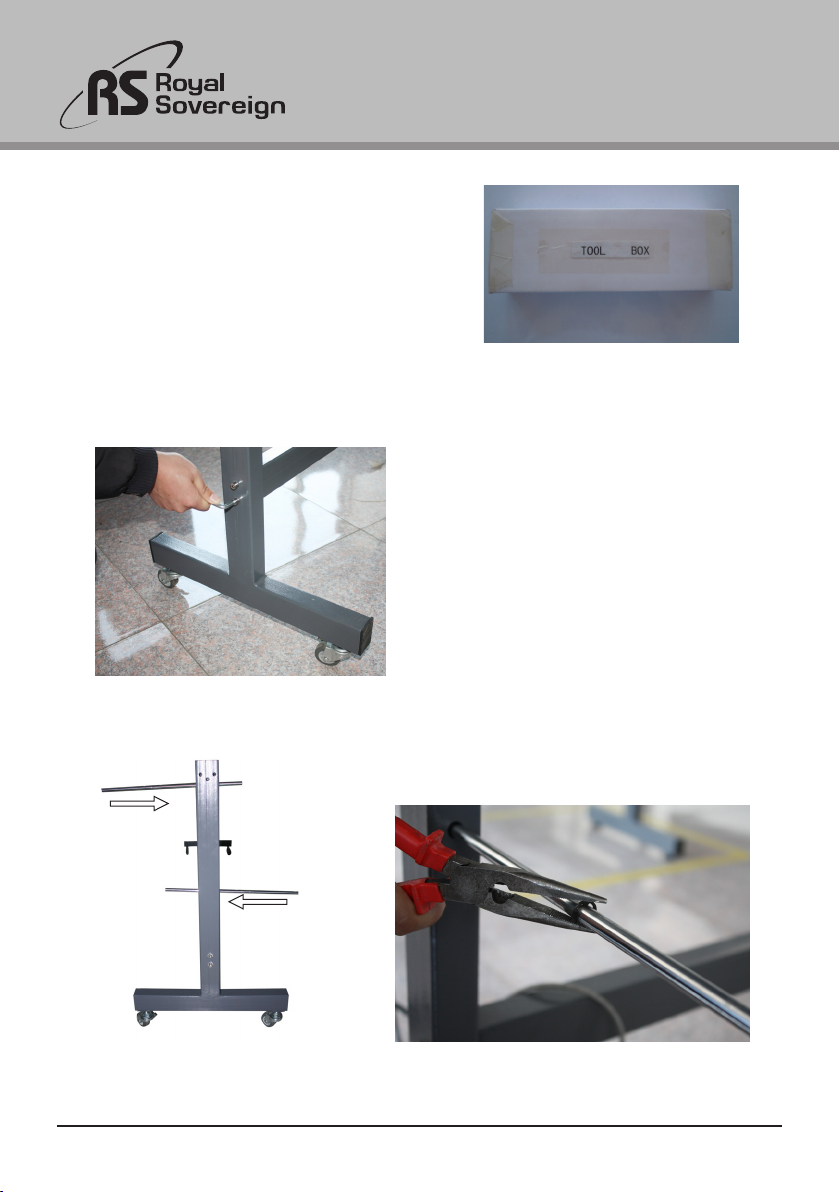

4.3 Assembly
1. Open the box carton and remove all parts.
2. Open the tool-box. (Fig. 4-1)
This operation must be carried out by a minimum of two people
3. Attach the lower cross bar to the left floor stand side frame and right floor stand side frame using the
supplied screws (M8x55). (Fig. 4-2)
4. Slide the holder rods into the adjacent holes of the assembly in accordance with Fig. 4-3. Using
pinchers, place the E-rings into the appropriate mounting slots of the holder rods. (Fig.4-4)
rear
front
Fig. 4-3 Fig. 4-4
Fig. 4-2
Fig. 4-1
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
9
5. Screw the wastecatcher square bars into the previously inserted wastecatcher holder rods, (Fig. 4-5)
putting the supplied screws through the largest drilling in the square bar, so that the head of the screw
sits flush within the bar itself. (Fig. 4-6)
Fig. 4-5 Fig. 4-6
6. Position the main trimmer assembly on top of the floor stand. And properly align the bolt holes. Use
bolts (M8x55) to attach the main trimmer assembly to the floor stand. (Fig. 4-7)
Fig. 4-7
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
10
7. Attach the protection plate (Fig. 4-8) to the upper cross bar with the supplied screws. The protection
plate must be assembled on the front part of the upper cross bar, always keeping the table adjustment
pin upward.
Fig. 4-8

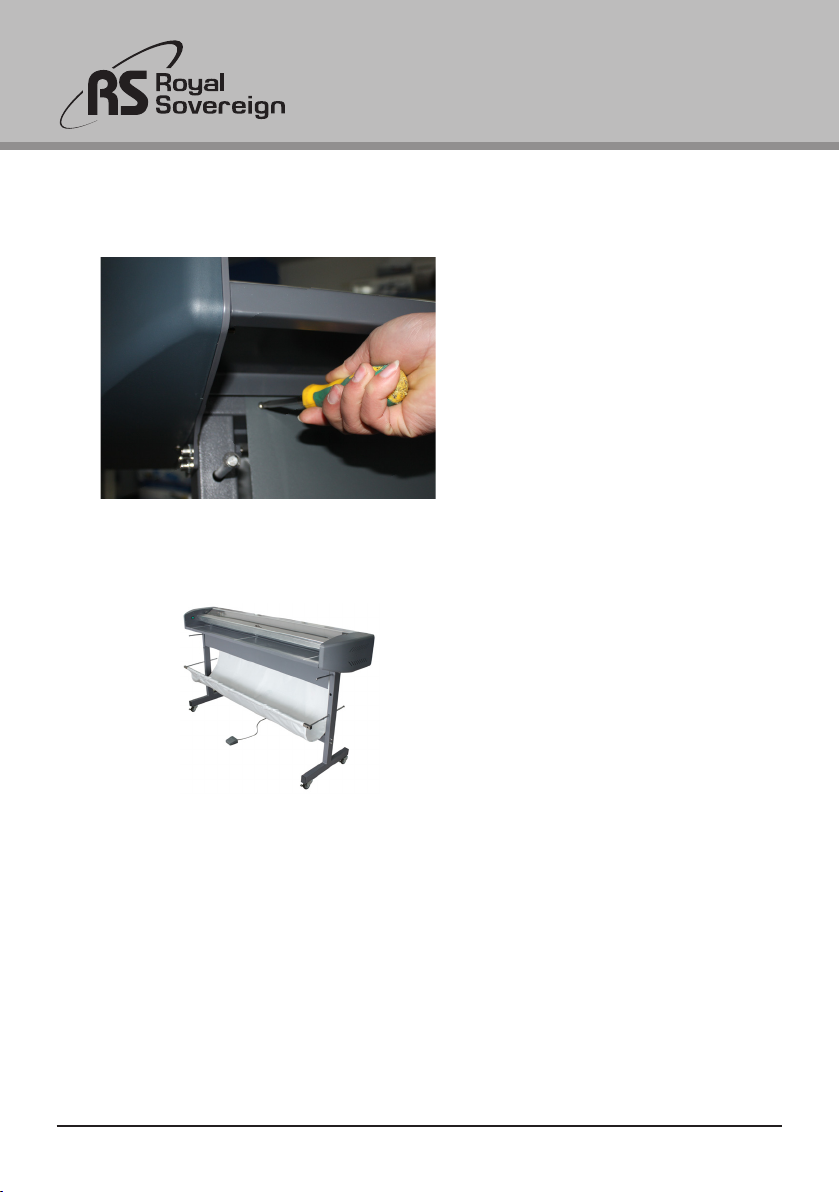

8. Connect the power cord in to the AC outlet and turn the Power switch to the ON position.
9. The Trimmer is now ready for Operation. (Fig. 4-9)
Fig. 4-9
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
11
5. OPERATION
The trimmer must only be used by trained and qualified personnel.
The trimmer must be used only for trimming material for which it has been designed.
For recommended maximum cutting thickness see page 14.
1. The trimmer should be positioned on a level surface in an area with adequate lighting and enough
work space for feeding materials. Connect the power cord to the AC outlet and turn the Power switch
to the ON position. The machine should be operated from the front of the machine only.
2. To begin trimming material, position the material to be trimmed on the front feeding table (Fig. 5-1)
and measure the cut by using the scales present at either side of the feed table or by the guideline.
Do not lean against or put any object on the feeding table during trimming.
3. When the material is properly positioned press the activation bar (Fig. 5-2) anywhere along the length
of the trimmer to activate the cutting blade or step on the foot pedal (Fig. 5-3) to activate the cutting
blade. The material can now be removed or repositioned for another cut.
Fig. 5-1 Fig. 5-2 Fig. 5-3
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
12
6. MAINTENANCE
Standard maintenance
CAUTION: Unplug the trimmer from the power outlet during any maintenance to avoid risk of electric
shocks.
Note: Only qualified personnel should attempt standard maintenance on the trimmer.
Maintenance Procedures
Follow below procedures as needed.
Maintenance Frequency of
execution Procedure Precautions
General dusting At user's discretion  Do not use aggressive products
Cleaning the scrap
material
If there is a lot of scrap
material


aspirator and/or compressed air
Wear a pair of protection gloves
Replace the fuse of
general wiring When the fuse is burnt



 Isolate the machine from power
supply sourses by unplugging
the power cord
Replace the fuse
on the electronic
board
When the fuse is burnt


 Isolate the machine from power
supply sourses by unplugging
the power cord
Replace the
electronic board
When the electronic
board is broken


unscrewing the 3 screws for fixing

Isolate the machine from power
supply sourses by unplugging
the power cord
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
13
7. TROUBLESHOOTING
Symptoms Cause Possible Solution
Machine won't turn on. Lamp
is off, and main switch is off
position
a. Power cord not plugged in
b. Power switch is in “0” off
position
c. Power fuse is blown out
a. Plug the power cord into
appropriate position
b. Put power switch back
“1” on position
c. Replace main power fuse
Though power & lamp is
'ON', but cutter won't move
after pressing switch button

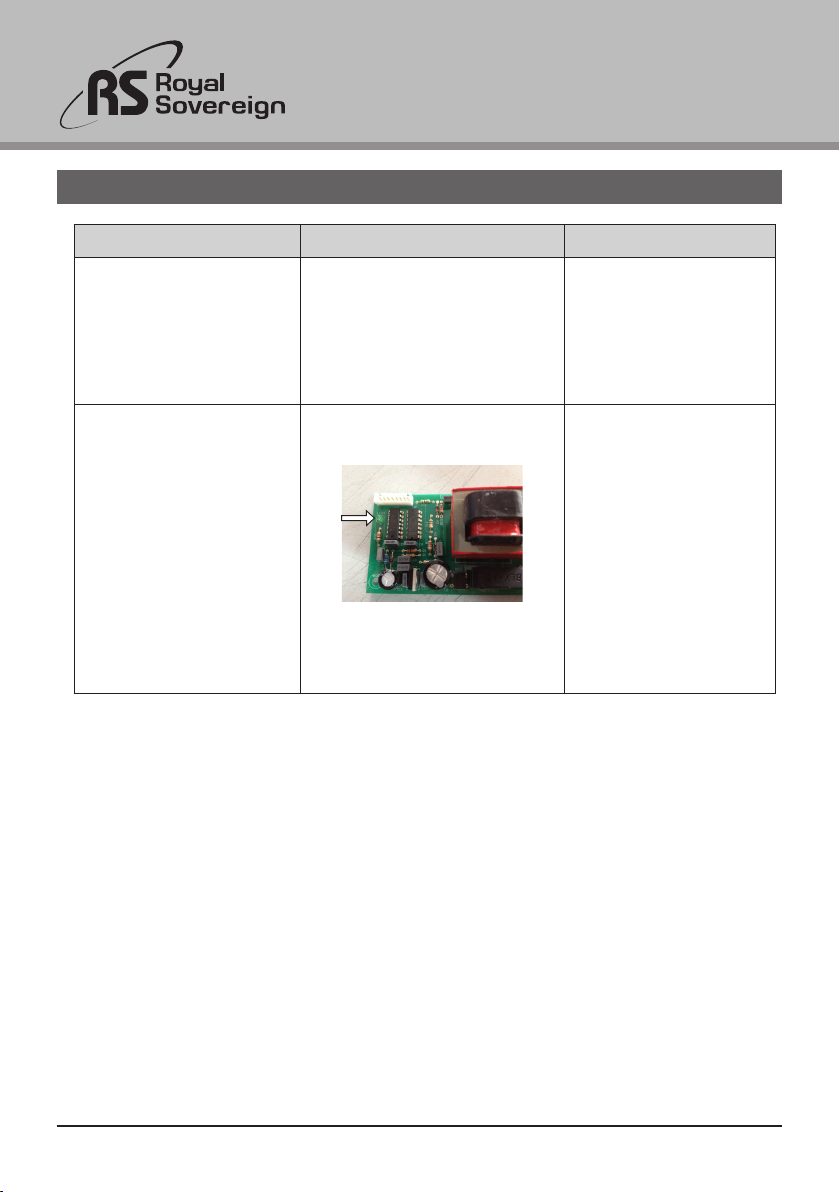

a. If the 'led3' on the PCB is off,
the fuse on the PCB is blown out
b. If the 'led3' on the PCB is on,
either the right or left limit switch
is disconnected
a. Replace the fuse on PCB
b. Replace either the right
or left micro switch
For more troubleshooting Queries, please contact Royal Sovereign.
led3
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
14
8. SPECIFICATIONS
9.1 Technical information
MODEL RET-1652 RET-2002 RET-2502
Power supply 220V(60Hz),220~240V(50Hz),100V(50/60Hz),110~120V(60Hz)
Absorbed current max 0.7A-(max1.2A)
Max cutting thickness 30mil/1mm
Usable cutting length 65inch/1650mm 78inch/2000mm 98inch/2500mm
Cutting speed 6.6ft/sec/2m/sec
Length 93inch/2370mm 107inch/2720mm 126.7inch/3220mm
Width 18.9inch/480mm
Height 40.2inch/1020mm
Working table height 34.3inch/871mm
Unit weight 143lbs/65kg 155lbs/70kg 176lbs/80kg
Accessories Roll Holder
9.2 Recommended Trimming Materials
NO Material Type Max.cutting thickness
1 Canvas 20mil/0.500mm
2 Laminate 15mil/0.375mm
3 Lexan 10mil/0.250mm
4 Paper 30mil/1.000mm
5 Styrene 10mil/0.250mm
6 Vinyl 20mil/0.500mm
Trimming any material with a thickness exceeding the maximum may
dull or damage the cutting blade.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

RET Series
15
9. WARRANTY
Royal Sovereign International warrants the equipment sold is free from defects in material and workmanship
for a period of One (1) year for Parts and Labor from the date of installation, excluding cutting blades which
are warranted for Six (6) months. This warranty is valid only to the original purchaser. This warranty is the
only warranty made by Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s
sole and exclusive liability and the customer’s sole and exclusive remedy under this warranty shall be, at
Royal Sovereign’s option, to repair or replace any such defective part or product. These remedies are
only available if Royal Sovereign’s examination of the product discloses to Royal Sovereign’s satisfaction
that such defects actually exist and were not caused by misuse, neglect, attempt to repair, unauthorized
alternation or modification, incorrect line voltage, fire, accident, flood or other hazard.
All warranty claims must be filed through Royal Sovereign or the authorized Royal Sovereign dealer or
reseller through which the equipment was originally purchased. Model, serial number and date of delivery
are required for all claims.
The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or
merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or
personal injury (unless primarily caused by its negligence), loss of profit, or other incidental or consequential
damages arising out of the use or inability to use this equipment.
This warranty specifically does not cover damage to cutting blade caused by attempted cutting of
materials and/or thicknesses of materials other than those specified for use in the user manual, or failure
caused by adhesives, or damage caused by lifting, tilting or improper use of the machine. Warranty repair
or replacement by Royal Sovereign or its authorized Reseller(s) does not extend the warranty beyond
the initial one year period from the date of installation. Unauthorized customer alterations will void this
warranty.
LIMITED WARRANTY
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
