Wireless keypad
VERSA-LCDM-WRL
Firmware version 2.02
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. [phone]
[email protected]
www.satel.pl

WARNINGS
The device should be installed by qualified personnel.
Read carefully this manual before proceeding to installation.
Changes, modifications or repairs not authorized by the manufacturer shall void your rights
under the warranty.
The name plate of the device is located on the enclosure base.
The SATEL's goal is to continually upgrade the quality of its products, which may result in
alterations of their technical specifications and firmware. The current information on
the introduced modifications is available on our website.
Please visit us:
http://www.satel.eu
Hereby, SATEL sp. z o.o., declares that this keypad is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. The declaration of
conformity may be consulted at www.satel.eu/ce
The following symbols may be used in this manual:
- note;
- caution.

The VERSA-LCDM-WRL wireless keypad enables operation and programming of the control
panels of VERSA (firmware version 1.04 or newer) and VERSA Plus series. The device is
designed for work within the ABAX two-way wireless system. It is supported by the ACU-120
/ ACU-270 controller connected to the VERSA / VERSA Plus control panel.
Fig. 1. VERSA-LCDM-WRL keypad.
1. Features
Two-way encrypted radio communication in the 868 MHz frequency band.
Display 2 x 16 characters with backlight.
LEDs indicating the state of partitions and system.
12 keys, bearing designations according to telephone standard and intended for entering
data.
4 additional keys for menu navigation and arming/disarming.
Backlit keys.
Built-in proximity card reader.
Built-in sounder.
Tamper contact reacting to the enclosure opening or detaching from the wall.
Power supply: two CR123A 3 V batteries.

2 VERSA-LCDM-WRL SATEL
2. Description
Operating modes
The keypad can work in two modes:
active mode – started by pressing any key. If the WAKE-UP option is enabled, the active
mode will also be started if the entry delay countdown starts or an alarm occurs (see
section “Settings stored in ABAX system controller” p. 5). In this mode, the keypad
operates in much the same way as the LCD wired keypad. The display is ON and the
backlight, LED signaling and sound signaling are active.
inactive mode – started if no key is pressed in the active mode for 20 seconds. This is the
energy-saving mode. The display is OFF and the backlight, LED signaling and sound
signaling are inactive (if the WAKE-UP option is enabled, the CHIME from zones will be
signaled – see section “Settings stored in ABAX system controller” p. 5).
Support for proximity cards
The proximity card reader is enabled for 5 seconds after starting the active mode. During that
time, the user can use the proximity card (a passive 125 kHz transponder, which can be in
the form of a card, tag, etc.) to fully arm / disarm the system or clear alarm. If the alarm
system is not to be operated by using the proximity cards, the reader can be disabled (thus
reducing the battery consumption).
Periodic transmissions
Every 15 minutes, the keypad sends a periodic transmission. The purpose of such
transmissions is to monitor presence and condition of the keypad.
Battery status control
The keypad controls the status of the batteries. If the voltage is lower than 2.75 V:
low battery information is sent during each periodic transmission,
on entering the active mode, a low battery message will be displayed (the message will
specify which battery is to be replaced – the battery designation can be found on the
electronics board, after opening the enclosure).
The battery life depends on how the keypad is used. The more frequently the active
mode is entered, the quicker the batteries will be depleted.
3. Installation
There is a danger of battery explosion when using a different battery than
recommended by the manufacturer, or handling the battery improperly.
Be particularly careful during installation and replacement of the batteries. The
manufacturer is not liable for the consequences of incorrect installation of the
battery.
The used batteries must not be discarded, but should be disposed of in
accordance with the existing rules for environment protection.
The keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.
1. Open the keypad enclosure (Fig. 2).

SATEL VERSA-LCDM-WRL 3

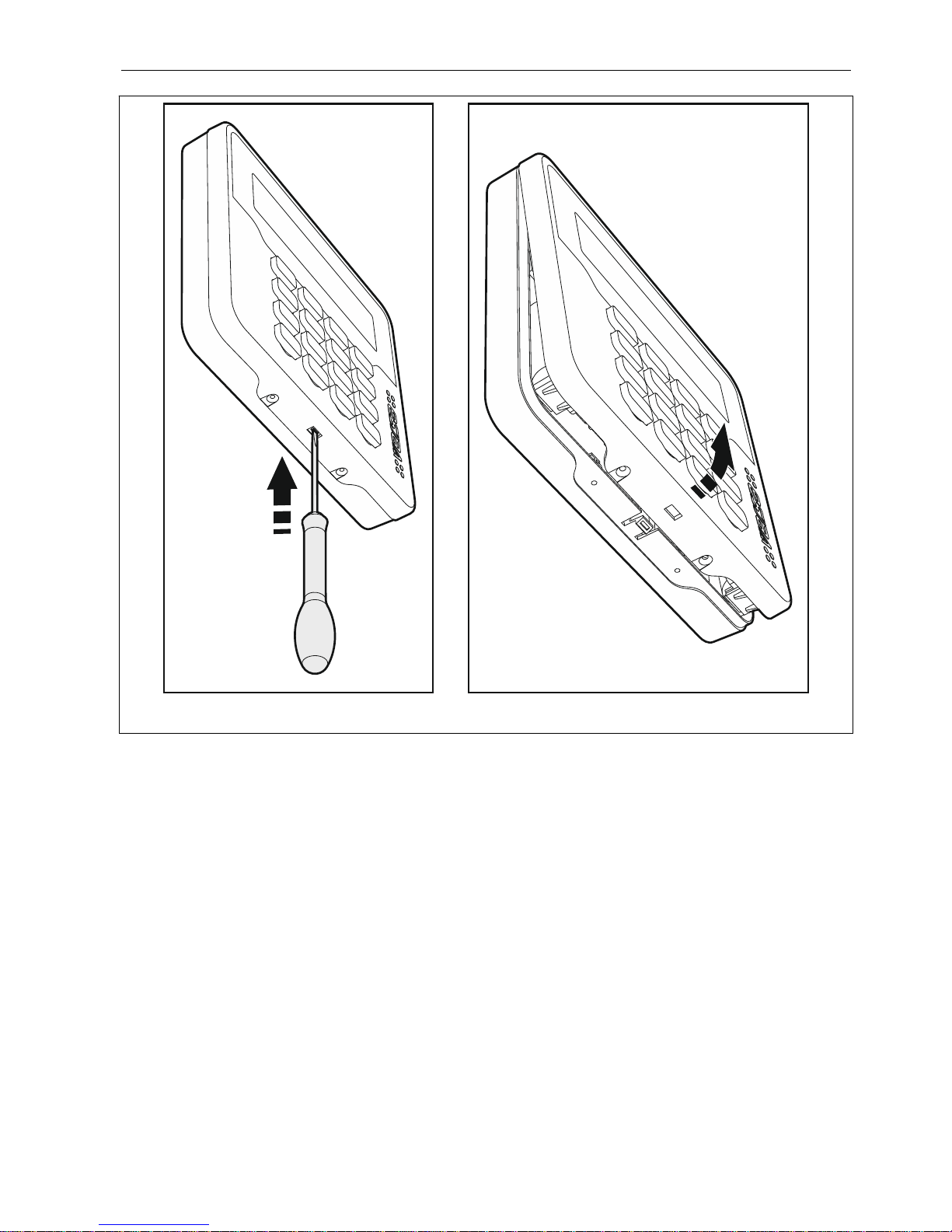

Fig. 2. Opening the enclosure.
2. Install the batteries and add the keypad to the wireless system (see: “Adding the keypad to
the wireless system”).
3. Put the cover on the catches and snap the enclosure shut.
4. Fasten the keypad temporarily at the place of its future installation.
5. Check the level of signal received from the keypad by the ACU-120 / ACU-270 controller.
If the signal level is lower than 40%, select another place for installation. Sometimes, it is
sufficient to shift the device ten or twenty centimeters to obtain a considerable
improvement in the signal quality. Only after the optimal level of radio signal is achieved
can you proceed to the next step.
6. Open the keypad enclosure (Fig. 2).
7. Place the enclosure base against the wall and mark location of the mounting holes.
8. Drill the holes in the wall for wall plugs (screw anchors).
9. Using wall plugs (screw anchors) and screws, secure the enclosure base to the wall
When installed, the device must withstand a pull-off force of at least 50 N.
10.Put the cover on the catches and snap the enclosure shut.
11.Lock the cover using screws.

4 VERSA-LCDM-WRL SATEL
3.1 Adding the keypad to the wireless system
You can add the wireless keypad to the ABAX system by using either a computer with
DLOADX program installed, or an LCD keypad. The controller allows for registering of up to 6
VERSA-LCDM-WRL keypads. If no wired keypad is connected to the control panel, you can
only add the first wireless keypad using the DLOADX program (to establish communication
between the program and the control panel, you must start the service mode “from pins” –
refer to the control panel programming manual).
3.1.1 DloadX program
You can add wireless keypads in the “Versa – Structure” window, “Hardware” tab, after
clicking on the name of ABAX system controller on the list of devices, and then on the “LCD-
WRL” tab (see: Fig. 3p. 6).
1. Click on the “Read” button to read the data related to wireless keypads from the controller
(these data are not read after clicking on the button in the main menu).
2. Click on the “New device” button. The “New wireless dev.” window will open.
3. In the “Serial number” field enter the 7-digit serial number of the added device. The serial
number can be found on the electronics board.
4. In the “Address” field, select which address is to be assigned to the keypad to be added.
5. Press any button on the keypad or open its tamper switch.
6. The message will confirm that a keypad has been added (unless you have entered an
invalid serial number, of which you will be informed by a message). The name assigned to
the keypad will be displayed. You can change it.
7. Click “OK” (to cancel adding the keypad, click on the “Quit” button). The “New wireless
dev.” window will close. The new keypad will appear in the table, “LCD-WRL” tab, as well
as on the list of expanders.
8. Click on the “Write” button to write the new wireless keypad data to the controller (these
data will not be written after clicking on the button in the main menu). The new
keypad data will be automatically written to the control panel.
3.1.2 LCD keypad
You can add wireless keypads in the service mode by means of the NEW DEVICE function
(SERVICE MODE 2. HARDWARE 1. KPDS.&EXPS. 3. WIRELESS MOD. 1. NEW DEVICE).
1. Having started the function, enter the 7-digit serial number of the added keypad and press
the key. The serial number can be found on the electronics board.
2. When the “Open device tamper” message is displayed, press any key on the keypad or
open its tamper switch.
3. Information on the keypad to be added will be displayed (if nothing happens, it can mean
that you have entered an invalid serial number – if this is the case, press to return to
the submenu). Press to confirm your intention to add a keypad.
4. Using the and keys, select the address which is to be assigned to the keypad
to be added, and then press . The wireless keypad will be added.
5. The name assigned to the keypad will be displayed. You can change it. Press to
save the name.
6. In the next step, you can configure the settings stored in the ABAX system controller (see:
p. 5).

SATEL VERSA-LCDM-WRL 5
3.2 Removing the keypad from the wireless system
3.2.1 DloadX program
You can remove the wireless keypads in the “Versa – Structure” window, “Hardware” tab,
after clicking on the name of ABAX system controller on the list of devices, and then on the
“LCD-WRL” tab (see: Fig. 3p. 6).
1. Click on the “Read” button to read the data related to wireless keypads from the controller
2. Click on the wireless keypad you want to remove.
3. Click on the “Delete” button. The “Confirm” window will open.
4. Click on the “Yes” button. The “Confirm” window will close.
5. Click on the “Write” button to save the changes to the controller and control panel.
3.2.2 LCD keypad
You can remove wireless keypads in the service mode by means of the REMOVE DEVICE
function (SERVICE MODE 2. HARDWARE 1. KPDS.&EXPS. 3. WIRELESS MOD. 3. REMOVE
DEVICE).
1. Having started the function, use the and keys to select the keypad you want to
remove, and then press .
2. A prompt will appear on the display, whether the keypad is to be deleted (the keypad
serial number will be displayed). Press . The keypad will be deleted.
4. Configuring
You can configure the wireless keypad settings by using a computer with DLOADX program
installed, or an LCD keypad.
4.1 Settings stored in ABAX system controller
The settings can be configured:
DLOADX program: “Versa – Structure” window “Hardware” tab “Expansion modules”
branch [ABAX system controller name] “LCD-WRL” tab (see: Fig. 3),
LCD keypad: SERVICE MODE 2. HARDWARE 1. KPDS.&EXPS. 3. WIRELESS DEV.
2. CONFIG.DEVICE [wireless keypad name].
4.1.1 Description of options
Presence contr. – if this option is enabled, the keypad presence is being monitored. If there
is no transmission from the keypad for 1 hour, missing keypad will be reported.
Wake-up – if this option is enabled, the CHIME from zones will also be signaled in the
inactive mode, while an alarm or start of entry delay countdown will start the active mode.
If the WAKE-UP option is enabled, the keypad will be awaiting for transmissions
with information on events. As a result, the energy consumption will be growing
and the battery life will be considerably reduced.
Card reader – if this option is enabled, the card reader is supported.

6 VERSA-LCDM-WRL SATEL
Fig. 3. DLOADXprogram: keypad settings stored in the ABAX system controller.
4.2 Settings stored in the control panel
These settings are configured in exactly the same way, as for the wired keypad:
DLOADX program: “Versa – Structure” window “Hardware” tab “Expansion modules”
branch [keypad name] (see: Fig. 4),
LCD keypad: SERVICE MODE 2. HARDWARE 1. KPDS.&EXPS. 2. SETTINGS [keypad
name].
4.2.1 Parameters and options
Given in the square brackets are the names of parameters and options presented on the
keypad display.
Name – individual name of the keypad (up to 16 characters).
Tamper signaled in part. [Tamper in p.] – partition in which tamper alarm will be triggered if
the keypad tamper switch is opened or the keypad is not present.
CHIME signal of zones [Zone chime] – the keypad can audibly signal violation of selected
zones. If the zone is armed, violation will not trigger the CHIME signal. The wireless
keypad signals the CHIME from zones not more frequently than once every 30 seconds. In
the inactive mode, the CHIME from zones is only signaled if the WAKE-UP option is
enabled.
Sign. entry delay [Entry time sign.] – if this option is enabled, the keypad will audibly signal
the entry delay countdown. In the inactive mode, the entry delay is not signaled.
Sign. exit delay [Exit time sign.] – if this option is enabled, the keypad will audibly signal the
exit delay countdown. In the inactive mode, the exit delay is not signaled.
Sign. alarms [Alarm signalling] – if this option is enabled, the keypad will signal the alarms
audibly. The alarm is signaled during the KEYPAD’S ALARM TIME (refer to the control panel

SATEL VERSA-LCDM-WRL 7
programming manual). In the inactive mode, the alarms are not signaled. The alarms are
not signaled, if the GRADE 2option is enabled in the control panel.
Fig. 4. DLOADXprogram: keypad settings stored in the control panel.
Quick arming – Partition 1 [Part.1 QuickArm] – if this option is enabled, quick arming
(without user authorization) of the partition 1 is possible. The quick arming is not possible,
if the GRADE 2option is enabled in the control panel.
Quick arming – Partition 2 Part.2 QuickArm] – if this option is enabled, quick arming
(without user authorization) of the partition 2 is possible. The quick arming is not possible,
if the GRADE 2option is enabled in the control panel.
Keys sound – with this option enabled, pressing the keypad keys is confirmed by beeps.
Sign. trbl in part. arm [Trbl.in part.arm] – if this option is enabled, the LED goes off after
both partitions are fully armed (if the option is disabled, the LED goes off after just one of
the partitions is armed in any mode).
Show code entering [Code entry ind.] – if this option is enabled, entering the code is
presented on the keypad display by asterisks.
Chime on/off – if this option is enabled, the chime signal can be enabled/disabled by means
of the key (the key is to be pressed for about 3 seconds).

8 VERSA-LCDM-WRL SATEL
Quick control – if this option is enabled, the users can control the outputs by using the
number keys. When programming the control panel, the 15. CONTROLLED outputs must be
assigned to the keys (refer to the control panel programming manual).
Sign. new trouble [New trbl.signal.] – if this option is enabled, the keypad will audibly signal
occurrence of any new trouble (additionally, the TROUBLE MEMORY UNTIL REVIEW option
must be enabled in the control panel – refer to the control panel programming manual).
The signaling will be turned off after reviewing the trouble with the 7. SYSTEM STATE user
function. In the inactive mode, new troubles are not signaled. The new troubles will not bi
signaled, if the GRADE 2option is enabled in the control panel.
Auto-Arm delay countdown [Autoarm signal.] – if this option is enabled, the auto-arm delay
countdown is signaled acoustically. In the inactive mode, the auto-arm delay countdown is
not signaled.
Arm mode review [Arm mode check.] – if this option is enabled, holding down the key
for about 3 seconds will display information on the partition status. The users cannot check
the partition status using the key, if the GRADE 2option is enabled in the control
panel.
Date/Time format – the way how date and time will be presented on the display.
LCD backlight – the way how the display backlight will work in the active mode:
not present – disabled.
permanent 50% – enabled: brightness 50%.
permanent 100% – enabled: brightness 100%.
auto 0-50% – enabled: brightness 50%.
auto 0-100% – enabled: brightness 100%.
auto 50%-100% – enabled: brightness 100%.
Keys backlight – the way how the keys backlight will work in the active mode:
not present – disabled.
auto – enabled.
permanent – enabled.
Alarm messages
Partitions [Part.alarm msg.] – if this option is enabled, messages on partition alarms will be
displayed (they contain the name of partition).
Zones [Zone alarm msg.] – if this option is enabled, messages on alarms from zones will be
displayed (they contain the name of zone). The zone alarm messages have the priority.
The messages will not be displayed, if the GRADE 2global option is enabled.
Alarms
PANIC alarm – if this option is enabled, pressing the key for approx. 3 seconds will
trigger the panic alarm.
silent [Silent panic] – if this option is enabled, the panic alarm triggered from the keypad will
be a silent one (without loud signal). The option is available, if the PANIC ALARM option is
enabled.
FIRE alarm – if this option is enabled, pressing the key for approx. 3 seconds will
trigger the fire alarm.
AUX. alarm [Medical alarm] – if this option is enabled, pressing the key for approx. 3
seconds will trigger the auxiliary (medical) alarm.
Alarm 3 incorrect codes [3 wrong codes] – if this option is enabled, entering invalid code
three times will trigger the alarm.

SATEL VERSA-LCDM-WRL 9
The auto-backlight parameters do not affect the wireless keypad performance.
4.2.2 Volume
Fig. 5. Volume settings in the DLOADXprogram.
Volume – volume level of the beeps generated during keypad operation (key pressing,
confirmation of performed operation, etc.).
Chime – volume level of the beeps generated after zone violation (CHIME).
Entry delay – volume level of the entry delay beeps.
Exit delay – volume level of the exit delay beeps.
Fire alarm – volume level of the fire alarm beeps.
Burglary alarm – volume level when signaling burglar, panic and auxiliary (medical) alarms.
Warning alarm – volume level when signaling warning alarms.
Trouble signaling – volume level when signaling troubles.
5. Operation
When in active mode, the wireless keypad enables operation and programming of the alarm
system. In order to enter the active mode, press any key on the keypad.
In addition to starting the active mode, pressing a key will also have other
consequences, as appropriate for the given key. The keypad will treat each key
pressing exactly in the same way.
In the active mode, the LCD wireless keypad works much in the same way as the LCD wired
keypad. Additionally, it enables the alarm system to be operated using a proximity card. For

10 VERSA-LCDM-WRL SATEL
the way of using the keypad, please refer to the control panel user and programming
manuals. The manuals are available in electronic form on the www.satel.eu website.
6. Specifications
Operating frequency band................................................................... 868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area) ............................................................ up to 500 m
Batteries........................................................................................................... 2 x CR123A 3 V
Standby current consumption, BT1 battery.................................................................0.005 mA
Maximum current consumption, BT1 battery....................................................................50 mA
Standby current consumption, BT2 battery.................................................................0.001 mA
Maximum current consumption, BT2 battery (card reader disabled)................................45 mA
Maximum current consumption, BT2 battery (card reader enabled) ................................90 mA
Environmental class according to EN50130-5 .........................................................................II
Operating temperature range.............................................................................-10 °C...+55 °C
Maximum humidity ..........................................................................................................93±3%
Enclosure dimensions ................................................................................. 139 x 124 x 22 mm
Weight...............................................................................................................................280 g
