Sauder 109830 User manual

NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-24
Français pg 25-28
Español pg 29-32
Lot # 392420 06/23/16
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Desk
Heritage Hill Collection | Model 109830
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
The original desktop.

Table of Contents Assembly Tools Required
2-3
4-5
6-24
25-28
29-32
33-34
35
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
109830 www.sauder.com/servicesPage 2

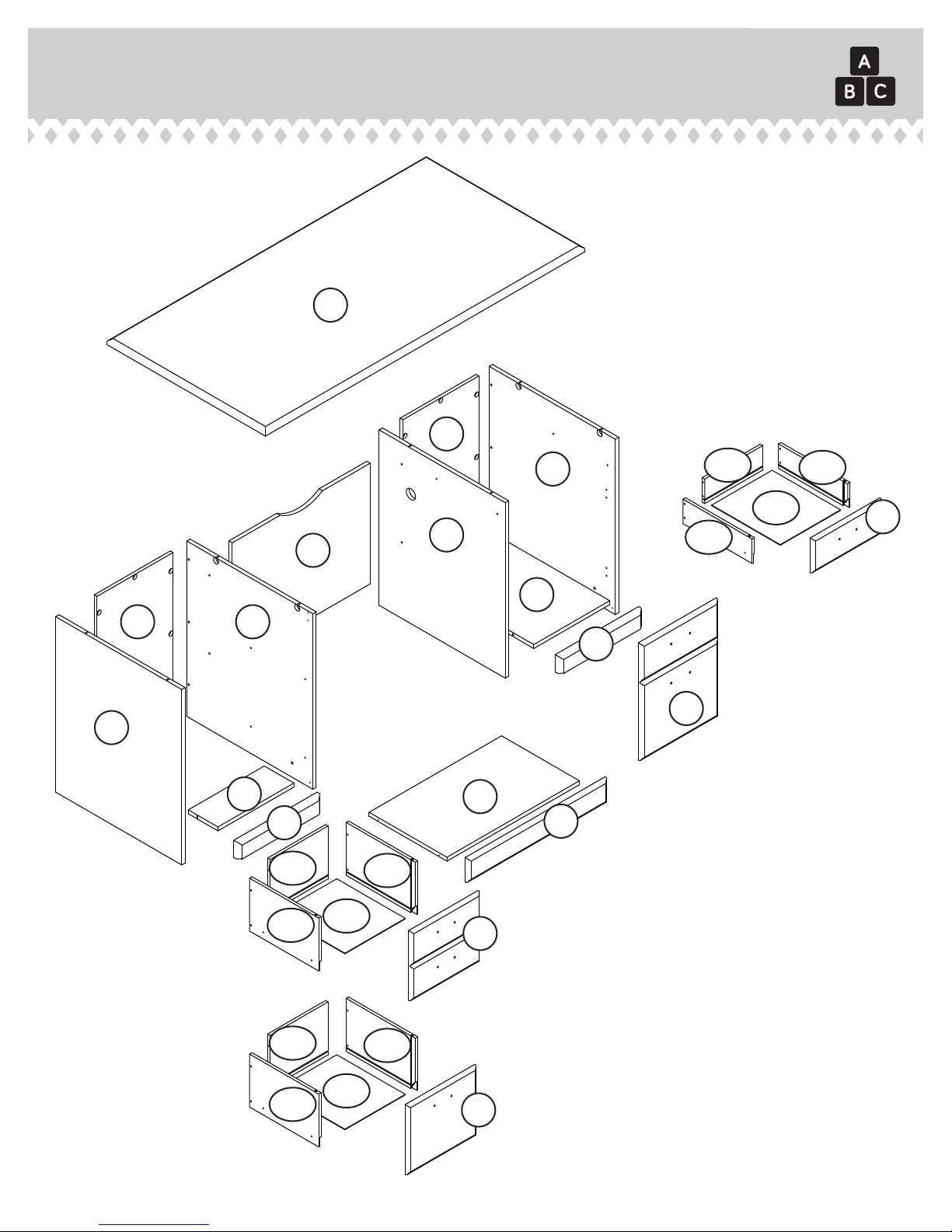

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A2 RIGHT END (1)
B2 LEFT END (1)
C2 RIGHT UPRIGHT (1)
D2 LEFT UPRIGHT (1)
D42 SMALL RIGHT DRAWER SIDE (1)
D43 SMALL LEFT DRAWER SIDE (1)
D48 LARGE RIGHT DRAWER SIDE (2)
D49 LARGE LEFT DRAWER SIDE (2)
D78 LARGE DRAWER BACK (2)
D109 SMALL DRAWER BACK (1)
D716 DRAWER BOTTOM (3)
E2 BACK (2)
F MODESTY PANEL (1)
G2 BOTTOM (1)
H3 TOP (1)
I2 KEYBOARD SHELF (1)
J KEYBOARD FRONT (1)
K2 DOOR (1)
L2 UPPER DRAWER FRONT (1)
M2 LOWER DRAWER FRONT (1)
P SMALL DRAWER FRONT (1)
T SKIRT (2)
U2 BRACE (1)

Part Identification Now you know
our ABCs.
109830www.sauder.com/services Page 3
A2
B2
C2
D2E2
E2
F
G2
H3
I2
J
K2
L2
M2
U2
P
T
T
D716
D42
D109
D716
D48
D78
D716
D48
D78
D43
D49
D49

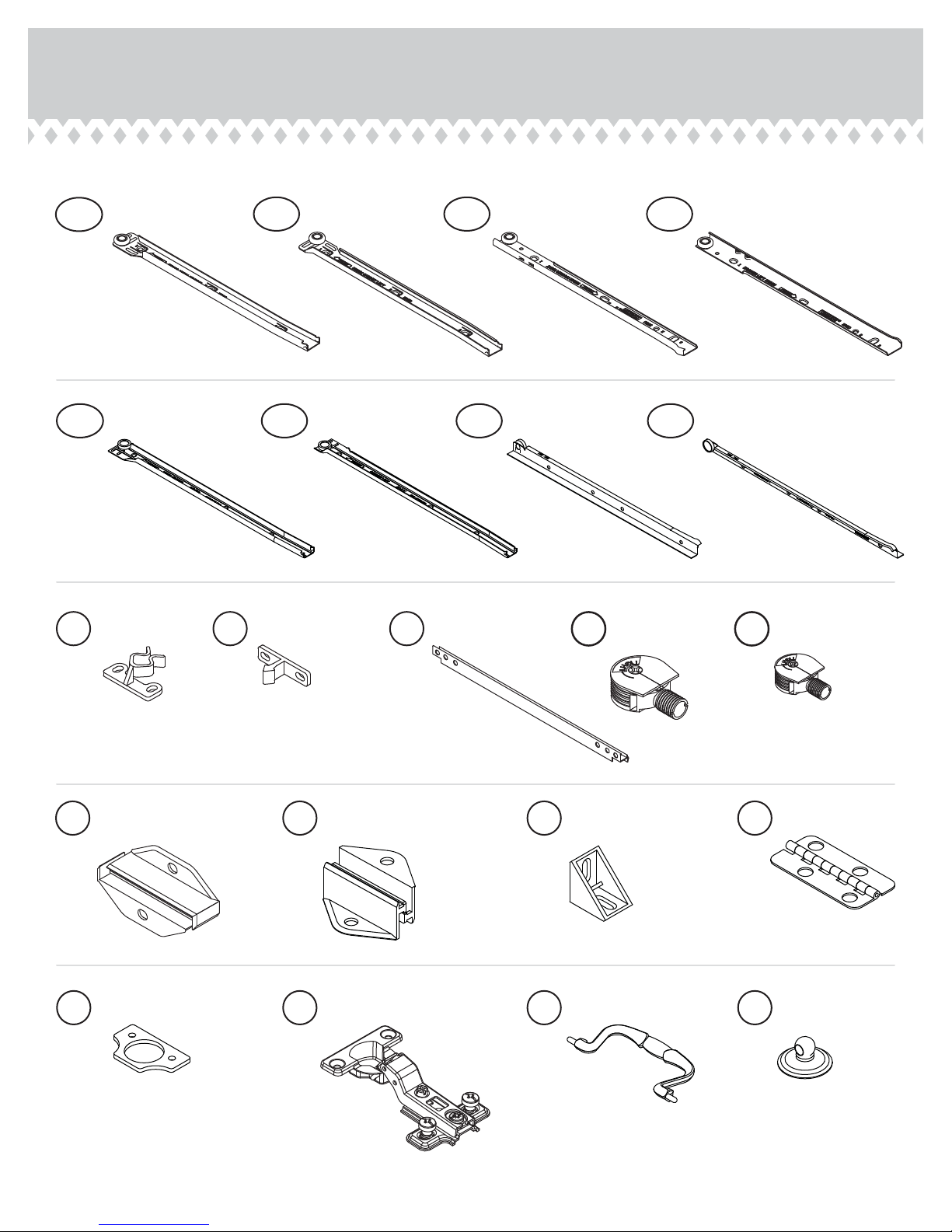

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
FILE GLIDE - 4
4B
LARGE DRAWER
FRONT BRACKET - 4
10G
35GA CABINET RIGHT - 3 35GB CABINET LEFT - 3 35GC DRAWER RIGHT - 3 35GD DRAWER LEFT - 3
ANGLE
BRACKET - 8
27G
10F TWIST-LOCK®
FASTENER - 14
HINGE - 2
16H
21F MINI TWIST-LOCK®
FASTENER - 14
22H
HINGE SPACER - 2 PULL - 6
77K PULL
MOUNT - 12
78K
V-CATCH - 1
JJ STRIKE CATCH - 1 KK
109830 www.sauder.com/servicesPage 4
40AW CABINET RIGHT - 1 40AX CABINET LEFT - 1 40AY DRAWER RIGHT - 1 40AZ DRAWER LEFT - 1
SMALL DRAWER
FRONT BRACKET - 1
7G
40H HINGE - 2

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
15S SILVER 5/8" MACHINE SCREW - 12
GOLD 9/16" LARGE HEAD SCREW - 34
5S BROWN 7/16" LARGE HEAD SCREW - 4 6S
BLACK 1-7/8" FLAT HEAD SCREW - 4
2S
18S BROWN 1" FLAT HEAD SCREW - 4
3S GOLD 5/16" FLAT HEAD SCREW - 28
SILVER 5/8" FLAT HEAD SCREW - 4
23S
109830www.sauder.com/services Page 5
30S BLACK 1-9/16" FLAT HEAD SCREW - 12

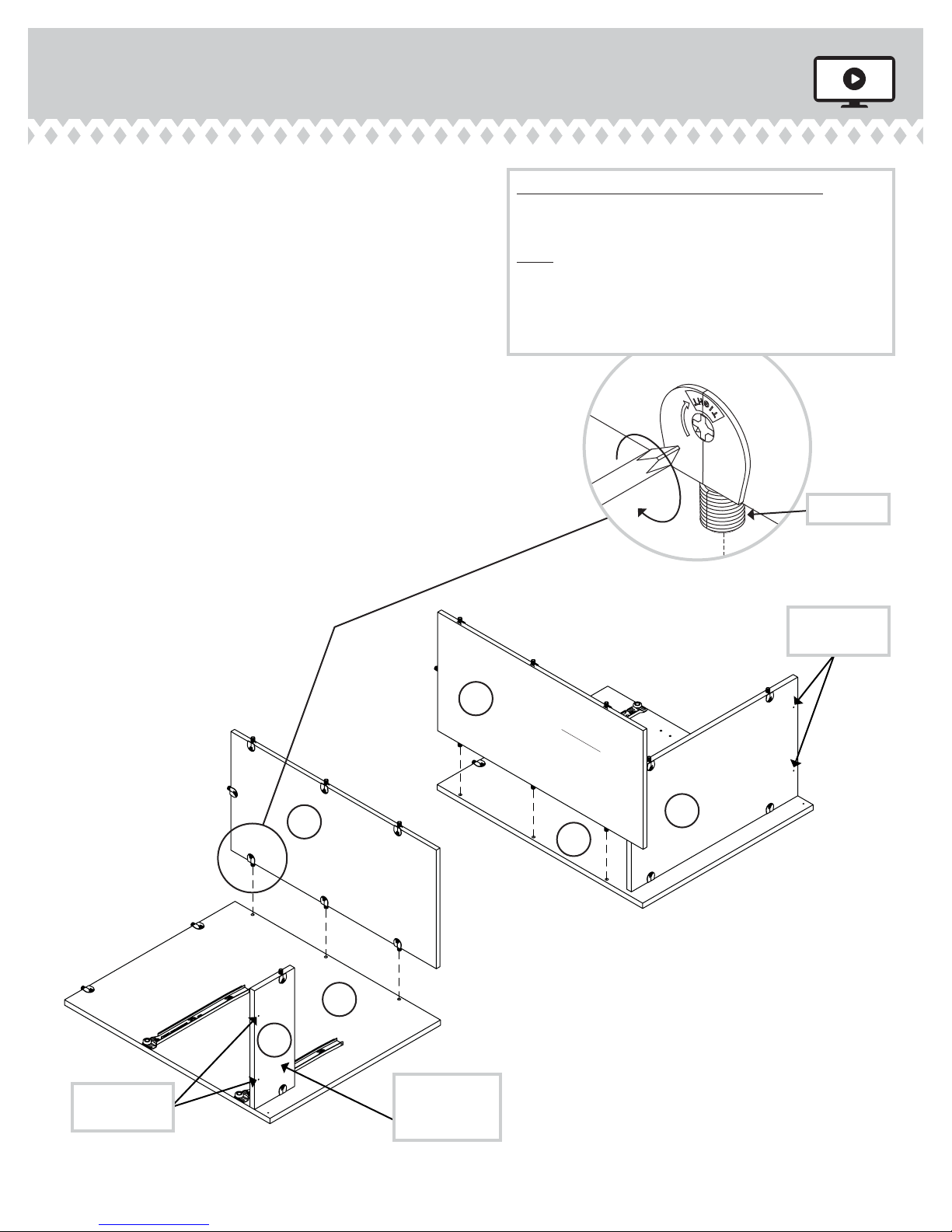

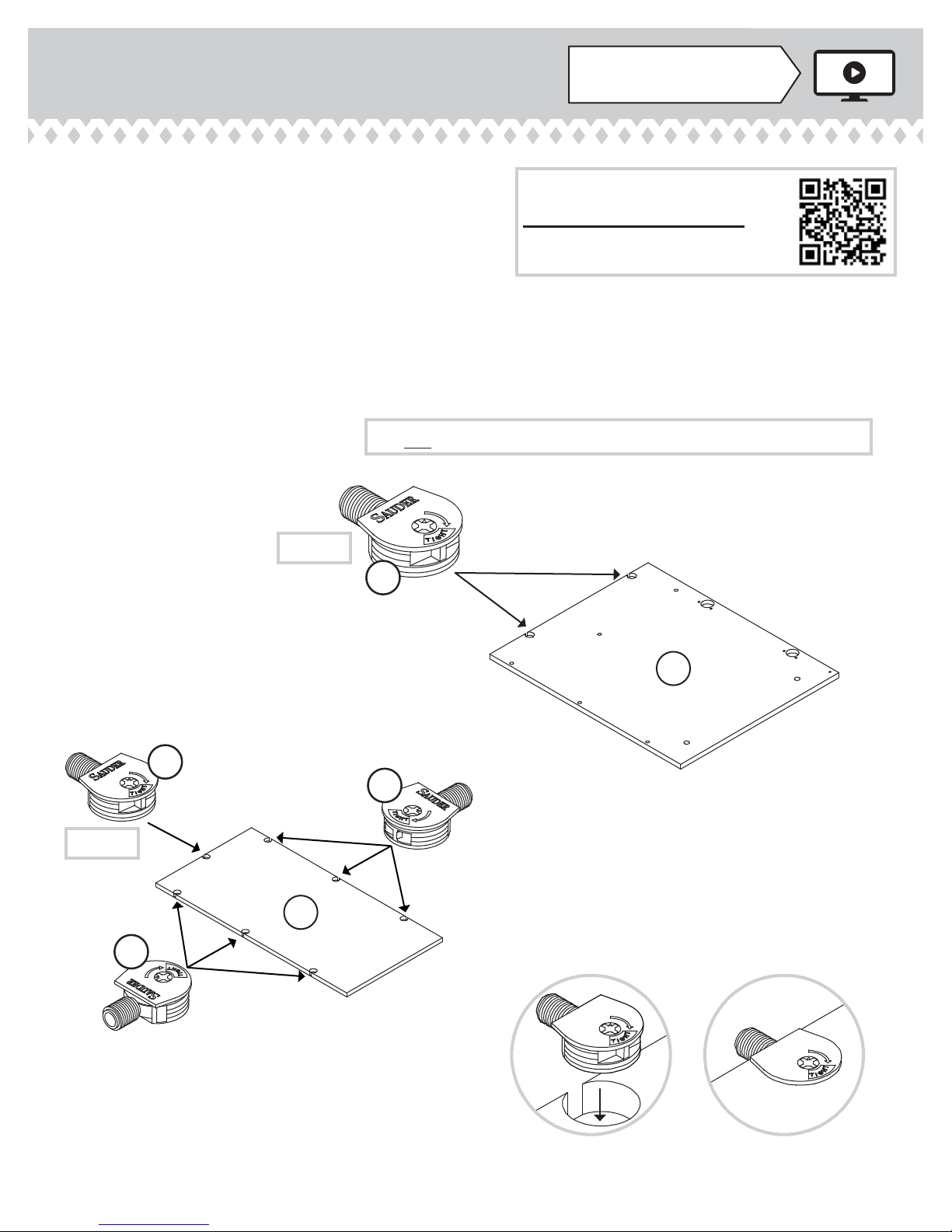

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (10F) into the indicated holes in the
RIGHT END (A2).
å Repeat this step for the LEFT END (B2), RIGHT
UPRIGHT (C2), LEFT UPRIGHT (D2), BOTTOM (G2),
and BRACE (U2).
å Push a SAUDER MINI TWIST-LOCK® FASTENER (21F)
into the holes in both BACKS (E2).
109830 www.sauder.com/servicesPage 6
10F
Do not tighten the TWIST-LOCK® FASTENERS in this step.
21F
(14 used)
(14 used)
A2
E2
21F
21F
Scan this QR code or go to this address:
http://qr.sauder.com/?ID=1667
to watch a video on how to assemble your unit.

Step
109830www.sauder.com/services Page 7
Step 2

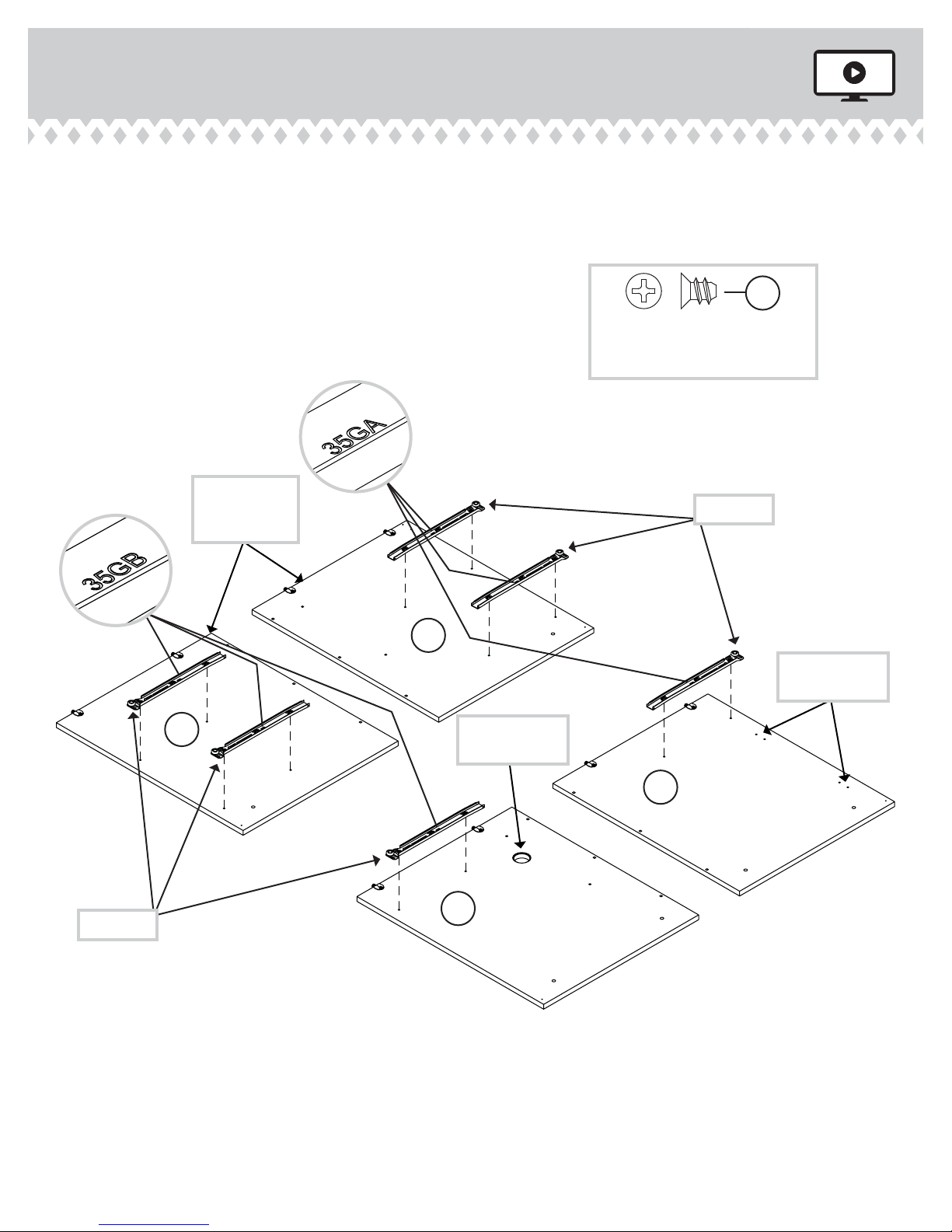

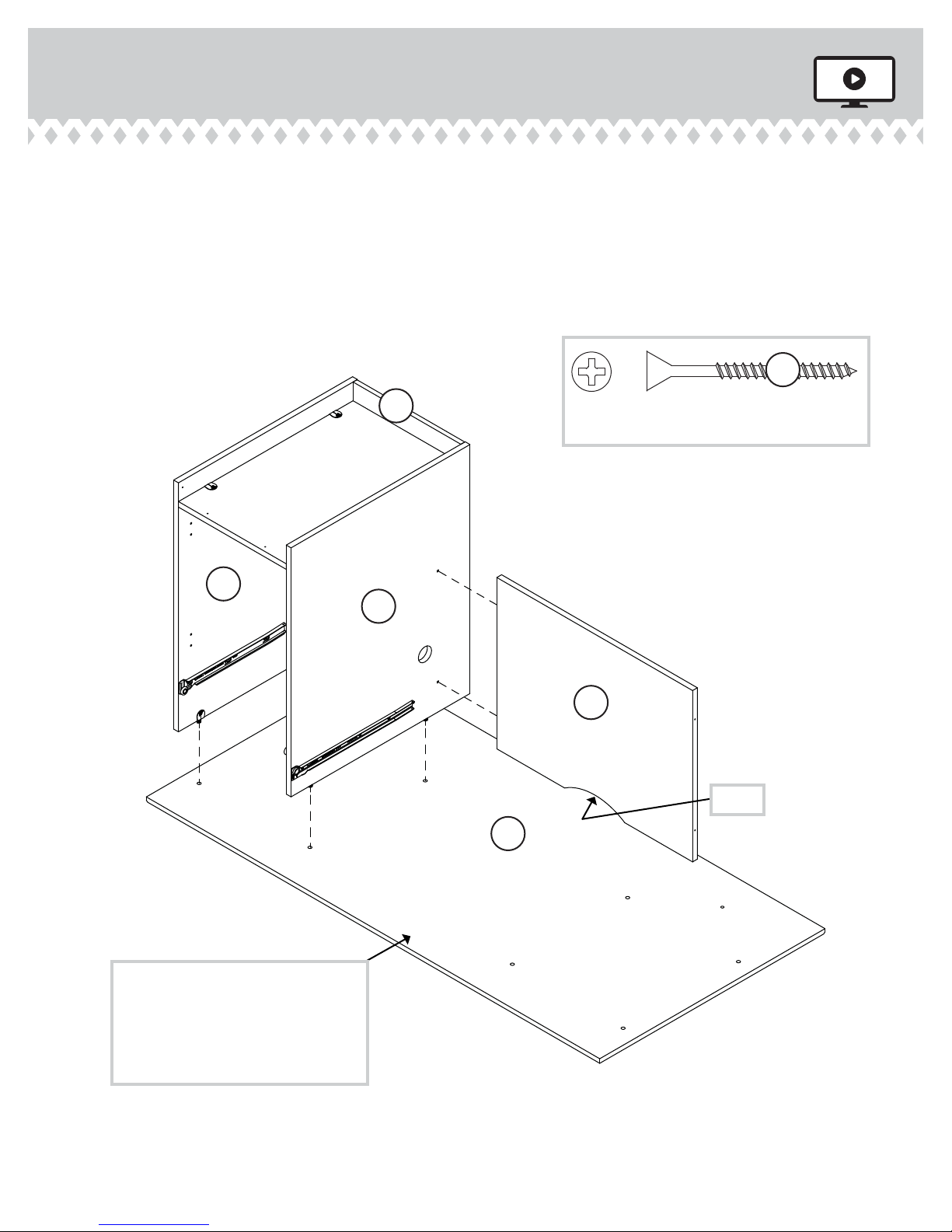

å Fasten the CABINET RIGHTS (35GA) to the RIGHT END (A2)
and LEFT UPRIGHT (D2). Use six GOLD 5/16" FLAT HEAD
SCREWS (3S) through holes #1 and #3.
å Fasten the CABINET LEFTS (35GB) to the LEFT END (B2)
and RIGHT UPRIGHT (C2). Use six GOLD 5/16" FLAT HEAD
SCREWS (3S) through holes #1 and #3.
1
2
3
1
2
3
GOLD 5/16" FLAT HEAD SCREW
(12 used in this step)
3S
1
2
3
1
2
3
Roller end
1
2
3
1
2
3
Roller end
A2
B2
C2
D2
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Edge with
TWIST-LOCK®
FASTENERS
This large hole
should be here.
These holes
should be here.

Step

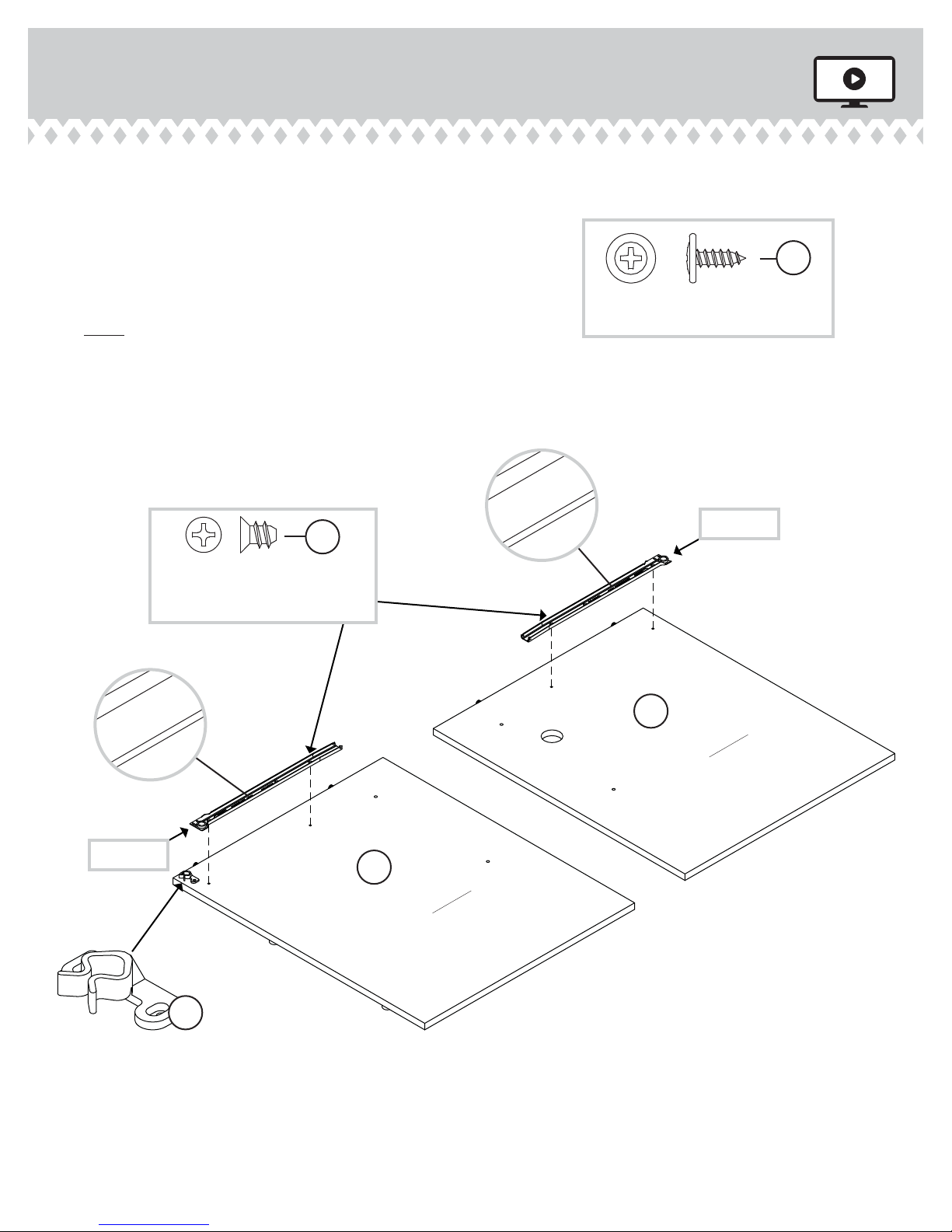

å Fasten the CABINET RIGHT (40AW) to the RIGHT
UPRIGHT (C2) and the CABINET LEFT (40AX) to the
LEFT UPRIGHT (D2). Use four GOLD 5/16" FLAT
HEAD SCREWS (3S).
å Fasten the V-CATCH (JJ) to the LEFT UPRIGHT (D2). Use
two BROWN 7/16" LARGE HEAD SCREWS (6S).
å NOTE: Be sure to position the V-CATCH as shown. Follow
the enlarged diagram.
Step 3
109830 www.sauder.com/servicesPage 8
D2
Surface without
TWIST-LOCK®
FASTENERS
C2
Surface without
TWIST-LOCK®
FASTENERS
JJ
GOLD 5/16" FLAT HEAD SCREW
(4 used for the RAILS)
3S
BROWN 7/16" LARGE HEAD SCREW
(2 used for the V-CATCH)
6S
40AW
40AW
40AX
40AX
Roller end
Roller end

Step
109830www.sauder.com/services Page 9
Step 4
å Fasten the BACKS (E2) to the ENDS (A2 and B2). Tighten
six MINI TWIST-LOCK® FASTENERS.
å Fasten the BOTTOM (G2) to the RIGHT END (A2). Tighten
two TWIST-LOCK® FASTENERS.
å Fasten the BRACE (U2) to the LEFT END (B2). Tighten
one TWIST-LOCK® FASTENER.
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking
the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Dowel end
Surface without MINI
TWIST-LOCK®
FASTENERS
Surface with MINI
TWIST-LOCK®
FASTENERS
E2
E2
Surface with
TWIST-LOCK®
FASTENERS
G2
U2
A2
B2
These holes
must be here.
These holes
must be here.
Surface with
TWIST-LOCK®
FASTENERS

Step
å Fasten the LEFT UPRIGHT (D2) to the BACK (E2)
and BRACE (U2). Tighten three MINI TWIST-LOCK®
FASTENERS and one TWIST-LOCK® FASTENER.
å Fasten the RIGHT UPRIGHT (C2) to the BACK (E2)
and BOTTOM (G2). Tighten three MINI TWIST-LOCK®
FASTENERS and two TWIST-LOCK® FASTENERS.
Step 5
109830 www.sauder.com/servicesPage 10
E2
E2
G2
U2
C2
D2
Surface without
TWIST-LOCK®
FASTENERS
Surface without
TWIST-LOCK®
FASTENERS

Step
109830www.sauder.com/services Page 11
Step 6

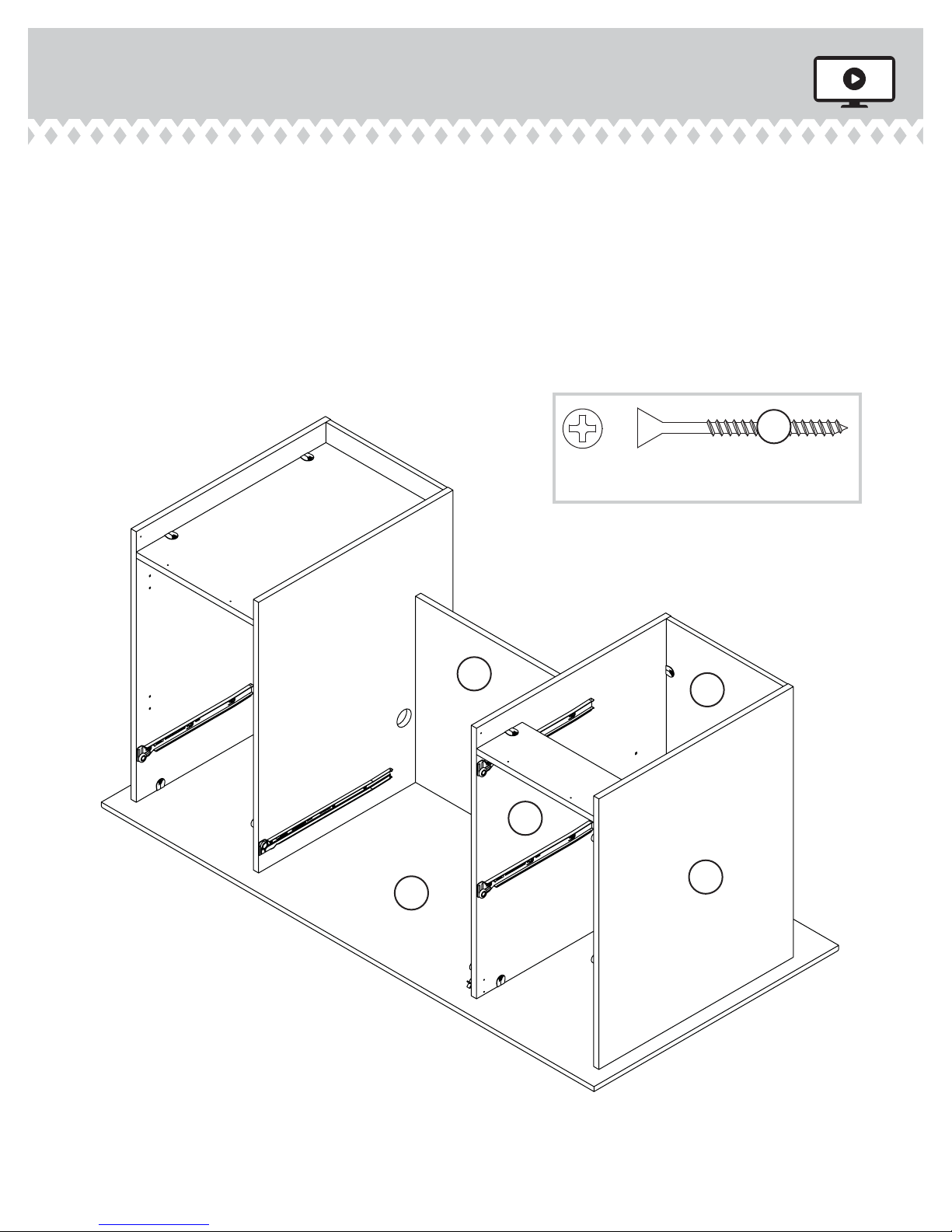

å Fasten the RIGHT END (A2), RIGHT UPRIGHT (C2), and BACK (E2)
to the TOP (H3). Tighten four TWIST-LOCK® FASTENERS and one
MINI TWIST-LOCK® FASTENER.
å Fasten the MODESTY PANEL (F) to the RIGHT UPRIGHT (C2). Use
two BLACK 1-7/8" FLAT HEAD SCREWS (2S).
BLACK 1-7/8" FLAT HEAD SCREW
(2 used for the MODESTY PANEL)
2S
E2
A2
C2
F
H3
Surface
with holes
Notch
Meet Part (H3). This component has
been engineered to be lighter, stronger,
faster… well ok. Not technically faster.
But definitely makes for a sturdier desk
that’s easier to assemble and friendlier
to the environment.

Step
å Fasten the LEFT END (B2), LEFT UPRIGHT (D2), and BACK (E2)
to the TOP (H3). Tighten four TWIST-LOCK® FASTENERS and
one MINI TWIST-LOCK® FASTENER.
å Fasten the MODESTY PANEL (F) to the LEFT UPRIGHT (D2).
Use two BLACK 1-7/8" FLAT HEAD SCREWS (2S).
Step 7
109830 www.sauder.com/servicesPage 12
BLACK 1-7/8" FLAT HEAD SCREW
(2 used for the MODESTY PANEL)
2S
E2
D2
B2
F
H3

Step
109830www.sauder.com/services Page 13
Step 8

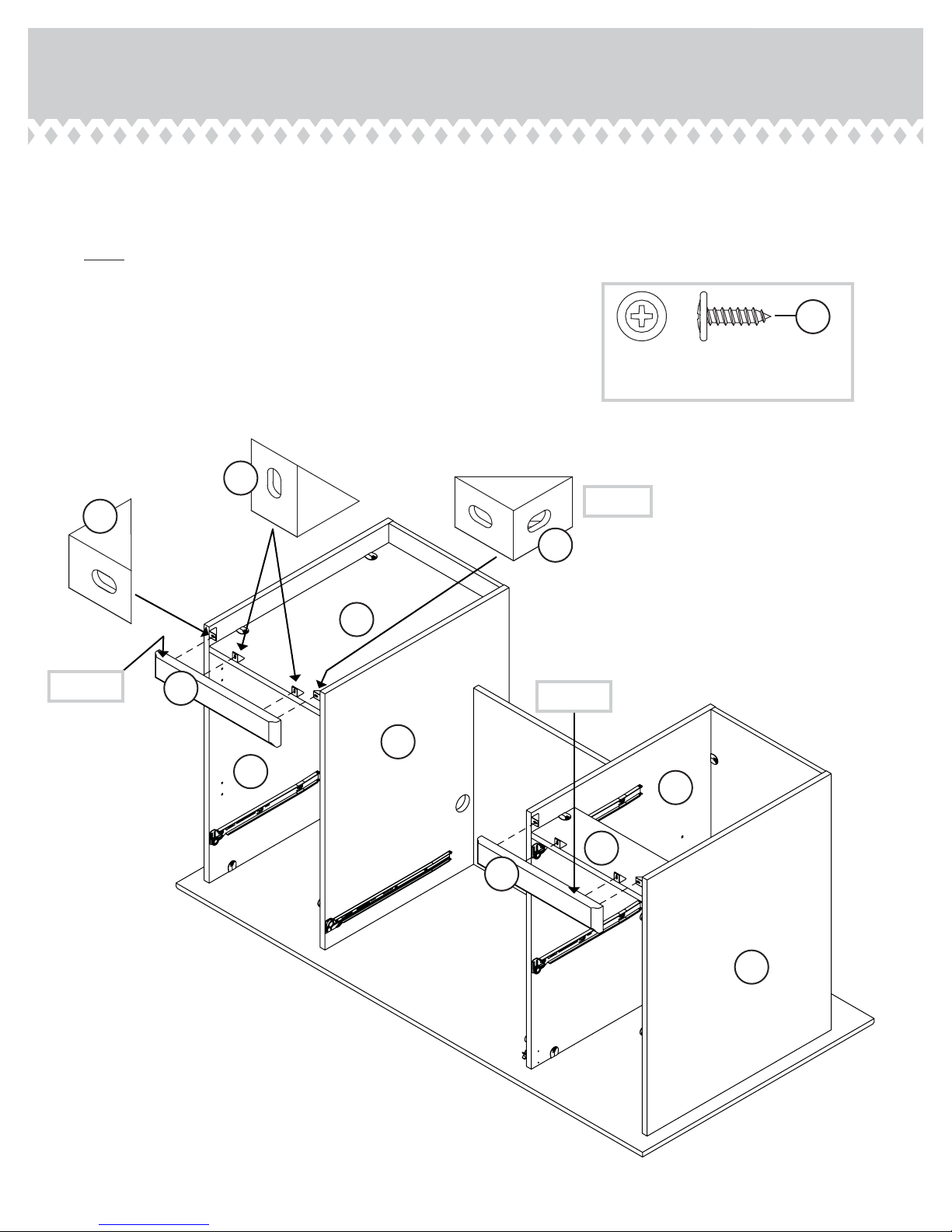

å Fasten eight ANGLE BRACKETS (27G) to the ENDS (A2 and B2),
UPRIGHTS (C2 and D2), BOTTOM (G2), and BRACE (U2). Use
eight GOLD 9/16" LARGE HEAD SCREWS (5S).
å NOTE: Be sure the edges of the ANGLE BRACKETS are even
with the edges of the ENDS, UPRIGHTS, BOTTOM, and BRACE.
å Fasten the SKIRTS (T) to the ENDS (A2 and B2), UPRIGHTS (C2
and D2), BOTTOM (G2), and BRACE (U2). Use eight GOLD 9/16"
LARGE HEAD SCREWS (5S) through the ANGLE BRACKETS
and into the SKIRTS.
Flat edge T
T
D2
B2
A2
C2
G2
U2
GOLD 9/16" LARGE HEAD SCREW
(16 used in this step)
5S
27G
27G
27G
Flat edge
(8 used)

Step

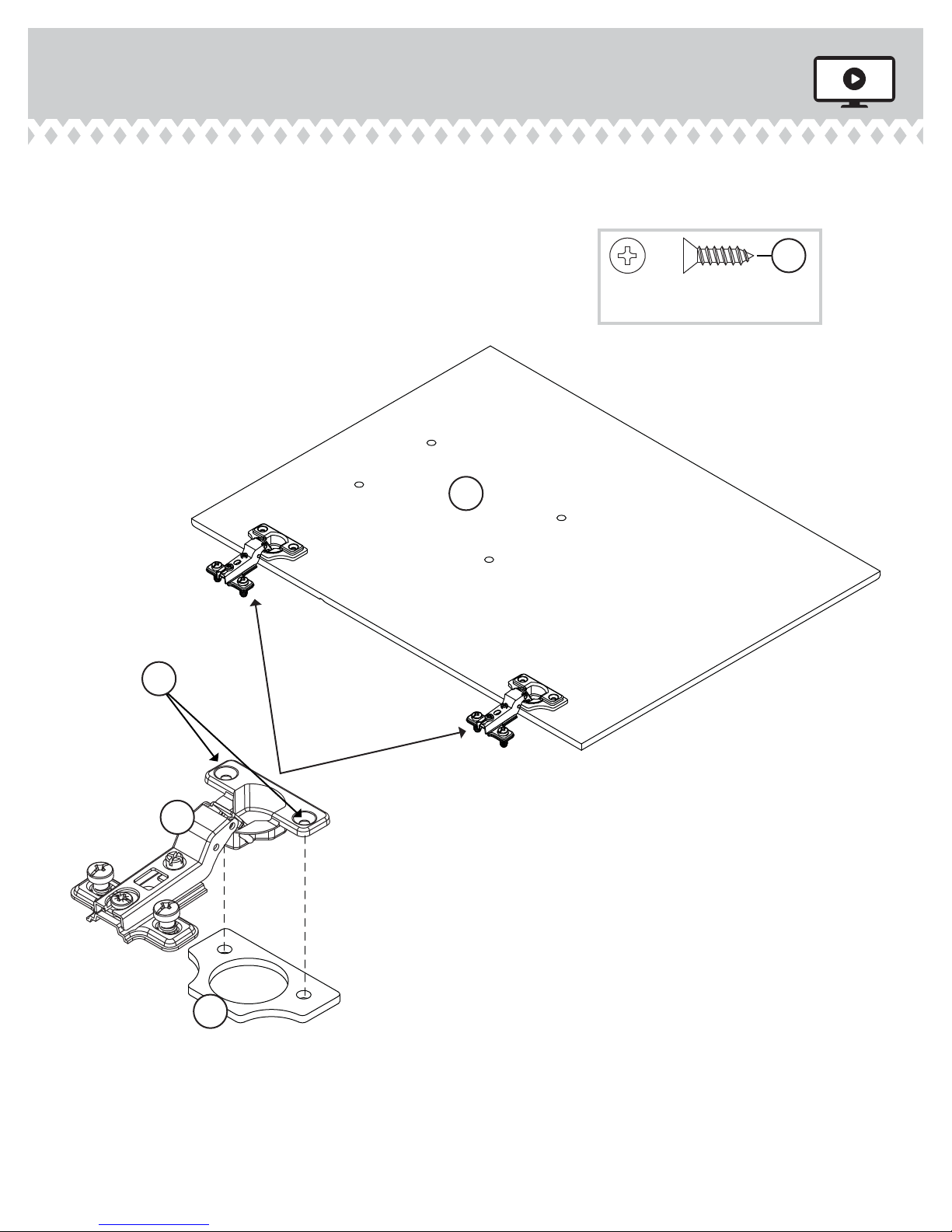

å Fasten the HINGE SPACERS (22H) and HINGES (40H) to
the DOOR (K2). Use four SILVER 5/8" FLAT
HEAD SCREWS (23S).
Step 9
109830 www.sauder.com/servicesPage 14
SILVER 5/8" FLAT HEAD SCREW
(4 used in this step)
23S
40H
22H
K2
23S

Step
109830www.sauder.com/services Page 15
Step 10
å Carefully stand your unit upright.
å Before fastening the DOOR to your unit, be sure the mounting screw is
against the stops as shown in the diagram. If it isn't, loosen the mounting
screw to slide it against the stops. Then tighten the mounting screw.
å Fasten the DOOR (K2) to the RIGHT END (A2). Use the screws in the
HINGES. You should start each SCREW a few turns before completely
tightening any of them.

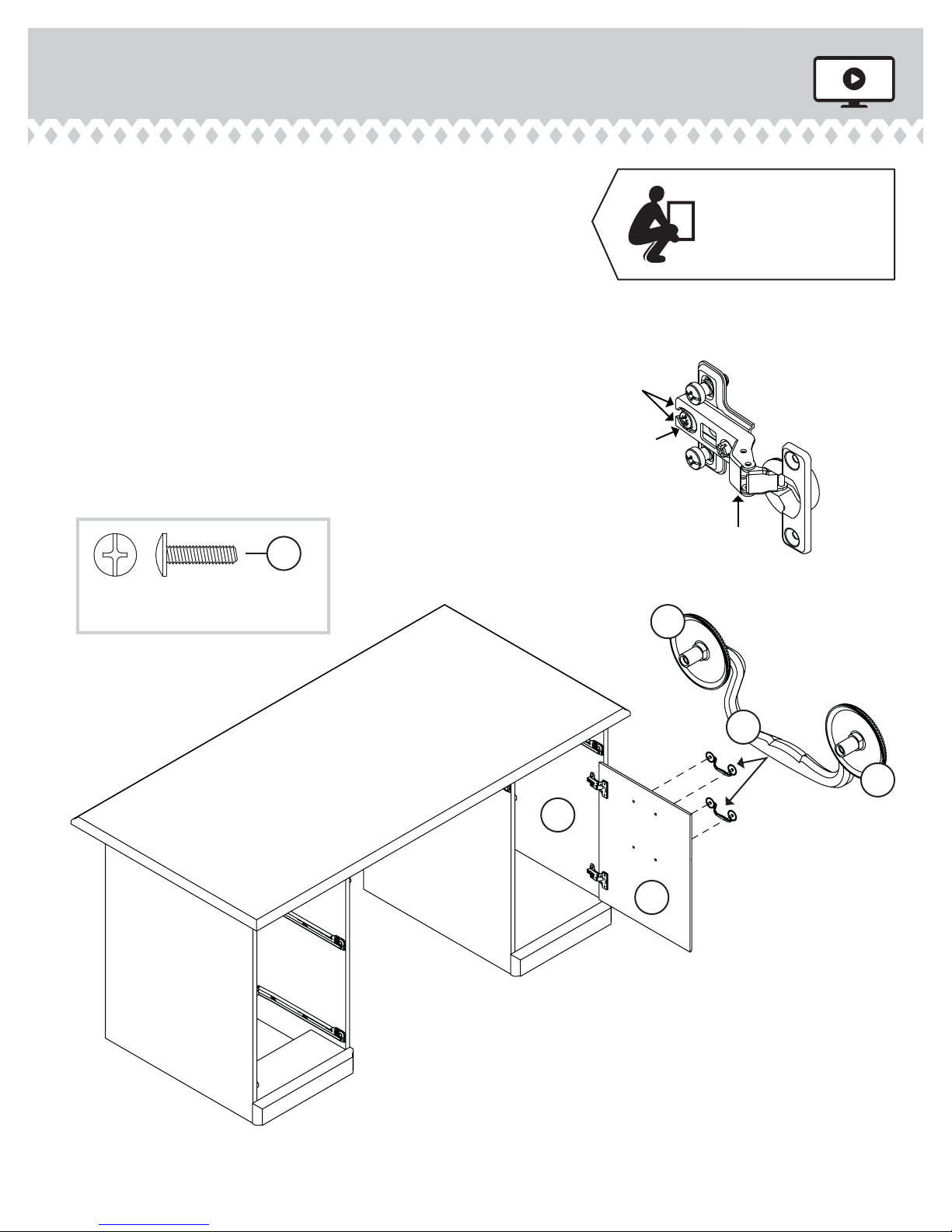

å Insert two PULLS (77K) into four PULL MOUNTS (78K) and fasten them
to the DOOR (K2). Use four SILVER 5/8" MACHINE SCREWS (15S).
å See the next step for DOOR adjustments.
Pro Tip: Lift with your
legs. And, you know,
your arms.
SILVER 5/8" MACHINE SCREW
(4 used for the PULLS and MOUNTS)
15S
K2
A2
78K
78K
77K
Mounting
screw
Stop
Hinge

StepStep 11
109830 www.sauder.com/servicesPage 16

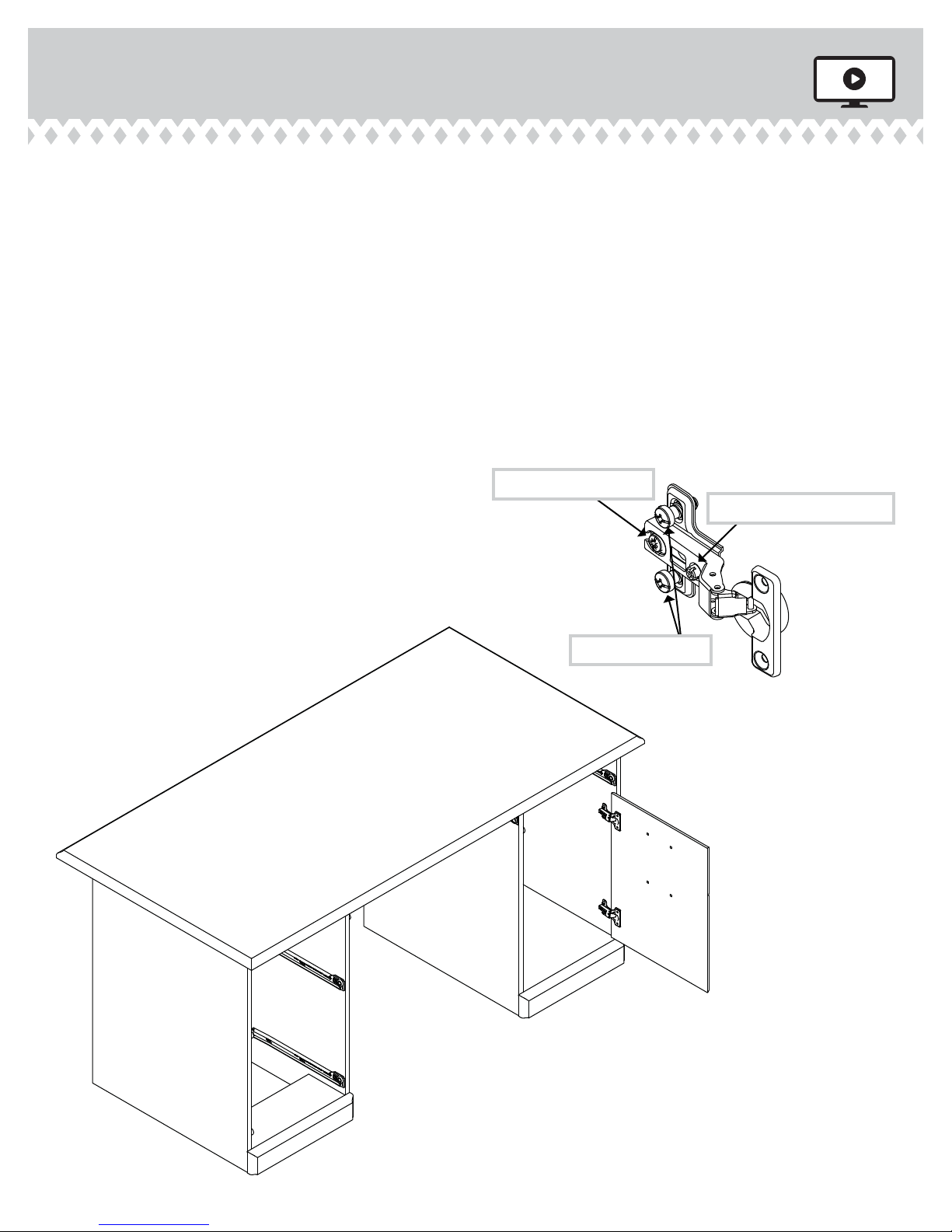

å Refer to the enlarged diagram to identify the parts on the HINGES.
å The DOOR may need some adjustments. Follow the text below to
make needed adjustments.
å DOOR ADJUSTMENTS:
To adjust the DOOR from side to side (horizontal), turn the
adjusting screw in or out.
å To adjust the DOOR up and down (vertical), loosen both vertical
adjustment screws. Move the DOOR up or down to the desired
location. Tighten the screws after making adjustments.
å To adjust the DOOR in or out (depth), loosen the mounting screw
one turn and move the DOOR in or out, as needed. Tighten the
mounting screw after making adjustments.
(vertical adjustment)
Adjusting screw (horizontal)
Mounting screw (depth)

Step
109830www.sauder.com/services Page 17
Step 12

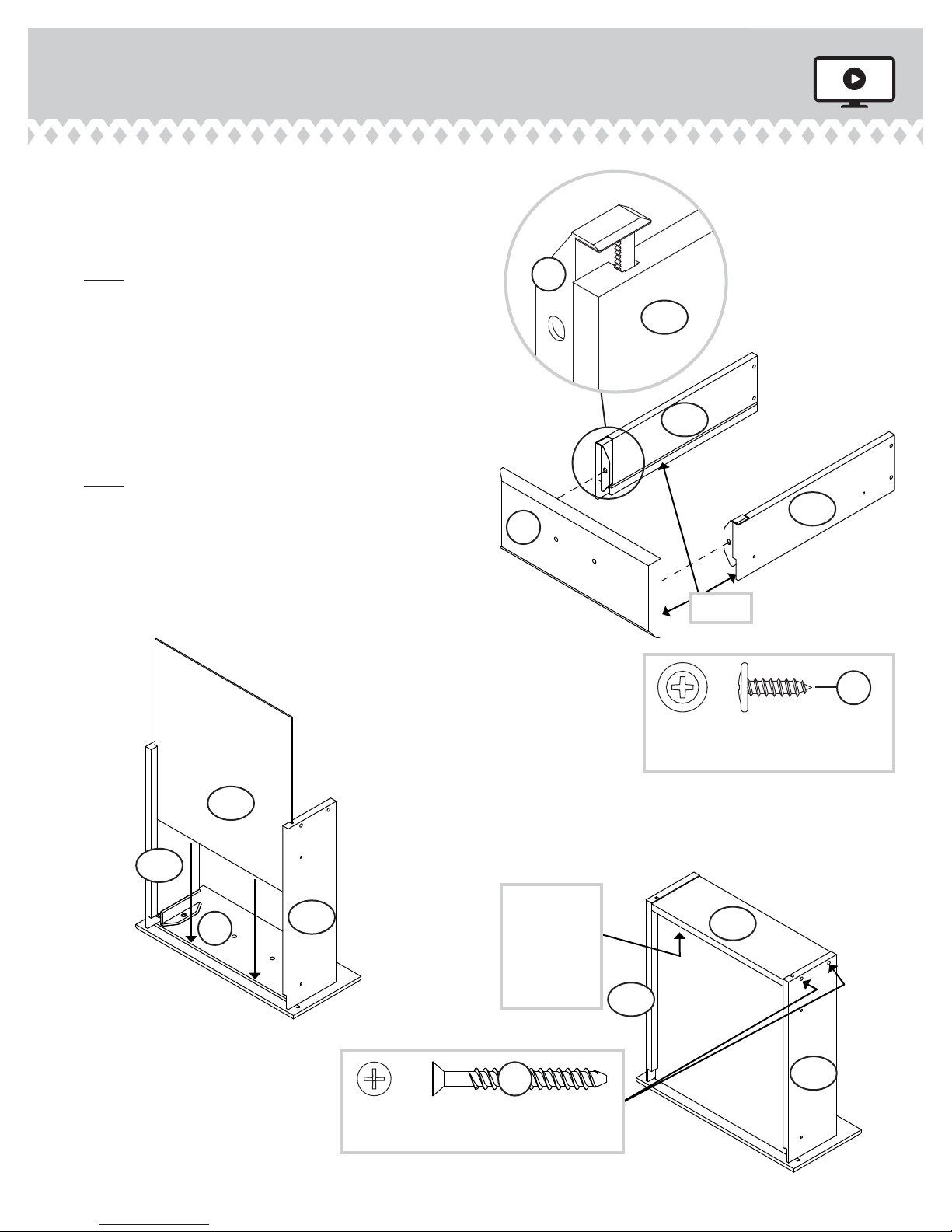

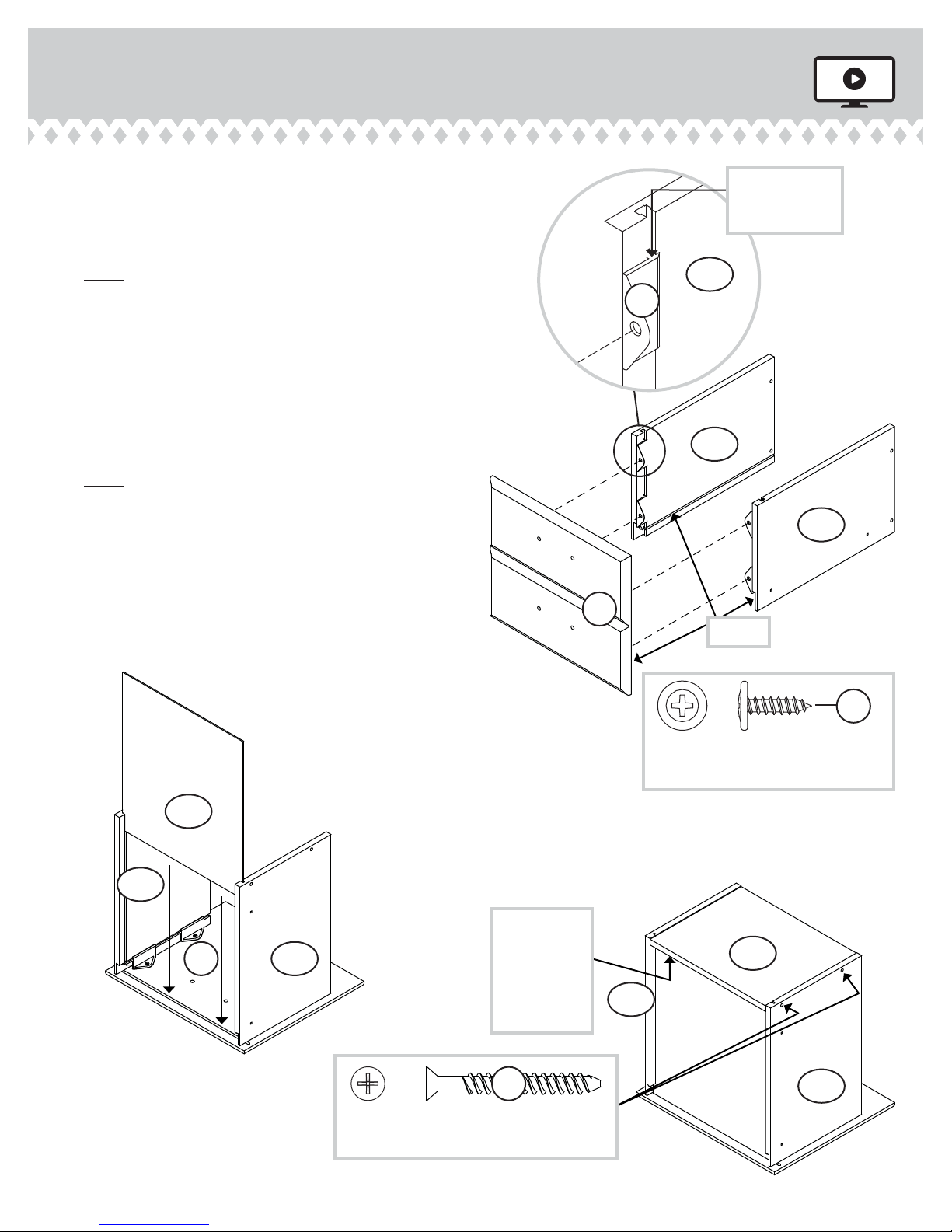

å Pull the LARGE DRAWER FRONT BRACKETS (10G) apart
and slide them into the grooves in the LARGE DRAWER
SIDES (D48 and D49). You may need to gently tap them
in using your screwdriver and hammer.
å NOTE: The DRAWER FRONT BRACKETS are marked
"RH" and "LH" for easy identification.
å Fasten the UPPER DRAWER FRONT (L2) to the LARGE
DRAWER FRONT BRACKETS (10G). Use a GOLD 9/16"
LARGE HEAD SCREW (5S) through each BRACKET and
into the pre-drilled holes in the UPPER DRAWER FRONT.
å Slide a DRAWER BOTTOM (D716) into the grooves in the
LARGE DRAWER SIDES (D48 and D49).
å NOTE: Be sure the DRAWER BOTTOM inserts into the
groove in the UPPER DRAWER FRONT (L2).
å Fasten a LARGE DRAWER BACK (D78) to the LARGE
DRAWER SIDES (D48 and D49). Use four BLACK 1-9/16"
FLAT HEAD SCREWS (30S).
å Repeat this step for the other large drawer using the
LOWER DRAWER FRONT (M2).
L2
D716
D49
D48
D78
L2
D49
D48
D49
D48
GOLD 9/16" LARGE HEAD SCREW
(8 used for the BRACKETS)
5S
Unfinished
surface
Groove
1
2
3
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BACK groove.
10G
D49
Tap down with
your screwdriver
and hammer.
VIEW THE T-SLOT BOX VIDEO
BLACK 1-9/16" FLAT HEAD SCREW
(8 used for the DRAWER BACKS)
30S

StepStep 13
109830 www.sauder.com/servicesPage 18
å Pull the SMALL DRAWER FRONT BRACKETS (7G) apart
and slide them into the grooves in the SMALL DRAWER
SIDES (D42 and D43). You may need to gently tap them in
with a hammer.
å NOTE: The DRAWER FRONT BRACKETS are marked
"RH" and "LH" for easy identification.
å Fasten the SMALL DRAWER FRONT (P) to the SMALL
DRAWER FRONT BRACKETS (7G). Use a GOLD 9/16"
LARGE HEAD SCREW (5S) through each BRACKET and
into the pre-drilled holes in the SMALL DRAWER FRONT.
å Slide a DRAWER BOTTOM (D716) into the grooves in the
SMALL DRAWER SIDES (D42 and D43).
å NOTE: Be sure the DRAWER BOTTOM inserts into the
groove in the SMALL DRAWER FRONT (P).
å Fasten the SMALL DRAWER BACK (D109) to the SMALL
DRAWER SIDES (D42 and D43). Use four BLACK 1-9/16"
FLAT HEAD SCREWS (30S).
P
D716
D43
D42
D109
P
D43
D42
D43
D42
GOLD 9/16" LARGE HEAD SCREW
(2 used for the BRACKETS)
5S
Unfinished
surface
Groove
1
2
3
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BACK groove.
7G
D43
VIEW THE T-SLOT BOX VIDEO
BLACK 1-9/16" FLAT HEAD SCREW
(4 used for the DRAWER BACK)
30S

Step
109830www.sauder.com/services Page 19
Step 14

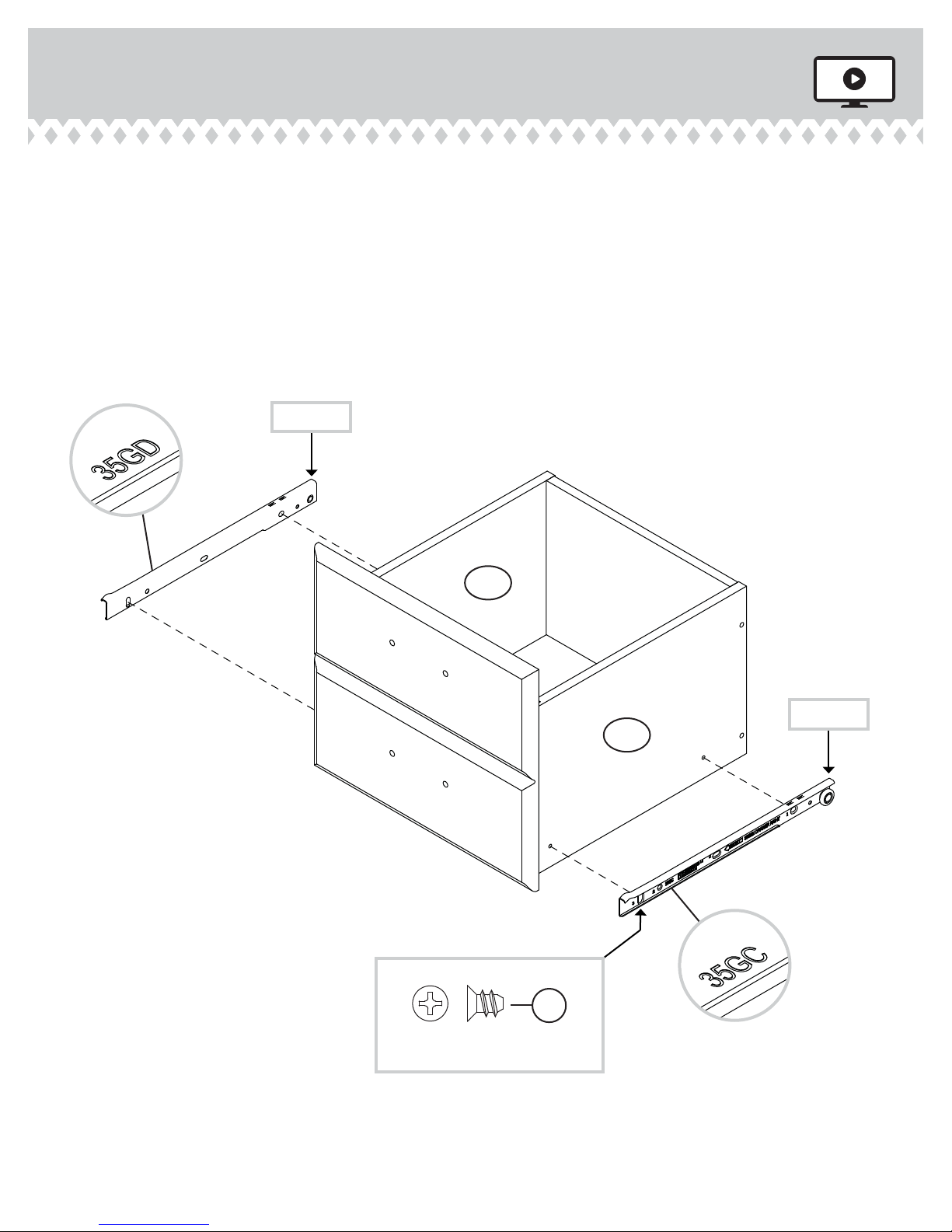

å Fasten a DRAWER RIGHT (35GC) to the LARGE RIGHT
DRAWER SIDE (D48) and a DRAWER LEFT (35GD) to the
LARGE LEFT DRAWER SIDE (D49). Use four GOLD 5/16"
FLAT HEAD SCREWS (3S) through holes #1 and #3.
å Repeat this step for the SMALL DRAWER and other
LARGE DRAWER.
1
2
3
1
2
3
Roller end
Roller end
D49
D48
GOLD 5/16" FLAT HEAD SCREW
(12 used in this step)
3S
(4 screws per drawer)

Step

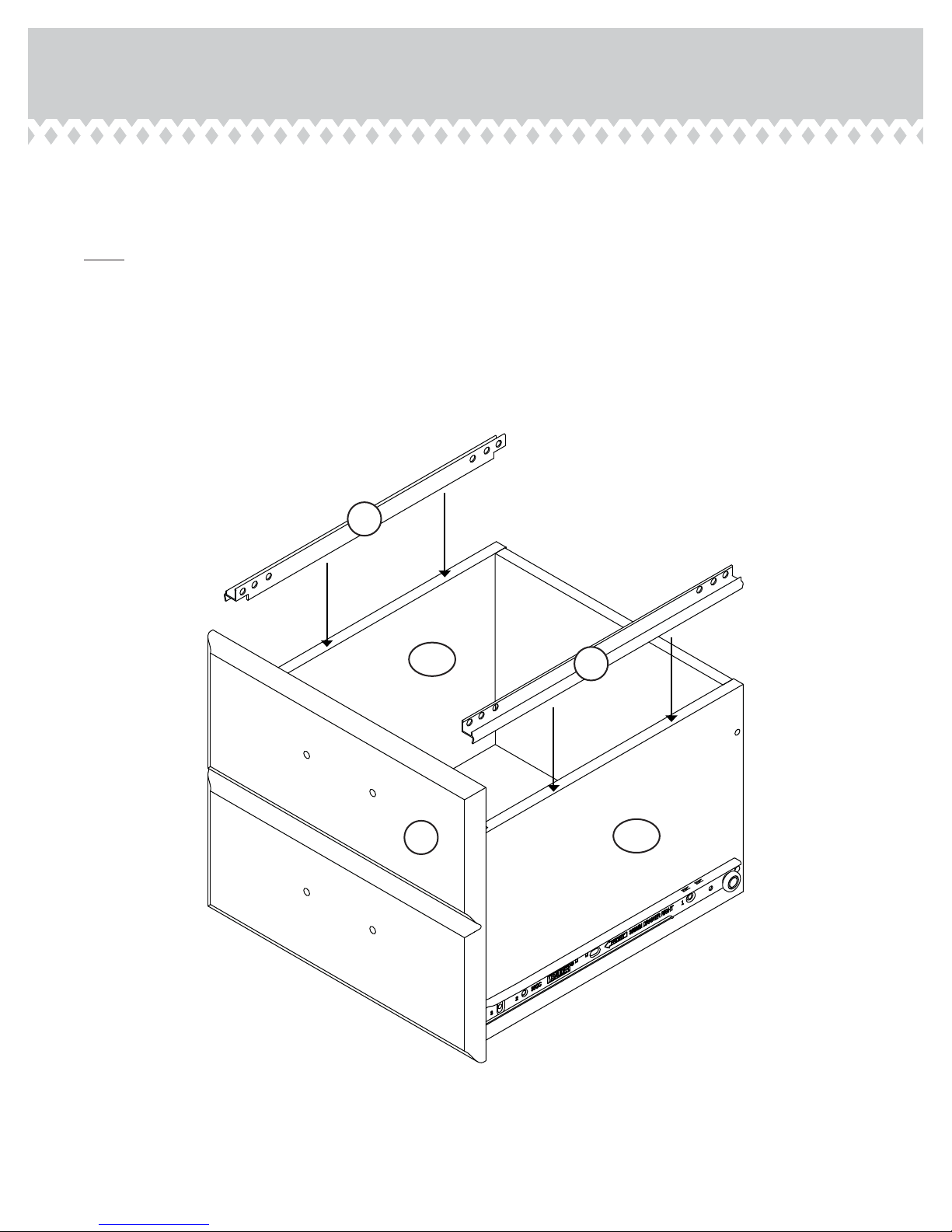

å Press the FILE GLIDES (4B) over the LARGE DRAWER
SIDES (D48 and D49) on the upper drawer. The FILE
GLIDES are necessary to hang files.
å NOTE: The drawers are designed to hold letter-size files.
å Repeat this step for the lower drawer.
Step 15
109830 www.sauder.com/servicesPage 20
4B
D49
D48
4B
L2
