Sauder Heritage Hill 109843 User manual

Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-26
Français pg 27-31
Español pg 32-36
Lot # 507393 07/28/17
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Business or pleasure.
Works both ways.
Executive Desk
Heritage Hill Collection | Model 109843

Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
Assembly Tools RequiredTable of Contents
2-3
4-5
6-26
27-31
32-36
37-38
39
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Part Identification
A2 RIGHT END (1)
B LEFT END (1)
C2 RIGHT UPRIGHT (1)
D LEFT UPRIGHT (1)
D332 LARGE DRAWER BOX FRONT (6)
D360 LARGE DRAWER SIDE (6)
D421 SMALL DRAWER SIDE (4)
D460 SMALL DRAWER BOX FRONT (4)
D717 SMALL DRAWER BOTTOM (2)
D856 LARGE DRAWER BOTTOM (3)
E BOTTOM (2)
F3 BACK (2)
G TOP (1)
H MODESTY PANEL (1)
I LONG SKIRT (4)
J SHORT SKIRT (4)
K EXTENSION BLOCK (2)
L LARGE DRAWER FRONT (3)
P SMALL DRAWER FRONT (2)
T KEYBOARD SHELF (1)
U KEYBOARD FRONT (1)
V SIDE RAIL (2)
W BACK RAIL (1)
X FRONT MOLDING (1)
Y BACK MOLDING (1)
Z SHORT MOLDING (2)
109843 www.sauder.com/servicesPage 2

Now you know
our ABCs.

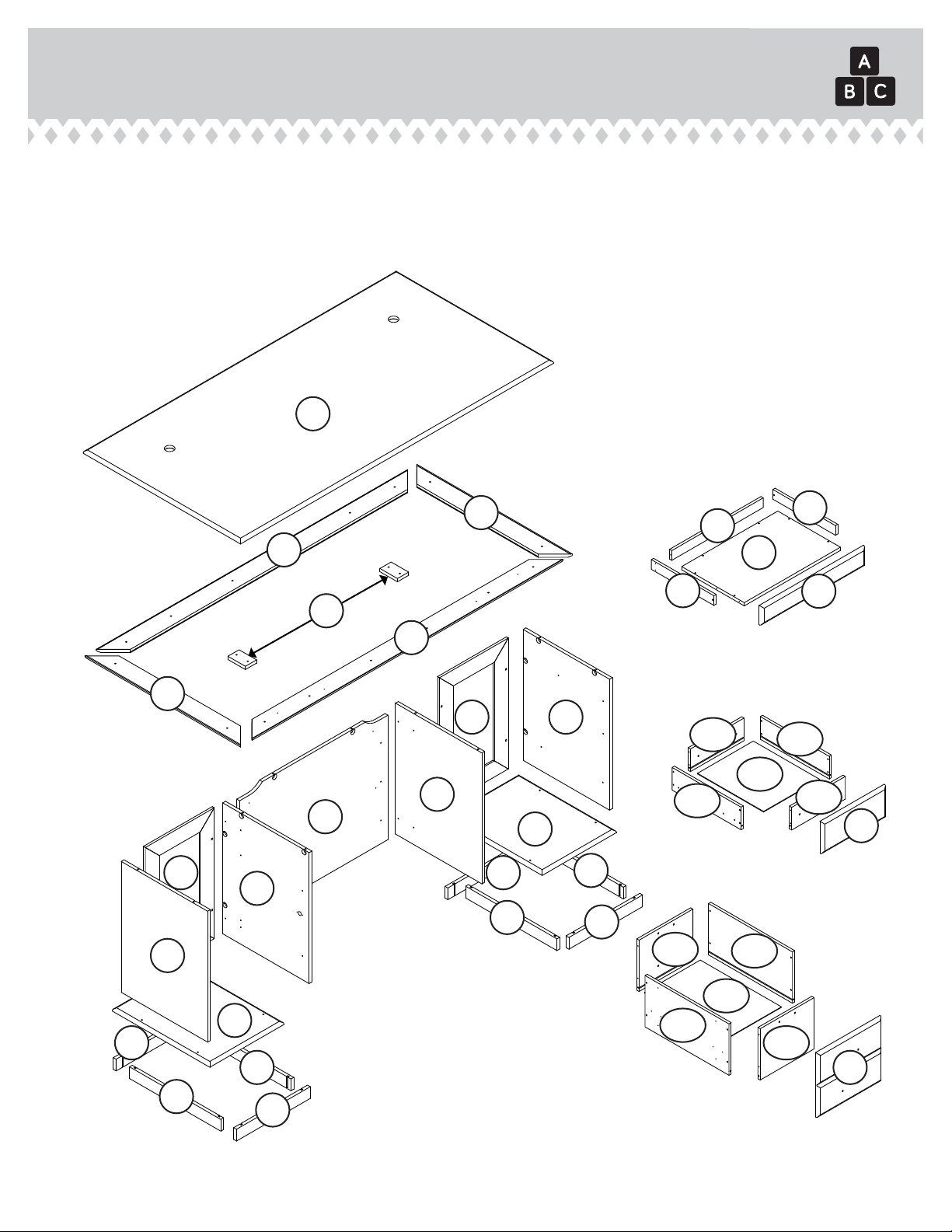

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A2
B
C2
D
E
E
F3
F3
G
H
I
I
I
IJ
J
J
J
K
L
D332
D332 D360
D360
D856
P
D460
D460
D421
D421
D717
T
U
V
V
W
X
Y
Z
Z
109843www.sauder.com/services Page 3

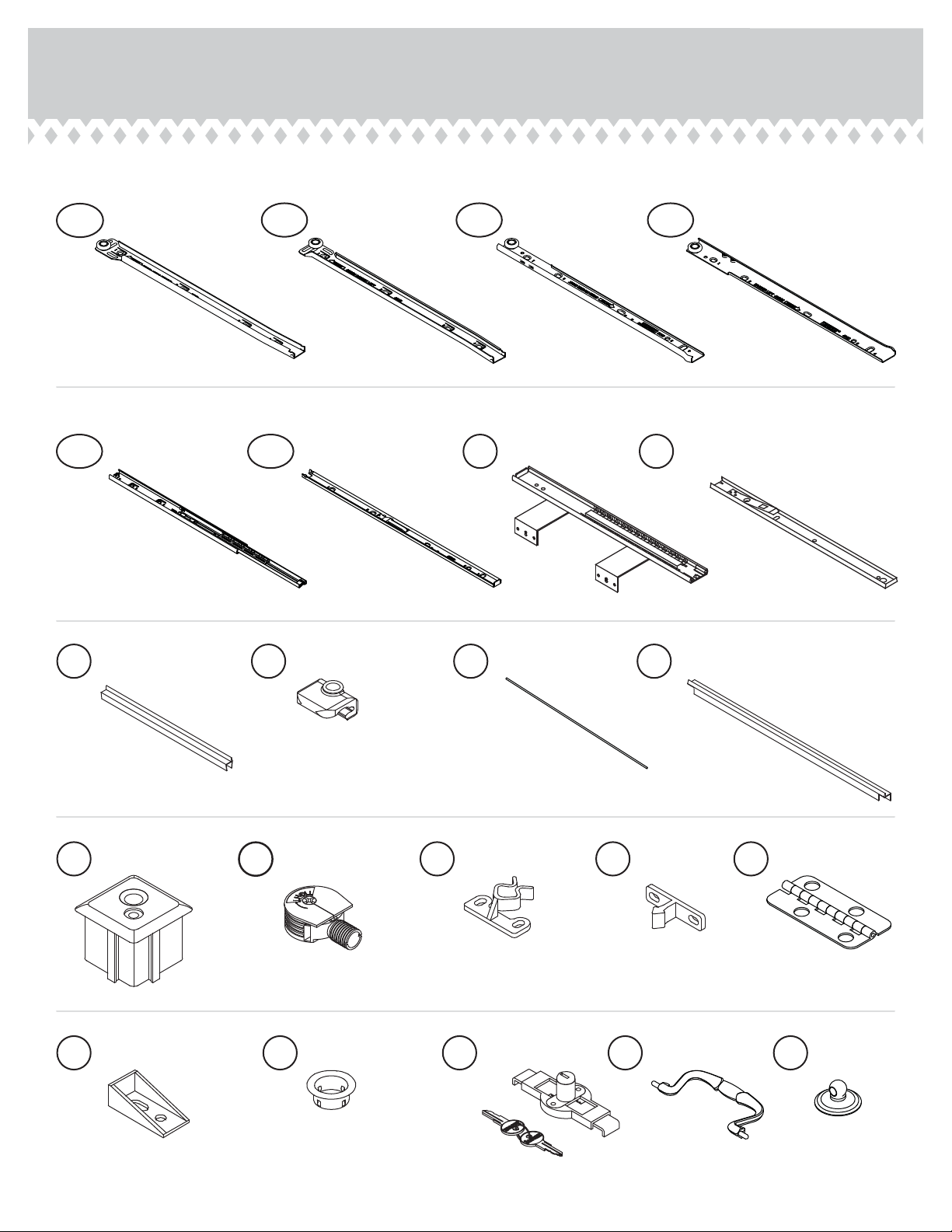

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
40CA CABINET RIGHT - 2 40CB CABINET LEFT - 2 40CC DRAWER RIGHT - 2 40CD DRAWER LEFT - 2
FILE ROD - 3
17B
LOCK BRACKET - 2
9J
FOOT - 8
43E HINGE - 2 16H
FILE CLIP - 6
13B
PULL - 8
77K 78K PULL
MOUNT - 16
LOCK RING - 1
10J LOCK - 1 11J
FILE GLIDE - 6
21B
STRAIGHT FILE
GLIDE - 3
2B
V - CATCH - 1
33F STRIKE
CATCH - 1
34F
KEYBOARD RAIL - 2
CC KEYBOARD SLIDE - 2 DD
7F TWIST-LOCK®
FASTENER - 18
109843 www.sauder.com/servicesPage 4
(EXTENSION SET SHOWN SEPARATED)
EXTENSION SLIDE - 6
45MC
EXTENSION RAIL - 6
45MA
(EXTENSION SET SHOWN SEPARATED)

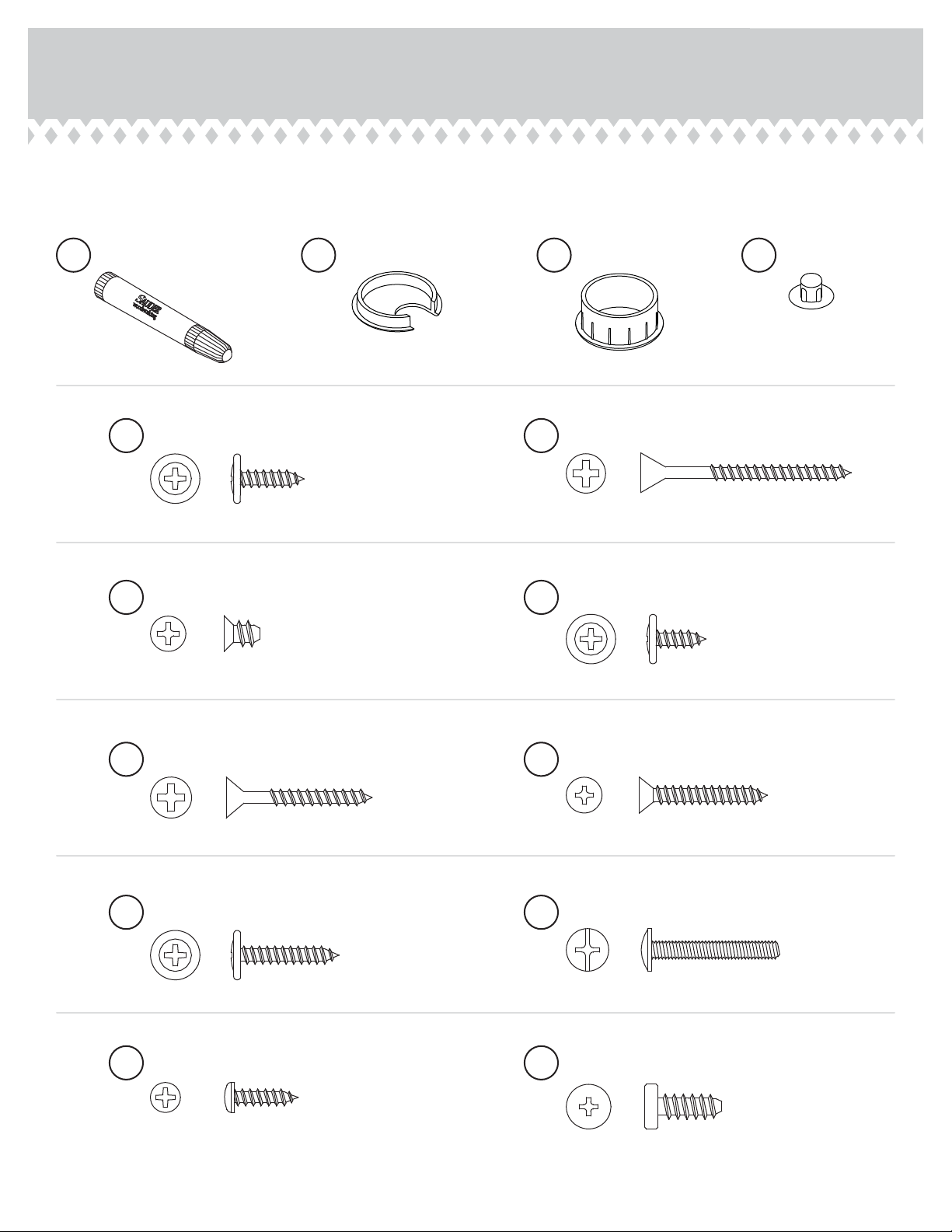

åScrews are shown actual size. You may receive extra hardware with your unit.
Hardware Identification
GROMMET CAP - 2
1P
TOUCH-UP PEN - 1
9M GROMMET - 2 10P 11P HOLE PLUG - 10
109843www.sauder.com/services Page 5
BLACK 9/16" PAN HEAD SCREW - 2
25S
BLACK 1-1/8" MACHINE SCREW - 16
21S
BLACK 9/16" LARGE HEAD SCREW - 4
1S
SILVER 1-1/8" FLAT HEAD SCREW - 22
10S
BLACK 1-1/4" FLAT HEAD SCREW - 48
7S
BLACK 7/8" LARGE HEAD SCREW - 8
17S
BROWN 7/16" LARGE HEAD SCREW - 32
6S
BLACK 1-7/8" FLAT HEAD SCREW - 12
2S
BLACK 9/16" WAFER HEAD SCREW - 8
33S
3S GOLD 5/16" FLAT HEAD SCREW - 28

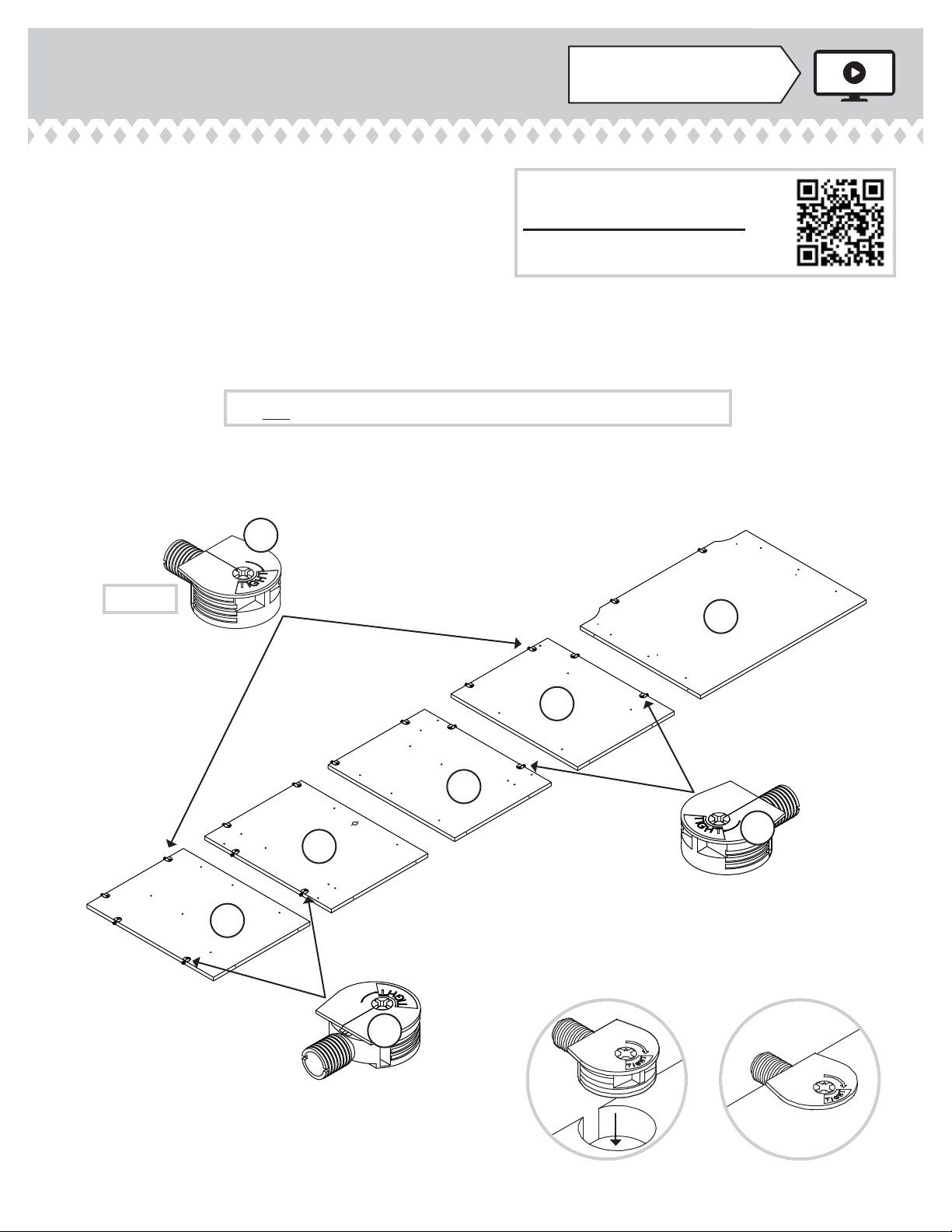

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (7F) into the large holes in the RIGHT
END (A2), LEFT END (B), RIGHT UPRIGHT (C2), LEFT
UPRIGHT (D), and MODESTY PANEL (H).
(18 used)
Do not tighten the TWIST-LOCK® FASTENERS in this step.
H
7F
A2
B
C2
D
7F
7F
Scan this QR code or go to this address:
http://qr.sauder.com/?ID=1862
to watch a video on how to assemble your unit.
109843 www.sauder.com/servicesPage 6

Step 2
Open end
Open end
B
D
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
109843www.sauder.com/services Page 7

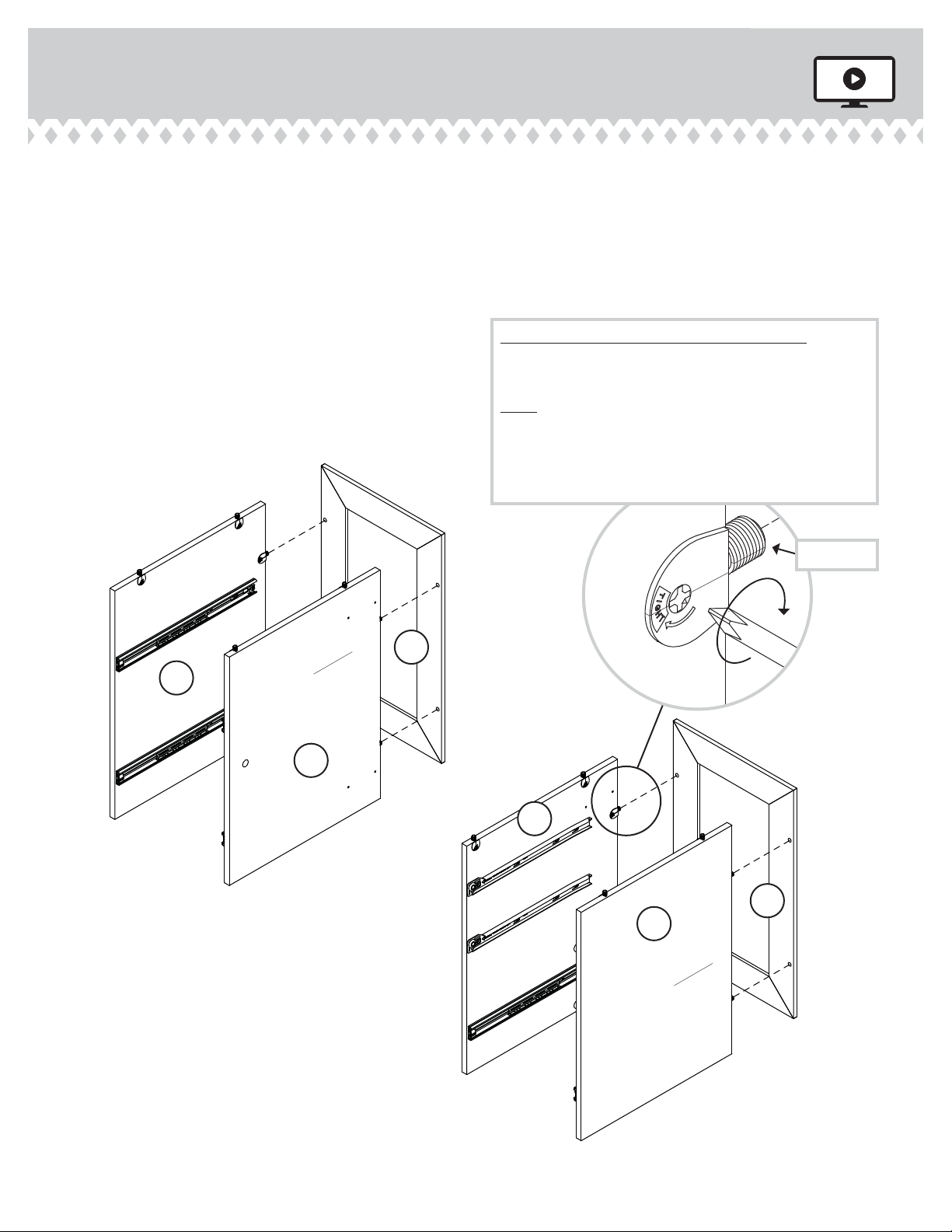

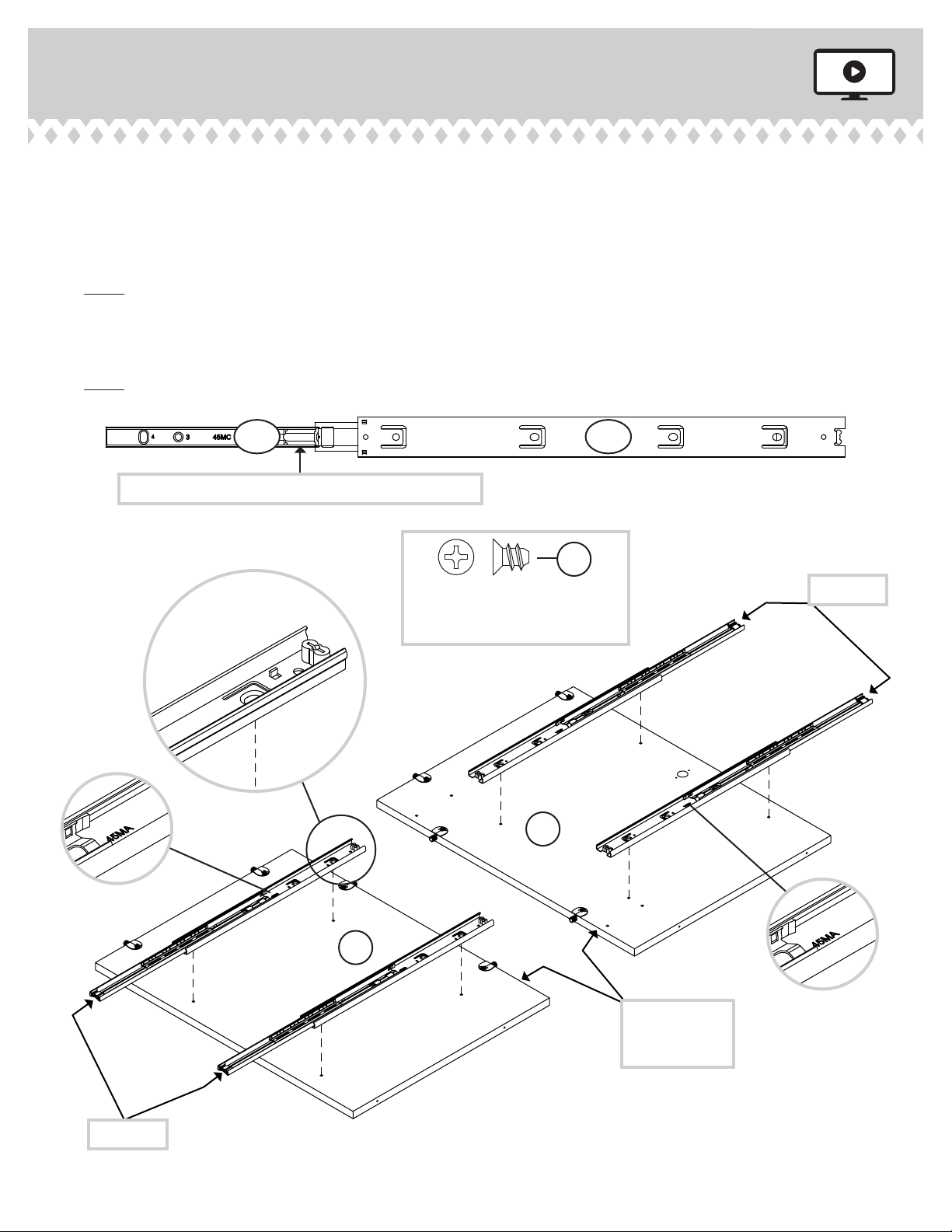

å Separate the EXTENSION SLIDES (45MC) from the EXTENSION RAILS (45MA) as
shown in the upper diagram below. Be prepared, the parts are greasy.
å Fasten four EXTENSION RAILS (45MA) to the LEFT END (B) and LEFT UPRIGHT (D).
Use eight GOLD 5/16" FLAT HEAD SCREWS (3S).
å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the
enlarged diagram. Then, slide the inner cartridge of the EXTENSION RAIL in to find
the other hole that lines up with the hole in the LEFT END or LEFT UPRIGHT. Turn a
SCREW into this hole.
å NOTE: The EXTENSION SLIDES will be used later for the LARGE DRAWERS.
4
Push the black lever in and pull the SLIDE from the RAIL.
45MA45MC
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Long edge with
TWIST-LOCK®
FASTENERS

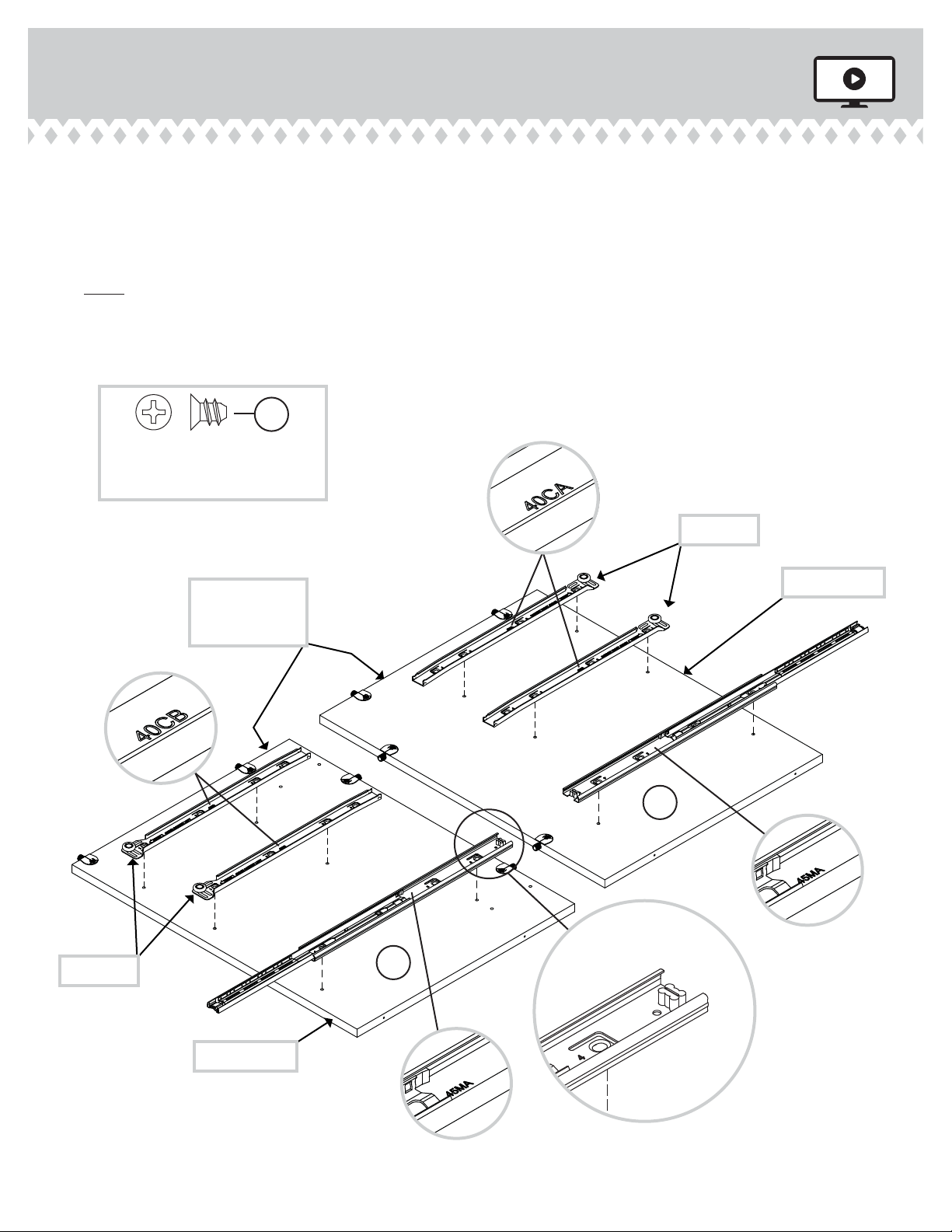

å Fasten the CABINET RIGHTS (40CA) and CABINET LEFTS (40CB) to the RIGHT END (A2) and
RIGHT UPRIGHT (C2). Use eight GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #3.
å Fasten two EXTENSION RAILS (45MA) to the RIGHT END (A2) and RIGHT UPRIGHT (C2). Use
four GOLD 5/16" FLAT HEAD SCREW (3S).
å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram.
Then slide the inner cartridge of the EXTENSION RAIL in to find the other hole that lines up with
the hole in the RIGHT END or RIGHT UPRIGHT. Turn a SCREW into this hole.
Step 3
A2
C2
GOLD 5/16" FLAT HEAD SCREW
(12 used in this step)
3S
1
1
2
2
3
3
4
4
1
1
2
2
3
3
4
4
Roller end
Roller end
109843 www.sauder.com/servicesPage 8
Finished edge
Finished edge
Surface with
TWIST-LOCK®
FASTENERS
Short edge with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS

Step 4
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking
the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Dowel end
å Fasten the LEFT END (B) and LEFT UPRIGHT (D) to one of
the BACKS (F3). Tighten four TWIST-LOCK® FASTENERS.
å Fasten the RIGHT END (A2) and RIGHT UPRIGHT (C2) to the
other BACK (F3). Tighten four TWIST-LOCK® FASTENERS.
A2
B
C2
D
F3
F3
109843www.sauder.com/services Page 9
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Surface without
TWIST-LOCK®
FASTENERS
Surface without
TWIST-LOCK®
FASTENERS

å Fasten one of the BOTTOMS (E) to the LEFT END (B) and LEFT
UPRIGHT (D). Use four BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å Repeat this step to fasten the other BOTTOM (E) to the RIGHT
END (A2) and RIGHT UPRIGHT (C2) as shown.
Step 5
A2
B
C2
D
E
E
BLACK 1-7/8" FLAT HEAD SCREW
(8 used in this step)
2S
Unfinished
surface
Unfinished
surface
This hole must be here.
2S
Don't worry. It isn't
Rome. This can be built
in a day.
109843 www.sauder.com/servicesPage 10
This hole
must be here.

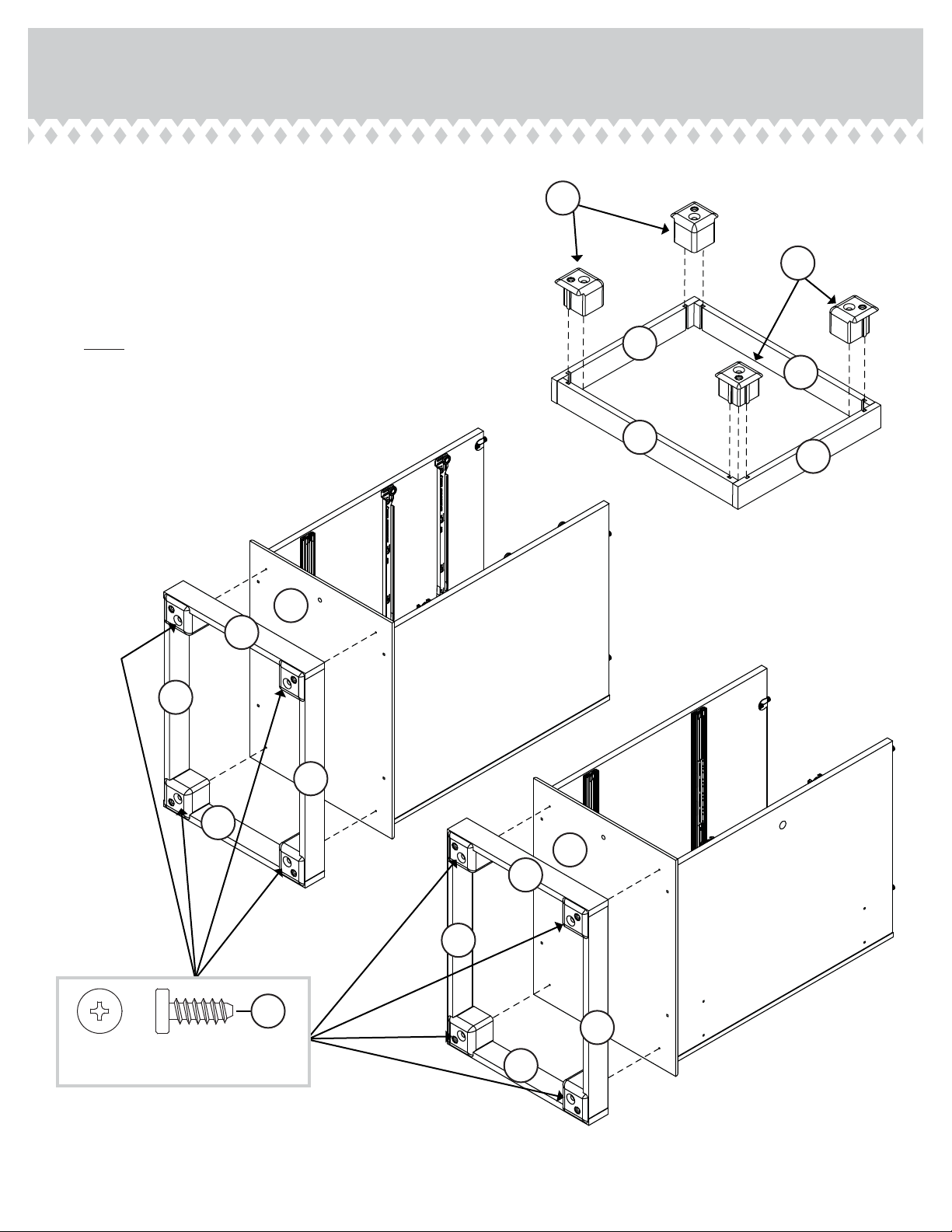

å Slide the FEET (43E) into the grooves in the LONG
SKIRTS (I) and SHORT SKIRTS (J) as shown. You may
need to gently tap them in with your hammer.
å Repeat the assembly of the SKIRTS and FEET.
å Fasten the FEET (43E) to the BOTTOMS (E) as shown.
Use eight BLACK 9/16" WAFER HEAD SCREWS (33S).
å NOTE: Start each SCREW a few turns before tightening
any of them. Be sure a SHORT SKIRT is positioned toward
the floor as shown.
Step 6
E
E
I
I
I
I
J
J
J
J
43E
43E
BLACK 9/16" WAFER HEAD SCREW
(8 used in this step)
33S
109843www.sauder.com/services Page 11
J
J
I
I

å Fasten the FRONT MOLDING (X) and BACK MOLDING (Y) to the TOP (G) in the
exact locations shown. Use twelve SILVER 1-1/8" FLAT HEAD SCREWS (10S).
å IMPORTANT: Do not overtighten the SCREWS. The heads of the SCREWS
should be even with the surface of the MOLDINGS.
å NOTE: The MOLDINGS will set in from the edges of the TOP.
å Fasten the SHORT MOLDINGS (Z) to the TOP (G) as shown. Use six SILVER
1-1/8" FLAT HEAD SCREWS (10S). Do not completely tighten these SCREWS at
this time.
å Now, be sure the pointed corners of all four MOLDINGS line up with each other.
Tighten the SCREWS in the SHORT MOLDINGS.
å NOTE: Do not overtighten the SCREWS.
Step 7
SILVER 1-1/8" FLAT HEAD SCREW
(18 used in this step)
10S
Z
Z
X
Y
G
Finished surface
Finished surface
109843 www.sauder.com/servicesPage 12
Unfinished surface
The large holes should be closer
to the BACK MOLDING (Y).

å Separate the KEYBOARD SLIDES (DD) from the KEYBOARD RAILS (CC). To do this, fully extend the KEYBOARD
SLIDE and push the metal release in and pull the SLIDE from the RAIL so you have two separate parts. Be
prepared, the parts are greasy.
å Fasten the KEYBOARD RAILS (CC) to the TOP (G) as shown. Use four BLACK 9/16" LARGE HEAD SCREWS (1S)
through the oblong holes in the KEYBOARD RAILS and into the exact holes shown in the TOP.
å NOTE: Be sure to position each KEYBOARD RAIL as shown, with the open ends facing out. Follow the diagram
closely. Try to center the SCREWS in the oblong holes.
å NOTE: The KEYBOARD SLIDES will be used later for the KEYBOARD DRAWER.
Step 8
G
CC
CC
Open end
BLACK 9/16" LARGE HEAD SCREW
(4 used in this step)
1S
109843www.sauder.com/services Page 13
Y
CC
DD
Push the metal release in and pull the SLIDE from the RAIL.

å If you purchased the 109848 Return Kit and 109872
U-Shape connector Kit, go to those instruction books
now. Below are various ways you can attach your 109848
Return Kit and 109872 Connector Kit to the 109843
Executive Desk.
å If you purchased the 109843 Desk only, continue with
step 10 of this instruction book.
Step 9
109848 Return Kit
109848 Return Kit
109872 U- Shape
Connector Kit
109872 U- Shape
Connector Kit
109848 Return Kit
109848 Return Kit
109843 Executive
Desk
109843 Executive
Desk
109843 Executive
Desk
109843 Executive
Desk
109843 Executive
Desk
109843 www.sauder.com/servicesPage 14

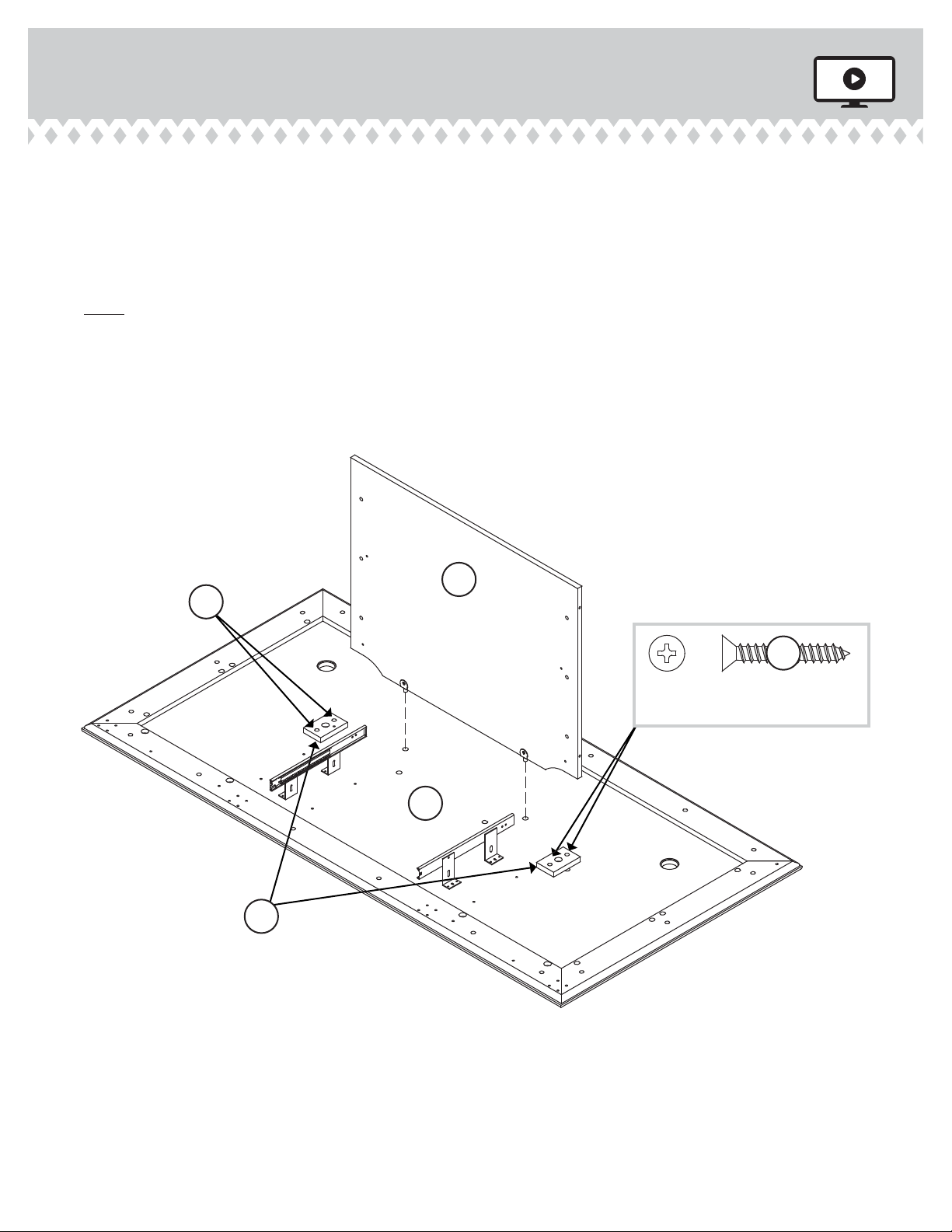

å Fasten the MODESTY PANEL (H) to the TOP (G). Tighten
two TWIST-LOCK® FASTENERS.
å Fasten both EXTENSION BLOCKS (K) to the TOP (G) as
shown. Use two SILVER 1-1/8" FLAT HEAD SCREWS (10S)
through the outer holes in each EXTENSION BLOCK.
å NOTE: Be sure the surface with three holes in each
EXTENSION BLOCK is facing up.
Step 10
Surface with TWIST-LOCK® FASTENERS
H
K
G
SILVER 1-1/8" FLAT HEAD SCREW
(4 used in this step)
10S
10S
109843www.sauder.com/services Page 15

109843 www.sauder.com/servicesPage 16

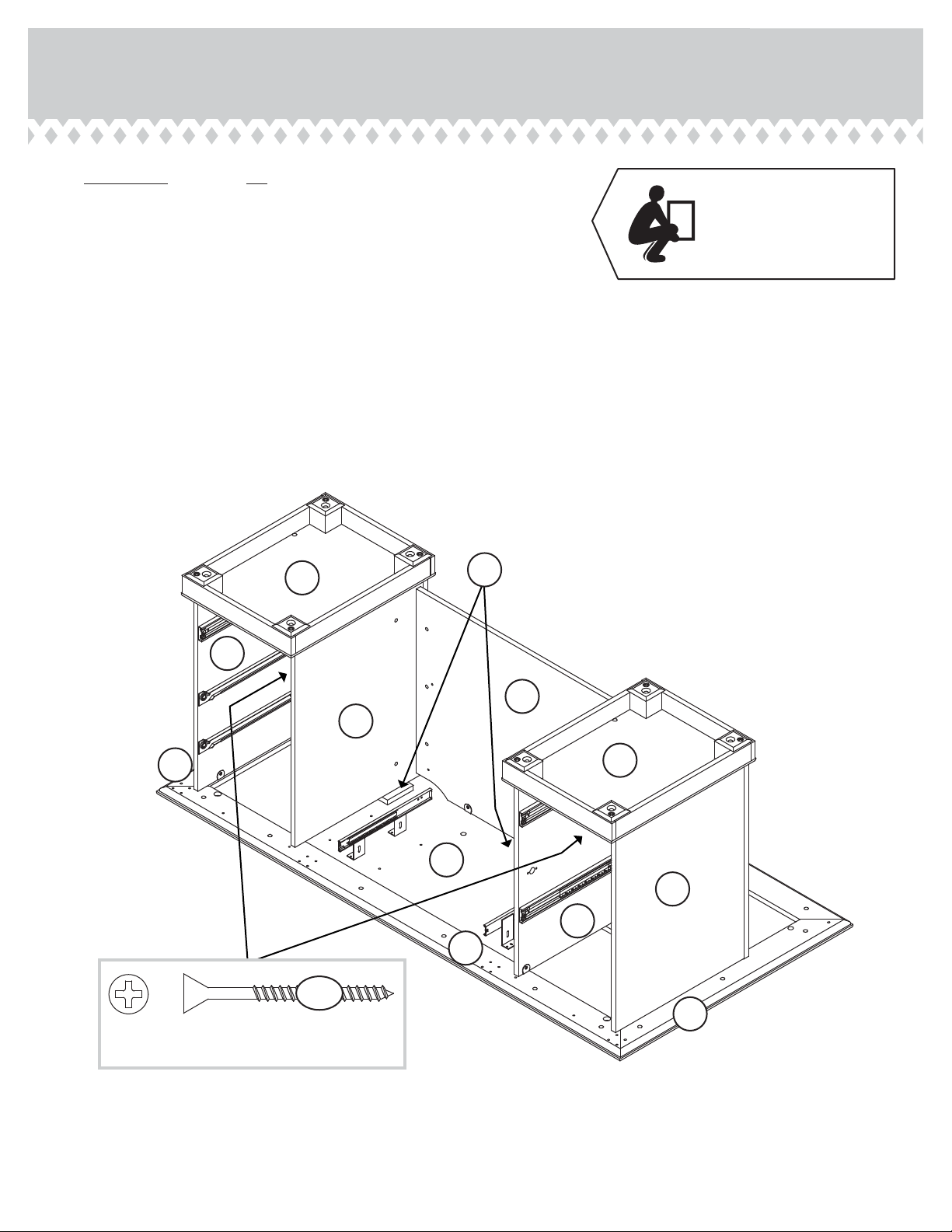

å IMPORTANT: Be careful not to put any pressure on the MODESTY
PANEL (H) until the UPRIGHTS are fastened to it.
å Fasten the RIGHT END (A2), LEFT END (B), RIGHT UPRIGHT (C2),
and LEFT UPRIGHT (D) to the FRONT MOLDING (X), SHORT
MOLDINGS (Z), and EXTENSION BLOCKS (K) as shown. Tighten
eight TWIST-LOCK® FASTENERS in the ENDS and UPRIGHTS.
å Now, fasten the UPRIGHTS (C2 and D) to the MODESTY PANEL (H).
Use four BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å Now, carefully stand your unit upright.
Step 11
A2
B
C2
D
E
E
G
H
X
Z
BLACK 1-7/8" FLAT HEAD SCREW
(4 used in this step)
2S
Pro Tip: Lift with your
legs. And, you know,
your arms.
K
Z

Step 12
BLACK 1-1/4" FLAT HEAD SCREW
(40 used in this step)
7S
Finished surface
109843www.sauder.com/services Page 17
D332
D332
D360
D360
D856
1
23

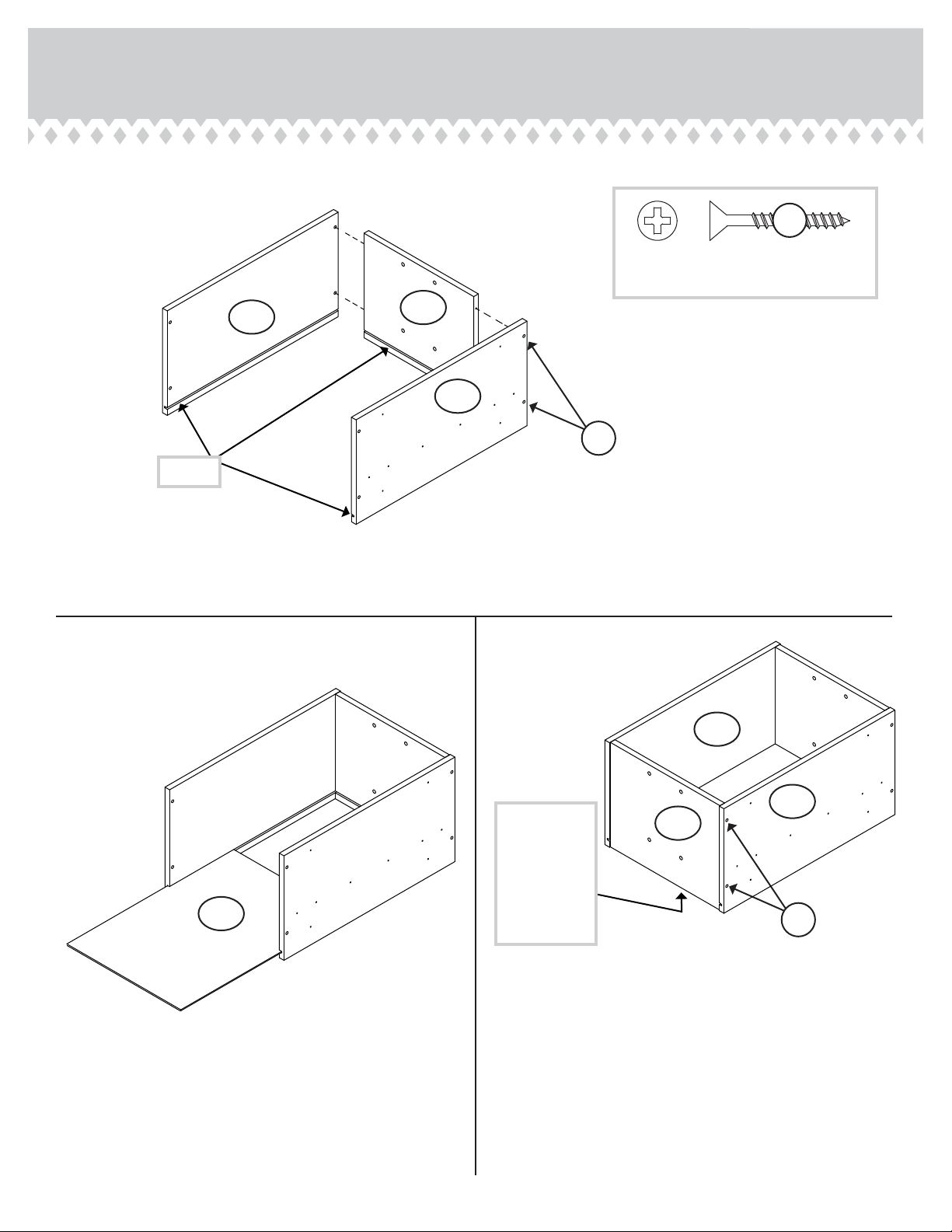

å Fasten two LARGE DRAWER SIDES (D360) to one of the LARGE DRAWER BOX FRONTS (D332). Use four BLACK 1-1/4"
FLAT HEAD SCREWS (7S).
å Slide a LARGE DRAWER BOTTOM (D856) into the
grooves in the LARGE DRAWER SIDES and LARGE
DRAWER BOX FRONT.
å Fasten another LARGE DRAWER BOX FRONT (D332)
to the LARGE DRAWER SIDES (D360). Use four BLACK
1-1/4" FLAT HEAD SCREWS (7S).
å Repeat this step to assemble the other two large drawers.
å Also, repeat this step to assemble the two small
drawers. Use the SMALL DRAWER BOX FRONTS (D460),
SMALL DRAWER SIDES (D421), and SMALL
DRAWER BOTTOMS (D717).
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BOX FRONT
groove.
Groove
D360
D360
7S
7S

å Press the NOTCHED FILE GLIDES (21B) over the LARGE DRAWER SIDES (D360) on one of the drawers. Press a STRAIGHT
FILE GLIDE (2B) over one of the LARGE DRAWER BOX FRONTS (D332). The FILE GLIDES are necessary to hang files.
å The drawers are designed to hold letter, legal, or European-size files. If you wish to hang legal or European-size files,
use the FILE CLIPS (13B) and a FILE ROD (17B). Insert the FILE ROD (17B) into each FILE CLIP and slide the FILE CLIPS
onto the NOTCHED FILE GLIDES (21B) as needed. Follow the diagram.
å NOTE: The legal or European-size files will hang on the FILE ROD (17B) and the STRAIGHT FILE GLIDE (2B).
å If you wish to hang letter-size files, hang the files on the NOTCHED FILE GLIDES (21B). If desired, the drawers can hold
both letter and legal or European-size files.
å Insert a PULL MOUNT (78K) into one of the holes on a LARGE DRAWER FRONT (L). Insert one end of a PULL (77K)
into the hole in this PULL MOUNT. Insert the other end of the PULL into another PULL MOUNT and insert it into the
other hole in the LARGE DRAWER FRONT.
å Now, fasten the PULL MOUNTS (with PULLS) to the LARGE DRAWER BOX FRONT (D332). Use a BLACK 1-1/8"
MACHINE SCREW (21S) for each PULL MOUNT.
å NOTE: The LARGE DRAWER FRONT should overhang the bottom edge of the drawer about 1/2". If it does not overhang
the bottom edge, the DRAWER FRONT is on upside down.
å Repeat this step for the other two large drawers.
Step 13
2B
13B
17B
21B
21B
D332
D332
D360
D360
L
BLACK 1-1/8" MACHINE SCREW
(12 used in this step)
21S
2B
109843 www.sauder.com/servicesPage 18
D332
78K
78K
77K

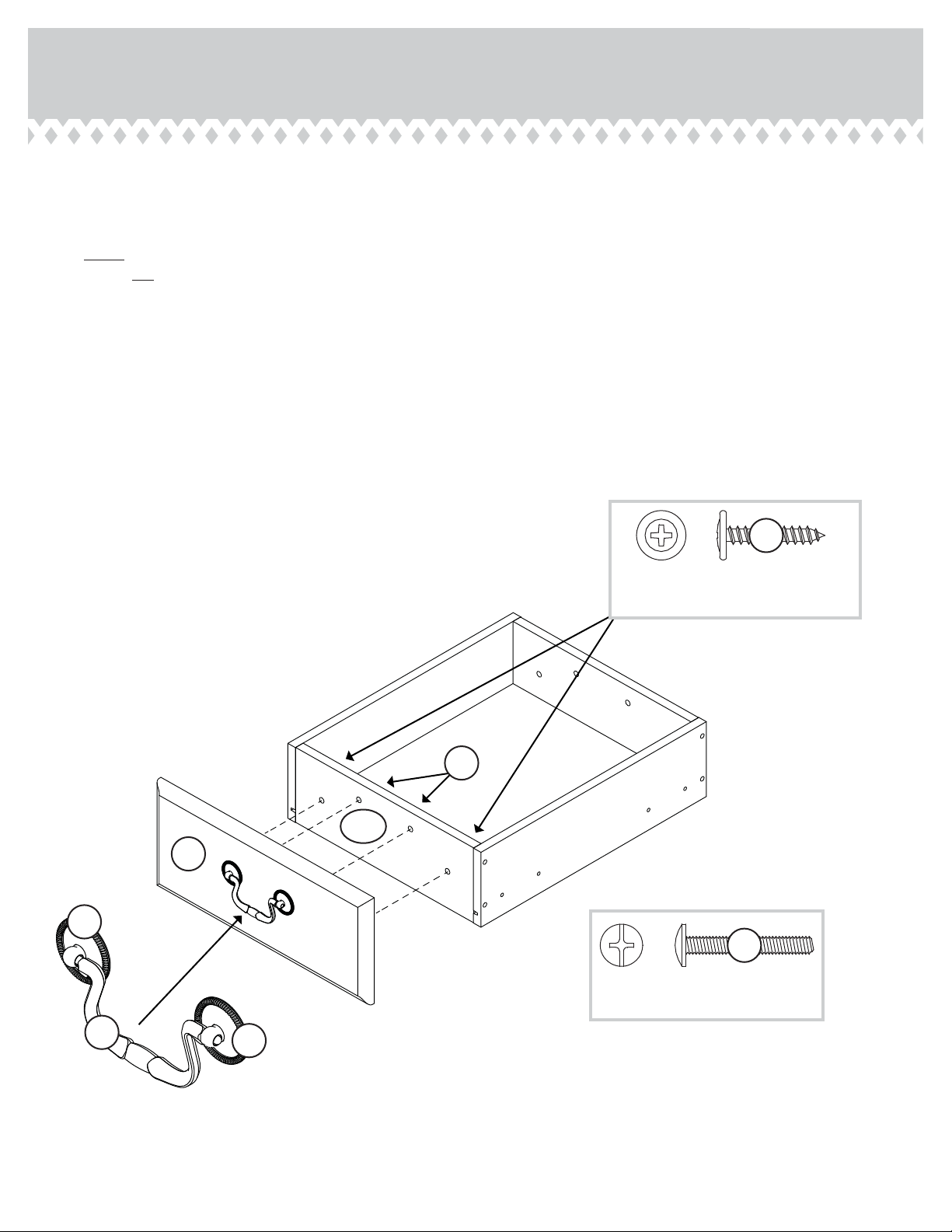

å Fasten a SMALL DRAWER FRONT (P) to one of the SMALL DRAWER BOX FRONTS (D460).
Use two BLACK 7/8" LARGE HEAD SCREWS (17S) through the outer most holes in the SMALL
DRAWER BOX FRONT (D460).
å NOTE: The SMALL DRAWER FRONT should overhang the bottom edge of the drawer about 1/4". If
it does not overhang the bottom edge 1/4", the DRAWER FRONT is on upside down.
å Insert a PULL MOUNT (78K) into one of the holes on the SMALL DRAWER FRONT (P). Insert
one end of a PULL (77K) into the hole in this PULL MOUNT. Insert the other end of the PULL into
another PULL MOUNT and insert it into the other hole in the SMALL DRAWER FRONT.
å Now, fasten the PULL MOUNTS (with PULL) to the SMALL DRAWER FRONT (P). Use a BLACK
1-1/8" MACHINE SCREW (21S) for each PULL MOUNT.
å Repeat this step for the other small drawer.
Step 14
P
BLACK 7/8" LARGE HEAD SCREW
(4 used in this step)
17S
21S
109843www.sauder.com/services Page 19
D460
BLACK 1-1/8" MACHINE SCREW
(4 used for the PULL MOUNTS)
21S
78K
78K
77K

Step 15

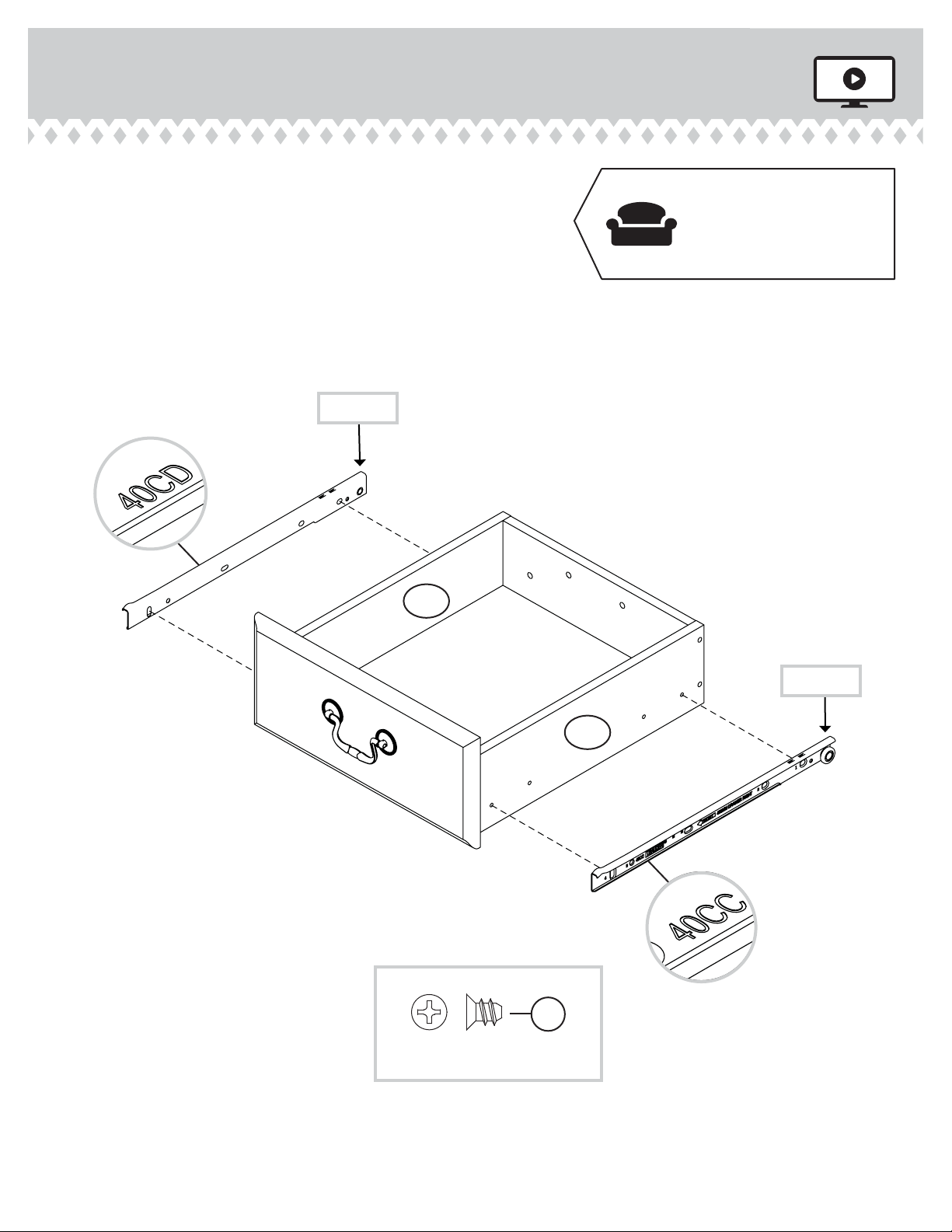

å Fasten a DRAWER RIGHT (40CC) and DRAWER LEFT (40CD)
to the DRAWER SIDES (D421). Use four GOLD 5/16" FLAT
HEAD SCREWS (3S) through holes #1 and #4.
å Repeat this step for the other small drawer.
1
2
3
4
1
2
3
4
Roller end
Roller end
Just think. The sooner
you do this, the sooner
you do something else.
D421
D421
109843 www.sauder.com/servicesPage 20
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
(4 screws per drawer)
