Sauder Office Port 408294 User manual

Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-19
Français pg 20-22
Español pg 23-25
Lot # 389047 03/15/16
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Hutch
Oce Port Collection | Model 408294
For things 'n such.

Table of Contents Assembly Tools Required
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty

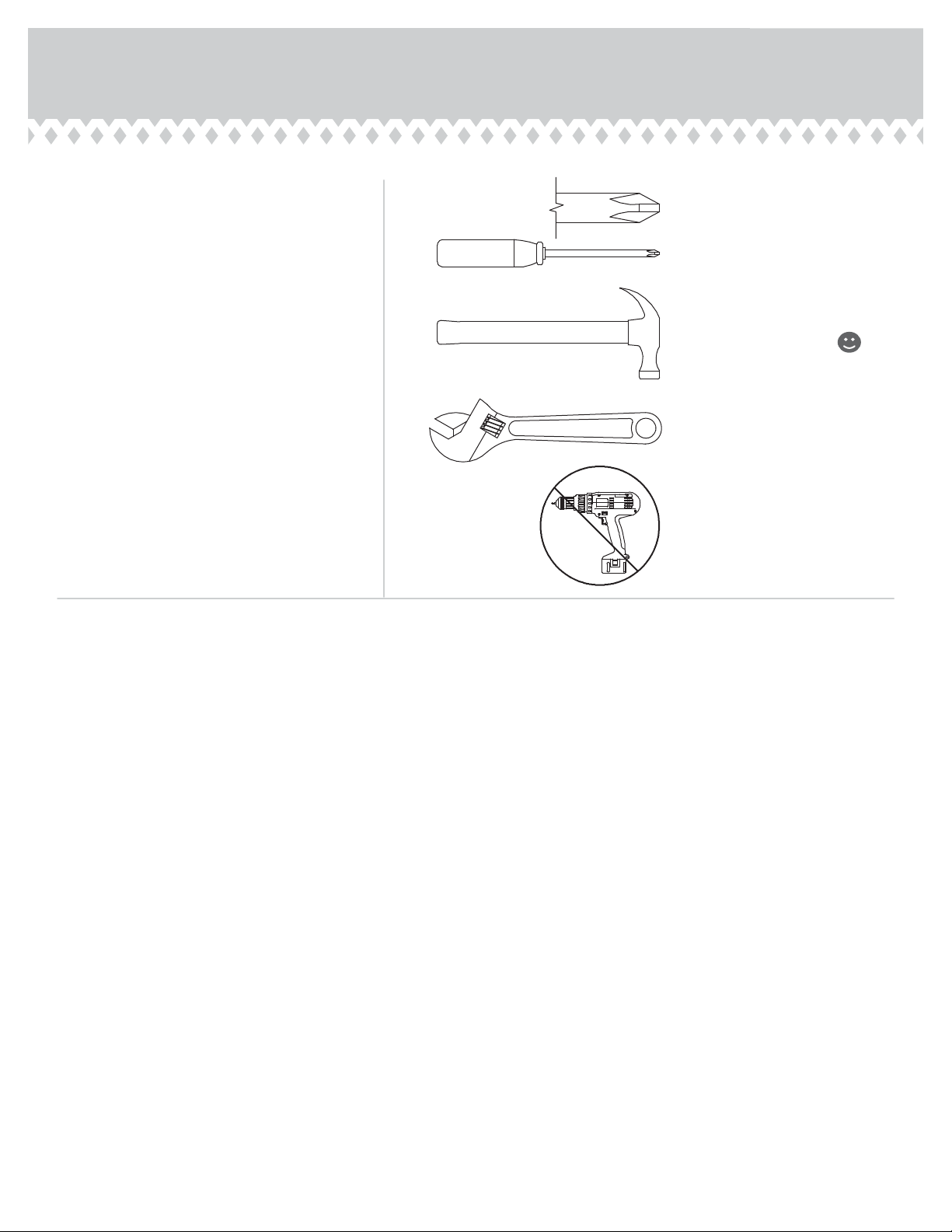

Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
3
4
5-19
20-22
23-25
26
27
408294 www.sauder.com/servicesPage 2
Adjustable Wrench

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.

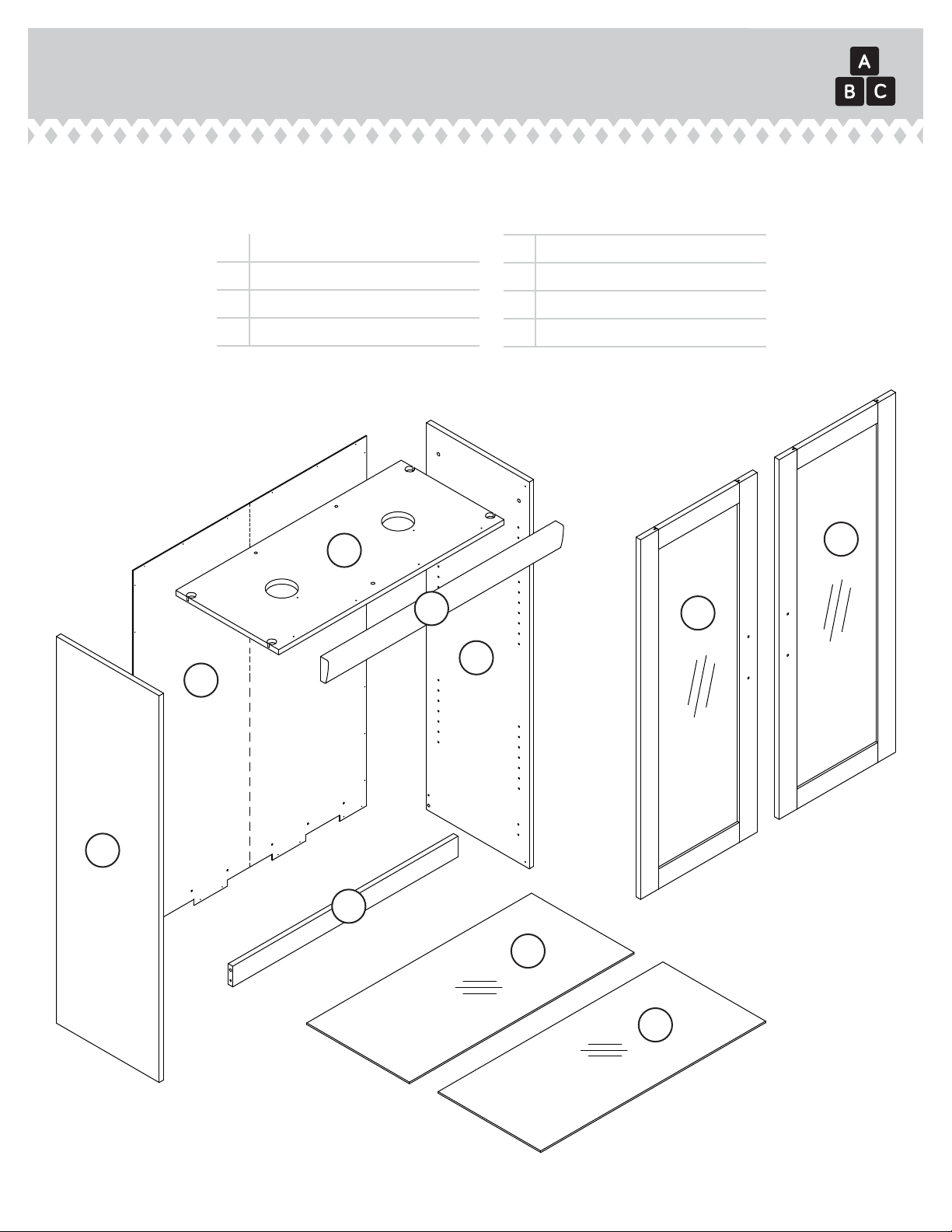

A RIGHT END (1)
B LEFT END (1)
C TOP (1)
D BACK (1)
E BRACE (1)
F DOOR (2)
G VALANCE (1)
H GLASS SHELF (2)
408294www.sauder.com/services Page 3
A
B
C
D
E
F
G
H
H
F

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
408294 www.sauder.com/servicesPage 4
METAL BRACKET - 8
4G
LIGHT SET - 1
5D
U-CLIP - 1
50G
BLACK 9/16" LARGE HEAD SCREW - 24
1S
7F TWIST-LOCK®FASTENER - 4
CORD CLIP - 2
4P METAL PIN - 10 1R
BLACK 1/2" FLAT HEAD SCREW - 8
11S
BLACK 1" PAN HEAD SCREW - 4
60S
PULL - 2
96K
NAIL - 30
1N
HIDDEN CAM - 2
1F CAM DOWEL - 2 2F
RUBBER SLEEVE - 8
2R
13H HINGE - 4

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
408294www.sauder.com/services Page 5
Do not tighten the TWIST-LOCK® FASTENERS in this step.
7F
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (7F) into the large holes in the TOP (C).
Some assembly
(and snacks) required.
7F
C

Step 2
408294 www.sauder.com/servicesPage 6

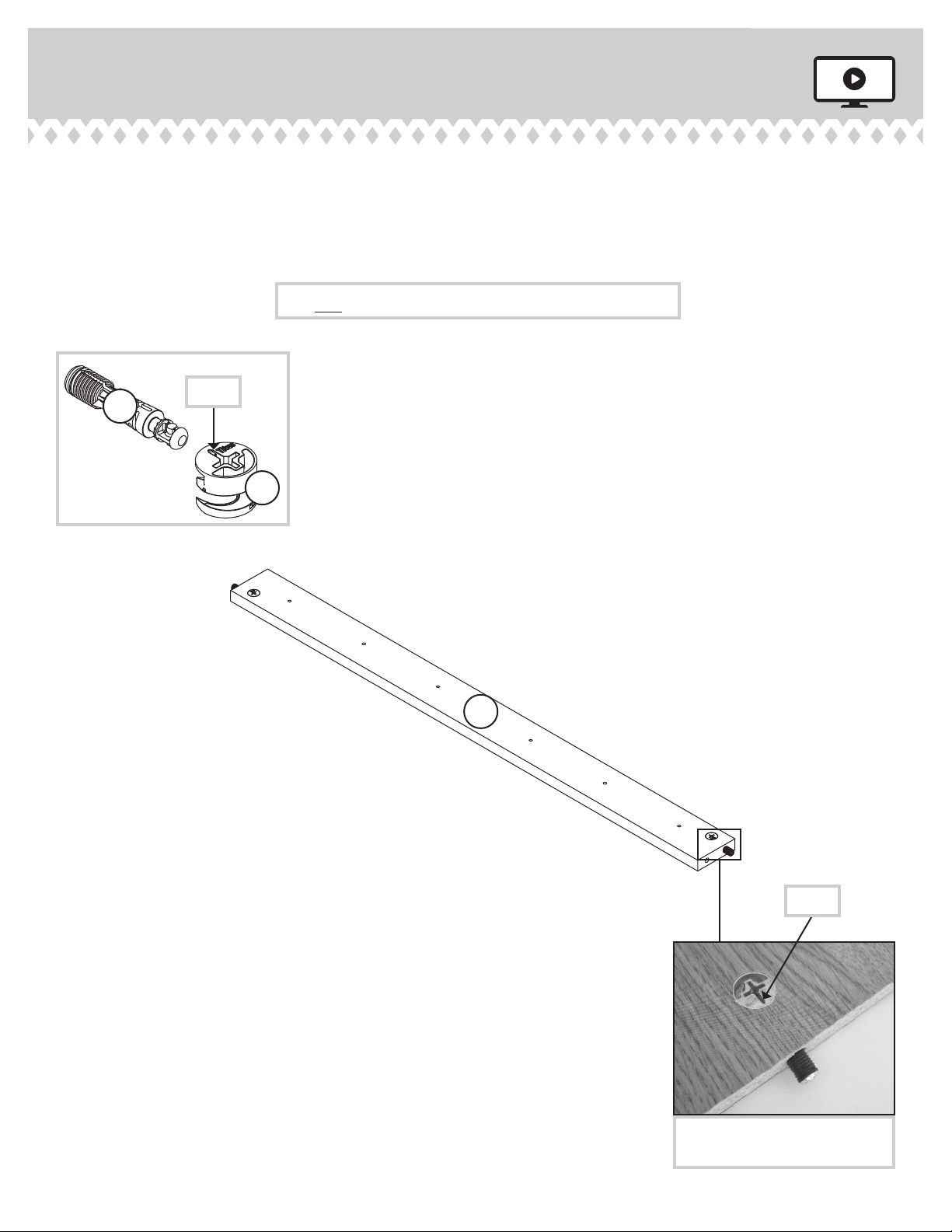

å Push two HIDDEN CAMS (1F) into the BRACE (E). Then,
insert the metal end of a CAM DOWEL (2F) into each
HIDDEN CAM.
(2 used)
Arrow
1F
2F
Do not tighten the HIDDEN CAMS in this step.
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
E

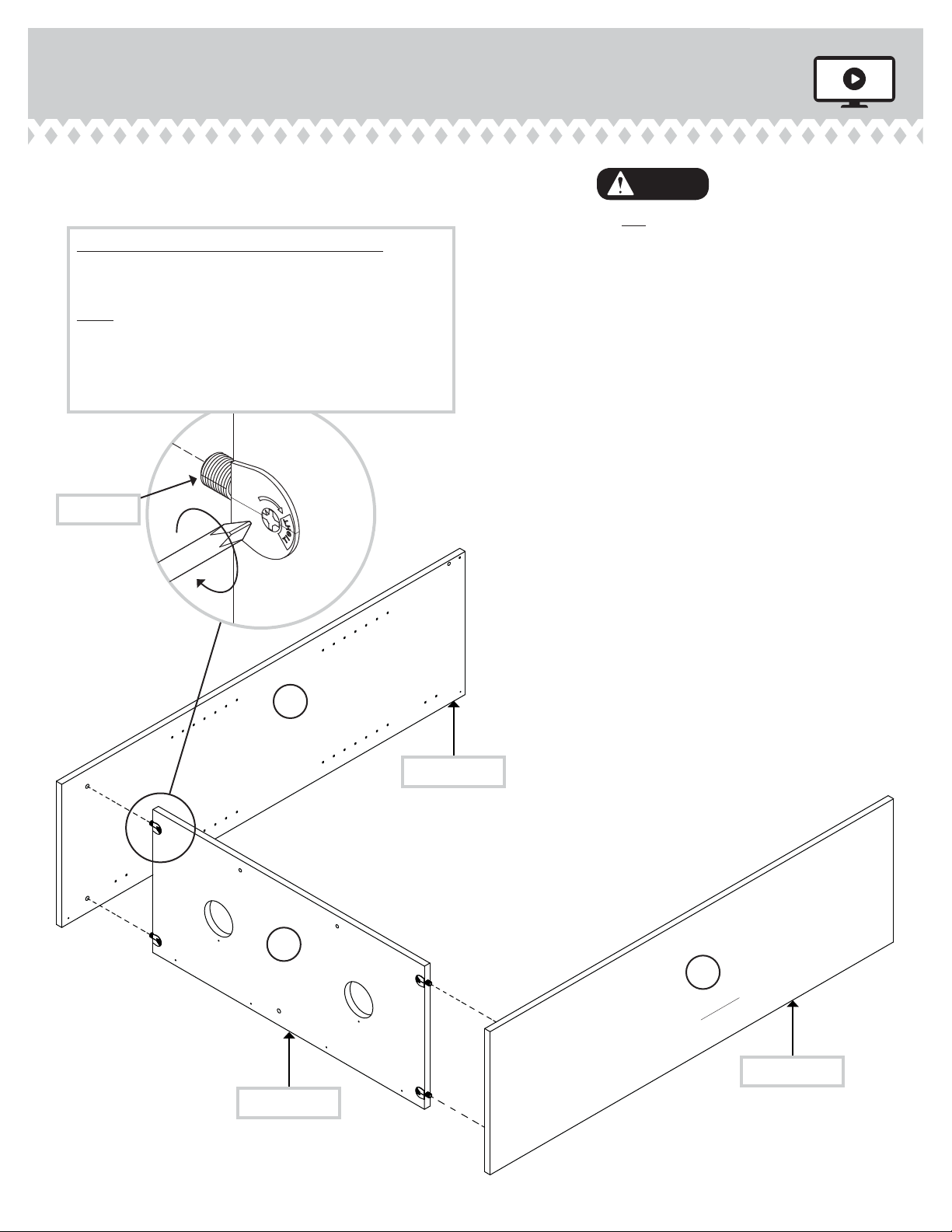

å Fasten the ENDS (A and B) to the TOP (C). Tighten four
TWIST-LOCK® FASTENERS.
Step 3
408294www.sauder.com/services Page 7
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking
the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Dowel end
A
B
C
Surface with TWIST-LOCK® FASTENERS
Surface with holes
Surface without holes
Finished edge
Finished edge
Finished edge

å Insert a METAL PIN (1R) into each end of the BRACE (E).
Step 4
408294 www.sauder.com/servicesPage 8
E
1R
1R

å Fasten the BRACE (E) to the ENDS (A and B). Tighten two
HIDDEN CAMS.
å NOTE: Be sure the METAL PINS in the BRACE insert into
the holes in the ENDS.
Step 5
408294www.sauder.com/services Page 9
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
E
A
B
Surface with HIDDEN CAMS
Finished edge

Step 6
408294 www.sauder.com/servicesPage 10

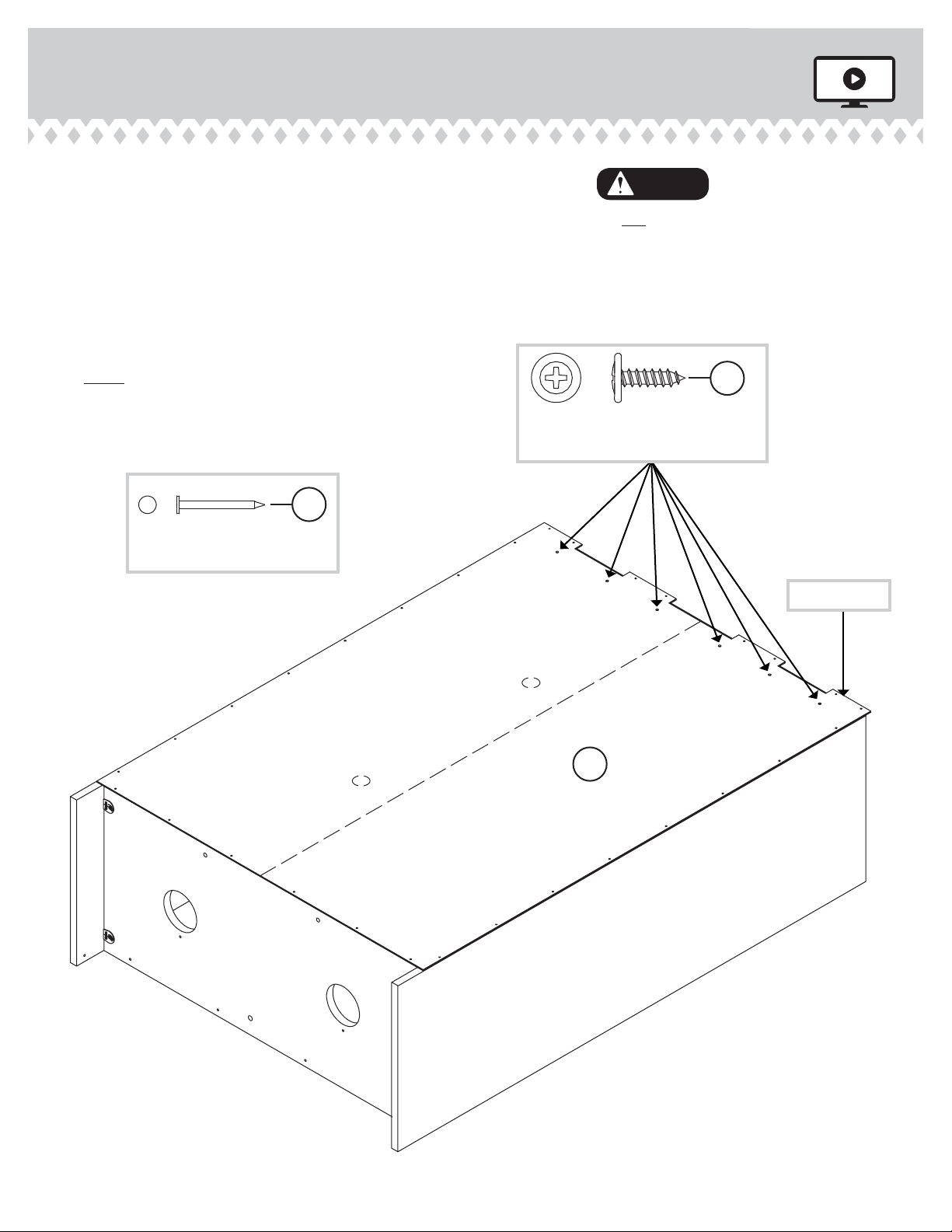

å Unfold the BACK (D) and lay it over your unit.
å Make equal margins along all four edges of the BACK (D).
Push on opposite corners of your unit if needed to make
it "square".
å Fasten the BACK (D) to your unit using the NAILS (1N).
å Fasten the BACK (D) to the BRACE (E). Use six BLACK
9/16" LARGE HEAD SCREWS (1S).
å NOTE: Perforations have been provided for access
through the BACK. Carefully cut out the holes needed.
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Unfinished surface
NAIL
(22 used in this step)
1N
D
Notched edge
BLACK 9/16" LARGE HEAD SCREW
(6 used for the BRACE)
1S

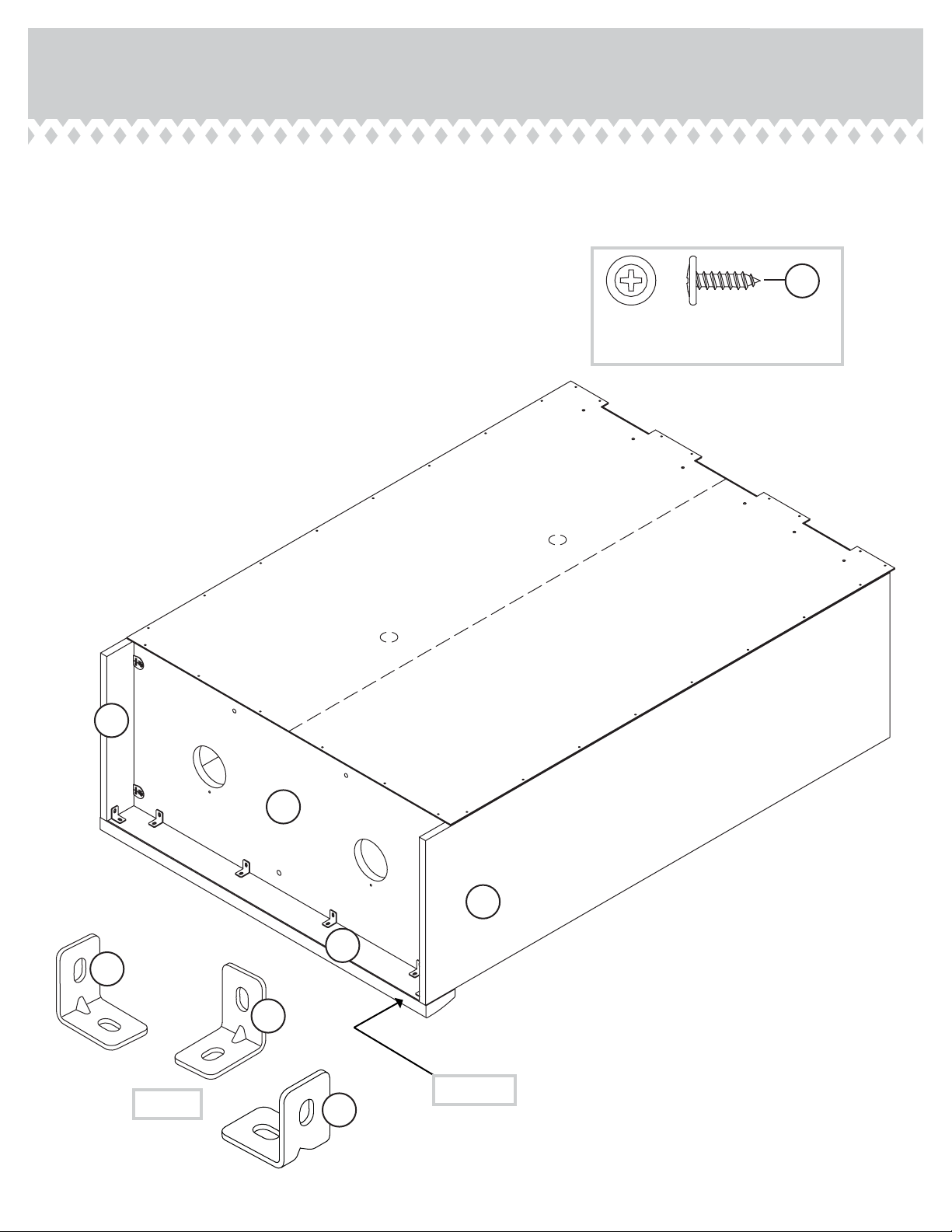

å Fasten six METAL BRACKETS (4G) to the ENDS (A
and B) and TOP (C). Use six BLACK 9/16" LARGE HEAD
SCREWS (1S).
å Fasten the VALANCE (G) to the METAL BRACKETS on
the ENDS (A and B) and TOP (C). Use six BLACK 9/16"
LARGE HEAD SCREWS (1S).
Step 7
408294www.sauder.com/services Page 11
C
G
A
B
BLACK 9/16" LARGE HEAD SCREW
(12 used in this step)
1S
4G
4G
4G
(6 used) Wide edge
Unfinished surface

å Turn two CORD CLIPS (4P) into the TOP (C).
Step 8
408294 www.sauder.com/servicesPage 12
C
4P
Now might be a
good time to refresh
your drink.

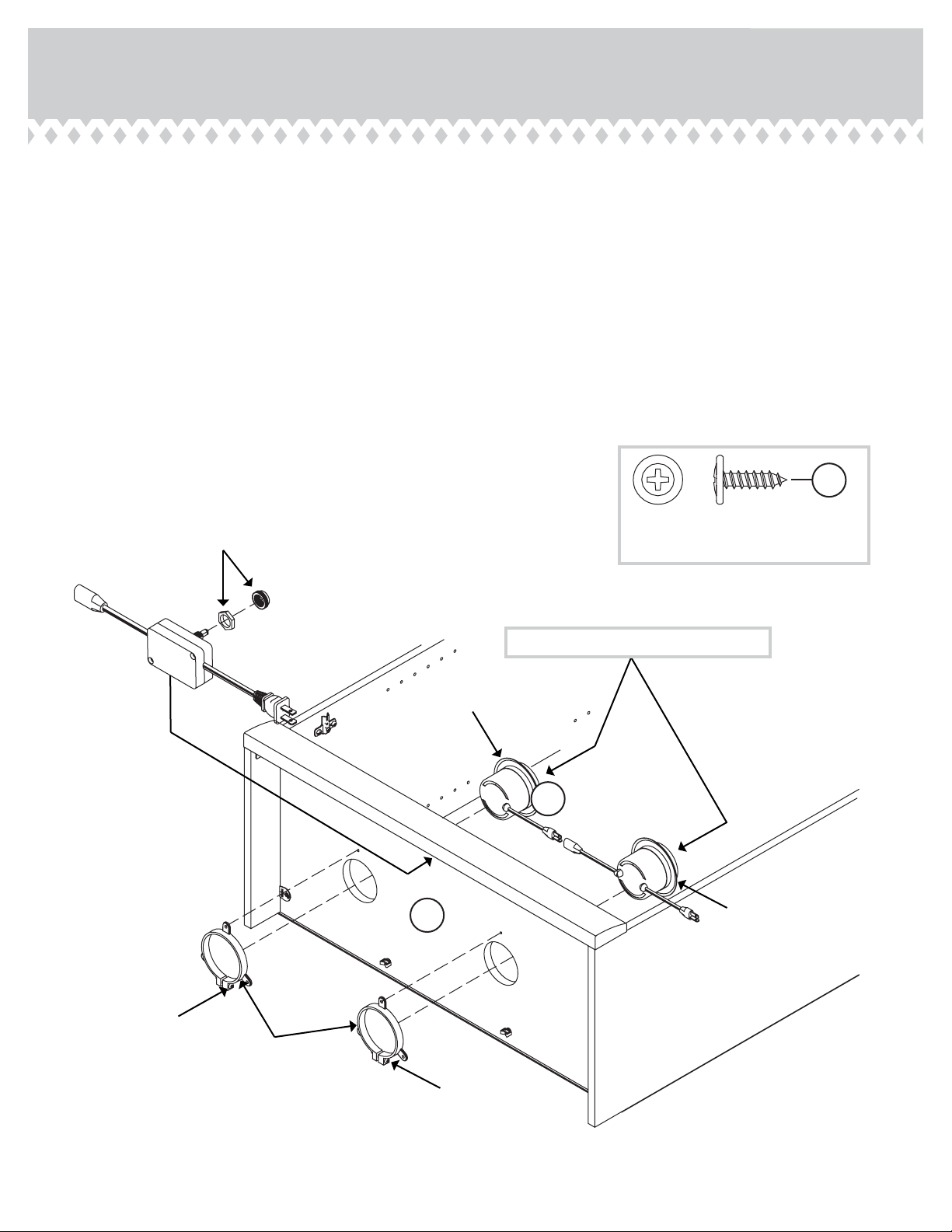

å Carefully turn your unit over onto its back edges.
å Separate the CLAMPS from the LIGHTS by loosening the SCREWS in the CLAMPS.
å Insert the cords of the LIGHT SET (5D) up through the bottom surface of the TOP (C).
å Slip a CLAMP over each LIGHT and tighten the screw on the CLAMPS. Fasten the CLAMPS to the TOP (C). Use two
BLACK 9/16” LARGE HEAD SCREWS (1S).
å Remove the NUTS from the SWITCH and insert the SWITCH into the hole in the top surface of the TOP (C). Turn the hex
nut onto the SWITCH with your adjustable wrench and then turn the decorative nut on by hand.
å Plug the cords into one another and fasten them to the CORD CLIPS. Screw the bulbs into the lights. Do not plug the cord
into an outlet until assembly is complete and you have moved the unit to its final destination.
Step 9
408294www.sauder.com/services Page 13
BLACK 9/16" LARGE HEAD SCREW
(2 used for the CLAMP)
1S
Nuts
Switch
C
Insert the Lights up through the TOP (C).
Screw
Screw
Clamp
Light with two cords
Light with one cord
5D

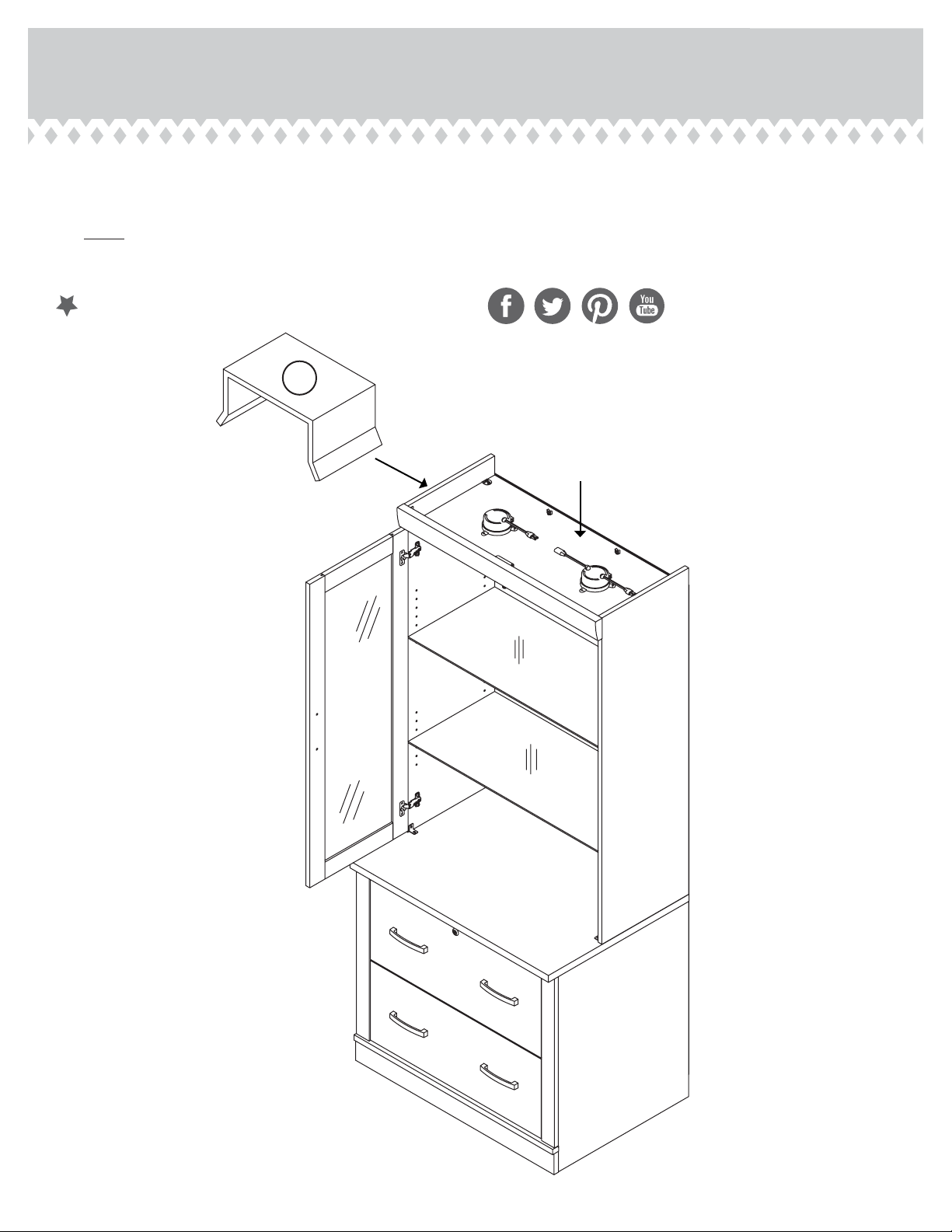

å You will need someone’s help in this step.
å IMPORTANT: Your Hutch must be attached to the lateral file as indicated in this step.
å Carefully position the Hutch on top of the 408293 Lateral File. Fasten the BACK (D) to the back edge of the Lateral File
top. Use eight NAILS (1N) through the bottom row of holes in the BACK and into the Lateral File top.
å Now, finish fastening the Hutch to the Lateral File. Fasten two METAL BRACKETS (4G) to the ENDS (A and B) and Lateral
File top. Use four BLACK 9/16” LARGE HEAD SCREWS (1S).
å NOTE: There are no pre-drilled holes in the Lateral File top. Use a little extra force while turning these SCREWS.
Step 10
408294 www.sauder.com/servicesPage 14
BLACK 9/16" LARGE HEAD SCREW
(4 used for the METAL BRACKETS)
1S
NAIL
(8 used for the BACK)
1N
4G
4G
408293 Lateral File
408293 Lateral File
A
B
D

Step 11
408294www.sauder.com/services Page 15

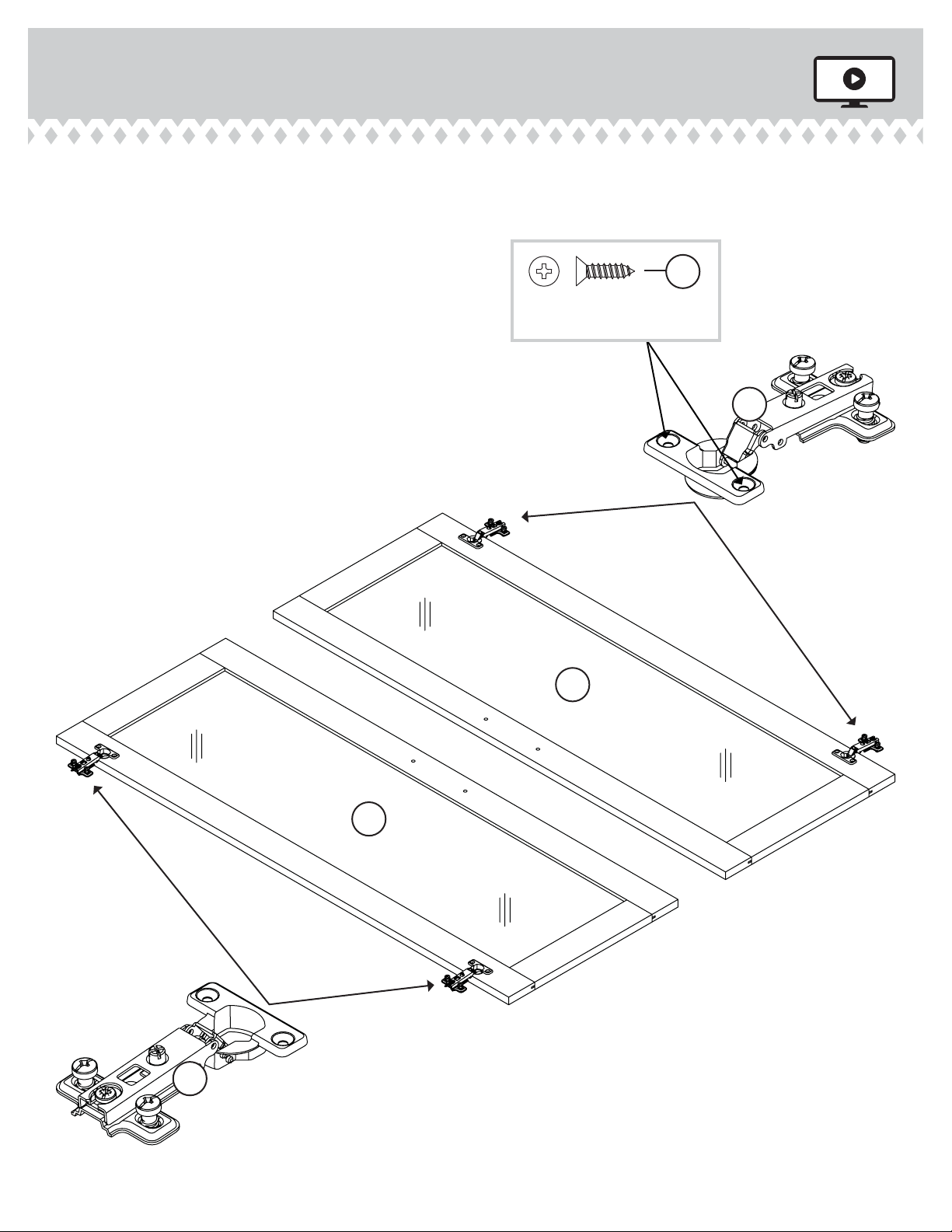

å Fasten two HINGES (13H) to each DOOR (F). Use eight
BLACK 1/2" FLAT HEAD SCREWS (11S).
13H
13H
BLACK 1/2” FLAT HEAD SCREW
(8 used in this step)
11S
F
F

Step 12
408294 www.sauder.com/servicesPage 16
å Carefully stand your unit upright.
å Before fastening the DOOR to your unit, be sure the
mounting screw is against the stops as shown in the right
diagram. If it isn't, loosen the mounting screw to slide it
against the stops. Then tighten the mounting screw.
å Fasten the DOOR (F) to the LEFT END (B) as shown in
the lower diagram. Use the screws in the HINGES. You
should start each SCREW a few turns before completely
tightening any of them.
å Fasten a PULL (96K) to the DOOR (F). Use two BLACK 1"
PAN HEAD SCREWS (60S).
å Repeat this step for the other DOOR (F).
å See the next step for DOOR adjustments.
Stop
Hinge
Mounting
screw
F
96K
BLACK 1" PAN HEAD SCREW
(4 used in this step)
60S
B

Step 13
408294www.sauder.com/services Page 17

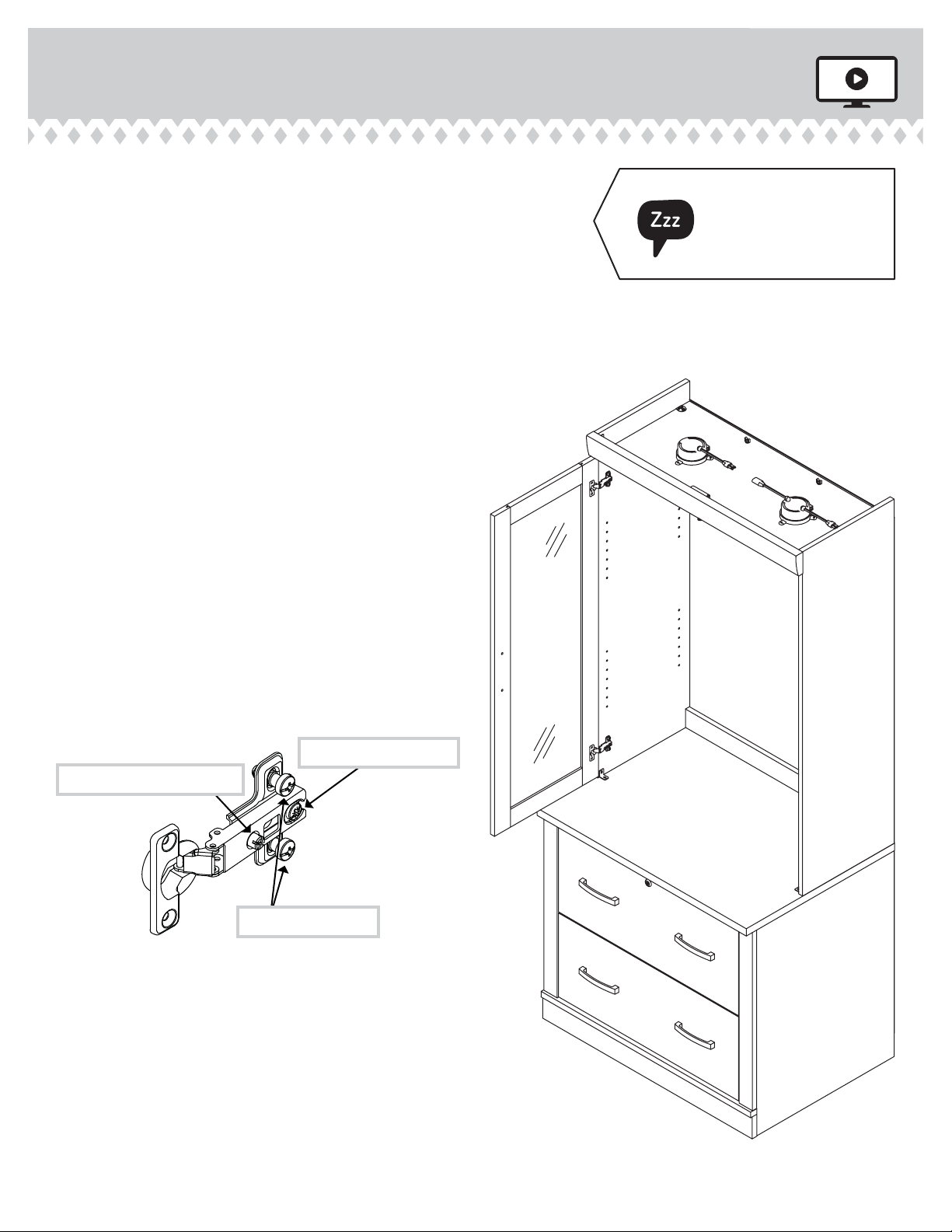

å Refer to the enlarged diagram to identify the parts on
the HINGES.
å The DOORS may need some adjustments. Follow the text
below to make needed adjustments.
å DOOR ADJUSTMENTS:
To adjust the DOORS from side to side (horizontal), turn the
adjusting screw in or out.
å To adjust the DOORS up and down (vertical), loosen both
vertical adjustment screws. Move the DOORS up or down to the
desired location. Tighten the screws after making adjustments.
å To adjust the DOORS in or out (depth), loosen the mounting
screw one turn and move the DOORS in or out, as needed.
Tighten the mounting screw after making adjustments.
Adjusting screw (horizontal)
Mounting screw (depth)
(vertical adjustment)
Almost time to
celebrate! With a nap.

å Push the RUBBER SLEEVES (2R) over the remaining METAL
PINS (1R). Insert the METAL PINS into the hole locations
of your choice in the ENDS (A and B). Set the GLASS
SHELVES (H) onto the METAL PINS.
Step 14
408294 www.sauder.com/servicesPage 18
Tempered safety glass is used. It is stronger than normal glass, and it will not break into long, sharp, knife-like
shards. However, safety glass can break. When safety glass breaks, it instantly fractures into small, bead-like
pieces. These small pieces may have sharp edges.
For your safety, follow these precautions when you assemble your product:
• Wear safety glasses or other eye protection.
• Do not try to drill into or cut safety glass. It will instantly break into small pieces.
• Do not force the glass into position.
• If the glass breaks, be careful when you pick up the pieces. They may have sharp edges.
Caution
(8 used) 2R
1R
B
A
H
H

å If you wish to tie two or more units together, push the U-CLIP (50G) down over the top edge of two ENDS. If you move the
units, be sure to take the U-CLIP o fi r s t .
å NOTE: Please read the back pages of the instruction booklet for important safety information.
å This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry.
Step 15
408294www.sauder.com/services Page 19
And to celebrate, why not share your success story?
50G
25 lbs.
25 lbs.
No load

A l’usage exclusif du
Canada Noter la date
d’achat de cet élément
et conserver le livret
pour future référence.
Pour contacter Sauder
en ce qui concerne cet
élément, faire référence
au numéro de lot et
numéro de modèle en
appelant notre numéro
sans frais.
Lot nº : ____________
Date de
l’achat: ____________
LISTE DE PIÈCES
REFERENCE DESCRIPTION QUANTITÉ
LISTE DE PIÈCES
REFERENCE DESCRIPTION QUANTITÉ
NOUS SOMMES LA POUR VOUS AIDER!
Nous faisons de notre mieux pour nous assurer que votre meuble
arrive dans d’excellentes conditions. Nos représentants du service
Clientèle sont aimables et prêts à vous aider au cas où une pièce
aurait été endommagée ou manquerait (ou si vous aviez besoin
d’aide pour l’assemblage). NE RAMENEZ PAS LE MEUBLE AU
MAGASIN. Au Canada, composez ce numéro d’appel gratuit:
1-800-523-3987
Du lundi au vendredi, de 9 heures du matin à
5:30 heures du soir (horaire Côte Est)
(sauf jours fériés)
Si une pièce a besoin d’être remplacée, la pièce de remplacement
sera envoyée dans les 48 heures. (Sauf week-ends et jours fériés)
Utilisez les instructions d’assemblage en français avec les
schémas étape par étape du manuel d’instruction en anglais.
Chaque étape en français correspond à la même étape
en anglais. La pièce devant être attachée à l’élément est
représentée en gris sur les schémas de chaque étape pour plus
de précision. Comparer la “Liste de pièces” ci-dessous avec
la “PART IDENTIFICATION” du manuel en anglais pour vous
familiariser avec les pièces avant l’assemblage.
REMARQUE : CE MANUEL D’INSTRUCTIONS CONTIENT
D’IMPORTANTES INFORMATIONS RELATIVES À LA SÉCURITÉ.
À LIRE ET CONSERVER POUR TOUTE RÉFÉRENCE FUTURE.
5D ENSEMBLE D'ÉCLAIRAGE....................................1
1F EXCENTRIQUE ESCAMOTABLE.....................2
2F CHEVILLE D'EXCENTRIQUE ..............................2
7F FIXATION TWIST-LOCK®.......................................4
4G CONSOLE EN MÉTAL.............................................8
50G CLIP EN U...........................................................................1
13H CHARNIÈRE.....................................................................4
96K POIGNÉE............................................................................2
1N CLOU ................................................................................30
4P CLIP POUR CORDONS..........................................2
1R GOUPILLE EN MÉTAL..........................................10
2R MANCHON EN CAOUTCHOUC.....................8
1S VIS TÊTE LARGE 14 mm NOIRE..................24
11S VIS TÊTE PLATE 13 mm NOIRE......................8
60S VIS TÊTE GOUTTE DE SUIF
25 mm NOIRE...............................................................4
A EXTRÉMITÉ DROITE..................................................1
B EXTRÉMITÉ GAUCHE...............................................1
C DESSUS...............................................................................1
D ARRIÈRE ..............................................................................1
E ENTRETOISE....................................................................1
F PORTE..................................................................................2
G LAMBREQUIN.................................................................1
H TABLETTE EN VERRE..............................................2
SurmeubleModèle 408294
408294 www.sauder.com/servicesPage 20
