Sauder Palladia 411830 User manual

NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-22
Français pg 23-25
Español pg 26-28
Lot # 387301 12/18/15
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Dresser
Palladia Collection | Model 411830
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
WARNING
CHOKING HAZARD - Small Parts
Not for children under 3 years.
Adult assembly required.

Table of Contents Assembly Tools Required
2-3
4-5
6-22
23-25
26-28
29-30
31
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
411830 www.sauder.com/servicesPage 2

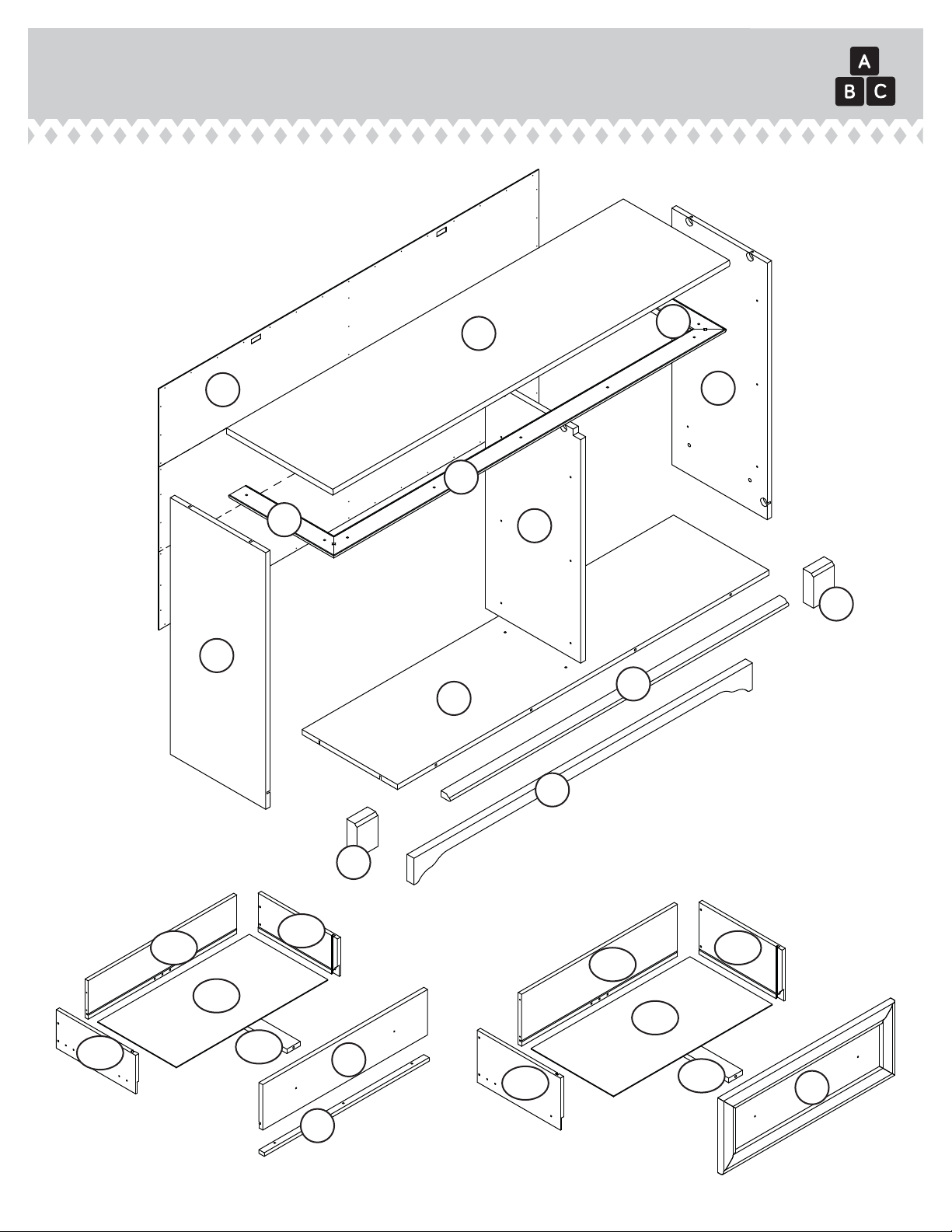

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A2 RIGHT END (1)
B2 LEFT END (1)
C2 UPRIGHT (1)
D TOP (1)
E BOTTOM (1)
F BACK (1)
M64 DRAWER BRACE (6)
H BASE (1)
I2 LARGE DRAWER FRONT (4)
D171 LARGE DRAWER BACK (4)
D262 LARGE DRAWER RIGHT SIDE (4)
D257 LARGE DRAWER LEFT SIDE (4)
D979 DRAWER BOTTOM (6)
M RIGHT MOLDING (1)
N LEFT MOLDING (1)
O2 DRAWER FRONT (2)
D60 DRAWER BACK (2)
D245 DRAWER RIGHT SIDE (2)
D271 DRAWER LEFT SIDE (2)
R FRONT MOLDING (1)
S BOTTOM MOLDING (1)
T DRAWER FRONT MOLDING (2)
R2 PLINTH (2)

Part Identification Now you know
our ABCs.
411830www.sauder.com/services Page 3
A2
B2
C2
D
E
F
H
I2
M
N
O2
R
S
T
R2
R2
D245
D271
D60
D979
D979
D262
D257
D171
M64
M64

Hardware Identification

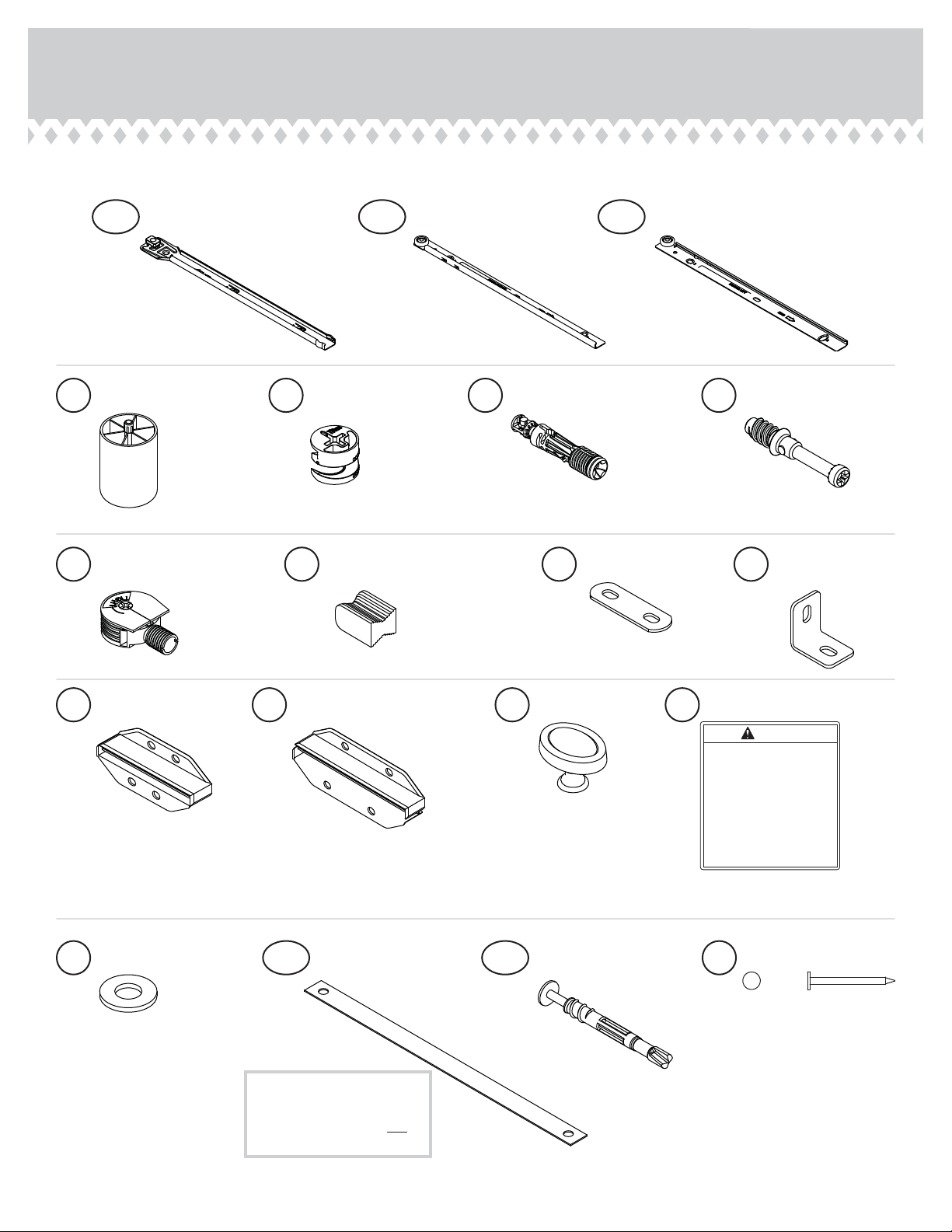

åScrews are shown actual size. You may receive extra hardware with your unit.
TWIST-LOCK®
FASTENER - 12
10F
FOOT - 1
3E
MOLDING
CONNECTOR - 2
17F
KNOB - 12
33K
METAL
BRACKET - 8
4G
TIE PLATE - 2
3G
NAIL - 60
1N
CAM SCREW - 6
8F1F HIDDEN
CAM - 10 2F CAM DOWEL- 4
411830 www.sauder.com/servicesPage 4
5L WARNING LABEL - 1
(Refer to Step 17 for proper
location and application)
WARNING
Serious or fatal crushing injuries can occur
from furniture tip-over. To help prevent
tip-over:
• Place heaviest items in the lowest drawers.
• Unless specifically designed to accommodate, do not
set TVs or other heavy objects on top of this product.
• Never allow children to climb or hang on drawers,
doors, or shelves.
• Never open more than one drawer at a time.
• If equipped with a drawer interlock system, do not
defeat or remove it.
Use of tip-over restraints may only reduce, but not
eliminate, the risk of tip-over.
This is a permanent label. Do not attempt to remove!
04/10 332296
8G DRAWER FRONT
BRACKET - 2
LARGE DRAWER
FRONT BRACKET - 4
9G
35AA 35AD35AC
UNIVERSAL CABINET RAIL - 12 DRAWER RIGHT - 6 DRAWER LEFT - 6
Locate this nylon SAFETY
STRAP (60M) to be used
later in assembly. Do not
accidentally throw away.
SAFETY STRAP - 1
60M SAFETY DRYWALL
ANCHOR - 1
61M
WASHER - 1
13M

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
BLACK 1-7/8" FLAT HEAD SCREW - 2
2S1S BLACK 9/16" LARGE HEAD SCREW - 45
SILVER 1/2" MACHINE SCREW - 8
38S
GOLD 5/16" FLAT HEAD SCREW - 48
3S BLACK 1-1/4" FLAT HEAD SCREW - 9 7S
BROWN 1" FLAT HEAD SCREW - 6
12S
GOLD 1" MACHINE SCREW - 4
50S
411830www.sauder.com/services Page 5
30S BLACK 1-9/16" FLAT HEAD SCREW - 30

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (10F) into the large holes in the ENDS (A2 and B2).
Repeat this step for the UPRIGHT (C2) and BOTTOM (E).
411830 www.sauder.com/servicesPage 6
10F
A2
B2
10F
10F
(12 used)
Do not tighten the TWIST-LOCK® FASTENERS in this step.

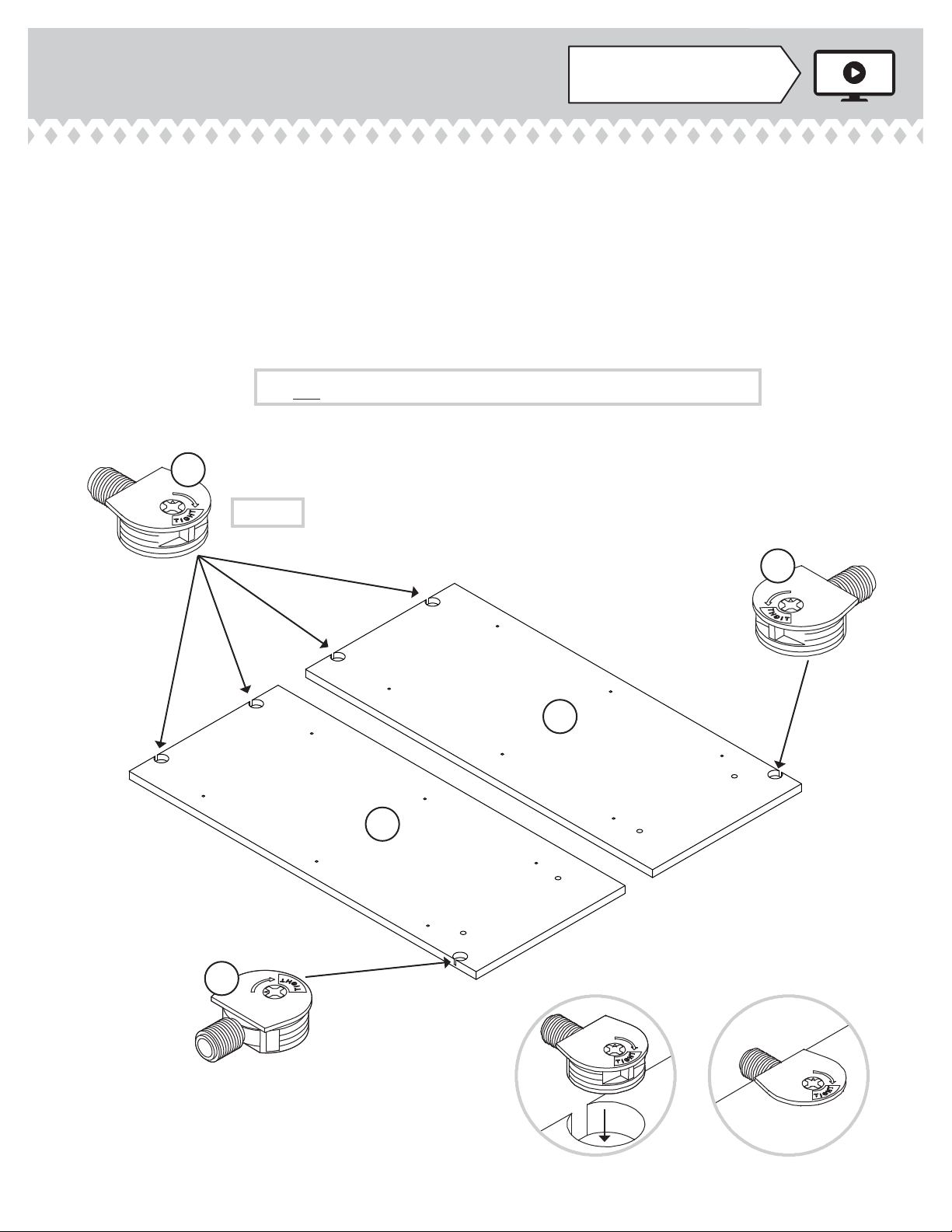

StepStep 2
å Push four HIDDEN CAMS (1F) into the BOTTOM (E).
Then, insert the metal end of a CAM DOWEL (2F) into
each HIDDEN CAM.
411830www.sauder.com/services Page 7
E
Arrow
1F
2F
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Do not tighten the HIDDEN CAMS in this step.
(4 used)

Step
å Tap two MOLDING CONNECTORS (17F) into the notches
in the MOLDINGS (M, N, and R).
Step 3
411830 www.sauder.com/servicesPage 8
M
N
17F
17F
Use your hammer to tap the MOLDING CONNECTORS (17F) into the notches in the MOLDINGS.
R
Flat end
Flat end

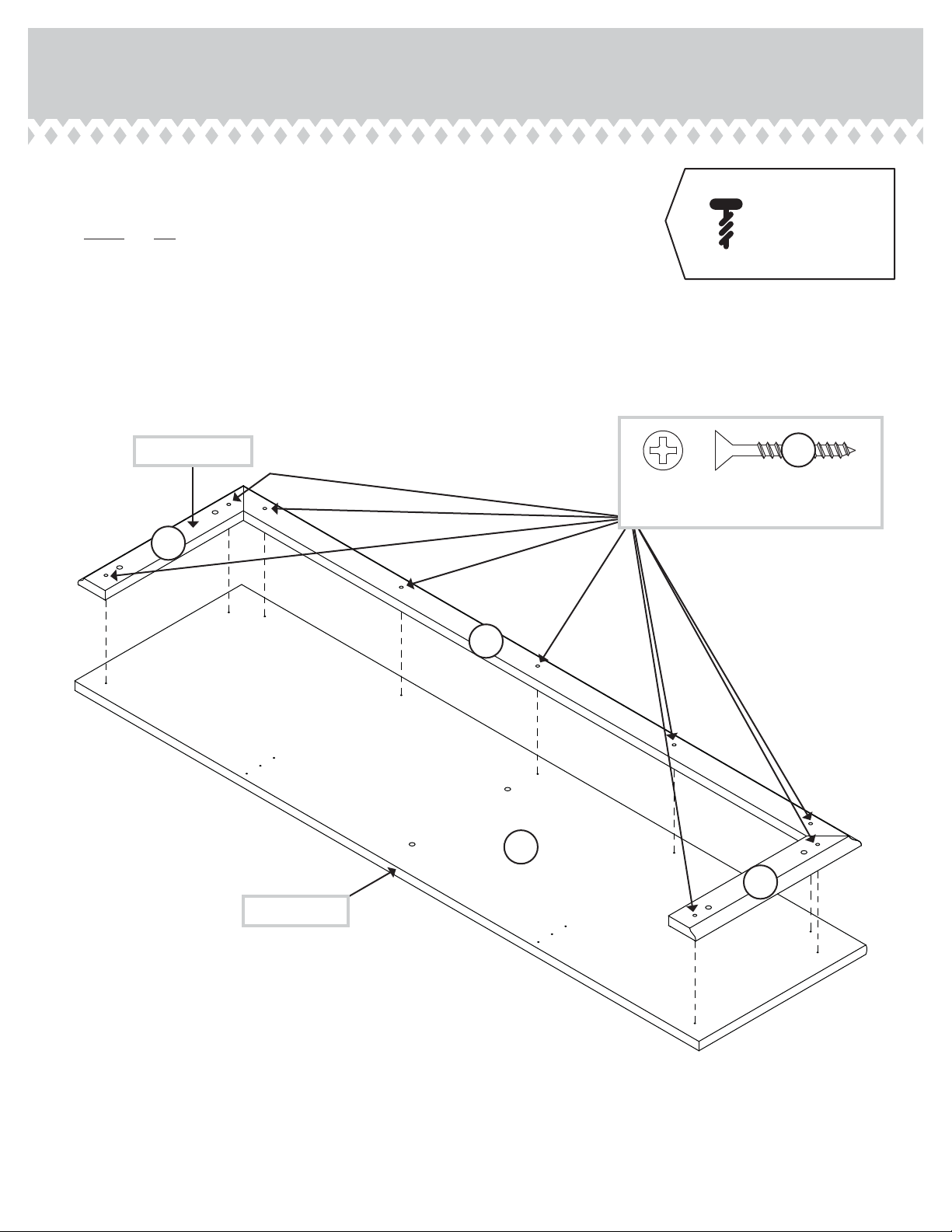

StepStep 4
å Fasten the MOLDINGS (M, N, and R) to the TOP (D). Use
nine BLACK 1-1/4" FLAT HEAD SCREWS (7S).
å NOTE: Do not overtighten the SCREWS into the TOP.
411830www.sauder.com/services Page 9
M
N
R
D
Unfinished surface
Long flat edge
Finished surface
BLACK 1-1/4" FLAT HEAD SCREW
(9 used in this step)
7S
Remember:
Righty tighty.
Lefty loosey.

StepStep 5
411830 www.sauder.com/servicesPage 10
A2
B2
C2
Edge with
TWIST-LOCK®
FASTENER
1
2
3
Edge with
TWIST-LOCK®
FASTENER
Surface with
TWIST-LOCK®
FASTENERS
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
31
2
31
2
3
Finished edge
GOLD 5/16" FLAT HEAD SCREW
(24 used in this step)
3S
å Fasten the UNIVERSAL CABINET RAILS* (35AA) to the
ENDS (A2 and B2) and both surfaces of the UPRIGHT (C2).
Use twenty-four GOLD 5/16" FLAT HEAD SCREWS (3S)
through holes #1 and #3.
å *patent pending glide system
Glide end
Glide end
Glide end
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
VIEW THE DRAWER GLIDE VIDEO

StepStep 6
å Fasten the LEFT END (B2) to the LEFT MOLDING (N) on
the TOP (D). Tighten two TWIST-LOCK® FASTENERS.
å Fasten the UPRIGHT (C2) to the TOP (D). Tighten two
TWIST-LOCK® FASTENERS.
411830www.sauder.com/services Page 11
B2
C2
D
N
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of
the adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking the
FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as
tight as possible.
Edge with
TWIST-LOCK®
FASTENER
Finished edge
Rounded edge
Dowel end
Surface without
TWIST-LOCK®
FASTENERS
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution

Step
å Fasten the BOTTOM (E) to the LEFT END (B2). Tighten
two TWIST-LOCK® FASTENERS.
å Fasten the BOTTOM (E) to the UPRIGHT (C2). Use two
BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å Fasten the RIGHT END (A2) to the BOTTOM (E) and RIGHT
MOLDING (M). Tighten four TWIST-LOCK® FASTENERS.
Step 7
411830 www.sauder.com/servicesPage 12
C2
B2
A2
E
M
Edge with
TWIST-LOCK®
FASTENER
Edge with HIDDEN CAMS
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
2S
Surface with
TWIST-LOCK®
FASTENERS

StepStep 8
å Fasten two METAL BRACKETS (4G) to the BOTTOM (E). Use two
BLACK 9/16" LARGE HEAD SCREWS (1S).
å NOTE: Be sure the edges of the METAL BRACKETS are even with the
edge of the BOTTOM.
å Fasten the BOTTOM MOLDING (S) to the BOTTOM (E). Tighten four
HIDDEN CAMS.
å Fasten the PLINTHS (R2) to the ENDS (A2 and B2) and BOTTOM (E).
Tighten two TWIST-LOCK® FASTENERS and use two BLACK 9/16"
LARGE HEAD SCREWS (1S).
411830www.sauder.com/services Page 13
E
S
R2
R2
4G
Start Tihten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
BLACK 9/16" LARGE HEAD SCREW
(4 used for the METAL BRACKETS)
1S
Curved edge
Curved edge
B2
A2

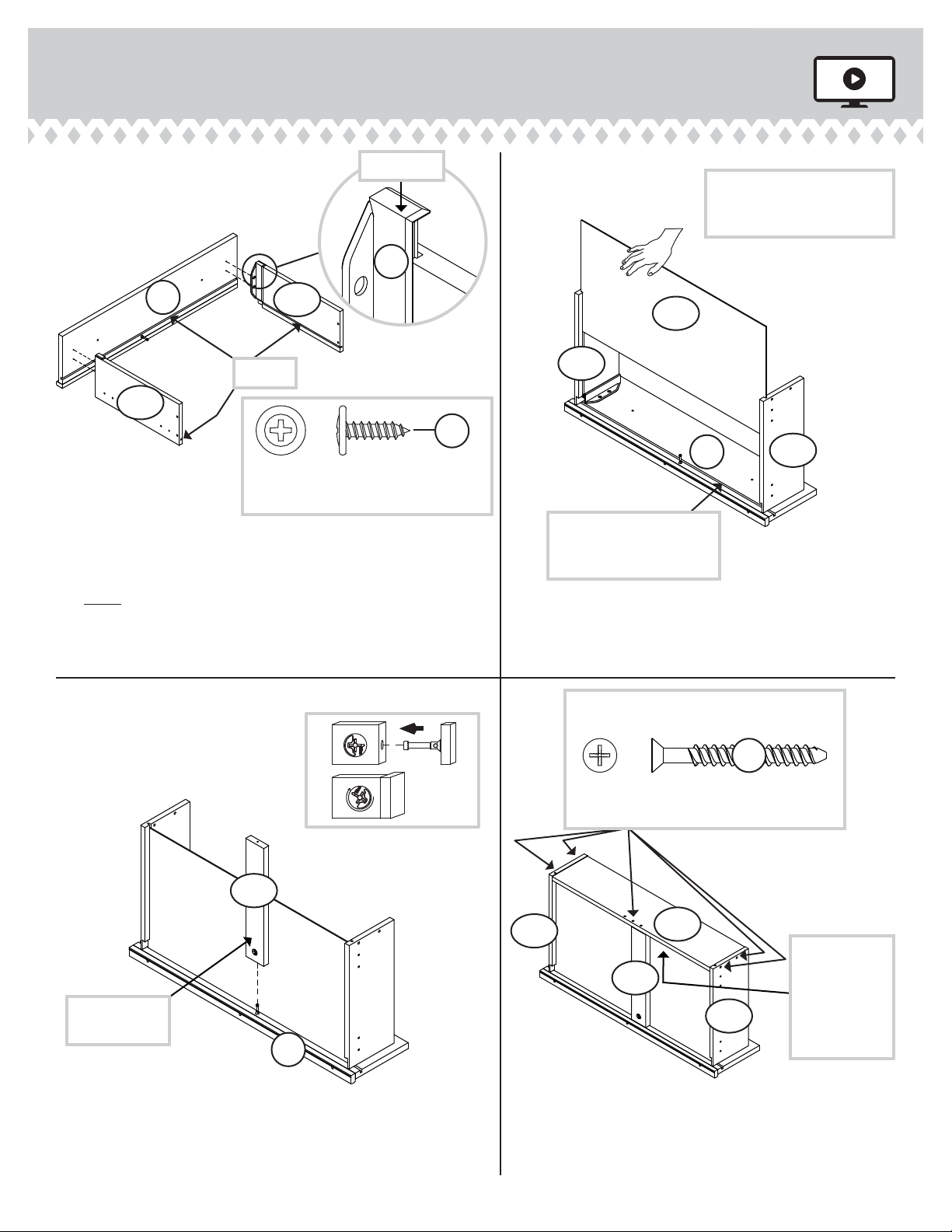

Step
å Fasten six METAL BRACKETS (4G) to the BASE (H). Use
six BLACK 9/16" LARGE HEAD SCREWS (1S).
å NOTE: Be sure the edges of the METAL BRACKETS are
even with the edge of the BASE.
å Fasten the BASE (H) to the BOTTOM (E). Use six BLACK
9/16" LARGE HEAD SCREWS (1S) through the METAL
BRACKETS and into the BOTTOM.
Step 9
411830 www.sauder.com/servicesPage 14
E
4G
H
H
BLACK 9/16" LARGE HEAD SCREW
(12 used in this step)
1S

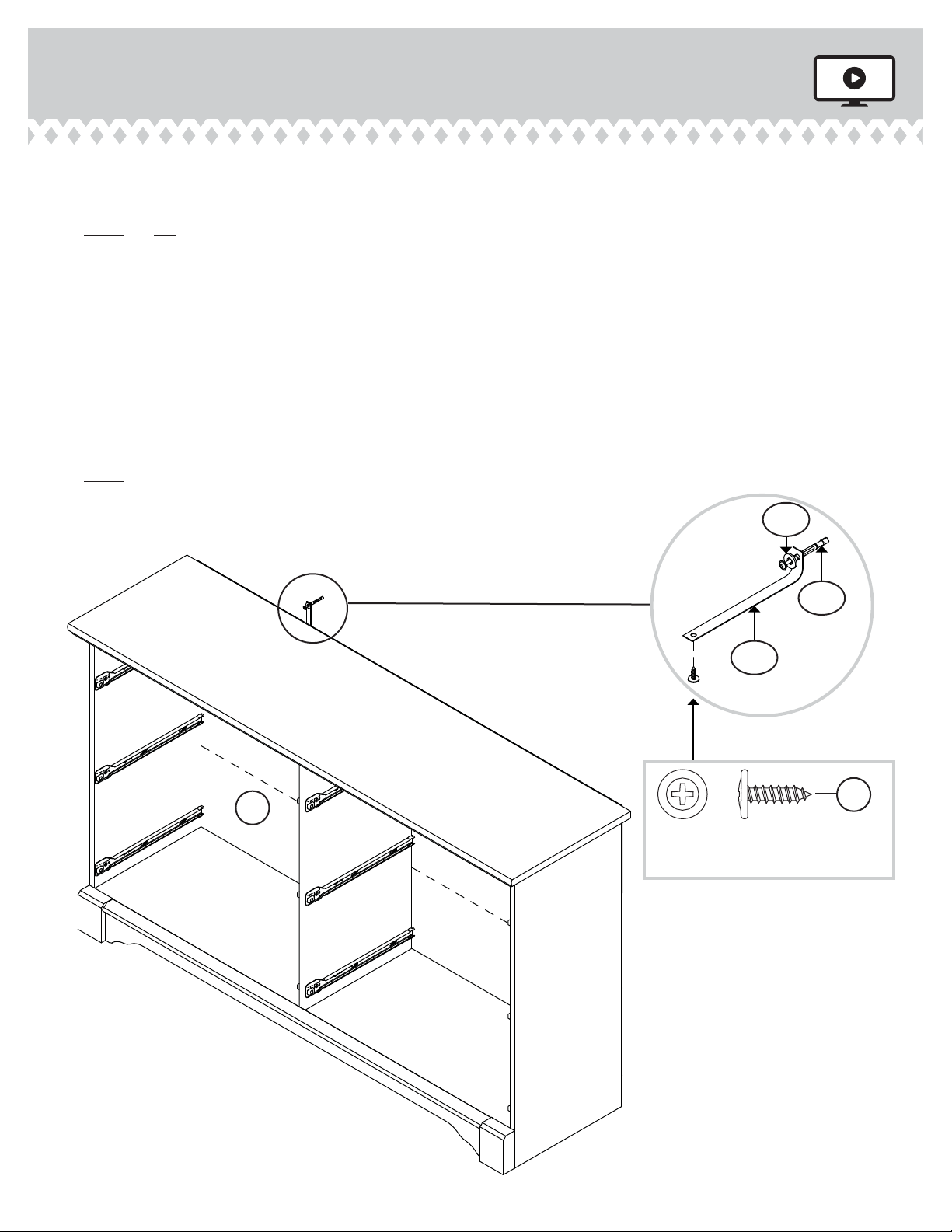

StepStep 10

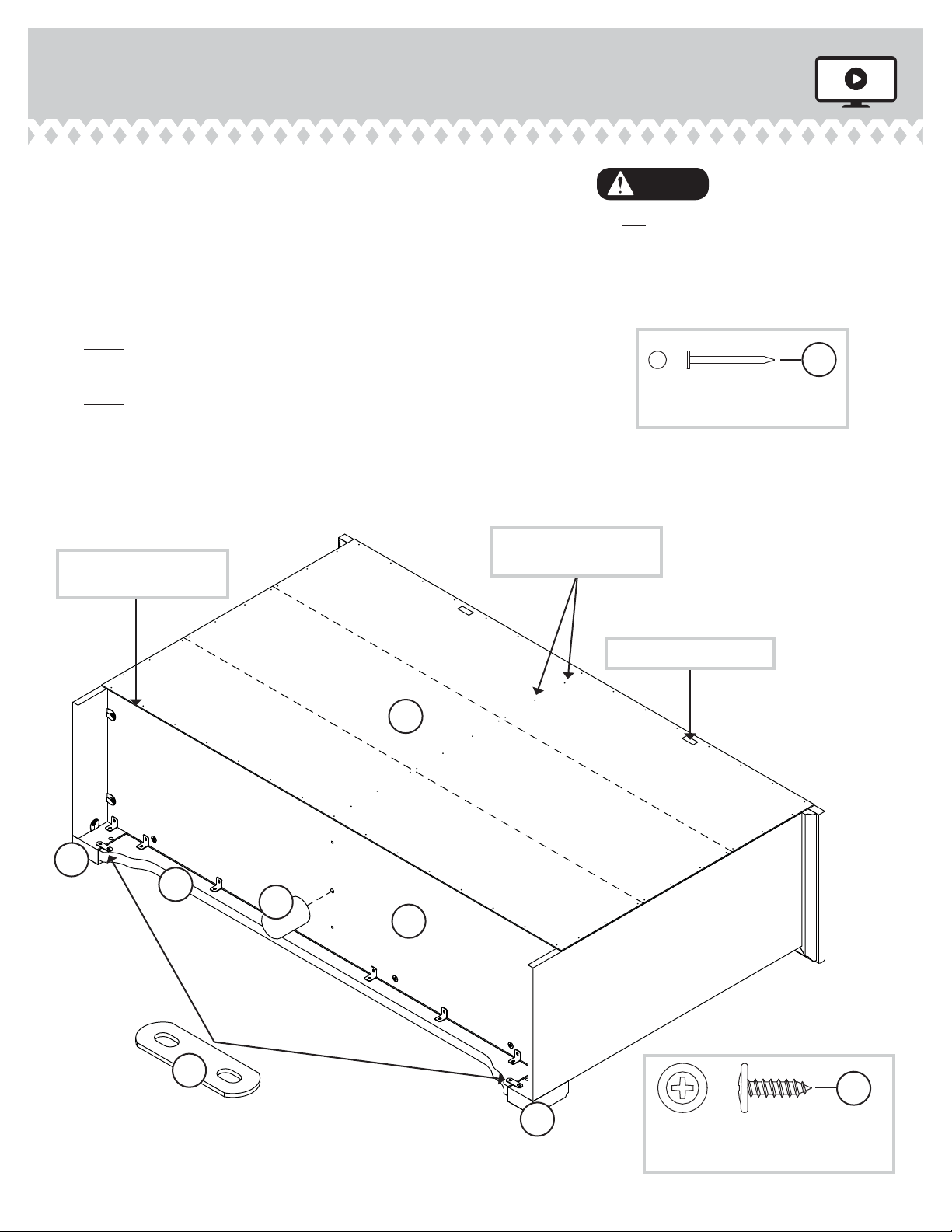

å Carefully turn your unit over onto its front edges. Unfold the BACK (F)
and lay it over your unit.
å Make equal margins along three edges of the BACK (F). The BACK will
overhang the BOTTOM (E) slightly. Push on opposite corners of your
unit if needed to make it "square".
å Fasten the BACK (F) to your unit using the NAILS (1N).
å NOTE: Be sure to tap NAILS into the holes that line up over
the UPRIGHT (C2).
å NOTE: Perforations have been provided for access through the BACK.
Carefully cut out the holes needed.
å Push the FOOT (3E) into the hole in the BOTTOM (E).
å Fasten the TIE PLATES (3G) to the BASE (H) and PLINTHS (R2). Use
four BLACK 9/16" LARGE HEAD SCREWS (1S).
411830www.sauder.com/services Page 15
E
F
H
3E
3G
R2
R2
Cut-out (used for mirror)
BLACK 9/16" LARGE HEAD SCREW
(4 used for the TIE PLATES)
1S
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
NAIL
(60 used in this step)
1N
These holes must line up
over the UPRIGHT (C2).
Th BACK will overhang
the BOTTOM slightly.
Printed information
must be facing up.

Step

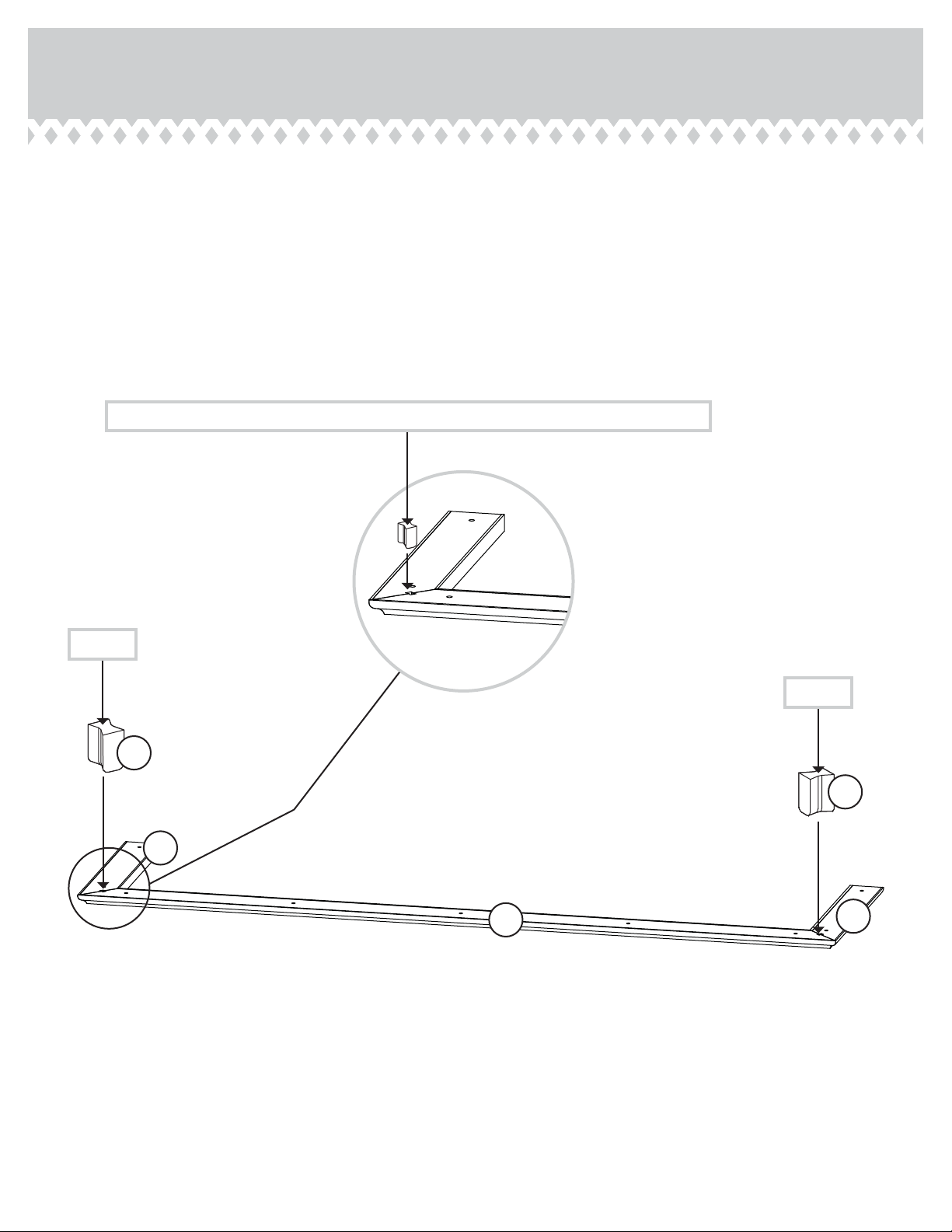

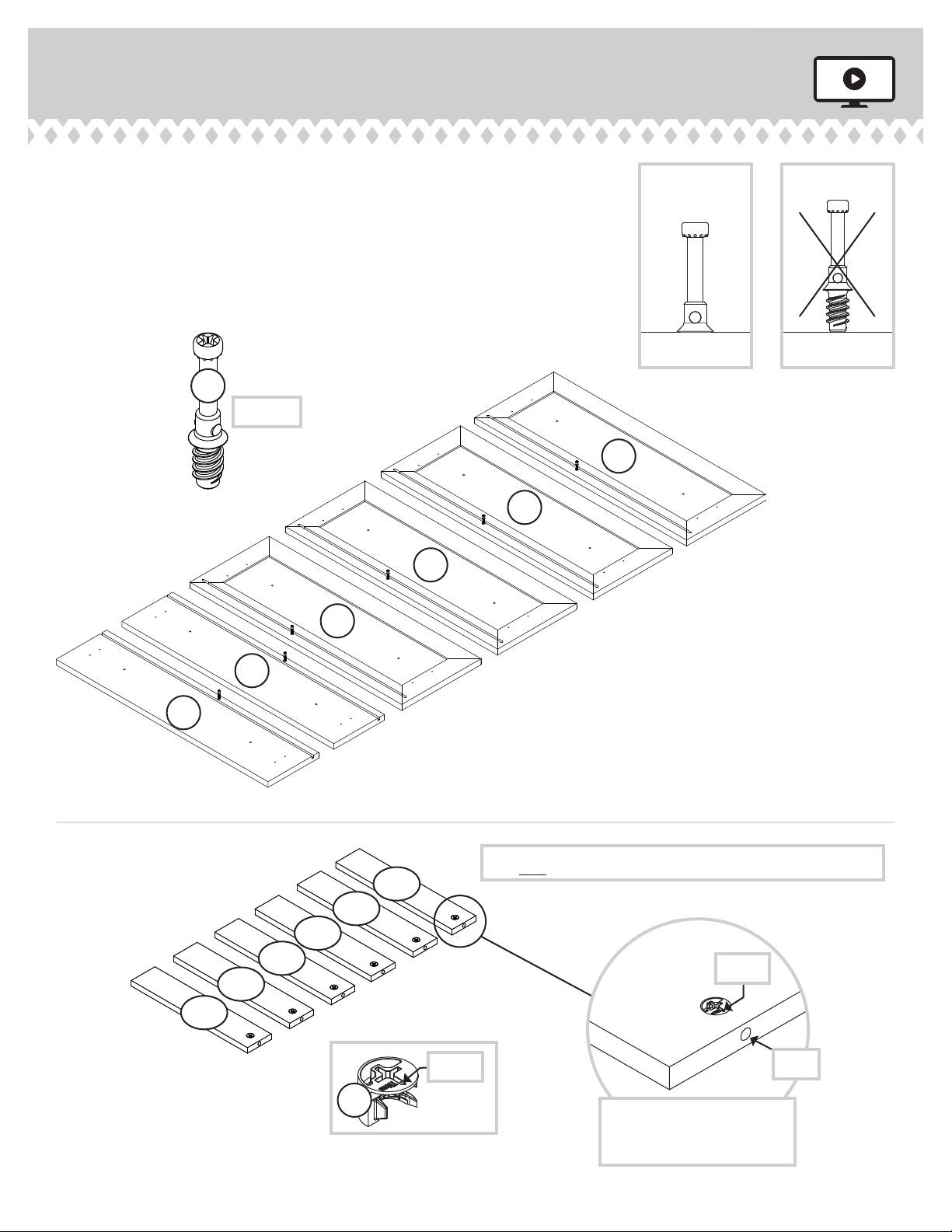

å Turn six CAM SCREWS (8F) into the DRAWER FRONTS (I2 and O2).
å Push six HIDDEN CAMS (1F) into the DRAWER BRACES (M64).
Step 11
411830 www.sauder.com/servicesPage 16
I2
O2
O2
I2
I2
I2
8F
(6 used)
(6 used)
Arrow
Arrow
1F The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
Do not tighten the HIDDEN CAMS in this step.
M64
M64
M64
M64
M64
M64

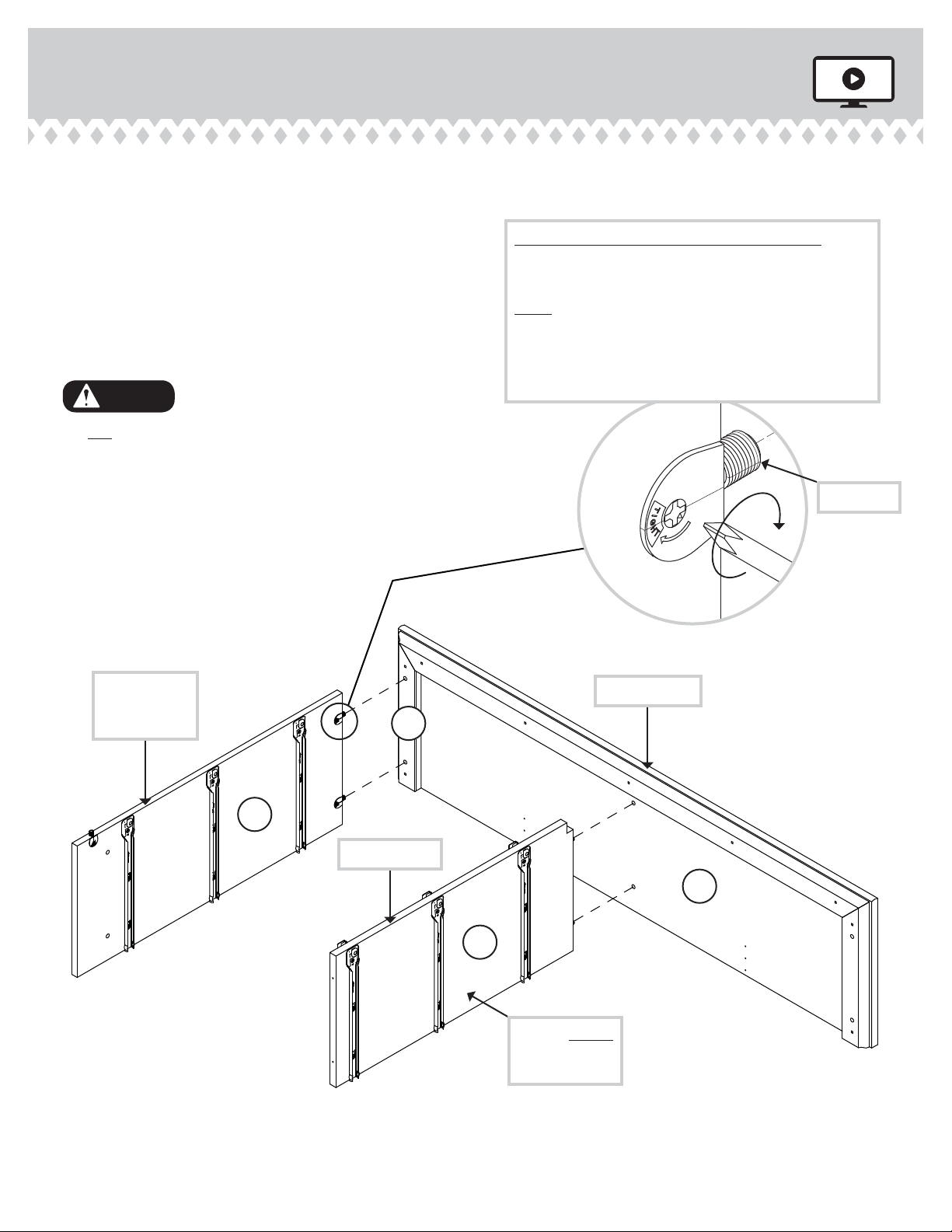

StepStep 12
å Fasten the DRAWER FRONT MOLDINGS (T) to the
DRAWER FRONTS (O2). Use six BROWN 1" FLAT
HEAD SCREWS (12S).
411830www.sauder.com/services Page 17
O2
O2
T
T
Surface without groove
Surface without groove
BROWN 1" FLAT HEAD SCREW
(6 used in this step)
12S
Rounded edge
Finished surface
Rounded edge
Finished surface
Don't worry. It isn't
Rome. This can be built
in a day.

StepStep 13
411830 www.sauder.com/servicesPage 18
O2
1
3
2
4

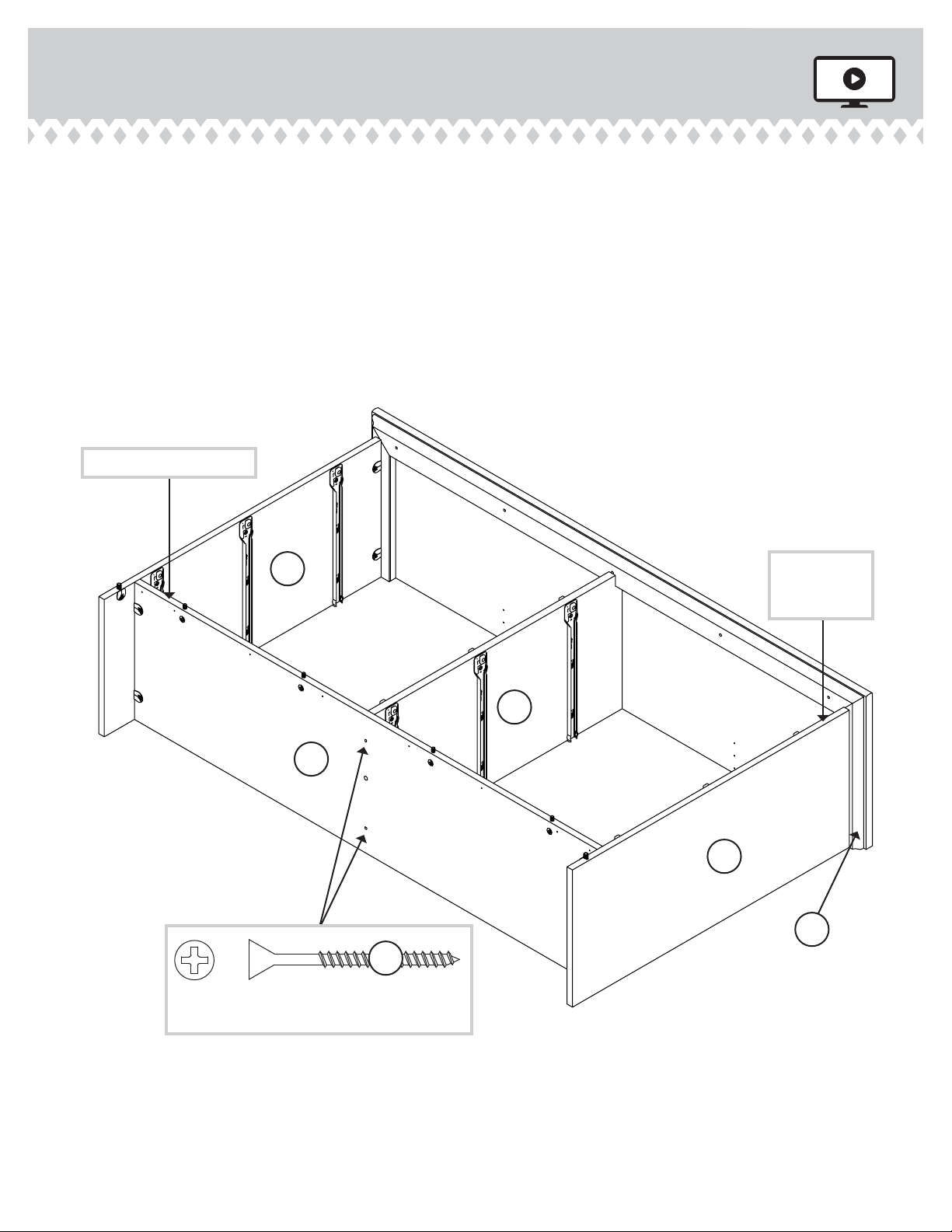

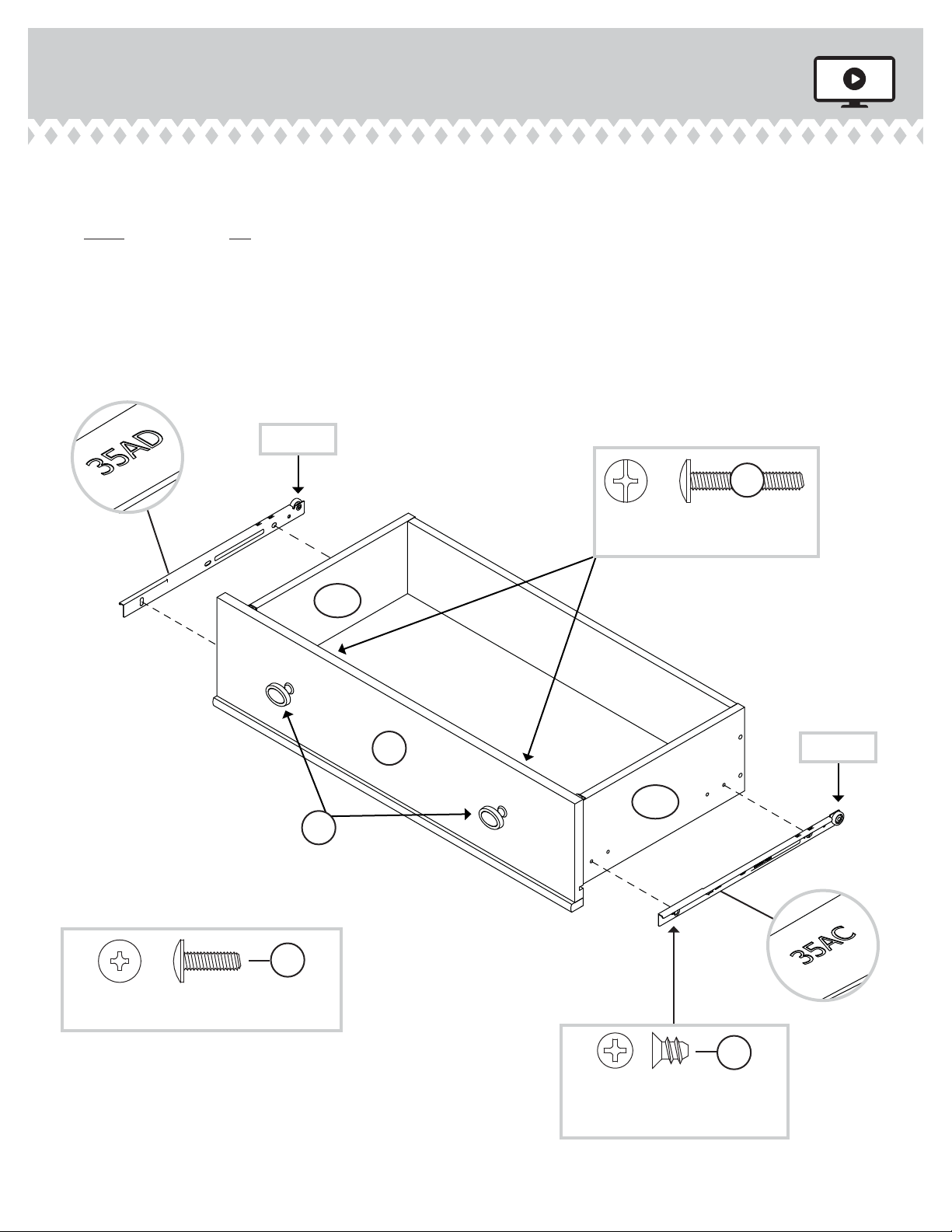

å Pull the DRAWER FRONT BRACKETS (8G) apart and slide them
into the grooves in the DRAWER SIDES (D245 and D271). You
may need to gently tap them in with a hammer.
å NOTE: The DRAWER FRONT BRACKETS are marked "RH" and
"LH" for easy identification.
å Fasten the DRAWER FRONT (O2) to the DRAWER FRONT
BRACKETS (8G). Use four BLACK 9/16" LARGE HEAD SCREWS (1S).
å Slide the DRAWER BOTTOM (D979 ) into the grooves
in the DRAWER SIDES (D245 and D271) and
DRAWER FRONT (O2).
å Fasten the DRAWER BRACE (M64) to the DRAWER
FRONT (O2). Tighten one HIDDEN CAM.
å Fasten the DRAWER BACK (D60) to the DRAWER
SIDES (D245 and D271) and DRAWER BRACE (M64).
Use five BLACK 1-9/16" FLAT HEAD SCREWS (30S).
å Repeat this step for the other drawers. Use the LARGE
DRAWER FRONT BRACKETS (9G) for the large drawers.
BLACK 9/16" LARGE HEAD SCREW
(24 used in this step)
1S
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BACK groove.
With the palm of your hand,
tap the DRAWER BOTTOM
down into the groove.
D245
D271
D60
D979
Groove
O2
D245
D271
O2
D245
D271
Surface with
HIDDEN CAM
VIEW THE T-SLOT BOX VIDEO
M64
M64
Start each screw a few turns before
completely tightening any of them.
BLACK 1-9/16" FLAT HEAD SCREW
(30 used in this step)
30S
8G
Push down
Unfinished surface
1
2

StepStep 14
411830www.sauder.com/services Page 19
å Fasten a DRAWER RIGHT (35AC) to the DRAWER RIGHT SIDE (D245) and a DRAWER LEFT (35AD) to the DRAWER
LEFT SIDE (D271). Use four GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #2.
å NOTE: The glides are not intended to rotate.
å Fasten two KNOBS (33K) to the DRAWER FRONT (O2). Use two GOLD 1" MACHINE SCREWS (50S).
å Repeat this step for the other drawers. Use the SILVER 1/2" MACHINE SCREWS (38S) for the KNOBS on the
large drawers.
1
2
1
2
GOLD 5/16" FLAT HEAD SCREW
(24 used in this step)
3S
D245
D271
O2
SILVER 1/2" MACHINE SCREW
(8 used for the LARGE DRAWER FRONTS)
38S
GOLD 1" MACHINE SCREW
(4 used for the DRAWER FRONTS)
50S
33K
Glide end
Glide end
VIEW THE DRAWER GLIDE VIDEO

StepStep 15
411830 www.sauder.com/servicesPage 20
60M
61M
BLACK 9/16" LARGE HEAD SCREW
(1 used in this step)
1S
13M
å Carefully stand your unit upright and position your unit in its final location. We recommend using the SAFETY STRAP (60M)
for added stability.
å NOTE: Do not turn the SAFETY DRYWALL ANCHOR (61M) into a wall stud. If you prefer to fasten the SAFETY
STRAP (60M) to a wall stud, go to your local hardware store for proper hardware.
å INSTALLATION INSTRUCTIONS: (Also available at www.yl-anchors.com)
1. Insert the SAFETY DRYWALL ANCHOR (61M) through the WASHER (13M) and one end of the SAFETY STRAP (60M).
2. Using a Phillips screwdriver or a hand drill, press screw slightly onto the drywall.
3. Apply pressure; turn the screw until a pilot hole is made and the nylon sheath slips through.
4. Turn the screw until it is flush against the wall and you feel a firm resistance.
5. Continue to turn until the screw starts spinning freely.
å Carefully cut out the perforated hole in the BACK (F). Insert the other end of the SAFETY STRAP (60M) through this
hole, then use a BLACK 9/16" LARGE HEAD SCREW (1S) through the SAFETY STRAP and into the pre-drilled hole in the
underside of the TOP.
å NOTE: Before moving your unit to a dierent location, unscrew the SAFETY DRYWALL ANCHOR (61M) from your wall.
The nylon sheath will remain behind your wall.
F
