SOMFY sonesse 30 rts Installation manual

Somfy RTS Motor Programming Instructions
Motor Programming Instructions have been rewritten by https://www.AVOutlet.com
We rewrite the Somfy instructions in an effort to make things a little easier to follow. There are
however some subtle differences in the motors. Please refer to the included Somfy motor
specific instructions if something is not working. Feel free to let us know if something is found to
be incorrect.
Please Read and Follow These Instructions.
Please use the motor programming instructions provided here. The remote control
instructions can be used for reference but they are not as easy to follow. A copy of the
Somfy instructions are also provided for your reference.
Please read installation instructions and programming instructions completely prior to
proceeding with installation and programming. Failure to do so can result in damage to the
motor and or the shade.
Be prepared to stop the shade during programming. The programming step where you set the
first stop limit (upper or lower whichever you do first) will activate the motor to move without
stopping on its own. You will need to stop the motor at the next stop limit using the remote as
indicated. Failure to stop the shade can result in shade or motor damage.
The motors MUST be installed in the tube and the assembly must be mounted into brackets to
be able to program the motor.
Only apply power to the motor being programmed regardless if the other motors have been
programmed or not. This will prevent inadvertent interaction with other motors. This is not
possible for motors with built-in batteries like the R28WF, ST30WF etc. Motors with built-in
batteries must be put to sleep.
We recommend mapping out the installation before proceeding. This will reduce set-up time and
make life easier. Decide the channels and or additional remotes to be assigned to each shade
in the installation. Each shade should be completely programmed before moving to the next.
Have the necessary remotes and controls ready prior to proceeding.
All motors programmed to the same RTS channel will operate at the same time. If you want
individual control of the motor, you must use separate channels on multi-channel remotes or
separate single channel remotes
The remote controls are generally considered to be dummy devices as they do not store any
motor or programming information. The motors are the intelligent devices. The motors store the
shade operation limits in their memory and the motors also memorize the specific remotes or
channels assigned to control them. Each motor can have up to 12 remotes or channels
controlling them.
Note: The Telis 4 Remote Control is a 5 Channel Remote control. The 5th channel is all lights
on. The 5th channel by default is not a group channel. This channel is not automatically
assigned and must be programmed.

Please read the previous page before proceeding.
Step 1 - Assign a RTS Channel to the Motor
1-A) Select the RTS remote control and channel you want to use.
1-B) Press and Hold both the UP and DOWN buttons simultaneously until the motor jogs, then
release. A jog is a movement in both directions.
If the motor does not respond, proceed to the “Resetting and Clearing the Motor Memory”
Page(s) and reset the motor. If working with a built-in battery motor like the ST30WF you might
need to wake the motor first.
Step 2 - Check Motor Direction and Change if Necessary –DO NOT SKIP
2-A) Check the direction of operation (the motor will operate in momentary fashion).
Confirm that the UP button brings the shade UP and DOWN brings the shade DOWN.
2-B) Changing the direction (If needed), Press and Hold the STOP/MY button until the motor
jogs, then release. A jog is a movement in both directions. Re-Check the direction.
Step 3 - Set Lower and Upper Shade Limits
3-A) Move the shade to the desired lower limit position using the remote control. The shade will
only move when the button is being pressed.
3-B) Press and Hold both the STOP/MY and UP buttons simultaneously until the motor begins
to move up, then release. Be prepared to stop the shade manually using the STOP/MY button.
Stop the shade and adjust to your desired upper limit position.
3-C) Press and Hold both the STOP/MY and DOWN buttons simultaneously until the motor
begins to move Down, then release. The shade will move down to the already set lower limit
position and will stop on its own.
Step 4 - Store the Limits in the Motor Memory
4-A) Press and Hold the STOP/MY button until the motor jogs. A jog is a movement in both
directions. The limits are now recorded. The shade will NOT move automatically to a limit with
one button press yet!! Perform the next step.
Step 5 - Exit and Save Initial Programming
5-A) Briefly Press and Release the program button on the remote control. The motor will jog
once. A jog is a movement in both directions. The program button is typically on the backside of
a hand-held remote control or front of a wireless wall switch. A paperclip will be needed to press
the program button.
The shade should now move to the open and closed positions with a momentary press of the
buttons.
The optional steps on the next page should be reviewed. You should program the MY position
now as well as program additional channels of control if needed before moving on to another
motor.

Optional Programming Tasks
These procedures can be done at any time after initial programming, but we do recommend
performing all desired additional tasks before moving onto the next shade. All shades not being
programmed should have the power disconnected be put to sleep.
Set the Customer Preferred MY Intermediate Position
1) Using the remote, position the shade to the location you would like as your intermediate
customer preferred position
2) Press and Hold the STOP/MY button until the motor jogs, then release. A jog is a movement
in both directions.
Note: Simply repeat this step if you want to change the intermediate position to a new position
even if one has already been programmed.
Add a Remote or Channel to Control the Same Shade (If Desired)
1) To ADD another remote control or another RTS channel to the motor memory, Press and
Hold the program button on the previously recorded remote control until the motor jogs. A jog is
a movement in both directions.
2) Select the new remote or RTS channel to add to the motor memory. Briefly Press and
Release the program button on the remote control. The motor will jog once. A jog is a
movement in both directions.
Note: Some the older style motors require a Press and Hold of the program button for both
steps. Please refer to the included motor specific instructions if you are having difficulties.
Delete a Remote or Channel from the Motor Memory
1) To DELETE a remote control or channel, Press and Hold the program button of a previously
recorded channel or remote until the motor jogs. A jog is a movement in both directions.
(This remote or channel is the one to keep)
2) Select the remote or channel to delete. Briefly Press and Release the program button on the
remote control. The motor will jog once. A jog is a movement in both directions.
Note: Some the older style motors require a Press and Hold of the program button for both
steps. Please refer to the included motor specific instructions if you are having difficulties.
Adjusting the Lower Limit
1) Move the shade to its current lower limit position and let it stop.
2) Press and Hold the UP and DOWN buttons simultaneously and until the motor jogs, then
release. A jog is a movement in both directions.
3) Adjust to a new lower limit position. Press and Hold the STOP/MY button until the motor jogs,
then release. A jog is a movement in both directions.

Adjusting the Upper Limit
1) Move the shade to its current upper limit position and let it stop.
2) Press and Hold the UP and DOWN buttons simultaneously until the motor jogs, then release.
A jog is a movement in both directions.
3) Adjust to a new upper limit position. Press and Hold the STOP/MY button until the motor jogs,
then release. A jog is a movement in both directions.
Resetting and Clearing the Motor Memory
This procedure works for all motors except the ST40 120VAC and ST50 120VAC Motors. The
caveats of each motor are listed separately.
A paperclip will be needed to press the program button on some motors. These program
buttons do not need to be pressed hard. If you are having difficulty pressing the button, please
use a larger diameter paperclip.
Press and Hold the program button on the motor until the shade jogs 3 times while continuously
pressing the button. One jog is a movement in both directions. There will be a pause between
jogs so please be patient.
RU28 12VDC, R28WF Battery & ST30WF Battery RTS Motors
Same as a above. The program button is rectangular and found on the motor head.
R28 12VDC RTS Motor (Older Version)
Same as above. The program button is in a hole on the motor head.
The reset procedure on older versions of the R28 motor only works if the motor has been
completely programmed. Remove power for a minimum of 2 minutes if the motor is not
resetting.
LT30 12VDC RTS Motor
Same as above. The program button is in a hole on the motor head.
Some older versions of this motor do not jog. Hold the program button until the LED next to the
power connection stops blinking which is typically around 12 seconds.
ST30 RTS Motor (24VDC Version)
Same as above. The Sonesse 30 has two holes with recessed buttons. The white hole has the
program button and the yellow is for manually activating the shade to move.
RU24WF, ST30UWF & ST40WF RTS Battery RTS Motors
Same as above. The program button is in a hole on the motor head.

ST40 120VAC & ST50 120VAC Motor Resetting and Clearing
This reset procedure is sometime finicky. Several attempts may be required.
1) Disconnect power for 2 seconds.
2) Connect power for 5 seconds.
Note: Somfy recommends 10-15 seconds but we found 5 seconds to work better.
3) Disconnect power for 2 Seconds
4) Connect power and then leave it on. The motor will rotate in one direction if the shade is
between limits or will jog if at one of the programmed stops.
5) Press and Hold the programming button (App. 10 sec) on any RTS remote until the shade
jogs twice. There will be a pause between the jogs. Do not release the program button until the
second jog is complete. (The remote used does not have to be the one already programmed to
the shade) The motor is now ready for programming from the beginning.
Built-in Battery Motor –Sleeping and Waking
Sleep –Temporary (App. 15 Minutes)
Press and Hold the program button on the motor head until the shade jogs once. A jog is a
movement in both directions.
Press and Release the program button. The shade will jog twice. A jog is a movement in both
directions.
Sleep –Until Wake (Motor must be programmed prior)
Press and Hold the program button on the motor head or remote control until the shade jogs
once. A jog is a movement in both directions.
Press and Hold all three buttons Up, Stop/My/Down on the remote control until the shade jogs
once. A jog is a movement in both directions.
Wake
Press and Release the program button on the motor head until the shade jogs once or plug in a
charger. A jog is a movement in both directions.

Intentionally blank

www.somfy.com

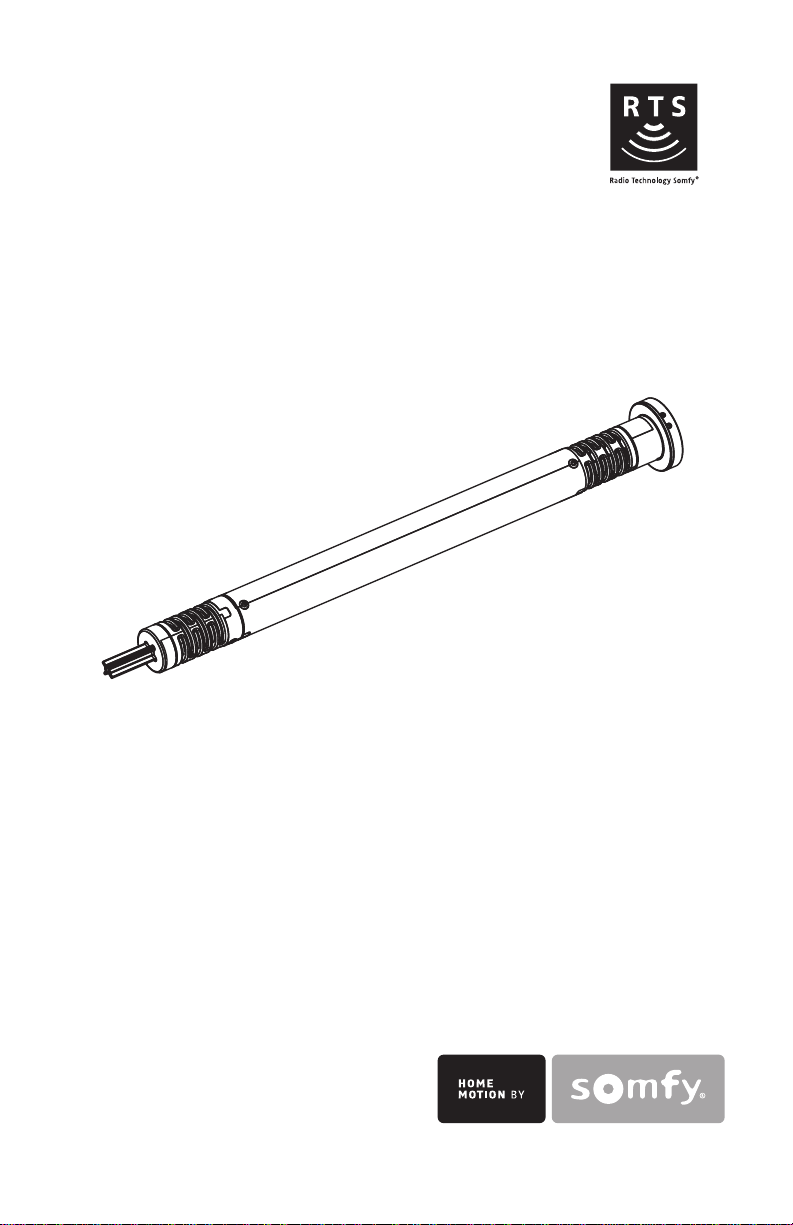

Sonesse®30 RTS
Ref :5063394A
www.AVOutlet.com

2Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
SAFETY
• This Somfy product must be installed by a professional motorisation and home automation installer,
for whom these instructions are intended.
• Before installation, check that this product is compatible with the associated equipments and acces-
sories.
• These instructions describe how to install, commission and use this product.
• Moreover, the installer must comply with current standards and legislation in the country in which
the product is being installed, and inform his customers of the operating and maintenance conditions
for the product.
• Any use outside the sphere of application specied by Somfy is not approved. Such use, or any
failure to comply with the instructions given herein will invalidate the warranty, and Somfy refuses to
accept liability.

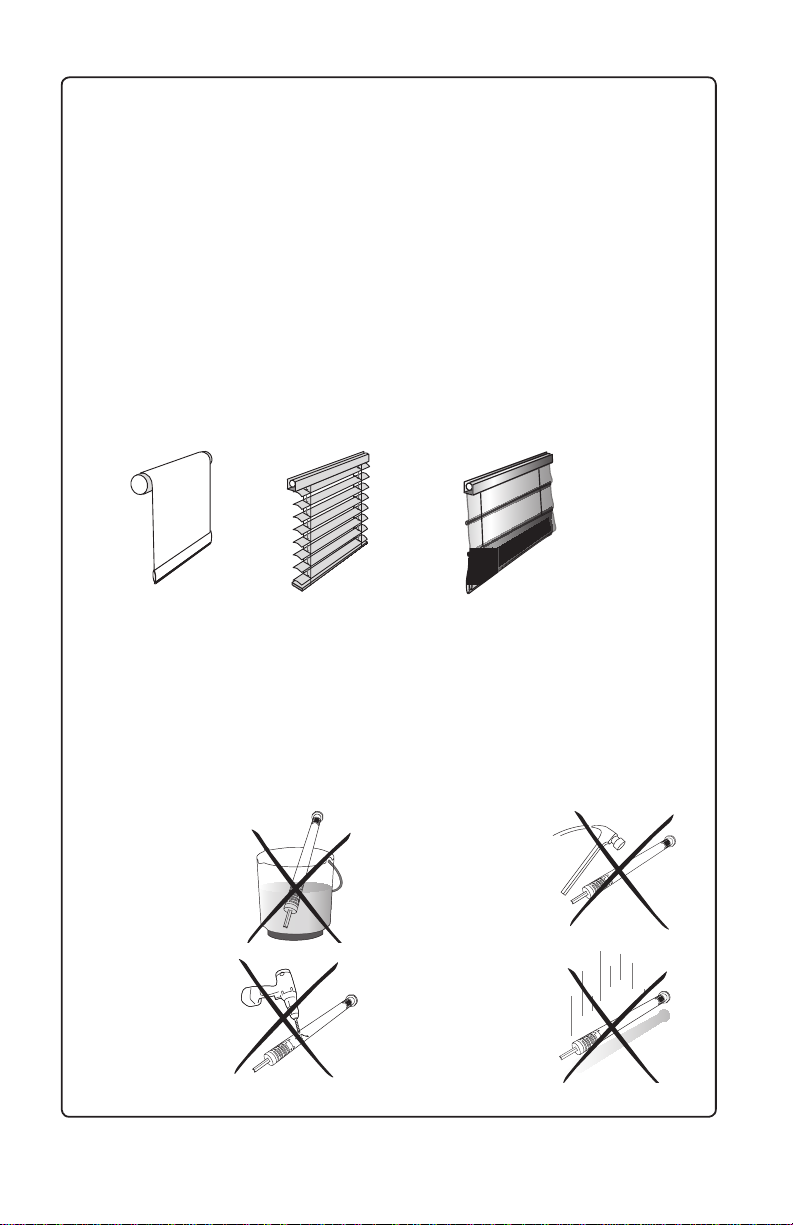

COMPATIBLE BLINDS
Roller blinds Venetian blinds Roman shades
GENERAL SAFETY INSTRUCTION
The safety instructions that must be observed, besides the usual rules, are
explained in these instructions and in the attached «Safety Instructions» document.
Never immerse the
motor in liquid!
Never drill holes in the
motor!
Avoid impacts!
Do not drop it!
www.AVOutlet.com

3Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
INSTALLATION
Motor preparation
1) Fit the crown (a) and drive wheel (b)
to the motor.
2) Measure the length (L) between
the middle of the drive wheel and the
head end.
Tube preparation
Cut the tube to the required length.
Deburr the tube and remove the
debris.
Motor/tube assembly
1) Slide the motor into the tube.
2) Fix the tube to the motor with self-
tapping screws or steel pop rivets
depending on the dimension (L).
Mounting the motorized tube on the
brackets
If necessary, screw the bracket inter-
face on the motor head.
1) Mount the motorized tube on the
end bracket (c).
2) Mount the motorized tube on the
motor bracket (d).
Wiring
Connect the power cable to the motor.
L
1
2
ab
1
2
c
d
+-
1
2
www.AVOutlet.com

4Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
COMMISSIONING
Programming the RTS control point
Switch on the power supply.
Press the UP and DOWN buttons si-
multaneously on the RTS control point:
the shade moves for a few seconds
and the control point is preprogram-
med in the motor
Checking the direction of rotation
Press the RTS control point UP button:
a) If the shade is raised, the direction
of rotation is correct: move to the sec-
tion entitled «Adjusting the end limits».
b) If the shade is lowered, the direction
of rotation is incorrect: move to the
next step.
Press the RTS control point MY button
until the shade jogs: the direction of
rotation has been modied.
Press the RTS control point UP button
to check the direction of rotation.
Adjusting the end limits
The limits can be set in any sequence.
1) Press and hold the UP button to
move the shade to the desired up
position.
2) Press the MY and DOWN buttons
simultaneously and release them once
the shade begins to move. The up limit
is memorized.
3) Press the MY button when it
reaches the desired down position.
If necessary adjust the down position,
using the UP or DOWN buttons.
4) Press the MY and UP buttons
simultaneously and release them
when the shade begins to move.
The down limit is memorized.
The shade moves up and will stop at
its upper limit.
5) To conrm the end limits press and
hold the MY button until the shade
jogs.The end limits are recorded.
Recording the RTS control point
Press the programming button on the
back of the RTS control point until
the motor jogs. The RTS control point
address is permanently recorded.
a
b
=
=
5
1 2
34
www.AVOutlet.com

5Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008

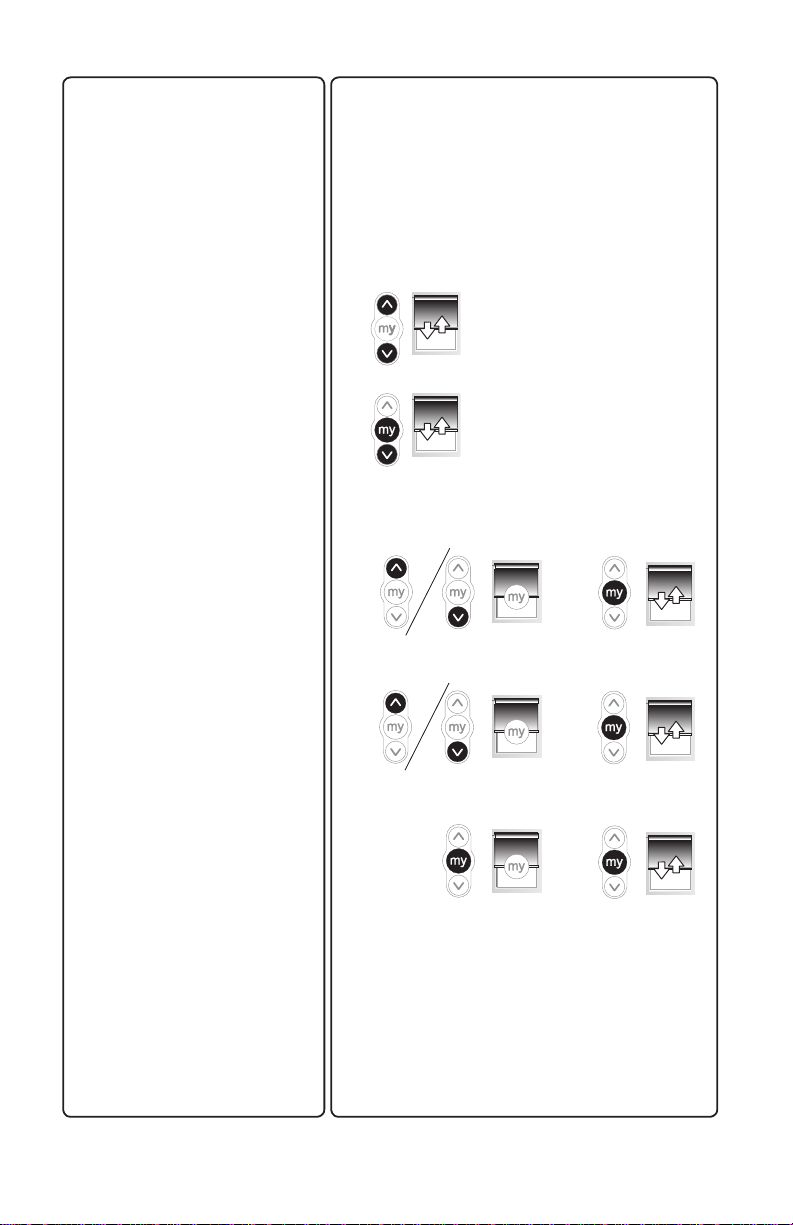

USE
Mode Selection:
Roller or Tilting mode
By factory default, the motor is in
Roller mode but you can change from
one mode to another.
Move the shade away from the end
limits.
1) Press the UP and DOWN buttons
until the shade jogs.
2)Press and hold the MY and DOWN
buttons simultaneously until the shade
jogs to change from Roller mode to
Tilting mode.
MY position
1) Recording MY position.
To set the MY position, move the
shade to the desired position with the
UP and DOWN buttons then press the
MY button until the shade jogs.
2) Changing the MY position
To change the MY position go to the
new desired MY position with the UP
and DOWN buttons then press the MY
button until the shade jogs.
3) Delete the MY position
To delete the MY position, move to this
position and press the MY button until
the shade jogs.
1
2
1
2
3
www.AVOutlet.com

6Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
Sun disappearing position
This function is available only if a MY
position is recorded.
1) Recording Sun disappearing
position.
Press and hold the MY and DOWN
buttons simultaneously until the shade
jogs.
Move the shade to the desired position
with the UP and DOWN buttons.
Press and hold the MY button until the
shade jogs.
The sun disappearing position is
recorded.
2) Changing the Sun disappearing
position.
Press the MY and DOWN buttons
simultaneously. The shade moves to
the Sun disappearing position.
Move the shade to the new desired
position with the UP and DOWN
buttons.
Press and hold the MY button until the
shade jogs.
The sun disappearing position is
changed.
3) Delete the Sun disappearing
position.
Press the MY and DOWN buttons
simultaneously. The shade moves to
the Sun disappearing position.
Press and hold the MY button until the
shade jogs.
The sun disappearing position is
deleted.
1
2
3
www.AVOutlet.com

7Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008

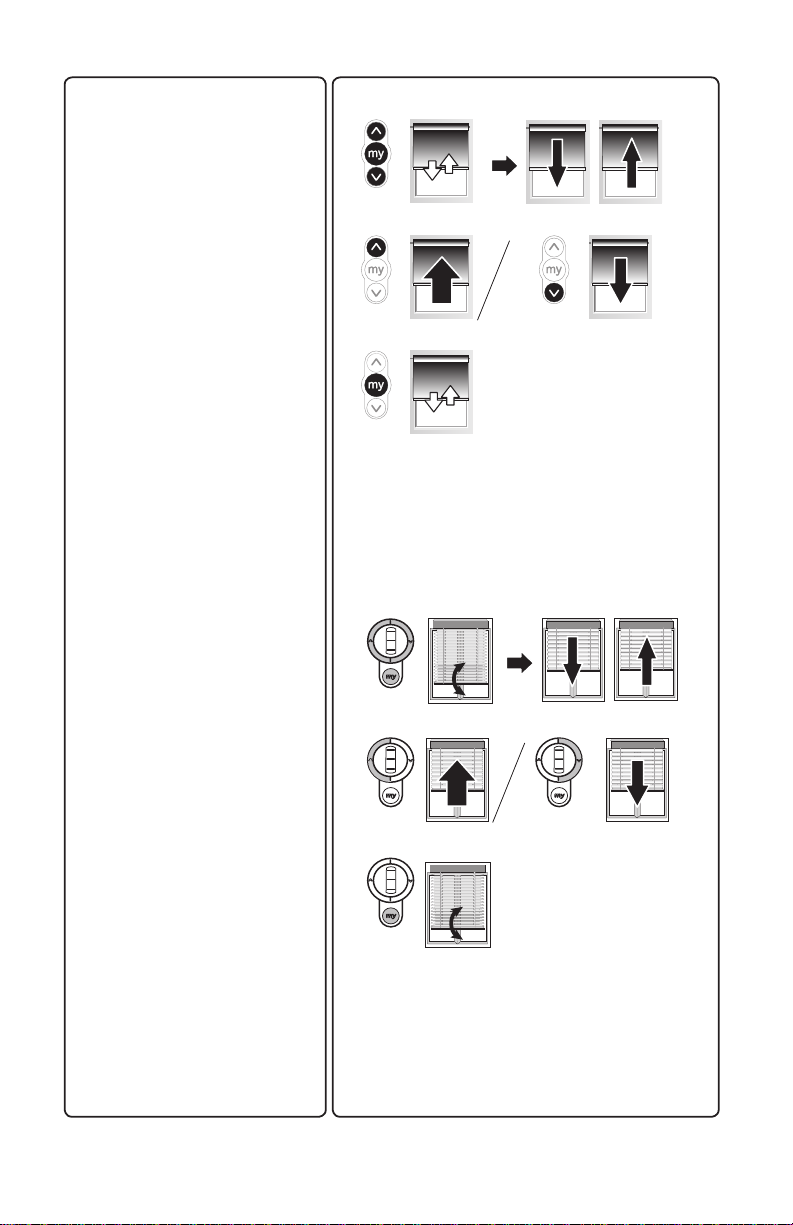

UP, DOWN and MY
In roller mode
1) To move the shade from a limit to
the other limit, press briey the UP or
DOWN button.
2) To stop the shade, press the MY
button.
3) To move the shade to the MY
position, press briey the MY button.
In tilting mode
1) To move the shade from a limit to
the other limit, press briey (less than
0,5s) the UP or DOWN button.
2) To stop the shade, press the MY
button.
3) To move the shade to the MY
position, press briey the MY button.
The Venetian blind goes rst to the
down end-limit, then to the MY
position.
4) To tilt the slats, press and hold the
UP or DOWN button or use the scroll
of the remote control until the slats
reach the desired position.
1
2
3
1
2
3
4
www.AVOutlet.com

8Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
Adding/Deleting RTS control points
Find an RTS control point
programmed in the motor.
Press and hold the RTS programmed
control point (A) PROG button or the
motor PROG button until the shade
jogs: the motor is in programming
mode.
Quickly press the RTS control point
(B) PROG button to add or delete: the
shade jogs and the RTS control point
is programmed or deleted from the
motor.
Adding/Deleting RTS sensors
Find an RTS control point
programmed in the motor.
Press and hold the RTS programmed
control point (A) PROG button or the
motor PROG button until the shade
jogs: the motor is in programming
mode.
Quickly press the RTS sensor (C)
PROG button to add or delete: the
shade jogs and the RTS sensor is
programmed or deleted from the
motor.
A
B
A
A
A
B
B
PROG.
APROG.
B
C
A
A
A
A
CC
PROG.
APROG. C
www.AVOutlet.com

9Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
Sun function
For this function, you need a Telis
Soliris transmitter.
By default, the Sun function is not
active.
1) To activate the Sun function, press
the SELECT button on the Telis Soliris
transmitter until the shade jogs.
2) To disactivate the Sun function,
press the SELECT button on the Telis
Soliris transmitter until the shade jogs.
When the intensity of the daylight
exceeds the threshold set by the soli-
ris sensor RTS, a DOWN order is sent
to the shade after 2 min.
The shade goes to the MY position or
to its down limit if no MY position has
been memorised.
When the intensity of the daylight falls
below the threshold set by the
SOLIRIS sensor RTS, the shade goes
to the sun disappearing position or
stays at its position (MY or down limit)
if no sun disappearing position has
been memorised.
The Wind function is not compatible
with this motor.
OK
www.AVOutlet.com

10 Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
Adjusting the roller speed
1) Press the UP, MY and DOWN
buttons simultaneously until the shade
jogs once.The shade moves up and
down
automatically in 10 second cyles.
2) While the shade is moving, briey
press the UP button to increase the
speed or DOWN button to decrease
the speed.
3) To conrm the new speed, press
and hold the MY button until the shade
jogs.
Adjusting the tilting speed
1) Press the UP, MY and DOWN
buttons simultaneously until the shade
jogs twice.The shade moves up and
down
automatically in 10 second cyles.
2) While the shade is moving, briey
press the UP button to increase the
speed or DOWN button to decrease
the speed.
3) To conrm the new speed, press
and hold the MY button until the shade
jogs.
10s 10s
10s 10s
x2
1
2
3
1
2
3
www.AVOutlet.com

11Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008

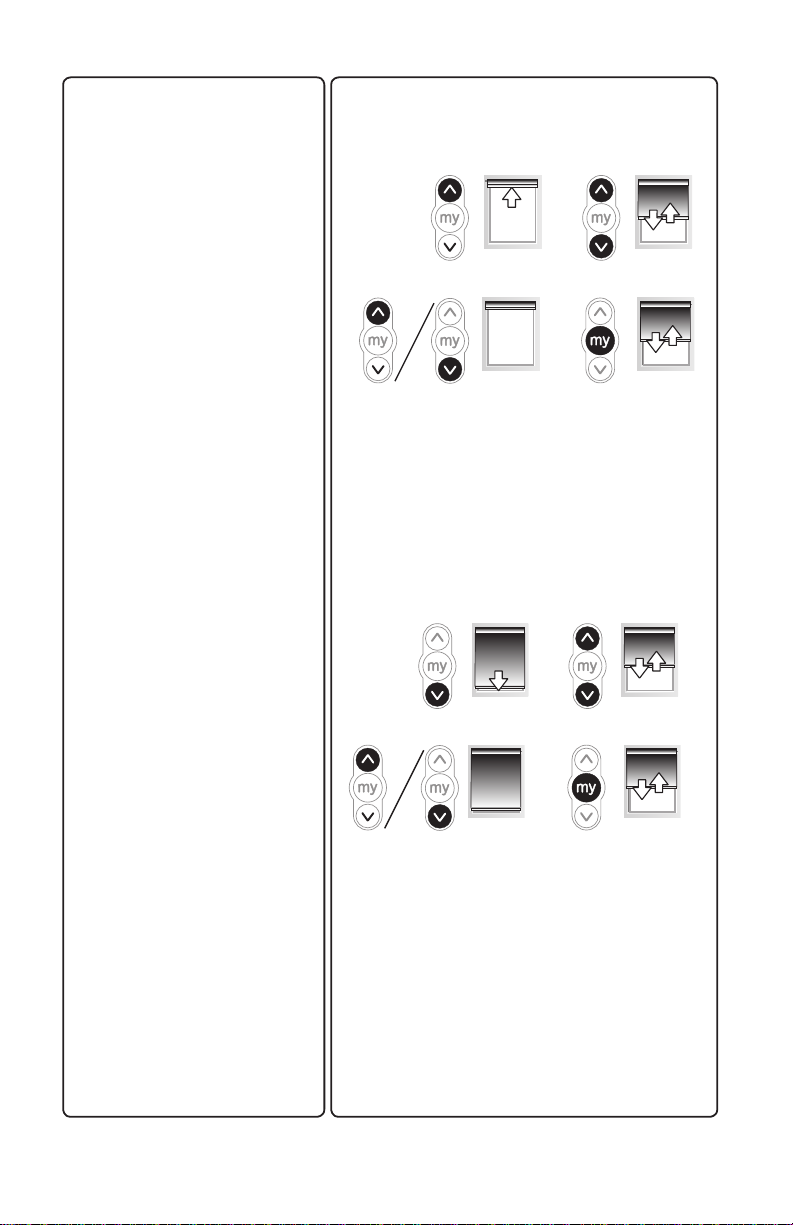

End limit re-adjustement
UP LIMIT
1) Press the UP button, to move the
shade to the limit to be readjusted.
2) Press and hold the UP and DOWN
buttons simultaneously until the shade
jogs.
3) Press and hold the UP or DOWN
button to move the shade to the new
desired position.
4) To conrm the new limit press and
hold the MY button until the shade
jogs.
DOWN LIMIT
1) Press the DOWN button to move
the shade to the limit to be readjusted.
2) Press and hold the UP and DOWN
buttons simultaneously until the shade
jogs.
3) Press and hold the UP or DOWN
button to move the shade to the new
desired position.
4) To conrm the new limit press and
hold the MY button until the shade
jogs.
1 2
34
12
34
www.AVOutlet.com

12 Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008

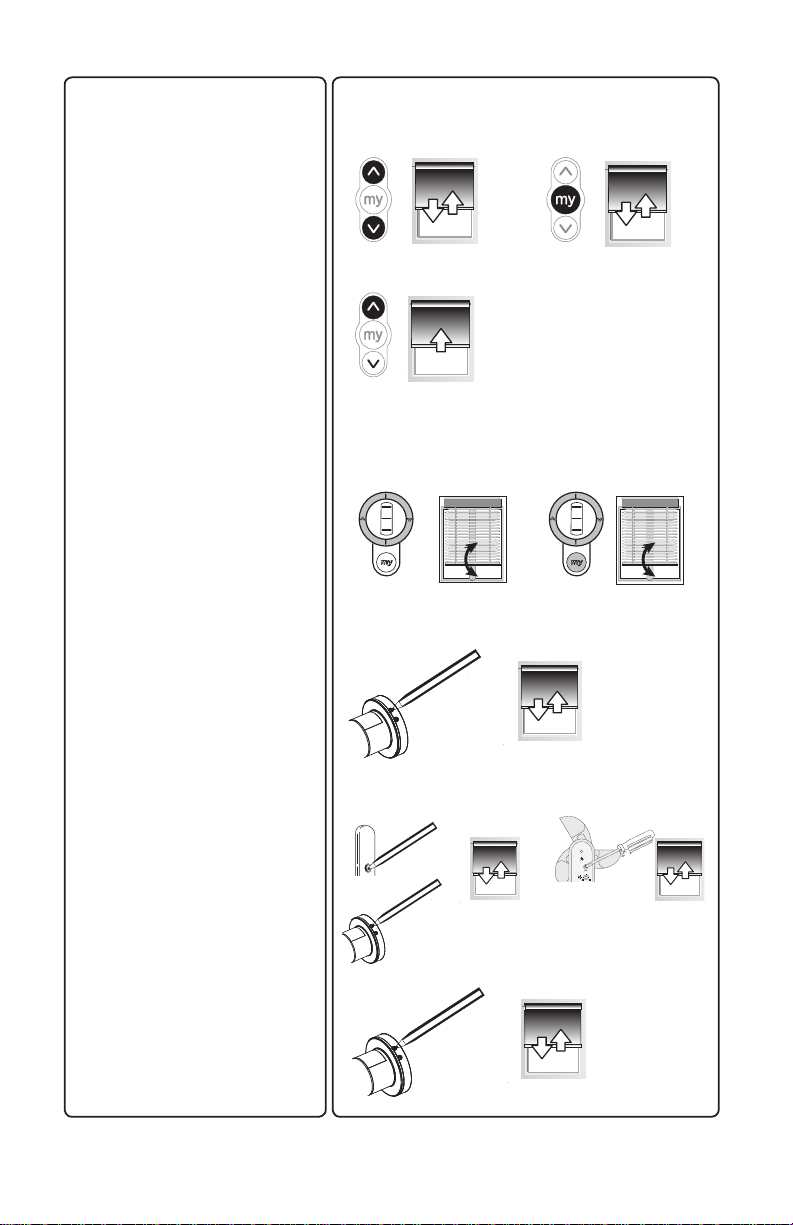

Modifying the motor rotation
direction
Move the shade away from the end
limits.
1) Press the UP and DOWN buttons
simultaneously until the shade jogs.
2) Press the MY button until the shade
jogs to reverse the rotation direction.
3) Press the UP button to check the
new direction of rotation.
Modifying the wheel rotation
direction
Move the shade away from the end
limits.
1) Press the UP and DOWN buttons
simultaneously until the shade jogs.
2) Press the UP, MY and DOWN
buttons simultaneously until the shade
jogs to reverse the wheel rotation
direction.
Erasing the transmitters of the
motor
To delete all the transmitters program-
med, press and hold the motor prog
button until the shade jogs twice.
All the transmitters are deleted.
Erasing the sensor of the motor.
To delete all the sensors programmed,
press and hold the RTS programmed
control point (A) PROG button or the
motor PROG button until the shade
jogs.
Quickly press and hold the RTS
sensor (C) PROG button until the
shade jogs twice.
All the sensors are deleted.
Erasing the memory of the motor
To reset the motor, press the prog
button on the motor head until the
shade jogs 3 times.
All the settings are erased.
PROG.
A
x2
x3
PROG.
Cx2
PROG.
A
x2
x3
PROG.
Cx2
PROG.
A
x2
x3
PROG.
Cx2
21
21
3
www.AVOutlet.com

13Copyright © 2008 Somfy SAS. All rights reserved - V0 - 10/2008
Technical data
Troubleshooting
The motor doesn’t work:
Verify:
• The wiring of the motor.
• The power supply specications.
• The compatibility of the control
• The heat generated (wait 5 minutes for the cooling of the motor).
The equipment stops too soon:
Veriy:
• The operation of end-limits during the rotation of the motor.
• The crown is properly tted to the tube.
• The end-limits of the motor are properly adjusted.
• Verify that the shade is within the recommended weight limit.
Frequency
Operating temperature
Protection rating
Torque
Adjustable Speed
0°C / 60 °C
IP30
2 Nm
6 → 28 rpm
Roller Speed
(By default) 28 rpm
Tilting Speed
(By default) 16 rpm
Voltage 24V
433MHz
www.AVOutlet.com
