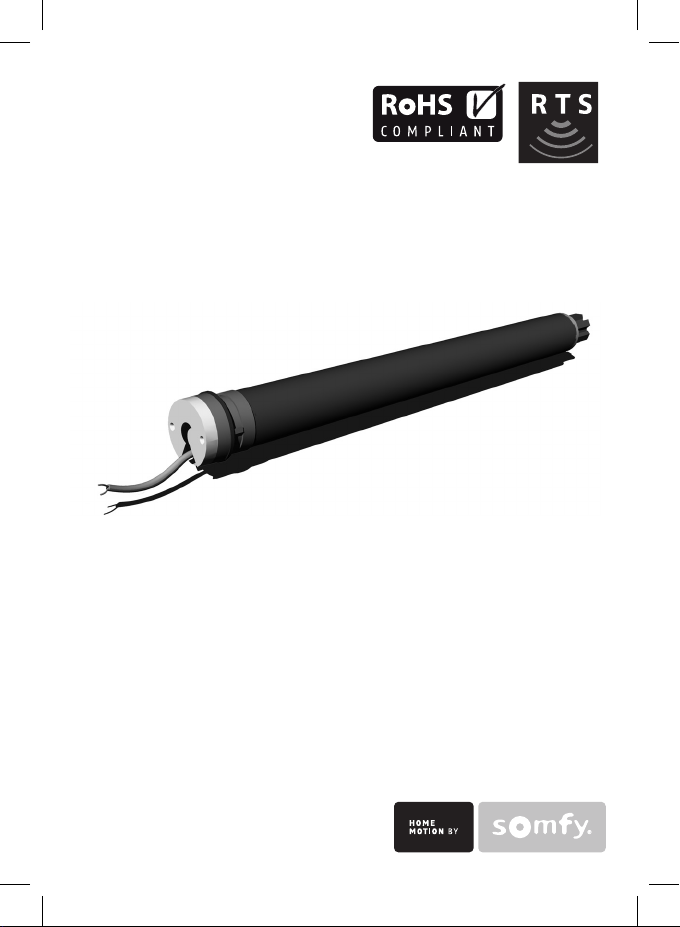

SOMFY Sonesse 40 RTS User manual

www.somfy.com
Sonesse®40 RTS
409 MHz-447 MHz
Ref: 5064832A

1Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
Installation instructions page 2
SOMFY hereby declares that this product complies with the essential requirements and
other relevant provisions of Directive 1999/5/EC. A Declaration of Conformity is available at
the web address www.somfy.com/CE. Suitable for use in EU, CH and NO
EN
ENKOZH

2Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
CONTENT
1 Introduction
2 Safety
2.1 General information
2.2 General safety advice
3 Installation
4 Commissioning
4.1 Programming the RTS transmitter
4.2 Checking the direction of rotation
4.3 Adjusting the end limits
4.4 Recording the RTS transmitter
4.5 Favorite position : MY position
Recording MY position.
5 Use
Up, Down, My
6 Sun function
7 Modifying the settings
7.1 End limit re-adjustement
7.2 Favorite position : MY position
Changing the MY position / Delete the MY position
7.3 Modifying the motor rotation direction
7.4 Modifying the wheel rotation direction
7.5 Replacement of a lost remote control
7.6 Adding/Deleting RTS transmitter
7.7 Adding/Deleting RTS sensors
7.8 Erase the memory of the motor
8 Troubleshooting
9 Technical data
10 Environment

3Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN

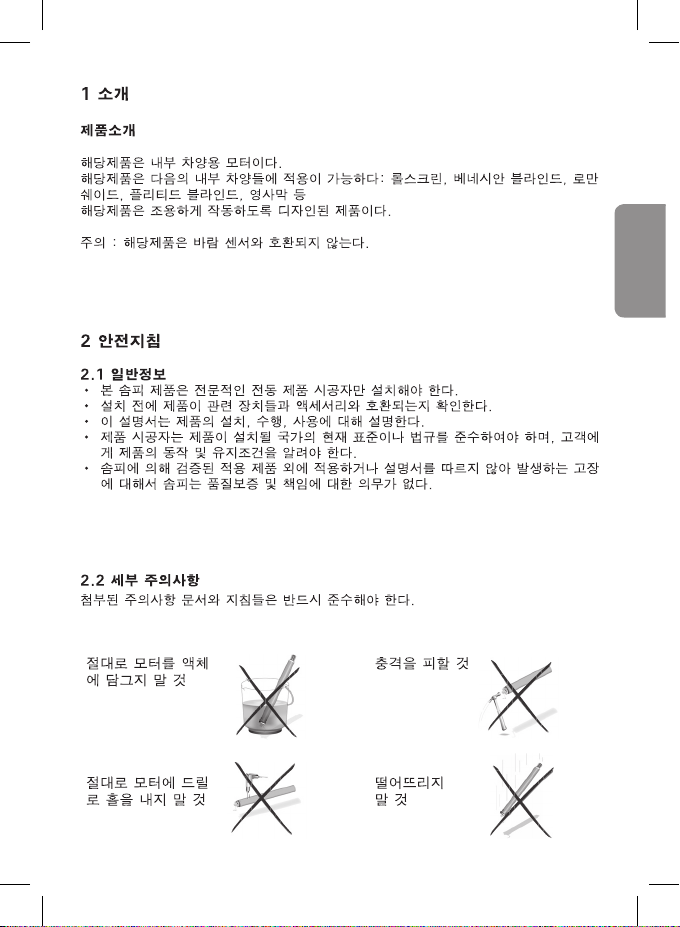

1 Introduction
Product Description
The Sonesse®40 is a motor specially dedicated to interior applications.
The Sonesse®40 motor range can motorize all interior applications: Roller shades,
Venetian blinds, Roman shades, Pleated & cellular shades, Projection screens.
The Sonesse®40 is designed to ensure quiet operations.
Warning: The Sonesse® 40 isn’t compatible with wind functions.
2 Safety
2.1 General information
• ThisSomfyproductmustbeinstalledbyaprofessionalmotorisationandhomeautomation
installer, for whom these instructions are intended.
• Beforeinstallation,checkthatthisproductiscompatiblewiththeassociatedequipment
and accessories.
• Theseinstructionsdescribehowtoinstall,commissionandusethisproduct.
• Moreover,theinstallermustcomplywithcurrentstandardsandlegislationinthecountry
in which the product is being installed, and inform his customers of the operating and
maintenance conditions for the product.
• AnyuseoutsidethesphereofapplicationspeciedbySomfyisnotapproved.Such
use, or any failure to comply with the instructions given herein will invalidate the war-
ranty, and Somfy refuses to accept liability.
2.2 Specic safety advice
The safety instructions that must be observed, besides the usual rules, are
explained in these instructions and in the attached «Safety Instructions» document.
Never immerse the
motor in liquid!
Never drill holes in
the motor!
Avoid impacts!
Do not drop it!

4Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN

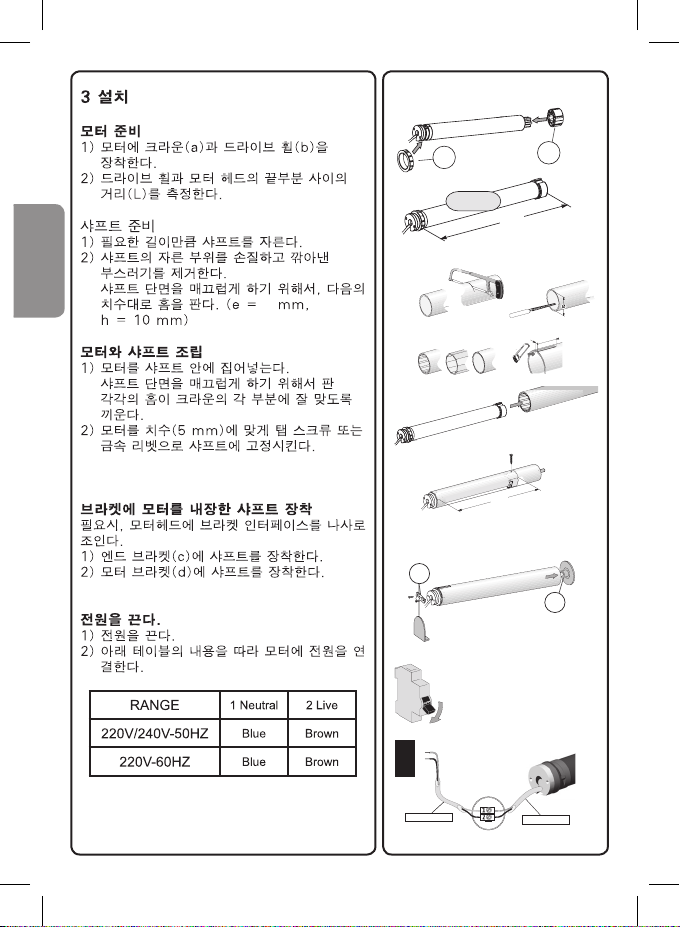

3 Installation
Motor preparation
1) Fit the crown (a) and drive wheel (b) to the
motor.
2) Measure the length (L) between the end of the
drive wheel and the head end.
Tube preparation
1) Cut the tube to the required length.
2) Deburr the tube and remove the debris.
For smooth roller tubes, cut a notch with the
following measurements: e = 7 mm h = 10 mm
Motor/tube assembly
1) Slide the motor into the tube.
For smooth roller tubes, position the notch
previously cut on the crown.
2) Fix the tube to the motor with self-tapping
screws or steel pop rivets depending on the
dimension (L - 5 mm).
Mounting the motorized tube on the
brackets
Ifnecessary,screwthebracketinterfaceonthe
motor head.
1) Mountthemotorizedtubeontheendbracket(c).
2) Mountthemotorizedtubeonthemotorbracket(d).
Wiring
1) Switch off the power supply.
2) Connect the motor according to the
information in the table below.
b
L
L = …
a
Ø > 37
eh
b
L
L = …
a
Ø > 37
eh
L
c
d
1
2
OFF
2 x 1,5 mm 2 x 0,75 mm2
2
RANGE 1 Neutral 2 Live
220V/240V-50HZ Blue Brown
220V-60HZ Blue Brown

5Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN

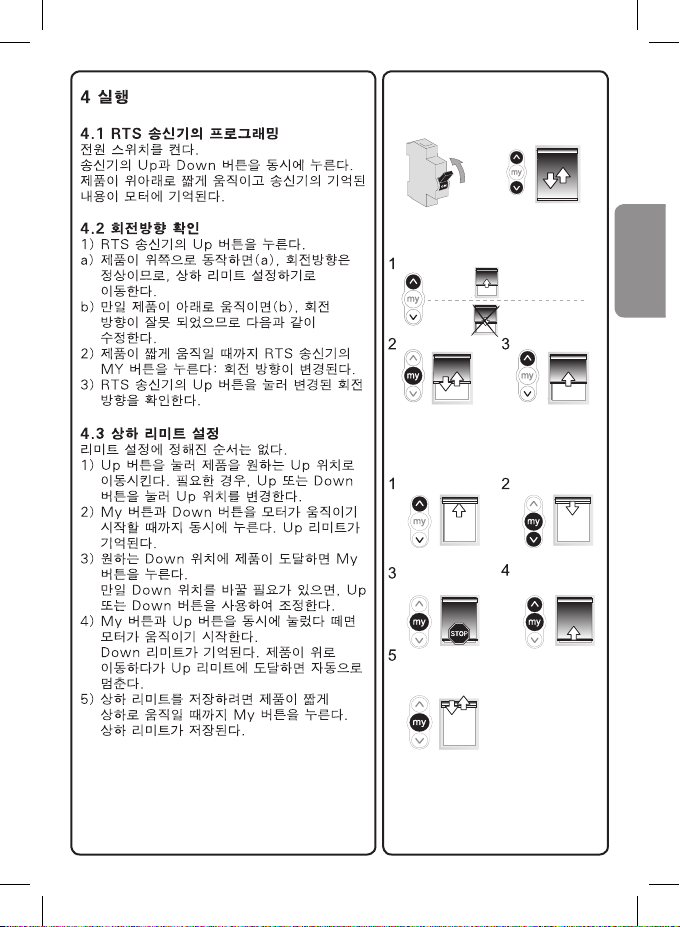

4 Commissioning
4.1 Programming the RTS transmitter
Switch on the power supply.
Press the UP and DOWN buttons simultaneously
on the RTS transmitter: the shade jogs (moves
upanddownbriey)andthetransmitteris
preprogrammed in the motor
4.2 Checking the rotation direction
1) Press the RTS transmitter UP button:
a) If the shade is raised (a), the rotation direction
is correct: move to the section entitled
«Adjusting the end limits».
b) If the shade is lowered (b), the rotation direction
is incorrect: move to the next step.
2) Press the RTS transmitter MY button until the
shade jogs: the rotation direction has been
 modied.
3)PresstheRTStransmitterUPbuttontocheck
the rotation direction.
4.3 Adjusting the end limits
The limits can be set in any sequence.
1) Press and hold the UP button to move the
shade to the desired Up position. If necessary
adjust the Up position, using the UP or DOWN
buttons.
2) Press the MY and DOWN buttons
simultaneously and release them once the
shade begins to move. The up limit is
memorized.
3) Press the MY button when it reaches the
desired Down position.
If necessary adjust the down position, using the
UP or DOWN buttons.
4) Press the MY and UP buttons simultaneously
and release them when the shade begins to
move.
The Down limit is memorized. The shade
moves up and will stop at its upper limit.
5)Toconrmtheendlimitspressandholdthe
MY button until the shade jogs.The end limits
are recorded.
a
b
=
=
1 2
34
5
1
32

6Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN

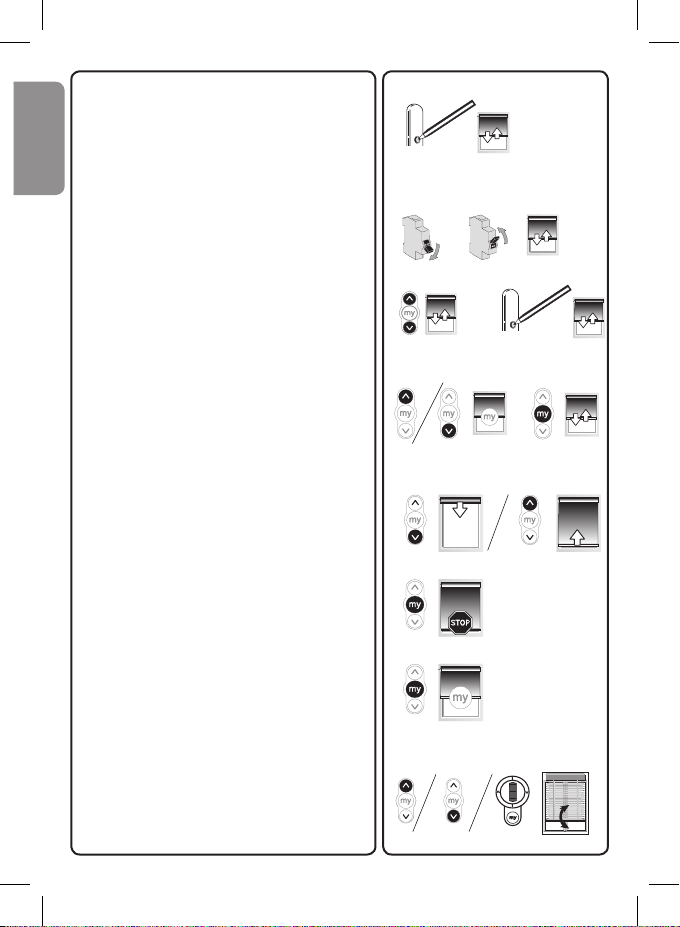

4.4 Recording the RTS transmitter
After recording the end limits:
Pressbrieytheprogrammingbuttonontheback
of the transmitter. The shade jogs.
The transmitter is recorded.
OR
1) Switch off the current.
2) Switch on the current. The shade jogs.
3) Simultaneously press the UP and DOWN
buttons on the RTS transmitter. The shade jogs.
4)Pressbrieytheprogrammingbuttononthe
 backofthetransmitter.Theshadejogs.
The transmitter is recorded.
4.5 Favorite position: MY position
Recording MY position.
To set the MY position, move the shade to the
desired position with the UP or DOWN button then
press the MY button until the shade jogs.
5 Use
Up, Down, My
1) To move the shade from a limit to the other
 limit,pressbrieytheUPorDOWNbutton.
2) To stop the shade, press the MY button.
3) To move the shade to the MY position, press
 brieytheMYbutton.
4) To tilt the slats, press and hold the UP or
DOWN button or use the scroll of the remote
control until the slats reach the desired position.
PROG.
1 2
3 4
1
2
3
4
PROG.

7Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN

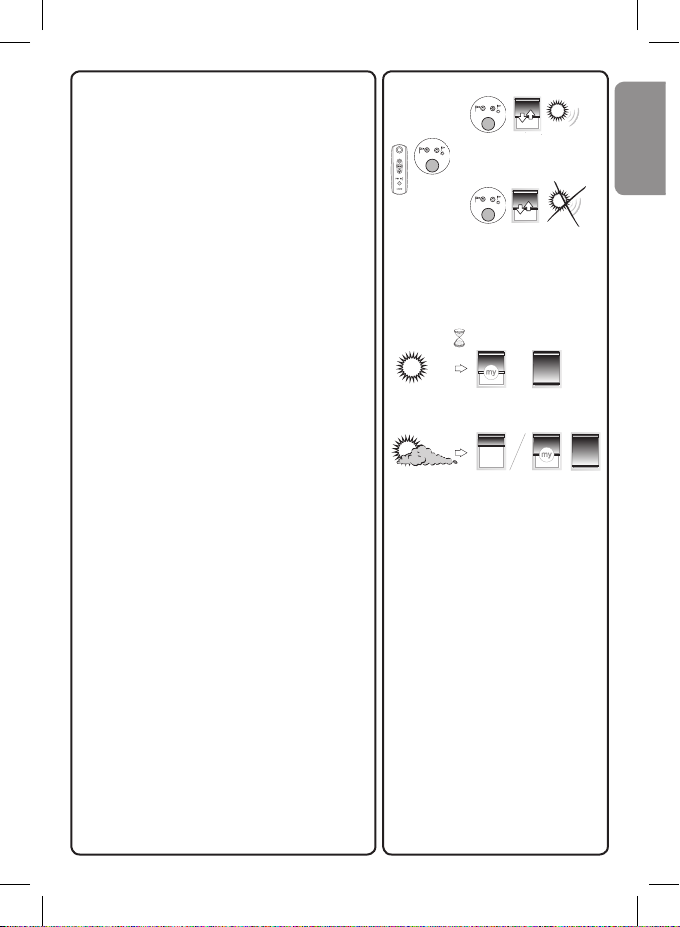

6 Sun function
For this function, you need a Telis Soliris
transmitter.
Bydefault,theSunfunctionisnotactive.
1) To activate the Sun function, press the SELECT
button on the Telis Soliris transmitter until the
shade jogs.
2) To disactivate the Sun function, press the
SELECT button on the Telis Soliris transmitter
until the shade jogs.
When the intensity of the daylight exceeds the
threshold set by the Soliris sensor RTS, a DOWN
order is sent to the shade after 2 min.
The shade goes to the MY position or to its down
limit if no MY position has been memorised.
When the intensity of the daylight falls
below the threshold set by the Soliris sensor RTS,
the shade stays at its position (MY or down limit).
The Wind function is not compatible with this
motor.
OK
1
2

8Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
7 Modifying the settings
7.1 End limit re-adjustement
UP LIMIT
1) Press the UP button, to move the shade to the
limit to be readjusted.
2) Press and hold the UP and DOWN buttons
simultaneously until the shade jogs.
3) Press and hold the UP or DOWN button to
move the shade to the new desired position.
4)ToconrmthenewlimitpressandholdtheMY
button until the shade jogs.
DOWN LIMIT
1) Press the DOWN button to move the shade to
the limit to be readjusted.
2) Press and hold the UP and DOWN buttons
simultaneously until the shade jogs.
3) Press and hold the UP or DOWN button to
move the shade to the new desired position.
4)ToconrmthenewlimitpressandholdtheMY
button until the shade jogs.
7.2 Favorite position : MY position
1) Changing the MY position
To change the MY position go to the new desired
MY position with the UP and DOWN buttons then
press the MY button until the shade jogs.
2) Deleting the MY position
Press the MY button to move to this position
To delete the MY position, move to this position
and press the MY button until the shade jogs.
1 2
34
1 2
34
1
2

9Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
7.3 Modifying the motor rotation direction
Move the shade away from the end limits.
1) Press the UP and DOWN buttons
simultaneously until the shade jogs.
2) Press the MY button until the shade jogs to
reverse the rotation direction.
3)PresstheUPbuttontocheckthenewdirection
of rotation.
The motor rotation direction is reversed.
7.4 Modifying the wheel rotation direction
Move the shade away from the end limits.
1) Press the UP and DOWN buttons
simultaneously until the shade jogs.
2) Press the UP and DOWN
buttons simultaneously until the shade jogs to
reverse the wheel rotation direction.
The wheel rotation direction is reversed.
1 2
3
1 2

10 Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN

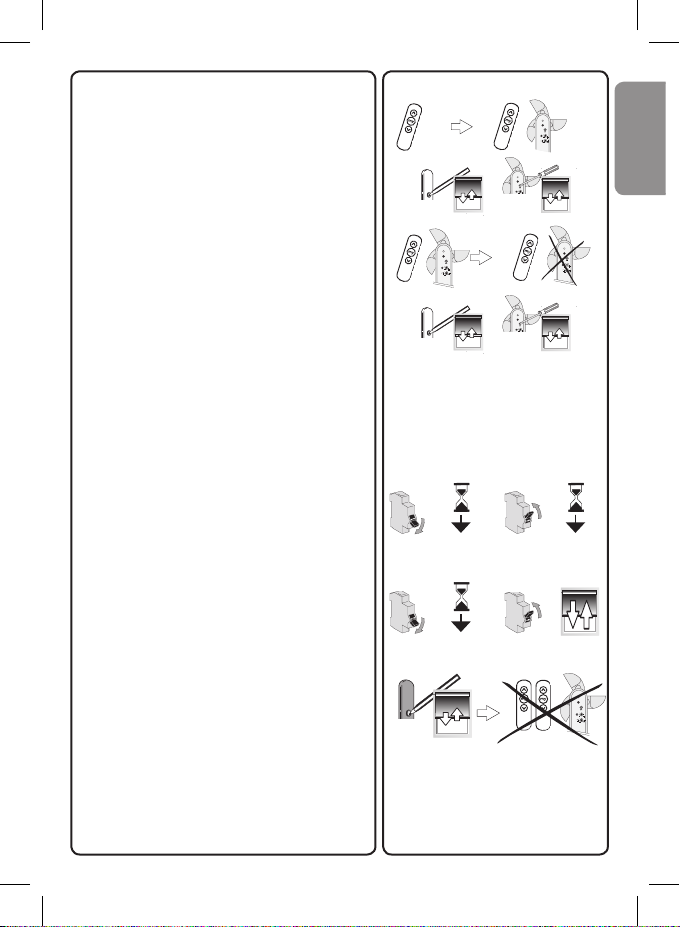

7.5 Replacement of a lost transmitter
N.B.:Thisresetdeletesalltransmitters
programmed, but end-limits, intermediate
positions and sensors are retained.
N.B.:Onlyswitchoffthecurrentforthemotor
where a transmitter is lost.
1) Cut the power supply for 2 seconds.
2)Switchthepowersupplybackonfor10to
15 seconds.
3) Cut the power supply for 2 seconds.
4)Switchthepowersupplybackon:theshade
moves during 5 seconds (If the shade position
is an end limit, the behavior of the shade will be
a jog).
5)PresstheRTStransmitter(B)PROGbutton
until the shade jogs: all the RTS transmitters
are cleared and the new RTS transmitter is
programmed in the motor.
7.6 Adding/Deleting RTS transmitter
Find an RTS transmitter programmed in the motor.
Press and hold the RTS programmed
transmitter (A) PROG button until the shade jogs:
the motor is in programming mode.
PressbrieytheRTStransmitter(B)PROGbutton
to add or delete this transmitter: the shade jogs
and the RTS transmitter is programmed or deleted
from the motor.
PROG.
A
PROG.
B
C
PROG.
C
A
B
A
A
A
B
B
CC
PROG.
A
PROG.
B
A
A
A
A
PROG.
A
PROG.
C
PROG.
A
A
PROG.
B
2 sec 10 to 15
sec
2 sec
1 2
3
5
4

11Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
7.7 Adding/Deleting RTS sensors
Find an RTS transmitter programmed in the motor.
Press and hold the RTS programmed
transmitter (A) PROG button until the shade jogs:
the motor is in programming mode.
PressbrieytheRTSsensor(C)PROGbuttonto
add or delete this sensor: the shade jogs and the
RTS sensor is programmed or deleted from the
motor.
7.8 Erase the memory of the motor.
N.B.:ThisresetdeletesallRTStransmitters,RTS
sensors, end-limits and intermediate
position programmed.
N.B.:Onlyswitchoffthecurrentforthemotorto
be reset!
N.B.:Beforecuttingthepower,movetheshadeto
the middle position.
1) Cut the power supply for 2 seconds.
2)Switchthepowersupplybackonfor10to15
seconds.
3) Cut the power supply for 2 seconds.
4)Switchthepowersupplybackon:theshade
moves during 5 seconds (If the shade position
is an end limit, the behavior of the shade will be
a jog).
5) Press the RTS transmitter (A) PROG button un-
til the shade jogs twice: all the RTS transmitters,
RTS sensors, end-limits and intermediate position
are cleared.
10 to 15
sec
PROG.
A
AC
B
MY
X 2
2 sec 10 to 15
sec
2 sec
2
4
PROG.
A
PROG.
B
C
PROG.
C
A
B
A
A
A
B
B
CC
PROG.
A
PROG.
B
A
A
A
A
PROG.
A
PROG.
C
PROG.
A
3
1

12 Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
8 Troubleshooting
The motor doesn’t work:
Verify:
•Thewiringofthemotor.
•Thepowersupplyspecications.
•Thecompatibilityofthecontrol
•Theheatgenerated(waitforthecoolingofthemotor).
The equipment stops too soon:
Veriy:
•Theoperationofend-limitsduringtherotationofthemotor.
•Thecrownisproperlyttedtothetube.
•Theend-limitsofthemotorareproperlyadjusted.
•Thattheshadeiswithintherecommendedweightlimit.
The equipment is noisy:
Verify that:
•Thewheelandthecrownarewelladaptedtotheusedtube.
•Themechanicalplaysbetweenmotor,accessories,tubeandendoftubemustbede-
creased to the maximum.
•Thewheelisproperlyxedtothetube.
•Theequipmentisnotconstrainedbetweenthebrackets.
•Thelengthofthenotchisadaptedtothemotorhookortotheusedcrown.
•Debris,screwsorotherarenotinyourtube.
•Thepowersupplyspecications.
•Thetemperatureoftheenvironmentisinconformitywiththeoperatingtemperature.

13Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
EN
9 Technical data
10 Environment
Damaged electric products and batteries should not be disposed of with
normal household waste.
Makesuretodroptheminspeciallyprovidedcontainersoratanauthorized
organization that will ensure they are recycled
Hong Kong Korea
Power supply 220V-240V/50Hz 220V/60Hz
Frequency 409,9875 MHz 447,7 MHz
Operating temperature 0°C / 60 °C
Protection rating IP44
Maximum number of
transmitters 12
Maximum number of
sensors 3

14 Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
KO

15Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
KO

16 Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
KO
b
L
L = …
a
Ø > 37
eh
b
L
L = …
a
Ø > 37
eh
L
c
d
1
2
OFF
2 x 1,5 mm 2 x 0,75 mm2
2
RANGE 1 Neutral 2 Live
220V/240V-50HZ Blue Brown
220V-60HZ Blue Brown
7

17Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
KO
a
b
=
=

18 Copyright © 2011 Somfy SAS. All rights reserved - V0 - 06/2011
KO
PROG.
PROG.
