SOMFY Glydea DCT Installation guide

Installation/programming
guide
Interior applications
Somfy InstalGuide IWC_A5_2016UK_11.indd 1 04-02-16 11:05

Somfy InstalGuide IWC_A5_2016UK_11.indd 2 04-02-16 11:05

3
Contents
Overview RTS options 8
Compatibility, Motor-Power supply-sensors 9
Power connections: Applications with RTS integrated motors 10
Basic
Programming and setting of RTS motors 11
1 Connect the RTS transmitter to the motor 11
2 Check the motor rotation direction 11
3 Change motor rotation direction if needed 11
4 Place the blind in the desired UP position 11
5 Set the DOWN position 11
6 Set the UP position 12
7 Confirm end limit setting 12
8 Recording an RTS transmitter 12
Adjustments 13
Adjusting the DOWN limit 13
Adjusting the UP limit 13
Setting My position for NON TILT products 14
Setting My position for TILT products 14
Remove programmed My position 14
Set type of blind, Roll up or Tilt and li blind 15
Wired RTS receivers, 24 VDC 16
24 V RTS Receivers, setting and programming 17
Setting from the RTS receiver 17
1 Set the RTS receiver in programming mode 17
2 Record the first RTS transmitter 17
Power 4 x 2,5 DC RTS 17
Setting from the RTS remote control 18
Set type of blind: Roll up or Tilt and li 19
Change the motor rotation direction 20
Sett the time for open and close movement 21
Modify the MY position, in Tilt & li mode 24
Modify the MY position, in Roll up mode 25
Remove a programmed MY-position 26
Activating the motor Run timer 26
Add a transmitter 27
Remove an assigned transmitter 27
Somfy InstalGuide IWC_A5_2016UK_11.indd 3 04-02-16 11:05

4
Add or remove transmitters 28
Factory reset 29
Program individual channels to group channel 30
Sonesse 40 WT, Setting of end limits 31
Glydea, Curtain track 32
Recommendations 32
Motor cable output options 32
Attach motor to rail 32
Wiring guide DCT & RTS 32
Glydea RTS, Programming instruction 33
Connect the RTS transmitter to the motor 33
Check the motor rotation direction 33
Change if needed motor rotation direction 33
Record a RTS transmitter 33
Setting My position 34
Re-adjustment of end -limits 34
Set Touch motion or manual over ride mode 35
Set track speed, default speed = 20 cm/s 35
Add transmitter 36
Reset motor to factory mode, erase all settings 36
Glydea DCT, Wiring control unit to Glydea DCT 36
Glydea DCT, Programming instruction 37
Modify motor rotation direction, if needed 37
Re-adjustment of end -limits 37
Set Touch motion or manual over ride mode 38
Reset motor to factory mode, erase all settings 38
Programming instruction 39
Modify motor rotation direction, if needed 39
Back release setting 39
Reset motor to factory mode, erase all settings 40
Glydea WT, Wiring instruction 40
Advanced
Sun sensor functions 41
Deactivate and activate privacy function 41
Program sun disappearing position 42
Set the motor speed 42
Somfy InstalGuide IWC_A5_2016UK_11.indd 4 04-02-16 11:05

5
Set the tilt speed / scroll wheel step 43
Modify motor rotation direction 44
Modify scroll wheel rotation direction 45
Sonesse 30 DCT 46
Wiring 46
Setting type of blind 46
Setting of rolling speed 46
Setting of tilt speed 47
Reset motor in Factory mode 47
24 V Wired controls for Roll up application 48
Setting of My positions 48
24V Wired control for Tilt & Li applications 49
Adjust tilt speed 49
Set automatic Slat tilting 49
Set My position - from UP end limit 49
Sunis RTS, Adding and setting 50
Connect sun sensor 51
Check Sun mode ON or OFF 52
Check and installation 53
Set the Demo mode ON 53
Switch the Demo mode OFF 54
Explanations of LED signals 55
Is the Sunis Sensor RTS in DEMO-Mode? 55
Thermosunis Indoor Wirefree RTS, Adding and setting 56
Thermosunis Indoor Wirefree RTS 57
Connect sun sensor 57
Mounting of Thermosunis Indoor Wire free RTS 58
Usage options for Thermosunis Indoor Wirefree RTS 58
Get started with Thermosunis Indoor Wire free RTS 59
Activate the sensor 60
Erase the sensor from the motor 60
Setting of the sensitivity (threshold values) 61
DEMO mode 63
Chronis Smart RTS 64
Explanation of display and key functions 64
Programming options 64
1 Setting current time 66
Somfy InstalGuide IWC_A5_2016UK_11.indd 5 04-02-16 11:05

6
2 Setting current date 66
3 Setting UP time 67
4 Setting the DOWN time 67
4.1 Setting time shi and time limit for COSMIC DOWN time 68
4.2 Deactivating the COSMIC function 68
4.3 Setting the DOWN time 69
4.4 Activating the COSMIC function 69
5.1 Activating the SECurity function 70
5.2 Deactivating the SECurity function 70
6.1 Deactivating the programmed UP and DOWN times 70
6.1 Activating the programmed UP and DOWN times 70
7 Special settings for use with a separate RTS receiver for window
coverings DC RTS and RTS 2.5 DC modules 71
Chronis Comfort RTS 72
Explanation of display and key functions 72
Programming options 72
1 Setting current time 74
2 Setting current date 74
3 Setting UP time 75
3.1 Setting the 1st UP time to a fixed time 75
3.2 Setting the 2nd UP time to a fixed time 76
3.3 Activating the Cosmic UP function 76
3.4 Setting time shi and time limit for COSMIC UP time 77
3.5 Deactivating the COSMIC UP function 77
4 Setting the DOWN time 78
4.1 Setting time shi and time limit for COSMIC DOWN time 78
4.2 Deactivating the COSMIC DOWN function 79
4.3 Setting the 1st DOWN time to a fixed time 79
4.4 Setting the 2nd DOWN time to a fixed time 80
4.5 Activating the COSMIC function for the 1st DOWN time 80
5 Light sensor 81
5.1 Activating the light sensor 81
5.2 Deactivating the light sensor 82
6.1 Activating the SECURITY mode 82
6.2 Deactivating the SECURITY mode 82
7.1 Deactivating the programmed UP and DOWN times 83
7.2 Activating the programmed UP and DOWN times 83
8 Special settings for use with a separate RTS receiver for window
coverings DC RTS and RTS 2.5 DC modules 83
9 Time control for intermediate position (MY position) 84
9.1 Time command for the intermediate position in combination with UP time,
DOWN time and the “light command” 85
Somfy InstalGuide IWC_A5_2016UK_11.indd 6 04-02-16 11:05

7
Telis 6 Chronis RTS User Manual 87
Composition 88
Getting started 89
Installing the batteries 89
Remote control set-up 89
Naming the 6 channels 90
Adding Telis 6 Chronis RTS 91
Erasing 6 Chronis RTS 92
Setting tilt mode 92
Programming the days of the week (automatic mode) 93
Choosing the day to be programmed 93
Creating an automatic command 94
Selecting channels 94
Selecting command 95
Copying the programme from one day to another day 95
Erasing an automatic command 96
Switching between automatic and manual 97
Manual mode 97
Controlling the channels 97
Automatic modus 98
Activating/deactivating the sun function 99
The “Presence simulation” function 99
Telis 6 Chronis RTS User Manual 100
Changing the general remote control parameters 100
Telis 6 Chronis RTS User Manual 101
Controlling products 101
Setting the preferred position (‘my’) 101
Using the preferred position 101
Attaching the Telis 6 Chronis RTS to the wall 102
Tips and recommendations 102
Telis 6 Chronis RTS User Manual 103
Technical data 103
Dimensions 103
Programming Moco DCE 104
To change to Li application 104
Setting of end limits 105
Somfy InstalGuide IWC_A5_2016UK_11.indd 7 04-02-16 11:05

8

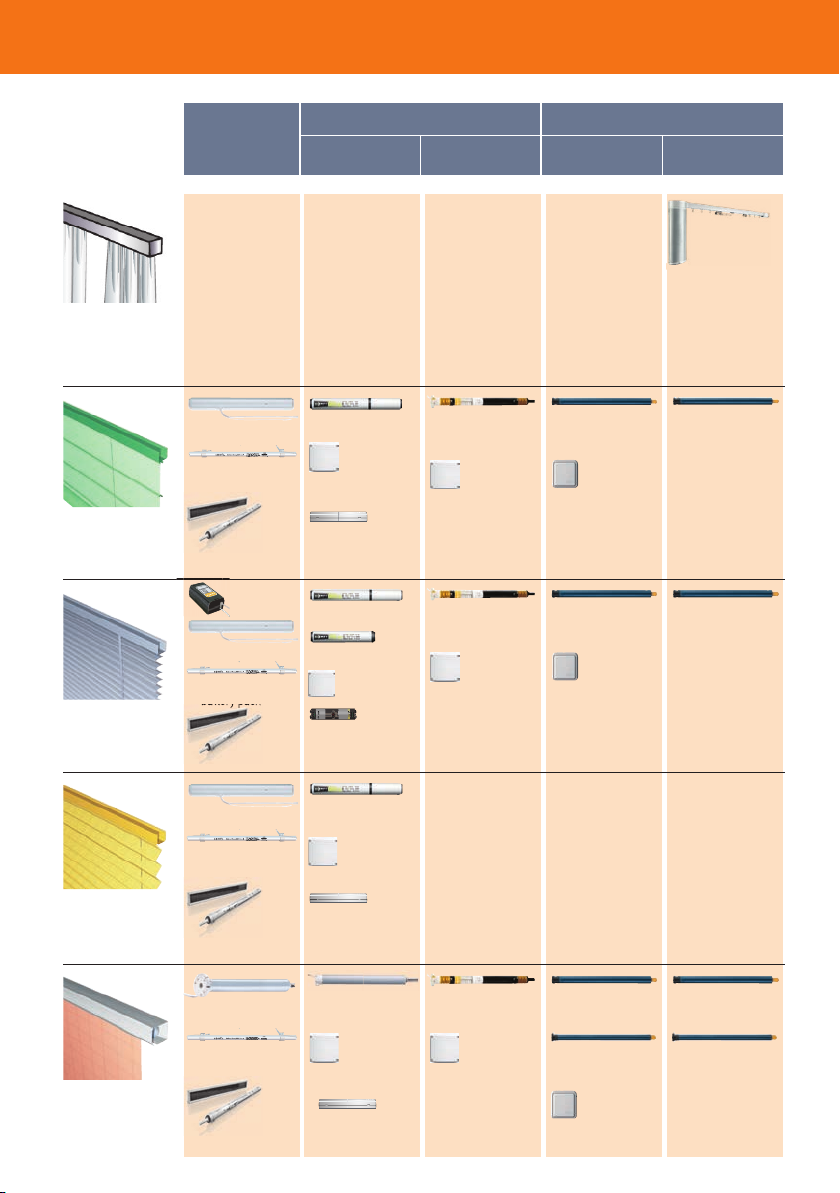

Overview RTS options
Roller blinds
Venetian blinds
Pleated -
Duette blinds
Curtains
Roman blinds
- +
Wire Free range RTS Receiver RTS motor RTS Receiver RTS motor
24 Volt 230 Volt
n Motor LW 25
n DC RTS Receiver
n Tilt Wire-
Free RTS
n Tilt & Li 25 RTS
n Tilt & Li 25 RTS
n Tilt & li 25 RTS
n 12-volt
battery pack
n 12-volt
battery pack
n 12-volt
battery pack
n 12-volt
battery pack
n Motor LW 25
n Motor LV 25
n Transformer
e.g. Power 2,7DC
n Integrated DC
RTS receiver
n Transformer
e.g.
Power 2,7DC
n Transformer
e.g.
Power 2,7DC
n Centralis
Indoor
RTS
n Receiver
Centralis
indoor
RTS Drape
n Receiver
Centralis
indoor
RTS Drape
n Motor LW 25
n DC RTS Receiver
n Roll up 28 RTS n Roll up 28 WT
n Motor
Sonesse 40 RTS
n DC RTS Receiver
n Trans-
former
e.g. Power
2,7DC
n Transformer
e.g.
Power 2,7DC
n Transformer
e.g.
Power 2,7DC
n Transformer
e.g.
Power 2,7DC
n Motor Sonesse
30 RTS
n Motor Sonesse
30 RTS
n Motor
Sonesse 40 RTS
n Motor
Sonesse 40
n Motor
Sonesse 40
n Motor Sonesse
30 RTS
n Motor
Sonesse 40 RTS
n Motor
Sonesse 40 PA
n Motor
Sonesse 50 RTS
n Motor
Sonesse 50 PA
n Glydea RTS
+ track
battery pack
n Solar pack, Battery +
Solarpanel
n Solar pack, Battery +
Solarpanel
n Solar pack, Battery +
Solarpanel
n Solarpack,
Battery + Solarpanel
Somfy InstalGuide IWC_A5_2016UK_11.indd 8 04-02-16 11:05

9
Compatibility chart
Compatibility chart, Motor / Remote-sensors
DC Power supply range - Motor compatibility
LV25 B44
LW25
B44
LV25 B67 LW25
B83
LW25
E83
Roll up
28 WT
Sonesse
30 RTS
Sonesse
30 DCT
Sonesse
30 RS
485
Roll up
28 RTS
Tilt & Li
25 RTS
Tilt 50
RTS
Power 1,5DC 3 3 2 NC 3 1 1 1 NC NC NC
Power 2,7DC 6 5 4 NC 5 1 2 2 NC NC NC
Animeo DC Power 4,5 11 9 7 NC 8 2 2 2 NC NC NC
Battery tube 8xAA lithium NC NC NC NC NC NC NC NC 1 1 1
Battery tube 10xAA Nimh
rechargeable NC NC NC NC NC NC NC NC 1 1 1
Power supply 12VDC NC NC NC NC NC NC NC NC 1 1 1
DC Motor Power supply with integrated controls - Motor compatibility range
LV25 B44
LW25
B44
LV25 B67 LW25
B83
LW25
E83
Roll up
28 WT
Sonesse
30 RTS
Sonesse
30 DCT
Sonesse
30 RS
485
Roll up
28 RTS
Tilt & Li
25 RTS
Tilt 50
RTS
Power 1 x 2,5DC RTS 6 5 4 NC 5 NC NC NC NC NC NC
Power 4 x 2,5 DC RTS 4x6 4x5 4x4 NC 4x5 NC NC NC NC NC NC
Inis DC 2 1 1 NC 1 NC NC NC NC NC NC
Moco 4 DC/DCE 4x1 4x1 4x1 4x1 4x1 (DC) NC NC NC NC NC NC
DC Motor controls - Motor compatibility range
(Integrated) DC RTS Rec 2 2 2 NC 2 NC NC NC NC NC NC
Centralis DC IB 2 2 2 NC 2 NC NC NC NC NC NC
Moco 4 DC 4x1 4x1 4x1 NC 4x1 NC NC NC NC NC NC
Sensor/remote controls - Motor/receiver compatibility chart
Roll up
28 RTS
Tilt & Li
25 RTS Tilt 50 RTS Sonesse 30 RTS
Sonesse
40 RTS
Sonesse
50 RTS
Glydea
RTS
Power 1
x 2,5DC
RTS
Power 4 x
2,5 DC RTS
(Integrated)
DC RTS Rec
Telis Range C C C C C C C C C C
Telis Modulis Range C C C C C C C C C C
Sunis RTS NC NC NC C C C NC C C C
Soliris Sensor RTS NC NC NC C C C NC C C C
Thermosunis/Sunis
Indoor RTS CCCCCCCCCC
Chronis RTS Range C C C C C C C C C C
Tahoma C C C C C C C C C C
Somfy InstalGuide IWC_A5_2016UK_11.indd 9 04-02-16 11:05

10
WireFree® motors
Roll Up 28 RTS,
Tilt & Li 25 RTS,
Tilt 50 RTS
Power connections: Applications with RTS integrated motors
Power connection
24 V DC motors
Sonesse 30 RTS
230 V AC motors:
Sonesse 40 RTS, 2 wires,
Sonesse 50 RTS
1. Neutral 2. Phase 3. Ground
230V/50 Hz Sonesse 40 RTS Blue Black
230V/50 Hz Sonesse 50 RTS Blue Black Yellow/green
OR
1
2
3 x 1,5 mm23 x 0,75 mm2
3
1
2
3
+
-
Somfy InstalGuide IWC_A5_2016UK_11.indd 10 04-02-16 11:05

11

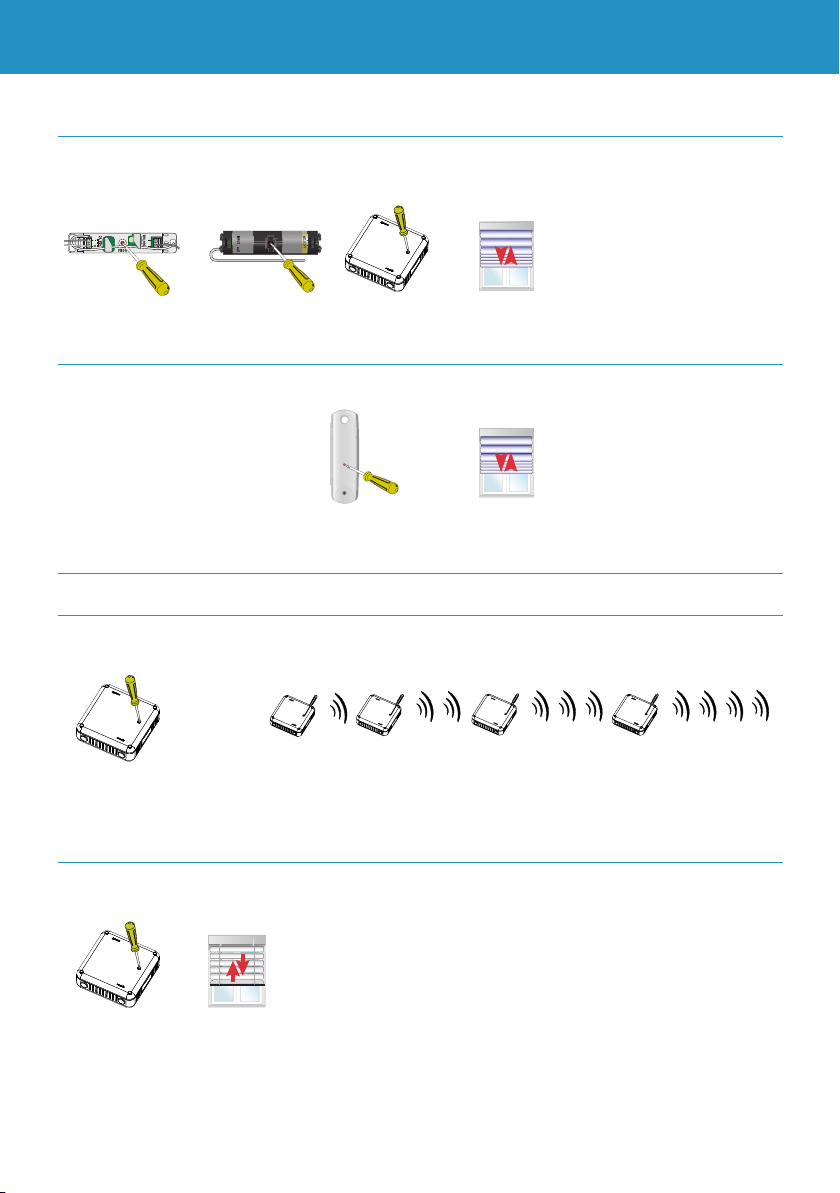

Roll Up 28 RTS, Tilt & Li 25 RTS, Sonesse 30 RTS, Sonesse 40 RTS, Sonesse 50 RTS, Tilt 50 RTS

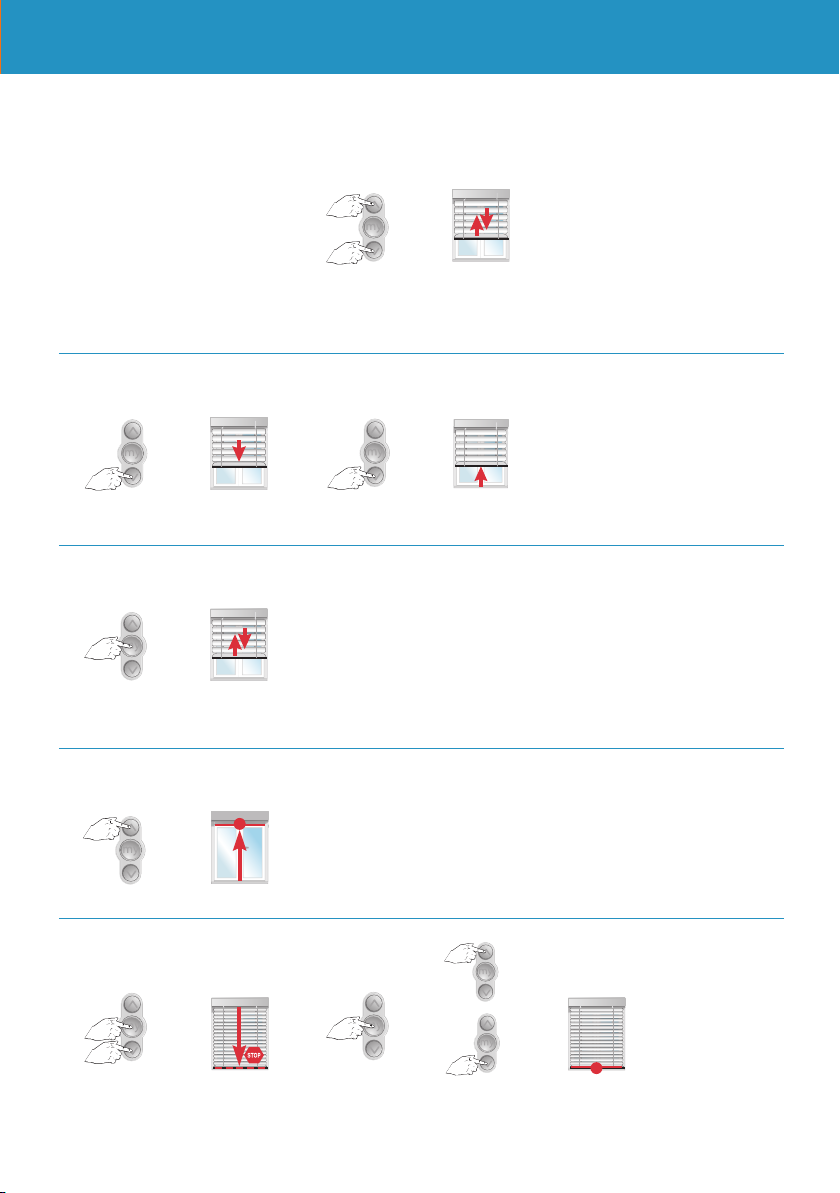

RTS Motors - programming and Basic setting Basic
3 Change motor rotation direction if needed
4 Place the blind in the desired UP position
5 Set the UP position
For Sonesse 30 RTS
If the motor doesn’t react,
reverse the cables in
the power supply.
Start programming again.
When programming
a multi channel control,
choose channel first
NOT OK  3
...motor jogs.
...motor jogs.
Blind goes down Stop at desired
down position
Adjust if needed
Press simultaneously
until...
Press until...
Short
Simultaneous
press
OK  4
Only connect the motor that should be programmed to power
1 Connect the RTS transmitter to the motor
2 Check the motor rotation direction
2 sec.
Somfy InstalGuide IWC_A5_2016UK_11.indd 11 04-02-16 11:05

12
Roll Up 28 RTS, Tilt & Li 25 RTS, Sonesse 30 RTS, Sonesse 40 RTS, Sonesse 50 RTS, Tilt 50 RTS
RTS Motors - programming and Basic setting Basic
6 Set the DOWN position
7 Confirm end limit setting
8 Recording an RTS transmitter
The motor moves upwards and
stops at the UP position
...motor jogs
...motor jogs
Short simultaneous
press
Press until...
Press the prog button
on the back of the
control until...
2 sec.
Somfy InstalGuide IWC_A5_2016UK_11.indd 12 04-02-16 11:05

13
Roll Up 28 RTS, Tilt & Li 25 RTS, Sonesse 30 RTS, Sonesse 40 RTS, Sonesse 50 RTS, Tilt 50 RTS
1 Adjusting the DOWN limit
1 Adjusting the UP limit
2
2
RTS Motors - programming and Basic setting Basic
Press simultaneously
until...
Press simultaneously
until...
...motor jogs
...motor jogs
Place the blind in the down position
Place the blind in the up position
Choose a new down position
Choose a new up position
Confirm new down position, press “My”
until motor jogs  OK
Confirm new down position, press “My”
until motor jogs  OK
5 sec.
5 sec.
2 sec.
2 sec.
Somfy InstalGuide IWC_A5_2016UK_11.indd 13 04-02-16 11:05

14
Roll Up 28 RTS, Tilt & Li 25 RTS, Sonesse 30 RTS, Sonesse 40 RTS, Sonesse 50 RTS, Tilt 50 RTS
RTS Motors - programming and Basic setting Basic
Setting My position for NON TILT products
Setting My position for TILT products
1 Remove programmed My position
2
Place the blind in the down position
Place the blind in the my position
Place the blind in desired position
Press `my` until... ...motor jogs
Tilt up to desired slat angle Confi rm the My position, press “My”
until motor jogs OK
Confi rm the My position, press “My”
until motor jogs OK
5 sec.
5 sec.
5 sec.
Adjusting My position
Repeat procedure to a
new desired position
Adjusting My position
Repeat procedure to a new desired position
or
or
or
or
Somfy InstalGuide IWC_A5_2016UK_11.indd 14 04-02-16 11:05

15
RTS Motors - programming and Basic setting Basic
Set blind mode: Roller or Venetian
1
2 Change the setting
Default setting
Tilt & li 25 RTS = Venetian
Roll up 28 RTS, Sonesse 30 & 40 = Roller
Place the blind half way down
Press simultaneously
until...
Press simultaneously
until...
...motor jogs ...motor jogs
5 sec.
2 sec.
Roll Up 28 RTS, Tilt & Li 25 RTS, Sonesse 30 RTS, Sonesse 40 RTS
Somfy InstalGuide IWC_A5_2016UK_11.indd 15 04-02-16 11:05

16
DC RTS Receiver
Wiring
Wired RTS receivers, 24 VDC Basic
(Integrated) DC RTS Receiver, Power 1 x 2,5 DC RTS, Power 4 x 2,5 RTS DC
Integrated DC RTS Receiver
Power 1 x 2,5 DC RTS (power 4 x 2,5 DC RTS, Power 2,7 DC)
- +
- +
230/24 V power
supply
230/24 V power
supply
Somfy InstalGuide IWC_A5_2016UK_11.indd 16 04-02-16 11:05

17
24 V RTS Receivers - Programming and basic settings Basic
1 Set the RTS receiver in programming mode
2 Record the fi rst RTS transmitter
Setting from the RTS receiver
When programming
a multi channel control,
choose channel fi rst
3 sec.
- +
3 sec.
or or
If the blind doesn’t react,
- reverse the 24V power
supply cables
- try from start again
...motor jogs.
...motor jogs
 OK
Press the prog button until...
Press the prog button
on the back of the
control until...
Once output channel is chosen
Output 4= 4 beepOutput 3= 3 beepOutput 2 =
2 beep
Output 1 =
1 beep
Each press
change
channel
Press and release
prog button
quickly
Press and hold to
enter in programming
mode
Select the output channel (Per default output 1 is active)
Power 4 x 2,5 DC RTS
Motor jogs
 OK
When in programming mode follow the programming
steps of Power 1 x2,5 DC RTS for each output
channel
(Integrated) DC RTS Receiver, Power 1 x 2,5 DC RTS, Power 4 x 2,5 DC RTS
Somfy InstalGuide IWC_A5_2016UK_11.indd 17 04-02-16 11:05

18
24 V RTS Receivers - Programming and basic settings Basic
(Integrated) DC RTS Receiver, Power 1 x 2,5 DC RTS, Power 4 x 2,5 DC RTS
1 Connect the RTS remote control to the RTS receiver
2 Recording the first RTS transmitter
Setting from the RTS remote control
When programming
a multi channel control,
choose channel first
If the blind doesn’t react,
- reverse the 24V power
supply cables
- try from start again
...motor jogs
 OK
...motor jogs
Press the prog button
on the back of the
control until...
Short simultaneous
press
Somfy InstalGuide IWC_A5_2016UK_11.indd 18 04-02-16 11:05

19
24 V RTS Receivers - Programming and basic settings Basic
(Integrated) DC RTS Receiver, Power 1 x 2,5 DC RTS, Power 4 x 2,5 DC RTS
Press simultaneously
until...
Press simultaneously
until...
Press until...
...motor jogs
...motor jogs quickly  Roll up blind setting
...motor jogs slowly  Tilt and li setting
...motor jogs twice
For Roll up type of blind, roller, pleated or roman blind
Do below setting (Default = Tilt & Li)

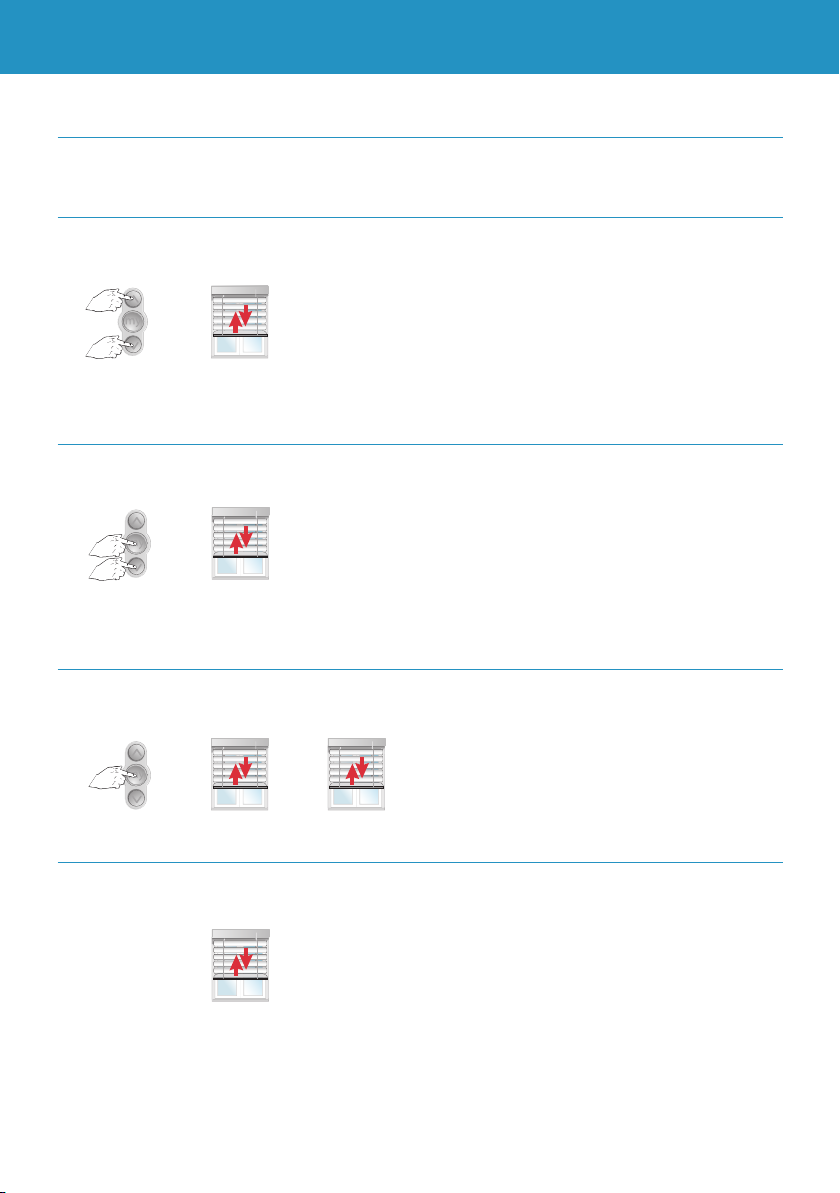

1 Put the receiver in programming mode
2 Change type of blind setting
3 Confirm setting
4 To return to Tilt and li setting, redo step 1-3
Set type of blind: Roll up or Tilt and Li
5 sec.
5 sec.
2 sec.
Somfy InstalGuide IWC_A5_2016UK_11.indd 19 04-02-16 11:05

20
24 V RTS Receivers - Programming and basic settings Basic
Press simultaneously
until...
ok  4
Press until...
Press until...
...motor jogs
NOT ok  3
...motor jogs twice
...motor jogs
(Integrated) DC RTS Receiver, Power 1 x 2,5 DC RTS, Power 4 x 2,5 DC RTS

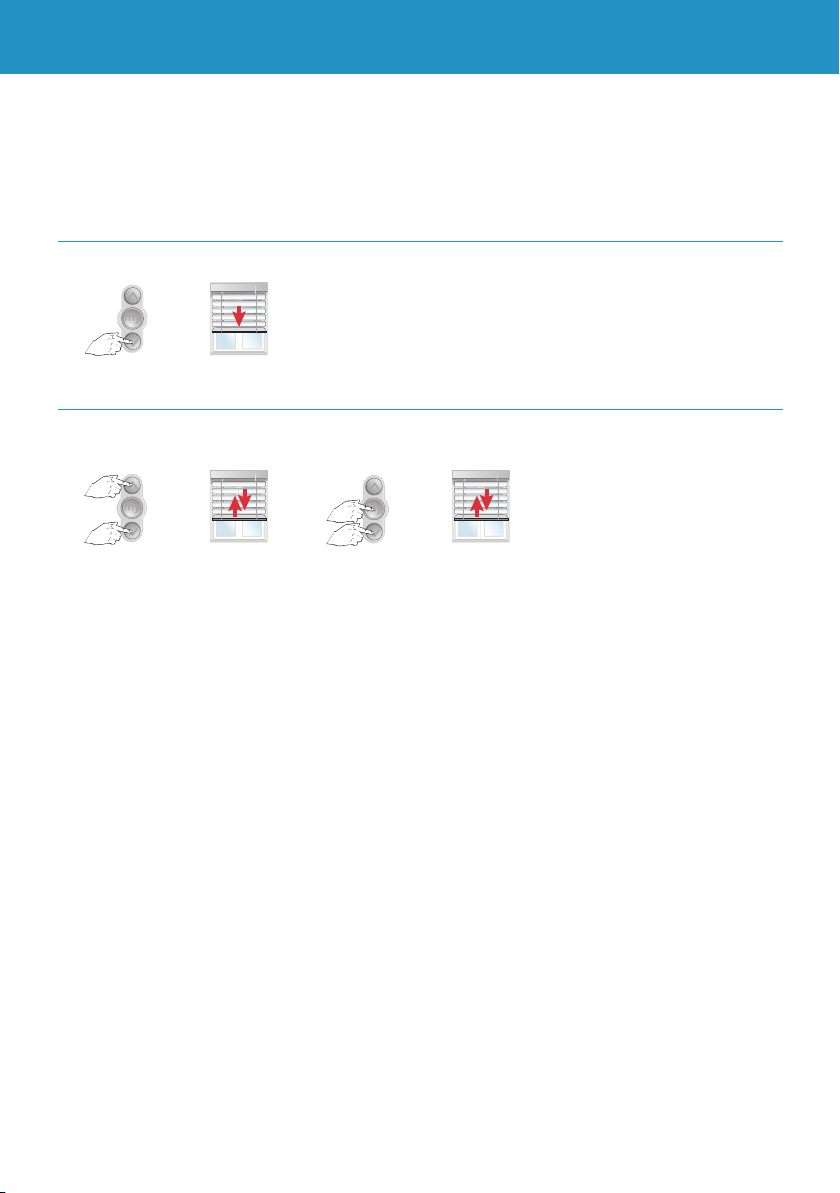

1 Put the receiver in programming mode
2 Check the rotation direction
3 Change the rotation direction
4 Confirm the rotation direction
Change the motor rotation direction
5 sec.
5 sec.
5 sec.
Place the blind half way open
Somfy InstalGuide IWC_A5_2016UK_11.indd 20 04-02-16 11:05
