Soundoff Signal ETSS100CBKFV-BP User manual

1.800.338.7337 / www.soundoffsignal.com
FORD SUV PI BUMPER SPEAKER BRACKET
ETSS100CBKFV-BP (for 2016 - 2017 model years - NO DRILL)
ETSS100CBKFV-BP 0719
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to [email protected].
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
1
FRONT CROSSBEAM
NUT
INSTALLATION:
1. Front bumper cover assembly must be removed to
access front beam for speaker bracket installation.
Assembly should be removed as one piece and not
individually. Consult a local Ford service center for best
disassembly method. Keep all hardware.
2. Mount speaker bracket using either one of the mounting
holes on the crossbeam with the supplied hardware. If
vehicle is equipped with a push bumper, use either one
of the 2 holes to allow it to be offset from the hole on the
bumper. See g 2.
3. Install speaker using the appropriate hardware. See page
2. Follow all warnings and suggestions for installation.
4. Wire speaker to siren output and test.
5. Re-install front bumper cover assembly using previously
removed hardware.
TECHNICAL SPECIFICATIONS
Material: Steel with powder coated black
nish
Dimensions
(bracket only):
9.4”H x 7.3”W x 2.4”D
!
WARNING
Sirens produce loud sounds that
may damage hearing:
- Roll up windows.
- Wear hearing protection.
- Use only for emergency response.
- Avoid exposure to siren sound
outside of vehicle.
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and re. Follow crimp connector
manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner’s Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring conguration and proper integration of
system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized
to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through rewall or metal.
WARNING
BRACKET COMPATIBLE
WITH SPEAKERS:
-100C
-100L
-100N

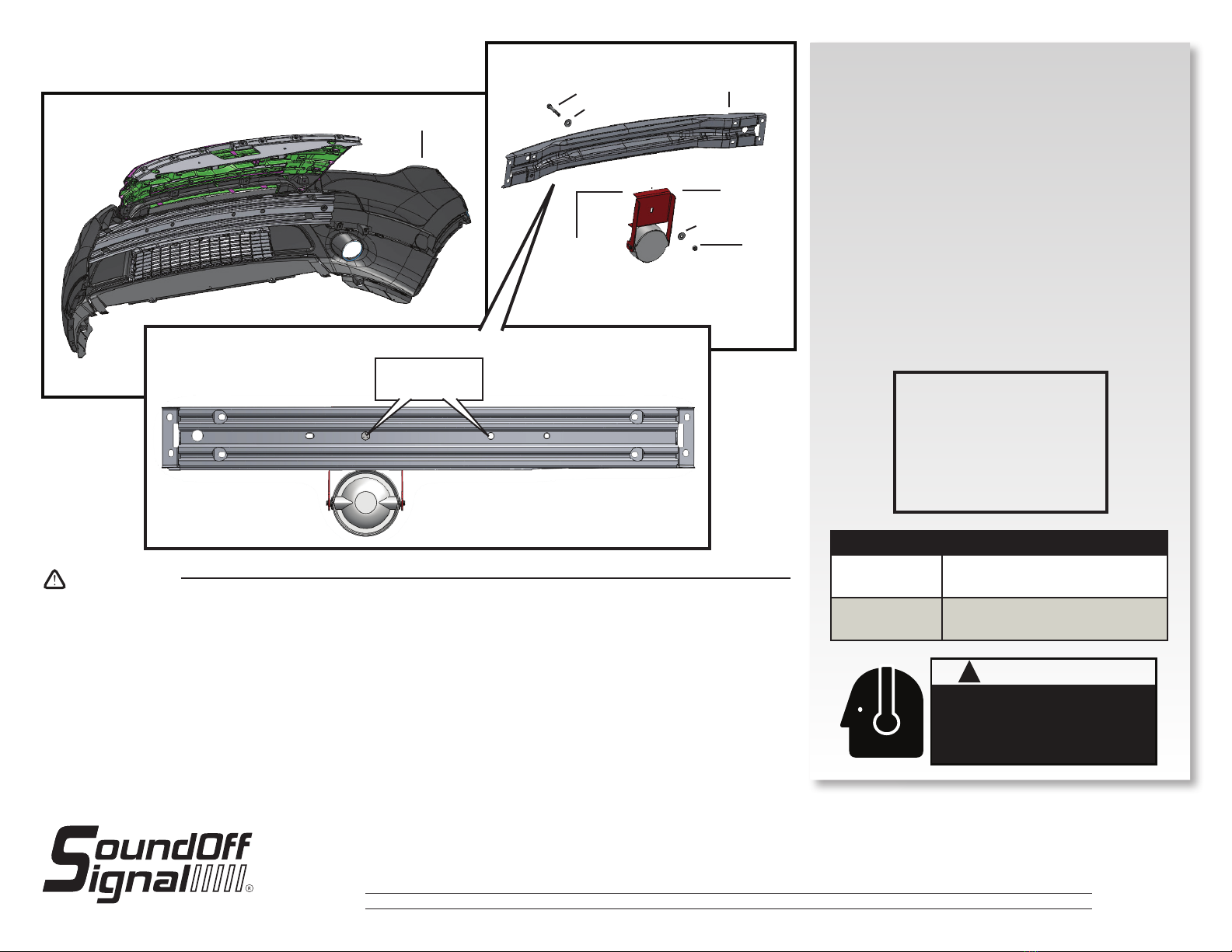

FRONT CROSSBEAM
-FRONT VIEW-
PASSENGER SIDE
BRACKET ASSEMBLY
SHOWN CENTER ON BOLT
MOUNTING HOLE
LOCATIONS
DRIVER SIDE
FIG. 2
FRONT BUMPER
FIG. 1
SPEAKER
ASSEMBLY
FLAT WASHER
ADJUSTABLE
MOUNTING
OPTION (FOR
VEHICLES WITH
PUSH BUMPERS)
HEX BOLT
FLAT WASHER

1.800.338.7337 / www.soundoffsignal.com
FORD SUV PI BUMPER SPEAKER BRACKET
ETSS100CBKFV-BP (for 2016 - 2017 model years - NO DRILL)
ETSS100CBKFV-BP 0719
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to [email protected].
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
2
100N SPEAKER
ASSEMBLY
1
BOLTS
LOCK WASHER
STEEL WASHER
PLASTIC FLAT WASHER
PLASTIC SHOULDER WASHER
PLASTIC SPACER
* M8-1.25
* 1/4-20
2
3
4
5
6
IMPORTANT
TO AVOID DAMAGE TO SPEAKER USE THE SUPPLIED
PLASTIC WASHERS ON BOTH SIDES OF METAL BRACKET.
AS SHOWN ON PICTURE.
1
2
345
2345
1
2
345
6 *BLACK SPACER*
6 *WHITE SPACER*
100N SPEAKER
USE THE LABELED BOLTS IN BAG
AND HARDWARE 2 THRU 6.
LABELED BOLT - IN BAG
100C SPEAKER
ASSEMBLY
100L SPEAKER
ASSEMBLY
