Src S-vs1050xt-04-01-al User manual

Copyright By SRC

Design and Specification are subjected to change

Page 1

Scope of Supply/Bill of Material & Mounting Drawings

Part Number: S-VS1050XT-04-01-AL / S-VS1050XT-04-02-AL

Part Description: Top Rack –V-STROM1050 XT

Installation / Parts List / Bill of Material for Mounting

Copyright By SRC

Design and Specification are subjected to change

Page 2

Step 1:

Orient, Mount and Fit the Top Rack

(1) to the Motorbike Chassis frame

(as show)

Slip-in the Spacer delin (4)-2 off,

Bush 18x18 (3)-2 off, at the end rack

in motorbike. and slip-in Bush

25x29(2)-2 off, as shown .

Orient the Top rack (1) and slip-in

the taper ring (9) - 4 off, screw

M8x55 (7) –2 off, at the end top

rack, screw M8x60 (8) –2 off,

Step 2:

Slip-in the washer M8 (5) –2 off, nuts

M8 (6) –2 off, and secure the threads.

Copyright By SRC

Design and Specification are subjected to change

Page 3

General Instructions

1. We request you to pay attention to the Mounting Instructions in this document and

follow the step-by-step procedures.

2. This Mounting Instruction manual is a “Do It Yourself” (DIY) fitment manual of the

Accessory part to the Vehicle. We have prepared this based on our experience and

knowledge, related to the Vehicle, Part and its functional aspects.

3. SRC cannot guarantee the interchangeability of the parts to any other manufacturer’s

accessory part. It is advised to the User, to inspect and ensure the original state of all

other Vehicle parts.

4. We request you to bear in mind, that the Installed part can change the driving

behaviour and/or the stability during driving or any other dynamic conditions.

5. If you have the appropriate tools and another person to assist you in the mounting, it

will help.

6. After Completion of the Mounting and before taking on a First ride, Ensure and Check all

functions of the Vehicle. It is always advised to check loosening of the fasteners after

the first 50 kilo meters of ride and at regular intervals.

7. We are showing here the Scope of Supply/ Installation/Parts list & BOM from SRC

8. To the maximum extent possible, our design use the current Mounting/Fitment of the

Original Equipment, so that Installation of these accessories will not affect the Payload

or Function of the Vehicle or the Part on which it is mounted to protect it

9. If any additional modifications are to be done, prior to the fitment of the accessories, it

will be explicitly specified in the instruction sheets.

This manual suits for next models

1

Table of contents

Other SRC Motorcycle Accessories manuals

SRC

SRC Y-T700-20-01-SL Guide

SRC

SRC T-T1200-02-01-AL User manual

SRC

SRC H-CRF300L-19-01-SL User manual

SRC

SRC T-XRX-07-01-SL User manual

SRC

SRC GPX-D150-02-01-SL User manual

SRC

SRC K-VS1000-02-01-SL User manual

SRC

SRC B-TRK502-01-01-SL User manual

SRC

SRC BMW-F750GS-14-01-SL User manual

SRC

SRC NC750-14-01-SL Guide

SRC

SRC T-T900-04-01-AL User manual

SRC

SRC R-HM22-28-02-L User manual

SRC

SRC BMW-F750GS-01-01-SL User manual

SRC

SRC BMW-310GS-09-01-AL User manual

SRC

SRC BMW-310GS-01-01-SL User manual

SRC

SRC H-CB500X-14-01-SL User manual

SRC

SRC S-VS1050XT-09-01-AL User manual

SRC

SRC H-CB500X-02-01-SL User manual

SRC

SRC Y-WR155-02-01-SL User manual

SRC

SRC H-CB500X-07-01-SL User manual

SRC

SRC Royal Enfield Himalayan User manual

SRC

SRC B-TRK502-02-01-SL User manual

SRC

SRC B-TRK502-14-01-SL User manual

SRC

SRC Y-900GT-14-01-SL User manual

SRC

SRC Y-T700-01-01-SL User manual

Popular Motorcycle Accessories manuals by other brands

Indian Motorcycle

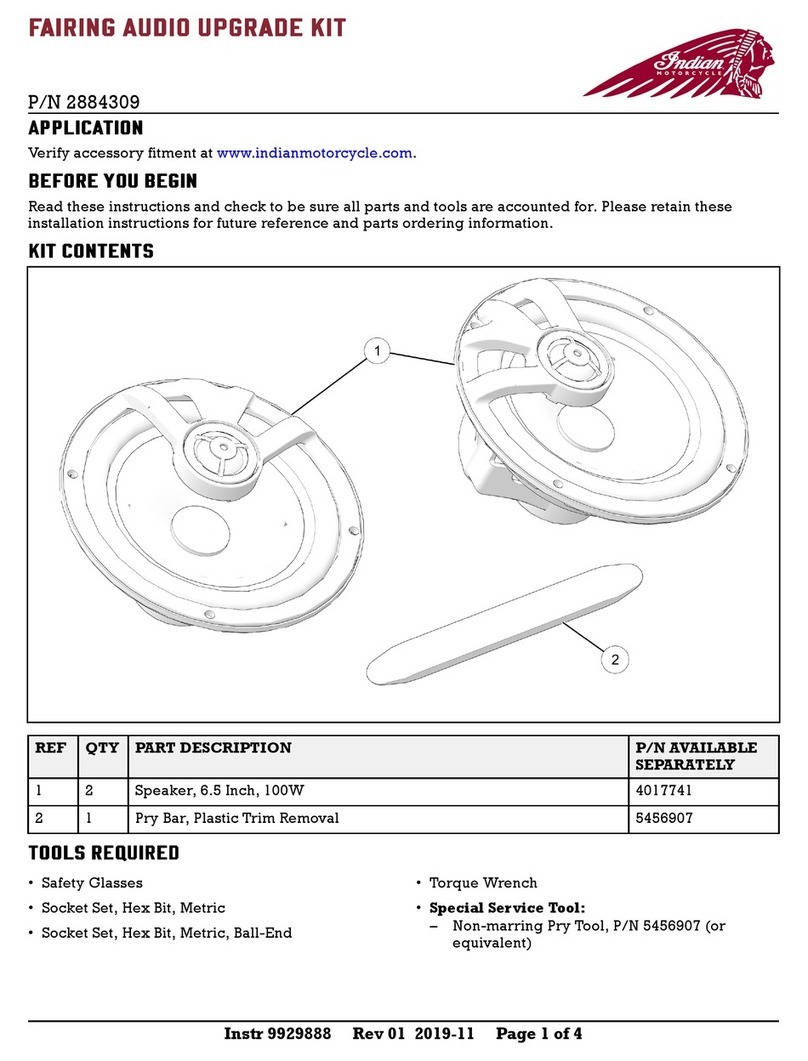

Indian Motorcycle 2884309 installation instructions

hepco & becker

hepco & becker 650793 01 02 Mounting instructions

Lincoln Electric

Lincoln Electric VIKING 4C 2450 Series Operator's manual

Can-Am

Can-Am DS250 instructions

Custom Dynamics

Custom Dynamics CD-RG-V-AW2-B installation instructions

hepco & becker

hepco & becker Xplorer 45 instructions

probrake

probrake YA1-4 Mounting instruction

Hamron

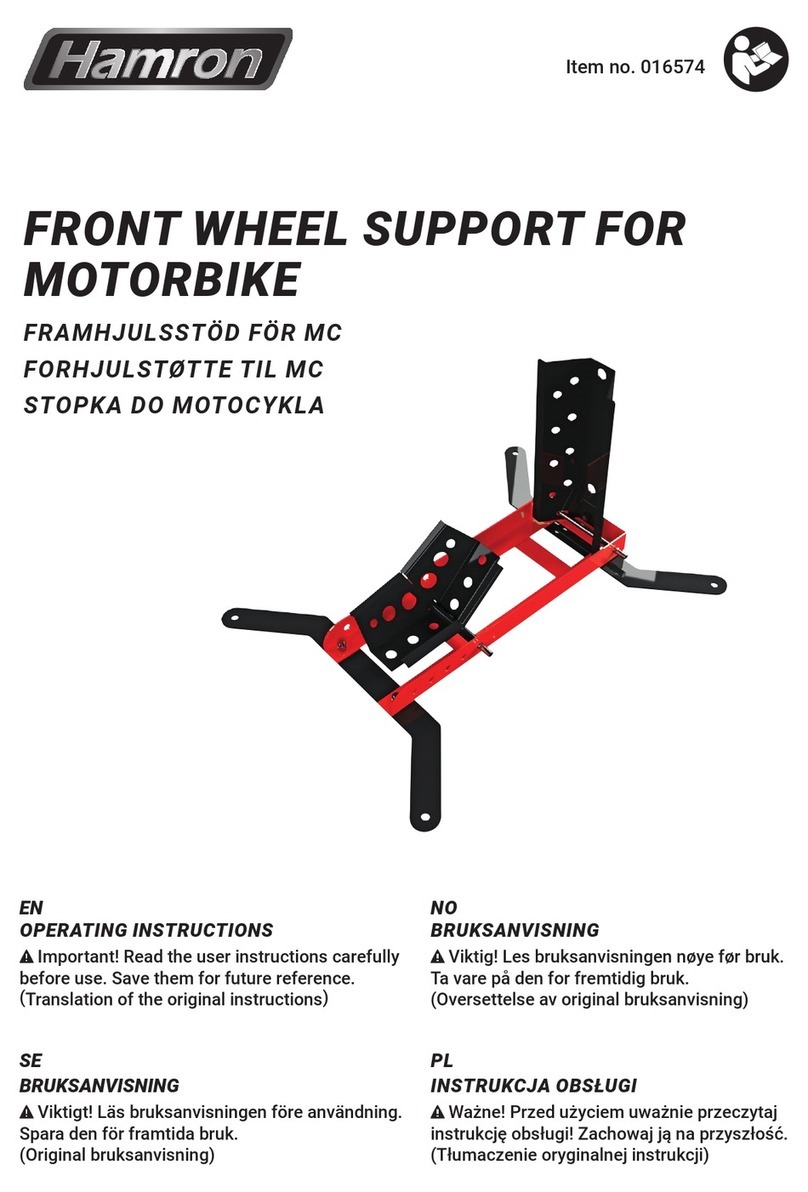

Hamron 016574 operating instructions

RIDE VISION

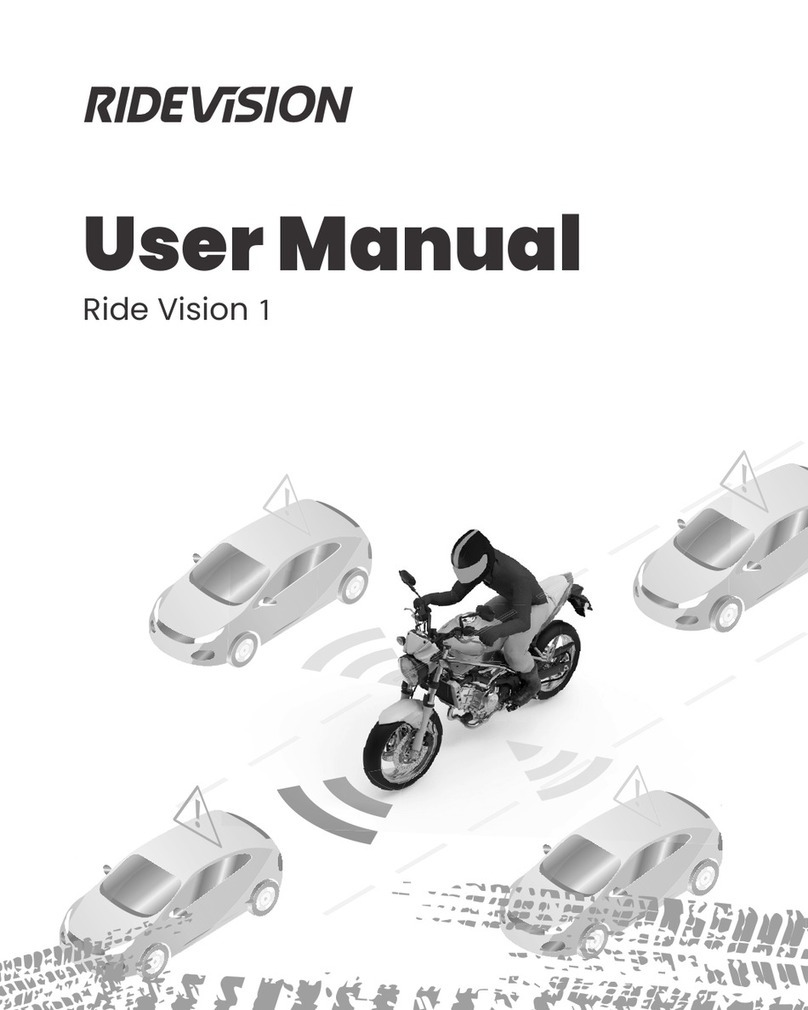

RIDE VISION RV1 user manual
