STRATUS 2 Post Overhead Li Installaon & Operaon & Maintenance Instrucons
Model No.: SAE-C14X
2 Post Overhead Li
Single (1) Point Manual Release
Liing Capacity:14000LBS
Important Note
1.This equipment can not be installed, operated or repaired without reading instrucons.
2.Electricty must be hooked up by cered electrician.
3.Do not use this equipment beyond its rated capacity.

2
CONTENTS
1-Equipment descripon ………………………………………………………………………………………………… 3
1.1-Descripon ……………………………………………………………………………………………………………3
1.2-Technical specicaons………………………………………………………………………………………………3
1.3-Installaon requirement………………………………………………………………………………………………5
2-Specicaons of concrete………………………………………………………………………………………………6
3-Installaon steps…………………………………………………………………………………………………………7
4-Operaon and use………………………………………………………………………………………………………18
4.1-Operaon ……………………………………………………………………………………………………………18
4.2-Raising Liing…………………………………………………………………………………………………………18
4.3-Stopping ………………………………………………………………………………………………………………18
4.4-Lowering ………………………………………………………………………………………………………………18
5-Safety ……………………………………………………………………………………………………………………18
5.1-Important Reminder…………………………………………………………………………………………………18
5.2-Vehicle Posion………………………………………………………………………………………………………19
5.3-Risk of Vehicle falling o from the li…………………………………………………………………………19
6-Maintenance ……………………………………………………………………………………………………………19
6.1-Every Month …………………………………………………………………………………………………………19
6.2-Every 3Month ………………………………………………………………………………………………………19
6.3-Every 6Month ………………………………………………………………………………………………………20
6.4-Every 12 Moth ………………………………………………………………………………………………………20
7-Troubleshoong guide …………………………………………………………………………………………………20
8-Structure and Parts List…………………………………………………………………………………………………21
8.1-Main column assembly……………………………………………………………………………………………21
8.2-Sun-column assembly………………………………………………………………………………………………21
8.3-Block assembly………………………………………………………………………………………………………22
8.4-Cross arm assembly…………………………………………………………………………………………………22
8.5-Cylinder assembly……………………………………………………………………………………………………23
8.6-Three-secon arm assembly………………………………………………………………………………………23
8.7-Main column safety lock assembly………………………………………………………………………………24
8.8-Secondary column safety lock assembly…………………………………………………………………………25

3
1.-Equipment Descripon
1.1-Descripon
This 2 Post Overhead Li is an advanced car maintenance equipment, mainly used for automove repair and
maintenance.
1.2-Technical Specicaons
Model SAE-C14X
Liing capacity 14000lbs;6300KG
Overall Hight 173 3/8″;4403mm
Overall Width 155 1/8″;3940mm
Liing height 74 13/16";1900mm
Min. height 4 5/8";118mm
Column inside 129 15/16";3300mm
Drive through 115 11/16";2939mm
Liing me About 60 sec.
Lowering Time About 40 sec.
Column thickness of steel 6.0mm
Carriage thickness of steel 6.0mm
Arms thickness of steel 7.75mm
Arm range 35 1/16"-70 7/8";890-1800mm;
Diameter of cable Φ9mm
Voltage 220V
Power 3.0Kw/4Hp
Frequency 60Hz
Phase 1Ph
Breaker 30A
Hydraulic oil 3-5 Gallons AW46/AW32
Shipping Size 118"×44″×28";2997×1118×712mm
Equipment weight 2360lbs/1071KG

4

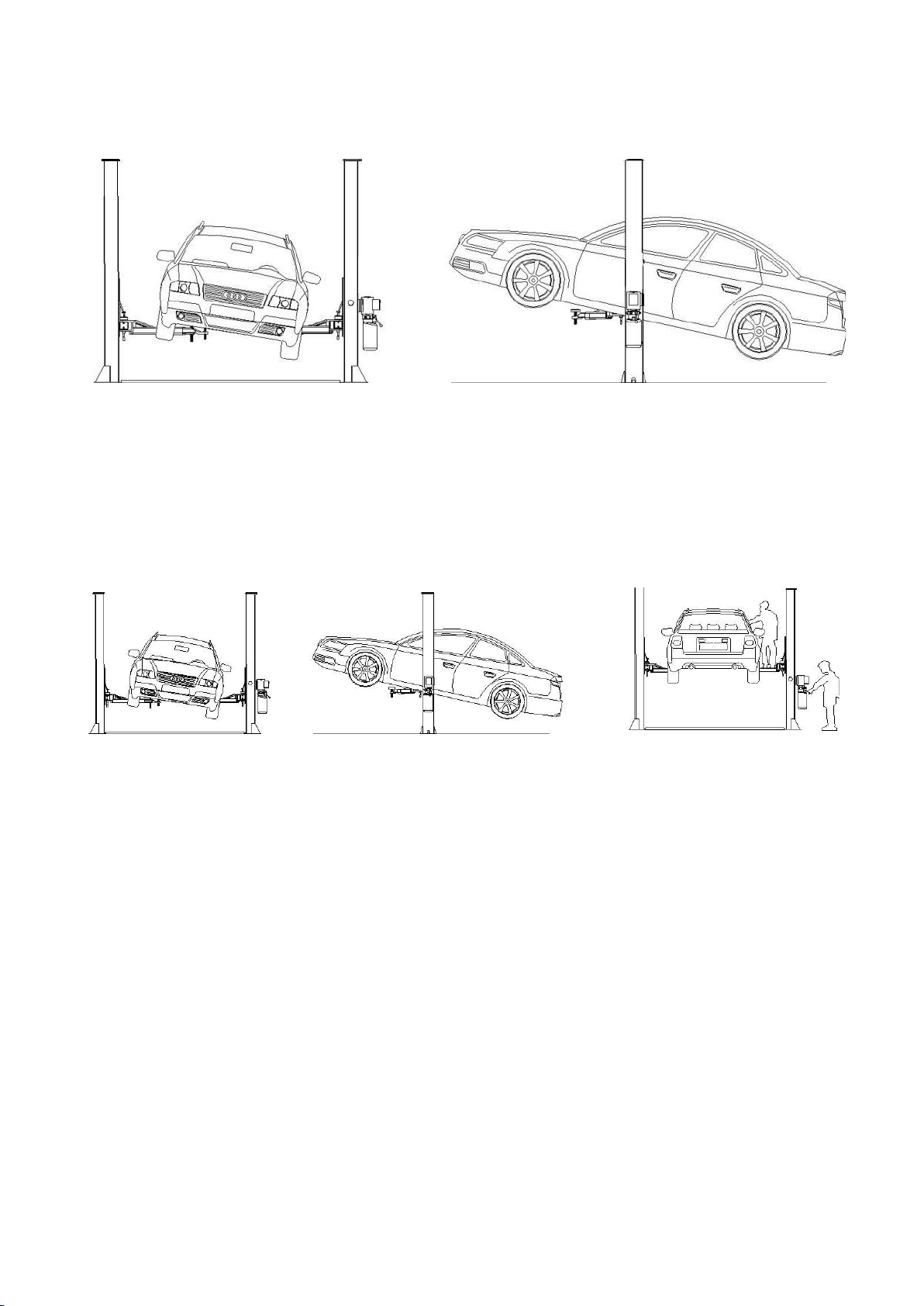

Installaon( See Fig 1 )
FIG 1
Features (See Fig 2)
FIG 2

5
1.3-Installaon requirement
Tools required
Name Picture
Rotary hammer drill(Φ19)
carpenter's chalk
Hammer
Screw Sets
Level bar
Tap measure
English spanner(12")
Pliers
Ratchet spanner with socket(28#)
Socket head wrench(3#,5#,8#)
Lock wrench
Wrench set(10#,13#,14#,15#,17#,19,24#,27#,30#)

6
2-Specicaons of concrete ( See Fig 3 )
Specicaons of concrete must be adhered to the specicaon as following. Failure to do so may result in li and/or
vehicle falling.
◇Concrete must be thickness 200mm minimum and without reinforcing steel bars, and must be completely dry
before li installaon.
◇Concrete must be in good condion and must be of test strength 3500psi(245kg/cm²)minimum.
◇Floor must be level with no cracks or holes.
Steps of installaon
◇Locaon of installaon
Check and insure the installaon locaon( concrete, layout, space size etc.) is suitable for li installaon.
◇Use a carpenter's chalk line to establish installaon layout of baseplate( See Fig4).
FIG 3
FIG 4

7
3-Installaon steps
Step 1:Check the pats before assembly

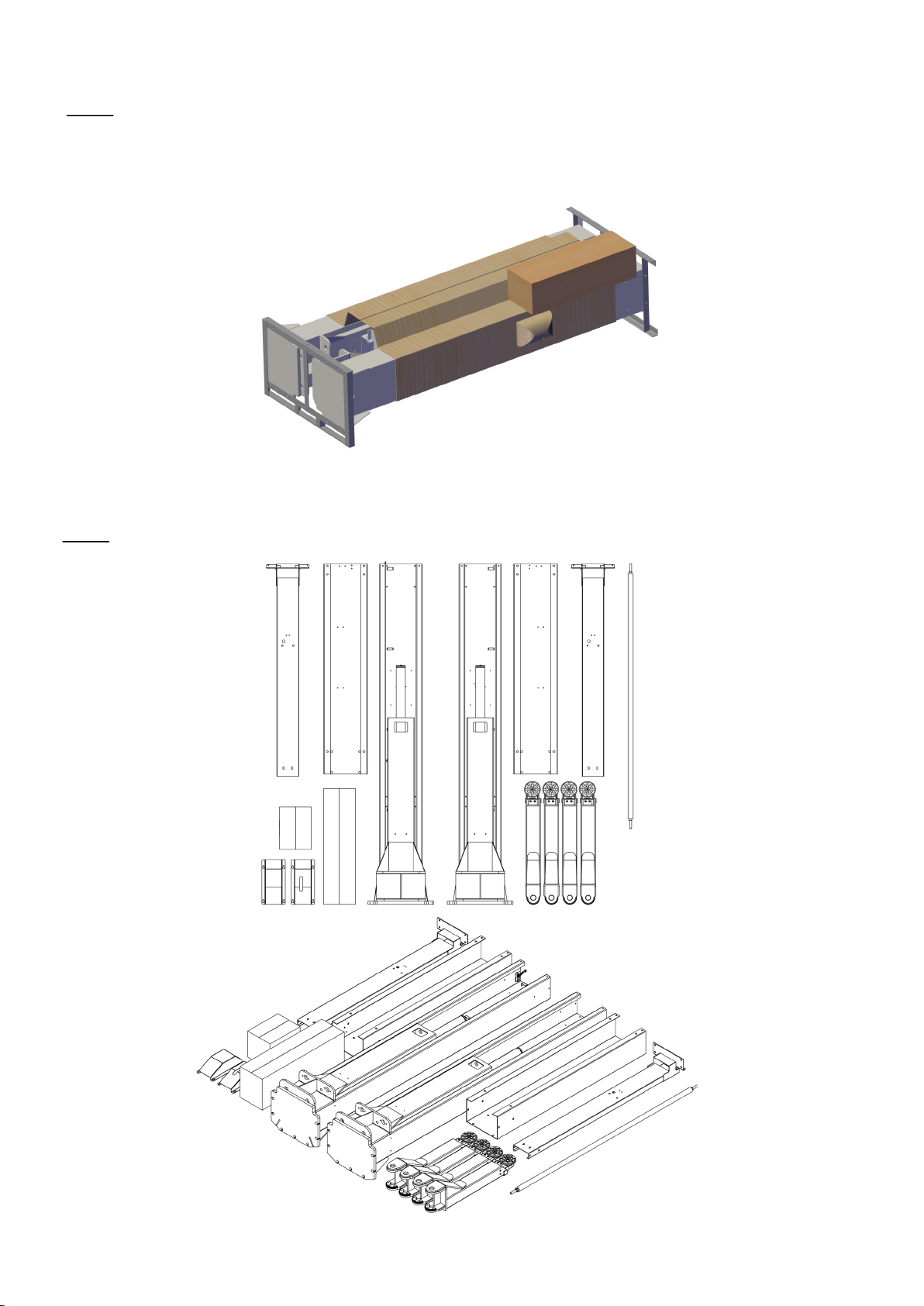

Packaged li and hydraulic power unit( See Fig 5 )
Step 2:Move aside the parts and check the parts according to the shipment parts list (See Fig 6).
FIG 5
FIG 6

8
Step 3: Spare parts in the accessories box.
Serial
number
Name Photo Parameter Quanty
1Arm sha Φ40×250L 4
2Arm sha xing screw
Countersunk Hexagon Screw M10×15L 4
3Arm boom pad Φ70mm 4
4Increased set 1 Φ60×38L 4
5Increased set 2 Φ60×63.5L 4
6Increased set 3 Φ60×127L 4
7Heightening bracket 2
8Heightening sleeve bracket xing
screw
Hexagon socket screws M8×10L 2
9An-collision tape 2
10 An-collision rubber strip xing screws
Hexagon socket screws M8×30 4
11 Power unit frame 1
12 Power unit frame xing screws
Hexagon socket screws M10×16L Each 2
13 Power unit xing screws
Hexagon Screw M8×25L Each 4
14 Manual unlocking lever M10 Each 1
15 Unlock the wire rope 1
16 Wire rope U-shaped chuck M3 2
17 Expansion screw
M20×160L 14

9
Serial
number
Name Photo Parameter Quanty
18 Plasc gasket 15
19 Plasc cable e 30
20 Main column upper limit switch 1
21 Main column upper limit switch xing screw Phillips round head screws M5×10L 2
22 Upper limit plate and limit switch M4×10 and M4×25 1
23 Upper limit board 1
24 Upper limit plate xing screw Hexagon Screw M10×20L Each 4
25 Two cross arm connecng screws Hexagon Screw M8×20L Each 6
26 Two-secon cross arm end xing screws Hexagon Screw M10×25L Each 8
27 Heightening secon and column connecng
screw
Hexagon socket screws M10×12L Each 16
28 Wire rope support frame at the upper end of
the heightening secon
2
29 Fixing screws for the upper wire rope sup-
port frame of the heightening secon
Hexagon socket screws M5×10L 4
30 Plasc buckle cover xing screw Phillips round head screws M6×8L 8
31 Increased fuel-saving pipe pressure pocket 6
32 Increased the fuel-saving pipe pressure pock-
et xing screw
Hexagon socket screws M6×10L Each 12
33 Block rubber cover 2
34 Locking and unlocking rope seat assembly
accessories
2
35 User’s manual 1

10

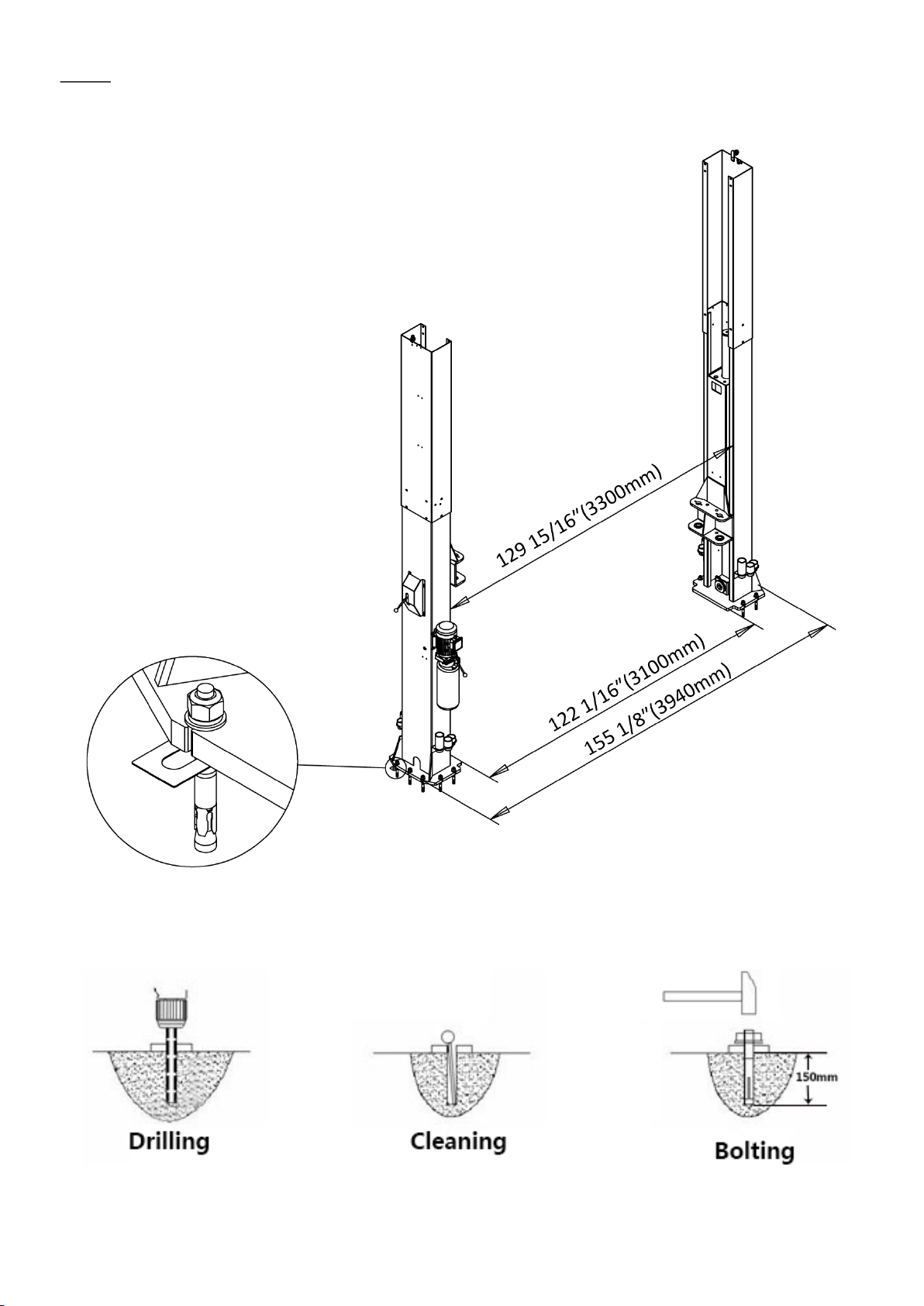

Step 4: Install anchor bolts
Posion the columns on the installaon layout of baseplate. Install the anchor bolts. Check the columns plumbness
with level bar, and adjusng with the shims if the columns are not vercal. Do not ghten the anchor bolts (See Fig 7).
Note: Anchor bolts driven into the ground at least 150mm.(See Fig 8)
FIG 8
FIG 7

11
STEP 5:Column and height-increasing joint connecon installaon. (See Fig 9)
Step 6:Cross arm installaon (See Fig 10) FIG 9
FIG 10
NO. Name Qty.
1Main column heightening secon 1
2Main column welding 1
3Socket head cap screws M10×12 10
4Flat pad 10
No. Name Qty.
1Main cross arm assembly 1
2Assembly of auxiliary crossarm 1
3Hex bolts M10×20 4
4Flat pad Φ10 4
5Spring cushion Φ10 4
6Hex nuts M10 4
7Hex bolts M8×20 6
8Flat pad Φ8 6
9Spring cushion Φ8 6
10 Hex nuts M8 6

12
Step 7:Cross arm and height-increasing secon connecon installaon (See Fig 11)
FIG 11
Step 8: Unlock wire rope installaon (See Fig12)
No. Name Qty.
1Main column heightening secon 1
2Main cross arm assembly 1
3Hex bolts M10×25 4
4Flat pad Φ10 4
5Spring cushion Φ10 4
6Hex nuts 4
No. Name Qty.
1Main column heightening secon 1
2Secondary column heightening secon 1
3Unlock the thin wire rope 1
4Unlock wire bracket 1 1
5Unlock wire bracket 2 1
6Tubing pressure pocket 6

13
FIG 12
No. Name Qty.
1Main column assembly 1
2Unlock the thin wire rope 1
3Unlock the sheave seat 1
4Safety lock cover (Opening) 1
5Unlock lever 1
6Phillips round head screw M6×10 4
No. Name Qty.
1Sub-column assembly 1
2Unlock the thin wire rope 1
3Unlock the sheave seat 1
4Safety lock cover 1
5Phillips round head screws M6×10 4

14
Step 9:Wire rope installaon (See Fig13)
Connect steel cables
1. Route and x according to the following diagram of steel cable connecon.
2. Raise both carriages to the rst locking point.
3. Make sure that the mechanical safety locks in each post are fully engaged before aempng to route cables.
4. Aer the cable being xed, adjust and make the cable at both sides be with the same ghtness which could be
judged by the sound emied during liing process. Make judge and adjustment aer trial running.
5. Grease aer being xed. (It is a must.)
Step 10: Hydraulic tubing connecon installaon (See Fig 14).
FIG 13
FIG 14
No. Name Qty.
1Power unit 1
2Hydraulic cylinder 2
3Hose 1 1
4Tee connector 1
5Hose 2 1
6Hose 3 1

Step 11:Limit switch connecon installaon (See Fig15)
Funconal descripon of each part of the power unit
Fig 15
**Important Informaon**
Pressure Valve: Clockwise adjustment increases pressure to make the power
unit to have more power, counterclockwise adjustment decreases pressure to
make the power unit to have less power.
Hydraulic Oil ow valve: Clockwise adjustment to speed up, counterclockwise
adjustment to slow down.

16
Fill with hydraulic oil.
CLEAN AND FRESH OIL ONLY
DON’T FILL THE TANK COMPLETELY FULL.
Li must be fully lowered before changing or adding hydraulic oil
Pour 13 liters HM32 an-abrasion hydraulic oil into the oil tank. The level of oil shall reach the ppets volume mark
of the tank.
Add more oil aer running the li for several cycles unl the li can rise to the maximum liing height.
Note：As running speed of the li is mainly decided by the viscosity of the hydraulic oil, we suggest using NO.46
hydraulic oil when average temperature of the locaon is above 18 degree Celsius and using NO.32 hydraulic oil
when temperature is below 18 degree
Celsius. Change the oil 6 month aer inial use and change once per year thereaer.
Step 12: Power unit installaon (See Fig 16)
Fig 16
No. Name Qty.
1Main column assembly 1
2Power unit 1
3Power unit backpack 1
4Flat pad Φ10 2
5Spring cushion Φ10 2
6Socket head cap screws M10×16 2
7Hex nuts M8 4
8Flat pad Φ8 4
9Spring cushion Φ8 4
10 Hex bolts M8×25 4
11 Heightening bracket 1
12 Socket head cap screws M8×10 2
13 Increase the set 1 1
14 Increase the set 2 1
15 Increase the set 3 1

17
Step14: Trial running. (See Fig 18)
Get familiar with li controls by running the li through a few cycles before loading vehicle on li. This step is of par-
cular importance for it can check if the oil hose is well connected. The connecon is qualied when there is no ab-
normal sound or leakage aer having been tested for 5-6 mes.
Bleeding the hydraulic system
Unscrew but don't remove the nut on top of the oil cylinder and slightly press the UP buon unl oil gets out. Screw
the nut ght thereaer. Aer bleeding, oil level in power unit reservoir may be down. Raise and lower li several
cycles. Add more oil if necessary to raise li to full height. It is only necessary to add oil to raise li to full height.
Step13: Install liing arms. (See Fig 17)
Connect the liing arm and the carriage. The arm pin shas must be greased at the installaon Ensure the arm lock
can engage and release eecvely. .
Aenon: Install Liing arms and x feet protecon bars ONLY aer the complete assembly has been erected and
anchored.
FIG 17
FIG 18
No. Name Qty.
1Arm sha 2
2Socket head cap screws M10×16 2
3Arm boom pad 2
4Welding of support arm 2
5An-collision tape 1
6Socket head cap screws M8×30 2

18
4-Operaon and Use
4.1-Operaon
Place the liing arm at the support point specied by the vehicle and adjust the rubber tray to the same height.
Check the posion of the rubber tray under the vehicle chassis before each single raising or when vehicle is lowered
to the ground and need to raise again.
4.2-Raising/ Liing
Press the power switch unl the vehicle reaches desired height. When the vehicle is raised, the safety lock automa-
cally engaged.
During raising/liing, whether the arm lock has been locked, it can be visually checked when it is raised to a certain
height (stop and check).
*Danger*: Unlocked arms can cause vehicle fall o from the li.
4.3-Stopping
Aer raising to desired height, press the lower lever and the li will automacally lower to a safe posion, the safety
lock will be engaged and the li will be locked.
4.4-Lowering
The safety lock must be released before lowering.
1. Press the power switch to raise the car by approximately 30mm/1.2".
2. Pull the safety lock release cables on both sides to unlock.
3. Press the lower lever to start lowering process, the arm lock will be automacally released and allow the arm ro-
tang when the vehicle is completely lowered to the ground.
5-Safety
Please read this manual carefully as it contains important safety informaon that the operators need to know.
*WARNING*: The design and construcon of this li is only suitable for liing whole vehicle. All other uses are unau-
thorized, this li CAN NOT be used to : wash vehicles, build liing plaorms, liing personnel, use as cargo lis and
use as liing paral of the vehicles.
5.1-Important Reminder: Personal and Equipment Safety
1. During vehicle liing process, operators should be at a safe posion/area.
2. Turn o the vehicle engine and manual brake on.
3. Load vehicle correctly (Fig 19).
4. The vehicle CAN NOT exceed the rated liing capacity and required size.
Fig 19

19
5.2-Vehicle Posion
Once the vehicle is raised, vehicle CAN NOT be moved backwards or forwards as it may cause falling.
*WARING*: Do not aempt to move the vehicle while it is parked on the li.
5.3-Risk of Vehicle falling o from the li
Note that when posioning the vehicle on the li, incorrect center of gravity of the vehicle can cause the vehicle
falling o from the li (Fig 20).
Important Note: Make sure that the front and rear of the vehicle need to be balanced and the cables on both sides
also need to be balanced. Do not board/step on the vehicle or the li when the li is raised.
Below acons may cause the vehicle fall o from the li .(Fig 21)
Fig 21DO TOT do
FIG 20
6-Maintenance
6.1-Every Month
Hydraulic System
1. Check hydraulic oil level, ll hydraulic oil if necessary.
2. Check the pump, hose and cylinder and see if there is hydraulic oil leaking.
6.2-Every 3 Month
Safety Maintenance
1. Check the condion of the safety lock and the wear of the stop block.
2. Check the anchor bolts, ghten nuts if necessary.
3. Check if any nuts are loose, ghten nuts if necessary.
4. Check if the arm locking system is working properly.
5. Lubricate/grease all moving parts.
6. Check if the arm locking system is working properly.
7. Check if the 2 carriage on both sides are at the same level.

20
7. Troubleshoong Guide
Troubleshoong Guide
Malfuncon Possible reason Soluon
The motor does not
work
Check the air switch. Turn o or replace the air switch.
Check if the voltage is correct. User correct power supply.
The motor burned. Replace the motor.
Start switch burned. Replace the start switch.
Top limiter switch burned. Replace the top limiter switch.
AC contactor burned. Replace the AC contactor.
The motor works
but can’t li
Pressure valve pressure is too small. Clockwise adjust the pressure valve( ne adjust-
ment).
Pump staon takes in air.
Unscrew check valve on the power unit, and then
start the motor unl hydraulic oil ows out from the
check valve.
Hydraulic oil sucon hose is detached or broken. Install/replace the sucon hose.
Insucient hydraulic oil. Fill more hydraulic oil.
Does not lowering
Safety lock engaged. Slightly raise the device and then pull the safety lock
release cable.
Other object inside the columns stops the carriage. Check and remove the objects.
The ow valve needs to be adjusted. Counterclockwise adjust the ow valve (ne adjust-
ment).
Self-Lowering
Dump valve failure. Replace the dump valve.
Hydraulic oil leaks. Check and repair.
The valve body of the power unit has holes. Replace the valve body.
Raise without load,
but doesn’t raise
with load
The voltage is too low. Install the voltage stabilizer.
Objects in the dump valve. Remove objects from the dump valve.
The pressure valve pressure is too small. Increase pressure properly( ne adjust the pressure
valve).
Overload. This operaon is prohibited.
Liing is not leveled The cables are not balanced. Balance cables by adjusng the cable’s length.
Aer raising to the highest point, the motor is sll working
and the top limiter switch is disabled. Replace the top limiter switch.
Loud motor noise Hydraulic oil polluon. Replace the hydraulic oil.
Overload. This operaon is prohibited.
6.3-Every 6 Month
Hydraulic Pump
1. Check the condion and aging of the hydraulic uid. Unqualied hydraulic uid is the main reason to cause valve
failure and reduces the life of the gear pump.
2. Check the noise variaon of the motor and gear pump while normal operang.
6.4-Every 12 Month
1. Visually inspect all structural and mechanical parts to make sure there is no abnormalies have occurred.
2. Check and see if there is anything wrong with the motor, wiring ,top limiter switch and circuit breaker.
