Suncast BMGL1020 User manual

BMGL1020 Adirondack Glider
ASSEMBLY INSTRUCTIONS
Tools Required
Included in kit
0102104
Easy Driver
Scan QR Code for product assembly video.
-v-
Brilliant
by Design' un
0 2023 Suncast Corporation, Batavia, IL 0361707

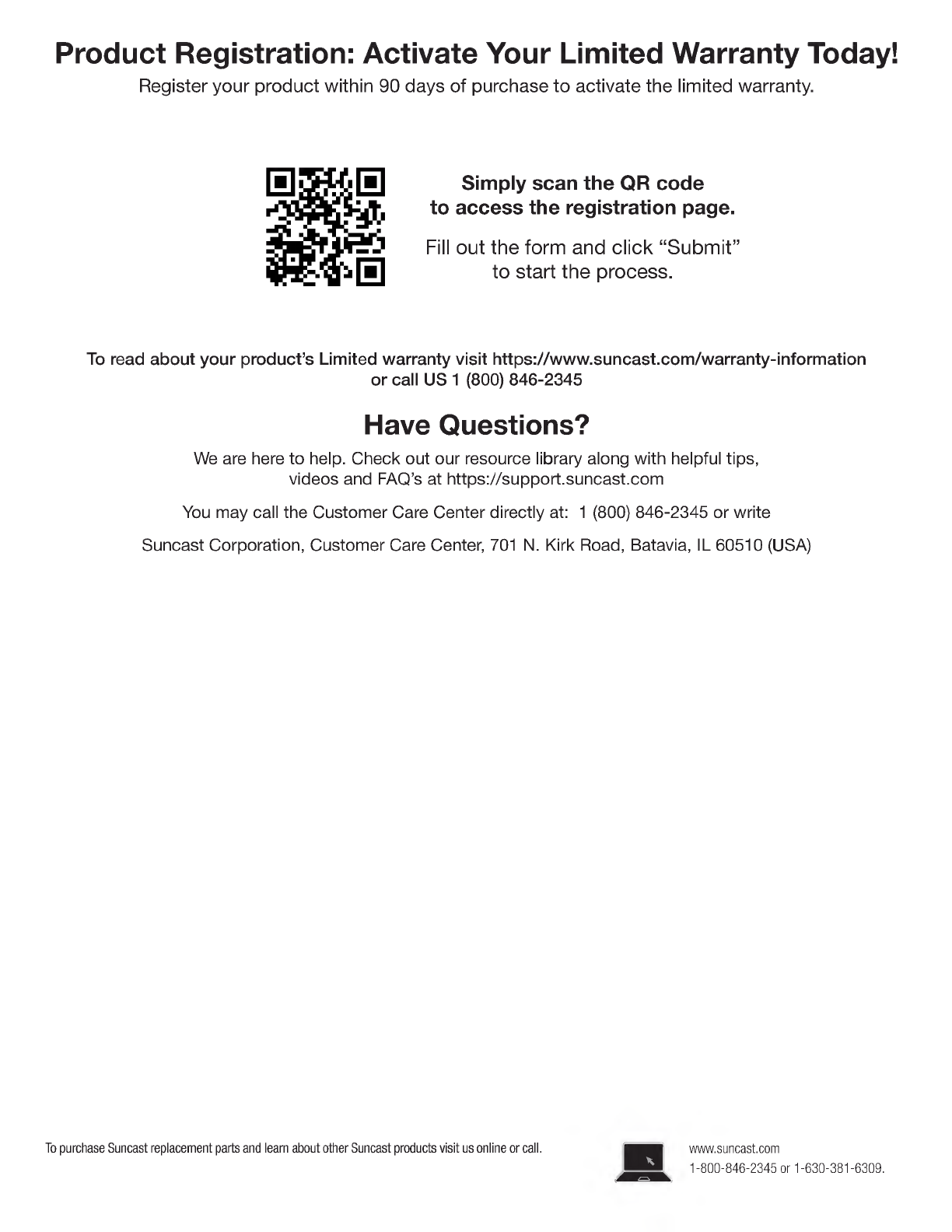

Product Registration: Activate Your Limited Warranty Today!
Register your product within 90 days of purchase to activate the limited warranty.
Simply scan the QR code
to access the registration page.
Fill out the form and click " Submit"
to start the process.
To read about your product's Limited warranty visit https://www.suncast.com/warranty-information
or call US 1 ( 800) 846-2345
Have Questions?
We are here to help. Check out our resource library along with helpful tips,
videos and FAQ's at https://support.suncast.com
You may call the Customer Care Center directly at: 1 ( 800) 846-2345 or write
Suncast Corporation, Customer Care Center, 701 N. Kirk Road, Batavia, IL 60510 ( USA)
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
www.suncastcom
1-800-846-2345 or 1-630-381-6309.

A Before You Begin...
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Check for all parts before you begin assembly.
Using the provided parts check list, verify that you have all the parts required to assemble your glider.
• •
• Assistance is required during portions of assembly. ente)
A Caution
• WARNING: Failure to observe safety cautions, improper assembly, or incomplete assembly will
void the product warranty and may result in damage to the product and/or serious injury.
• DO NOT exceed 500 lbs total weight distributed across the glider.
• DO NOT use the product if parts are missing, damaged or worn. Contact Suncast for further assistance.
• DO NOT stand on glider or use glider in any way other than as intended. Glider is designed and intended
for sitting only.
• DO NOT sit on arm rest or back of the glider.
• DO NOT use glider on uneven surfaces. Glider is designed to be used on level ground only.
• DO NOT use or store product in close proximity to hot objects including but not limited to open flames,
grill, heater or similar items.
• Make sure all bolts and parts are securely tightened before using the product and periodically recheck.
• To ensure safety, children must be carefully supervised on glider at all times.
Care Instructions
To maintain the look of your product, we recommend cleaning it at regular intervals with mild soap and water.
DO NOT use bleach, ammonia or other caustic cleaners, and DO NOT use stiff bristle brushes. Failure to
perform cleaning at regular intervals could result in permanent staining of the plastic. This type of damage
is not covered under warranty.
3

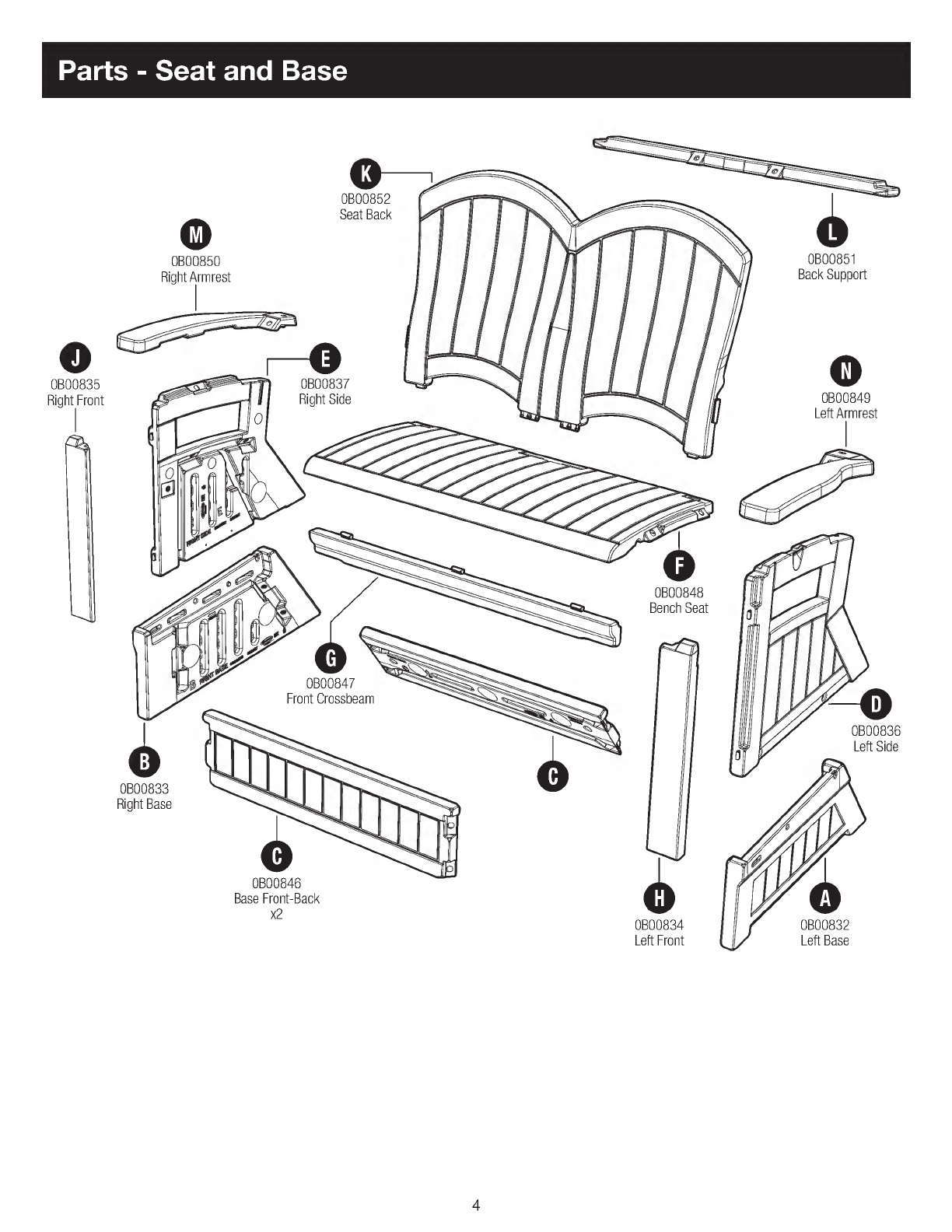

Parts - Seat and Base
o
OB00835
Right Front
1
o
OB00850
Right Armrest
OB00833
Right Base
OB00852
Seat Back
OB00837
Right Side
OB00847
Front Crossbeam
OB00846 Base Front- Back
2
OB00834
Left Front
OB00851
Back Support
o
OB00849
Left Armrest
OB00832
Left Base
OB00836
Left Side
4

Parts - Steel
n
0
o
o
o
o
0
cb
o
o
,
OMP000057 OMP000058A 0280672 0280673
Tube Strap Support Bracket Support Tube Threaded Rod
x2 x2 x2 x2
5

Parts - General
0102197
Angle Bracket
x4
(I)
0632533
Glider Stop
x2
0102793
Tube Connector
x4
é)
0632529 0511013
Tube Endcap Glider Bearing
x4 x4
6

Hardware
0480554 - Hardware Bag
0632530
1/4" Flat Washer
x14
0632532 0632542
1/4-20 x 2" Bolt # 8 x 2" Screw
x11 x4
0632531
1/4-20 Locknut
x14
010256307
Easy Bolt
x28
efE2ZID ,
eieEED ,
*0632521
Hex Key - 6mm
0630821 0631147 0632515
#10 x 5/8" 1/4-20 x 1/2 Bolt Threaded Insert
Truss Head Screw x9 x9
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware provided. Not all are used.
7

Pre- Assembly
Important: It is recommended to assemble this product on a non- marking, solid surface that will not damage
the product. If necessary, place a drop cloth or other similar material on the assembly surface to avoid damaging
the product.
This item uses self- tapping screws in some areas. There are no pre- drilled holes. Use force when starting to
drive the screw. Once the screw pierces the plastic it will drive easier.
13
Using a Phillips head screwdriver or other similar tool,
pierce holes indicated in left ( A) and right ( B) base
panels as well as the left ( D) and right ( E) side panels.
(Wit)
Ann\
AMU\
o
Pre- Assembly - Seat Base
Paying close attention to the orientation shown, place one support
bracket ( 0) over the right base panel ( B). Be sure the support bracket
sits fully and squarely over the top of the panel.
NOTE: Orientation can be referenced by the location of the cutout
slot indicated.
8

(P x2 (R) x2
(S) x2
ra

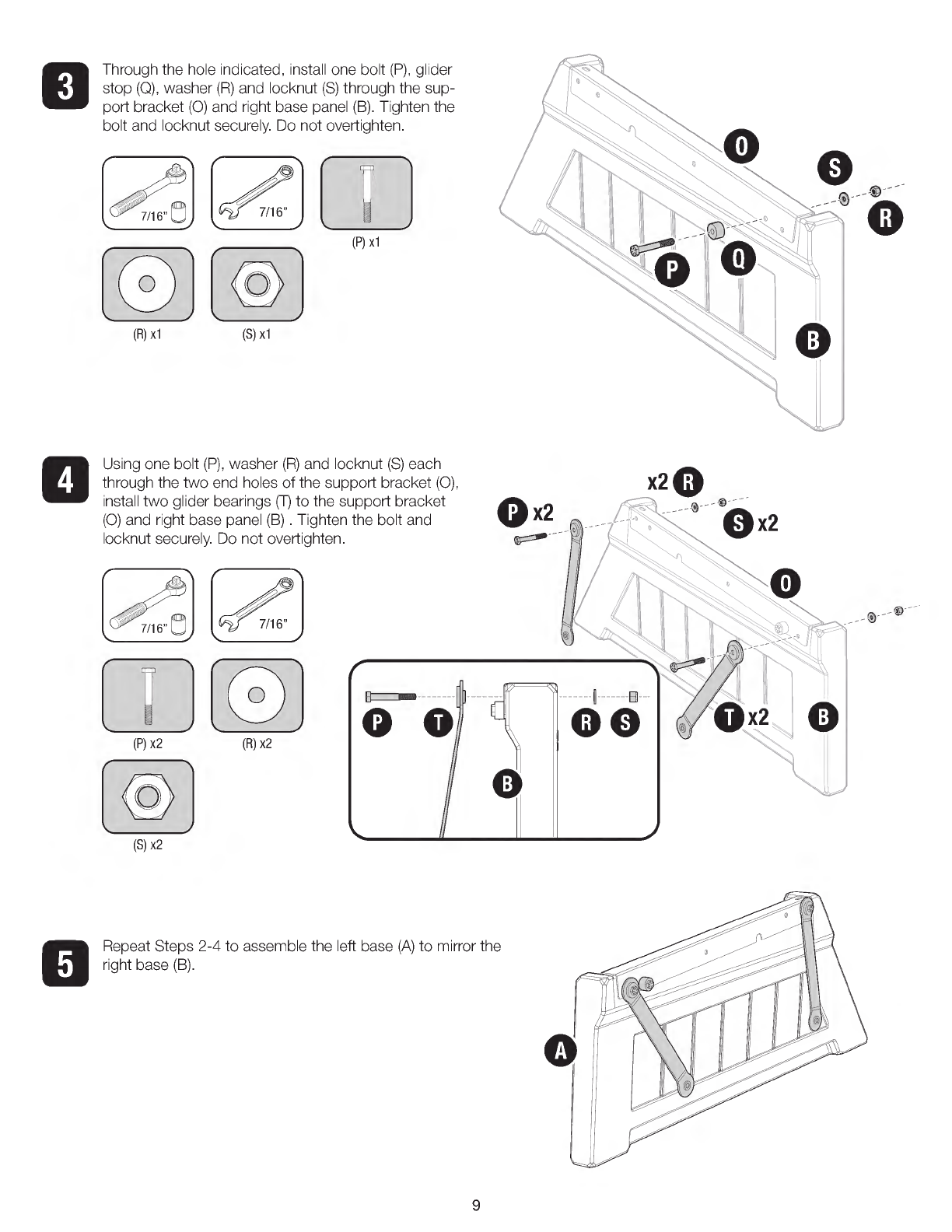

Through the hole indicated, install one bolt ( P), glider
stop ( Q), washer ( R) and locknut ( S) through the sup-
port bracket ( 0) and right base panel ( B). Tighten the
bolt and locknut securely. Do not overtighten.
7/16"
(R) x1 (S) x1
Using one bolt ( P), washer ( R) and locknut ( S) each
through the two end holes of the support bracket ( 0),
install two glider bearings ( T) to the support bracket
(0) and right base panel ( B) . Tighten the bolt and
locknut securely. Do not overtighten.
113
Repeat Steps 2-4 to assemble the left base ( A) to mirror the
right base ( B).
9

Pre- Assembly - Seat
(V) x8
Using the included alien wrench ( U), insert eight threaded inserts ( V) into the seat ( F) at the locations indicated.
Ox8
c;>
Pre- Assembly - Support Tube
13 Insert one tube endcap ( W) into each end of the support tubes ( X).
10

Assembly - Base
(Y) x2
(Y) x2
Important: It is recommended to assemble this product on a non- marking, solid surface that will not damage
the product. If necessary, place a drop cloth or other similar material on the assembly surface to avoid damaging
the product.
This item uses self- tapping screws in some areas. There are no pre- drilled holes. Use force when starting to
drive the screw. Once the screw pierces the plastic it will drive easier.
While aligning the easy bolt holes and sockets, position the left base panel ( A) together with one
base front/back panel ( C) ( either panel will work). Secure the panels using two easy bolts ( Y).
Tighten the easy bolts securely ( 3-4 clicks).
While aligning the easy bolt holes and sockets, position the right base panel ( B) together with the opposite end of
the previous base front/back panel ( C). Secure the panels using two easy bolts ( Y). Tighten the easy bolts securely
(3-4 clicks).
o
Od ip,
ux2
11

Assembly - Base ( cont.)
Slide the remaining base front/back panel ( C) between the left ( A) and right ( B) base panels. Align the easy bolt holes
and sockets.
al
Secure the panels using two easy bolts ( Y) on each end of the base front/back panel ( C). Tighten the easy bolts
securely ( 3-4 clicks).
(Y) x4
12

In
Slide the two threaded rods ( Z) through the remaining holes in the left ( A) and right ( B) base panels until equal lengths ( b)
of the rods extend past either base panel.
hlei CD Using pliers to hold the threaded rods ( Z), secure the threaded rods using two washers ( R) and locknuts ( S)
each. One set on each end. Tighten the locknuts on both sides evenly. Do not overtighten.
(R) x4
(S) x4
Completed Base
13

Insert the tabs of the front crossbeam ( G) into the front slots in the under- side of the seat ( F)
and slide as shown to lock the crossbeam into place. Be sure the ends of the crossbeam are
flush with the ends of the seat.
El
Place one support tube ( X) into the long rear slot in the under- side of the seat ( F). Place two tube connectors ( AA) over the
support tube at the locations indicated and secure with two bolts ( BB) each.

ID
(Y) x2
Place the remaining support tube ( X) into the long front slot in the under- side of the seat ( F). Place two
tube connectors ( AA) over the support tube at the locations indicated and secure with two bolts ( BB) each.
(BB) x4
With the left side panel ( D) and seat assembly ( F, G) oriented
as shown, position the side panel against the support tubes ( X)
and align the mounting holes. Secure the left side panel and
seat assembly together using two easy
bolts ( Y). Tighten the easy bolts securely ( 3-4 clicks).
NOTE: The support tubes should nest into the recesses
of the left side panel ( D).
o
15

Assembly - Seat ( cont.)
(P) x2
Place one angle bracket ( CC) to the inside corner
where the left side panel D and seat assembly ( F, G)
meet and secure using two easy bolts ( Y). Tighten the
easy bolts securely ( 3-4 clicks).
(Y) x2
NOTE: Bolts ( P) are used for location purposes
only at this time.
Near the same location as the previous assembly,
place one tube strap ( DD) against the ends of the
support tubes ( X). Insert two bolts ( P) through the
holes nearest the ends of the tube strap and the
support tubes as shown.
With the tube strap held in place by the inserted bolts,
secure the tube strap to the left side panel ( D) using
two screws ( EE).
IMPORTANT: Remove the two bolts ( P) to be used
later in the assembly.
(EE) x2
16

ai
Repeat steps 17-19 to secure the right side panel ( E)
to the seat assembly ( F, G).
Rotate the seat into an upright position.
Insert the slots in the left front panel ( H) onto the front tabs of the left side panel ( D). Slide downward to lock the left front
panel into place. Be sure the left front panel is fully seated onto the left side panel.
Repeat the process to attach the right front panel ( J)
to the right side panel ( E).
17

Assembly - Seat ( cont.)
cm
With the help of another person, align the tabs on the sides of the seat back panel ( K) with the slots in the left and right
side panels ( D, E) and slide the seat back assembly downward towards the seat ( F).
Align the center tabs with the slots in the seat. While holding the seat back in place, use a rubber mallet to tap the seat
upward to engage the center tabs.
NOTE: Before engaging the center tabs into the seat, be sure the side tabs are correctly engaged with the left and right
side panels.
Ea Secure the seat back assembly to the seat using four screws ( FF) through the center tabs. Tighten securely.
(FF) x4
18

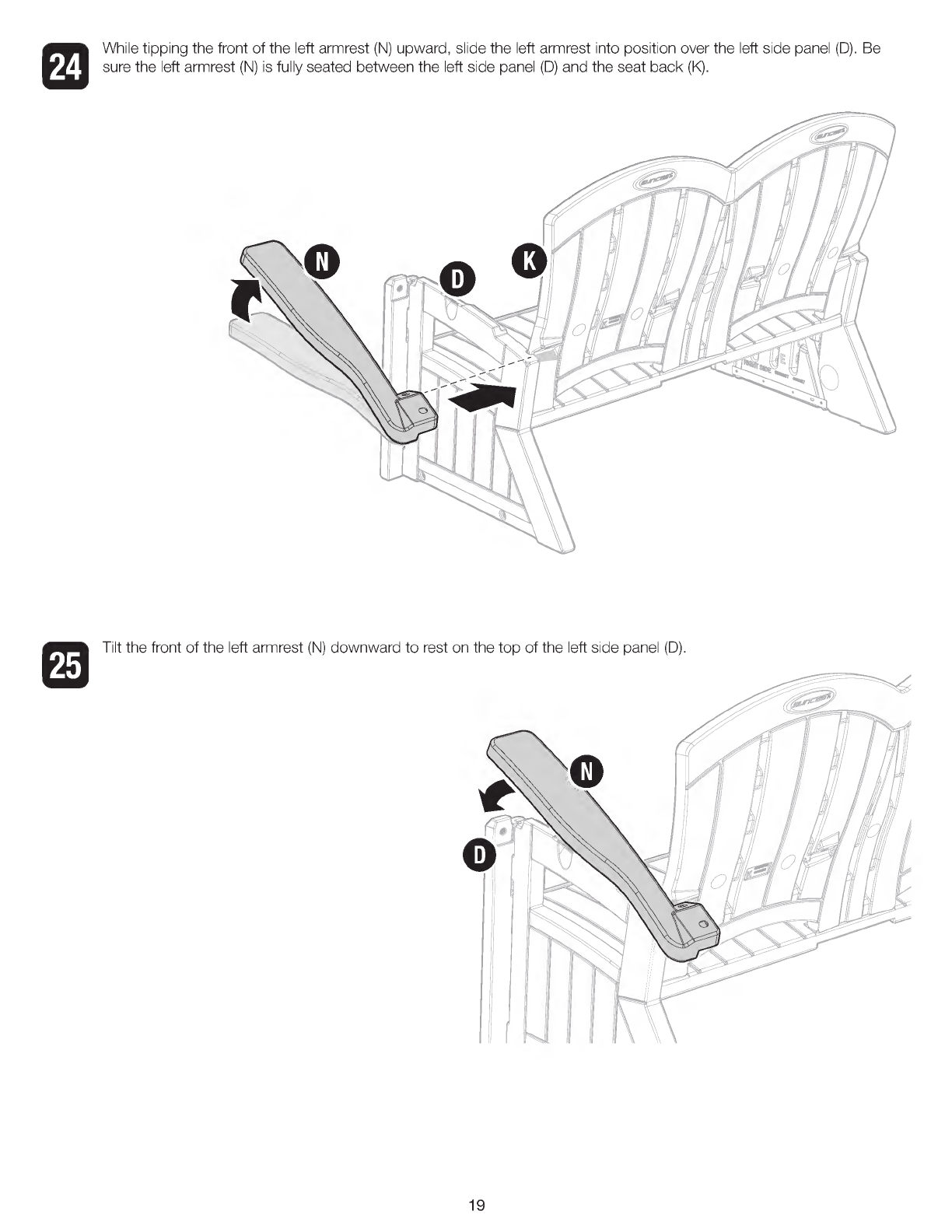

While tipping the front of the left armrest ( N) upward, slide the left armrest into position over the left side panel ( D). Be
sure the left armrest ( N) is fully seated between the left side panel ( D) and the seat back ( K).
Tilt the front of the left armrest ( N) downward to rest on the top of the left side panel ( D). el
19

Assembly - Seat ( cont.)
1) Secure the left armrest ( N) to the left side panel ( D) using one easy bolt ( Y).
2) Secure the left armrest ( N) to the left front panel ( H) using one angle bracket ( CC) and two easy bolts ( Y).
3) Secure the left armrest ( N) to the left seat back panel ( K) using one easy bolt ( Y).
Tighten all easy bolts securely ( 3-4 clicks).
Repeat Steps 24-26 to install the right armrest ( M)
to the right side panel ( E), right front panel ( J) and
right seat back panel ( K).
(Y) x4
Ea Rotate seat onto its front face as shown.
20
