TECO N310 Series User manual

Microprocessor Controlled
I G B T Drive
Inverter Motor Speed Regulator
Operating Manual
N310/E310+ Serise 200V class
400V class
0.4~2.2KW
(1.2~4.0KVA)
0.75~55KW
(1.7~110KVA)

iv
Quick Start Guide
This guide is to assist in installing and running the inverter to verify that the drive and
motor are working properly. Starting, stopping and speed control will be from the
keypad. If your application requires external control or special system programming,
consult the N310 Instruction Manual supplied with your inverter.
Step 1 Before Starting the Inverter
Please review Preface and Safety Precautions (page 0-1 through 1-3) of the N310
Instruction Manual. Verify drive was installed in accordance with the procedures as
described in N310 Ambient Environment and Installation on pages 3-1 through 3-8. If
you feel this was abnormal, do not start the drive until qualified personnel have
corrected the situation. (Failure to do so could result in serious injury.)
zCheck inverter and motor nameplates to determine that they have the same
HP and voltage ratings. (Ensure that full load motor amps do not exceed
that of the inverter.)
zRemove the terminal cover to expose the motor and power terminals.
a. Verify that AC power is wired to L1, L2, and L3 (pages 3-12).
b. Verify that Motor leads are connected to T1, T2, and T3 (pages 3-12).
(The two leads may need to be reversed if motor rotation is not correct.
1. Four action of FUN, Hz/RPM, VOLT, AMP LED and display of five 7-segment
displays, refer to operation description of the keypad.
2. SEQ LED: 00-03(or 00-04) =1/2/3, LED Lit.
3. FRQ LED: 00-05(or 00-06) = 1/2/3/4, LED Lit
4. FWD LED: Forward Direction, LED action (Flash in stop, Keep Lit in operation).
5. REV LED: Reverse Direction, LED action (Flash in stop, Keep Lit in operation).

v
Step 2 Apply Power to the Drive
zApply AC power to the Drive and observe Operator. Five 7-segment Display
should read Power Voltage for 2 seconds and then read Frequency/Speed,
5.00. Five 7-segment Display and FWD LED should be flashed all the time.
Step 3 Check Motor Rotations without Load
zPress RUN key (FWD LED should light); five 7-segment Display should run
from 0.00 to 5.00.
zCheck motor rotation.
If it is not correct:
Press STOP key. Remove AC power. Wait for LED “charge” lamp to extinguish.
Reverse motor leads T1 and T2.Restart the drive and check new rotation.
Step 4 Check Full Speeds at 50Hz/60Hz
zFrequency/Speed can be changed by pressing the up or down Arrow keys.
To move right or left for next digit, press “<” key.
Press the READ / ENTER key to set the speed.
zSet frequency up to 50Hz/60Hz in accordance with the last rule.
zPress RUN key. Check drives acceleration to full speed.
zPress STOP key to stop drive and check deceleration.
Step 5 Other Operations
Run command selection: 00-03(or 00-04)
Frequency command selection: 00-05(or 00-06)
For information, see N310 Instruction Manual.
Please refer to the following pages:
Set Control Mode (Vector, V/F) .............................…. p. 4-07
Set Motor Rated Current .......................................…. p. 4-13
Set Accel ......................................................................p. 4-08
Set Decel ..................................................................... p. 4-08
Set Max Speed ............................................................ p. 4-08
Set Min Speed ............................................................. p. 4-08

iv
Quick Start Guide
This guide is to assist in installing and running the inverter to verify that the drive and
motor are working properly. Starting, stopping and speed control will be from the
keypad. If your application requires external control or special system programming,
consult the N310 Instruction Manual supplied with your inverter.
Step 1 Before Starting the Inverter
Please review Preface and Safety Precautions (page 0-1 through 1-3) of the N310
Instruction Manual. Verify drive was installed in accordance with the procedures as
described in N310 Ambient Environment and Installation on pages 3-1 through 3-8. If
you feel this was abnormal, do not start the drive until qualified personnel have
corrected the situation. (Failure to do so could result in serious injury.)
zCheck inverter and motor nameplates to determine that they have the same
HP and voltage ratings. (Ensure that full load motor amps do not exceed
that of the inverter.)
zRemove the terminal cover to expose the motor and power terminals.
a. Verify that AC power is wired to L1, L2, and L3 (pages 3-12).
b. Verify that Motor leads are connected to T1, T2, and T3 (pages 3-12).
(The two leads may need to be reversed if motor rotation is not correct.
1. Four action of FUN, Hz/RPM, VOLT, AMP LED and display of five 7-segment
displays, refer to operation description of the keypad.
2. SEQ LED: 00-03(or 00-04) =1/2/3, LED Lit.
3. FRQ LED: 00-05(or 00-06) = 1/2/3/4, LED Lit
4. FWD LED: Forward Direction, LED action (Flash in stop, Keep Lit in operation).
5. REV LED: Reverse Direction, LED action (Flash in stop, Keep Lit in operation).

v
Step 2 Apply Power to the Drive
zApply AC power to the Drive and observe Operator. Five 7-segment Display
should read Power Voltage for 2 seconds and then read Frequency/Speed,
5.00. Five 7-segment Display and FWD LED should be flashed all the time.
Step 3 Check Motor Rotations without Load
zPress RUN key (FWD LED should light); five 7-segment Display should run
from 0.00 to 5.00.
zCheck motor rotation.
If it is not correct:
Press STOP key. Remove AC power. Wait for LED “charge” lamp to extinguish.
Reverse motor leads T1 and T2.Restart the drive and check new rotation.
Step 4 Check Full Speeds at 50Hz/60Hz
zFrequency/Speed can be changed by pressing the up or down Arrow keys.
To move right or left for next digit, press “<” key.
Press the READ / ENTER key to set the speed.
zSet frequency up to 50Hz/60Hz in accordance with the last rule.
zPress RUN key. Check drives acceleration to full speed.
zPress STOP key to stop drive and check deceleration.
Step 5 Other Operations
Run command selection: 00-03(or 00-04)
Frequency command selection: 00-05(or 00-06)
For information, see N310 Instruction Manual.
Please refer to the following pages:
Set Control Mode (Vector, V/F) .............................…. p. 4-07
Set Motor Rated Current .......................................…. p. 4-13
Set Accel ......................................................................p. 4-08
Set Decel ..................................................................... p. 4-08
Set Max Speed ............................................................ p. 4-08
Set Min Speed ............................................................. p. 4-08

Preface
0-1
Chapter 0 Preface
0.1 Preface
To extend the performance of the product and ensure personnel safety, please read this
manual thoroughly before using the inverter. Should there be any problem in using the
product that cannot be solved with the information provided in the manual, contact your
nearest TECO’s technical or sales representative who will be willing to help you.
※Precautions
The inverter is an electrical product. For your safety, there are symbols such as “Danger”,
“Caution” in this manual as a reminder to pay attention to safety instructions on handling,
installing, operating, and checking the inverter. Be sure to follow the instructions for
highest safety.
Danger Indicates a potential hazard that could cause death or serious personal
injury if misused.
Caution Indicates that the inverter or the mechanical system might be damaged
if misused.
Danger
zDo not touch any circuit boards or components after the power is turned off and while the
charging indicator is still lit. (The light will fade)
zDo not make any connections when the inverter is powered on. Do not check parts and
signals on circuit boards during the inverter operation.
zDo not disassemble the inverter or modify any internal wires, circuits, or parts.
zGround the ground terminal of the inverter properly.
For 200V class ground resistance 100 Ωor below. For 400V class 10Ωor below.
Make sure that grounding conductors are adequately sized and are according to your local
safety regulations.
Caution
zDo not perform a voltage test on parts inside the inverter. High voltage can destroy the
semiconductor components.
zDo not connect T1, T2, and T3 terminals of the inverter to any AC input power supply.
zCMOS ICs on the inverter’s main board are susceptible to static electricity. Do not touch
the main circuit board
0.2 Product Inspection
Taian inverters have all passed the function test before delivery. Please check the
following when you receive and unpack the inverter:
zThe model of the inverter are the same as those specified in your purchase order.
zCheck for any damages caused by transportation. Please do not apply power, and
contact a TECO sales representative if any of the above problems occurred.

Chapter 1 Safety Precautions
1-1
Chapter 1 Safety Precautions
1.1 Operation Precautions
1.1.1. BeforePowerUp
Caution
The line voltage applied must comply with the inverter’s specified input voltage.(See
product nameplate)
Danger
Make sure the main circuit connections are correct. L1 , L2 and L3 are power-input
terminals and must not be mistaken for T1, T2 and T3. Otherwise, inverter damage can
result.
Caution
zTo avoid the front cover from disengaging or other damage, do not carry the inverter
by its cover. Support the drive by its heat sink when transporting. Improper handling
can damage the inverter or injure personnel, and should be avoided.
zTo avoid the risk of fire, do not install the inverter on flammable objects. Install on
nonflammable objects such as metal surfaces.
zIf several inverters are placed in the same control panel, provide heat extraction
means to keep the temperature below 40℃to avoid overheat or fire hazard.
zWhen removing or installing the operator keypad, turn OFF the power first, and
secure the keypad correctly to avoid keypad operation or display failure.
Warning
This product is sold subject to IEC 61800-3. In a domestic environment this product may
cause radio interference in which case the user may be required to apply corrective
measures.
Note: Do not install a drive equipped with EMC filter on IT (unearthed) systems.
EMC filter capacitors connect the supply network to earth potential which
May cause a danger or damage the unit.

Chapter 1 Safety Precautions
1-2
1.1.2. DuringPowerUp
Danger
zDo not insert or remove input connections to the inverter when powered up to avoid
damage to the control board resulting from possible voltage surge due to contact
bounce.
zWhen the momentary power loss is short, the inverter still has enough storage power
to control the circuit. Therefore, when power is re-applied, the inverter will
automatically restart depending on the setup of 04-03/04-04.
zWhen momentary power loss is longer than 2 seconds (the larger of horse power, the
longer of time), the inverter does not have enough storage power to control the circuit;
Therefore, when the power is re-applied, the operation of the inverter is based on the
setup of 00-03(or00-04) /04-09 and the condition of external switch, this is considered
to be「restart」in the following paragraphs.
zWhen restarting the inverter, the operation of the inverter is based on the setup of
00-03(or00-04) and 04-09 and the condition of external switch (FWD/REV button).
Attention: the start operation will be regardless of 04-03/04-04/04-06/04-07.
1. When 00-03(or00-04) =0, the inverter will not automatically run after restart.
2. When 00-03(or00-04) =1 and the external switch (FWD/REV button) is OFF,
the inverter will not run after restart.
3. When 00-03(or00-04) =1, the external switch (FWD/REV button) is ON, and
04-09=0, the inverter will run automatically after restart.
Attention: To ensure safety, please turn off the external switch (FWD/REV button)
after power loss, to protect machines from possible damage and potential injury to
personnel on sudden resumption of power.
zIf 4-09 is set to 0 (direct start up), please refer to the description and warnings for
04-09 to verify the safety of operator and machine.
1.1.3. BeforeOperation
Danger
Make sure the model and inverter capacity are the same as that set in parameter 12-00.
Caution
On power up the supply voltage set in parameter 05-03 will flash on display for 2 seconds.

Chapter 1 Safety Precautions
1-3
1.1.4. DuringOperation
Danger
Do not connect or disconnect the motor during operation. Otherwise, the over-current will
cause the inverter to trip or damage the unit.
Danger
zTo avoid electric shock, do not take the front cover off when power is on.
zThe motor will restart automatically after stop when auto-restart function is on. In this
case, use caution while working near the drive, motor, or driven equipment.
zNote: The stop push button and external stop command have no safety function.
For Emergency stop, it is necessary to use a correct latch type push button and an
appropriate circuit or devices to ensure safety.
Caution
zDo not touch heat-generating components such as heat sinks and braking resistors.
zThe inverter can drive the motor from low speed to high speed. Verify the allowable
speed range of the motor and the load before operation.
zNote the settings related to the braking unit.
zDo not check signals on circuit boards while the inverter is running.
Caution
Allow 5 minutes after disconnecting power before disassembling or checking the
components. The power led should not be illuminated.
1.1.5. During Maintenance
Caution
The Inverter can be used in environment in temperature range from14˚-104 (℉-10-40 )℃
and relative humidity of 95%.
Inverter Disposal Caution
zPlease dispose of this unit with care as an industrial waste and according to your
required local regulations.
zThe capacitors of inverter main circuit and printed circuit board are considered as
hazardous waste and must not be burnt.
zThe Plastic enclosure and parts of the inverter such as the top cover board will release
harmful gases if burnt.

Chapter 2 Description of models
2-1
Chapter 2 Definition of model
200~240V 50/60Hz
Output specifications→
1.7 KVA 4.5 A
TECO
N310Series:
Figure 2-1 Inverter Nameplate
N31 0 - 2 001 - H X
Supply voltage Specification Expansion board
2 200Vclass H Blank None
4 400Vclass S X Connect
Adhibition Horsepower
0 standard Type 2P5 0.5 HP
1 Can be dedicated 001 1 HP
2 high speed
motor only 002 2 HP
3 drawbench only 003 3 HP Power supply custom-made type
005 5 HP Blank general client
3 Three phase
4 Isobarically
water supply
only 008 7.5 HP
A type 1
010 10 HP B type 2
015 15 HP
020 20 HP ﹡
030 30 HP ﹡
040 40 HP ﹡
Blank
common
model
for
single
/Three
phase
050 50 HP ﹡
060 60 HP ﹡
075 75 HP ﹡
100 100 HP ﹡
125 125 HP ﹡
150 150 HP ﹡
175 175 HP ﹡
215 215 HP ﹡
﹡：Develop
MODEL: N310-2001-HX
Inverter model →
I/P: AC 1 OR 3PH
In
p
ut volta
g
e →
O/P: AC 3PH 0~240V

Chapter 3 Ambient Environment and Installation
3-1
Chapter 3 Ambient Environment and Installation
3.1 Environment
The environment will directly affect the proper operation and the life span of the inverter, so install the
inverter in an environment complying with the following conditions:
(Correct configuration) (Incorrect configuration) (Correct configuration) (Incorrect configuration)
zPlace the inverter facing forward and its top facing upward to assist with cooling.
zAmbient temperature: 14-104℉(-10oC - +40oC);
zAvoid exposure to rain or moisture. zAvoid direct sunlight.
zAvoid oil mist and salinity. zAvoid corrosive liquid and gas.
zAvoid dust, lint fibers, and small metal
filings.
zKeep away from radioactive and
flammable materials.
zAvoid electromagnetic interference (soldering machine, power machine).
zAvoid vibration (stamping, punching machine). Add a vibration-proof pad if the situation
cannot be avoided.
zIf several inverters are placed in the same control panel, provide heat removal means to
maintain temperatures below 40oC.
CONTROL PANEL CONTROL
PANEL Enclosure
fan
fan
Figure 3-1 Panel and enclosure arrangement for N310 inverters
Enclosure
Figure 3-2 Din rail mounting of the N310 Inverter

Chapter 3 Ambient Environment and Installation
3-2

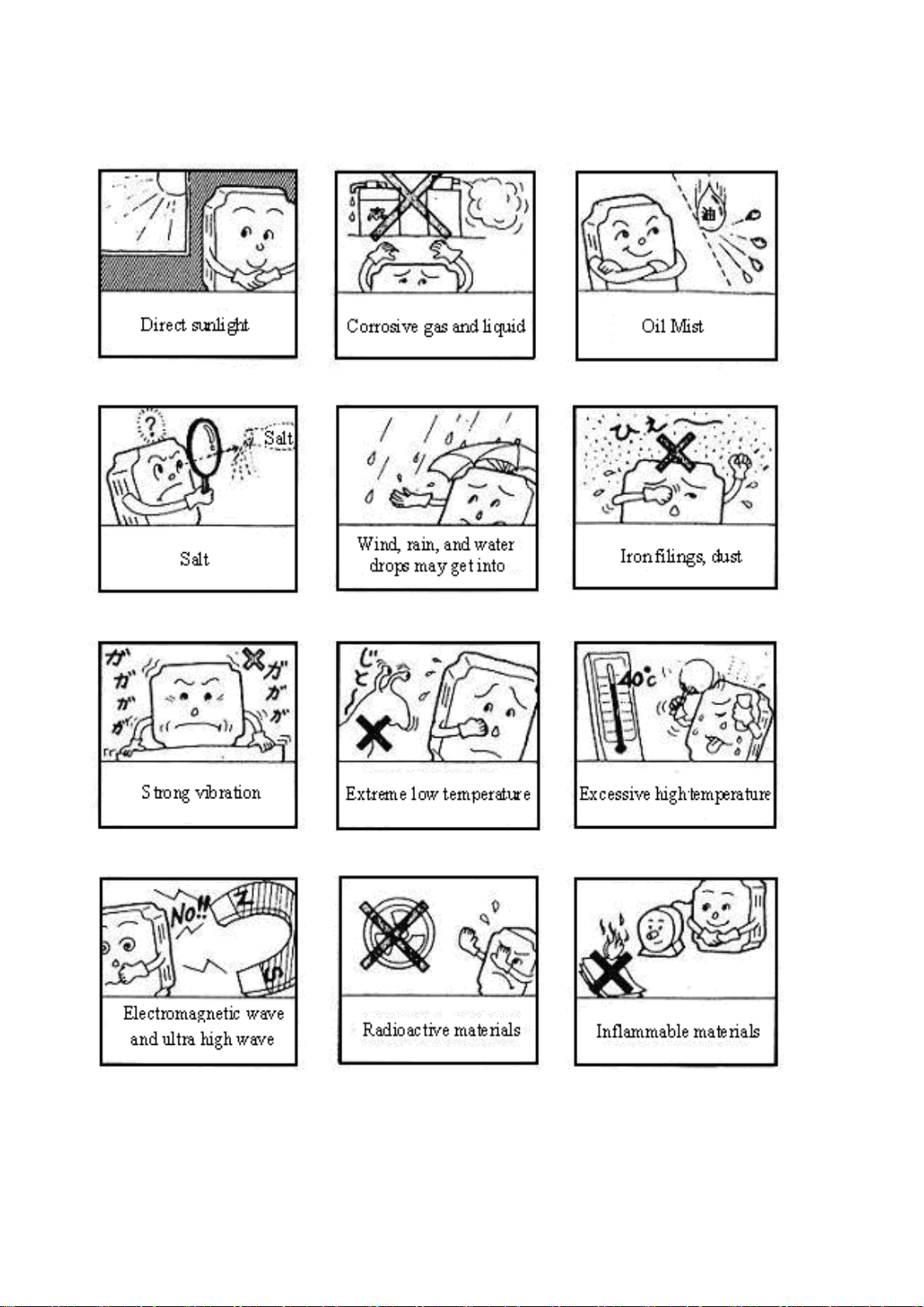

3.2 Environmental precautions
Do not use the inverter in an environment with the following conditions:

Chapter 3 Ambient Environment and Installation
3-3
3.3 Electrical Installation
3.3.1 Wiring guidelines
A. Tightening torque:
Required Screwdriver Torques are as listed below:
Tightening torque
Horsepower Power source Nominal torque for TM1 terminal
0.5/1 200-240V
1/ 2 380-480V
0.59/0.08
(LBS-FT / KG-M)
7.10/8.20
(LBS-IN/KG-CM)
2/3 200-240V
3/ 5/ 7.5/ 10/15 380-480V
1.5/0.21
(LBS-FT/KG-M)
18.00/20.28
(LBS-IN/KG-CM)
B. Power Cables
Power cables are connected to TM1 terminal block, terminals L1, L2, L3, T1, T2, T3, P, R.
Choose power cables according to the following criteria:
(1) Use copper wires only. Correct wire diameters should be based on ratings at 105oC.
(2) For rating voltage of wires, the minimum voltage of 200V class type is 300V, and 400 V class
type is 600V.
C. Control Cables
Control cables are connected toTM2 control terminal block.
Choose control cables according to the following criteria:
(1) Use copper wires only. Correct wire diameters should be based on ratings at 105oC.
(2) For rating voltage of wires, the minimum voltage of 200V class type is 300V, and 400 V class type
is 600V.

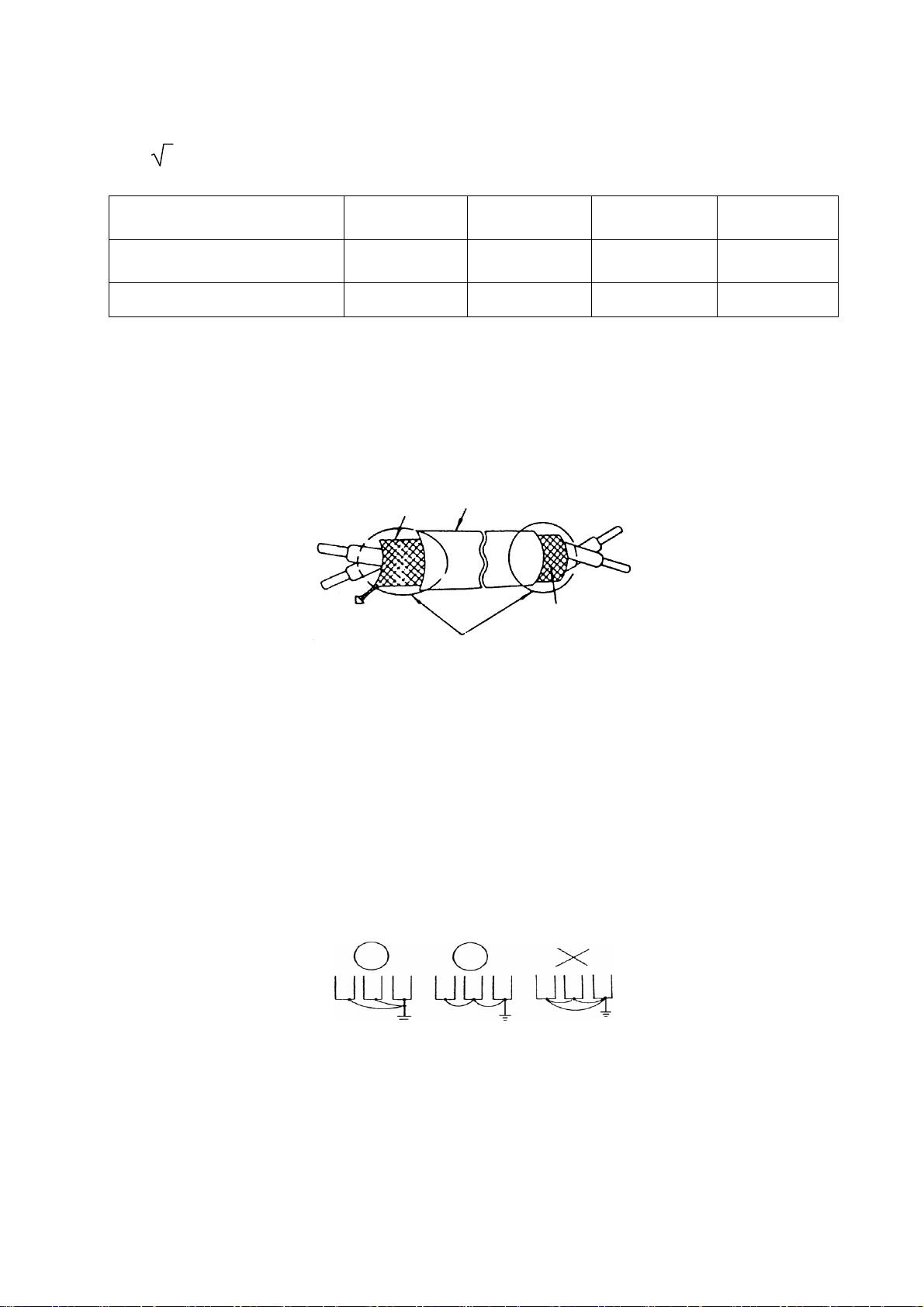

(3) To avoid noise interference, do not route power and control cables in the same conduit or trucking.
(4) Where possible use screened / shielded control cables to minimizes electromagnetic
interference.
(5) To avoid ground loops always earth the shield of control cables at one end only.
D. Nominal electrical specifications of the terminal Block TM1:
※Note: Nominal values of input and output signals (TM2) – follow the specifications of class 2
wiring.
Horsepower Power source Amps Volts
0.5/1/ 2 200-240V
1/ 2 380-480V 15
3/ 5/ 7.5/ 10/15 380-480V 40
600

Chapter 3 Ambient Environment and Installation
3-4
E. Fuse types
Drive input fuses are provided to disconnect the drive from power in the event that a component fails in
the drive’s power circuitry. The drive’s electronic protection circuitry is designed to clear drive output
short circuits and ground faults without blowing the drive input fuses. Table below shows the N310
input fuse ratings.
To protect the inverter most effectively, use fuses with current-limit function.
Horsepower power supply
standard Fuse types
1/2 15A, 600VAC, 100KA I.R.
3 200-240V 20A, 600VAC, 100KA I.R.
1 5A, 600VAC, 100KA I.R.
2 10A, 600VAC, 100KA I.R.
3 15A, 600VAC, 100KA I.R.
5 20A, 600VAC, 100KA I.R.
7.5/10 40A, 600VAC, 100KA I.R.
15
380-480V
70A, 600VAC, 100KA I.R.
※Notice
zTo avoid shock hazards, do not touch any electrical component when the power is applied or with in
five minutes after the power is disconnected. Any inspection should be performed after the charge
indicator goes off.
zDo not perform wiring on the inverter with power on. Disregard of this notice may result in serious
injury.

Chapter 3 Ambient Environment and Installation
3-5
3.3.2 Contactor and Circuit Breaker specification and wiring.
Molded-case circuit breaker/magnetic contactor
zTeco bears no responsibility to service for failures caused by the following conditions:
(1) A molded-case circuit breaker is not installed, or an improper or overrated breaker is used,
between the power source and the inverter.
(2)A magnetic contactor, a phase capacitor, or a burst absorber is connected between the inverter
and the motor.
model ：
N310--XXX 20P5 2001 2002 2003
Molded-case circuit breaker made by
Teco
TO-50E
10A
TO-50E
20A TO-50E 30A TO-50E
30A
Magnetic contactor (MC) made by
Teco CN-11
Main circuit terminals (TM1) Wire gauge 2.0 mm2terminal screw M4 Wire gauge 3.5 mm2
terminal screw M4
Signal terminals (TM2)
1~18
Wire gauge 0.80mm2 ( # 18 AWG)
terminal screw M2
Signal terminals (TM3)
1~3
Wire gauge 0.80mm2 ( # 18 AWG)
terminal screw M3
model ：
N310-□□□□-XXX
4001/4002
/4003/4005 4008 4010 4015
Molded-case circuit breaker
made by Teco
50E
15A
50E
20A
50E
30A
50E
50A
Magnetic contactor (MC)
made by Teco CN-11 CN- 16
CN-
18
CN-
25
Main circuit terminals
Wire gauge
2.0mm2
terminal
screw M4
Wire gauge
3.5mm2
terminal
screw M4
Wire
gauge
5.5mm2
terminal
screw
M4
control circuit
Signal terminals 1～18
Wire gauge 0.80mm2
( # 18 AWG),
terminal screw M2
RY1 Signal terminals 1～3
Wire gauge 0.80 mm2
( # 18 AWG),
terminal screw M3
Signal terminals
(above 4010) Wire gauge 0.80 mm2( # 18 AWG), terminal screw M3
zUse three-phase squirrel cage induction motor with capacity suitable for the inverter.
zIf one inverter is driving several motors, the total current of all motors running simultaneously must
be less than the rated current of the inverter, and each motor has to be equipped with a proper
thermal relay.
zDo not add capacitive components, such as a phase capacitors, LC or RC, between the inverter and
the motor.

Chapter 3 Ambient Environment and Installation
3-6
3.3.3 Precautions for peripheral applications:
Power supply:
zMake sure the correct voltage is applied to avoid
damaging the inverter.
zA molded-case circuit breaker or fused disconnect
must be installed between the AC source and the
inverter
Molded-case circuit breaker:
zUse a molded-case circuit breaker that conforms to the
rated voltage and current of the inverter to control the
power ON/OFF and protect the inverter.
zDo not use the circuit breaker as the run/stop switch
for the inverter.
Leakage breaker:
zInstall a leakage breaker to prevent problems caused
by electric leakage and to protect personnel.
zSetting current should be 200mA or above and the
operating time at 0.1 second or longer to prevent
malfunctions.
Magnetic contactor:
zNormal operations do not need a magnetic contactor.
However a contactor has to be installed in primary
side when performing functions such as external
control and auto restart after power failure, or when
using a brake controller.
zDo not use the magnetic contactor as the run/stop
switch of the inverter.
AC reactor for power quality improvement:
zWhen inverters below 200V/400V class 15KW are
supplied with high capacity (above 600KVA) power
source or an AC reactor can be connected to improve
the power performance.
Install fast action fuse:
zTo ensure the safety of peripheral devices, please
install fast action fuse. Regarding the specification,
please refer to P3-4.
Input noise filter:
zA filter must be installed when there are inductive
loads affecting the inverter
Inverter:
zInput power terminals L1, L2, and L3 can be used in
any sequence regardless of phase.
zOutput terminals T1, T2, and T3 are connected to U,
V, and W terminals of the motor. If the motor is
reversed while the inverter is set to run forward, just
swap any two terminals of T1, T2, and T3.
zTo avoid damaging the inverter, do not connect the
input terminals T1, T2, and T3 to AC input power.
zConnect the ground terminal properly. 200V class:
class 3 grounding, <100Ω; 400V class : <10Ω.
Figure 3-3 Typical Installation Schematic

Chapter 3 Ambient Environment and Installation
3-7
Make external connections according to the following instruction. Check connections after wiring to
make sure all connections are correct. (Do not use the control circuit buzzer to check connections)
(A) Main circuit’s wiring must be separated from other high voltage or high current power line to avoid
noise interference. Refer to the figures below:
zA noise filter in the output of the main circuit can suppress conducted noise.
zTo prevent radiated noise, the wires should be put in a metal pipe and distance from signal
lines of other control equipment should be more than 30 cm.
Power Supply
MCCB
N
o
i
se
Filter
Metal Box
Metal Pipe
Signal Wire
Controller
above
N310 Noise
Filter

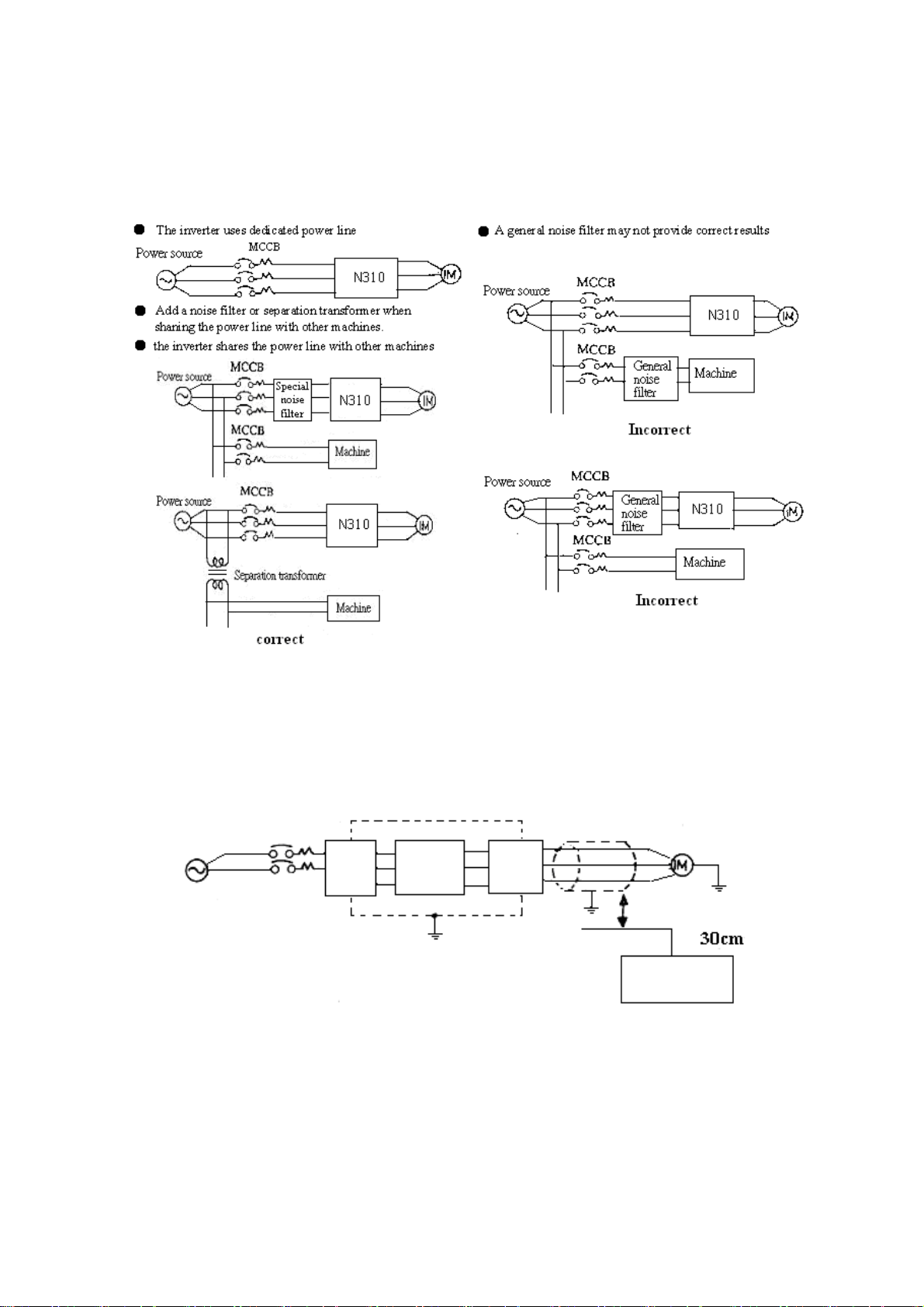

Figure 3-4a) Installation Examples
Figure 3-4b) Installation Examples using a filter and Isolation transformer
Figure 3-4c) Installation Examples with Adjacent Signal Conductors

Chapter 3 Ambient Environment and Installation
3-8
zWhen the connection between the inverter and the motor is too long，consider the voltage drop
of the cables. Phase-to-phase voltage drop (V) =
3 ×resistance of wire (/km)×length of line (m)×current×10-3.
zCarrier frequency must be adjusted based on the motor cable length.
Cable length between the
inverter and the motor Below 75ft Below 150ft Below 300ft Above 300ft
Recommended
carrier frequency Below 15KHz Below 12KHz Below 8KHz Below 5KHz
Setting of parameter 10-03 15 12 8 5
(B) The control circuit wiring must be separated and routed away from the main circuit control line or
other high voltage or current power lines to avoid noise interference
zTo avoid erroneous operation caused by noise interference, shield the control circuit wiring
with twisted-wires, and connect the shielded wire to a ground terminal. Refer to the figure
below. The wiring distance should not exceed 50 meters.
z
(C)Inverter Ground terminal must be connected to installation ground correctly and according to the
required local wiring regulations.
For 200V class ground resistance should be 100or less.
For 400V class ground resistance should be 10or less.
●Ground cable size must be according to the required local wiring regulations. The shorter the better.
●Do not share the ground of the inverter with other high current loads
(Welding machine, high power motor). Connect the terminals to their own ground.
●Do not make a loop when several inverters share a common ground point.
(a) Good (b) Good (c) Bad
(D) To ensure maximum safety, use correct wire size for the main power circuit and control circuit.
(According to the required local regulations)
(E) Verify that all wiring is correct, wires are intact, and terminal screws are secured.
Shielding sheath Protective coverin
g
To ground terminal
Wrapped with insulating tape
Do not connect this end
Figure 3-5 Control Cable requirements
Figure 3-6 Grounding Examples

Chapter 3 Ambient Environment and Installation
3-9
3.4 Specifications
3.4.1 Product Specifications
Single / Three phase, 200-240V model
N310-□□□□-XXX 20P5 2001 2002 2003
Horsepower(HP) 0.5 1 2 3
Max Applicable Motor Output (KW) 0.4 0.75 1.5 2.2
Rated Output Current(A) 3.1 4.5 7.5 10.5
Rated Capacity(KVA) 1.2 1.7 2.9 4.0
Max. Input Voltage Single/Three Phase: 200~240V +10% -15%，50/60HZ ±5%
Max. Output Voltage Three Phase: 200~240V
Input Current(A) 8.5/4.5 12/6.5 16/11 23.9/12.5
Net Weight (KG) 1.4 1.4 2.5 4.0
Allowable momentary power loss
time (second) 1.0 1.0 2.0 2.0
Three phase, 380 – 480V model
N310-□□□□-XXX 4001 4002 4003 4005 4008 4010 4015
Horsepower(HP) 1 2 3 5 7.5 10 15
Max Applicable Motor Output (KW) 0.75 1.5 2.2 3.7 5.5 7.5 11
Rated Output Current(A) 2.3 3.8 5.2 8.8 13.0 17.5 25
Rated Capacity(KVA) 1.7 2.9 4.0 6.7 9.9 13.3 19.1
Max. Input Voltage Three phase 380～480V +10%-15%，50/60HZ ±5%
Max. Output Voltage Three phase 380～480V
Input Current(A) 4.2 5.6 7.3 11.6 17 23 31
Net Weight (KG) 2.4 2.5 3.8 4.0 4.0 7.0 7.0
Allowable momentary power loss
time (second) 1.0 1.0 2.0 2.0 2.0 2.0 2.0

Chapter 3 Ambient Environment and Installation
3-10
3.4.2 General Specifications
Item N310 TYPE
Control Mode V/F or Current Vector Control
Range 0.01~400.00 Hz
Start control torque 150%/1Hz ( Vector)
Speed control range 1:100 ( Vector)
Speed Control Precision ±0.5% (Vector)
Setting resolution Digital: 0.01Hz, Analog: 0.06Hz/ 60Hz(10bits)
Keypad setting Set directly with keys or the VR on the keypad
Display Function
Five digital LED and status indicator; display frequency/ line
speed/ DC voltage/ Output voltage/ Current/ Rotation direction/
Inverter parameter/ Fault Log/ Program Version / Heat sink
temperature/PID feed back
External signal setting
1. External potentiometer0-10V/ 0-20mA
2. Provides up/down controls, speed control or automatic
procedure control with multifunctional contacts on the
terminal block (TM2)
Frequency Control
Frequency Limit
Function
Upper/lower frequency limits and three programmable skip
frequencies
Carrier frequency 1 ~ 15 kHz
V/F pattern 18 fixed patterns, 1programable curve
Acc/Dec control Two-stage Acc/Dec time (0.1 – 3,600 seconds) and four-stage S
curves (refer to descriptions on 10-07..)
Multifunction analog
output
5 functions (refer to description on 2-12)
Multifunction input 23 functions (refer to description on 01-00~01-05)
Multifunction output 14functions (refer to description on 01-09~01-10)
Other Functions
Momentary Power Loss Restart, Speed Search, Overload
Detection, 16 preset speeds. Acc/Dec Switch (2 Stages), S
Curves, 3-wire Control, PID control, torque boost, Slip
Compensation, Frequency Upper/ Lower Limit, Auto energy
saving, Modbus slave and PC/PDA Link, Auto Restart,
Encoder input.
