TESTO 6383 User manual

testo 6383 · differential pressure transmitter
testo 6610 · Probes
P2A software · Parameterizing, adjusting and analyzing
software
Instruction manual Volume 1

2

1 Safety and the environment
3
Pos: 1 /TD/Übersc hriften/MUF/Sicher heit und Umwelt @ 3\mod_1234 793958627_79.doc @ 26223 @ 1
1 Safety and the environment
Pos: 2 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ MUF 63xx/Elektrisc he Gefahren vermeiden @ 3\ mod_1234794609299_79. doc @ 26280 @ 5
Avoiding electrical hazards
> Never use the instrument and connected probes to measure on
or near live parts!
> Damaged mains cables must only be replaced by authorized
personnel.
> Only have the transmitter wired and connected by authorized
personnel with the voltage disconnected.
> You must always comply with the regulations applicable in your
country for opening and repairing electrical equipment.
Pos: 3 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ MUF 63xx/Personen- und Sac hschäden vermeiden @ 3\ mod_1234794744768_79 .doc @ 26299 @ 5
Avoiding personal injury and damage to equipment
> Installation, setting and calibration work must only be carried
out by qualified and authorized personnel!
> Only open the instrument when this is expressly described in
the instruction manual for installation, maintenance or repair
purposes.
> Observe the permissible storage, transport and operating
temperature.
Pos: 4 /TD/Sic herheit und Umwelt/Si cherheit gewähr leisten/Nicht mit Lös ungsmitteln lag ern @ 0\mod_117569237517 9_79.doc @ 583 @
> Do not store the product together with solvents. Do not use any
desiccants.
Pos: 5 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ MUF 63xx/Bei War tungM UFnic ht zur Regelung verwende n @ 3\mod_1234794852377_7 9.doc @ 26318 @
> Do not use the instrument for control purposes at the same time
as operating or servicing the transmitter.
Pos: 6 /TD/Sic herheit und Umwelt/Si cherheit gewähr leisten/Produkt besti mmungsgemäß ver wenden @ 0\mod_117378126 1848_79.doc @ 386 @
> Only operate the product properly, for its intended purpose and
within the parameters specified in the technical data. Do not
use any force.
Pos: 7 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ Nur beschriebene War tungsarbeiten durc hführen @ 0\mod_1175692705195 _79.doc @ 601 @
> Carry out only the maintenance and repair work on this
instrument that is described in the documentation. Follow the
prescribed steps exactly. Use only original spare parts from
Testo.
Pos: 8 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ MUF 63xx/Fachpersonal @ 3\ mod_1234794940409_7 9.doc @ 26337 @
Any additional work must only be carried out by authorized
personnel. Otherwise testo will not accept any responsibility for the
proper functioning of the instrument after repair and for the validity
of certifications.

2 About this document
4
Pos: 9 /TD/Übersc hriften/MUF/Umwelt sc hützen @ 3\mod_1234858 757571_79.doc @ 26363 @ 5
Protecting the environment
Pos: 10 /TD/Sic herheit und Umwelt/ Umwelt schützen/Pr odukt entsorgen @ 0\ mod_1173780307072_ 79.doc @ 357 @
> At the end of its useful life, send the product to the separate
collection for electric and electronic devices (observe local
regulations) or return the product to Testo for disposal.
Pos: 11 /TD/Übersc hriften/MUF/Zu diese m Dokument @ 3\mod_12347939 91331_79.doc @ 26242 @ 1
2 About this document
Pos: 12 /TD/Sic herheit und Umwelt/Zu diese m Dokument/Verwendun g (Standard) @ 0\mod_117377 5068554_79.doc @ 337 @ 5
Use
> Please read this documentation through carefully and
familiarize yourself with the product before putting it to use. Pay
particular attention to the safety instructions and warning advice
in order to prevent injuries and damage to the products.
> Keep this document to hand so that you can refer to it when
necessary.
> Hand this documentation on to any subsequent users of the
product.
Pos: 13 /TD/Sic herheit und Umwelt/Zu die sem Dokument/Symbole und Sc hreibkonventione n/Warnhinweis W ARNUNG@ 2\ mod_1207646966234_7 9.doc @ 14398 @
WARNING Indicates potential serious injuries
Pos: 14 /TD/Sic herheit und Umwelt/Zu diese m Dokument/Symbole und Sc hreibkonventione n/Warnhinweis VORSIC HT@ 2\ mod_1207651416515_79. doc @ 14416 @
CAUTION indicates potential minor injuries
Pos: 15 /TD/Sic herheit und Umwelt/Zu diese m Dokument/Symbole und Sc hreibkonv. Soft ware[ Standard] @ 0\mod_11902 03332543_79.doc @ 4883 @ 5
Symbols and writing standards
Representa-
tion Explanation
Note: Basic or further information.
1. ...
2. ... Action: more steps, the sequence must be
followed.
> ... Action: a step or an optional step.
- ... Result of an action.
Menu Elements of the program interface.
[OK] Buttons of the program interface.
... | ... Functions/paths within a menu.
“...” Example entries
Pos:16 /TD/--- Seitenwechsel--- @ 0\mod_1173774430601_0. doc @ 283 @

3 Contents
5
Pos: 17 /TD/Übersc hriften/MUF/Inhal t @ 3\mod_1234794019831_ 79.doc @ 26261 @ 1
3 Contents
1Safety and the environment....................................................................3
2About this document...............................................................................4
3Contents...................................................................................................5
4Transmitter...............................................................................................7
4.1. Specifications ..................................................................................7
4.1.1. Functions and use ...........................................................................................7
4.1.2. Scope of delivery.............................................................................................7
4.1.3. Accessories .....................................................................................................7
4.1.4. Technical data .................................................................................................8
4.1.5. Dimensions....................................................................................................12
4.2. Product description........................................................................13
4.2.1. At a glance.....................................................................................................13
4.2.2. Usable probes................................................................................................14
4.2.3. Display and keypad........................................................................................15
4.2.4. Service interface............................................................................................15
4.2.5. Relay board (option) ......................................................................................15
4.2.6. Analog outputs...............................................................................................16
4.2.7. Parameters....................................................................................................16
4.2.8. Scaling .........................................................................................................17
4.2.9. Alarm handling...............................................................................................19
4.3. Commissioning..............................................................................20
4.3.1. Mounting preparations...................................................................................20
4.3.2. Connecting the instrument.............................................................................21
4.3.2.1. Overview of terminals........................................................................22
4.3.2.2. Connecting voltage supply and analog outputs.................................23
4.3.2.3. Connecting the relay outputs ............................................................24
4.3.2.4. Closing the instrument ......................................................................27
4.3.2.5. Adjusting the instrument....................................................................29
4.3.2.6. Overview: Adjustment keys and test contacts...................................30
4.3.2.7. 1-point adjustment (offset - humidity/temperature)............................30
4.3.2.8. Analog output adjustment .................................................................32
4.3.2.9. n-point adjustment (pressure) ...........................................................33
4.3.2.10. High-humidity adjustment for testo 6614....................................34
4.3.2.11. Self adjustment of testo 6615 trace humidity probe....................35
4.4. Operation.......................................................................................36
4.4.1. Relationship between user menu and mini-DIN socket is active ....................36
4.4.2. Password protection ......................................................................................36
4.4.3. Structure of user menu ..................................................................................37
4.4.4. Overview of the testo 6383 user menu...........................................................38
4.4.5. The individual main menus ............................................................................41
4.4.5.1. Editing main menu of channel 1........................................................41

3 Contents
6
4.4.5.2. Editing Main Menu Channel 2 (if this option is available) ..................41
4.4.5.3. Editing Main Menu Channel 3 (if this option is available) ..................42
4.4.5.4. Editing Main Menu Alarm..................................................................42
4.4.5.5. Editing Main Menu Settings ..............................................................44
4.4.5.6. Editing Main Menu Analysis..............................................................47
4.4.5.7. Editing Message main menu.............................................................49
4.4.5.8. Calling up Main Menu Ident ..............................................................50
4.4.5.9. Editing Main Menu Adjust.................................................................50
4.4.5.10. Editing Reset main menu...........................................................52
4.5. Status, warning and error messages ............................................53
4.5.1. Status messages...........................................................................................54
4.5.2. Warning messages........................................................................................55
4.5.3. Transmitter error messages...........................................................................56
4.5.4. Handling alarm messages .............................................................................58
4.5.5. Namur fault conditions...................................................................................59
4.6. Maintenance and cleaning............................................................61
4.6.1. Maintaining the instrument.............................................................................61
4.6.2. Cleaning the instrument.................................................................................61
Pos:18 /TD/--- Seitenwechsel--- @ 0\mod_1173774430601_0. doc @ 283 @

4 Transmitter
7
Pos: 19 /TD/Übersc hriften/MUF/1 Messu mformer @ 3\mod_123425840 1060_79.doc @ 23894 @ 1
4 Transmitter
Pos: 20 /TD/Übersc hriften/MUF/1.1/2. 1/3.1 Leistungsbe schreibung @ 3\mod_123425 8595211_79.doc @ 23951 @ 2
4.1. Specifications
Pos: 21 /TD/Leis tungsbeschreibung/V erwendung/MUF63 xx/MUF 6383,84 @ 4\mod_1251793 491331_79.doc @ 47763 @ 3
4.1.1. Functions and use
The testo 6383 transmitter is suitable for the following applications,
amongst others:
• Clean rooms
• Complex room climate applications
Pos: 22 /TD/Leis tungsbeschreibung/Li eferumfang/MUF 63 xx/MUF 6383, 6385 @ 4\mod_12547 49193798_79.doc @ 51251 @ 3
4.1.2. Scope of delivery
The scope of delivery of the testo 6383 transmitter includes the
following:
• With KMAT version D04: Integrated humidity probe
• Sealing frame
• Instruction manual
• Calibration report
• CD-ROM with operating instructions (PDF), configuration files
for Ethernet module and P2A update (this can only be used in
conjunction with the P2A software, which has to be ordered
separately).
Pos: 23 /TD/Leis tungsbeschreibung/Li eferumfang/MUF 63 xx/Zubehör Übersicht 63 8x @ 3\mod_1234448071530 _79.doc @ 25136 @ 3
4.1.3. Accessories
The following accessories are available for the testo 6383
transmitter, amongst others:
• Protection caps for probes
• Mains unit
• P2A software (parameterizing, adjusting and analyzing
software)
• Assembly accessories
Information about accessories and their order numbers can
be found in volume 2, Accessories and spare parts or on
the website at www.testo.com.

4 Transmitter
8
Pos: 24 /TD/Leis tungsbeschreibung/ Technische Daten/ MUF63 xx/MUF 6383 @ 4\mod_125249 9023732_79.doc @ 48869 @ 3555 5555555555555555555 5
4.1.4. Technical data
Parameters
• Differential pressure
• Temperature
• Humidity
Differential pressure accuracy
The specifications are only valid if the positive pressure is
applied at the positive pressure connection.
• 0.3 % of measuring range, additional 0.3 Pa intrinsic error1
• TK slope drift = 0.02 % of measuring range per degree Kelvin of
deviation from nominal temperature 22 °C
• TK zero point drift= 0 %, as zeroing with solenoid valve2
Humidity and temperature accuracy
• Depends on probe
Humidity and temperature measuring range
• Depends on probe
1Measuring uncertainty in accordance with GUM: ±0.5 % of measuring range
final value ±0.3 Pa.
GUM (Guide to the Expression of Uncertainty in Measurement): ISO guideline for determining the
measuring uncertainty in order to render global measurement results comparable.
The following uncertainties are used during the inquiry:
• Hysteresis
• Linearity
• Reproducibility
• Adjustment area/factory calibration
• Test location
2Minor mixtures of the media may occur at the positive and negative pressure
side due to the automatic zeroing cycle.

4 Transmitter
9
Pressure measuring range, resolution and overload of
differential pressure
Pressure
measuring range
depending on
version ordered
Resolution Overload
0 to 50 Pa 0.1 Pa 20,000 Pa
0 to 50 Pa 0.1 Pa 20,000 Pa
0 to 100 Pa 0.1 Pa 20,000 Pa
0 to 500 Pa 0.1 Pa 20,000 Pa
0 to 10 hPa 0.01 hPa 200 hPa
-10 to 10 Pa 0.1 Pa 20,000 Pa
-50 to 50 Pa 0.1 Pa 20,000 Pa
-100 to 100 Pa 0.1 Pa 20,000 Pa
-500 to 500 Pa 0.1 Pa 20,000 Pa
-10 to 10 hPa 0.01 hPa 200 hPa
Upon delivery and following a factory reset the readings are
shown in the display in the unit that was ordered via the
KMAT option Fxx, see Ordering options for testo 6383
transmitter (0555 6383), page 133.
Humidity and temperature resolution
• 0.1 % RH or 0.01 °C/0.01 °F
Meas. cycle
• 1/sec
Interface
• Mini-DIN for P2A software (parameterizing and adjusting
software) and handheld testo 400/650
• optional: Ethernet interface
Voltage supply
• 4-wire (separate signal and supply lines): 20 to 30 V AC/DC,
300 mA power consumption

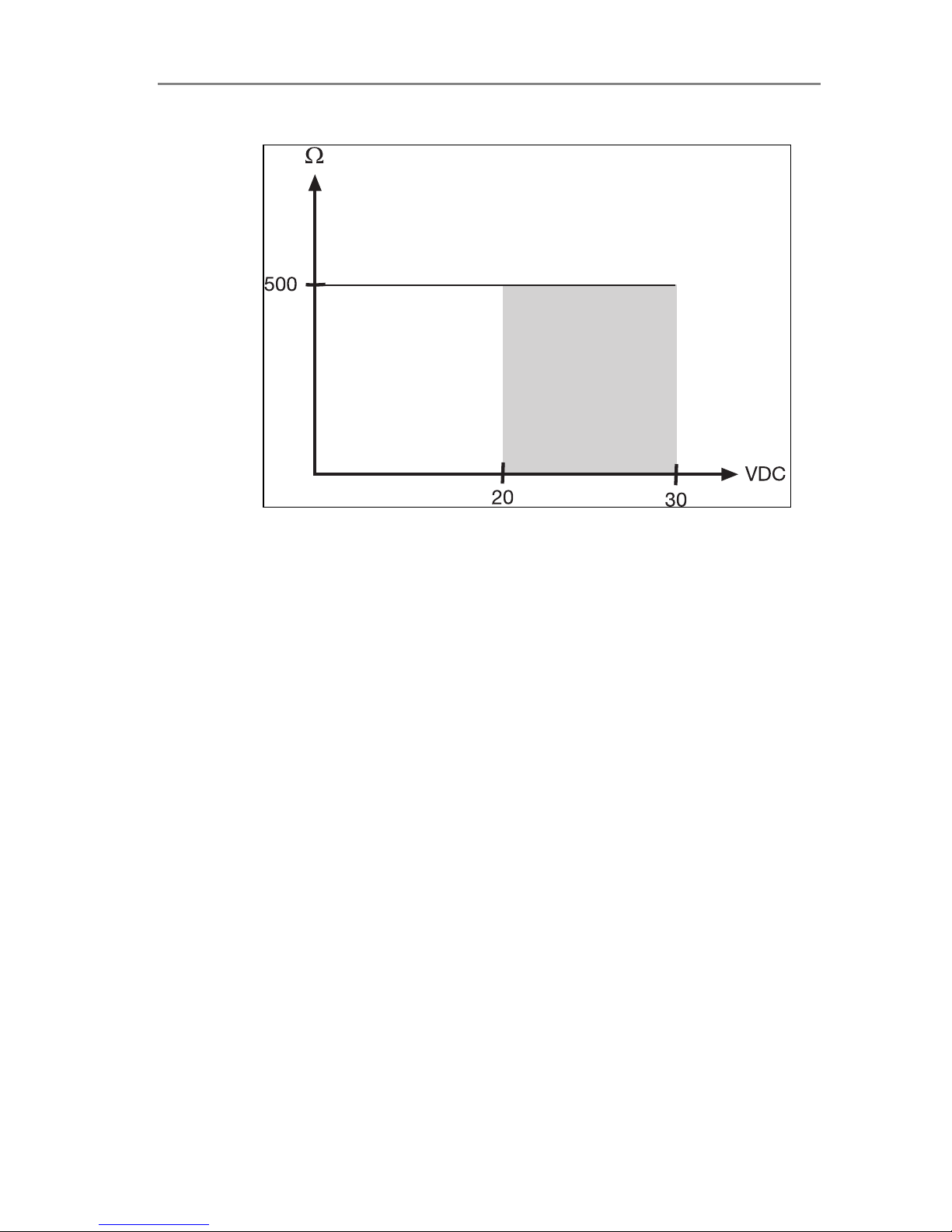

Maximum load
• 4-wire: 500 Ω(power output)

4 Transmitter
10
Maximal load
• 4-wire: 10 kΩ(voltage output)
Analog output
• 0 to 1 V ± 1.5 mV (4-wire) or
• 0 to 5 V ± 7.5 mV (4-wire) or
• 0 to 10 V ± 15 mV (4-wire) or
• 0 to 20 mA ± 0.03 mA (4-wire) or
• 4 to 20 mA ± 0.03 mA (4-wire)
Resolution of analog output
• 12 bit
Relay
• 4 relays, 250 V AC/DC, 3 A (optional)
Display
• 2-line LCD with plain text line (optional)
Operating temperature
• -5 to 50 °C/23 to 122 °F

4 Transmitter
11
Storage temperature
• -20 to 60 °C/-4 to 140 °F
Process temperature
• -20 to 65 °C/-4 to 149 °F
Oper. humidity
• 0 to 90 % RH
Housing, weight
• Metal/plastic
• Version with integrated humidity probe: approx. 1.35 kg
• Version with preparation for external humidity probe: approx.
1.26 kg
Protection class, frontal
• IP 65 only if the transmitter is wired and/or sealing plugs are
inserted
Directives, standards and tests
• EC Directive: 2004/108/EC
Warranty
• Duration: 2 years
• Warranty conditions: see website www.testo.com/warranty

4 Transmitter
12
Pos: 25 /TD/Leis tungsbeschreibung/ Technische Daten/ MUF63 xx/MUF Panel lang Abmessung en @ 4\mod_1255092618 418_79.doc @ 51743 @ 3
4.1.5. Dimensions

4 Transmitter
13
Pos: 26 /TD/Übersc hriften/MUF/1.2/2. 2 Produktbeschrei bung @ 3\mod_1234258723551 _79.doc @ 24008 @ 2
4.2. Product description
Pos: 27 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Auf einen Blick 6383 @ 4\ mod_1252499456455_79. doc @ 48901 @ 3
4.2.1. At a glance

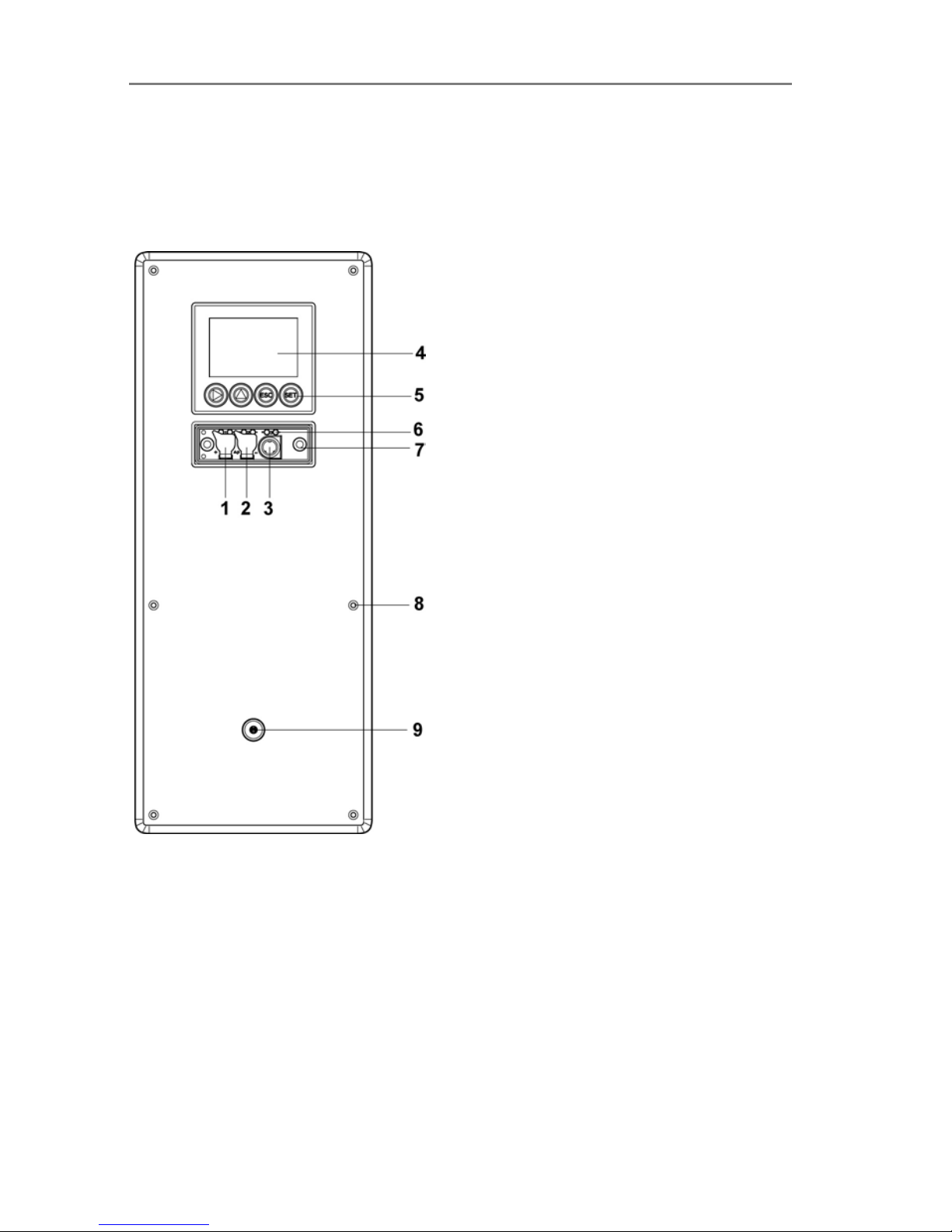

1 Sealing plugs on the positive
pressure test connection
2 Sealing plugs on the
negative pressure test
connection
3 Socket for service plug
4 Display (optional)
5 Keys (only with optional
display)
6 Test rods for the analog
outputs
7 Service cover screw
connection (self-locking,
2 pcs.)
8 Openings for screws for
fastening to the wall
9 Only with integrated humidity
probe (KMAT option D04):
Opening for the integrated
humidity probe

4 Transmitter
14

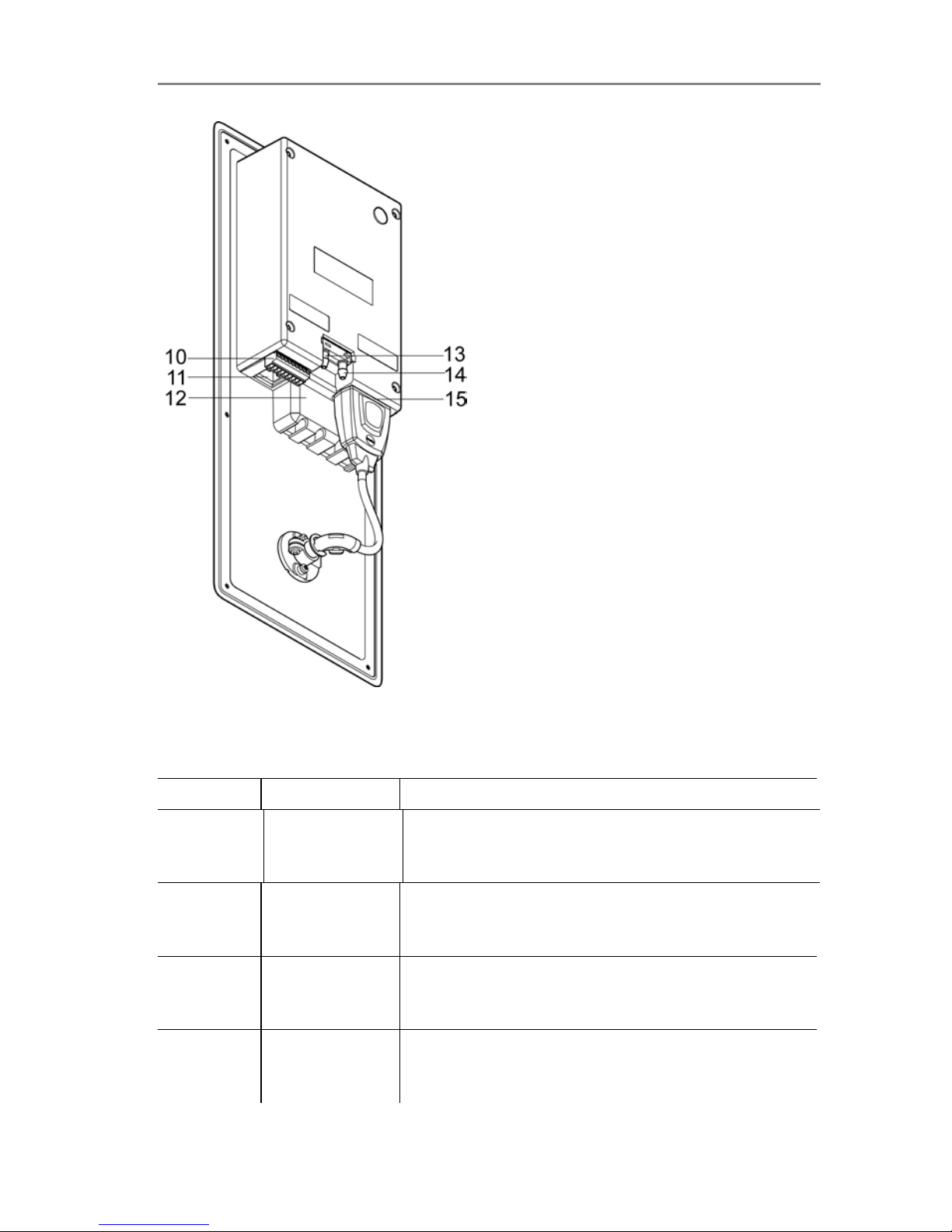

10 9-pin connector for the
current/voltage supply
11 Covered Ethernet interface
(non-functional)
12 Relay cover with 12-pin
connector underneath for
relay connection (option)
13 Negative pressure
connection
14 Positive pressure connection
15 Probe socket
Pos: 28 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Ver wendbare Fühler Panel @ 4\ mod_1252670326817_79. doc @ 50119 @ 3
4.2.2. Usable probes
The testo 6383 transmitter can be used with the following probes:
Probes Article no. Characteristic
Integrated
humidity
probe
KMAT option
D04 Wall probe version; accuracy to ±1 % RH; temperature range -20 to +70 °C/-4 to +158 °F,
plug-on sensor
testo 6612 0555 6610-L12 Duct probe version; accuracy to ±1 % RH;
temperature range -30 to +150 °C/
-22 to +302 °F, sensor soldered
testo 6613 0555 6610-L13 Cable probe version; accuracy to ±1 % RH;
temperature range -40 to +180 °C/
-40 to +356 °F, sensor soldered
testo 6614 0555 6610-L14 Heated cable probe version; accuracy to ±1.0 %
RH; temperature range -40 to +180 °C/
-40 to +356 °F, sensor soldered

4 Transmitter
15
Probes Article no. Characteristic
testo 6615 0555 6610-L15 Trace humidity cable probe version; accuracy
±1 K at 0 °Ctd/+32 °Ftd; temperature range
-40 to 120 °C/-40 to +248 °F, sensor soldered
testo 6617 0555 6610-L17 Cable with cover electrode monitoring probe
version; accuracy to ± 1.2 % RH; temperature
range -40 to 180 °C/
-40 to +356 °F, sensor soldered
Pos: 29 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Dis play und Tastatur @ 3\ mod_1234773965059_79.doc @ 25650 @ 3
4.2.3. Display and keypad
The display option allows operation of the testo 6383 transmitter via
the display and four keys.
The LCD display consists of two 7-segment lines for displaying
readings and units and of an information line (for status messages,
for example).
The brightness and contrast of the display and the background
lighting (permanent or off) can be changed via the user menu or the
P2A software.
Pos: 30 /TD/Übersc hriften/MUF/1.2. xSer viceschnitts telle @ 3\mod_123730689165 4_79.doc @ 29795 @ 3
4.2.4. Service interface
Pos: 31 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Ser viceschnittstel le 638x @ 3\mod_12347740929 11_79.doc @ 25669 @
The parameterizing socket (mini-DIN) is located behind the service
flap as an interface to the P2A software or Testo handheld
instrument (testo 400/testo 650).
Pos: 32 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Rel aisplatine (Option) @ 3\mod_1234774 184843_79.doc @ 25688 @ 3
4.2.5. Relay board (option)
This has a floating switch capacity of 250 V AC/3 A. The switching
limits and hysteresis as well as the function as relay for the
collective alarm can be set via the display or the P2A software.
Further features include:
• Function of changeover contacts (NC/NO contacts) freely
selectable
• 12 terminals for a total of 4 relays.
If no relays are available, settings for monitoring limit values
or alarms can still be controlled via the display. The alarm
status will be shown on the display.
Only have the transmitter wired and connected by
authorized personnel with the voltage disconnected.

4 Transmitter
16
Pos: 33 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Ana logausgänge 638x @ 3\mod_1 234774341528_79.doc @ 25707 @ 3
4.2.6. Analog outputs
As analog outputs, the testo 6383 has either
• 1 or optionally 3 current outputs of 0 to 20 mA (4-wire)/4 to
20 mA (4-wire) or
• 1 or optionally 3 voltage outputs of 0 to 1 V/0 to 5 V/0 to 10 V
(4-wire).
The transmitter can be ordered with three analog outputs as an
option.
The optional three channels are galvanically isolated.
Pos: 34 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Messgr ößen 6383/6385 @ 3\mod_1 234774693900_79.d oc @ 25745 @ 3
4.2.7. Parameters
The following parameters are displayed
• Differential pressure in Pa, hPa, kPa, mbar, bar, mmH2O, inch
H2O, inch HG, kg/cm2, PSI
• Relative humidity in % RH (technical)
• Relative humidity in % WMO* (calculation according to the
WMO standard)
• Degree of humidity in g/kg and gr/lb
• Absolute humidity in g/m³ and gr/ft³
• Water content in ppm (vol) and % vol
• Psychrometer temperature in °Ctw and °Ftw
• Enthalpy in kJ/kg and BTU/lb
• Water vapour partial pressure in hPa and inch H2O
• Dewpoint temperature in °Ctd and °Ftd
• Standardized dewpoint in °CtdA , standardized at atmospheric
pressure (1013 hPa); precondition: Absolute process pressure.
• Dewpoint of H2O2mixture in °Ctm and °Ftm.
* It is possible that condensation appears as of a displayed
humidity starting from 70 % and is shown on the display. This
unit is used in meteorology, amongst others. When calculating
the relative humidity the Magnus coefficient with undercooled
water is used in accordance with WMO.
Calculated humidity variables correspond to the medium of
air. With other gases/gas compositions, deviations may
occur, e.g. with the enthalpy.
• Temperature °C and °F

4 Transmitter
17
Pos: 35 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Ska lierung @ 3\mod_123477540 6989_79.doc @ 25783 @ 3
4.2.8. Scaling
There are three types of min./max. values:
1 The measuring range: The maximum sensor performance is in
this range. Values outside of the measuring range are displayed
via messages, for example. Measuring range, see table
(below).
2 Standard scaling: The output signals are assigned to this
measuring range as standard:
◦during delivery if no entries are made in the order code
◦after exchanging the unit, the measuring range recorded in
the instrument is applied as standard.
The transmitter even retains its scaling with the voltage
disconnected.
Measuring range, see table (below).
3 The maximum settings for the manual scaling
◦The maximum limits can be calculated as follows:
X = difference between MIN. and MAX. value of the
standard scaling
(Max. value of standard) + (50 % of X)
(Min. value of standard) - (50 % of X)
◦It is thus possible to scale beyond the measuring range, e.g.
for the adjustment of the scaling limits to standard values of
a PLC.
With the alarm definition, however, the physical measuring
range limits are decisive.
Pos: 36 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Tabe lle Skalierung MUF Panel Dr uck @ 4\mod_12518181353 59_79.doc @ 48019 @
Measuring
range/standard scaling Maximum scaling
0 to 50 Pa -5 to 15 Pa
0 to 50 Pa -25 to 75 Pa
0 to 100 Pa -50 to 150 Pa
0 to 500 Pa -250 to 750 Pa
0 to 10 hPa -5 to 15 hPa
-10 to 10 Pa -20 to 20 Pa
-50 to 50 Pa -100 to 100 Pa
-100 to 100 Pa -200 to 200 Pa

4 Transmitter
18
Measuring
range/standard scaling Maximum scaling
0 to 50 Pa -5 to 15 Pa
-500 to 500 Pa -1000 to 1000
-10 to 10 hPa -20 to 20 hPa
Pos: 37 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Tabe lle Skalierung Fühler Panel @ 5\mod_1257 519388289_79.doc @ 52767 @
Physical
measuring range
at 1013 hPa
Standard scaling of
transmitter
measuring range
Parameter Unit Probes
MIN MAX MIN MAX
°C 6611 -20 +70 -20 +70
°F 6611 -4 +158 -4 +158
°C 6613,
6614,
6617
-40 +180 -40 +180
°F 6613,
6614,
6617
-40 +356 -40 +356
°C 6615 -40 +120 -40 +120
Temperature
°F 6615 -40 +248 -40 +248
°Ctd 6611 -20 +70 -80 +100
°Ftd 6611 -4 +158 -112 +212
°Ctd 6613,
6614,
6617
-20 +100 -80 +100
°Ftd 6613,
6614,
6617
-4 +212 -112 +212
°Ctd 6615 -60 +30 -80 +100
Dewpoint
°Ftd 6615 -76 +86 -112 +212
g/m3all
probes 0 600 0 2000
Absolute
humidity gr/ft3all
probes 0 250 0 800
relative humidity % RH all
probes 0 100 0 100

4 Transmitter
19
Physical
measuring range
at 1013 hPa
Standard scaling of
transmitter
measuring range
WMO relative
humidity % RH 0 100 0 100
°Ctm -20 +100 -20 +100
Mixture dewpoint
(H2O2) °Ftm -4 +212 -4 +212
g/kg all
probes 0 13300 0 9500
Degree of
humidity gr/lb all
probes 0 93000 0 66500
kJ/kg -40 99999 -40 8000Enthalpy BTU/lb -18 43000 -18 3500
°Ctw -40 100 -40 180
Psychrometer
temperature °Ftw -58 210 -40 356
ppm
(vol)
H2O
0 99999 0 99999Water content
% vol 0 100 0 100
hPa 0 1000 0 7000
Water vapour
partial pressure inchH2O 0 400 0 2800
Pos: 38 /TD/Produk tbeschreibung/ Übersicht/MUF 63xx/Alar mbehandlung @ 3\mod_12 34776787635_79.doc @ 25821 @ 3
4.2.9. Alarm handling
For upper and lower alarm limits, individual alarms as well as
collective alarms can be specified. If the collective alarm function is
activated, an alarm is triggered as soon as the alarm limit of an
alarm is exceeded, if this alarm is assigned to the collective alarm.
The testo 6383 monitors limit values with the help of relays. If a
reading is outside the limit values, a relay to be specified by the
user is switched.
If the reading reverts to more than a specified hysteresis below or
above the limit value, the alarm is cancelled.
In addition, information about the occurrence of error/status
messages can be provided by means of a collective alarm relay,
see Status, warning and error messages, page 53
If multiple alarm messages are activated at the same time,
the last alarm is shown. If the alarm is cancelled again, the
previous messages are no longer shown.

4 Transmitter
20
Pos: 39 /TD/Übersc hriften/MUF/1.3/2. 3 Inbetriebnahme @ 3\ mod_1234258805768_79. doc @ 24027 @ 2
4.3. Commissioning
Pos: 40 /TD/Erst e Schritte/MUF 63xx/W andmontage Panel @ 4\mod_1251 818568448_79.doc @ 48051 @ 3
4.3.1. Mounting preparations
