Texi X User manual

Operaon manual
Computer controlled direct drive
bon sewing machine
Texi X

CONTENTS
GENERAL SAFETY PRECAUTIONS………………………………………………………………………
TECHNICAL SPECIFICATIONS…………………………………………………………………………….
INSTALLATION OF MACHINE HEAD ……………………………………………………………………..
LUBRICATION ………………………………………………………………………………………………..
INSERTING THE NEEDLE ………………………………………………………………………………….
ATTACHING THE NEEDLE BAR GUARD………………………………………………………………….
ATTACHING THE BUTTON TRAY ASSEMBLY…………………………………………………………...
THREADING THE MACHINE………………………………………………………………………………...
THREAD TENSION ADJUSTMENT………………………………………………………………………….
ADJUSTMENT OF THE THREAD PULL-OFF LEVER……………………………………………………..
NEEDLE-TO-LOOPER RELATION…………………………………………………………………………...
ADJUSTMENT OF THE NIPPER……………………………………………………………………………..
POSITION OF THE NEEDLE GUIDE………………………………………………………………………...
HEIGHT OF THE BUTTON CLAMP…………………………………………………………………………..
WORK PRESSING FORCE……………………………………………………………………………………
ADJUSTMENT OF THE BUTTON CLAMP STOP LEVER………………………………………………...
TIMING OF THREAD TENSION RELEASE………………………………………………………………...
SETTING FOR 2- OR 4-HOLES BUTTONS………………………………………………………………...
AUTOMATIC THREAD TRIMMER…………………………………………………………………………...
STITCHES MODELS…………………………………………………………………………………………..
PARTS BOOK

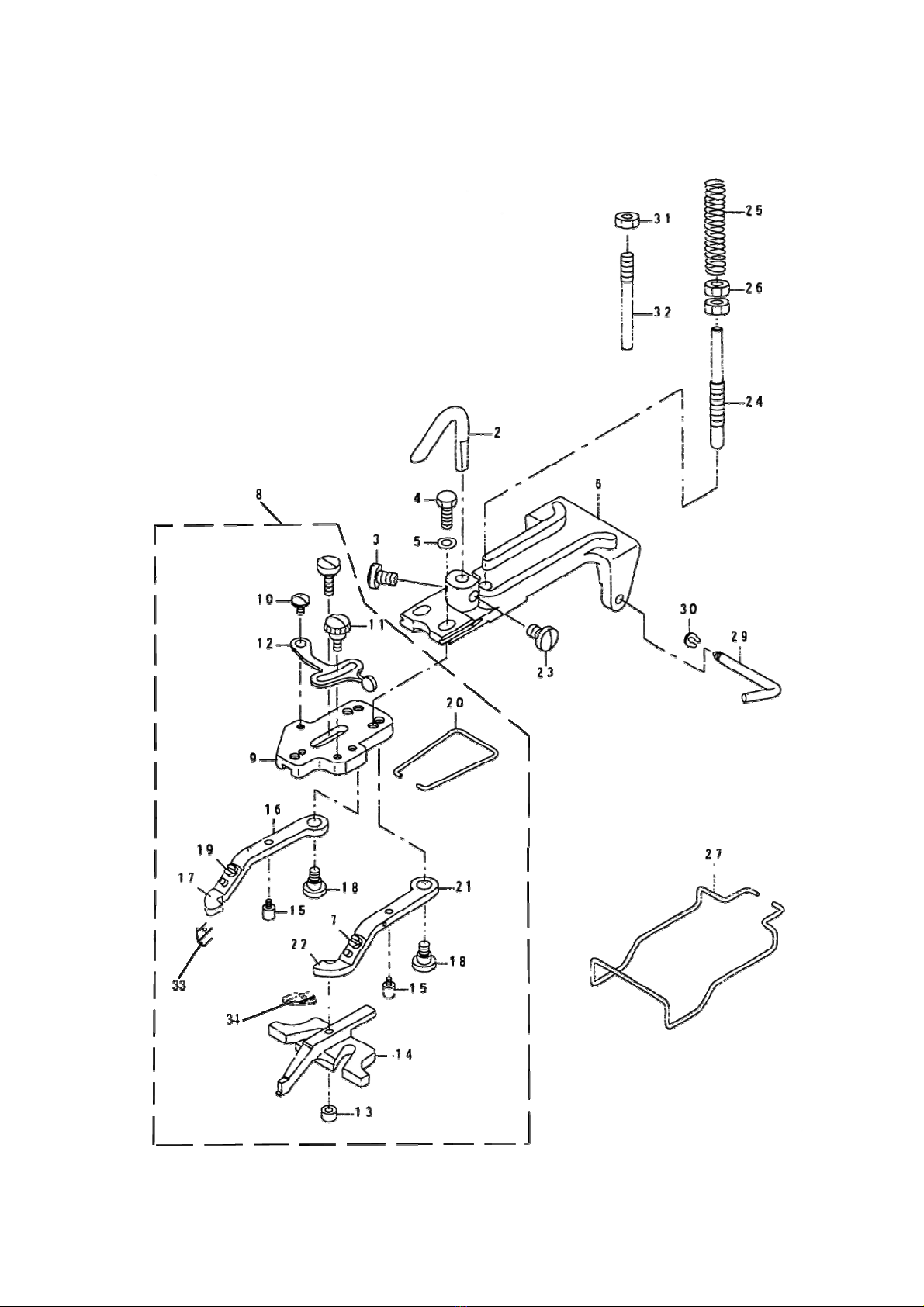

BUTTON CLAMP MECHANISM COMPONENTS………………………………………………………...

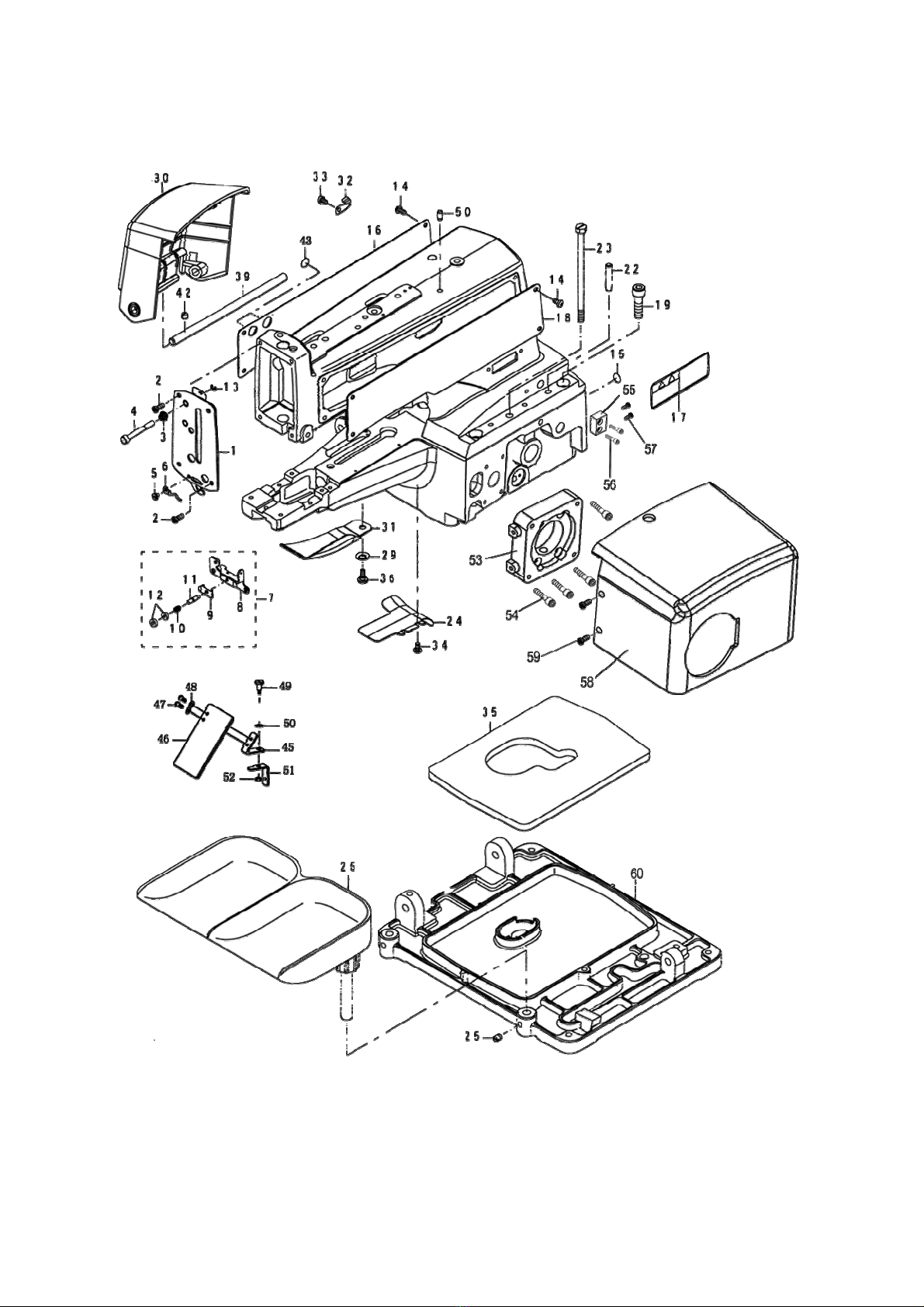

ARM & MISCELLANEOUS COVERS COMPONENTS…………………………………………………...
LOOPER SHAFT MECHANISM COMPONENTS………………………………………………………….
NIPPER & THREAD TENSION PARTS COMPONENTS………………………………………………...
FEED PLATE COMPONENTS……………………………………………………………………………….
BUTTON CLAMP LIFTER COMPONENTS………………………………………………………………...
NEEDLE DRIVING PULLEY SHAFT COMPONENTS…………………………………………………….
CE DECLARATION OF CONFORMITY…………………………………………………………………….
1
3
3
3
4
4
4
5
5
5
6
6
7
7
7
7
8
8
8
9
11
13
16
19
22
25
28
30
32

IMPORTANT!
This instruction manual contains important guidelines regarding correct, safe and economical method of use of the machine. Following
recommendations contained in this manual will decrease work down-time, increase machine reliability and durability, and will make work
safer.
This instruction manual must always be available at the workplace. The machine can be serviced only by an employee trained in Industri-
al Safety, after reading this instruction manual.
The supplier is not responsible for damages caused by improper use or by usage of this product for functions other than those it has been
designed for.
GENERAL SAFETY PRECAUTIONS
To minimize the risk of fire, electric shock, or injury, observe the following precautions:
- Keep the workplace clean.
- Pay attention to the machine’s work environment; do not subject it to atmospheric conditions.
- Do not install the machine in rooms that are dusty, where aerosols are sprayed, or to which oxygen is supplied.
- Keep the workplace well lit.
- Be careful of danger of electric shock.
- Pay attention to clothing. Let-down hair or loose clothing can be caught by the machine’s mobile elements.
- Take care not to damage the power supply cable.
- When the machine is not in use, disconnect it from the power grid.
- Take care not to turn-on the machine accidentally.
- In case of even the slightest damage, always check if the damaged part requires replacement.
- Never install on the machine attachments and accessories other than those recommended by the manufacturer and supplier.
- Do not perform machine modifications independently.
- Do not leave near the machine unattended bystanders or children.
A safety shut-off switch has been installed in the machine, which protects the tilted head from accidental activation (for example, pressing
the pedal).
Electric installation
Check if the supply voltage in the electric socket corresponds to the data on the machine’s rating plate 1-phase voltage 230V 50Hz.
Check the correctness of electric connections in the plug and electric socket, observing electric shock safety countermeasures.
Do not use extension power cords.
Apply the valid electrical and Industrial Safety norms.
ATTENTION – all work related to the electrical installation must be carried out by a qualified electrician.
Before starting work
Using machine without any of the safeguarding parts (finger guard, eye guard, etc.) is dangerous to an operator.
During work, only the items necessary for sewing should be found on the machine’s work table.
Before connecting the machine to the power grid, always release the pedal and the start button.
Do not use blunt or bent needles.
Do not touch any of the machine’s mobile elements, such as the needle, needle bar, thread tensioner or take-up, or hook, during its oper-
ation.
Turn machine off before: replacing needle, threading, installing attachments, changing the bobbin or bobbin case.
If you notice any abnormalities in the machine’s function, turn it off immediately and inform a mechanic or your superior. After finishing
work, turn the machine off and remove the plug from the electric socket. In case of power grid failure, disconnect the machine from the
power grid.
This machine is not a toy!
We hope that you will use this machine with pleasure for a long time.
TEXI X operation manual
1

USER’S MANUAL
The computer controlled direct drive button sewing machine TEXI, model X, is a high speed sewing machine, designed for sew-
ing woven or knitted materials or other textiles.
The machine is equipped with a closed oil circulation system, thanks to which the amount of used oil has been reduced to the
necessary minimum. The oil is located in a special closed container, instead of oil reservoir, thanks to which the risk of staining
of sewed elements is eliminated.
Attention!
The machine is not to be used for other materials than those for which it has been designed.
Non-observance of this rule places the user at risk and can cause irreversible damage to the machine.
Before use, the user should become acquainted with this instruction manual, general safety precautions and maintenance in-
structions.
1. Before starting work
1. After turning-on the machine and during its operation, do not touch the needle or put fingers into the thread take-up
guard.
2. During sewing, do not put fingers into the needle guard.
3. Before tilting the machine head or uninstalling guards, turn power off.
4. Turn machine off before leaving it unattended.
5. Do not allow hair, loose clothing, fingers or any objects to be in the vicinity of the pulley during machine run.
6. Do not clean the machine with paint thinner.
TEXI X operation manual
2

TECHNICAL SPECIFICATIONS
TEXI X
Sewing speed Max. 1,600 rpm (Normal
1,500 rpm)
Number of stitches 8, 16 and 32 stitches
(6, 12 and 24 by changing the cam)
Feed amount Lateral feed 2.5 to 6.5 mm Longitudinal feed 0, 2.5 to 6.5 mm
Button size 10 to 28 mm
Needle TQx1 #16 (#14 to #18) TQx7 #16 (#14 to #20)
Lubricating oil SPIRIT 2
INSTALLATION OF MACHINE HEAD
Put rubber cushion (1) on the table

place the machi-
ne head on the rubber cushion and fix it to the table
using screws (2) , plain washers
(
3) and nuts (4) .
LUBRICATION
Apply vaseline oil for sewing machines Spirit 2 to the components shown by the arrows. (Once or twice a week)
Loosen connecting screw (1) , tilt the head backward and apply some grease to driving worm gear (3) and gear (4).
Check, approximately once a week, that oil amount is sufficient to reach the top of the oil felt placed inside the bed moun-
ting base. If the amount of oil is insufficient, add an adequate amount of oil. At this time, also apply oil to crank rod (2).
TEXI Silence Matic Dry operation manual
3

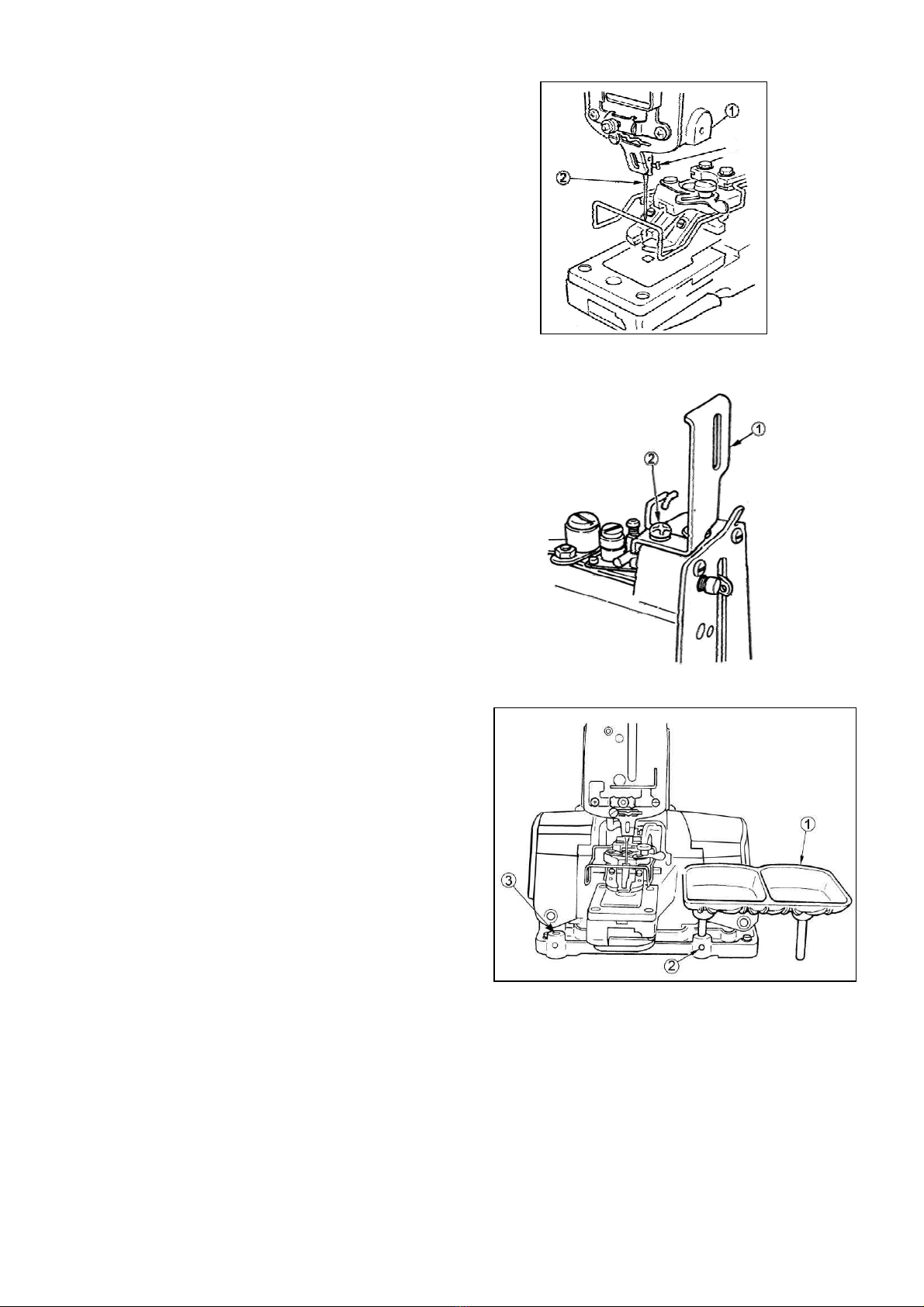

INSERTING THE NEEDLE
1. Loosen screw (1)
2. Insert needle (2) as far as possible.
3. Tighten screw (1).
ATTACHING THE NEEDLE BAR GUARD
1. Loosen screw (2) and remove the thread guide.
2. Place needle guard under the thread guide.
3. Fix the thread guide and needle guard together using screw (2).
ATTACHING THE BUTTON TRAY ASSEMBLY
Insert the posts of button tray (1) in hole on the right of the machi-
ne sub-base and tighten each sets crew (2) .
You may use also the installation hole on the left.
TEXI X operation manual
4

THREADING THE MACHINE
For threading the machine please check below drawing (thread the machine in order from 1-18).
THREAD TENSION ADJUSTMENT
Tension post No.1 is used to adjust the thread tension to sew on the
button and a relatively low tension will be enough.
Tension post No.2 is used to adjust the thread tension applied to the
root of the button sewing stitches.
This tension must be determined according to the type of thread, fabric
and thickness of the button and must be higher than tension set on
post No.1 .
Turn the tension nuts clockwise to increase or counterclockwise to
reduce the thread tension.
ADJUSTMENT OF THE THREAD PULL-OFF LEVER
To adjust the thread pull-off lever (1), insert a screwdriver through an
opening in the machine arm side cover (left), loosen screw (2) and
adjust the position of nipper bar block (rear) (3) to the left or the
right.
If the end of thread is drawn from arrow hole A in the button after
sewing, change the position of nipper bar block (rear) (3) to the left.
Move the lever to the right when the thread end comes out from
arrow hole B.
TEXI Silence Matic Dry operation manual
5

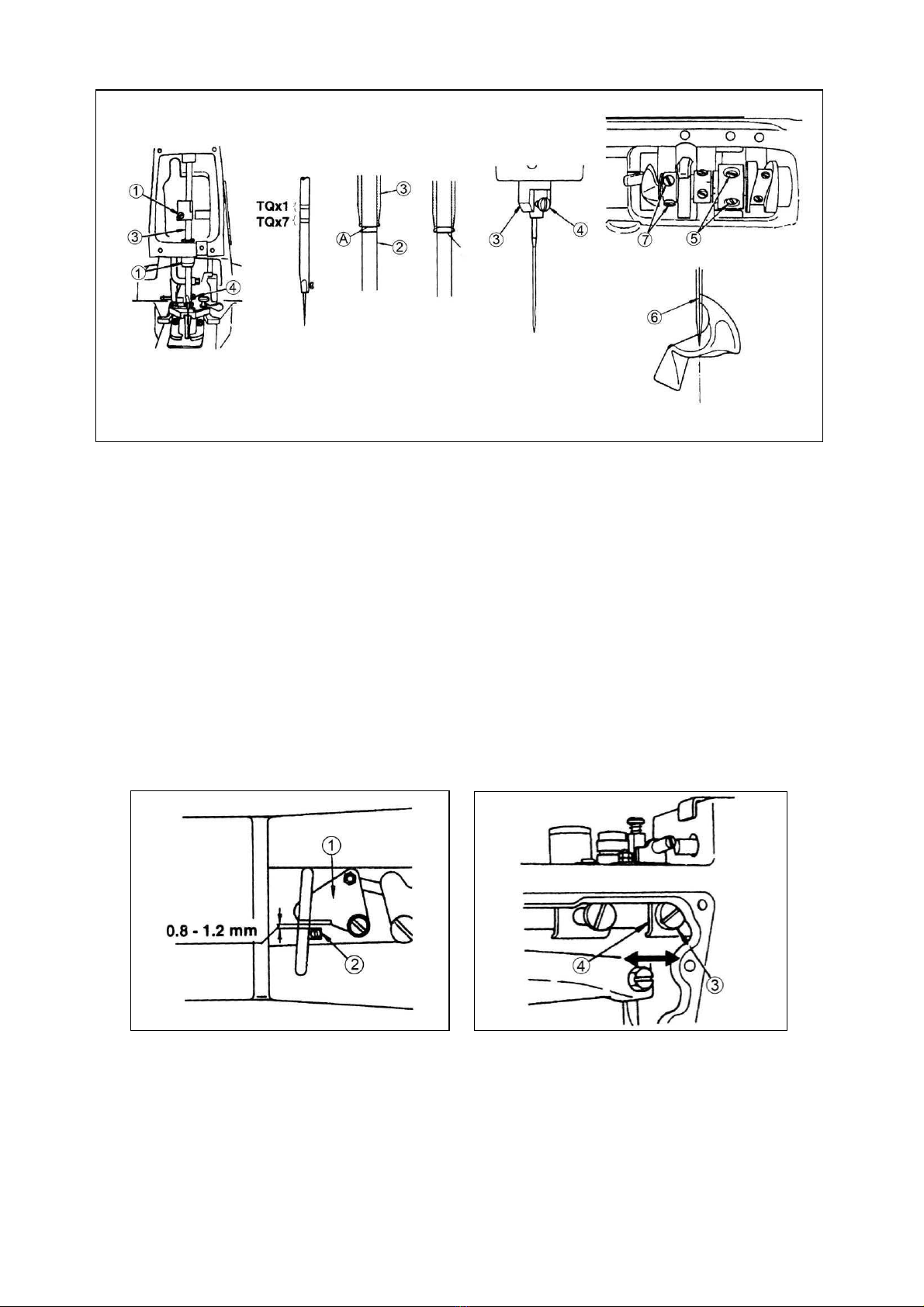

NEEDLE-TO-LOOPER RELATION
Adjust the needle-to-looper relation as follows:
1. Depress the pedal fully forward, turn the needle driving pulley in the normal sewing direction to bring down the needle bar
to the lowest point and loosen screw (1) .
(Adjusting the needle bar height)
2. Adjust the height of the needle bar using top two lines engraved on the needle bar for the TQxl needle and using the bot-
tom two lines for the TQx7 needle.
Align the upper line A with the bottom end face of needle bar bushing (lower) (3) and tighten screw (1) in the way that needle
clamp screw (4) rests in the slot of the needle bar bushing (lower) (3).
(Looper position)
3. Loosen screws (5) and turn by hand the needle driving pulley until lower line B of two lines aligns with the bottom end face
of needle bar bushing (lower) (3).
4. By keeping the machine in this state, align looper blade (6) with the center of the needle and tighten screws (5).
5. Loosen screws (7) and provide a 0.01 to 0.1 mm clearance between the looper and the needle. Tighten screws (7).
ADJUSTMENT OF THE NIPPER
Provide 0.8 to 1.2 mm clearance between nipper (1) and nipper block (2) to prevent the nipper from nipping the thread
while stitching. Loosen screw (3) and move nipper bar block (4) to the left or the right.
TEXI X operation manual
6

POSITION OF THE NEEDLE GUIDE
Loosen screw (2) and provide a 0.05 to 0.1 mm clearance be-
tween the needle guide (1) and the needle, by moving the nee-
dle guide (1) to the left or the right when the needle is in the
lowest position.
HEIGHT OF THE BUTTON CLAMP
The standard clearance (1) between the bottom face of button
clamp jaw lever (2) and the top face of feed plate A is 9 mm for
Texi X.
Loosen screw (3) and adjust the height of button clamp lifting
hook (4).
WORK PRESSING FORCE
The standard work pressing force is obtained by providing a 4 to 5 mm
clearance between the bottom face of nut (1) and the bottom end of the
screw of pressure adjusting bar (2).
ADJUSTMENT OF THE BUTTON CLAMP STOP LEVER
Set the machine for stop-motion state, loosen clamp screw (1), place a
button correctly in the sewing position and adjust button clamp stop
lever (2) to permit the button properly to rest on button clamp jaw levers
(3).
Tighten clamp screw after determining the distance
between the left and right jaw levers (1).
TEXI Silence Matic Dry operation manual
7

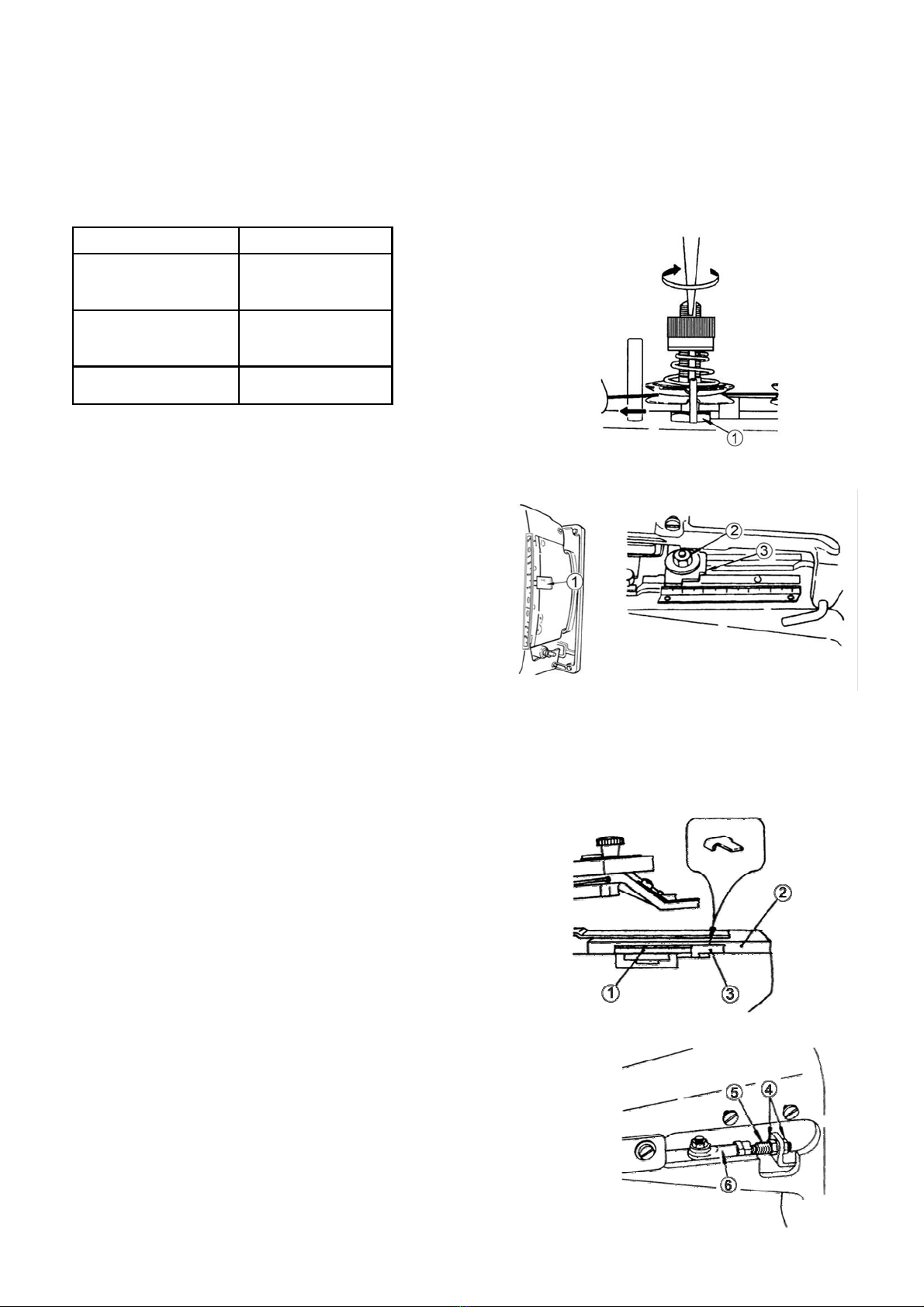

TIMING OF THREAD TENSION RELEASE
Tum the needle driving pulley as you draw the thread in the direction of the arrow as illustrated and you will find a point at
which the tension disc on the tension post No. 2 release the thread. At this moment, the standard distance from the top end of
the needle bar to the top end of the needle bar bushing (upper) is 44 to 47 mm. Perform the following adjustments especially
when the undermentioned troubles occur frequently.
Loosen nut (1) , insert the blade of a screwdriver to the top slot of the tension post No. 2 and turn it in the direction of the
arrow to lower the needle bar, (to reduce the said distance), and vice versa.
Phenomenon Height of needle bar
1. When the stch made
on the wrong side of the
workpiece is too loose;
Make the needle bar
slightl higher.
2. When the thread is
broken at the me of
stop-moon;
Make the needle bar
slightl higher.
3. When the thread is
broken frequentl ;
Make the needle bar
slightl lower.

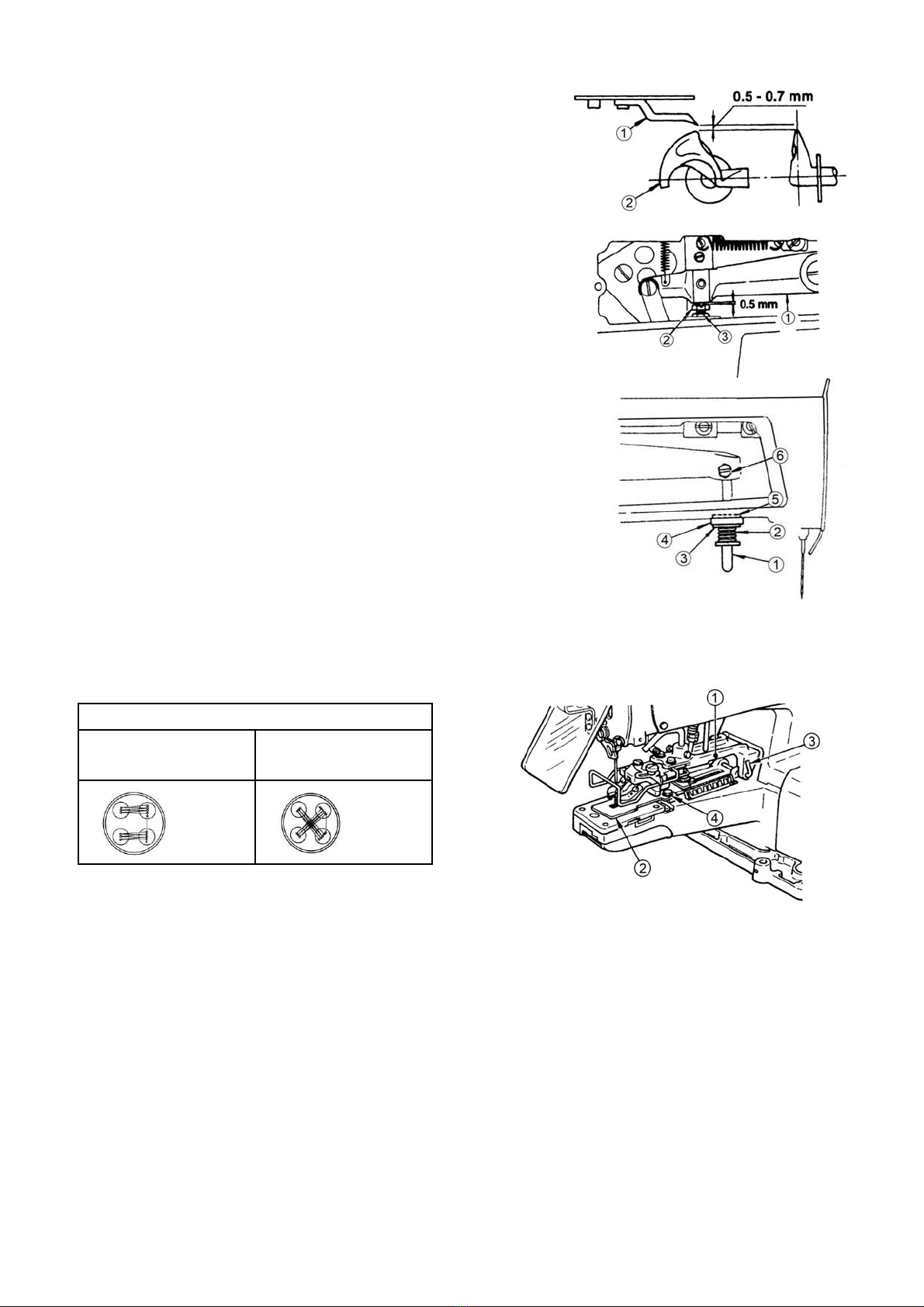

SETTING FOR 2- OR 4-HOLES BUTTONS
Measure the distance between two holes in a button and set equally
crosswise and lengthwise feed regulators for 4-hole buttons.
Lengthwise feed
Push down lengthwise feed adjusting lever (1) and set it to 0 for 2-
holes buttons or the corresponding amount for 4-holes buttons
Crosswise feed
Loosen nut (2) and set pointer (3) to a corresponding amount indicated by the crosswise feed regulation plate. Tighten firmly nut
(2).
Before operang the machine, ensure that the needle enters the center of each hole in the buon.
AUTOMATIC THREAD TRIMMER
Position of the moving knife
When the machine stops in the state of ―stop-motion" and
its button clamp assembly rests in the highest position, there
must be a standard clearance of 12.5 mm between thread trim-
ming connecting link (front) (1) and the end face of the slit in
throat plate (2). This clearance is determined by gauge (3) which
is stored in the accessory box; tilt the head backwards, remove
the bed oil shield, loosen two nuts (4) and adjust the clearance
by moving connecting screw (5) in the axial direction. When you
tighten two nuts (4), ensure that joint(6) stays in the horizontal
position.
TEXI X operation manual
8

STITCHES MODELS
TEXI X
8

16

32stitches 8

16

32 stitches
In order to install the attachment on the machine, you may have to remove the button clamp mechanism (1) or feed plate
(2). Dislocate a snap ring from button clamp installing stud (3)

and you will be able to remove button clamp mechanism
assembly (1) Loosen sets crews (4)

and you can remove feed plate (2) .
Height of the moving knife thread separation nail
There must be a 0.5 to 0.7 mm clearance between looper blade point (2)
and thread separation nail (1). If nail (1) does not provide the necessary
clearance, bend the nail slightly and adjust the clearance.
Clearance between the button clamp lifting lever and the adjusting screw
Provide a 0.5 mm clearance between button clamp
lifting lever (1) and adjusting screw (2) and then tighten nut 3).
How to set the L-shaped lifting rod
Put moving knife push-back spring (2), stop-motion rubber cushion washer
(3), stop-motion rubber cushion (4) and stop-motion rubber cushion washer
(5), in this order, to L-shaped lifting rod (1). After making sure that the stop-
motion mechanism has engaged completely, fix the L-shaped lifting rod by
tightening screw (6) in the way that the end face of the stop-motion rubber
cushion washer come into close contact with the jaw of the machine arm.
TEXI Silence Matic Dry operation manual
9

TEXI X operation manual
TROUBLES CAUSES CORRECTIVE MEASURES
1.Thread breakage
The yoke slide does not move in the cor-
rect way.
The thread tension post No. 2 fails to rele-
ase the thread at correct timing,
The thread nipper catches the thread
The needle does not enter the center of
the holes in the button.
The needle is too thick for the diameter of
the hole in the button.
Adjust the timing of the motion of the yoke
slide at each end.
Make the thread release timing slightly
earlier.
Adjust the position of the nipper bar block.
Adjust the button clamp jaw lever holder.
Replace the needle by a thinner one.
2.Buttons are not sewn
tightly
The yoke slide does not move in the cor-
rect way.
The thread tension post No. 2 fails to rele-
ase the thread at correct timing.
The thread tension post No. 2 does not
give sufficient tension.
The needle does not enter the center of
the holes in the button.
The work pressing force is too high or too
low.
Adjust the timing of the motion of the yoke
slide at each end.
Make the thread release timing slightly
later.
Tighten the tension nut of tension post
No.2.
Adjust the button clamp jaw lever holder.
Adjust the work pressing force
properly.
3.The first stitch trails rela-
tively Jong thread from
the right side of the but-
ton The thread pull-off lever does not
work properly. Ø Adjust the thread pull-off lever by the nipper bar block (rear).
4.Thread trimming failure in
the state of stop- motion
The thread tension post No. 2 fails to rele-
ase the thread at correct timing.
The needle hits the edge of the holes in
the button.
The button clamp assembly does not rise
to the necessary height.
The thread nipper fails to press the thre-
ad.
The work pressing force is too high.
Make the thread release timing slightly
later to give more tension to the sti-
tches
Adjust the button clamp jaw lever holder.
Provide a 12 mm clearance between the
feed plate and the button clamp jaw
levers when rose.
Adjust the nipper bar block.
Adjust the work pressing force by the
pressure adjusting nut.
5.Thread trimming failure
(1)he moving knife does not separate the
thread on the fabric with its separa-
tion nail`
(2) The needle does not enter the center
of the holes in the button.
(3)The last stitch skips.
(4)The moving knife thread separation
nail is too high or too low.
Adjust the position of the moving knife.
Adjust the button clamp jaw lever holders.
Adjust the looper.
Adjust the height of the moving knife thre-
ad separation nail.
6.The needle thread is cut in
two places on the wrong
side of the fabric
The moving knife is set in wrong place.
The moving knife thread separation nail is
too high or too low.
Adjust the position of the moving knife
when the machine is in the stop-
motion state.
Adjust the height of the thread separation
nail.
7.Button traits too long thre-
ad after thread trimming
Timing of the moving knife motion is
wrong.
The button clamp assembly rises too
much.
Adjust the position of the moving knife.
Reduce the button clamp lift down to 9
mm.
10

Parts Book
BUTTON CLAMP MECHANISM COMPONENTS
TEXI X parts book
11

code DESCRIPTION
1  1 PICK-UP DEVICE ASM.
2 40902001 1 BUTTON CLAMP LIFTING HOOK
3 402S14006 1 SCREW 15/64-28 L=9
4 409S12001 2 SCREW 3/16-32 L=13.5
5 40928001 2 WASHER 5×10.5×1
6 300145 1 BUTTON CLAMP HOULDER
7 409S11002 1 SCREW 9/64-40 L=3.5
8 4091600100 1 BUTTON CLAMP
9 40912002 1 JAW LEVER HOLDER
10 409S20002 1 HINGE SCREW D=5.5 H=1.8
11 409S20003 1 CLAMP SCREW A
12 40912003 1 SNAP FASTENER CLAMP STOP LEVER
13 409S16001 1 NUT
14 40901003 1 BUTTON CLAMP SLIDE
15 409S20004 2 BUTTON CLAMP STOP PIN
16 40912005 1 BUTTON CLAMP LEVER JAW(LEFT)
17 40912006 1 BUTTON HOLDING SPRING LEFT
18 409S20005 2 HINGE SCREW D=6.35 H=3.9
19 409S11002 1 SCREW 9/64-40 L=3.5
20 40927001 1 BUTTON CLAMP SPRING
21 40912008 1 BUTTON CLAMP LEVER JAW RIGHT
22 40912009 1 BUTTON HOLDING SPRING RIGHT
23 402S14006 1 SCREW 15/64-28 L=9
24 409S30016 1 BUTTON CLAMP PRESSUER ADJUSTIN
25 40927002 1 PRESSUER ADJUSTING SPRING
26 409S16003 2 NUT M6
27 40927003 1 FINGER GUARD
29 40902002 1 HINGE PIN
30 H05007 1 SNAP PIN
31 401S16002 1 NUT 15/64-28
32 409S30001 1 PICK-UP DEVICE STOPPER PIN
TEXI X parts book
12

ARM & MISCELLANEOUS COVERS COMPONENTS
TEXI X parts book
13

ARM & MI CELLANEOU COVER COMPONENT
DESCRIPTION
1 4091206200 1 FACE PLATE COMPL
2 406S11009 4 SCREW
3 40927004 1 TENSION SPRING
4 40902003 1 NIPPER RELEASING STOP
5 409S11003 1 SCREW
6 40913002 1 THREAD GUIDE NO.4
7 4091301400 1 THREAD TENSION NO.3 ASM.
8 40913015 1 TENSION ADJUSTING BASE NO.3
9 40913016 1 THREAD PRESSER PLATE
10 40927020 1 TENSION SPRING B
11 409S30017 1 THREAD TENSION STUD
12 409S16026 2 THREAD TENSION NUT
13 H05002 1 E-RING 3.2
14 406S11009 8 SCREW
15 40922005 1 RUBBER PLUG
16 40912063 1 SIDE COVER RIGHT
17 40937008 1 SAFETY LABEL
18 40912064 1 SIDE COVER LEFT
19 S05024 4 SCREW M8 L=30
22 P02001 2 GUIDE PIN
23 409S30018 1 SET SCREW
24 40912016 1 BED OIL SHELD
25 402S14006 1 SCREW
26 4091100100 1 BUTTON TRAY ASM
29 40228001 1 SPRING WASHER 6.5×14.0×17
30 40911007 1 SIDE COVER LEFT
31 40912066 1 LOOPER COVER
32 40912067 2 SIDE COVER SPRING
33 409S11006 2 SCREW M4 L=6
34 409S11007 2 SCREW
35 40923013 1 OIL DRIP FELT
36 409S20006 1 SHOULDER SCREW D=6 H=2.7
39 40902019 1 SIDE COVER HINGE SHAFT LEFT
42 402S14006 1 SCREW M6 L=6
43 40122017 1 RUBBER PLUG
45 40112008 2 SAFETY PLATE
46 40911006 2 SAFETY PLATE
47 409S11008 2 SCREW M4 L=6
48 40928002 1 SPRING WASHER 5.0×110
TEXI X parts book
14

49 402S20032 1 HINGE SCREW D=6 H=2.5
50 40128001 1 SPRING
51 40912020 1 SAFETY PLATE INSTALLING BASE
52 401S16004 1 NUT SM15/64-28
53 40901028 1 MORTOR BASE
54 413S13012 4 SCREW M5 L=20
55 40901032 1 FIXED SEAT
56 409S11003 2 SCREW SM3/16-28
57 406S11009 2 SCREW SM11/64-40
58 40911009 1 MOTOR COVER
59 409S11003 2 SCREW SM3/16-28
60 40901022 1 OIL RESERVOIR
TEXI X parts book
15
