Texi Catenaccio User manual

TEXI Catenaccio operation manual
Operaon manual
High speed bartack sewing machine
Catenaccio

TEXI Catenaccio operation manual

TEXI Catenaccio operation manual
CONTENTS
SAFETY REGULATIONS …………………………………………………………………………………………………………...
[1] SPECIFICATIONS ……………………………………………………………………………………………………………...
[2] CONFIGURATION .......................................................................................................................................................
1. Names of main unit ............................................................................................................................................
2. Names and explanation of switches on the operation panel ..............................................................................
[3] INSTALLATION ............................................................................................................................................................
1. Installing the electrical box .................................................................................................................................
2. Attaching the connecting rod ..............................................................................................................................
3. Installing the head support rod ...........................................................................................................................
4. Installing and connecting the power switch ........................................................................................................
5. Installation of the sewing machine head .............................................................................................................
6.Installing the drain receiver and the head support rubber ...................................................................................
7. Safety switch ......................................................................................................................................................
8. Tilting the sewing machine head ........................................................................................................................
9. Installing the operation panel .............................................................................................................................
10. Connecting the cord ...........................................................................................................................................
11. Installing the motor cover ...................................................................................................................................
12. Installing the eye protection cover ......................................................................................................................
13. Installing the thread stand ..................................................................................................................................
[4] OPERATION OF THE SEWING MACHINE ................................................................................................................
1. Lubrication ……………………….……………………………………………………………………………………….
2. Attaching the needle ..........................................................................................................................................
3. Threading the machine head .............................................................................................................................
4. Installing and removing the bobbin case ............................................................................................................
5. Installing the bobbin ...........................................................................................................................................
6. Adjusting the thread tension ...............................................................................................................................
7. Adjusting the thread take-up spring ....................................................................................................................
[5] OPERATION OF THE SEWING MACHINE .................................................................................................................
1. Item data setting..................................................................................................................................................
2. Checking the contour of a sewing pattern...........................................................................................................
3. Sewing.................................................................................................................................................................
4. Change to the other sewing pattern....................................................................................................................
5. Winding a bobbin.................................................................................................................................................
6. Independent Thread-trimming Device.................................................................................................................
7. Thread-catching Device......................................................................................................................................
8. Bottom Thread Counter.......................................................................................................................................
9. Pause..................................................................................................................................................................
10. Set P Pattern & C Pattern...................................................................................................................................
10-1. Use Pattern Key（ ）for Sewing ...........................................................
10-2. Sewing with Combination Functions .......................................................................................................
3
5
6
6
7
8
8
8
8
8
9
9
10
10
10
11
11
11
12
12
12
13
13
14
14
14
15
15
15
17
17
18
18
19
19
20
20
21
21
23

2
TEXI Catenaccio operation manual
11. Debugging Mode ..............................................................................................................................................
11-1. CP-1(Input Signal Test) ......................................................................................................................
11-2. CP-2(Check X/Y Motor/Origin Sensor) ...............................................................................................
11-3. CP-3(Continuous Running) ................................................................................................................
11-4. CP-4(Test Main Motor Speed) ............................................................................................................
11-5. CP-5 (Adjustment on Thread-trimming) ...............................................................................................
11-6. CP-6(Test Presser Origin Sensor) ......................................................................................................
11-7. CP-7(Test Thread-catching Motor/ Origin Sensor) .............................................................................
12. Parameter Setting .............................................................................................................................................
12-1. Specific Operations on Setting Parameters ...........................................................................................
12-2. Example for Setting Parameters ............................................................................................................
12-3. Table for Parameter Setting ...................................................................................................................
[6] MAINTENANCE ..........................................................................................................................................................
1. Adjusting the height of the needle bar ...............................................................................................................
2. Adjusting the needle-to-shuttle relation .............................................................................................................
3. Adjusting the lift of the work clamp foot .............................................................................................................
4. The moving knife and counter knife ..................................................................................................................
5. Needle thread clamp device ..............................................................................................................................
6. Adjustment of the wiper .....................................................................................................................................
7. Draining waste oil ..............................................................................................................................................
8. Amount of oil supplied to the hook ....................................................................................................................
9. Replenishing the designated places with grease ..............................................................................................
[7] Table of the standard patterns and the standard patterns ..........................................................................................
1. List of Standard Figure ......................................................................................................................................
2. Table of the standard patterns ..........................................................................................................................
[8] Table of the optional parts ..........................................................................................................................................
List of error information ……………………………………………………………………………………………….…………....
Troubles and corrective measures (sewing conditions).....................................................................................................
The System Diagram of the electricity controls..................................................................................................................
25
27
28
29
29
31
32
33
34
34
34
38
40
40
40
41
42
42
43
43
43
44
45
45
49
50
51
52
54

3
TEXI Catenaccio operation manual
IMPORTANT SAFETY INSTRUCTIONS
Putting sewing systems into operation is prohibited until it has been ascertained that the sewing systems in which these
sewing machines will be built into, have conformed with the safety regulations in your country. Technical service for those
sewing systems is also prohibited.
1. Observe the basic safety measures, including, but not limited to the following ones, whenever you use the machine.
2. Read all the instructions, including, but not limited to this Instruction Manual before you use the machine. In addition, keep
this Instruction Manual so that you may read it at anytime when necessary.
3. Use the machine after it has been ascertained that it conforms with safety rules/standards valid in your country.
4. All safety devices must be in position when the machine is ready for work or in operation. The operation without the
specified safety devices is not allowed.
5. This machine shall be operated by appropriately-trained operators.
6. For your personal protection, we recommend that you wear safety glasses.
7. For the following, turn off the power switch or disconnect the power plug of the machine from the receptacle.
7-1 For threading needle, looper, spreader etc. and replacing bobbin.
7-2 For replacing parts of needle, presser foot, throat plate, looper, spreader, feed dog, needle guard, folder, cloth guide
7-3 For repair work.
7-4 When leaving the working place or when the working place is unattended.
7-5 When using clutch motors without applying brake, it has to be waited until the motor stopped totally.
8. If you should allow oil, grease, etc. used with the machine and devices to come in contact with your eyes or skin or
swallow any of such liquid by mistake, immediately wash the contacted areas and consult a medical doctor.
9. Tampering with the live parts and devices, regardless of whether the machine is powered, is prohibited.
10. Repair, remodeling and adjustment works must only be done by appropriately trained technicians or specially skilled
personnel. Only spare parts designated by Texi can be used for repairs.
11. General maintenance and inspection works have to be done by appropriately trained personnel.
12. Repair and maintenance works of electrical components shall be conducted by qualified electric technicians or under
the audit and guidance of specially skilled personnel. Whenever you find a failure of any of electrical components,
immediately stop the machine.
13. Before making repair and maintenance works on the machine equipped with pneumatic parts such as an air cylinder, the
air compressor has to be detached from the machine and the compressed air supply has to be cut off. Existing residual
air pressure after disconnecting the air compressor from the machine has to be expelled. Exceptions to this are only
adjustments and performance checks done by appropriately trained technicians or specially skilled personnel.
14. Periodically clean the machine throughout the period of use.
15. Grounding the machine is always necessary for the normal operation of the machine. The machine has to be operated in
an environment that is free from strong noise sources such as high-frequency welder.
16. An appropriate power plug has to be attached to the machine by electric technicians. Power plug has to be connected to
a grounded receptacle.
17. The machine is only allowed to be used for the purpose intended. Other used are not allowed.
18. Remodel or modify the machine in accordance with the safety rules/standards while taking all the effective safety
measures. Producer assumes no responsibility for damage caused by remodeling or modification of the machine.
19. Warning hints are marked with the two shown symbols.

4
TEXI Catenaccio operation manual
Danger of injury to operator or service staff
Items requiring special attention
FOR SAFE OPERATION
1. To avoid electrical shock hazards, neither open the cover of the electrical box for the motor nor touch the com-
ponents mounted inside the electrical box.
2. After changing the pattern, make sure the needle entry point. If the pattern is protruded from the work clamp
feet, the needle will interfere with the work clamp feet during sewing, and it is dangerous due to the needle
breakage or the like.
3. Do not turn OFF the power in a state that the needle is lowered. Wiper may break the needle.
1. When nothing is displayed in the operation panel even when the power switch is turned ON, turn OFF the power
switch and check the voltage and the type of the power source.
2. So as to prevent possible accidents caused by abrupt start of the sewing machine, depress the start switch after
ascertaining that there is no interfering thing under the needle when winding the bobbin thread.
3. When turning OFF the power switch, turning ON the ready switch or turning ON the work clamp foot switch, the
work clamp feet automatically come down. So, never place your fingers under the work clamp feet to prevent
possible accidents caused by abrupt start of the sewing machine. During operation, be careful not to allow your
fingers to come close to the work clamp feet.
4. So as to prevent possible accidents caused by the touch of the fingers with the needle, install a finger guard
suitable for each work clamp foot when replacing the work clamp foot.
1 There is the possibility that slight to serious injury or death may be caused.
There is the possibility that injury may be caused by touching moving part.
2 To perform sewing work with safety guard.
To perform sewing work with safety cover.
To perform sewing work with safety protection device.
3 Turn OFF the power and perform “threading”, “replacement of bobbin
or needle”, “cleaning”, “adjustment” and “lubrication”.

5
TEXI Catenaccio operation manual
EXPLANATION OF TEXI COMPUTER-CONTROLLED HIGHSPEED BARTACKING MACHINE
［1］SPECIFICATIONS
1. Sewing area： X (lateral) direction 40 mm
Y(longitudinal) direction30 mm
2. Max. sewing speed： 3000 rpm
(when sewing pitches are less than 5mm in X-direction and 3.5mm in Y-direction)
3. Stitch length： 0.1-10 mm (adjustable in 0.1 mm step)
4. Feed motion of work clamp foot：Intermittent feed (2-shaft drive by stepping motor)
5. Needle bar stroke： 1.2mm
6. Needle： DPX5 (135x5) DPX17 (135X17)
7. Lift of work clamp foot： 13 mm (standard) Max.17 mm
8. Shuttle： standard semi-rotary hook （oil wick lubrication）
9. lubricating： oil 10# (supplied by oiler)
10. Date recoring： EPROM
11. Enlarging/Reducing facility： 20% to 200% (1% step) in X-direction and Y-direction respectively
12. Enlarging/Reducing： Patten enlargement/reduction can be done by increasing/decreasing the stitch
length
13. Max. Sewing speed limitation： 400 to 3000 rpm（100 rpm）
14. Pattern selection： Specifying pattern No.type（1 to 200）
15. Bobbin thread counter： UP/DOWN taye（0-9999）
16. Sewing machine motor： Servo motor
17. Dimensions： W：1200 mm L：540 mm H：1100 mm
18. Weight： Machine head 50 Kg Control box 6 Kg
19. Power consumption： 0.6KW
20. Operating temperature range： 5°C to 35°C
21. Operating humidity range： 5% to 85%（No dew condensation）
22. Line voltage： Rated voltage ±10% 50-60Hz

6
TEXI Catenaccio operation manual
［2］CONFIGURATION

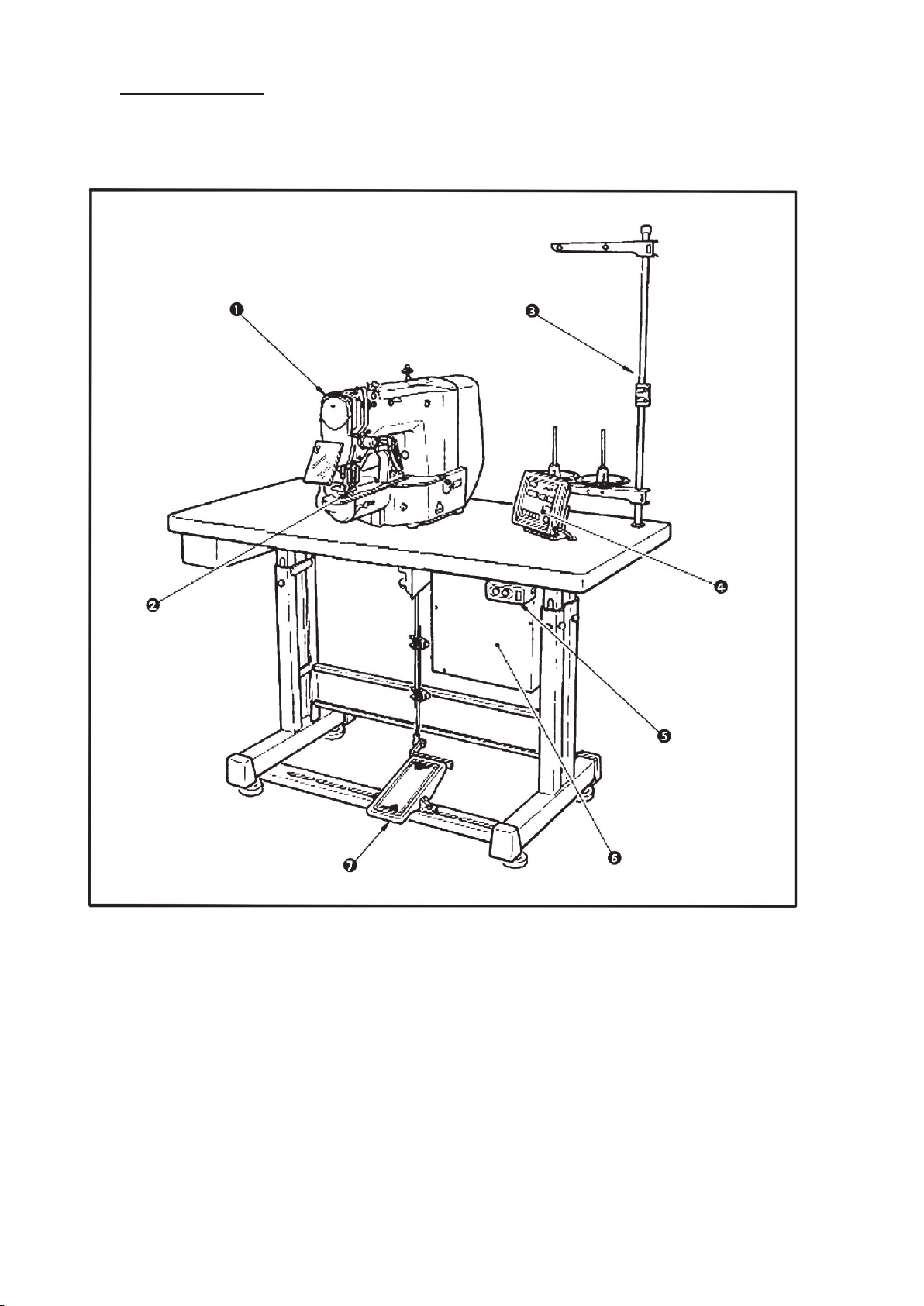

1. Names of main unit
1) Machine head
2) Work clamp feet
3) Thread stand
4) Operation panel
5) Power switch
6) Control box
7) Pedal switch

7
TEXI Catenaccio operation manual
2. Name & Description of Buttons on Control Panel
1. Ready Key
Key for shifting between the setting/programming status of control panel and the sewing status of sewing machine;
2. Sewing LED
It is set as: “ON” at sewing status, “OFF” at programming status. User can use the Ready Key for shifting between these two
statuses;
3. Reset Key
Release the error and restore the set value to the default value;
4. Mode Key
When the Sewing LED is off, this key can activate the functions for setting parameters or storing the patterns; when the
Sewing LED is on, this key can activate the siding function for threading actions, which will be automatically turned off in 20
seconds.
5. ＋/Feed Forward Key & －/Feed Backward Key
These two keys are applicable for changing pattern number, rate of scale and feeding cloth forward/backward.
6. Selection Key
Select the set item. The Item Selection LED and the set value of the selected item will be displayed.
7. Data Display LED
This LED indicates the set value of the selected items such as the pattern number, scale rate and so on.
8. Item Selection LED
The LED of the selected item will be on.
9. Thread-catching ON/OFF Key
The Validity/Invalidity of thread-catching function can be selected. When it is set as Validity, the Thread-catching Display
LED will be on.
10. Thread-catching Display LED
When the LED is on, the machine will catch the thread.
11. Pattern Storage Key
Store the pattern. The stored pattern can be put into sewing as long as user presses this key. The changes in scale rate,
sewing position and so on can also be stored.
NOTE：Texi set to needle thread clamp prohibited with memory switch. No35 at the time of standard delivery.

8
TEXI Catenaccio operation manual
［3］INSTALLATION
1. Installing the electrical box
2. Attaching the connecting rod
3. Installing the head support rod
4. Installing and connecting the power switch
Install the electrical box on the underside of the table at
the location illustrated using round-head bolt (1), plain
washer (2), spring washer (3) and nut (4) supplied with
the machine
FIX connecting rod (1) to installing hole B of pedal lever
(2) with nut (3). When connecting rod (1) is installed in
installing hole A, the depressing stroke of the pedal is
increased.
Drive head support rod (1) in hole (2) in the machine
table.
Fix power switch (1) under the machine table with
screws (2).
Fix the cable with staples (3) supplied with the machine
as accessories in accordance with the forms of use.

9
TEXI Catenaccio operation manual
5. Installation of the sewing machine head
6. Installing the drain receiver and the head support rubber
1). Fit hinge rubber ① to the hinge shaft, and fix the
sewing machine main unit.
2). The flat pad (2), elastic pad (3), nut icn (4)followed
by a fixed, pay attention to the locking nut (4)force,
if twisted too tightly, then the shock result is not
satisfactory.
WARNING: To prevent possible accidents caused by the full of the sewing machine, perform the work
by two persons or more when the machine is moved.
1). Fix drain receiver (2) in the installing hole of table (1)
with four setscrews (3). Screw in drain bin (4) to
drain receiver (2). Insert sewing machine drain pipe
(5) into drain bin (2).
2). Insert head support rubber (6) into table (1).
Insert drain pipe (5) until it will go on
further so that it does not come off drain bin (4)
when tilting the machine head.

10
TEXI Catenaccio operation manual
7. Safety switch
Cut off the safety switches cable ties which be fixed under the machine , safety switches will be installed in the machine
as shown here, with screw lock, overturning the head, checking the suitability of the safety switch mounting position, heads
up is required, Table board to open the safety switch top picks, picks of safety switches and safety switches do not touch,
otherwise the error E302.
8. Tilting the sewing machine head
9. Installing the operation panel
Use four wood screws (1) fix the operator panel (2) on the table (3) in a comfortable operation position, then the operator
panel (2) corresponding wire hole through the table (3), and then dock with the other side.
1. If you do not remove the safety switch, and installed in the correct position, machine will can’t sewing;
2. Safety switches installed, if happen error E302, please adjust the security switch down, to ensure
the safety switch picks with the table adequate contacts.
Turn head (1) gently down , and leaning the head on
the head supporting bar at (2).
1. Before tilting the sewing machine head,
make sure that head support rod (1) is
attached to the machine table;
2. When raising the sewing machine head,
do not raise it while holding motor cover
(2).It will be the cause of breakage of motor
cover (2).
3. Be sure to tilt the sewing machine head on
a flat place to prevent it from falling.

11
TEXI Catenaccio operation manual
10. Connecting the cord
Please let the motor cable, the signal line of the machine head connect with the electronic control box according to online
identity, make sure the connection is correct, there is no omission.
11. Installing the motor cover
12. Installing the eye protection cover
Install motor cover (1) on the machine main unit with screws
supplied with the machine as accessories.
WARNING: Be sure to attach this cover to protect the eyes from the disperse of needle breakage.
The eye shield in the accessories box should been installed
in the head on the left.

12
TEXI Catenaccio operation manual
13. Managing the cord
［4］OPERATION OF THE SEWING MACHINE
1. Lubrication

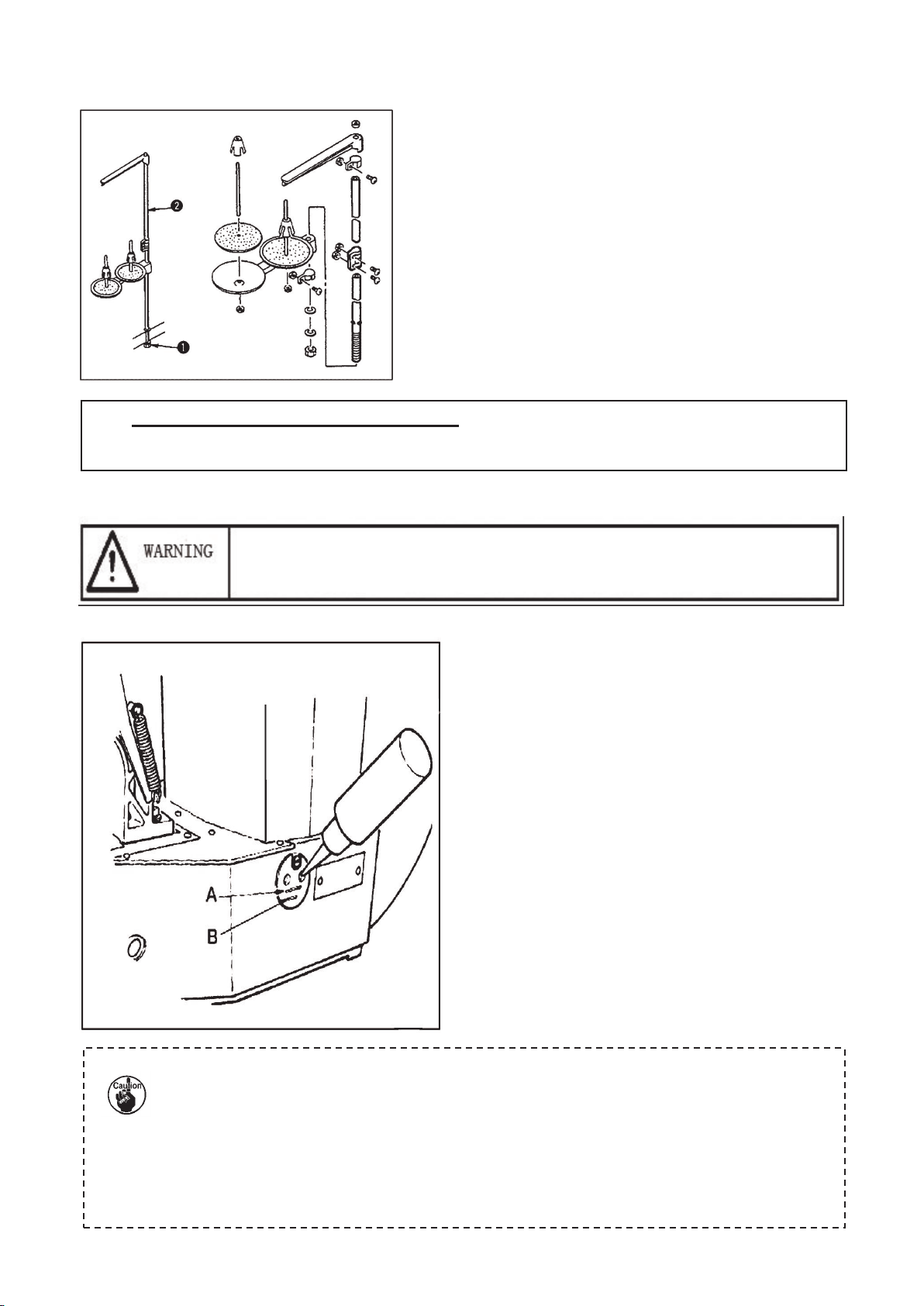

Turn of the power before starting the work so as to prevent accidents caused by
abrupt start of the sewing machine
The line frame in the accessory box should be installed
in Table.
Check that the place between lower line Band upper line
A is filled with oil . Fill there with oil using the oiler supplied
with the machine as accessories when oil is short.
* The oil tank which is filled with oil is only for lubricating
to the hook portion.It is possible to reduce the oil amount
when the number of rotation used is low and the oil
amount in the hook portion is excessive. (Refer to 8.
Amount of oil supplied to hen kook of [7] maintenance)
1. Do not lubricate to the places other than the oil tank and the hook of Caution 2 below.
Trouble of components will be caused.
2. When using the sewing machine for the first time or after an extended period of disuse use the machine
after lubricating a small amount of oil to the hook portion.(Refer to2.Adjusting the needle-to-shuttle
relation of [7] MAINTENANCE.

13
TEXI Catenaccio operation manual
2. Attaching the needle
3. Threading the machine head
Pull out the thread by approximately 4cm from the needle after threading through the needle.
Turn of the power before starting the work so as to prevent accidents caused by
abrupt start of the sewing machine

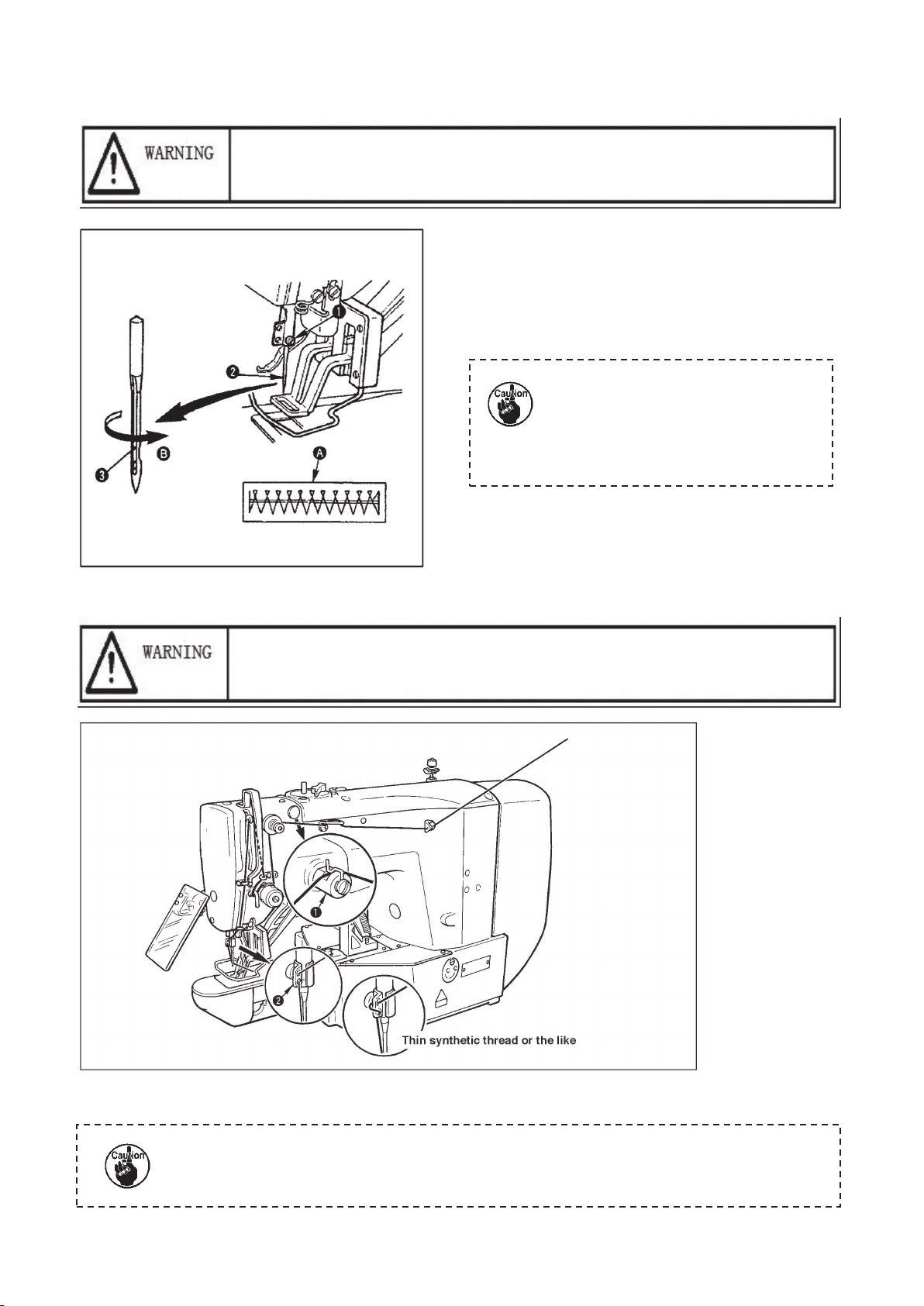

Loosen setscrew (1) and hold needle (2) with the long
groove facing toward you.Then fully insert it into the hole
in the needle bar, and tighten setscrew (1).
If the stitches are made as shown in "A",
attach the needle facing to the direction B"
to a small extent.
Turn of the power before starting the work so as to prevent accidents caused by
abrupt start of the sewing machine
1.When the silicon oil is used, thread through thread guide for silicon (1)
2.For thick thread, pass the thread through one hole only of needle bar thread guide (2)

14
TEXI Catenaccio operation manual
4. Installing and removing the bobbin case
5. Installing the bobbin
6. Adjusting the thread tension
Turn of the power before starting the work so as to prevent accidents caused
by abrupt start of the sewing machine

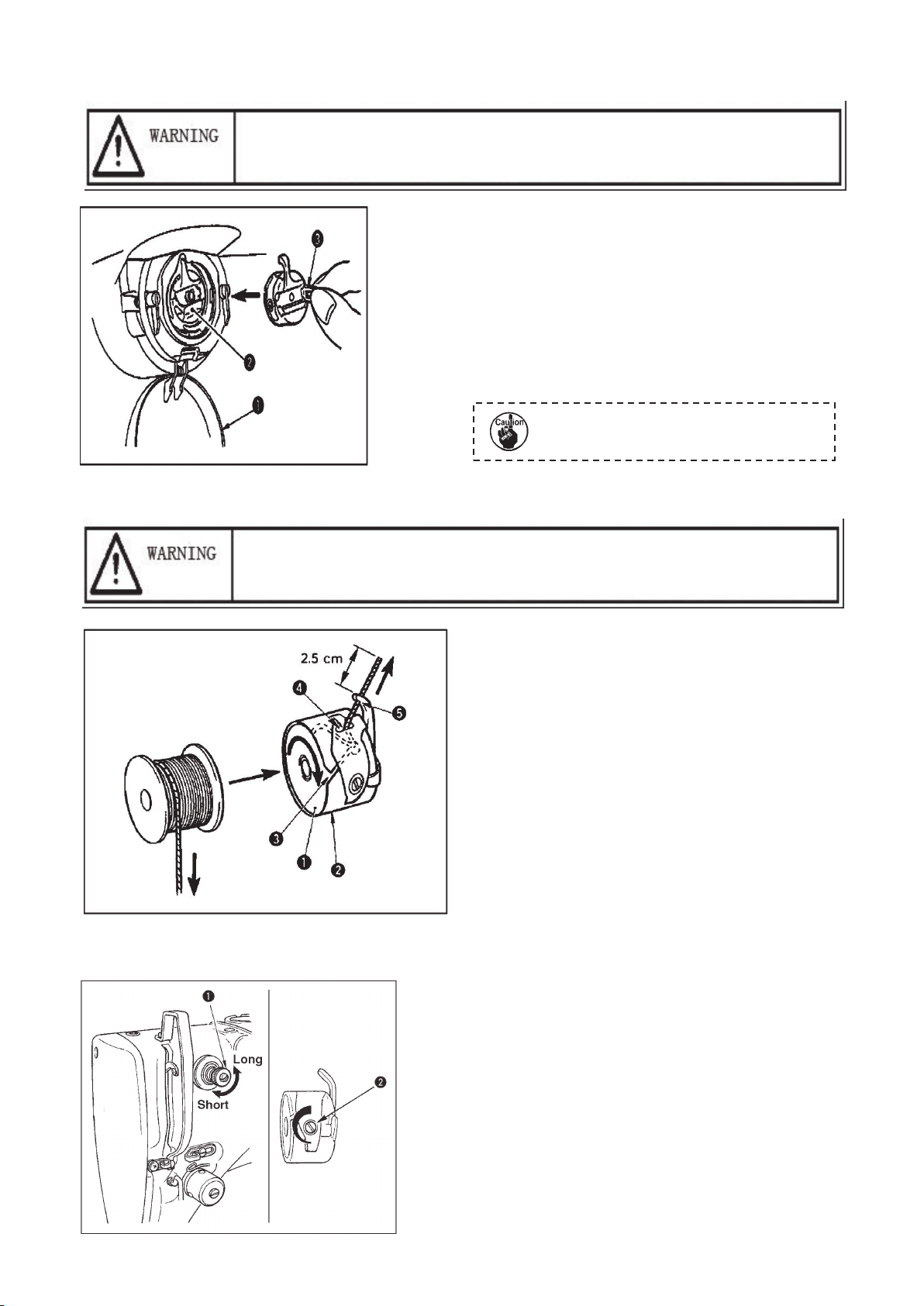

1). Open hook cover (1)
2). Raise latch (3) of bobbin case (2)，and remove
the bobbin case.
3). When installing the bobbin case, fully insert it into
the shuttle shaft, and close the latch.
Turn of the power before starting the work so as to prevent accidents caused
by abrupt start of the sewing machine
If it is not fully inserted, bobbin case (2) may
slip off during sewing.
1). Set the bobbin (1) into bobbin case (2) in the direction
shown in the figure.
2). Pass the thread through thread slit (3) of bobbin case
(2)，and pull the thread as it is. By so doing, the thread
will pass under the tension spring and be pulled out
from thread hole (4).
3). Pass the thread through thread hole (5) of the horn
section, and pull out the thread by 2.5cm from the thre-
ad hole.
If thread tension controller No.1 (1) is turn clockwise,
the length of remaining thread on the needle after thread
trimming will be shorter. If it turned counterclockwise,
the length will be longer.
Shorten the length to an extent that the thread is not
slipped off.
Adjust needle thread tension from the operation panel
and bobbin thread tension with (2).

15
TEXI Catenaccio operation manual
7. Adjusting the thread take-up spring
［5］OPERATION OF THE SEWING MACHINE
1. Settings of Item Data
Please set the items in the following sequence:
(1). Turn ON the power switch.
The pattern number of the item selection is lit up, and the pattern number will be displayed at data display part.
(2). Setting of the pattern No.
(3). Setting of the X scale

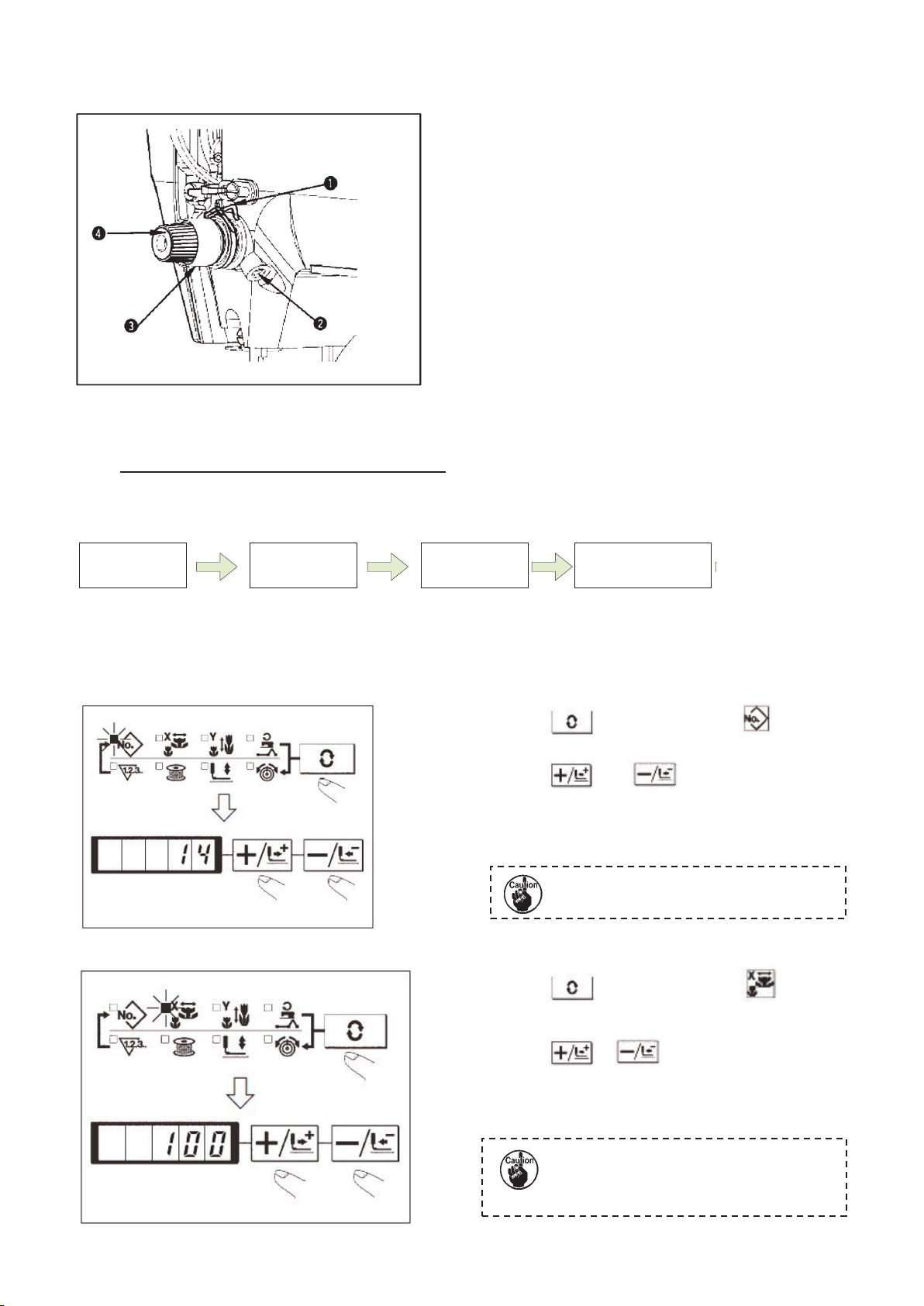

The standard stroke of thread take-up spring (1) is 8 to 10 mm,
and the pressure at the start is 0.1 to 0.3N.
1). Adjusting the stroke
Loosen setscrew (2), and turn thread tension asm. (3).
Turning it clockwise will increase the moving amount and
the thread drawing amount will increase.
2). Adjusting the pressure
To change the pressure of the thread take-up spring, insert
a thin screwdriver into the slot of thread tension post (4)
while screw (2) is tightened, and turn it. Turning it clockwise
will increase the pressure of the thread take-up spring.
Turning it counterclockwise will decrease the pressure.
1. Press , and then the LED of will be on.
2. Press and to display 14 in the Data
Display LED
(We take No.14 pattern as an example.)
Refer the pattern No. to the separate table.
Setting of the
pattern No.
Setting of the
X scale
Setting of the
Y scale
Setting of the
max. sewing
speed limitation
Setting End
1. Press , and then the LED of will be
displayed.
2.Press & to display 100 at Data
Display LED
(The Scale Rate in X Direction is set as 100%)
The setting exceeding 100% is dangerous
since needle and the cloth presser interferes
with each other and needle breakage or the
like will occur.

16
TEXI Catenaccio operation manual
(4). Setting of Scale Rate in Y scale
(5). Setting of Limitation on Max Speed
(6). Setting End
Press to record the set values like pattern number, X/Y scale rate and so on.
Press to reconfirm each set item, but the Sewing LED can’t changes its status.
Press to turn off the Sewing LED, then each set value of item can be changed
When the pattern number is 0 (the default setting), pressing will activate the error “E-10”. At this time, please
press the Reset Key to reconfirm the pattern number.

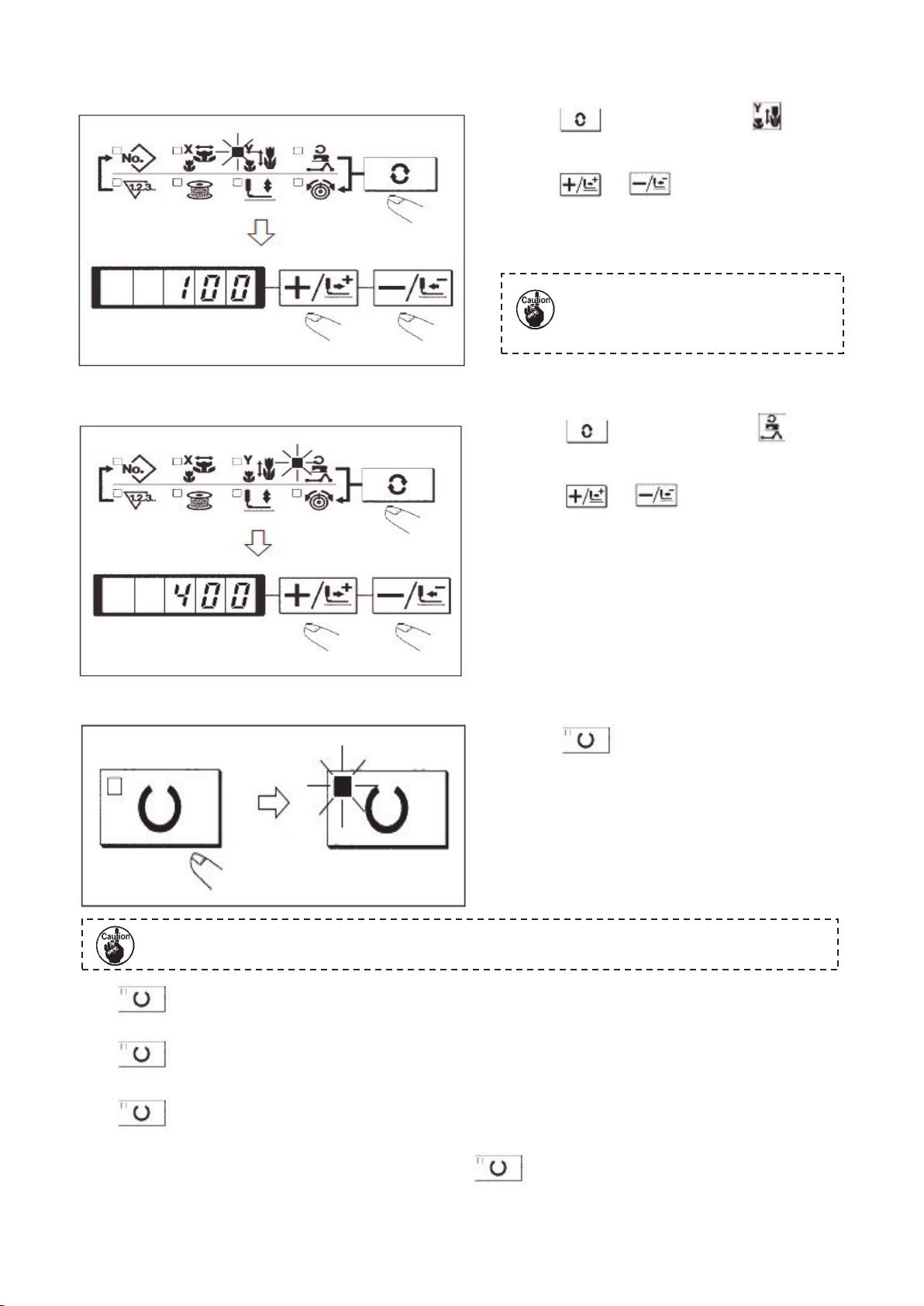

1.Press , and then the LED of will be
displayed.
2.Press & to display 100 at Data
Display LED.
(The Scale Rate in Y Direction is set as 100%)
The setting exceeding 100% is dangerous
since needle and the cloth presser
interferes with each other and needle
breakage or the like will occur.
1.Press , and then the LED of will
be displayed.
2.Press & to display 400 at Data
Display LED
(The limitation is set as 400 rpm)
1. Press .
2. After the presser goes up, the Sewing LED is on.
At this time the system is in the sewing status.
When the presser is raised, be careful that fingers are not caught in the presser since the presser moves
after having lowered.

17
TEXI Catenaccio operation manual
When turning OFF the power without pressing key, the set values of pattern No., X/Y scale, number
of max. rotation, and thread tension are not memorized.
2. Confirmation of Pattern Shape
3. Sewing
After selecting the pattern, user shall confirm the shape of the pattern.
If the pattern is far away from the presser, the needle will run into the presser, thus breaks the needle.

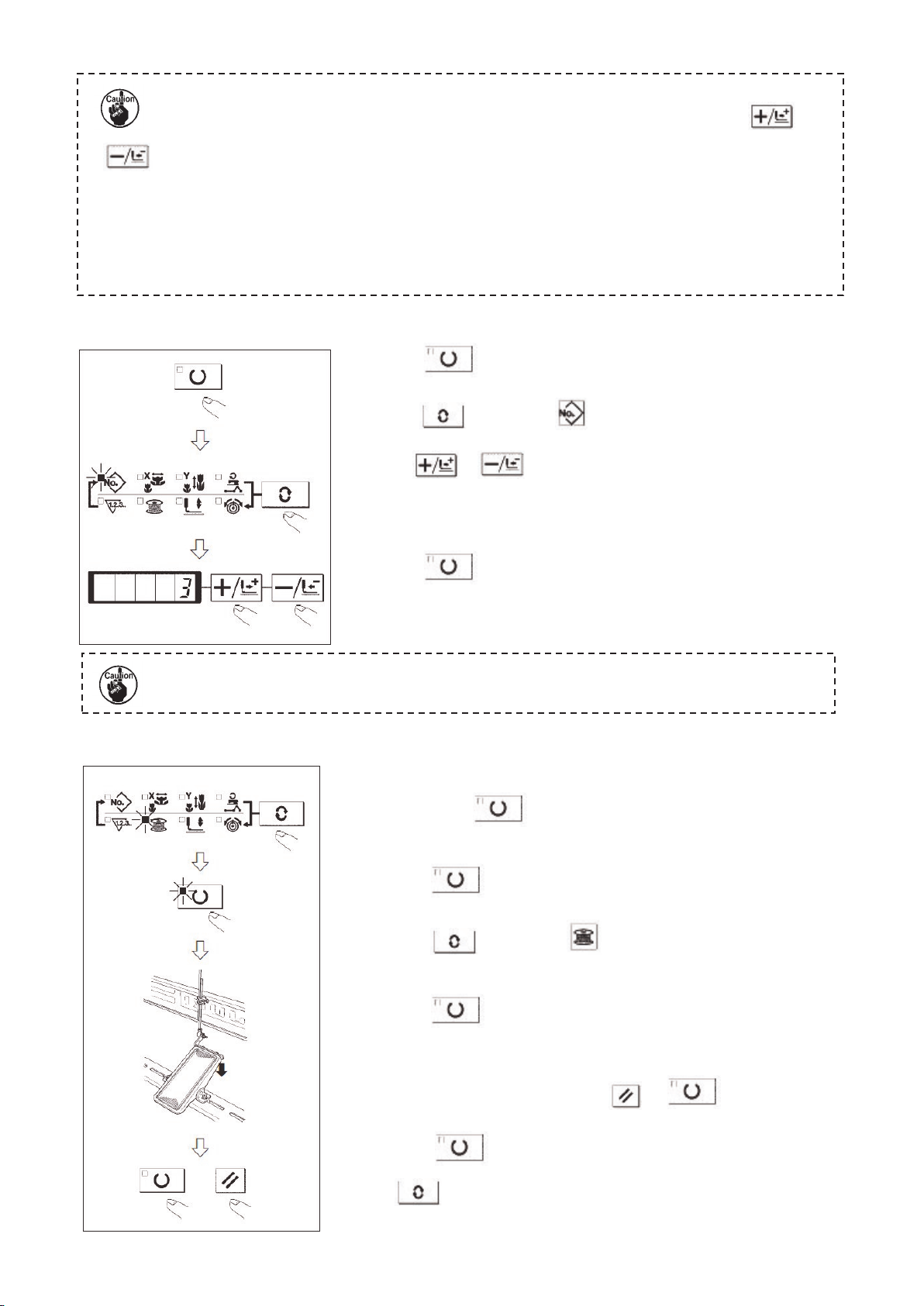

1. Press to light up the Sewing LED
2. Press to select , and then the screen
displays ; step the pedal to lower the
presser and then the screen displays
3. In the status of lowering the presser, press .
4. Use and to confirm the shape.
The confirmed pattern for sewing shall be in the permitted
range of the presser.
5. Press to lift presser.
6. Press to release the selection of (select
other data item other than ). After that, press
to end the trial sewing and Sewing LED will be off.
The work clamp feet do not come down immediately aer turning ON the power.
1. Put the fabric to the presser section
2. Step on the pedal switch to the level 1, then the presser
goes down. If you detach the foot from the pedal,
the presser will go up.
3. Lower the presser to the next level, and then depress
the pedal to the second level to start sewing
4. At sewing end, the presser will go up and stop at the initial
position.

18
TEXI Catenaccio operation manual
Attention 1：When depressing the pedal to level 1 and lowering the presser, the user can press
& to change the sewing position of pattern. Then the user could start sewing at the selected position by
depressing the pedal to level 2. During the sewing, for the problems like thread-breakage, user can use this method for
mending after releasing the malfunction
Attention 2： Don’t apply the operations in Attention 1 into the operation of pattern trial sewing, in case the user
depresses the pedal to level 2 by mistake, thus start the machine and cause the dangerous. For the operations in trial
sewing, user shall strictly follow the descriptions of 【Confirmation of Pattern Shape】in the above sector.
4. Change to Other Patterns
5. Winding
1. Press to turn of the Sewing LED.
2. Press to select the .
3. Use & to set pattern number.
4. Set the X/Y scale rate, speed and so on in the same way.
5. Press to turn on the Sewing LED, thus have access
to Sewing status.
After selecting the pattern, user shall confirm the shape of the pattern.
If the pattern is far away from the presser, the needle will run into the presser, thus breaks the needle.
The winding device will not work just after power-on. Please set a pattern
code and press to turn on the Sewing LED before the winding
operation.
1．Press to turn off Sewing LED.
2．Press to select the . (It is unable to select when the
Sewing LED is on).
3．Press to lower the presser and turn on the Sewing LED.
4. Depress the pedal to start the sewing machine
5．Depress the pedal switch or press or to stop machine
6．Press to turn off the Sewing LED and lift the presser. Then
become valid.
