Safety notes
•You may not set-up and use this device in the following surroundings:
Outdoors
In damp or wet spaces (bath, shower, swimming pool, etc.)
In hazardous environments
In locations exposed to direct sunlight
At ambient temperatures below 0 °C or above 40 °C
In case of strong vibrations or shocks
In dusty environments
•Only use a soft, damp cloth to clean the device. Do not use chemicals or abrasive
cleaners.
•During a thunder storm you should neither phone nor connect or disconnect any lines
(electrical shock hazard in case of a lightning strike)
•Opening the device and conducting improper repairs may hazard the user.
•Disposal of this device must be carried out according to local regulations.
•Please note that in case of mains outage emergency calls cannot be placed.
•Only such devices may be connected to the phone, which deliver safety extra low voltage
(SELV).
•Only headsets with integrated volume limiter for hearing protection according to EN
60950 may be used.
•Make sure that the connecting lines are installed carefully so that no one can trip over the
cable. Connected cables must not be bent excessively or subjected to mechanical strain.
•Connecting cables must be wired inside buildings only (Danger of electrical shock due to
transients).
•In case of malfunctions disconnect power cord and all communication lines.
•Before opening the device, unplug any communication lines.
In case of operating the device with external AC adapter:
•Only the original AC adapter (Article-No. 3054051) may be used (Danger of electrical
shock and/or fire)
•The AC adapter must be easily accessible so that it can be removed from the wall outlet
any time in case of danger.

tiptel 3010 User Manual
7
•In case of malfunction remove the AC adapter from the wall outlet and disconnect any
communication lines.
•Before opening the device remove the AC adapter from the wall outlet and disconnect
any communication lines.
•The device, AC adapter (inclusive, has been developed and manufactured in compliance
with Standard EN 60950 "Safety of information technology equipment".
•Any changes or modifications not expressly approved by the manufacturer can void the
user's authority to operate the equipment.
Getting Started
Packing List
The package contains the following parts, please check if all the items are not missed:
1. The phone device
2. The footstand

tiptel 3010 User Manual
8
3. Handset
4. Headset cord
5. Power adapter (optional)

tiptel 3010 User Manual
9
6. Ethernet cable
7. Quick installation reference

tiptel 3010 User Manual
10
Phone Installation
1. Attach the Foot stand
2. Connect the Handset and optional Headset

tiptel 3010 User Manual
11

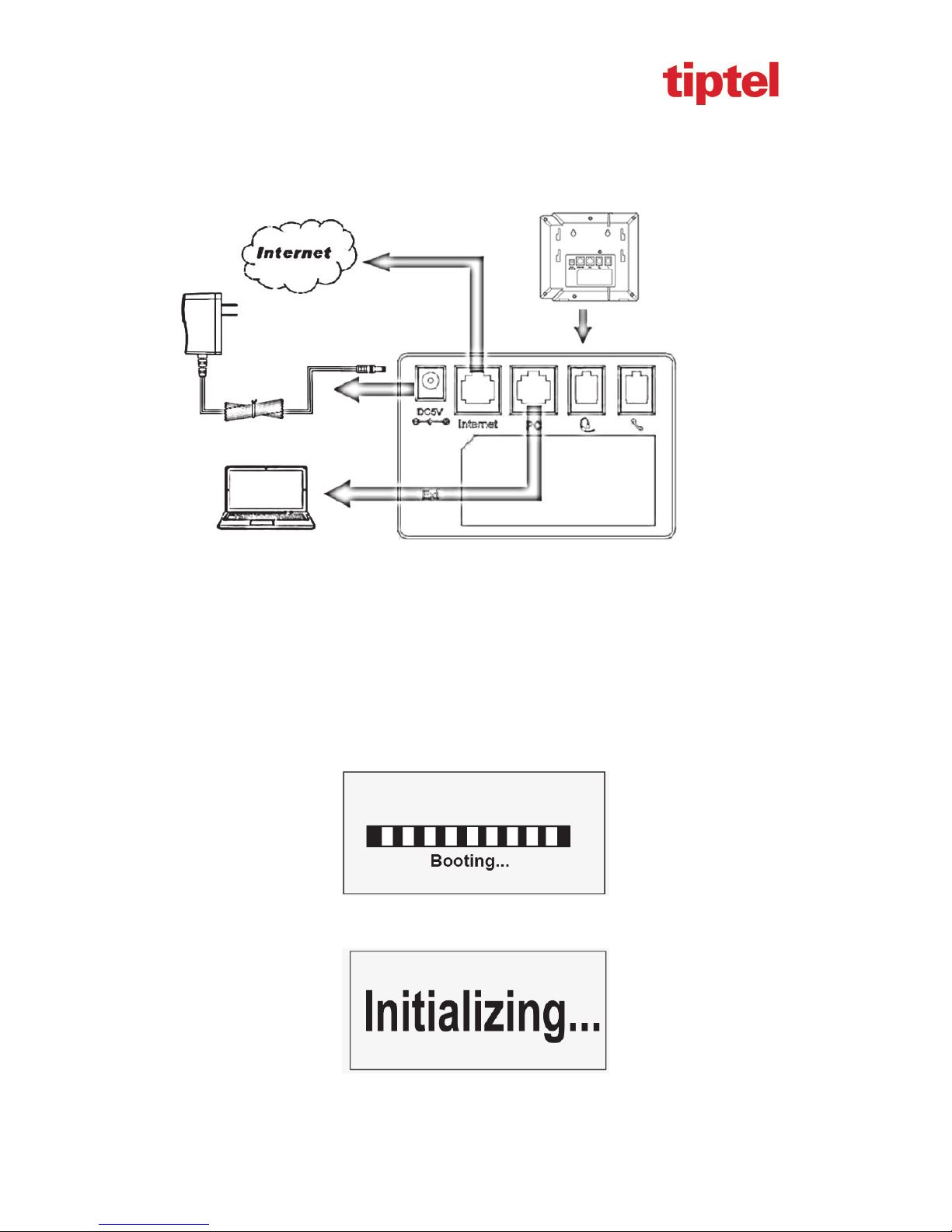

3. Connect the Network and Power
Initialization
After your phone has been powered up, the system boots up and performs the following steps:
Automatic Phone Initialization
The phone finishes the initialization process by loading the saved configuration. The phone LCD
screen will display "Booting"
And then show “Initializing “during the initialization.

tiptel 3010 User Manual
12
By default the phone attempts to contact a DHCP server in your network in order to obtain its
valid network settings, e.g. IP address, subnet mask, default gateway, DNS server.

tiptel 3010 User Manual
13
Getting Familiar with Your Phone

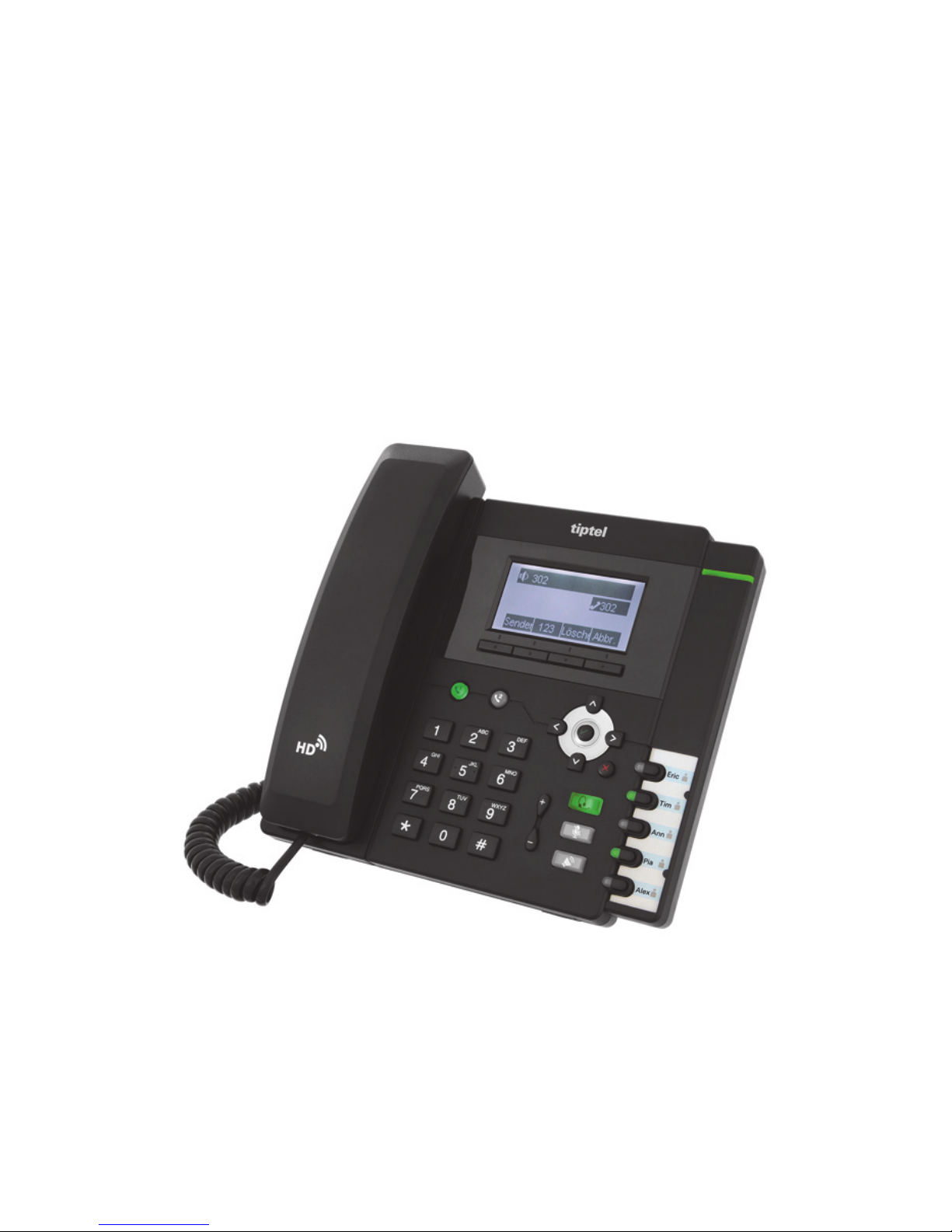

Hardware Components Preview
Item Description
LCD screen To Presentation all information about the date& time, accounts,
soft keys, messages, calls and other some information.
Power Indicator LED To indicate the power status
Line keys
The phone supported up to 4 accounts
1. Steady green: idle interface, during a call..
2. Blink red: a call incoming
Soft keys Labels automatically to identity their context-sensitive features.

tiptel 3010 User Manual
14
Navigation keys
1. OK.
Up arrow key: To move up of the selection shows on the
screen.
Right arrow key: To move right of the selection
shows on the screen.
Left arrow key: To move left of the selection shows on
the screen.
Down arrow key: To move down of the selection shows
on the screen.
1. To return to idle screen.
2. To cancel the information or call on the screen.
Mute key 1. To mute the voice during the call (green light).
2. To un-mute the call.
Memory Keys
To be configured as different function as:
1. Line
2. Speed Dial
3. BLF
4. BLF List
5. Voice mail
6. Direct Pickup
7. Group Pickup
8. Call Park
9. Intercom
10. DTMF
11. Prefix

tiptel 3010 User Manual
15
12. Hold
13. Conference
14. DND
15. Redial
16. Transfer
17. SMS
18. Hot Desking
19. Call Return
20. Paging
21. Record
22. Shared Line
The LED lights status when set as Shared line:
Stay green: Idle
Stay red: Busy
Blinked green: Ring Back
Blinked red: A call incoming
Steady orange: During a call
Blinked orange: Public Hold
Blinked green: Private Hold
Light Drown: Unregistered
Speaker Press this button to place a call in hands-free mode.
Vo l u m e
To decrease the volume.
To increase the volume.
Alphanumeric keypad To enter the phone numbers, letters and so on.

tiptel 3010 User Manual
16
Message To indicator the New message, and press to read.
Headset To indicate that the phone is or not in Headset mode.
Icon Preview
Icon Description
Network
Registered succeed
Unregistered
Speakerphone mode
Handset mode
Headset mode
Mute
Forward
Do Not Disturb
Received calls
Dialed Calls

tiptel 3010 User Manual
17
Memory Key Function Overview
Line
Speed Dial
BLF
BLF List
Voice Mail
Direct Pick Up
Group Pick Up
Call Park
Intercom
DTMF
Prefix
Conference
Forward
Transfer
Missed calls
Forward calls

tiptel 3010 User Manual
18
Hold
DND
Redial
Call Return
Record
URL Record
Paging
Group Listening
Public Hold
Private Hold
Shared Line
URL

tiptel 3010 User Manual
19
Basic Features Configuration
This part will mainly introduce the basic configuration as the Time, Language, and Volume…
Web Login
1. Get the IP address: Press Menu →Status→Information
2. Input the IP Address in the web browser.
3. Input the user name (default is admin), password (default is admin).
4. Login successfully.

tiptel 3010 User Manual
20
Note:
The PC and phone should be in the same segment.
When register the accounts in web and the server port is not “5060”, then “SIP Server”
should be set as “SIP Server’s IP address: server port.”, for example, “192.168.0.122: 5090”.
Administrator Password
The password is mainly used for login the web interface or set the advanced settings through
phone interface. And the default password of the administrator is: admin

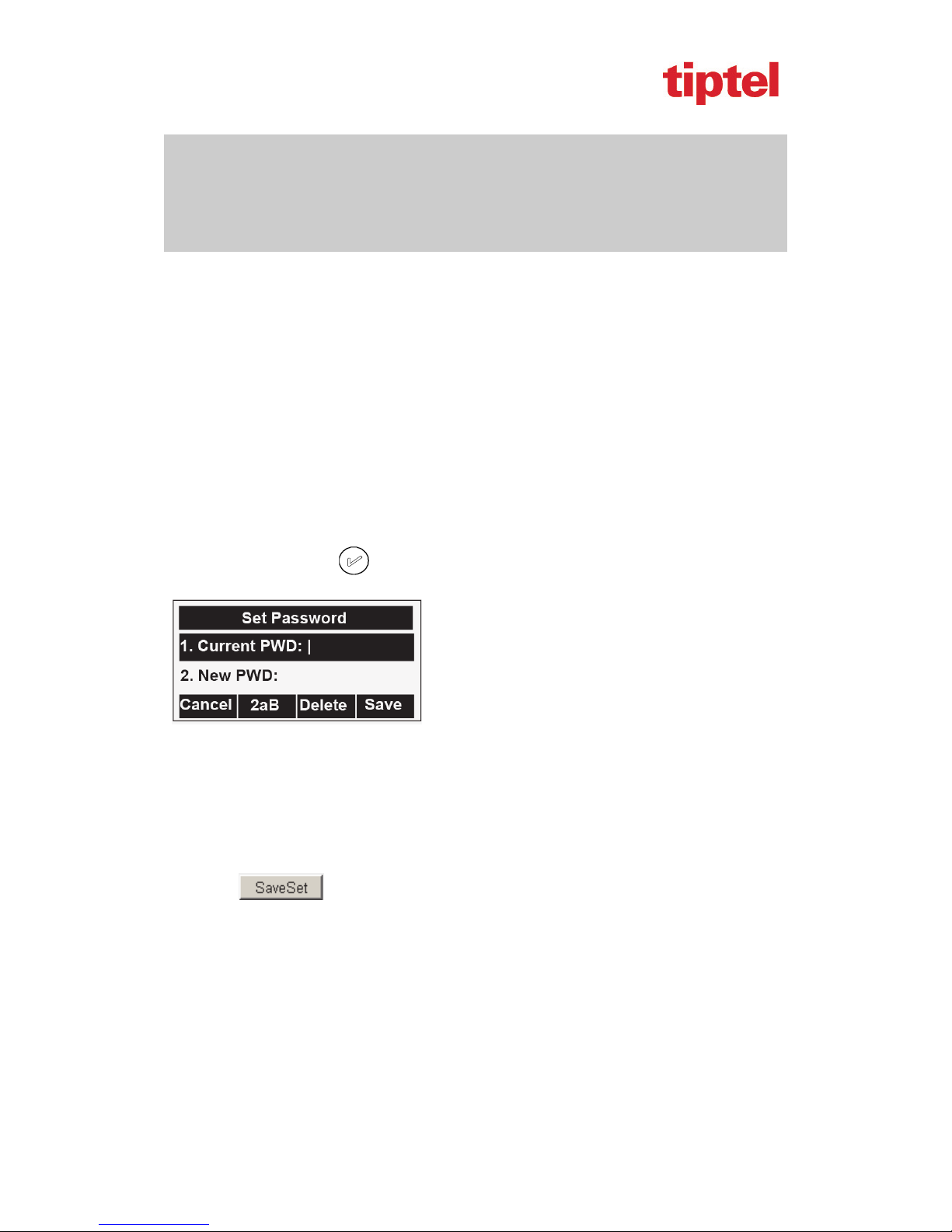

To change to password via Phone Interface
1. Press Menu →setting →Advanced settings →password (default admin) →Phone
Setting →Set Password
2. Enter the current PWD (password), new password and confirm the new password.
3. Press save soft key or to save the new password.
To change to password via Web Interface
1. Management →Password
2. Fill the value
3. Click to save the configuration.
