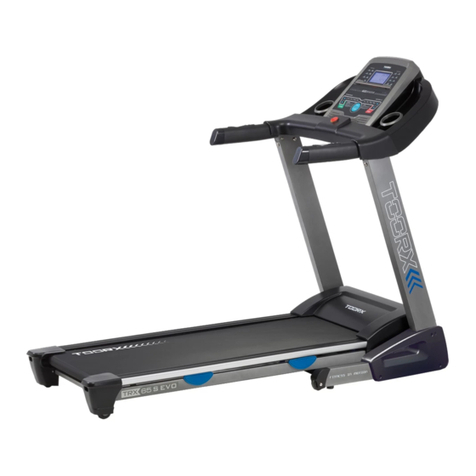

TOORX TRX 65 S User manual

TOORX

TOORX TRX 65 S User manual

Popular Fitness Equipment manuals by other brands

Revitive Arthritis-Knee user manual

Revitive

Revitive Arthritis-Knee user manual

Domyos BM100 operating instructions

Domyos

Domyos BM100 operating instructions

Movement EDGE PUXADA ALTA Assembly manual

Movement

Movement EDGE PUXADA ALTA Assembly manual

Lifeline LLUWB-BLK owner's manual

Lifeline

Lifeline LLUWB-BLK owner's manual

Precor CW-816 Assembly guide

Precor

Precor CW-816 Assembly guide

Balanced Body Precision Rotator Discs manual

Balanced Body

Balanced Body Precision Rotator Discs manual

G-FITNESS AIR ROWER user manual

G-FITNESS

G-FITNESS AIR ROWER user manual

CAPITAL SPORTS Dominate Edition 10028796 manual

CAPITAL SPORTS

CAPITAL SPORTS Dominate Edition 10028796 manual

Martin System TT4FK user guide

Martin System

Martin System TT4FK user guide

CIRCLE FITNESS E7 owner's manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual

G-FITNESS TZ-6017 user manual

G-FITNESS

G-FITNESS TZ-6017 user manual

Accelerated Care Plus OMNISTIM FX2 CYCLE/WALK user manual

Accelerated Care Plus

Accelerated Care Plus OMNISTIM FX2 CYCLE/WALK user manual

pedalo 20230165 manual

pedalo

pedalo 20230165 manual

Saebo SaeboStim Pro Instructions for use

Saebo

Saebo SaeboStim Pro Instructions for use

Performance HyperVibe User instructions

Performance

Performance HyperVibe User instructions

Scalamobil S27 Operator's manual

Scalamobil

Scalamobil S27 Operator's manual

Precor Experience Series Service manual

Precor

Precor Experience Series Service manual

FYTTER RedMIUM BENCH BE-T6R manual

FYTTER

FYTTER RedMIUM BENCH BE-T6R manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Ed : Rev : Cod :
INSTRUCTION
12/22 GRLDTOORXCSX2000600001
SINGLE PULLEY
CABLE CROSSOVER
Page 4of 14
1)Step 1
After Installation
List for this step
Model
Name
Spec
Qty
1
Base Stabilizer(L)
1
2
Base Stabilizer(R)
1
3
Rear connection
1
4
Medium connection
1
5
Front connection
1
6
Leveling damping pad
4
30
Hex Bolt
M10*70
8
31
Washer
Φ10
24
32
Aircraft Nut
M10
12
33
Hex Bolt
M10*60
4
Page 5of 14
2)Step 2
After Installation
List for this step
Model
Name
Spec
Qty
7
Upright Support(L)
1
8
Upright Support(R)
1
9
Hook
6
10
Guard plate holder
8
34
Hex cup head bolt
M5*16
12
35
Hex cup head bolt
M6*16
16
36
Washer
Φ6
16
Page 6of 14
3)Step 3
After Installation
List for this step
Model
Name
Spec
Qty
7
Upright Support
(L)
1
8
Upright Support
(R)
1
11
Weight Plate
Holder
1
30
Hex Bolt
M10*70
4
31
Washer
Φ10
16
32
Aircraft Nut
M10
8
37
Hex Bolt
M10*120
4
Page 7of 14
4)Step 4
After Installation
List for this step
Model
Name
Spec
Qty
12
Guide Rod
2
13
Top connecting tube
1
14
Shock pad
2
15
Weight set
19
16
Top Weight
1
17
Guide sleeve
2
18
Selector rod
1
19
Open elastic pin
1
20
150 Pulley Bracket
1
21
Selector pin
1
30
Hex Bolt
M10*70
6
31
Washer
Φ10
14
32
Aircraft Nut
M10
4
52
Hex Bolt
M10*20
2
Page 8of 14
5)Step 5
After Installation
List for this step
Model
Name
Spec
Qty
22
Upper
connection
1
23
Adjusting tube
set
1
24
pulley support
frame set
1
30
Hex Bolt
M10*70
3
31
Washer
Φ10
8
32
Aircraft Nut
M10
4
38
Hex Bolt
M10*50
1
Page 9of 14
6)Step 6
After Installation
List for this step
Model
Name
Spec
Qty
25
Pulley Bracket
5
26
Pulley
Φ110
8
27
Pulley Cover
4
28
Pulley Cover 2
4
29
Double Floating
Pulley Bracket
2
43
Pulley
Φ150
1
38
Hex Bolt
M10*50
9
31
Washer
Φ10
16
32
Aircraft Nut
M10
6
39
Pulley
Φ90
1
40
Hex Bolt
M12*110
2
41
Washer
Φ12
4
42
Aircraft Nut
M12
2
37
Hex Bolt
M10*120
1
7)Step 7
Page 10 of 14
Page 11 of 14
8)Step 8
After Installation
List for this step
Model
Name
Spec
Qty
45
Front protecting
cover
1
46
Back protecting
cover
1
35
Hex cup head bolt
M6*16
16
Page 12 of 14
9)Step 9
After Installation
List for this step
Model
Name
Spec
Qty
47
Handrail
2
48
Hex Bolt
M10*25
4
31
Washer
Φ10
4
