TOORX SRX3500 User manual

Ed : 10/18 Rev : 00 Cod : GRLDTOORXSRX3500
INSTRUCTION
iConsole App Manual
www.toorx.it/iconsole

CHECK LIST (CONTENTS OF PACKAGE):
( mm)
KH- 848
M8x1. 25x20L 8PCS
D15. 4xD8. 2x2T 8PCS
D16xD8. 5x1. 2T 8PCS
5
6
7
2PCS
12
STEP- 1
M5*10L 1PCS97
STEP- 3
M5*0. 8*15L 2PCS
86
STEP- 4
41 1pcs
x1
x1
x1
x1
x1
x1
x1
1 2
3
13
14
x1
x1
x2
x1
x1
x1
79
13
15
6

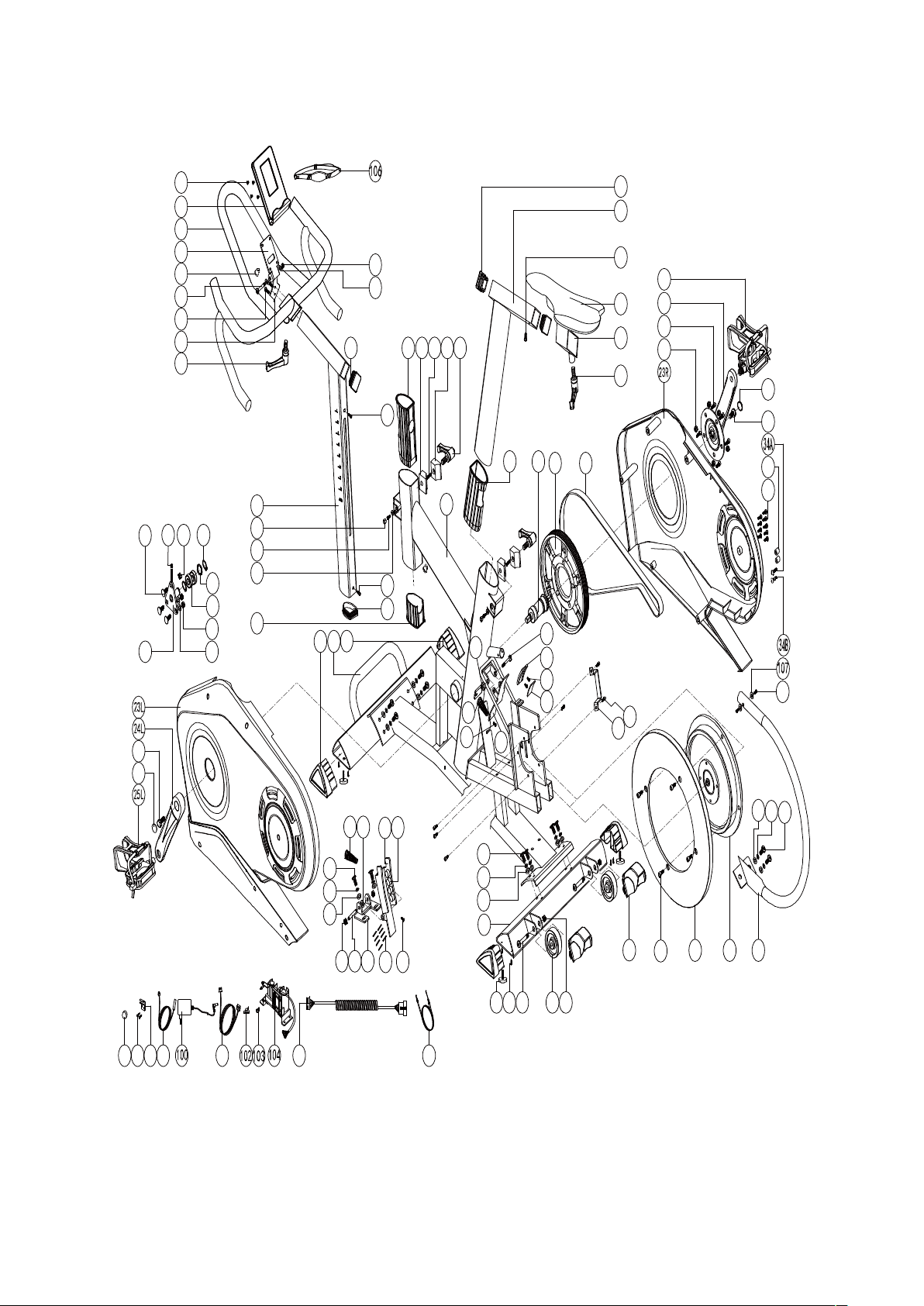

Exploded drawing:
2
3
4L
4
5
6
7
9
8
10
11
12
13
14
42
16
18
17
19 20 21 22
26
27
24
26
27
32
36
37
39
44
47 48
49 56
57
50
53
38
52
51
60
64
69
66 68 74 72
53
71
73
75
77
76 81
80
57
78
84
92
93
94
96 649899
101 45
83
83
53
15
91
12
41
22
57
57
1
25
28
29
35
40
59 61
65
82
86
85
88
105
63 97
7
43
7 55 54
88
79
31
54
55
58
7

Part list
Part NO. Description Material Specification QTY
1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4L Tri angle cap(left) PE 95.7*57.2*51.3 2
4R Tri angle cap(right) PE 95.7*57.2*51.3 2
5 Allen bolt SUS304 M8x1.25x20L,8.8 8
6 Spring washer SUS304 D15.4xD8.2x2T 8
7 Flat washer SUS304 D16xD8.5x1.2T 10
8 Seat post 1
9 Seat post 1
10 Seat VL 3230 1
11 Seat adjustable tube 1
12 L knob AL+45# M12*25L 2
13 Handlebar 1
14 Computer fixing plate 1
15 D cap PS 70*45*14 1
16 Cover of handlebar post PE 80*55*147 1
17 Protective cover PE 80*55*61 1
18 Inner cover PE 80*55*147 1
19 Stop plate(1) AL 39*35*17 2
20 Spring 72A D12.5*D1.2*20.7 2
21 Stop plate(2) AL 38*35*17 2
22 L knob 50L AL+45# M10*50L 2
23L Left chain cover ABS 744.3*512.4*77.7 1
23R Right chain cover ABS 1
24L Left crank 1021M 170*9/16" 20BC 1
24R Right crank 1021M+SPH 170*9/16" 20BC 1
25L/R Pedal JD 037V,9/16" 1
26 Bolt 35# M8x1.0x16,10.9 2
27 Screw cover P.E6070 D23x6.5 2
28 Screw SUS304 M10*1.5*20L 5
29 Nut SUS304 M10*1.5*8T 5
30 Bolt Q235A M5x0.8x15L 2
31 Buffer SBR D9*D5.8*13 2
32 Screw 10# ST4.2*1.4*20L 9
33A Screw Q235A M5x0.8x10L 1
33B Screw Q235A M5*0.8*20L 1
8

Part NO. Description Material Specification QTY
35 Belt PK5,1370L 1
36 Belt wheel AL D285 ,PK6 1
37 BB sets 127.5L 1
38 Flat washer Q235A D25*D8.5*2T 2
39 Outer flywheel A1050 D420*17 1
40 Inner flywheel FC20 D290*34.3 1
41 Cable plug PVC D4*D12*13 2
42 Swing connection fixing bracket 1
43 Protecting ring 1
44 Screw 35# M6*1*15L,8.8 6
45 Tension cable D1.5*350L 1
47 Magnet fixing bracket 1
48 Magnet D18*10T 8
49 Magnet fixing plate 1
50 Axle of magnet fixing bracket Q235A D8.2*65L 1
51 Spring 72A D1.2*55L 1
52 Flat washer PE D18*D8.5*1.0T 1
53 Nut Q235A M8*1.25*8T 5
54 Allen bolt 35# M8x1.25x20L,8.8 4
55 Spring washer 70# D15.4xD8.2x2T 4
56 Magnet cell PE 29*3*3 6
57 Bolt Q235A M5*0.8*10L 6
58 Nut Q235A M8*1.25*8T 2
59 Adjustable round wheel Q235A+Rubber D38*M10*1.5 4
60 Allen bolt Q235A M8*1.25*40L,8.8 2
61 Wheel PP D65*24 2
63 Nylon nut SUS304 M8*1.25*8T 1
64 Screw 10# ST4*1.41*12L 10
65 Idle wheel fixing plate 1
66 Bolt 35# M8*1.25*20L,8.8 3
68 Hex nut Q235A M6*1*5T 1
69 Bearing GCr15 6203 2RS 2
70 Flat washer Q235A D16xD8.5x1.2T 2
71 Flat washer Q235A D18*D8.5*1.2T 2
72 C ring 65Mn S 17(1T) 2
73 Waved washer 65Mn D17*D22*0.3T 1
74 Hex nut Q235A M8*1.25*6T 1
9

75 Allen screw 35# M8*1.25*16L 4
Part NO. Description Material Specification QTY
76 Spring 72A D1.4*55L 1
77 Fixing plate of brake strap Q235A 100*63*3.0T 1
78 Hex bolt 35# M8*52L 1
79 Wheel cover PP 93.2*64.7*62 2
80 Brake plate NBR 54.5*37*13 1
81 Cow leather 52*31*4T 1
82 Allen bolt SUS304 M8x1.25x45L 8.8 1
83 Square cap PE 38x38x18L,2.0T 3
84 Bolt Q235A M5*0.8*10L 4
85 Computer SM 2531 64,ROHS 1
86 Screw SUS304 M5*0.8*15L 2
88 Screw SUS304 M6*1*15L,8.8 2
91 Fixing plate(1) Q235A 105.5*35*2.5T 1
92 Buffer NBR D10*5.5T 3
93 Hex bolt 35# M5*0.8*10L,8.8 3
94 Flat washer Q235A D15*D5.2*1.0T 2
96 Round magnet M02 1
97 Screw SUS304 M5*0.8*10L 1
98 Sensor bracket PE 24*22*2.5T 1
99 Sensor cable 50L 1
100 Adaptor OUT:9V,1300MA 1
101 Electric cable 700L 1
102 Cable buckle NL 17.5*8.2*2.2 1
103 Screw 10# ST4.2x1.4x12L 2
104 Motor 1
105 Upper computer cable 1050L 1
106 Chest belt 1
107 Flat washer Q235A D14*D6.5*0.8T 2
\ Allen spanner 35# M6, 8.8 1
\ Spanner Q235A 155*30*5T 1
10

STEP 1
M8*1.25*20 L ( x8)
D15.4*D8.2*2 T
D16*D8.5*1.2 T
( x8)
( x8)
Step 1
5
6
7
2
15
6
7
5
6
7
79
3
1) Assemble the front stabilizer (2) and rear stabilizer (3) onto the main frame (1) by
using the flat washer (7), spring washer (6), and Allen bolt (5).
2) Assemble the Wheel cover(79) on the wheel of rear stabilizer.
3) Adjust the proper height by turning the Adjustable round wheel of front & rear foot
cap (59).
11

STEP 2
Step 2
8
DOWN
UP
DOWN
UP
89
9
22
22
1) Handlebar post (8)and seat post (9) has been preassembled, you can adjust
them
stepless up and down by L knob(22)
12

STEP 3
Step 3
8
9
9
13
8
M5*10L
97 ( x1)
13 12
1) Fix the handlebar (13) onto the front post by L knob (12).
2) Assemble the saddle (10) onto the seat post (9) by L knob (12) and screw (97).
13

STEP 4
Step 4
a
bd
c
14
84 ( x4)
M5*15L
86 ( x2)
M5*10L
1) Fix the computer fixing plate (14) onto front post by using bolt (86) fig. a.
2) Through the upper computer cable (105) from the hole of computer fixing plate
fig. b.
3) Insert the cable plug (41) fig. c.
4) Fix the computer (85) onto the computer fixing plate by bolt (84).
14

STEP 5
13
15
Step 5
1) assemble the left pedal(25L) onto left crank by anti clockwise, and fix the right
pedal (25R) onto right crank by clockwise
2) connect the adaptor(100) with the machine and a socket
15

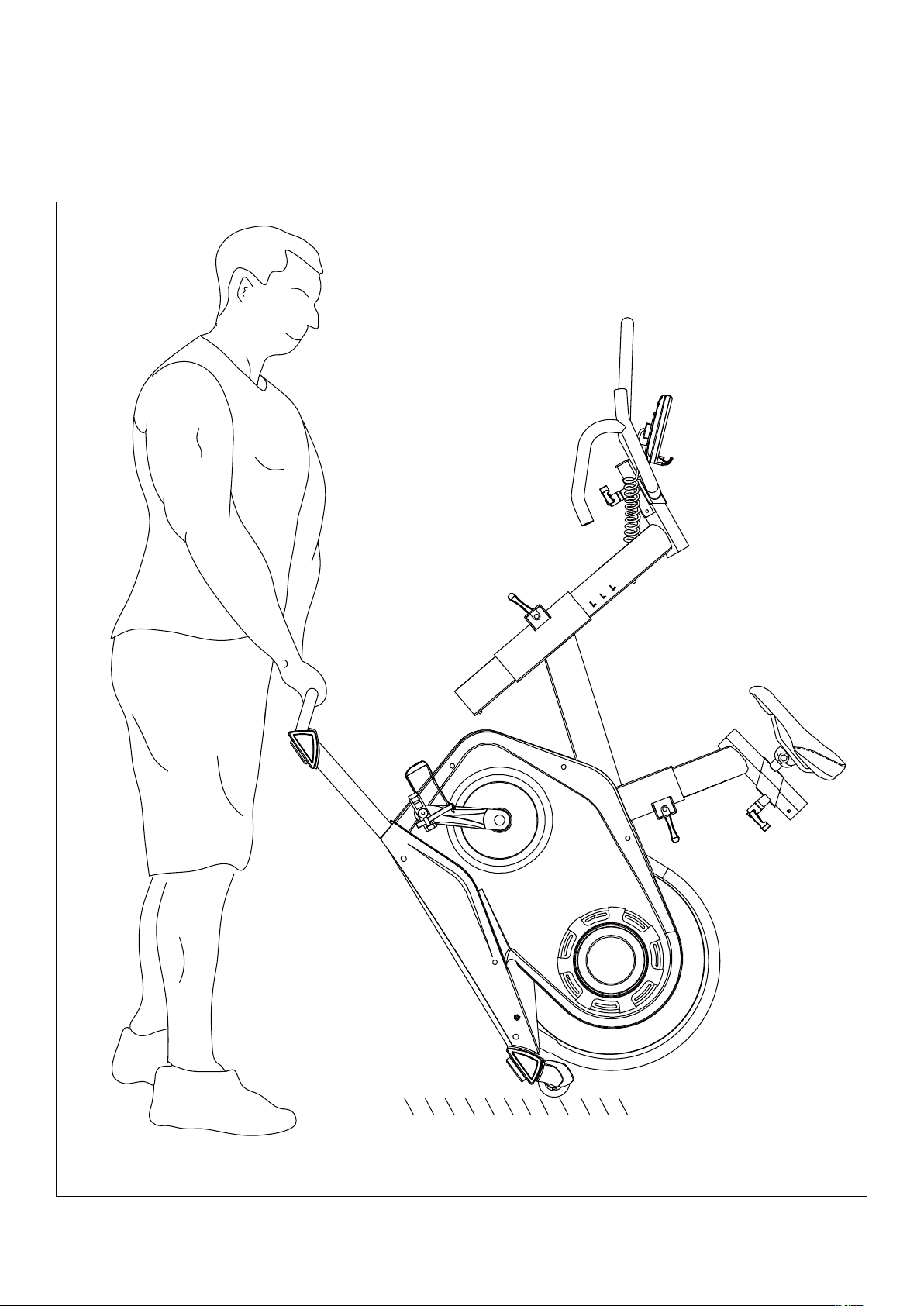

You can move the machine easily as following:
16

INSTRUCTION MANUAL

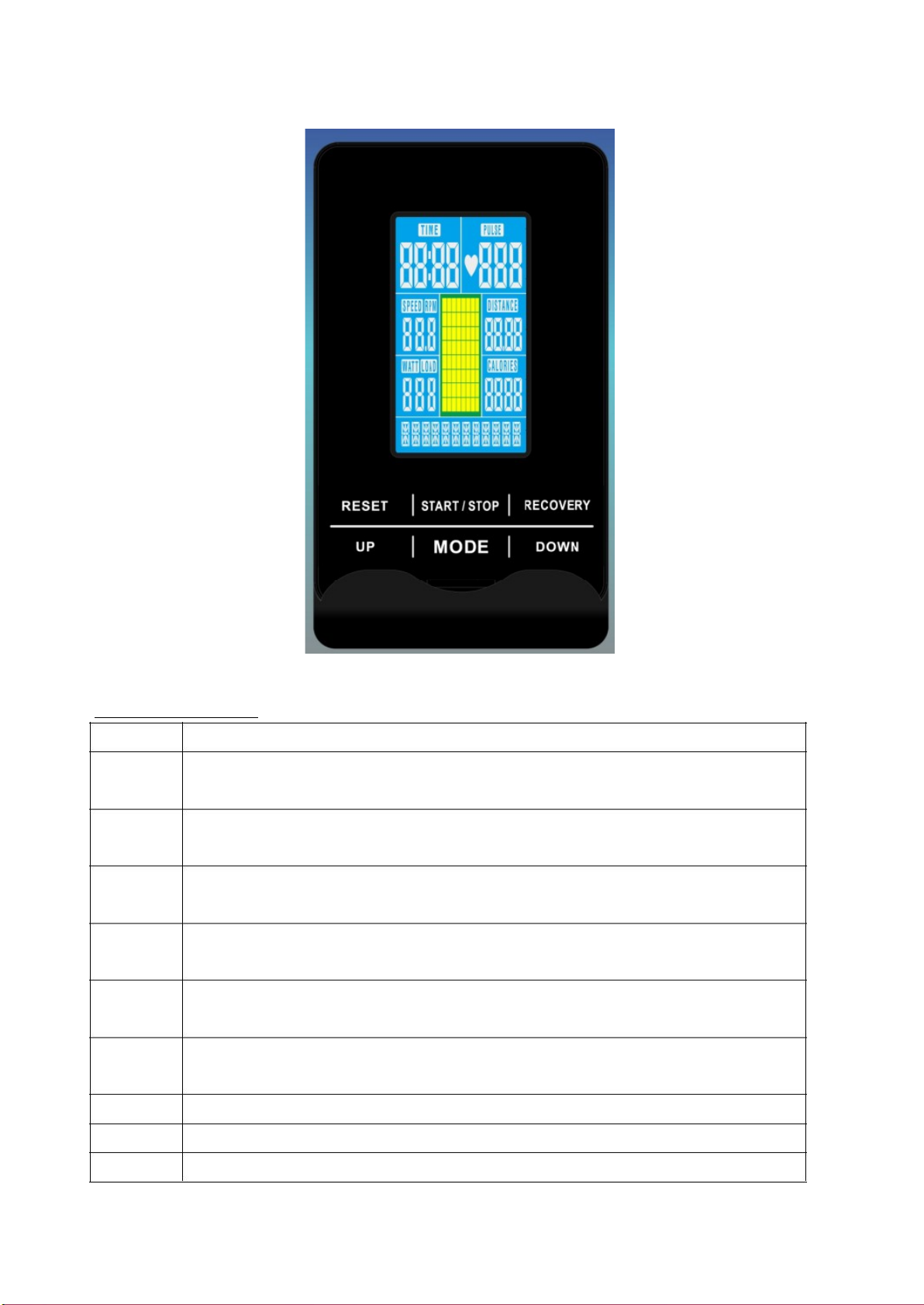

DISPLAY FUNCTIONS
ITEM DESCRIPTION
TIME Workout time displayed during exercise.
Range 0:00 ~ 99:00
S EED
DISTANCE
CALORIES
ULSE
Workout speed displayed during exercise.
Range 0.0 ~ 990
Workout distance displayed during exercise.
Range 0.0 ~ 99.00
Burned calories during workout display.
Range 0 ~ 9990
ulse bpm displayed during exercise.
ulse alarm when over preset target pulse. Range:0~230
Rotation per minute
R M
Range 0 ~ 999
MANUAL Manual mode workout.
ROGRAM Beginner X4, Advance X4, and Sporty X4 ROGRAM selection.
CARDIO .Target HR training mode.
1

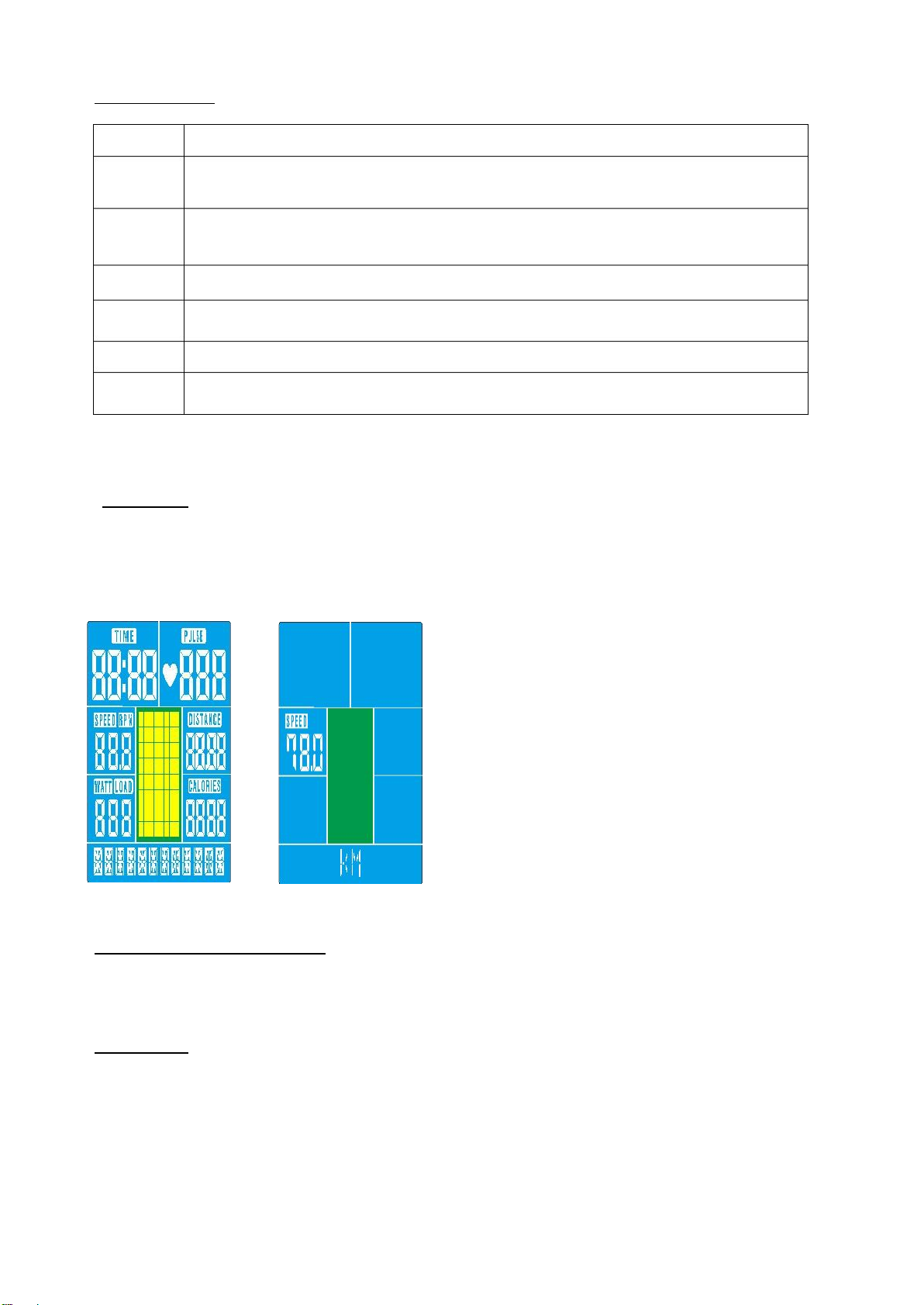

KEY FUNCTION
ITEM DESCRIPTION
Increase resistance level;
Adjust function value up and setting selection.
Up
Decrease resistance level;
D wn Adjust function value down and setting selection.
M de
Reset
Confirm/Enter setting or selection.
Total Reset: Hold on pressing for 2 seconds, computer will reboot and start from user setting.
Reset: Reverse to main menu during presetting workout value or stop mode.
Start/ St p Start or Stop workout.
Rec very Test heart rate recovery status.
OPERATION PROCEDURE
1. POWER ON
When OWER ON or hold RESET key for 2s, buzzer will sound 1s and LCD full display for 2 seconds ( icture1). Then
display wheel diameter and unit ( icture2). Then go to Standby mode.
After 4 minutes without pedaling or pulse input, console will enter into power saving mode.
ress any key may wake the console up.
icture1 icture2
2. WORKOUT MODE SELECTION
In Standby mode, user can U and DWON to select: Manual Beginner Advance Sporty Cardio Watt,
then press MODE to enter. If press START without any setting, console begin to run and count up directly.
3. Manual M de
ress U or DOWN to select Manual workout mode, press MODE to confirm.
ress U or DOWN to set TIME, DISTANCE, CALORIES, ULSE and press MODE to confirm ( icture 3-6).
ress START/STO key to start workout. ress U or DOWN to adjust LOAD level (1~32).
ress START/STO key to pause workout. ress RESET to reverse to main menu.
2

icture3 icture4 icture5 icture6
4. Beginner M de
ress U or DOWN to select Beginner mode and press MODE to confirm.
ress U or DOWN to select Beginner 1~4 ( icture 7) and press MODE to confirm.
ress U or DOWN to set TIME and press START/STO key to start workout.
Then press U or DOWN to adjust resistance level.
ress START/STO key to pause workout. ress RESET to reverse to main menu.
icture 7 icture 8
5. Advance M de
ress U or DOWN to select Advance mode and press MODE to enter.
ress U or DOWN to select Advance 1~4 ( icture 8) and press MODE to confirm.
ress U or DOWN to set TIME and press START/STO key to start workout.
ress U or DOWN to adjust resistance level.
ress START/STO key to stop workout. ress RESET to reverse to main menu.
6. Sp rty M de
ress U or DOWN to select Sporty mode and press MODE to enter.
ress U or DOWN to select Sporty 1~4 ( icture 9) and press MODE to confirm.
ress U or DOWN to set TIME and press START/STO key to start workout.
ress U or DOWN to adjust resistance level.
ress START/STO key to pause workout. ress RESET to reverse to main menu.
3

icture 9 icture 10
7. Cardi M de
ress U or DOWN to select Cardio mode and press MODE to get into ( icture 10).
ress U or Down to set AGE, then select 55%.75%.90% or TAG (TARGET H.R) and press MODE to confirm.
ress U or DOWN to preset workout TIME.
ress START/STO key to start or stop workout. ress RESET to reverse to main menu.
During workout, when there is no ULSE detected for 1s, then LCD will display “ ULSE IN UT” to remind,user must hold hand
grips correctly.
8. Rec very M de
After exercising for a period of time, keep holding on handgrips. When there is ULSE detected, press RECOVERY key. Then all
function display will stop except “TIME” that will start counting down from 00:60 to 00:00 ( icture 11). While TIME counts
down to 0:00, LCD will display your heart rate recovery status with the F1, F2….to F6 ( icture 12). F1 is the best, F6 is the worst.
User may keep exercising to improve the heart rate recovery status.
ress the RECOVERY button again to return to the main display.
icture 11 icture 12
9. Watt M d e
ress U or DOWN to select Watt mode and press MODE to enter.
ress U or DOWN to select watt value and press MODE to confirm.
ress U or DOWN to set TIME and press START/STO key to start workout.
ress U or DOWN to adjust resistance level and watt value.
ress START/STO key to stop workout. ress RESET to reverse to main menu.
4

10. i-C ns le+ APP
The console has been built-in Bluetooth 4.0 module for A function.
First, download i-Console+ A to tablet or mobile device from App Store or Google play firs;
Then, turn on Bluetooth on tablet, search for console device and press connect. (password:0000)
air tablet and console thru BT. Turn on i-Console﹢A on tablet and start workout with tablet.
(A operation refer to i-Console+ Instruction Manual)
System reminder:
※This console has the bell prompt function on button:
①effective operation- one short beep;
②ineffective operation- two short beeps;
③any function value count down to 0 during workout- 2 short beeps every second
④In CARDIO mode, when console is forced to stop- continuous 6 short beeps
⑤When ULSE exceed setting value- 2 short beeps every second
NOTE:
1. If console operation or display abnormally, please ower-off and restart it.
2. Once console is connect to tablet via Bluetooth, the console will power off.
3. lease exit i-Console app and turn off the Bluetooth from i ad, then the console will power on again.
4. This console has function of USB charger/BT), thus consume much power. For stable workout and function stability, we
suggest user to use adaptor of 9V 1.3A or above.
5

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.toorxprofessional.it
Table of contents
Other TOORX Fitness Equipment manuals

TOORX
TOORX CSX70 User manual

TOORX
TOORX MSX-70 User manual

TOORX
TOORX ERX70 User manual

TOORX
TOORX BRXOffice Compact User manual

TOORX
TOORX Professional Line WBX4000 User manual

TOORX
TOORX BRX RECUMBENT COMPACT User manual

TOORX
TOORX BRX55 User manual

TOORX
TOORX ERX70 User manual

TOORX
TOORX MSX-300 User manual

TOORX
TOORX CLX-9000 User manual

TOORX
TOORX ERX900 User manual

TOORX
TOORX TRX Speed Cross User manual

TOORX
TOORX LDX 3000 User manual

TOORX
TOORX MSX 60 User manual

TOORX
TOORX Rower Force User manual

TOORX
TOORX BRX R9500 User manual

TOORX
TOORX WLX2800 User manual

TOORX
TOORX WLX70 User manual

TOORX
TOORX ERX90 User manual

TOORX
TOORX WLX80 User manual
