TOORX TRX 9500 User manual

Ed : Rev : Cod :
INSTRUCTION
07/19 TOXPRFTRX950000

2
Assemble Instruction
Assembly Parts List
Part #
Name
Q.T.Y.
Part #
Name
Spec.
Q.T.Y.
01
Main Frame
1
08
Hex Bolt
M10*25
5
02
Console Frame
1
09
Hex Bolt
M8*15
4
03
Ipad holder
1
10
Hex Bolt
M8*25
6
04
Water holder
1
11
Tapping Screw
ST4.2*15
4
05
Pillar Frame
1
12
Tapping Screw
M8*40
2
06
Power plug
1
13
Washer
Ø10.5*ø20*t2
5
07
Motor Cover
1
14
Washer
ø8.4*ø16*t1.6
10
Tools needed for the assembly
ü Philips Screw Driver
ü Open Spanner
ü Allen Wrench ø6mm (provided as spare parts)
Main Frame Console frame Ipad holder
Water holder Pillar frame Power plug
Open packing box and take out the above mentioned parts. Place machine body in ground horizontally.
Reminder: We recommend 3 persons to take body machine from the packing box, and 2 persons assemble
treadmill for the sake of safety

3
Assembly Steps
Step 1:
a: Use Philips Screw Driver to disassemble #07and #12 parts from 01(see figure below), and collect #12
(screw), take out of #07(motor cover) carefully from left and right side.
Step 2:
Set pillar (#05) into main frame (#01), use Hex Bolt and Flat Washer (as showed in figure) to fix #05, #13, #08
into Main Frame. (Do not fix them tight).Connect wire B of #01 and wire B of #05.
Notice: When setting main frame, it needs 2 persons to operate, avoiding connector caught. When
connecting, please note the direction of BNC and do not pull the wire hard.

4
Step 3: Connect wire D of #02 and wire D of #05. Set console frame (#02) into main frame (#05), and Use
Allen Wrench (as shown in figure) with #10and #14 to fix console frame into #05. Screw it tight after 6
screws are screwed.
Notice: When setting main frame, it needs 2 persons to operate, avoiding connector caught. When
connecting, please note the direction of BNC and do not pull the wire hard.
Step 4: Fix water holder (#04) into console (#02), Use Open Spanner to and screw #11, #04 tight into #2
Notice: When setting #04 into console (#02), please screw it when the position set correctly. And it takes 2
persons to screw it.

5

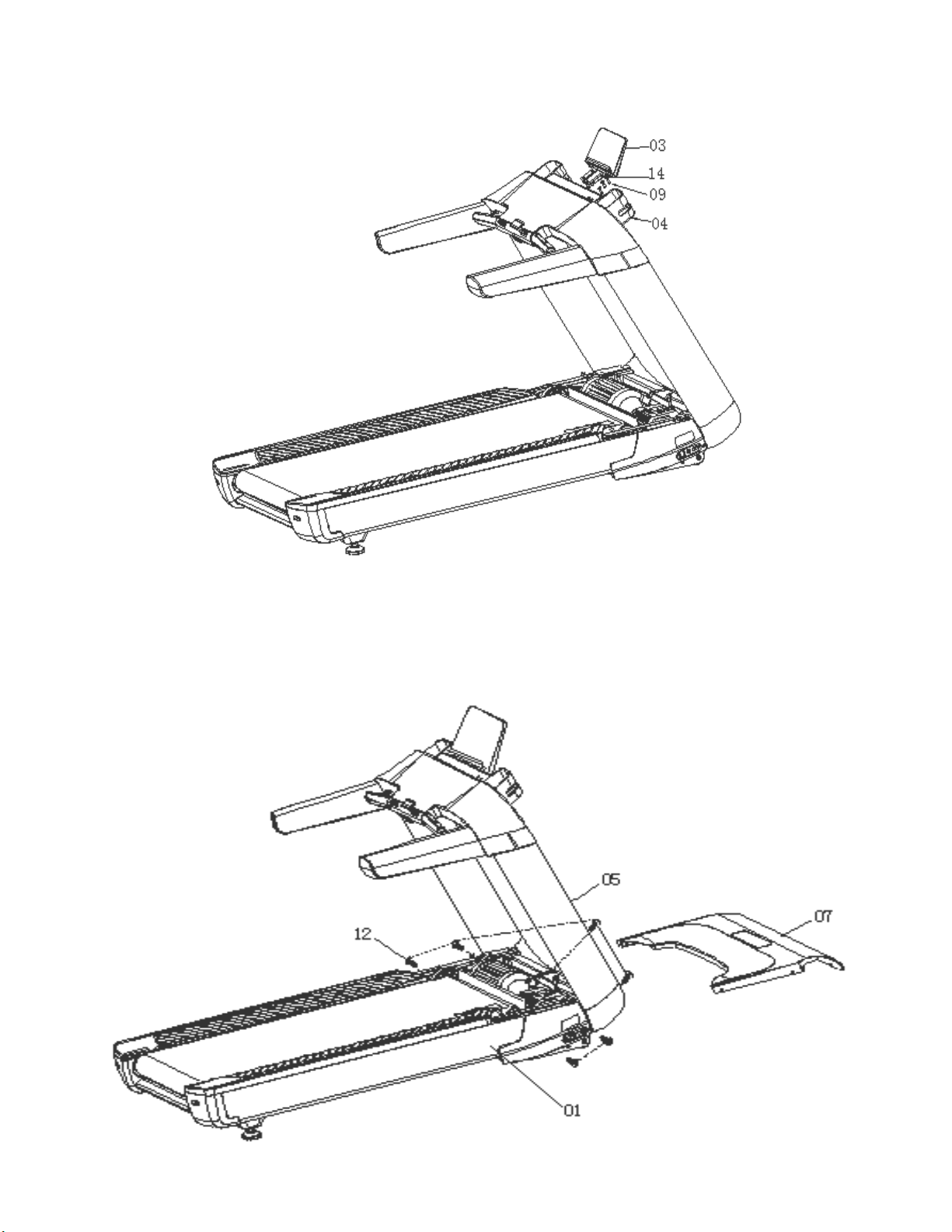

Step 5: Use PH Screw Driver to fix #09, #14 and #03 into #04. Finally, screw it tight.
Notice: When setting #03 into the #4, please note the position of #04. And it takes 2 persons to screw it.
Step 6:
Use Hexagon wrench to screw #8 tight. Then take motor cover #7 and bolts #12,use screw driver to fix
#07nto #01 tightly.
Notice: when set #01 into #07, please note the position and gap and screw it.

6
Step 7:
Take power plug (#06) and set it into main frame (#01)
Caution!
ü Make sure the above assembly is finished properly as above steps before connect the equipment with
electricity.
ü Carefully check below instruction before operating the treadmill.

7

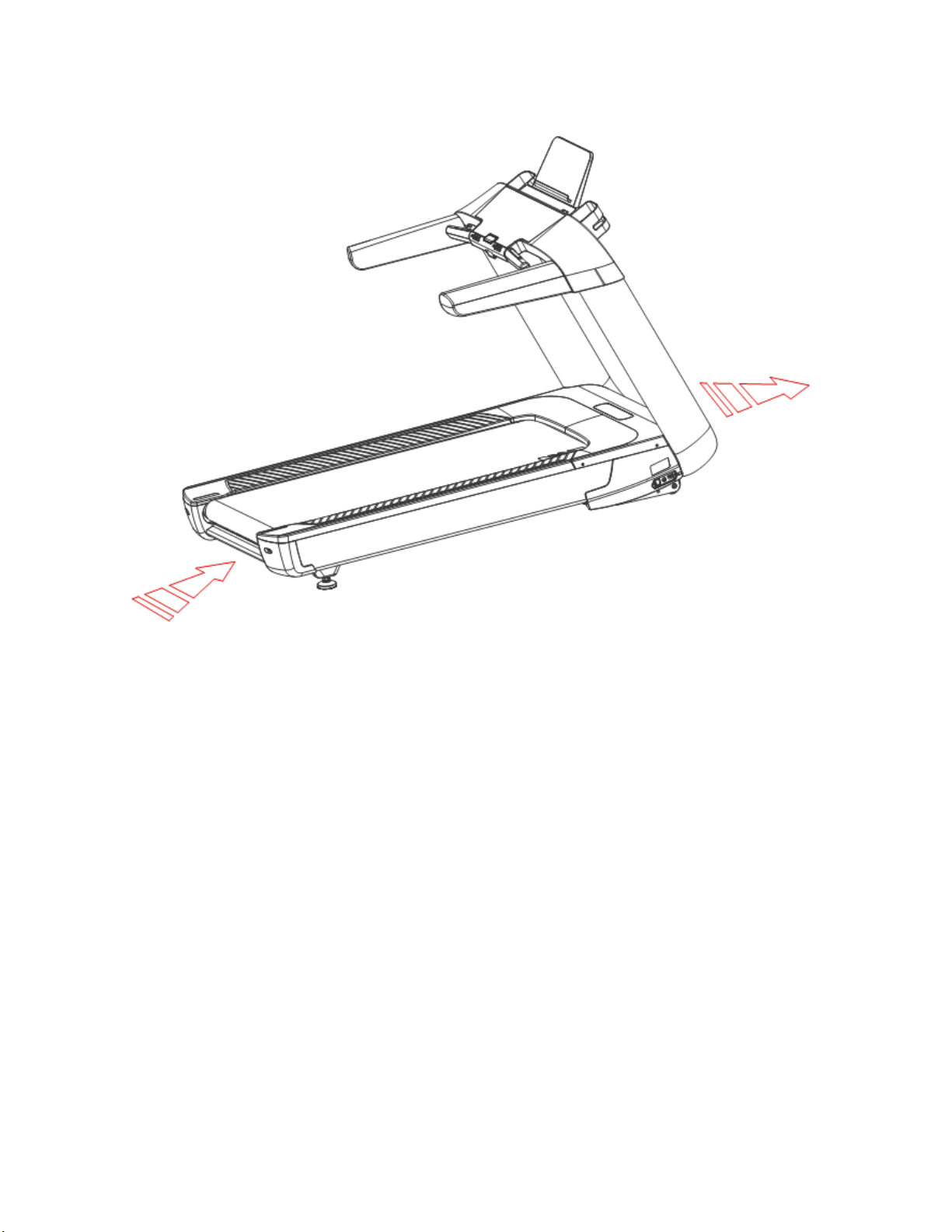

Moving Instructions
To Move the Treadmill
ü Make sure the treadmill is fully stopped before trying to move it.
ü Stand towards the rear end of running deck. Lift up the rear end of the running deck as the arrow shown
in above picture.
ü Push the treadmill forward to your desired location and stop. Put the rear end down to the ground gently.
ü Attention!
ü Before moving treadmill, please make sure the power cord plug has been pulled from the socket.
Otherwise it may result damage to the plug and socket.

13
Operation Instruction
Kindly reminder: please check the safety key before start
Window display
1. ”speed”, “time “,”distance” ”calorie” ”calorie/h” ”heart rate” ”steps” ”incline” ”pace” window: Display ”speed”,
“time “,”distance” ”calorie” ”calorie/h” ”heart rate” ”steps” ”incline” ”pace” information during exercise.
Buttons function
1. “Start/Pause” key: Under the power on and locked safety key, press this key to stop treadmill. In working
conditions, press this key to pause treadmill.
2. “Stop” key: User can stop treadmill during exercise.
3. “Speed+”, “Speed-” key: In standby mode, it adjusts set value. And it adjust speed after start.
4. “Incline+”, “Incline-” key: In standby mode, it adjusts set value. And it adjust incline after start.
5. “5M round trip” mode: choose “5M round trip button” mode on treadmill standby status.
6. “ HRC” mode: choose “HRC” mode on treadmill standby status.
7. “ mountain climb ” mode: choose “mountain climb” mode on treadmill standby status.
7.“fat burning ” mode: choose “fat burning” mode on treadmill standby status.

14
8. “cool down ” mode: choose “cool down” mode to relax when running.
9.“Volume+”，“Volume-” key: Adjust the volume of sound.
10.“3、6、9”are speed shortcut key which can set speed and incline quickly.
11.safety key: press safety key or pull safety key under any situation can stop the treadmill.
Manual mode
1. Normal operation
In standby mode, press ”start” key, and treadmill is running at the speed of 0.8km/h. Adjust incline and speed by
"Incline+", "Incline-", "speed +", "speed-" .
2. 5KM round trip
In standby mode, press “5KM round trip” key to start, 10KM countdown to 0.
3. Fixed mode (interval, fat burning and mountain climb)
Choose 1 program and set time; each program have 16 levels change.
Fixed program chart
Time
Program Level
Time set/16=time in different levels
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Mountain
climb
Speed
4
4
5
7
7
5
5
5
7
7
5
5
4
3
3
2
Incline
0
2
4
6
8
10
2
4
6
8
10
2
4
6
8
10
Fat burning
Speed
3
5
7
9
9
9
9
9
9
9
9
9
9
9
5
4
Incline
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
lHRC program:
There are 3 Heart Rate Speed Control (HRC) programs.
²Exercise heart rate speed control default for 10 minutes.
²In standby, continuously press "program" key until the distance window display "HP1/HP2/HP3" (heart
rate speed control program), dot matrix screen "heart rate speed control program". The "time" window
display time. Long press (3 seconds) "program" to enter the setup, speed flash window display
parameters, lattice window hints "input age"; according to the "program" key lattice window hints "input
target heart rate". According to the "velocity +, -" key or "ascension +, -" button to adjust the settings.
Note: If the HP1/HP2/HP3 display interface, press the start button, the system will automatically
recommend as a rate control parameters for use by the user (parameters):
The highest running speed of “HP1, HP2, HP3" were 12.0KMH, 12.0KMH, 12.0KMH, the age of 30,
corresponding to the target heart rate were 124, 143, 162 times / min
²Long press (3 seconds) "program" key to enter the age of setting speed, window display the default age

15
30. The user can press the "velocity +, -" key or "ascension +, -" button to select the appropriate to their
age, the age range was 15-80 years, lattice window hints "input age";
²The user selects his age, then press the "program" key, lattice window prompt "enter the target heart";
system according to the user to choose a good age, automatic recommend a suitable target heart
displayed in the window, for the reference of the users. Users can also according to their own physical
condition, through the press "velocity +, -" key or "ascension +, -" the key to choose the target heart rate
value, choice range of 86-179 (heart rate with reference HP1/HP2/HP3 program form)
²After choose the age and target heart beat value, press the "program" to start the standby interface or
directly press the "start" button to start;
²In the HP1/HP2/HP3 program running condition, can press the "velocity +, -" key or "ascension +, -"
button to adjust the speed and ascension, but the system will automatically adjust speed and ascension
to close to the target value of your heartbeat heart beat;
²1 minute before the warm-up state for the movement started, automatically adjusts the speed and
ascension will not, can be manually adjusted; 1 minutes after the system will be based on your current
heart rate values were adjusted;
When the actual heart rate < target heart rate-5:
The treadmill will accelerate by 0.5km/time. When the program add to top speed, but the heart rate value is
still below the target, the system will automatically add incline at 1/time frequency to improve exercise until
the user’s heart beat value reaches the target.
When the actual heart rate > target heart rate+5:
The treadmill reduces the Incline at speed of 1/time. When reduced to zero, the system will automatically
reduce the speed at 0.5 km / time frequency. When the user’s heart beat value reaches the target, the speed
and incline will be stable.
HP1 Program
HP2 Program
HP3 Program
Age
Pulse
Age
Pulse
Age
Pulse
Mini
Default
Max
Mini
Default
Max
Mini
Default
Max
15
128
133
138
15
149
154
159
15
169
174
179
16
128
133
138
16
148
153
158
16
168
173
178
17
127
132
137
17
147
152
157
17
168
173
178
18
126
131
136
18
147
152
157
18
167
172
177
19
126
131
136
19
146
151
156
19
166
171
176
20
125
130
135
20
145
150
155
20
165
170
175
21
124
129
134
21
144
149
154
21
164
169
174
22
124
129
134
22
144
149
154
22
163
168
173
23
123
128
133
23
143
148
153
23
162
167
172
24
122
127
132
24
142
147
152
24
162
167
172
25
122
127
132
25
141
146
151
25
161
166
171
26
121
126
131
26
141
146
151
26
160
165
170
27
120
125
130
27
140
145
150
27
159
164
169
28
120
125
130
28
139
144
149
28
158
163
168
29
119
124
129
29
138
143
148
29
157
162
167
30
119
124
129
30
138
143
148
30
157
162
167
31
118
123
128
31
137
142
147
31
156
161
166

16
32
117
122
127
32
136
141
146
32
155
160
165
33
117
122
127
33
135
140
145
33
154
159
164
34
116
121
126
34
135
140
145
34
153
158
163
35
115
120
125
35
134
139
144
35
152
157
162
36
115
120
125
36
133
138
143
36
151
156
161
37
114
119
124
37
132
137
142
37
151
156
161
38
113
118
123
38
132
137
142
38
150
155
160
39
113
118
123
39
131
136
141
39
149
154
159
40
112
117
122
40
130
135
140
40
148
153
158
41
111
116
121
41
129
134
139
41
147
152
157
42
111
116
121
42
129
134
139
42
146
151
156
43
110
115
120
43
128
133
138
43
145
150
155
44
109
114
119
44
127
132
137
44
145
150
155
45
109
114
119
45
126
131
136
45
144
149
154
46
108
113
118
46
126
131
136
46
143
148
153
47
107
112
117
47
125
130
135
47
142
147
152
48
107
112
117
48
124
129
134
48
141
146
151
49
106
111
116
49
123
128
133
49
140
145
150
50
106
111
116
50
123
128
133
50
140
145
150
51
105
110
115
51
122
127
132
51
139
144
149
52
104
109
114
52
121
126
131
52
138
143
148
53
104
109
114
53
120
125
130
53
137
142
147
54
103
108
113
54
120
125
130
54
136
141
146
55
102
107
112
55
119
124
129
55
135
140
145
56
102
107
112
56
118
123
128
56
134
139
144
57
101
106
111
57
117
122
127
57
134
139
144
58
100
105
110
58
117
122
127
58
133
138
143
59
100
105
110
59
116
121
126
59
132
137
142
60
99
104
109
60
115
120
125
60
131
136
141
61
98
103
108
61
114
119
124
61
130
135
140
62
98
103
108
62
114
119
124
62
129
134
139
63
97
102
107
63
113
118
123
63
128
133
138
64
96
101
106
64
112
117
122
64
128
133
138
65
96
101
106
65
111
116
121
65
127
132
137
66
95
100
105
66
111
116
121
66
126
131
136
67
94
99
104
67
110
115
120
67
125
130
135
68
94
99
104
68
109
114
119
68
124
129
134
69
93
98
103
69
108
113
118
69
123
128
133
70
93
98
103
70
108
113
118
70
123
128
133
71
92
97
102
71
107
112
117
71
122
127
132
72
91
96
101
72
106
111
116
72
121
126
131
73
91
96
101
73
105
110
115
73
120
125
130
74
90
95
100
74
105
110
115
74
119
124
129
75
89
94
99
75
104
109
114
75
118
123
128
76
89
94
99
76
103
108
113
76
117
122
127
77
88
93
98
77
102
107
112
77
117
122
127
78
87
92
97
78
102
107
112
78
116
121
126
79
87
92
97
79
101
106
111
79
115
120
125
80
86
91
96
80
100
105
110
80
114
119
124
Note:
Heart rate control programs must use a chest strap to detect the heartbeat. The strap must be attached to the
chest and close to the skin. Heart rate display is not a medical device, and there are many reasons for

17
inaccurate detection. The results are for reference only. If feeling uncomfortable during exercise; press the
stop button to stop running. Do not run with this program if you have high blood pressure, heart problems,
etc.
4. Sleep mode:
Stand by within 10 minutes without press any keys or programs. Press any keys or programs to start.
5. Safety mode
Press or pull safety key under the emergency, the led displays check safety key.
Set data
Start
Set initial value
Range settled
Range displayed
Speed（KM/H）
0.8~25.0
┈
0.8
0.8~25.0
Time(MIN)
0:00~99.59
30：00
---
5:00~99:00
Distance(KM)
0~99.9
┈
---
----
Calorie(Kcal)
0-999
┈
---
----
Steps
0~99999
----
----
----
Incline（%）
-2~18
┈
┈
-2~18
Other functions: wireless heart rate, Bluetooth connection and music display, USB charging,
1. Wireless heart rate function: when wearing the 5.3k wireless heart rate chest strap, the heart rate display
window will display the heart rate value.
2. Wearing standard Bluetooth heart rate bracelet: in standby state, press the switch display button to turn on
or off standard Bluetooth heart rate display.
3. User can use MP3 wire and Bluetooth to play the music. When standby, there is a serial number which
shows on the display. Open the Bluetooth in the phone and there will show the serial number then connect it.
4. USB charging port can be used for charging mobile phone (5v-2a) through data cable. Note: please do not
play mobile phone music, video or games when charging mobile phone.
Indicator light instruction
Light status
meaning
Solid RED light
Treadmill on
Solid GREEN light
Sleep mode
GREEN BLINK
Standby mode
Race horse light
Machine moving
RED BLINK
Machine abnormal

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
[email protected]
www.toorxprofessional.it
