TOORX CHRONO PRO TRX 2500 TFT User manual

Ed : Rev : Cod :
INSTRUCTION
04/23 TOXPRFTRX2500T00

4
Exploded drawing

5
Parts list
No.
Description
Qty
No.
Description
Qty
No.
Description
Qty
1
Base frame
1
28
Right rear end cap
1
A13
Cross head sunk
screw M3X8
2
2
Running board
supporting tube
1
29
Right side rail
1
A14
Cross head sunk
screw M8X25
4
3
Incline frame
1
31
Motor
2
A15
Cross head sunk
screw M8X30
2
4
Left upright tube
1
32
Incline motor
1
A16
Cross head sunk
screw M8X35
3
5
Right upright tube
1
33
Controller
1
A17
Cross pan head
screw M3*16
4
6
Handlebar and
controlling panel
1
34
Safety switch
1
A18
Cross pan head
tapping screw
ST4.2X12
16
6.1 Controlling
panel support
1
35
Power switch
1
A19
Cross pan head
tapping screw
ST4.2X16
6
6.2 Left handlebar
1
36
Socket
1
A20
Cross pan half round
screw ST4.2X12
15
6.3 Right handlebar
1
37
Wheel
2
A21
Cross pan half round
screw ST4.2X25
2
6.4 Upper cover of
controlling panel
1
38
Emergency stop
switch
38
6.5 Key board
1
39
Signal wire A
39
6.6 Front handlebar
1
40
Signal wire B
40
6.7 Lower cover of
controlling panel
1
41
Signal wire C
41
6.8
Left handlebar
cover
1-1
42
42
6.9
Right handlebar
cover
1-1
43
43
B1
Hex nut M8
2
7
Display screen
1
44
B2
Nylon lock nut M8
8
8
Motor lower cover
1
45
B3
Nylon lock nut M10
6
9
Front roller
1
10
Rear roller
1
11
8V belt
1
C0
Flat washer Φ4
4
12
Running board
1
C1
Flat washer Φ6
14
13
Running board
cushion
6
C2
Flat washer Φ8
11

6
14
Rubber mat
2
C3
Flast washer Φ10
20
15
Running belt
1
A0
Bolt M5X35
8
C4
Big flat washer Φ4
10
16
Universal foot pad
2
A1
Bolt M8X30
4
C5
Big flat washer Φ5
8
17
Left side rail
1
A2
Bolt M8X50
2
C6
Spring washer Φ4
8
18
Filter
1
A3
Bolt M8X25
1
C7
Spring washer Φ5
8
19
Inductor
1
A4
Bolt M8X60
1
C8
Spring washer Φ8
4
20
Side rail
positioning nut
6
A5
Bolt M10X75
4
C9
Spring washer Φ10
8
21
Square end cap
2
A6
Bolt M10X90
1
C10
Nylong washer Φ10
4
22
Cushion
2
23
Motor upper cover
1
A8
Half round bolt M8X20
4
D1
Screwdriver
1
24
Left upright tube
cover
1
A9
Half round bolt M8X65
4
D2
Wrench（S=6）
1
25
Right upright tube
cover
1
A10
Half round bolt M10X25
10
D3
Wrench（S=8）
1
26
Nut cap
4
A11
Bolt M10X50
1
D4
Lubricant bottle
1
27
Left rear end cap
1
A12
Socket head bolt M8X90
2
Note: Pls refer to the actual parts if there is difference with the ones in the list.
Installation instruction
WARNING: Don’t insert the power wire until the treadmill was fully installed!
Tips:
*To eliminate installation errors, do not tighten all the bolts in each step. Tighten all the bolts after the
installation is complete.
*One treadmill is packed in 2 cartons, #1 is for main frame, # 2 is for the handle bar and central
controling panel.
1. Unpack and lift out of the frame
The frame is fixed with a bracket and bolt
X ,unscrew the X (there are six in total )
mounted on the frame with a wrench. Then lift
the frame out. As shown in Figure 1

7
2. Installation of left upright tube
Install Left upright tube (4) to base frame (1) by
two sets of half round bolt M8X20 (A8),half
round bolt M8*65 (A9) and four pcs of flat
washer φ8 (C2) by side. (Attention: to align
screw hole with the upper surface). Make sure
the bolts to connect left upright tube and base
frame. Do not tighten the bolts until all the bolts
are assembled .(See Figure 2)
3. Installation of right upright tube
3.1Connect the Signal wire from right upright tube to
corresponding socket from frame.
3.2 Install the Right upright tube (5) to base frame (1)
using two sets of bolt M8X20 (A8),bolt M8X65 (A9)
and four pcs of flat washer φ8 (C2) by side.
(Attention: to align screw hole with the upper
surface). Make sure the bolts to connect right upright
tube and base frame. Do not tighten the bolts until all
the bolts are assembled. (See Figure 3)
4. Installation of handlebar and
controlling panel
4.1 Connect the Signal wire from right upright tube
to corresponding socket from Handlebar.
4.2 Install handlebar and controlling panel set(6)
to the left/right upright tube (4/5).
4.3 Connect handlebar and controlling panel (6)
to the left/right upright tube (4/5) from inner and
front sides by six sets of half round bolt
M10X25(A10), spring washerφ10 (C9), and flat
washer φ10(C3). (Attention: To align screw
hole)(See Figure 4)

8
5. Installation of display screen
5.1 Connect the socket from display screen
to corresponding wire from controlling panel.
Crowding the extra wire into the panel.
5.2 Connect the display screen (7) to
handlebar and controlling panel (6) by four
sets of half-round bolt M10X25(A10), flat
washers φ10(C3). (Attention: To align screw
hole) (See Figure 5)
6. Installation of left/
right upright tube cover
6.1 Tighten all the bolts.
6.2 Install left cover (24) to the left side of
motor upper cover (23) by three pcs of
cross pan head tapping screw ST4.2X12
(A18) , then tighten.
6.3 Install right cover (25) to the right side
of motor upper cover (23) by three pcs of
cross pan head tapping screw ST4.2*12
(A18), then tighten. ( see Figure 6)
WARNING: Improper connection of the grounding conductor may cause electric shock. If you are
not sure whether the device is properly grounded, please turn to a professional electrician or
repairman to inspect. Do not modify the plug supplied with the product, if the plug does not match the
socket, you should turn to a professional electrician to install a proper socket.
Adjustment instruction
1. Before connectting power, service or professional personel should check whether
voltage is appropriated, and whether the ground wire of three-core plug is wellconnected.
Pull the running belt by hand, check whether the rotation is flexible, there is no abnormal
sound.
2. Connect power, press Start key, the treadmill starts to run in low speed,observe whether
belt and console are run normally.
3. Press the speed up and down key to observe the rotation and display of the treadmill. If
the belt deviated, stop the treadmill and adjust the running belt according to the

9
requirements of "maintenance".
4.Press emergency stop key or pull out safety key,the treadmill will stop immediately.
Re-inset the emergency stop key to reset or insert safety key, can restart treadmill. (As
below figure)
5.Press Stop key, the treadmill stop running, then turn off the power when the incline
returns to zero.
Treadmill can be put into use after all the installation adjustment is completed.
1.Two feet stand on two side of belt, put the other side clip from safety key to clip to clothes.
(see the figure)
2.Press Start key, the treadmill will start running
at lowest speed. You can step on the belt and
walk slowly.
3.Press speed+ key, the speed of running belt
will gradually increase, you can see the speed
value from computer, start to run at low speed for
2-3 minutes, then increase the speed to your
target, you can release the handlebar after after
run is suitable, you can let go handrail to run after
adaptation.
4.When stopping running, you should slow down
gradually and run for 2-3 minutes at a low speed,
so that the heart and breathing slowly return to
normal.
5.After running, you can reduce speed to the minimum, and then press the start/stop
button to stop the treadmill.
6.If running at high speed, it is too late to slow down, or even lose balance, you can press
the emergency stop button, and the treadmill can stop running immediately. The stopping
distance depends on the inertial weight.
7.Please fully master the use of emergency stop button and safety key.
8.If the emergency stop button and safety key fail or are damaged, they must be
maintained or replaced by professionals in time. (They are earsily worn parts)
9.Noise under load is higher than that without load.

10
WARNING:Frequent use of incline operation (more than 5 times in a row) may
render the incline ineffective. It's not a malfunction. It is a kind of automatic
protection of incline motor, the function will be restored automatically after 1 hour stop
using.
Console instruction
WARNING: To reduce the possibility of electric shock, keep the console dry. To
prevent liquid from spilling onto the console, only sealed water bottles can be
placed on the water bottle holder.
1. Quick start
The treadmill adopts 15.6 inch high resolution touch screen to display the data and sports state during
exercise, and installs multimedia APP application and running training mode to make sports
entertainment more rich and interesting. Power on, turn on the main power switch of the treadmill,
install the safety switch key then enter into the main menu as shown below
Click“ ”to exit the “Maintenance reminder”and enter into main menu as shown below:

11
Click "Quick Start" on the screen or the " " button on the console to start quickly. The
treadmill will directly start the countdown and enter running mode as shown below:
Main interface in running state is shown as below:

12
After starting the treadmill, press the speed adjustment button (+ -/ ) on the controlling panel
or color screen to adjust your running speed. Press the incline adjustment key (+ -/ ) to adjust the
comfortable running incline; Press the speed direct selection key (3-6-9) or fast selection key ( ) on
the screen to quickly select the speed; Press incline direct selection button (3-6-9) or quick selection
button ( ) on the screen to quickly select the incline. For your safety, try not to operate other
functions on the screen when running. If you want to operate the media APP function , please do it
when it is lower than 3KM/H or in the shutdown state. Click the "multimedia" icon on the interface to
enter the APP interface, as shown in the picture below, you can browse Twitter, Facebook... and so
on.
When the speed is > 1KM/H, click the " " , the speed will be reduced to a comfortable state
and the incline to the initial state value. When you want to stop running, press the " " on the
home page or the" "button on the controlling panel, and a window that is about to end running will
pop up on the home page to provide" Go on "or" Stop ", as shown below:

13
If you need to stop running in an emergency, please pull out the safety key or press the
emergency stop button to stop the treadmill. Then it will be shown as below:
After inserting the safety key, it will switch to the main menu page, as shown below:
In the standby mode, you can choose the Quick start mode, Real mode, Target mode, Training
mode and other sports programs to train, and you can also choose Multimedia for other operations.

14

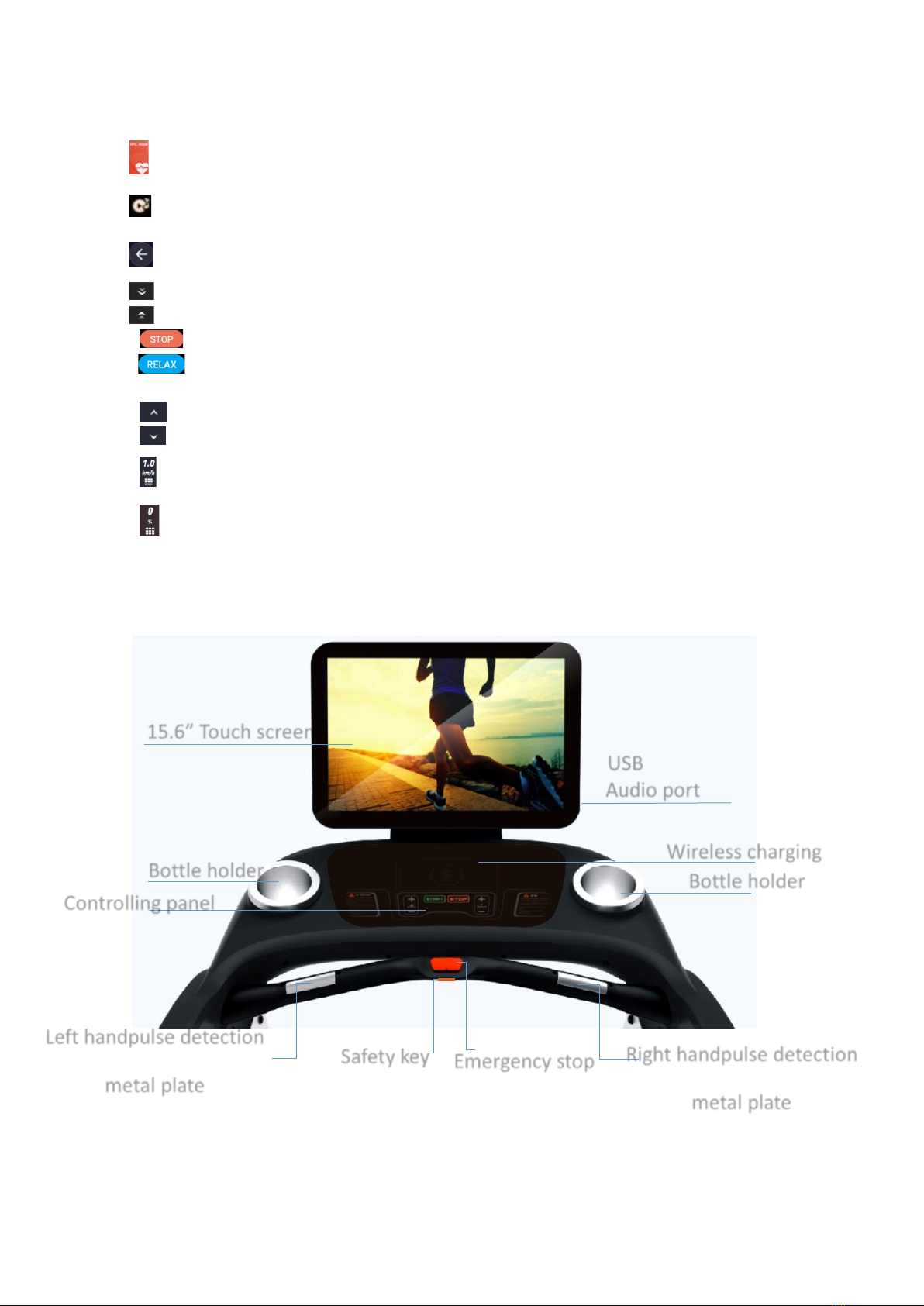

2. Controlling panel instruction
2.1 Mechanical button operation
Start: after power on, press “START”,the treadmill starts running.
Stop/pause： press this button when running, the treadmill will puase, and press again to stop
running. After the pause, press the start button and the treadmill will return to the running state before
the pause.
Speed adjustment：when the treadmill is running, press this key to adjust the speed, keep pressing
will lead to fast adjustment.
Incline adjustment: when the treadmill is running, press this key to adjust the incline, keep pressing
will lead to fast adjustment.
Emergency stop button/Safety key: it is a safety device to prevent slipping or forced shutdown
in emergency. When using the treadmill, you need to insert the safety key inward (after inserting the
safety key, the emergency stop button will automatically reset and spring up), press the emergency stop
button or pull out the safety key side of the treadmill to stop running.
Wireless charging: when the treadmill is powered on, if the mobile phone has wireless charging
function, put the mobile phone in the charging slot, and the wireless charging can play.
2.2 Buttons in tounch screen
2.2.1 Quick start: when the treadmill is powered on, click this button then the treadmill starts to run.
2.2.2 Real mode:click this button to enter into the real scene selection interface.
2.2.3 Target mode:click this button to enter into the target selection interface.
2.2.4 Training mode: click this button to ente into the traning selection interface.
Speed up
Incline up
Wireless charging
Incline down
Speed down
Start
Pause/Stop

15
2.2.5 HRC mode: click this button to enter into setting interface of HRC
2.2.6 Multimedie: click this button to view different applications.
2.2.7 :click this button to return to the previous menu.
2.2.8 :click this button to switch to the full screen.
2.2.9 : click this button to switch to the initial interface.
2.2.10 Stop: clip this button to stop running the treadmill.
2.2.11 Relex: Click this button to reduce the treadmill speed/incline to the initial state
of comfortable exercise.
2.2.12 Speed/Incline up: click this button to increase running speed / incline.
2.2.13 Speed/Incline down:click this button to decrease running speed/incline.
2.2.14 Quick speed selection: click this button to enter quick speed selection.
2.2.15 Quick incline selection:click this button to enter quick incline selection.
3. Display screen instruction
15.6” Touch screen
Bottle holder
Bottle holder
Controlling panel
Wireless charging
Emergency stop
Safety key
Right handpulse detection
metal plate
Left handpulse detection
metal plate
Audio port
USB

16
4. Instruction of running programs and setting operation
4.1 Treadmill operation instruction
Switch on the power, the treadmill enters into the standby state, press “START”, the treadmill starts
to run, you can choose the speed or incline button to adjust, press “STOP” to stop running. In the
standby state, if there is no signal input for a long time, the treadmill enters the black screen of shutdown
standby state. Press any physical mechanical button to light up the screen and return to the standby.
Before starting the treadmill, you can choose system settings or training mode.
4.2 Status bar and shortcut Settings
Under the power-on state, you can set the system. Through the status bar and shortcut setting area
in the upper right corner of the home page, you can open the shortcut setting menu, adjust the treadmill
volume, screen brightness and set bluetooth. Advanced Settings are the management menu of treadmill,
it is non-user menu, but only for equipment maintenance personnel. As shown below:
4.3 Real mode
Click "REAL MODE”on the screen, the treadmill enters the real scene selection interface with six
built-in scenes, as shown below:

17
Users can choose their favorite real scene, click to enter the scene running. For example: the user
chooses "Beach" real scene, beach scene running will be started. As shown below:
Press the speed adjustment button (+ -/ ) on the controlling panel or screen to adjust the speed
of running. Press the speed direct selection key (3-6-9) or fast selection key ( ) on the screen to
quickly select the speed. Note: In the real running mode, there is no need to adjust the incline. The
system will automatically set it according to the terrain changes in the real scene.
4.4 Target mode
Click “TARGET MODE” to enter the target selection interface, which has three types, as shown
below:

18
4.4.1 Distance：Built-in 2/4/6/8/ Mini marathon/half marathon/full marathon/custom options. The
distance will gradually decrease as you run, then come to end when it drop to 0.

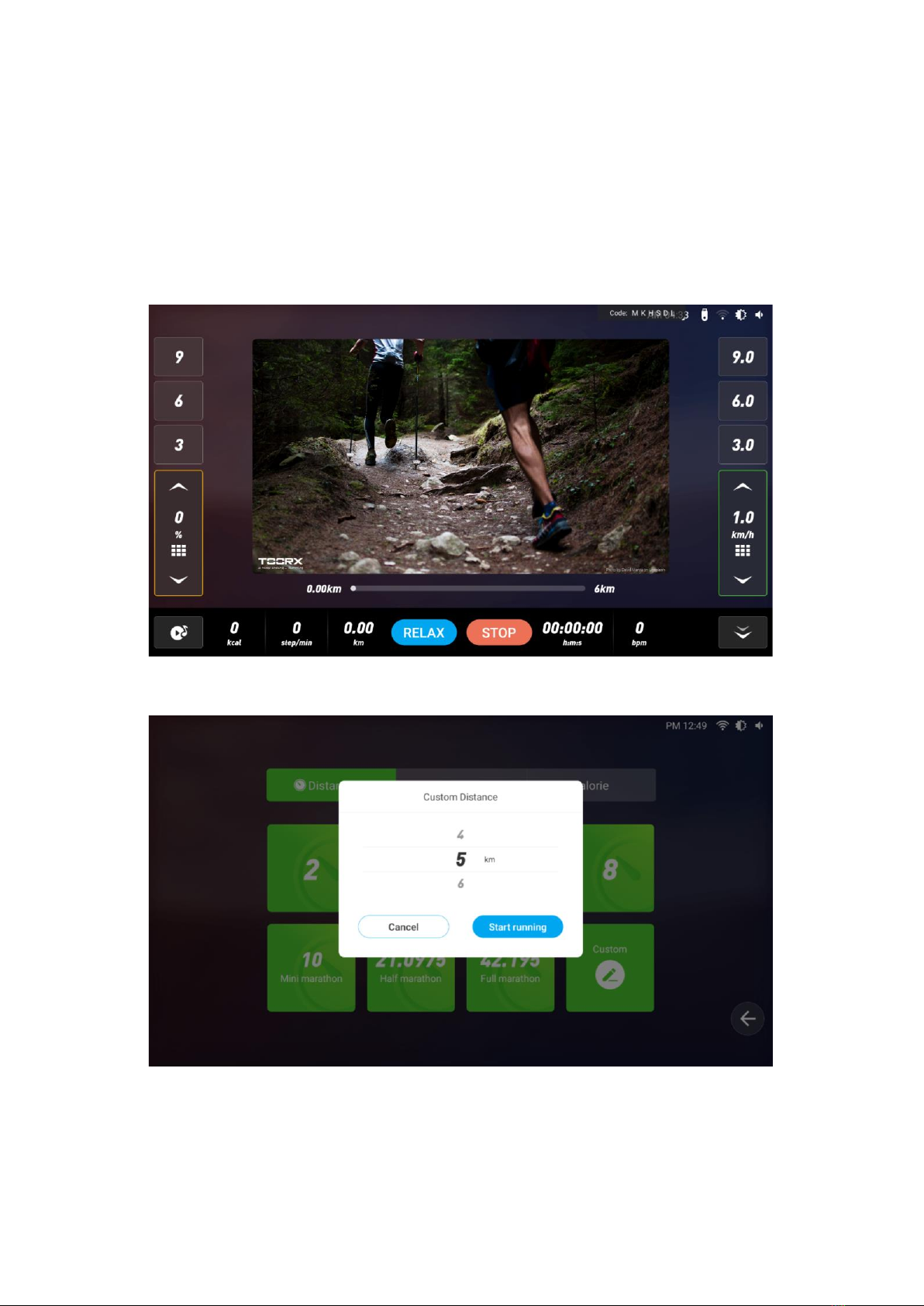

Users can select their target distance and click to enter the running interface. For example, users
can select a "4km" to start . As shown below:
Cutom mode：Press the button to enter into the setting interface. After setting, click "Start
running" to run. As shown below:

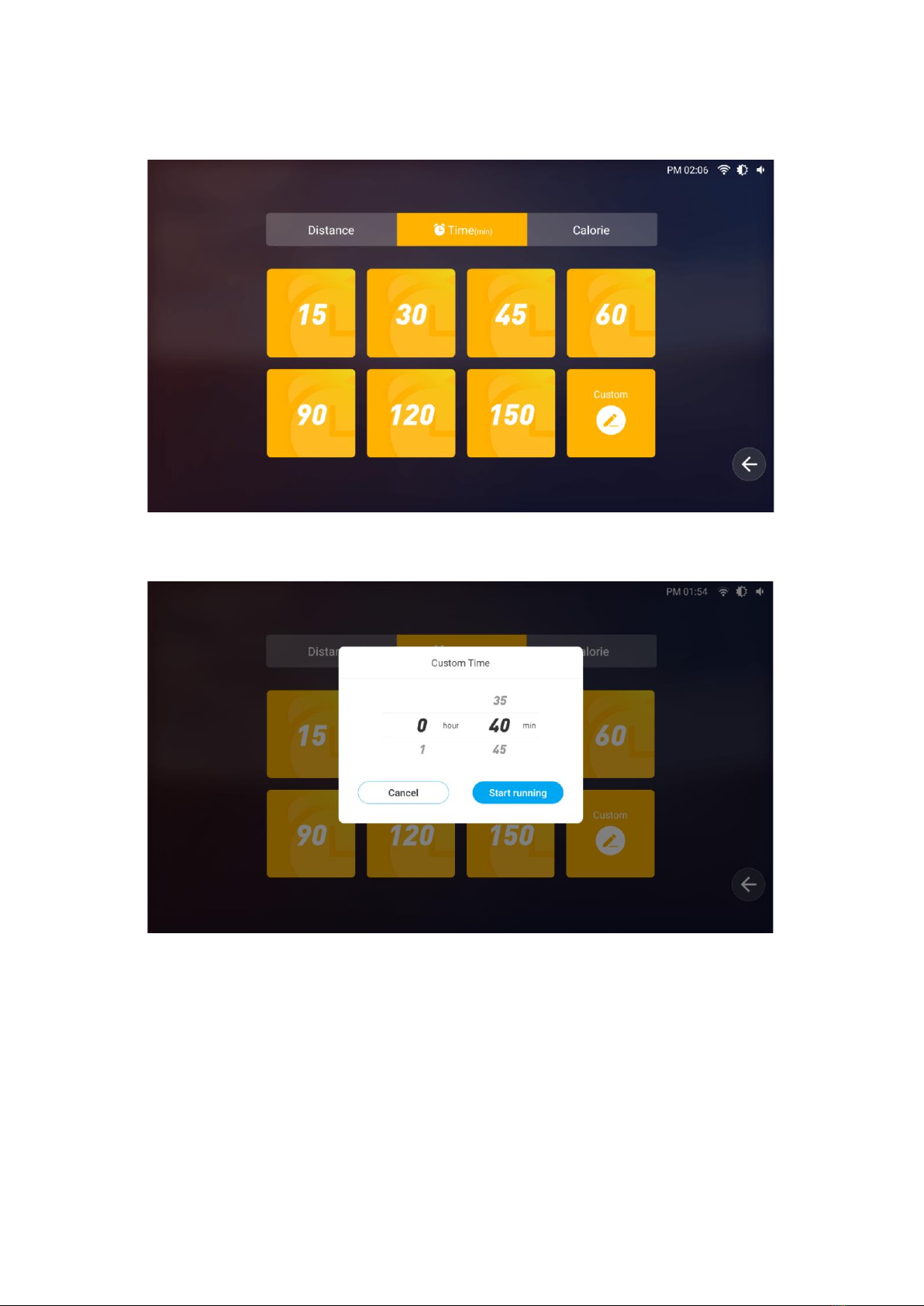

4.4.2 Time：Built-in 15/30/45/60/90/120/150/custom options. The setting time will gradually decrease
as you run, then come to end when it reaches 0.
Users can select their target time and click to enter the running interface. For example, the user
selects the "15 minute" to start. As shown below:

19
Custom mode：Press "Custom" to enter the setting interface. After setting, click "Start running" to
run. As shown below:
4.4.3 Calorie：Built-in for 100/200/300/400/500/1000/1500 / custom options. The setting calories will
gradually decrease as you run, then come to end when it reaches 0.
Users can select their target calorie and click to enter the running interface. For example, the user
selects the "100" to start. As shown below:

20
Custom mode：Press "Custom" to enter the setting interface. After setting, click "Start running" to
run. As shown below:
4.5 Training mode
Click “Training mode” to enter the selection interface, as shown below:

21
4.5.1 In the training mode, the system provides a variety of preset training plans of Relax, Cardio, Fat
burning and Endurance for different running styles to help train stretching. Different running modes have
different incline and paces, so users can concentrate on running without worrying about various
Settings.
4.5.1.1 Users can select the training mode and click to enter the running interface. For example, when
users select "Relex", they can start running in this mode. As shown below:

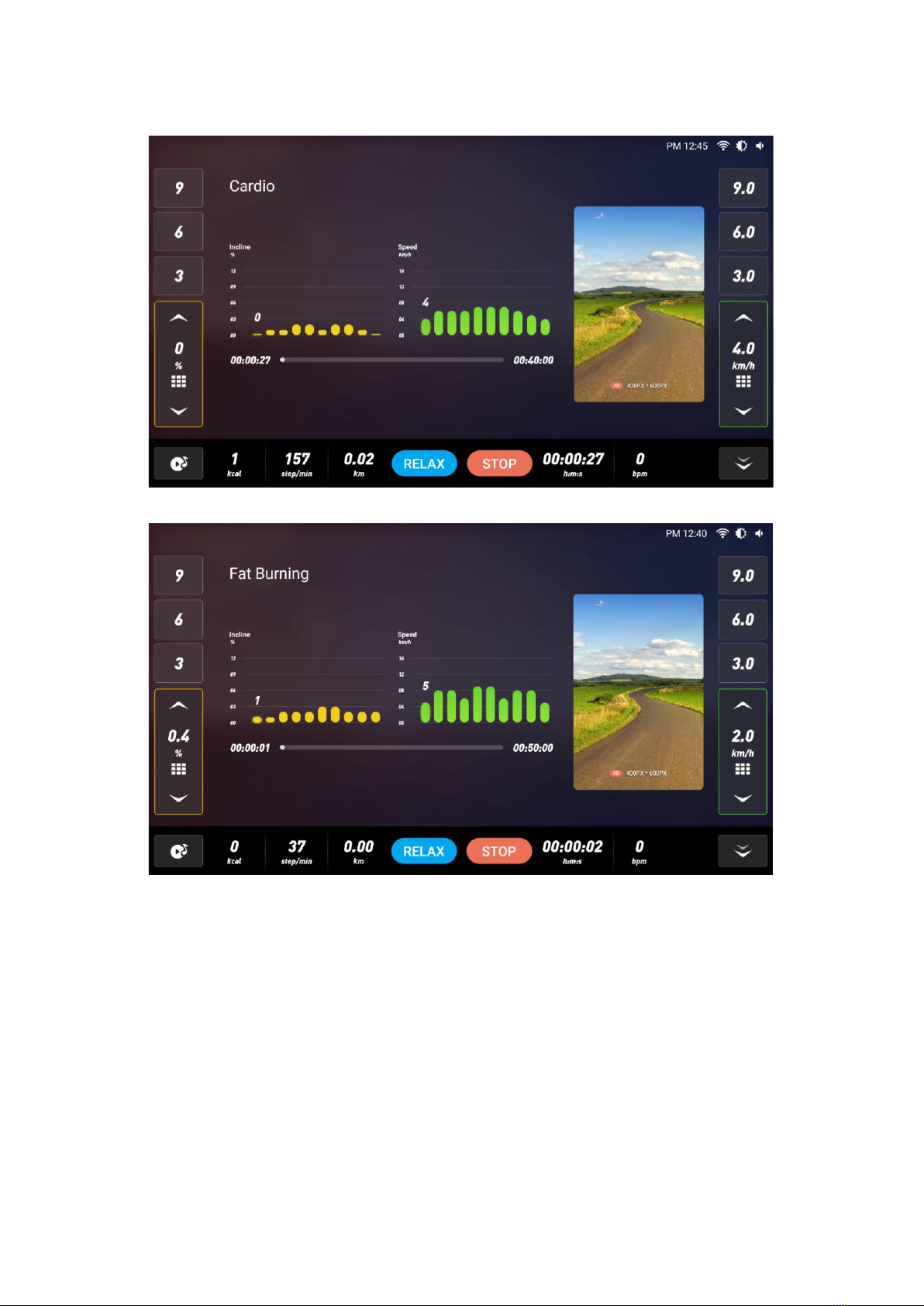

4.5.2 Cardio mode，as shown below

22
4.5.3 Fat burning mode, as shown below：
4.5.4 Endurance mode, as shown below
