TOORX MIRAGE S70 User manual

Ed : Rev : Cod :
INSTRUCTION
07/22 GRLDTOORXTRXMS7
00

- 5 -
EXPLODED DRAWING

- 6 -
PARTS LIST
PART NO
PART NAME
Q'TY
1 1 1
Front roller
1
2
Running belt
1
3
Rear roller
1
4
Running deck
1
5
Side rail
2
6
Fix cushion of running deck
4
7
Rubber cushion of running deck
4
8
Motor belt
1
9
Motor
1
10
Motor cover
1
11
Motor frame
1
12
Left end cap
1
13
Right end cap
1
14
Rear left level frame cover
1
15
Rear right level frame cover
1
16
Rear support cover
1
17
Rear adjustable foot
2
18
Running platform
1
19
Motor belly
1
20
Motor control board
1
21
Incline motor
1
22
Power wire
1
23
Motor adjustable plug
1
24
Power wire cushion
1
25
Fuse
1
26
Power switch
1
27
Incline frame
1
28
Incline frame shaft sleeve
2
29
Connect sleeve of Base frame
2
30
Damper
1
31
Base frame
1
32
Move wheel of base frame
4
33
Right inside protect cover
1
34
Right outside protect cover
1
35
Left inside protect cover
1

- 7 -
36
Left outside protect cover
1
37
Right upright
1
38
Left upright
1
39
Console frame
1
40
Handlebar down support
2
41
Foam
2
42
Right heart rate handle fix tube
1
43
Left heart rate handle fix tube
1
44
Heart rate handle
2
45
Aluminum top cap
2
46
Right cap frame
1
47
Right up cover of handle
1
48
Right up cover of main body
1
49
Right down cover of main body
1
50
Fix tube of heart rate handle
2
51
Right down cover of handle
1
52
Left cap frame
1
53
Left up cover of main body
1
54
Left down cover of main body
1
55
Left up cover of handle
1
56
Left down cover of handle
1
57
Press key up cover
1
58
Connect cover of handle
1
59
Press key panel
1
60
Press key down cover
1
61
Incline code switch
1
62
Code switch fix board
2
63
Safety key
1
64
Safety key fix board
1
65
Speed code switch
1
66
Encoder knob
2
67
Console down cover
1
68
Console frame
1
69
Fan adjustable board
1
70
Fan adjustable press board
2
71
Console up cover
1
72
Console LED panel
1
73
Phone frame
1

- 8 -
74
Display overlay
1
75
Press key overlay
1
76
Control board of console
1
77
2 inches of the horn
2
78
1.5 inches of the horn
2
79
Wind scooper
1
80
Fan
3
81
USB board
1
82
Control wire1
1
83
Control wire2
1
84
Control wire 3
1
85
Control wire 4
1
86
Magnet ring
2
87
Side rail cushion
16
88
Handle protect cover
2
89
Filter
1
90
91
M8*50Allen head bolt
1
92
Φ8 Washer
23
93
M8*85 Allen head bolt
2
94
M8*65 Allen head bolt
4
95
M8*25 Allen head bolt
4
96
ST4.2*15 Screw
16
97
M8*20 Allen head bolt
6
98
Φ8 spring Washer
8
99
M8*25 bolts
4
100
ST4.2*10 Screw
8
101
ST4.2*15 Screw
17
102
ST4.8*16 Screw
18
103
ST4.8*16 Screw
2
104
M8*30 bolts
2
105
Φ16 plastic Washer
2
106
M8 Lock Nut
9
107
M10*50 Allen head bolt
1
108
Φ13 plastic Washer
2
109
M10 Lock Nut
2
110
M10*90 Allen head bolt
1
111
M8*45 Allen head bolt
1

- 9 -
112
M8*30 Allen head bolt
2
113
M8*40 Allen head bolt
4
114
M10*40 Allen head bolt
2
115
M8*25 Allen head bolt
6
116
M8*25 Allen head bolt
8
117
Φ8 Arc Washer
2
118
ST4.2*15 Screw
65
119
M10*30 Allen head bolt
4
120
Φ10 Washer
4
121
M8*35Allen head bolt
4
122
M8*15Allen head bolt
2
123
ST2.9*8 Screw
62
124
M4*16 bolts
2
125
M4 Lock Nut
2
126
M8*60Allen head bolt
1
127
M8*35Allen head bolt
4
128
ST4.2*30 Screw
12

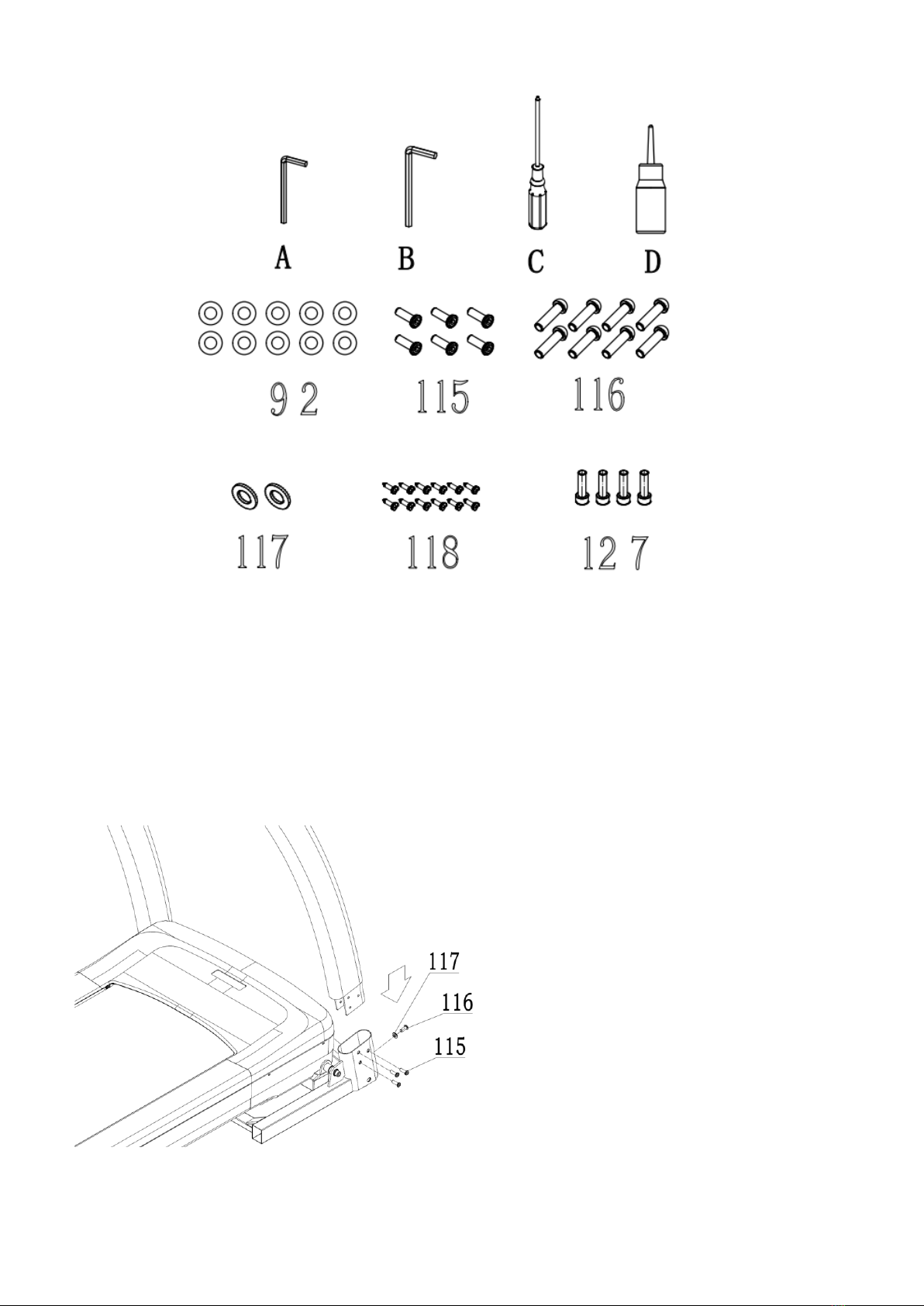

HARDWARE COMPARISON CHART
For your convenience, we have identified the hardware used in the assembly of this product. The chart
below is provided to help you to identify items that may be unfamiliar to you.
NO.
DESCRIPTION
Q'TY
92
Φ8 Washer
10
115
M8*25 Allen head bolt
6
116
M8*25 Allen head bolt
8
117
Φ8 Arc Washer
2
118
ST4.2*15 Screw
6
127
M8*35Allen head bolt
4
A
5mm SOCKET HEAD WRENCH
1
B
6mm SOCKET HEAD WRENCH
1
C
SCREWDRIVER
1
D
LUBRICANT
1

- 10 -
ASSEMBLY INSTRUCTIONS：
WARNING: Please put on all the screws, washers and bolts then tighten them.
STEP1:
Fix upright onto the base frame with
M8*25 Allen head bolt115,M8*25
Allen head bolt116 and Φ8 Arc
Washer117.

- 11 -

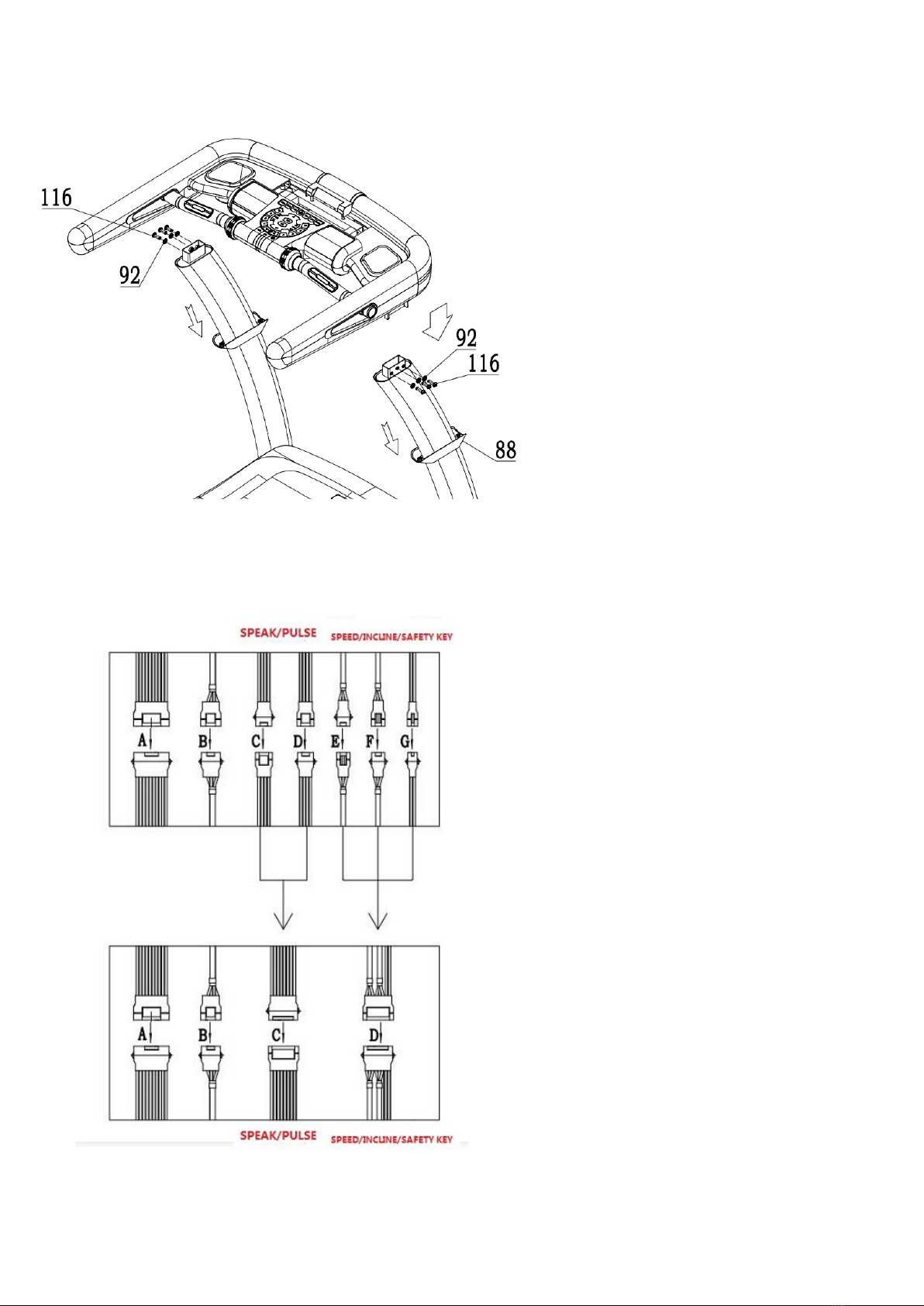

STEP2:
Fix the console onto the upright with
M8*25Allen head bolt116 and
Φ8Washer92.
Connect all cable .
A. Main connection cable
B. Incline handlebar button
cable
C. Speed handlebar button
cable
D. Pulse cable
E. Pulse cable
F. Safety key cable
G. Cockpit cable

- 12 -

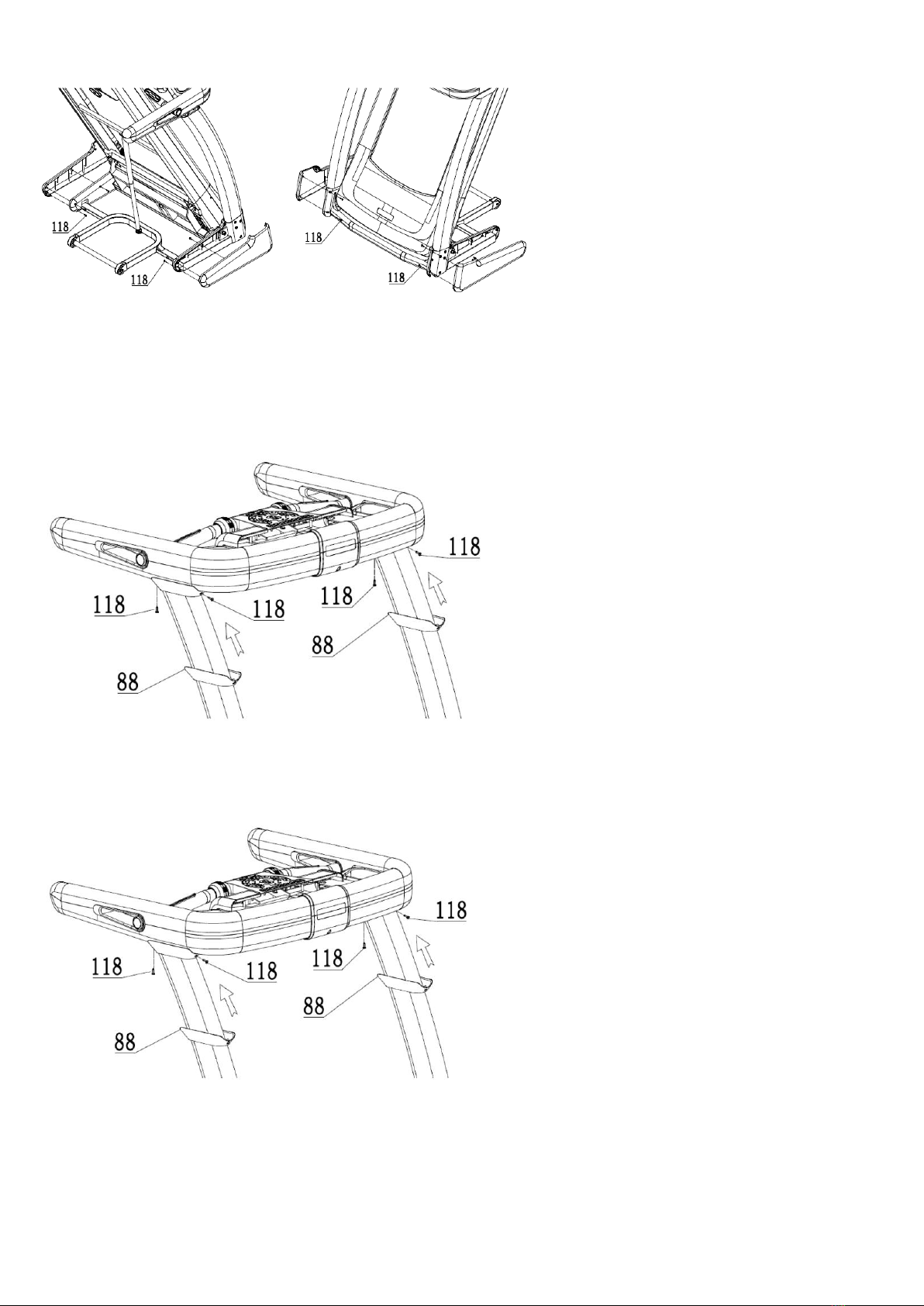

STEP3:
Fix the protect cover of upright onto
the base frame with ST4.2*15
Screw118.
STEP4:
Fix the handle protective cover on the
upright with ST4.2 * 15 Screw 50.
STEP5:
Fix console on the console frame with
Φ8 Washer92 and 127.

- 13 -

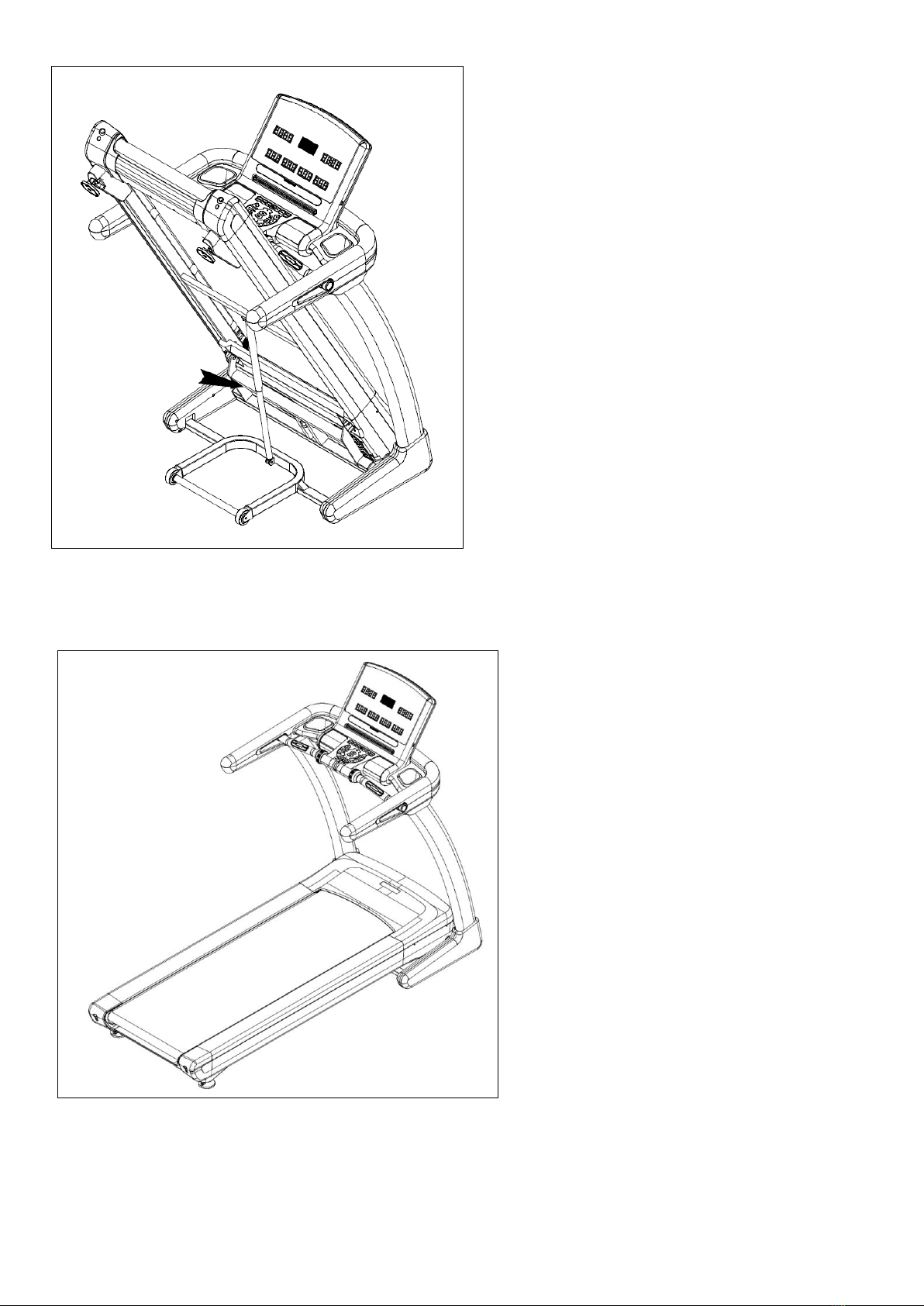

Folding illustration:
To unfold the treadmill:
Folding illustration:
To drop down treadmill:
1. Strike the damper.
2. Hold on to the top end covers
and pull down the treadmill slowly
on the ground.
To fold up the treadmill:
Both hands hold on the bottom end
covers and lift up the treadmill.
