TOORX TRX WALKER PRO User manual

Ed : 03/17 Rev : 00
INSTRUCTION

1
C
CO ON NT TE EN NT T
CONTENT ----------------------------------------------------------------------------------------------------------------------------1
IMPORTANT SAFETY PRECAUTIONS ----------------------------------------------------------------------------------2
ASSEMBLY INSTRUCTIONS ------------------------------------------------------------------------------------------------4
FOLDING & UNFOLDING INSTRUCTIONS --------------------------------------------------------------------------7
INCLINE INSTRUCTIONS ---------------------------------------------------------------------------------------------------8
GROUNDING METHODS -----------------------------------------------------------------------------------------------------9
OPERATION GUIDE ----------------------------------------------------------------------------------------------------------10
GETTING STARTED GUIDE ------------------------------------------------------------------------------------------------15
SAFETY EXERCISES ----------------------------------------------------------------------------------------------------------16
WARM-UP EXERCISES -------------------------------------------------------------------------------------------------------17
MAINTENANCE INSTRUCTIONS ---------------------------------------------------------------------------------------18
BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------19
EXPLODED DRAWING ------------------------------------------------------------------------------------------------------20
PARTS LIST ----------------------------------------------------------------------------------------------------------------------21
ERROR CODE AND SIGNIFICANCE ---------------------------------------------------------------------------------- 23

3
The main technical parameters
Input supply voltage：220V Working temperature: 0-40 ℃
Speed range: 0.4-8KM/ H Incline range:15 level Motor incline
Max. user weight: 100kg Distance display range: 0.00-99.9km
Calories display range: 000-999 Time display range: 00：00-99：59 (min : sec)
Heart rate range: 50-200 (time / min) Running surface: 420X1250mm
Product size: 1630*710*1310mm

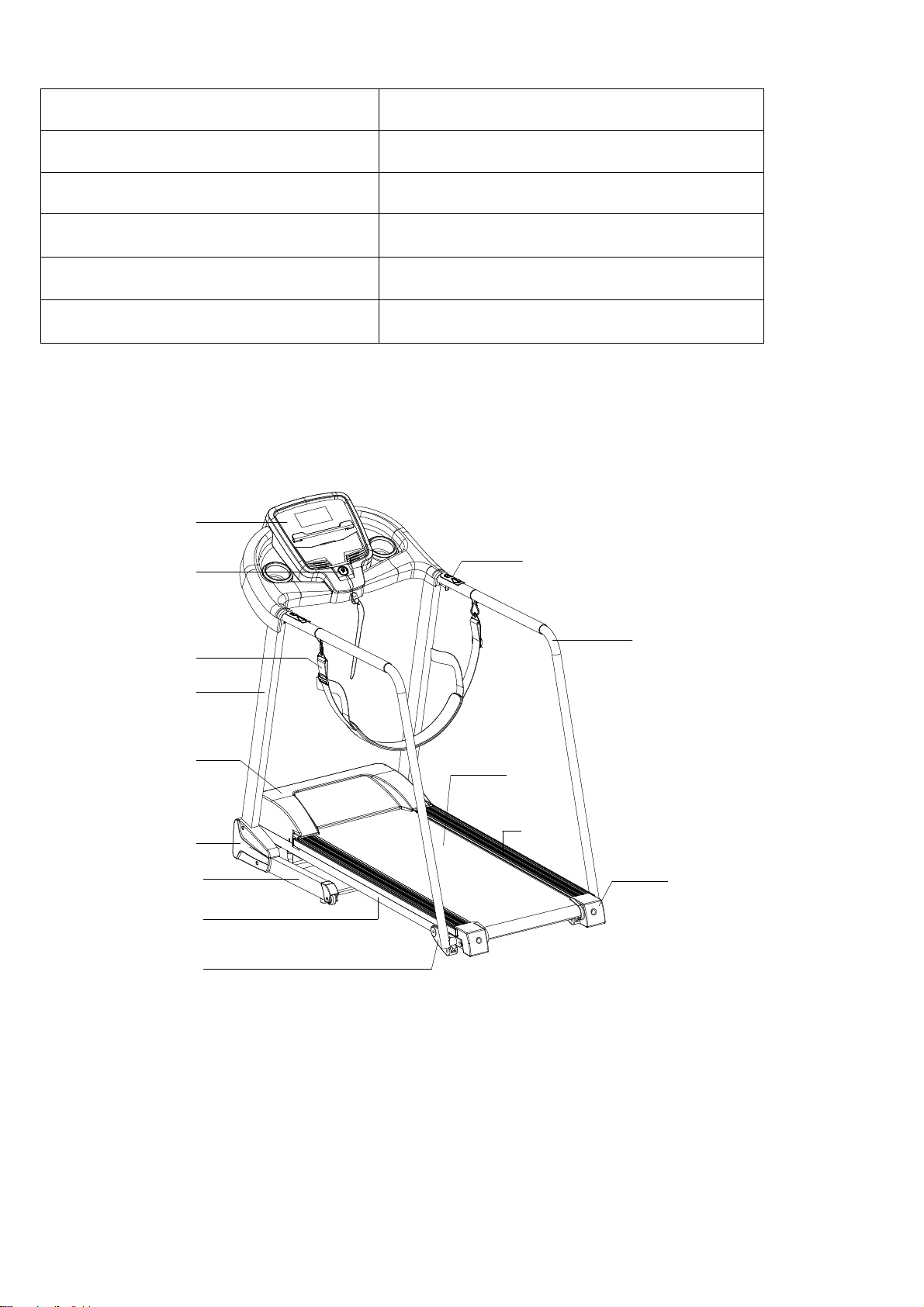

Product Overview
Console
Safety key
Belt
Upright
Motor cover
Side cover
Base Frame
Main Frame
Manual incline
Handlebar
Handrail
End cap
Side rail
Running belt

4
A
AS SS SE EM MB BL LY Y I IN NS ST TR RU UC CT TI IO ON NS S
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS:
Main frame 1 set D17 Washer M8 8pcs D13 Round hex bolt
M8*15 4pcs
C13 Safety key 1pc
D3 Allen wrench 5mm
1pc
B18 Silicon oil 1 pc D1 Screw driver 1 pc
D16 Round head hex
bolt M8*45 4 pcs
B11L Left side cover 1
pc
B11R Right side cover 1
pc
D48 Cross self-tapping
bolt ST4.2*19 4 pcs
D81 Cross bolt M6*16
2 pcs
A29 Belt safety hook 2
pcs
D31 Hex round head bolt
M8*20 4 pcs
D23 Flat washer M8 4 pcs B84 Belt 1 pc
A30 Left handrail 1 pc A31 Right Handrail 1 pc

5

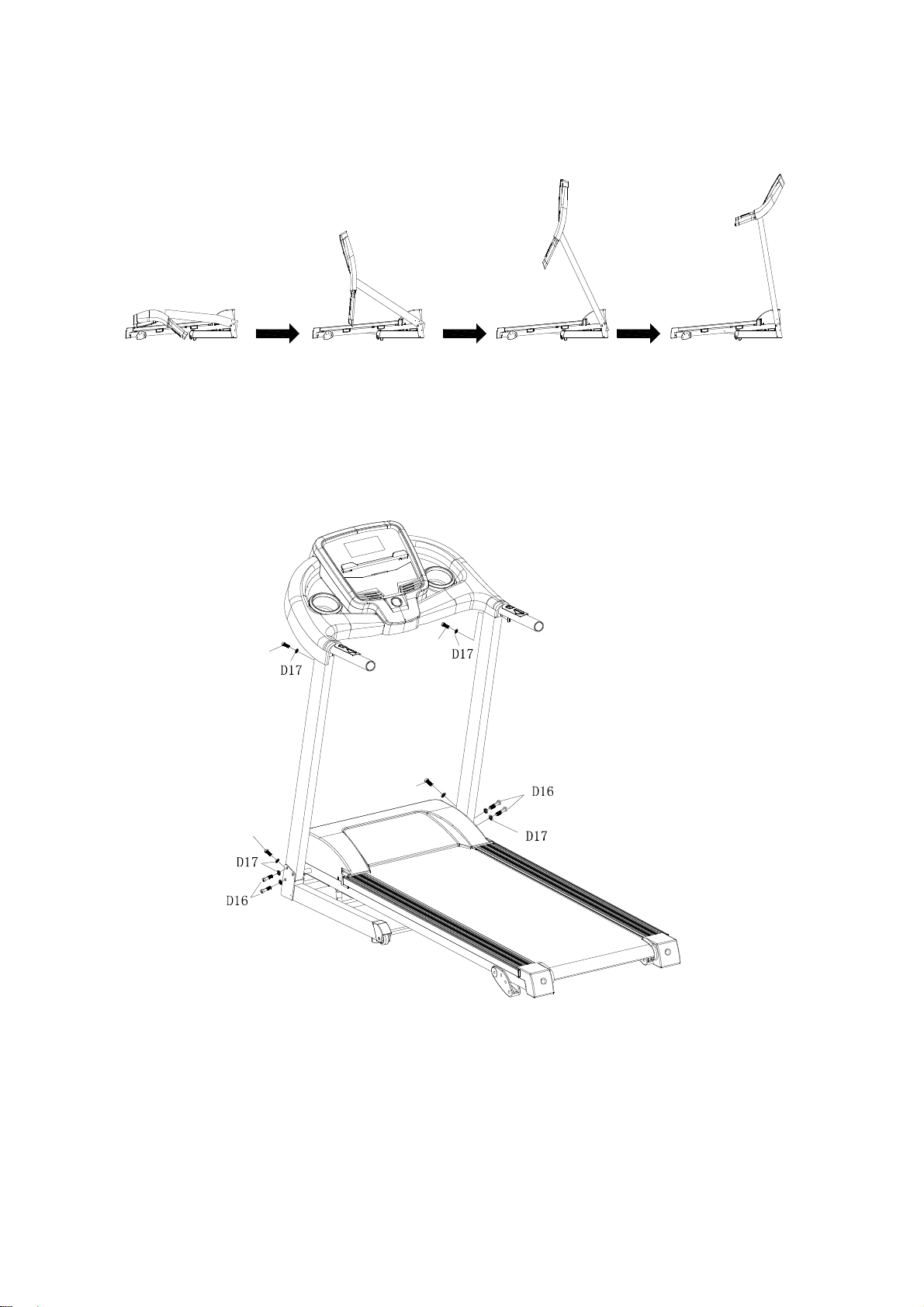

STEP 1：According to the following steps to lift up the computer bracket.
Be careful not press the line when folding.
STEP 2：Secure bottom frame with Round head hex bolt M8*45 (D16), Round head
hex bolt M8*15(D13）, and the Inner washer M8 (D17). Then secure console frame
with Round head hex bolt M8*15(D13）and Inner washer M8 (D17).
D13
D13
D13
D13

6
STEP 3：Lock the L/R Side cover (B11l/R) with Cross self-tapping bolt ST4.2*19
B11R
B11L
STEP 4: Take off the Handrail plug (B4). Put Belt safety hook (A29) into Left / Right Handrail
(A30/A31). Install the Left / Right Handrail (A30/A31) to Handrail bracket (A4) with Cross bolt M6*16
(D81). Then, tight the Left / Right Handrail (A30/A31) to Main frame (A1) by using Hex round head
bolt M8*20 (D31) and Flat washer M8 (D23).

7
STEP 5:

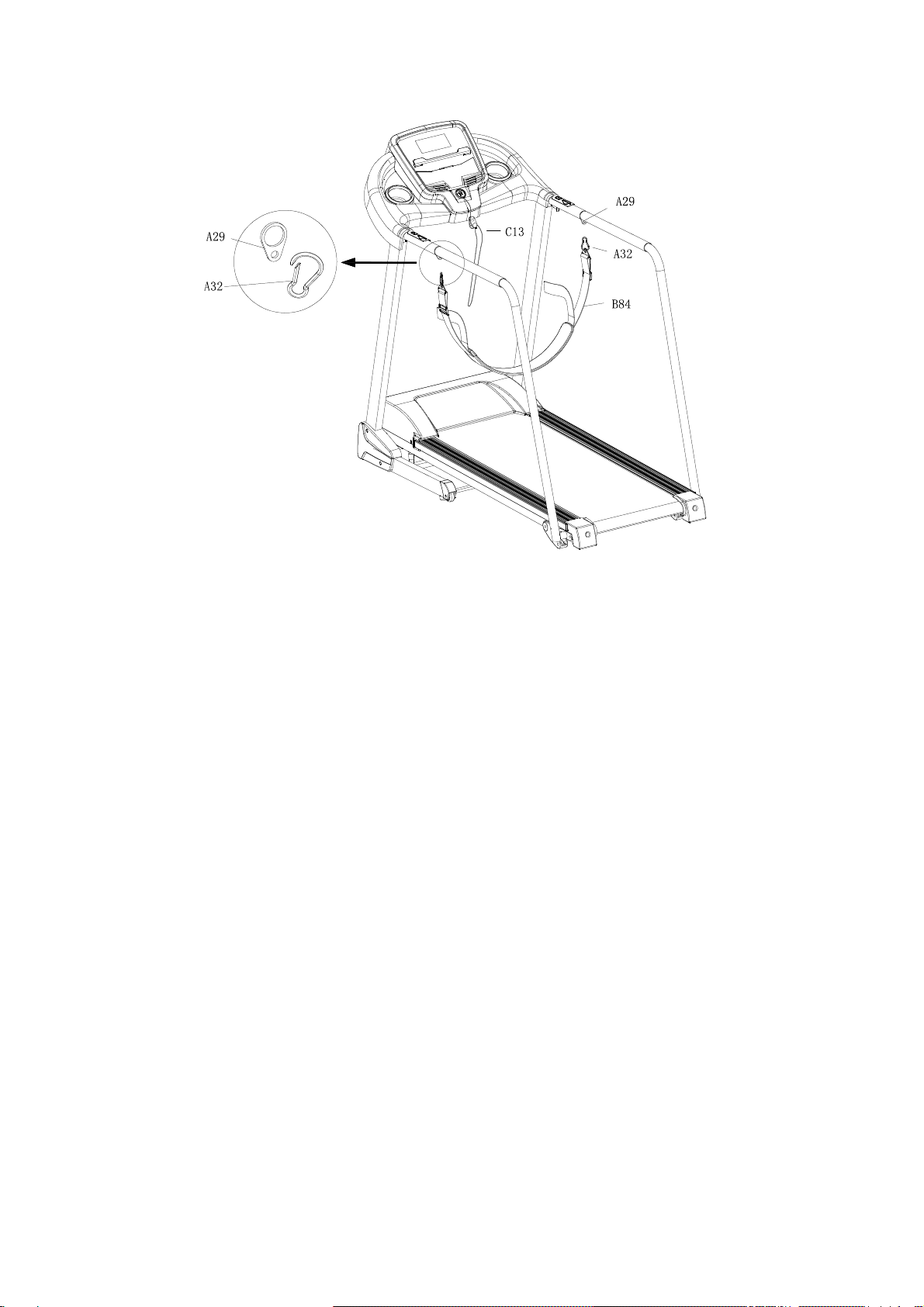

Lock the Safety buckle (A32) with safety hook (A29) and hang up the Belt (B84). Then put on the
safety key (C13)
Step 6:
To check if the running belt runs correctly, placing treadmill in folding position and tightening all the
bolts. Then set speed under 3km/h and see if running belt runs without problem.

8
G
Gr ro ou un nd di in ng g M Me et th ho od ds s
This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product –
if it will not fit the outlet, Please find a proper outlet installed by a qualified electrician.
. This product is for use on a nominal 220~240V circuit and has a grounding plug . Make that
the product is connected to an outlet having the same configuration as the plug. No adapter
should be used with this product.

9
O
Op pe er ra at ti io on n G Gu ui id de e
1.1. WINDOW DISPLAY
1.2 START
Normal start after 5 seconds countdown
1.3 PROGRAM
3 countdown function, 12 pre-set programs, 1 body fat program
1.4 SAFETY LOCK FUNCTION
The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi"
alarm noise. And put the safety lock on, the computer will display for 2 seconds and the date count
down to “0”
1.5 BUTTON FUNCTION
1.5.1 START/STOP
“START”--When the treadmill is not running, press this button to start, speed is “0.4”.
“STOP”--When the treadmill is running, press this button to stop, then set program default and then
return to manual mode after stopped.
1.5.2 “PROGRAM” BUTTON
When the treadmill is not running, press this button can circle choose from manual mode to pre-set mode
P1-P12 and body fat;
1.5.3 “MODE” BUTTON

10
When the treadmill is not running, press this button to choose countdown modes:”H-1”,”H-2”,”H-3”.
H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3” is the calorie countdown
mode; press the “SPEED+/-” button to adjust the data.
After that, press the “START” button to start this treadmill
1.5.4 “SPEED +/- “BUTTON
SPEED +/– --Adjust speed when treadmill start, the increment is 0.1km/time in kilometer. Press the
button more than 2 seconds, and it will be up or down automatically.
1.5.5 SPEED QUICK BUTTON
Press the speed quick button 1km/h，2km/h，3km/h，4km/h，5km/h，6km/h，7km/h and 8km/h to adjust the
speed directly when the treadmill is running.
1.6. DISPLAY FUNCTION
1.6.1 SPEED
Display running speed.
1.6.2 TIME
Display the running time or countdown time.
1.6.3 DISTANCE
Display the running total distance or distance countdown.
1.6.4 CALORIE
Display the calorie or calorie countdown
1.6.5 PULSE
Display pulse data.
1.6.6 ALL WINDOW DISPLAY DATA RANGE
TIME：0:00 – 99.59(MIN)
DISTANCE: 0.00 – 99.9(KM)
CALORIES: 0.0 – 999 (C)
SPEED: 0.8-14.0(km/h)
PULSE: 50 – 200 (BPM)

11
1.7 PULSE FUNCTION
When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The
pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This
data is only for reference, can not be as medical data.
1.8 PROGRAM EXERCISE CHART
TIME INTERVAL
MODE
SET TIME / 10 = EVERY GRADE TIME
1
2
3
4
5
6
7
8
9
10
P1 SPEED 3 3 6 5 5 4 4 4 4 3
P2 SPEED 3 3 4 4 5 5 5 6 6 4
P3 SPEED 2 4 6 8 7 8 6 2 3 2
P4 SPEED 3 3 5 6 7 6 5 4 3 3
P5 SPEED 3 6 6 6 8 7 7 5 5 4
P6 SPEED 2 6 5 4 8 7 5 3 3 2
P7 SPEED 2 9 9 7 7 6 5 3 2 2
P8 SPEED 2 4 4 4 5 6 8 8 6 2
P9 SPEED 2 4 5 5 6 5 6 3 3 2
P10 SPEED 2 5 7 5 8 6 5 2 4 3
P11 SPEED 2 5 6 7 8 9 10 5 3 2
P12 SPEED 2 3 5 6 8 6 9 6 5 3
1.9 Manual model operation
1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 0.8km/h
1.9.2 Press speed +/-, you can adjust the speed
1.9.3 Press stop, you can stop treadmill at working state
1.9.4 Press quick speed key, you can quickly adjust the speed you want
1.10 3 COUNTDOWN FUNCTION PARAMETER DATA
Countdown time initial setting 30：00 minutes，setting range 5：00---99：00 minutes , each step 1：00.
Countdown calorie initial setting 50therm, setting range 10---990 term，each step 10.
Countdown distance initial setting 1.0km，setting range 0.5---99.9 km，each step 0.1
Cycle switch order is: manual, time, distance, calories.

12
1.11 BODY TESTER（FAT）
At the beginning state, press “ PROGRAM” continually to enter “FAT“ body fat test，window display
“FAT”. Press “MODE” to enter (F1 SEX, F2 AGE, F3 HEIGHT, F4 WEIGHT). Press “SPEED+”,
“SPEED-” to set. After setting, the computer will display F5 and grasp the hand pulse, the window
will display your body quality index.
The body quality index is to test the relation between height and weight not the body scale.
The body FAT suits for any male and female to adjust the weight according together with other
body quality index. The ideal FAT should be between 20-25, if under 19, it means too thin. If
between 25 and 29, it means overweight, if over 30, it means obesity. (The data is just for
reference and can not be as medicinal data)
01 Sex01 Male 02 Female
02 Age10------99
03 Height 100----200
04 Weight 20-----150
05 FAT≤19 Under weight
FAT= (20---25) Normal weight
FAT= (25---29) Over weight
FAT≥30 Obesity
1.13 OTHERS
1.13.1 The system will enter into power saving mode automatically if there is no any action within 10
minutes under IDLE MODE and there is no display and backlit on the computer. Press any key to
resume the system.
1.13.2 Countdown time, countdown calorie and countdown distance, you just can set one of them at
one time, press last item to set running, the setting parameter is countdown, others display normal data
1.13.3 On display – Distance covered, Calories burnt, Pulse reading, Body Fat test shown is
only for indicative purpose and may vary from machine to machine. Do not compare these
readings to a medical instrument.
1.13.4 Speed control: acceleration at 0.5km/s; deceleration at 0.5km/s.

16
M
MA AI IN NT TE EN NA AN NC CE E I IN NS ST TR RU UC CT TI IO ON N
WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining
the product.
CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life.
Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either
side of the walking belt and also the side rails. This reduces the build up of foreign material
underneath the walking belt. Make sure the shoes are clean. The top of the belt may be cleaned
with a wet soapy cloth. Be careful to keep liquid away from inside the motorized treadmill frame
or from underneath the belt.
WARNING：Always unplug the treadmill from the electrical outlet before removing the motor
cover. At least once a year remove the motor cover and vacuum under the motor cover.

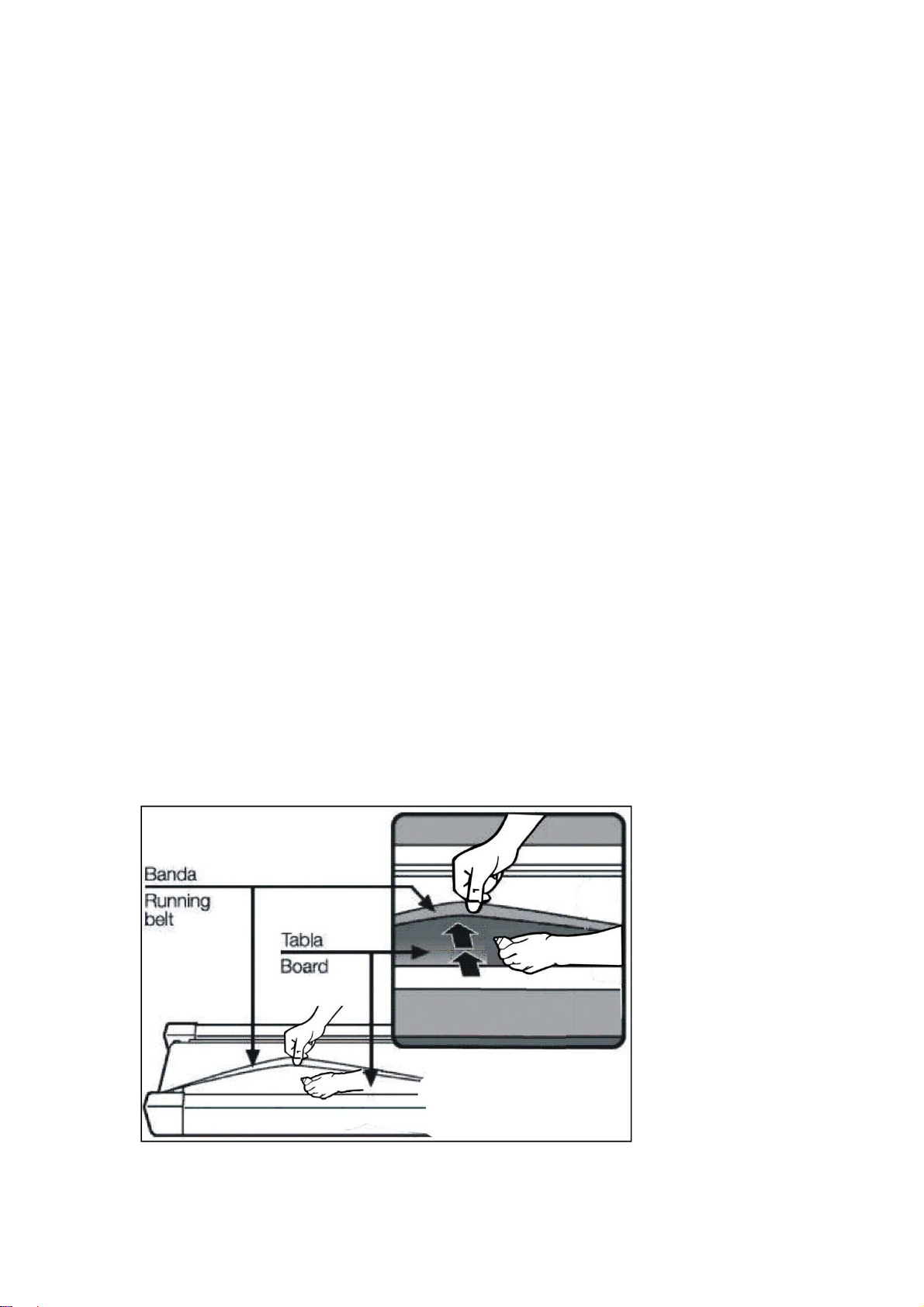

This treadmill's walking belt and deck are equipped with a pre-lubricated, low maintenance deck
system. The belt/ deck friction may play a major role in the function and life of your treadmill, thus
requiring periodic lubrication. We recommend a periodic inspection of the deck.
We recommend lubrication of the deck according to the following timetable:
Light user (less than 3 hours/ week) Every 60 days
Medium user (3-5 hours/ week) Every 45 days
Heavy user (more than 5 hours/ week) Every 30 days
We suggest you buy lubricating oil from local distributors or contact our company directly.
Pay attention, any other maintains please ask professionals for help.

17
B
BE EL LT T A AD DJ JU US ST TM ME EN NT T
Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running
belt deviate condition.
If the belt has drifted to the right, unplug the
safety lock and power switch, and turn the right
adjusting bolt 1/4 turn clockwise, then insert the
power switch and safety lock, make the treadmill
running, observe the running belt deviate
condition. Repeat above steps until the running
belt be placed in the middle. See picture A
Once the treadmill belt swerving to the left,
unplug the safety lock, turn off the power, then
with the left adjusting bolt clockwise rotation 1 / 4
laps, and turn on the safety lock and power to
make treadmill running, checking the deviation
of the treadmill belt. Repeat the above steps until
the belt centered. See picture B
The treadmill belt will gradually relax after above
steps or after a period of time using, unplug the
safety lock, and turn off the power, with the two
adjusting bolt clockwise rotation 1 / 4 laps, and
turn on the safety lock and power to make
treadmill running, then standing on the belt to
confirm the tightness. Repeat the above steps
until the belt moderate tightness.
See picture C

18
E
EX XP PL LO OD DE ED D D DR RA AW WI IN NG G
B11R
B4
B4

19
P
PA AR RT TS S L LI IS ST T
A.
Welding parts
No.
Description
Qty
No.
Description
Qty
A1 Main frame 1 A11 Motor bracket 1
A2 Base frame 1 A29 Belt safety hook 2
A3L Left upright tube 1 A30 Left Handrail 1
A3R Right upright tube 1 A31 Right Handrail 1
A4 Handrail bracket 1 A32 Safety buckle 2
A6 Filter bracket 1
B.
Plastic parts
No.
Description
Qty
No.
Description
Qty
B1 Console set 1 B14 Motor bottom cover 1
B1-1 Overlay 1 B15 Side rails 2
B1-2 Membrane key 1 B16L Left end cap 1
B1-3 Console panel 1 B16R Right end cap 1
B1-5 I-pad Holder 1 B18 Silicon oil 1
B2
Console cover
1 B19 Power buckle 1
B3 Handrail foam 2 B20 Protecting wire plug 1
B4 Handrail plug 2 B25 Cushion 2
B6
Transport wheel cap
2 B27 New cushion 6
B7 Transport wheel 2 B31 Rubber pad 2
B8 Flat pad 2 B34 EVA pad(I-Pad holder) 1
B9
U-shaped foot pad
2 B40 3 section manual incline 2
B10 Limited cushion 2 B46 Rubber pad 2
B11L Left side cover 1 B51 Water bottle holder 2
B11R Right side cover 1 B84 Belt 1
B13 Motor cover 1
C. Drive parts
No.
Description
Qty
No.
Description
Qty
C1 DC Motor 1 C11 Right short keys 1
C2 Running belt 1 C13 Safety key 1
C3 Rear roller 1 C14 Single line (Red) 300 1
C4 Front roller 1 C15 Power code 1
C5 Running board 1 C16 Computer upper line 1
C6 Cylinder 1 C17 Computer lower line 1

20
C7 Motor belt 1 C21 Inductor 1
C8 Power switch 1 C22 Filter 1
C9 Controller 1 C27 Single line (Black) 300 1
C10 Left short keys 1
D. Hardware parts
No.
Description
Qty
No.
Description
Qty
D1 Screw driver 1 D30 Hex round head bolt M6*60
2
D3 Allen wrench T5 1 D31 Hex round head bolt M8*20
4
D11 Round hex bolt M10*50 2 D35 Hex round head bolt M8*80
1
D13 Round hex bolt M8*15 4 D36 Cross head bolt M6X25,
washer 2
D14 Round head hex bolt M8*30 1 D43 Cross head bolt M4*20,
washer 2
D15 Round hex bolt M8*40 2 D45 Cross head bolt M5X15,
washer 7
D16 Round hex bolt M8*45 9 D47 Cross head bolt ST4.2*16
washer 17
D17 Washer M8 8 D48 Cross head bolt ST4.2*19
washer 4
D20 Nylon nut M8 8 D52 Cross self-tapping bolt
ST4.2*16 11
D21 Flat washer M10 2 D53 Cross self-tapping bolt
ST4.2*45 2
D23 Flat washer M8 19 D57 Cross self-tapping bolt
ST4.2*25 4
D24 Spring washer M5 1 D60 Cross head bolt M6*20 6
D25 Spring washer M8 4 D63 Flat head pin 2
D29 Hex round head bolt M6*45 1 D81 Cross bolt M6*16 2

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.toorx.it - [e-mail]
