TOORX TRX 3500 TFT User manual

Ed : Rev : Cod :
INSTRUCTION
10/22 TOXPRFTRX3500T00

4
Parts list

5
No.
Description
Qty
No.
Description
Qty
No.
Description
Qty
1
Base frame
1
28
Right rear end cap
1
A13
Cross head sunk
screw M3X8
2
2
Running board
supporting tube
1
29
Motor
1
A14
Cross head sunk
screw M8X25
4
3
Incline frame
1
30
Incline motor
1
A15
Cross head sunk
screw M8X30
2
4
Left upright tube
1
31
Controller
1
A16
Cross head sunk
screw M8X35
2
5
Right upright
tube
1
32
Overload switch
1
A17
Cross pan head
screw M3*16
4
6
Handlebar and
controlling panel
1
33
Power switch
1
A18
Cross pan head
tapping screw
ST4.2X12
16
6.1
Controlling panel
support
1
34
Socket
1
A19
Cross pan head
tapping screw
ST4.2X16
11
6.2
Left handlebar
1
35
Wheel
2
A20
Cross half round
screw ST4.2X12
14
6.3
Right handlebar
1
36
Emergency stop
switch
4
A21
Cross half round
screw ST4.2X25
2
6.4
Upper cover of
controlling panel
1
37
Roller cover
2
6.5
Key board
1
38
Filter
1
6.6
Front handlebar
1
39
Inductor
1
6.7
Lower cover of
controlling panel
1
40
Signal wire A
1
6.8
Left handlebar
cover 1/2
1/1
41
Signal wire B
1
6.9
Right handebar
cover 1/2
1/1
42
Signal wire C
1
B1
Hex nut M8
2
7
Display sreen
1
B2
Nylon lock M8
4
8
Motor lower
cover
1
B3
Nylon lock M10
6
9
Front roller
1
10
Rear roller
1
11
8V belt
1
C1
Flat washerΦ4
8
12
Running board
1
C2
Flat washerΦ8
11
13
Running board
cushion
8
C3
Flat washerΦ10
20
14
Rubber mat
2
C4
Big flat washerΦ4
8
15
Running belt
1
C5
Big flat washerΦ5
8
16
Universal foot
2
A1
Bolt M5X35
8
C6
Spring washerΦ4
8

6
pad
17
Side rail
2
A2
Bolt M8X35
4
C7
Spring washerΦ5
8
18
Baffle plate
1
A3
Bolt M8X50
2
C8
Spring washerΦ8
4
19
Power panel
A4
Bolt M10X50
1
C9
Spring washerΦ10
8
20
Side rail
positioning nut
8
A5
Bolt M10X75
4
C10
Nylon washer Φ10
4
21
Square end cap
4
A6
Bolt M10X90
1
22
Cushion
2
A7
Bolt M10X160
2
D1
Wrench
1
23
Motor upper
cover
1
A8
Half round bolt M8X20
4
D2
Cross screwdriver
1
24
Left upright tube
cover
1
A9
Half round bolt M8X40
4
D3
Screwdriver
1
25
Right upright
tube cover
1
A10
Half round bolt
M10X25
10
D4
Wrench（S=6）
1
26
Nut cap
4
A11
Socket head bolt
M10X60
1
D5
Wrench（S=8）
1
27
Left rear end
cap
1
A12
Socket head bolt
M10X90
3
D6
Lubricant bottle
1
Note: Pls refer to the actual parts if there is difference with the ones in the list.
Installation instruction
WARNING: Don’t insert the power wire until the treadmill was fully installed!
Tips:
* To eliminate installation errors, do not tighten all the bolts in each step. Tighten all the bolts after the
installation is complete.
* One treadmill is packed in 2 cartons, #1 is for main frame, # 2 is for the handle bar and central controling
panel.
1. Unpack and lift out of the frame
The frame is fixed with a bracket and bolt
X ,Before leaving the factory, the rack is fixed with
a bracket and X, Unscrew the X (there are six in
total ) mounted on the frame with a wrench. Then
lift the frame out. As shown in Figure 1
2. Installation of left upright tube

7
2.1 Install Left upright tube (4) to base frame (1) by two sets of half round bolt M8X20 (A8),half round
bolt M8*40 (A9) and four pcs of flat washer φ8 (C2)
by side. (Attention: to align screw hole with the
upper surface). Make sure the bolts to connect left
upright tube and base frame. Do not tighten the
bolts until all the bolts are assembled .(See Figure
2)
2.2 In upper outer side, using bolt M10X160 (A7)
that was assembled on frame to
tighten.(Attention: bolt head position is the front
underside. See Figure 2-1)
3. Installation of right upright tube
3.1Connect the Signal wire from right upright
tube to corresponding wires from frame.
3.2 Install the Right upright tube (5) to base
frame (1) using two sets of bolt M8X20 (A8),bolt
M8X40 (A9) and four pcs of flat washer φ8 (C2)
by side. (Attention: to align screw hole with the
upper surface). Make sure the bolts to connect
right upright tube and base frame. Do not tighten
the bolts until all the bolts are assembled. (See
Figure 3)
3.3 In upper outer side, using Bolt M10X160 (A7) that was assembled on frame to tighten.(Attention:
bolt head position is the front underside. See Figure 3-1)
4. Installation of handlebar and
controlling panel
4.1 Connect the Signal wire from right upright
tube to corresponding wires from handlebar.
4.2 Install handlebar and controlling panel
set(6) to the left/right upright tube (4/5).
4.3 Connect handlebar and controlling panel
(6) to the left/right upright tube (4/5) from
inner and front sides by six sets of half round
bolt M10X25(A10), spring washerφ10 (C9),
and flat washer φ10(C3). (Attention: To align
screw hole)(See Figure 4)

8
5. Installation of display screen
5.1 Connect the signal wire from display screen
to corresponding wire from controlling panel.
Crowding the extra wire into the panel.
5.2 Connect the display screen (7) to handlebar
and controlling panel (6) by four sets of half-round
bolt M10X25(A10), flat washers φ10(C3).
(Attention: To align screw hole) (See Figure 5)
6. Installation of motor left/
right cover
6.1 Tighten all the bolts.
6.2 Install left cover (24) to the left side of motor
upper cover (23) by three pcs of cross pan head
tapping screw ST4.2X12 (A18) , then tighten.
6.3 Install right cover (25) to the right side of
motor upper cover (23) by three pcs of cross
pan head tapping screw ST4.2*12 (A18), then
tighten. ( see Figure 6)
WARNING: Improper connection of the grounding conductor may cause electric shock. If
you’re not sure whether the device is properly grounded, please turn to a professional
electrician or repairman to inspect. Do not modify the plug supplied with the product, if the plug
does not match the socket, you should turn to a professional electrician to install a proper socket.
Adjustment instruction
1. Before connectting power, service or professional personel should check whether voltage
is appropriated, and whether the ground wire of three-core plug is wellconnected. Pull the
running belt by hand, check whether the rotation is flexible, there is no abnormal sound.
2. Connect power, press Start key, the treadmill starts to run in low speed,observe whether
belt and computer are run normally.
3. Press the speed up and down key to observe the rotation and display of the treadmill. If

9
the belt deviated, stop the treadmill and adjust the running belt according to the requirements
of "maintenance".
4.Press emergency stop key or pull out safety key,the treadmill will stop immediately. Re-
inset the emergency stop key to reset or insert safety key, can restart treadmill. (As below
figure)
5.Press Stop key, the treadmill stop running, then turn off the power when the incline returns
to zero.
Treadmill can be put into use after all the installation adjustment is completed.
1.Two feet stand on two side of belt, put the other side clip from safety key to clip to clothes.
(see the figure)
2.Press Start key, the treadmill will start running at lowest speed. You can step on the belt
and walk slowly.
3.Press speed+ key, the speed of running belt will gradually increase, you can see the speed
value from computer, start to run at low speed for 2-3 minutes, then increase the speed to
your target, you can release the handlebar after after run is suitable, you can let go handrail
to run after adaptation.
4.When stopping running, you should slow down gradually and run for 2-3 minutes at a
low speed, so that the heart and breathing slowly return to normal.
5.After running, you can reduce speed to the minimum, and then press the start/stop
button to stop the treadmill.
6.If running at high speed, it is too late to slow
down, or even lose balance, you can press the
emergency stop button, and the treadmill can
stop running immediately. The stopping distance
depends on the inertial weight.
7.Please fully master the use of emergency stop
button and safety key.
8.If the emergency stop button and safety key fail
or are damaged, they must be maintained or
replaced by professionals in time. (They are
earsily worn parts)
9.Noise under load is higher than that without
load.
10.
WARNING:Frequent use of incline operation (more than 5 times in a row) may
render the incline ineffective. It's not a malfunction. It is a kind of automatic
protection of incline motor, the function will be restored automatically after 1 hour stop using.

10
Console instruction
WARNING: To reduce the possibility of electric shock, keep the console dry. To
prevent liquid from spilling onto the console, only sealed water bottles can be
placed on the water bottle holder.
1. Quick start

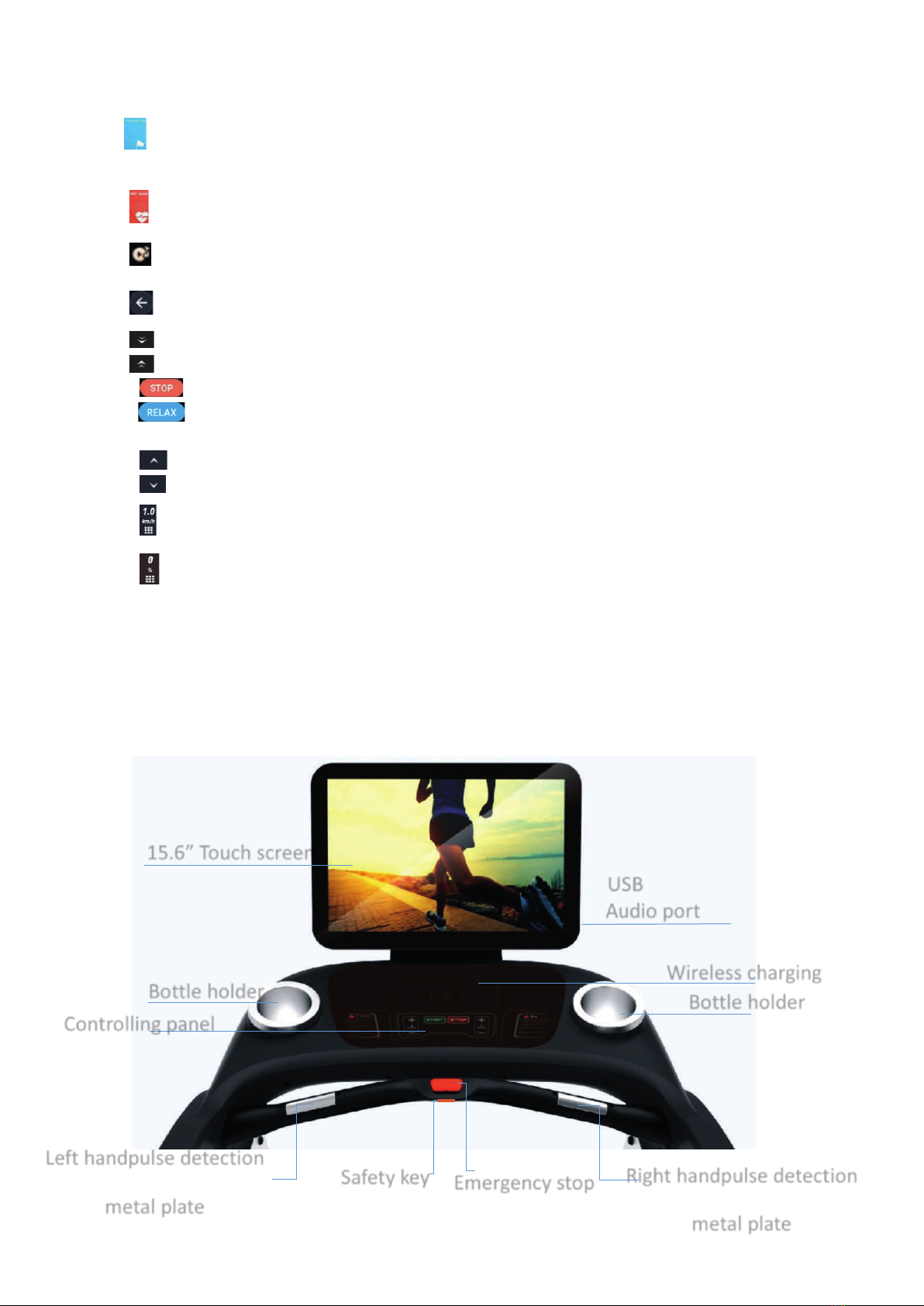

The treadmill adopts 15.6 inch high resolution touch screen to display the data and sports
state during exercise, and installs multimedia APP application and running training mode
to make sports entertainment more rich and interesting. Power on, turn on the main power
switch of the treadmill, install the safety switch key then enter into the main menu as shown
below

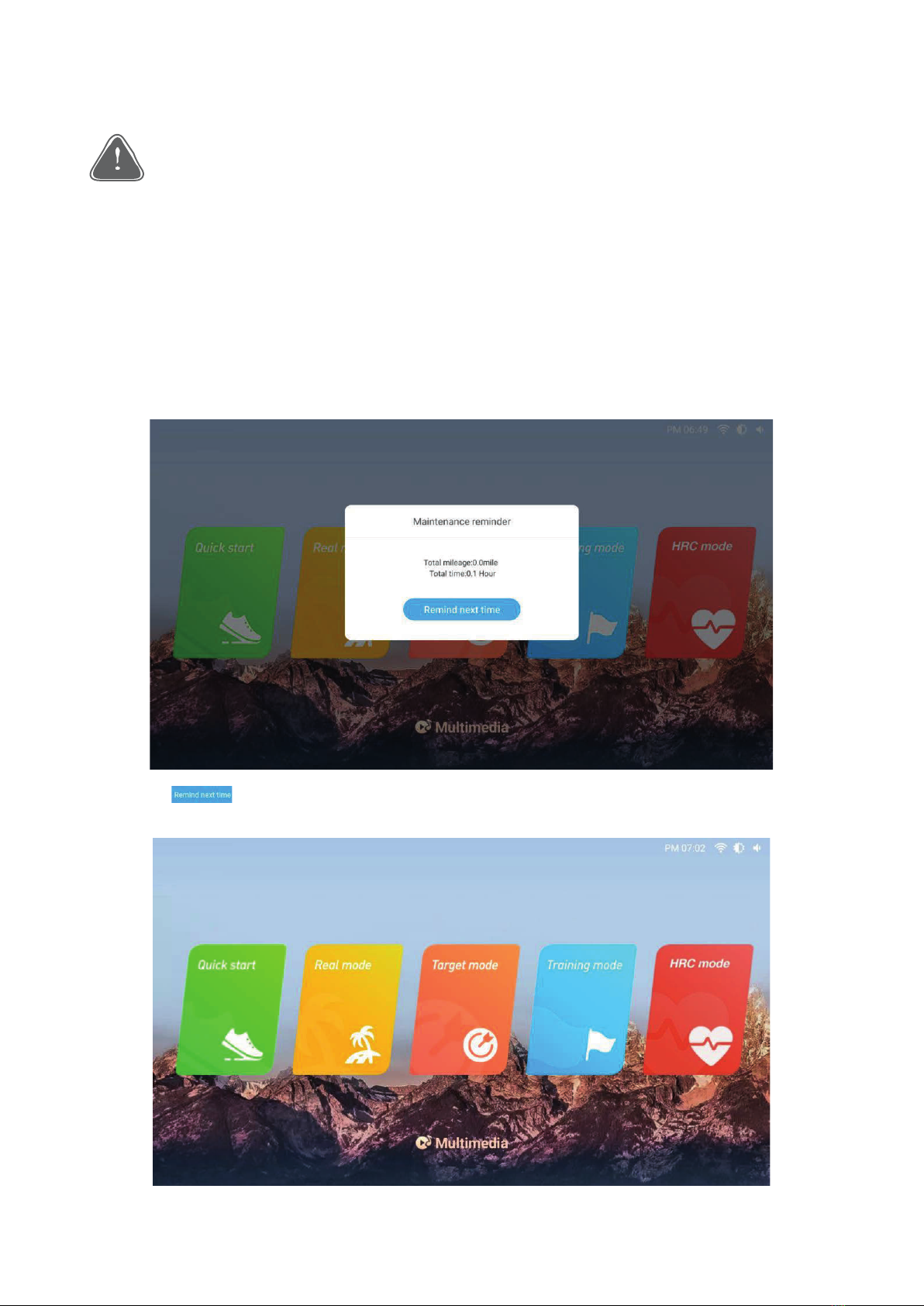

Click“ ”to exit the “Maintenance reminder”and enter into main menu as shown
below:

11
Click "Quick Start" on the screen or the " " button on the console to start quickly.
The treadmill will directly start the countdown and enter running mode as shown below:
Main interface in running state is shown as below:

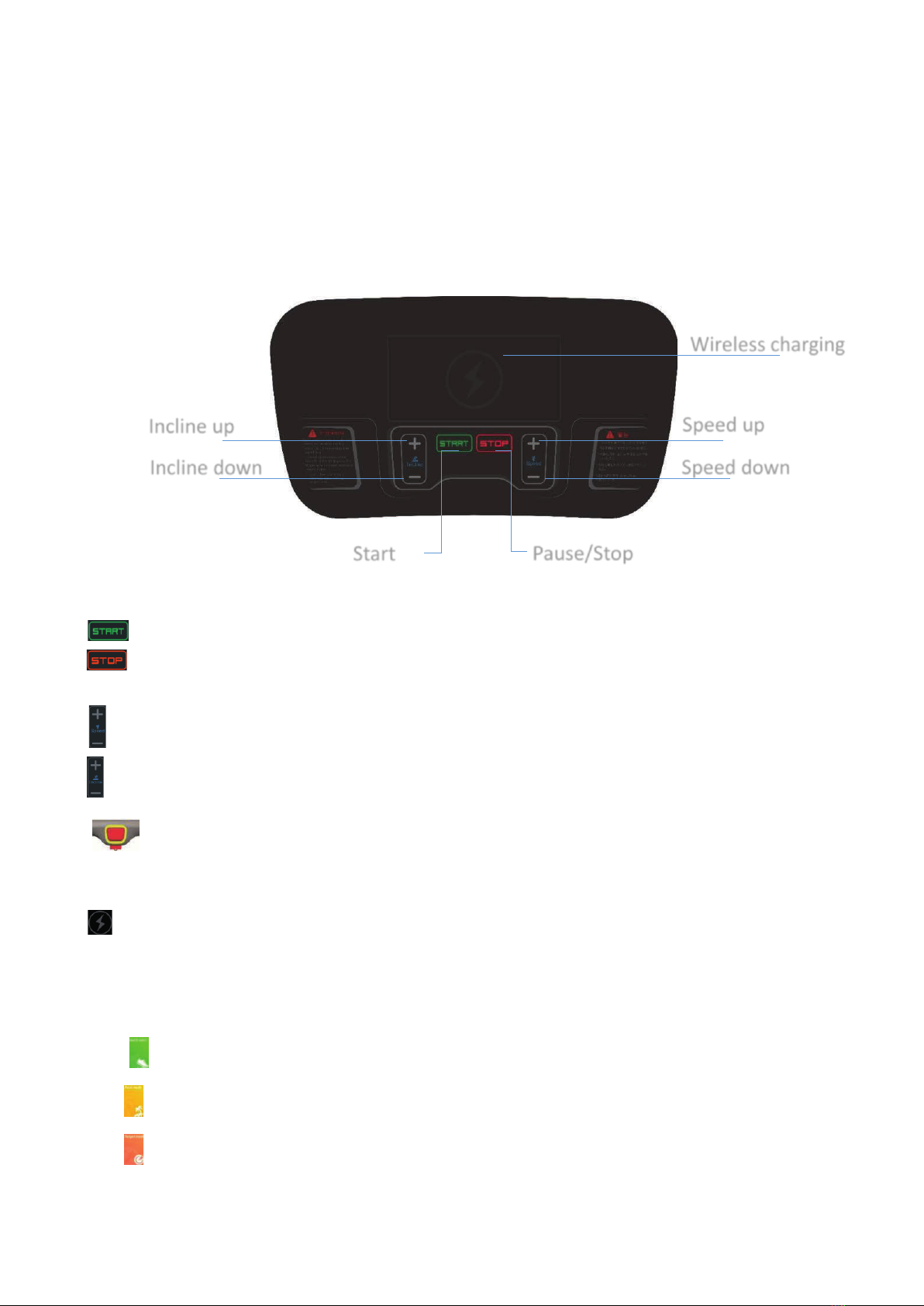

After starting the treadmill, press the speed adjustment button (+ -/ ) on the controlling panel
or color screen to adjust your running speed. Press the incline adjustment key (+ -/ ) to adjust the
comfortable running incline; Press the speed direct selection key (3-6-9) or fast selection key ( ) on
the screen to quickly select the speed; Press incline direct selection button (3-6-9) or quick selection
button ( ) on the screen to quickly select the incline. For your safety, try not to operate other functions
on the screen when running. If you want to operate the media APP function , please do it when it is

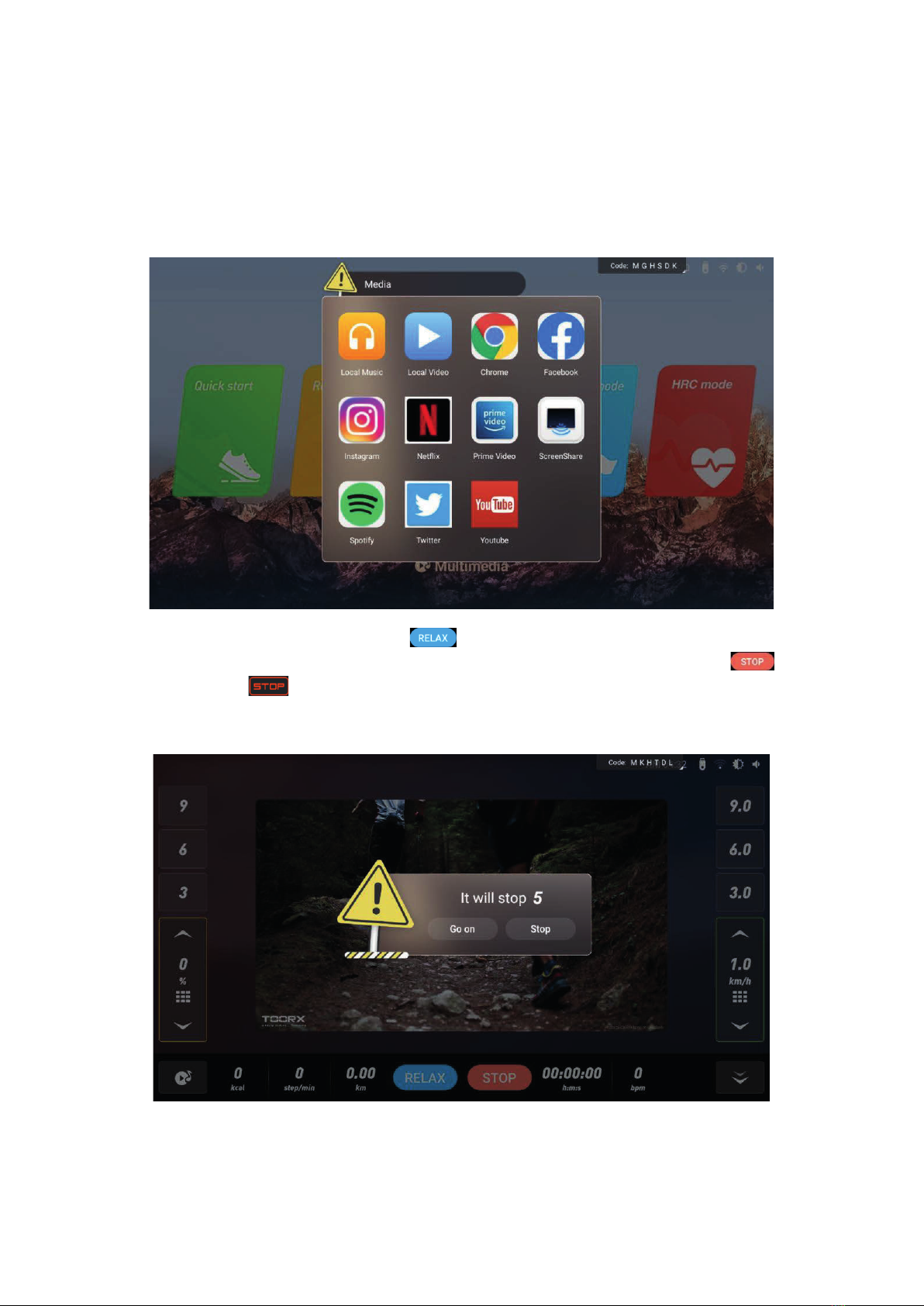

lower than 3KM/H or in the shutdown state. Click the "multimedia" icon on the interface to enter the
APP interface, as shown in the picture below, you can browse Twitter, Facebook... and so on.

12
When the speed is > 1KM/H, click the " " , the speed will be reduced to a comfortable
state and the incline to the initial state value. When you want to stop running, press the " " on
the home page or the" "button on the controlling panel, and a window that is about to end running
will pop up on the home page to provide" Go on "or" Stop ", as shown below:
If you need to stop running in an emergency, please pull out the safety key or press the emergency
stop button to stop the treadmill. Then it will be shown as below:
