TOORX TRX 9000 User manual

Ed : 10/18 Rev : 00 Cod : TOXPRFTRX9000
INSTRUCTION

3
Hardware and tool
Explored drawing

4
Spare Parts List
No.
Description
Qty
No.
Description
Qty
1
Base frame
1
41
Signal wire A
3
2
Switch base frame
1
42
Signal wire B
2
3
Incline frame
1
43
Signal wire C
2
4
Left upright tube
1
5
Right upright tube
1
6
Handlebar and controller
1
7
Display screen
1
A1
Bolt M8X55
1
8
Oil pipe
1
A2
Bolt M10X95
1
9
Front roller
1
A3
Bolt M10X55
1
10
Rear roller
1
A4
Bolt M10X25
8
11
10 V belt
1
A5
Bolt M10X75
4
12
Running board
1
A6
Bolt M10X165
2
13
Running board cushion
8
A7
Half-round bolt M8X20
2
14
Rubber mat
8
A8
Half-round bolt M10X20
10
15
Running belt
1
A9
Crosshead self-lock bolt ST4X30
4
16
Universal wheel mat
2
A10
Half-round bolt M8X45
6
17
Left side rail
1
A11
Round bolt M10X60
2
18
Right side rail
1
A12
Round bolt M10X90
2
19
Non-slip colloidal particles
84
A13
Crosshead bolt M8X70
8
20
Position nut
6
A14
Crosshead bolt M3X8
2
21
Shock absorption mat
4
A15
Crosshead bolt M5X40
2
22
Baffle plate
1
A16
Crosshead bolt M5X20
2
23
Motor top cover
1
A17
Crosshead self-lock bolt ST4X16
27
24
Motor left cover
1
25
Motor right cover
1
B1
Hexagon Nut M8
8
26
Motor front cover
1
B2
Nylon lock nut M5
2
27
Left end cap
1
B3
Nylon lock nut M8
8
28
Right end cap
1
B4
Nylon lock nut M10
14
29
Middle end cap
1
C1
Flat washerφ8
8
30
Rear roller cap
2
C2
Flat washerφ10
24
31
Motor (AC)
1
C3
Big flat washerφ10
4
32
Incline motor
1
C4
Flat washerφ5
2
33
Frequency changer (AC)
1
C5
Spring washerφ10
10
34
Energency stop switch
1
C6
Spring washerφ5
2
35
Cymbiform switch
1
C7
Nylon Washerφ10
4
36
socket
1
D1
Wrench
1
37
wheel
2
D2
Screwdriver
1
38
cushion
2
D3
Wrench (s=6)
1
39
Nut cap
4
D4
Wrench (s=8)
1
40
Safety key
1
D5
Lubricant bottle
1

5
Assembly Instruction
Please make sure there’s enough space to install the treadmill and recommend 2 persons to
install it.
WARNING: Don’t insert the power wire until the treadmill was fully assembled.
Assembly tips:
1.In order to avoid instruction mistake, do not tighten bolt completely until the whole treadmill assembly
is finished.
2.This treadmill packaged for 2 cartons. #1 carton is main frame.#2 carton is Handlebar and controller.
1. Opening the package and take the
base frame out
Before the treadmill leave the factory,
the frame and pallet were fixed by
holders and bolts. Using wrench to
unscrew the bolts (total 4pcs bolts) on
frame, then take the base frame out.
(See figure 1)
2. Assembling left upright tube
A. Install the Left upright tube (4) to
base frame (1) using four sets of
bolt M10X25 (A4), Flat
washersφ10 (C2) by side.
(Attention: to align screw hole with
the upper surface). Make sure the
bolts to connect left upright tube
and base frame. (See figure 2)
B. In upper inner side, using one piece
Flat washer φ10 (C2) and one piece Nylon lock nut M10 (B4) to tighten. In upper outer side, using
Bolt M10X165 (A6) that was assembled on frame to tighten.(Attention: bolt head position is the front
underside. See figure 2-1)
3.Assembling right upright tube
A. Connect the Signal wire from right
upright tube to corresponding wires from
frame.
B. Install the Right upright tube (5) to
base frame (1) using four sets of bolt
M10X25 (A4), Flat washersφ10 (C2)
by side. (Attention: to align screw
hole with the upper surface). Make
sure the bolts to connect left upright
tube and base frame. (See figure 3)
C. In upper inner side, using one piece Flat washer φ10 (C2) and one piece Nylon lock nut M10 (B4) to

6
tighten. In upper outer side, using Bolt M10X165 (A6) that was assembled on frame to
tighten.(Attention: bolt head position is the front underside. See figure 3-1)
4. Assembling handlebar and controller
A. Connect the Signal wire from Right
upright tube to corresponding wires from
Handlebar.
B. Install handlebar and controller set(6) to
the Left/Right upright tube (4,5).
C. Connect handlebar and controller(6) to
the Left/Right upright tube (4,5) using 8 sets
of Half-round bolt M10X20(A8),Spring
washer φ10(C5),Flat washer φ10(C2).
(Attention: To align screw hole)(See figure 4)
5. Assembling display screen
A. Connect the signal wire from display
screen to corresponding wire from
controller. Crowding the extra wire into
controller.
B. Connect the display screen (7) to
handlebar and controller (6) using 4 sets
of Half-round bolt M10X20(A8),Flat
washersφ10(C2).(Attention: To align
screw hole)(See figure 5)
6. Assembling motor left & right cover
A.Tighten all the assembling bolt.
B.Install motor left cover (24) to left motor
cover (23) of base frame (1) using 1pcs
Crosshead self-lock bolt ST4X30 (A9) in
front and 3pcs Crosshead self-lock bolt
ST4X16 (A17) to tighten.
C.Install motor right cover(25) to left motor
cover(23) of base frame (1) using 1pcs
Crosshead self-lock bolt ST4X30 (A9) in
front and 3pcs Crosshead self-lock bolt
ST4X16(A17) to tighten.(See figure 6)

7
Adjustment instruction
Treadmill adjustment
1.Before connect power, service or professional inspect if voltage is suitable, and if
three-core plug grounded wire is connected. Using hand to pull the belt, inspect if rotation
is flexible and no noise.
2.Connect power, press Start key, treadmill will run slowly, inspect if belt and computer are
normal.
3.Press incline +/- key, inspect treadmill rotation and display. If the belt is deviation, you
must stop it to adjust belt according daily maintenance.
4.Pressing emergency stop key or pull out safety key on running treadmill, it will stop
immediately. Rotating the emergency stop key to reset or insert safety key, can restart
treadmill.
5.Press Stop key, the treadmill stop to running, waiting incline back to zero class, turn off
the power.
Treadmill can use after all the install adjustment is finished.
1.Two feet stand on two side of belt, put the other side clip from safety key to clip to clothes.
(see figure)
2.Press Start key, the treadmill will run slowly. You can step on belt slowly.
3.Press speed+ key, the belt speed will gradually increase, you can see the speed data
from computer, after run is suitable, you can let go
handrail to run.
4.When stop running, should gradually slow, and run
2-3 minutes in slow speed, put the heart and breathe
back to normal.
5.At the end of run, you can reduce belt speed to the
lowest, and the treadmill will stop when pressing stop
key.
6.If it is too late to reduce speed and lose balance
when high speed running, you can press and pat the
emergency key, treadmill will stop to run immediately.
Its stopped distance according to inertia and weight.
7.Please fully master emergency key and safety key
usage.

8
Computer Instruction
1.Function
2.Controller instruction

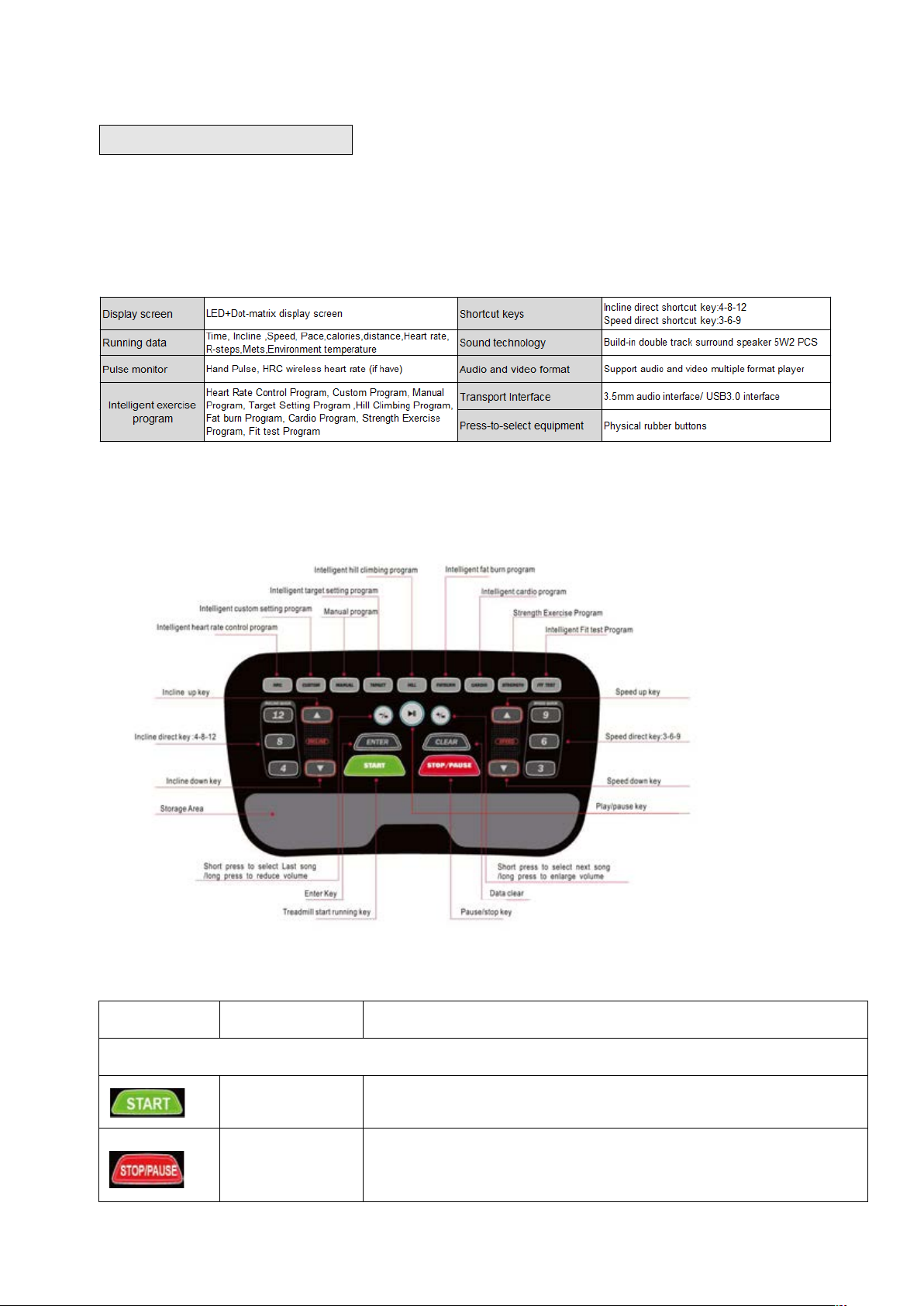

2.1 Physical rubber buttons control console ( see figure as below)
2.1.1 Buttons function table
Button Icon
Button Name
Button Instruction
■Treadmill operation key instruction
START Key
Connect the power, press START key, the treadmill start running.
STOP/PAUSE Key
When treadmill running, press STOP/PAUSE to pause status,
press it again, the treadmill turn to stop status. After pause, press
Start key, treadmill back to the front of pause status.

ENTER Key
Press this key to confirm after setting.
CLEAR Key
Press this key to confirm to clear after setting.
Safety Key
It is an emergency stop device to prevent slip. Please clamp to
your
clothes when using the treadmill. Pull the string or pat the
safety key
button, treadmill will stop immediately, matrix
window shows
---icon. It must be push the safety key slice if
you need to start treadmill.
Right Speed adjust
key
When the tr
eadmill running, press them to adjust speed, long
press quickly adjustment; you also can press this key to increase
or reduce value in the direct select exercise program.
Speed direct key
Build
-in 3-6-9 three speed direct shortcut keys. (It is effective
when the treadmill running)
Left
Incline adjust key
When the treadmill running, press them to adjust incline, long
press quickly adjustment, you also can press this key to increase
or reduce value in the direct select exercise program.
Incline direct key
Build-in 4-8-12 three incline direct shortcut keys.
!Audio play key instruction
Previous song/
volume down
Press one time to back previous song, long press to volume
down.
Pause/Stop key
Press one time to play, press again to pause.
Next song / volume
up
Press one time to select next song, long press to volume up.

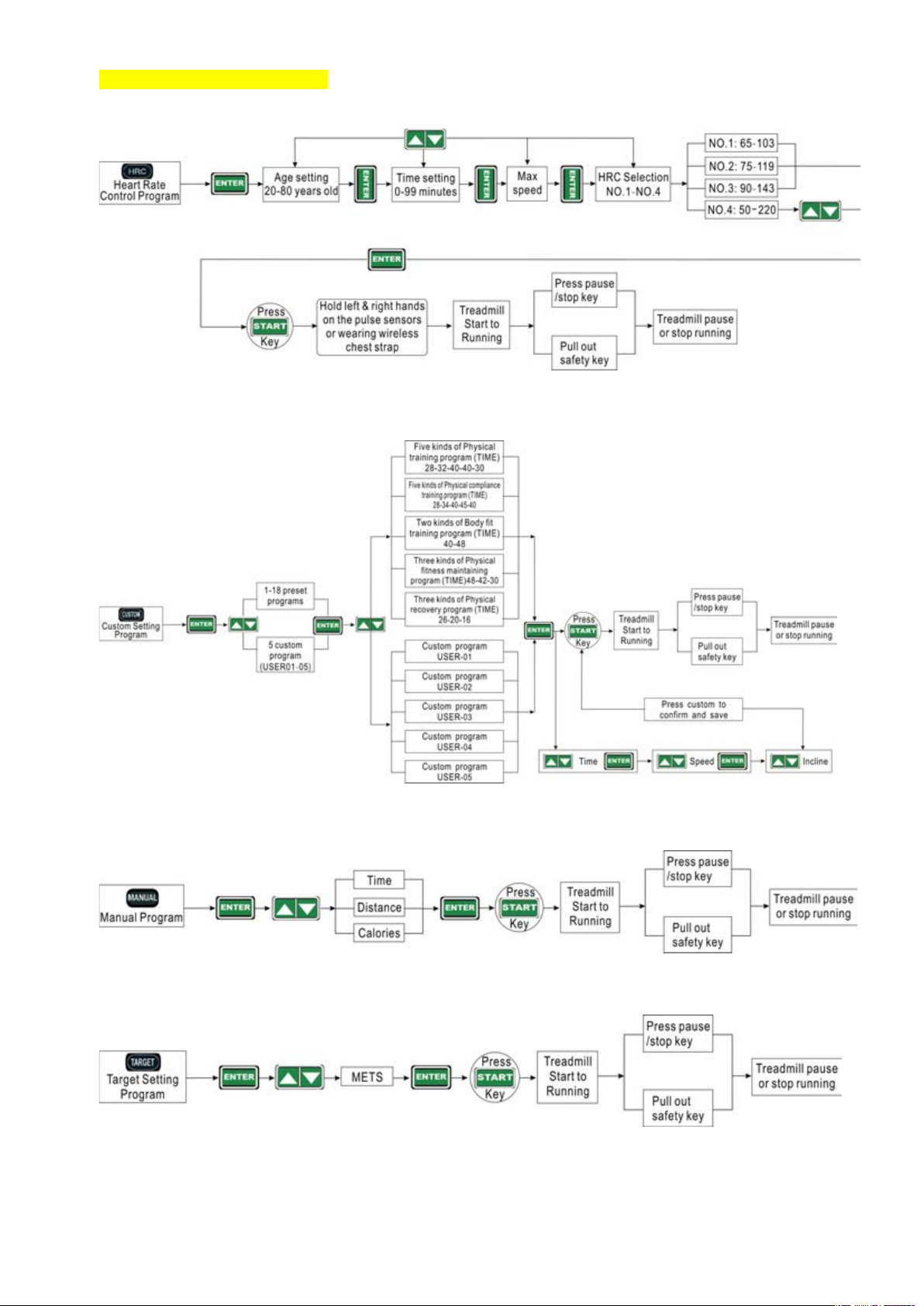

!P1-P9 9 kinds of intelligent exercise program direct select instruction.
P1:Heart Rate
Control Program
4 Level from weak to strong heart rate control speed training:
Level 1, long distance running and speed training; Level 2,
endurance and stamina training; Level 3, interval running
training; Level 4, strength training before the game.

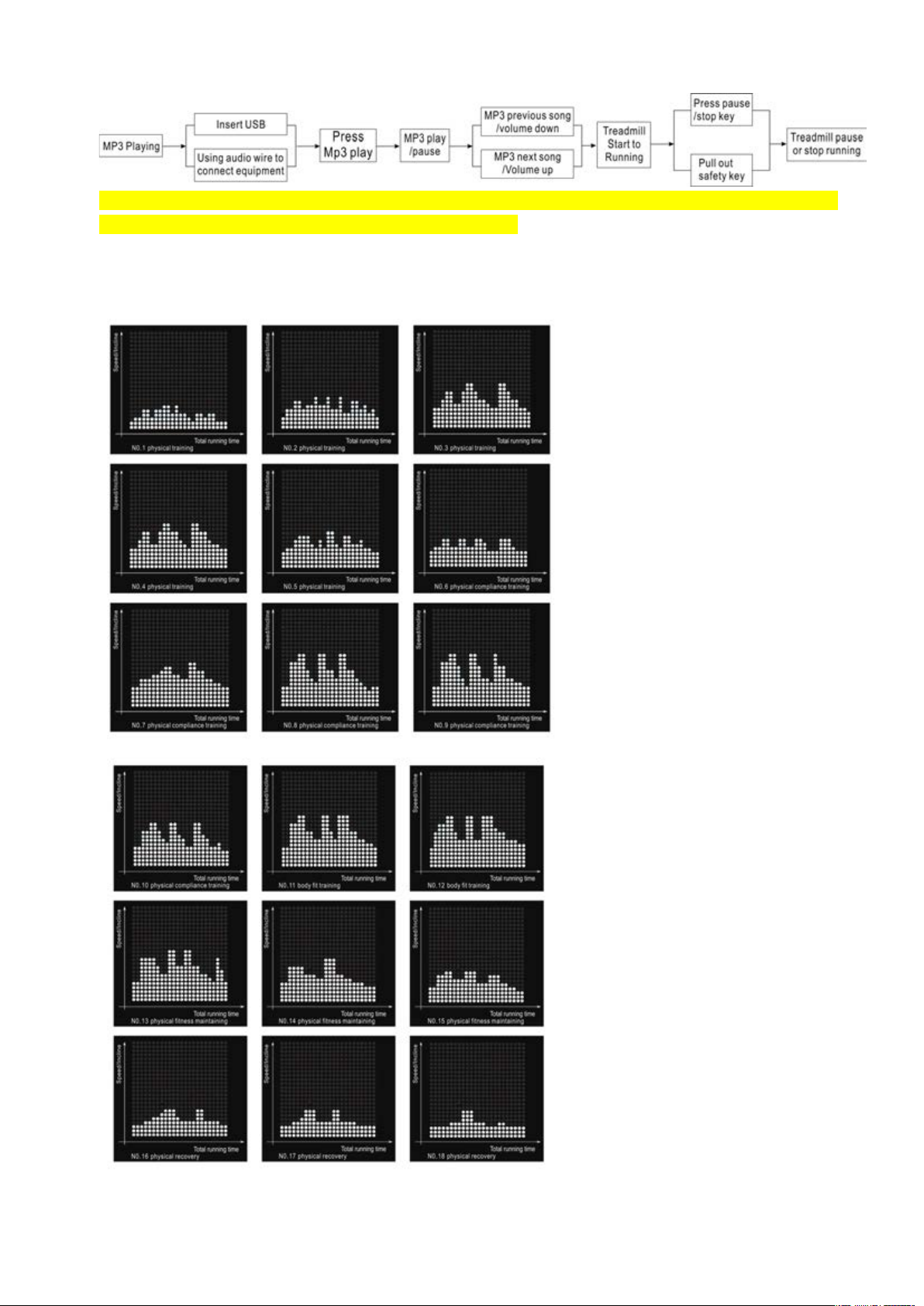

P2:Custom/Preset
Program
There has 18 preset programs: 1-5 Physical training program;
6-10 Physical compliance training program; 11-12 Body fit
training program
13-15 Physical fitness maintaining program;
16-18 Physical recovery program.
5 custom programs.
P3:Manual Program
It is for user to set time, distance and calorie training program,
user only need to set of them.
P4:Target Setting
Target training program: you can set exercise intensity (Mets) as

10
Program
target training program.

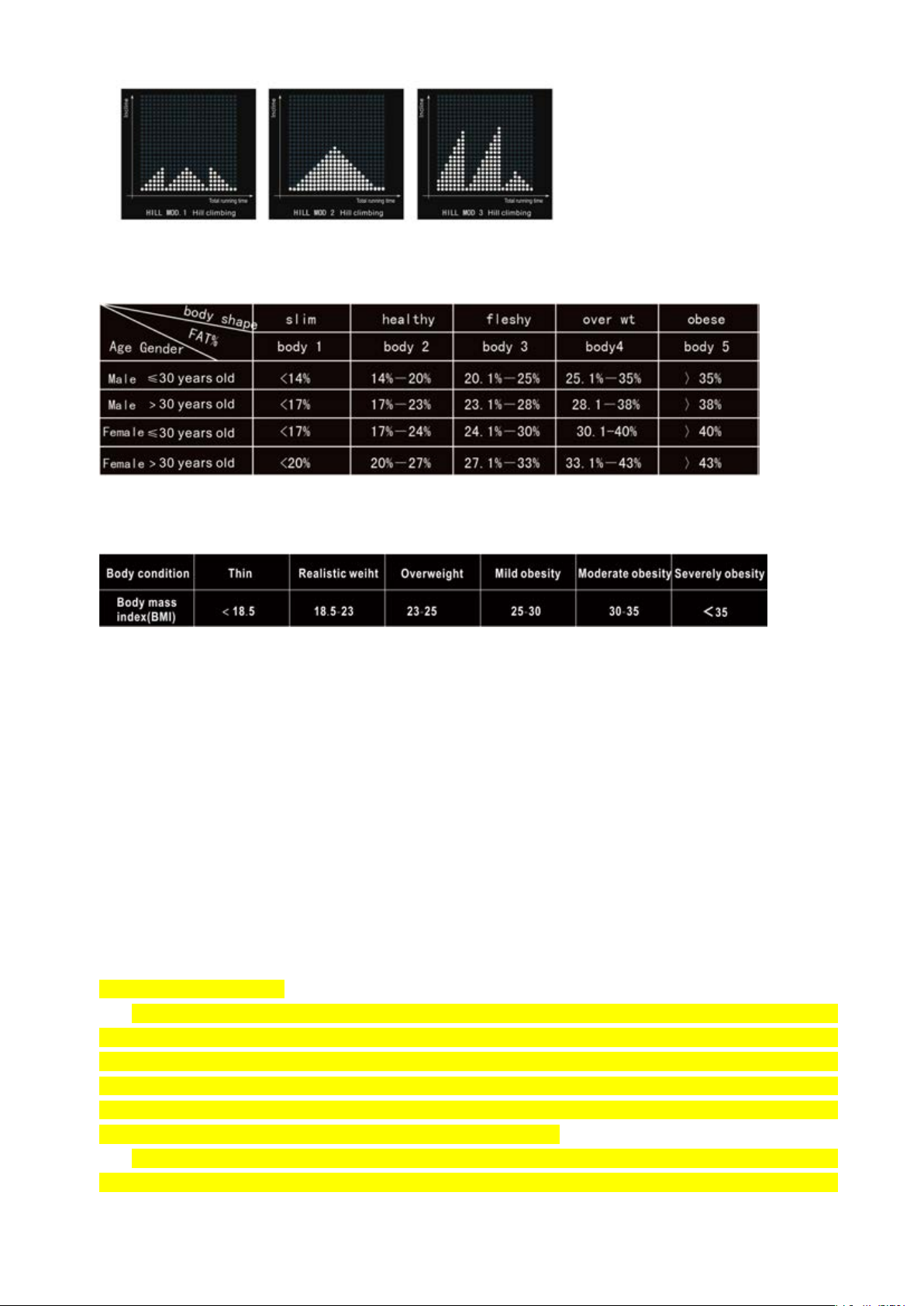

P5:Hill Climbing
Program
Three kinds of different incline hill climbing program. It can be
strengthen limbs and muscle training from gentle slope to
steep slope.
P6:Fat burn
Program
Three kinds of timing fat burn training program: p1 training time
of 20 minutes; p2 training time of 30 minutes；p3 training time of
60 minutes.
P7:Cardio Program
Three kinds of countdown cardio training program: RPE-1 60
minutes of the countdown training; RPE-2 30 minutes of the
countdown training; RPE-3 10 minutes of the countdown
training.
P8:Strength
Exercise Program
Five level of strength exercise program:LEVEL-1 Easy run；
LEVEL-2 Marathon target pace running; LEVEL-3 Tempo
running；LEVEL-4 interval running; LEVEL-5 Repeats running.
P9:Fit test Program
After enter into the Fit test program, it will countdown 30 seconds
for fit test program: fat percentage (Distance window display);
Basal metabolism rate (Speed window display); Body Mass
(Rise window display) .
3. Display screen and console
3.1 Display screen and console instruction

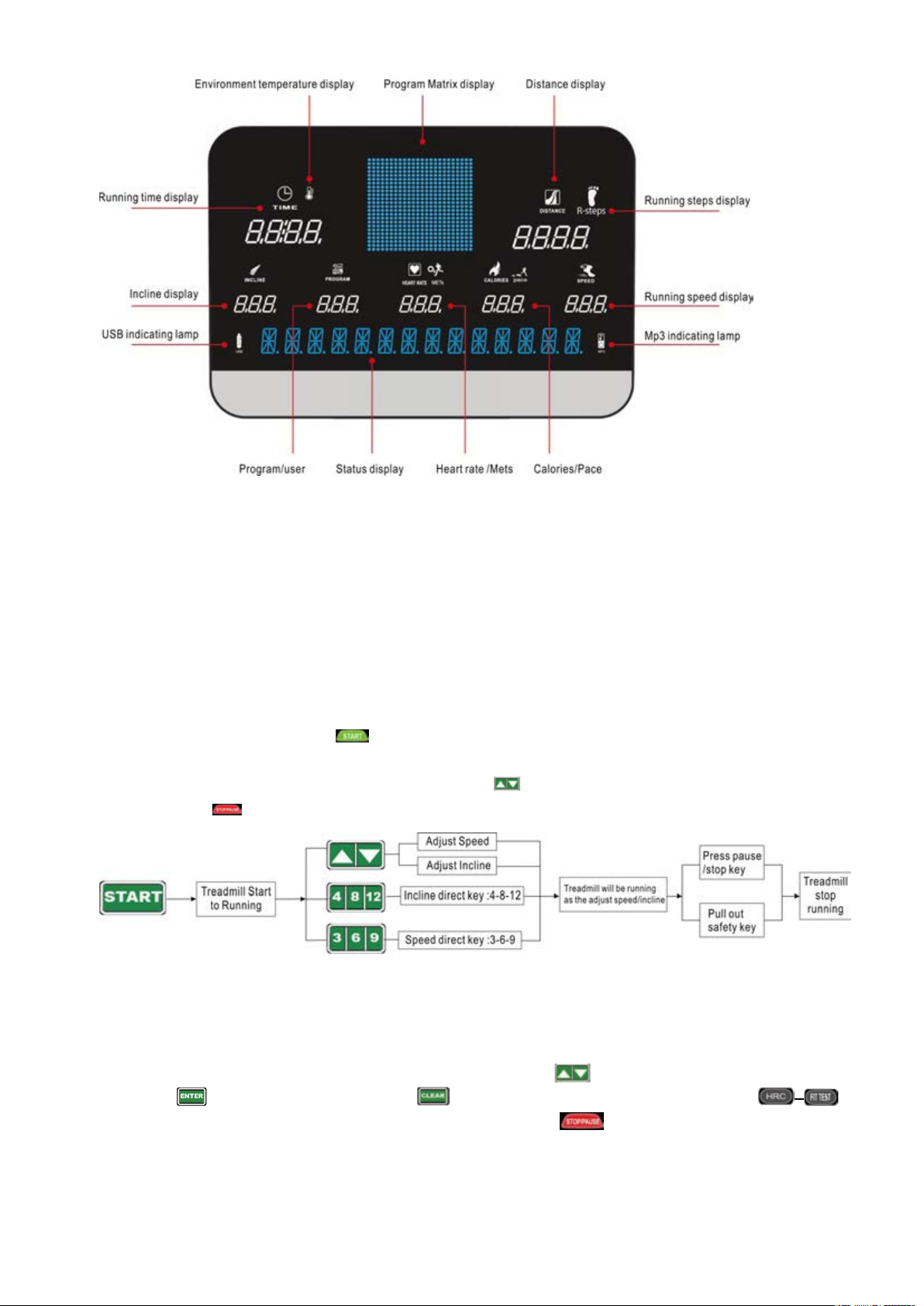

3.2 Display screen instruction

11
4. #H./2>?@-!?-1>/3=>?@-
JBS!$/.2EK?44!@H./2>?@-!?-1>/3=>?@-
G9"9"!T1&'4;)!.*43!*63-&1/*'
=+1!1%3!2638/&5!6*F3-!F/-3!/'23-1!1*!1-3&4./55!2*8(31D!&'*1%3-!3'4!*,!6*F3-!F/-3!%&2!;3!8*''38134!1*!1%3
3'K/-*'.3'1!F*-(/'0!K*51&03!?3'K/-*'.3'1!F*-(/'0!K*51&03!.+21!;3!/'!8*',*-./1)!F/1%!-3W+/-3.3'12!*,
1%3!1-3&4./55#9!V*''381!1%3!6*F3-D!1-3&4./55!3'13-!1*!21&'4;)!.*43D!1/.3!F/'4*F!2%*F2!3'K/-*'.3'1
13.63-&1+-3D!=Z^hZM\!F/'4*F!2%*F2!2311/'0!6-*0-&.!D*1%3-!F/'4*F2!F/55!2%*F2!/'/1/&5!K&5+3!i>j9
G9"9<!T1&-1!1-3&4./55!*63-&1/*'!
C'! 21&'4;)! .*43D! 6-322! T$MZ$ !(3)D!1-3&4./55! 21&-1! 1*! -+''/'0D! 3&8%! F/'4*F! F/55! 2%*F! 8+--3'1!
373-8/23!4&1&!&88*-4/'05)9!\&1-/7!F/'4*F!4/265&)!8+--3'1!6*2/1/*'!&'4!1-&8(2D!53'01%!*,!1-&8(!G>>!.313-29!
M1!1%3!2&.3!1/.3D!)*+!8&'!235381!26334!*-!/'85/'3!(3)! !1*!&4R+21!26334!*-!/'85/'3!85&22!&2!)*+!5/(3D!
6-322!21*6!(3)! !1*!6&+23!*-!21*6!-+''/'09!
G9"9B!Q73-8/23!6-*0-&.!*63-&1/*'!/'21-+81/*'!
$-3&4./55!+234!P!(/'42!*,!/'1355/03'1!373-8/23!6-*0-&.9!M88*-4/'0!1*!+23-A2!&03D!03'43-D!F3/0%1!318D!&'4!
+23-A2!373-8/23!6+-6*23!1*!8+21*./U39!Q73-8/23-!&88*-4/'0!1*!/'13'1/*'!1*!8%**23!&!&66-*6-/&13!373-8/23!
6-*0-&.!1-&/'/'09! !
b%3'!)*+!+23!/'1355/03'1!6-*0-&.D!)*+!'334!1*!+23!2311/'0!(3)! 1*!6-38343!-353K&'1!2311/'0D!6-322!
Q'13-!(3)!

1*!8*',/-.O!6-322!V53&-!(3)! 1*!.*4/,)!2311/'0O!=-322!="`=P!4/-381!(3)!

1*!235381!/'1355/03'1!6-*0-&.!&2!)*+!5/(3D!6-322!T1*6e6&+23!(3)! 1*!37/1!F%3'!23538134D!1%3'!)*+!
8&'!235381!&'*1%3-!/'1355/03'1!6-*0-&.!&,13-!37/19!
G9"9G!C'1355/03'1!Q73-8/23!6-*0-&.!*63-&1/*'!28%3.&1/8!4/&0-&.!

12
P1: Heart Rate Control Program
P2: Custom Program
P3: Manual Program
P4: Target Setting Program
P5: Hill Climbing Program

13
P6: Fat burn Program
P7: Cardio Program
P8: Strength Program
P9: Fit test Program

14
4.1.5 MP3 Playing and treadmill operation
Warm tip: When you wearing special HRC wireless heart rate chest belt, do not play MP3 at the same
time to avoid audio signal interfere with wireless heart rate
4.1.6 Program Matrix graphics and body mass index reference table
Custom program graphics
Hill climbing:

15
Fat percentage reference table
Adult body mass index(BMI) reference table
5. Hand pulse test
5.1 After and before exercise, can monitor exercise’s pulse of static and dynamic. The pulse will be
restore after finished exercise. Exerciser hold the left and right hand touch pulse monitored metal, show
pulse on screen. (Warm tip: the max pulse value do not over (220-age) when exercise. If over the max
pulse, suggest to rest for 30 minutes, or reduce speed and incline. The test result is just for your
exercise reference.)
6. Play music
6.1 Audio input
Using audio wire to connect treadmill audio interface 3.5mm and audio source (Mobile phone and
tablet computer), the treadmill play audio from other audio source.
6.2 Local music playing
Put U disk into right USB interface to play the music from U disk.
7. Maintenance function
The treadmill have been Pre-lubricated before leave factory, it is not necessary to add lubricant oil
when the treadmill running first time. In order to keep the treadmill operating at its best condition, the
treadmill is equipped with oil adding reminding. When the treadmill running to 9000KM, LED will show
“LUBRICATE”, it means need to add oil to the treadmill. After the first time oiling, the next reminding will
display every 1000KM. Press “ENTER” to add oil and exit the reminding. Press “CLEAR” key to ignore
lubricate temporarily, LED will show ”LUBRICATE” after 50KMS.
The LED will show “REPLACE BELT” when the treadmill running every 25000KM totally, press
“ENTER” to replace belt and exit the reminding, Press ”CLEAR” to ignore replace belt temporarily, LED

16
will show “REPLACE BELT” after 50KMS
Oil adding reminding replaces belt reminding
Maintenance and Malfunction Treatment
1) Clean: The surface of the treadmill should be kept
clean, pull out the power line before cleaning. You
can clean the running belt and the surface of the
treadmill with a soft and wet cloth.
2) Adjust belt deviation: The running belt is adjusted
at factory; it may runs defectively after
transportation and use. Turn off the treadmill before
adjusting, (see figure) adjust the pull the left and
right bolts in rear roller with hex spanner. If the belt
is deviation to left, clockwise rotate the left bolt. If
the belt is deviation to right, counterclockwise rotate the right bolt. It is better to adjust 1/2
circle once. Then turn on the switch, check if the belt
runs defectively when the running speed is 4~5 km/h. Repeat to adjust to the belt in the center.(see
figure)
3) Adjust belt slip: After using for a long time, the belt may be longer and stuck. Your should adjust the
left and right bolts in rear roller clockwise at same position till the runs smoothly and freely, it is
better to adjust 1/2 circle once .But avoid to short belt using period of losses, doing not to adjust it
too tight.

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
[email protected]
www.toorxprofessional.it
