UNIS Night Hunter User manual

www.universal-space.com
Operation Manual
IMPORTANT

Night Hunter Manual
06/06/2019
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]

Night Hunter Manual
06/06/2019
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS...................................................................... 3
1. SPECIFICATIONS................................................................................................... 5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 7
3. PART NAME........................................................................................................... 8
4. SET UP & INSTALLATION...................................................................................... 9
5. HOW TO PLAY......................................................................................................14
6. GAME OPTION..................................................................................................... 16
7. TROUBLE SHOOTINGS........................................................................................ 18
8. MAINTENANCE & INSPECTION..........................................................................20
9. OVERALL CONSTRUCTION................................................................................. 21
10. WIRING DIAGRAM............................................................................................51

Night Hunter Manual
06/06/2019
3
Thank you for purchasing Night Hunter. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Night Hunter Manual
06/06/2019
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Night Hunter Manual
06/06/2019
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz
Min. Power consumption: 480W
Max. Power consumption: 1450W
Dimension: W53.8×D86.3×H 84.3 in
W1365 ×D2191 ×H2141 mm
Weight：Approximately 1433 lb
Part No: N111
Model No: C-502
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.
84.3 in
53.8 in
86.3 in

Night Hunter Manual
06/06/2019
6

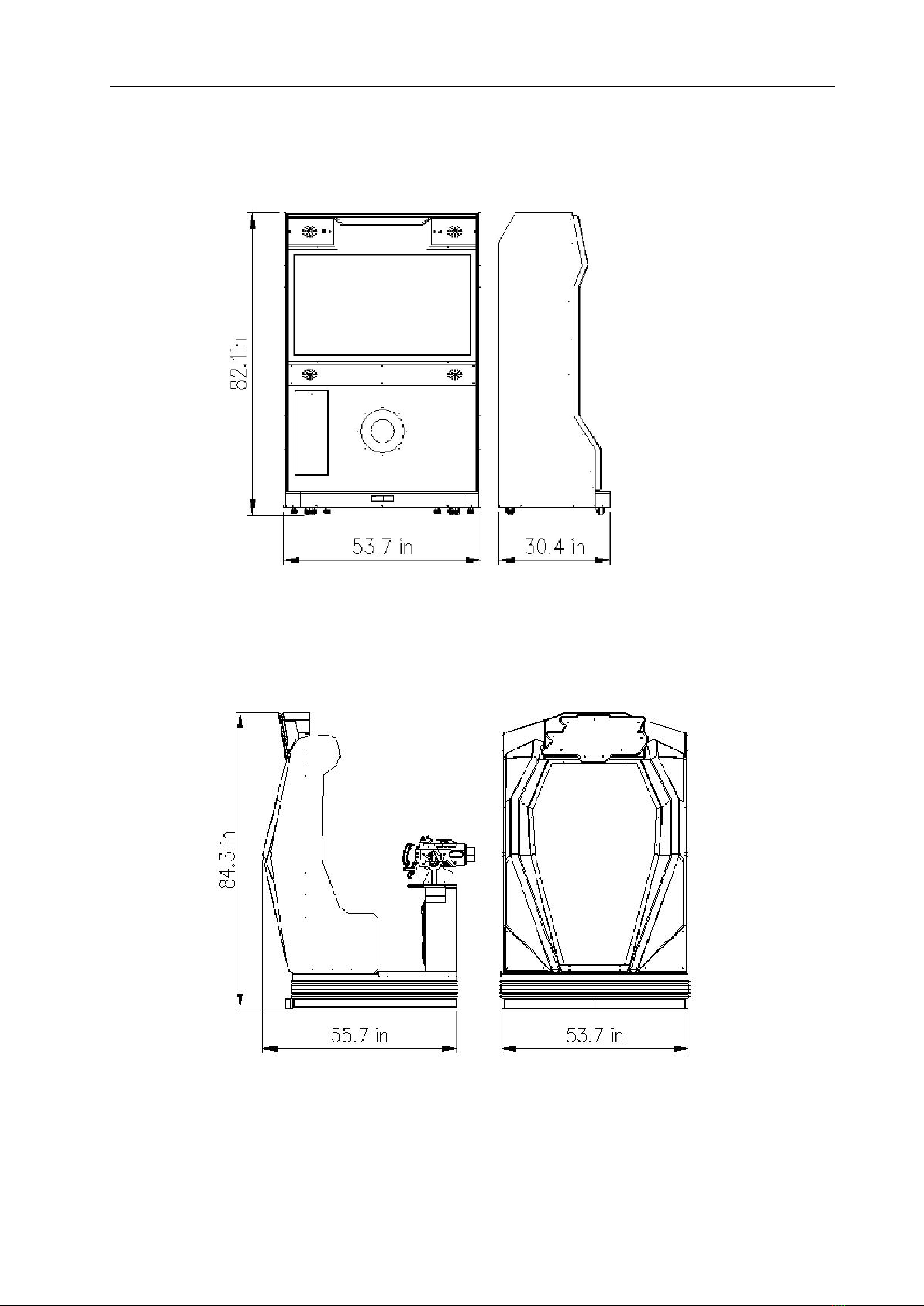

This machine will be divided into two parts during transportation.
Display part: W53.7×D30.4×H82.1in
Seat & control panel part:
W53.7×D55.7×H84.3 in
Note: Game specifications are subject to change without notice.

Night Hunter Manual
06/06/2019
7
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
NOTE: Part models are subject to change without notice.
No.
Part No.
Code
Name
Spec.
Qty
1
N111-401-000
25300171002
Key
171
2
2
N111-402-000
25300172002
Key
171B
2
3
N111-804-000
23301018023
Power cord
SJT 3x14AWG 1.8M
UL
2
4
N111-801-000
41440000240A
Manual
English
1
5
N111-805-000
40607000012
Allen wrench
CR-V5mm
1

Night Hunter Manual
06/06/2019
8
3. PART NAME
Key Components
Marquee assembly
Vibration Seat and base
Monitor
Gun
Coin mechanism

Night Hunter Manual
06/06/2019
9
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in. Repeat the same for all
levelers.
NOTICE
Make sure the machine is level.
We do not recommend using power tools as they may cause damage.
NOTICE
leveler

Night Hunter Manual
06/06/2019
10
4.3 Installation
Before processing with assembly assure you have the following tools.
No
Name
1
Phillips
screwdriver
4.3.1 Top cloth assembly
Step 1 Open package and take 3 pieces of cloths out. Note: Please do not use knife to
open the package.
Step 2 Take 2 long brackets out. Remove one square metal plate and one strip metal plate
screws from each bracket.
Step 3 Align the holes of the black cloth with the holes of one long bracket.
Step 4 Install the square and strip metal plate back to the original place. Same instruction
to the other bracket. The top installation is done.
LEFT
RIGHT
LEFT
RIGHT
Black cloth
Cloth left
Cloth right

Night Hunter Manual
06/06/2019
11
Step 5 Locate another side plate on the long bracket and remove it. Align the holes of the
cloth with the holes of one long bracket.
Step 6 Install the side plate back to the original place. Same instruction on the other side.
Side cloth installation is done.
Step 7 Utilize a wrench to remove 3 hexagon screws on each side on top of the monitor
cabinet. Put the top assembly as picture shown below and install the screws back.

Night Hunter Manual
06/06/2019
12
4.3.2 Cabinet installation
No
Part no
Code no
Name
QTY
1
Q112-135-000
20104010002
Cross recessed hexagon screw kit
14
Step 2
Aligning the game as
picture. Connect the cables
at the bottom.
Seat part
Monitor part
Step 3
Attach the connect metal plate on
the monitor part.
(three screws each side)
Step 1
Install the connect metal plate on
the seat part as picture.
(four screws each side)

Night Hunter Manual
06/06/2019
13
4.4 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Machine

Night Hunter Manual
06/06/2019
14
5. HOW TO PLAY
5.1 Insert coins to start the game.
5.2 Swing the handle on each side of the gun to switch between silver bullet and holy water
bullet.
Note: If you use the silver bullet to shoot the red eye monster, or use the holy water
bullet to shoot the blue eye monster, the damage for the monsters will be reduced 2/3.
Silver bullet for blue eye monsters
Holy water bullet for red eye monsters

Night Hunter Manual
06/06/2019
15
5.3 Collect energy for the ultimate skill
Take down the monster to collect the energy and press the button of the handle to use
the ultimate skill (double speed and attack, 100% damage for all monsters)

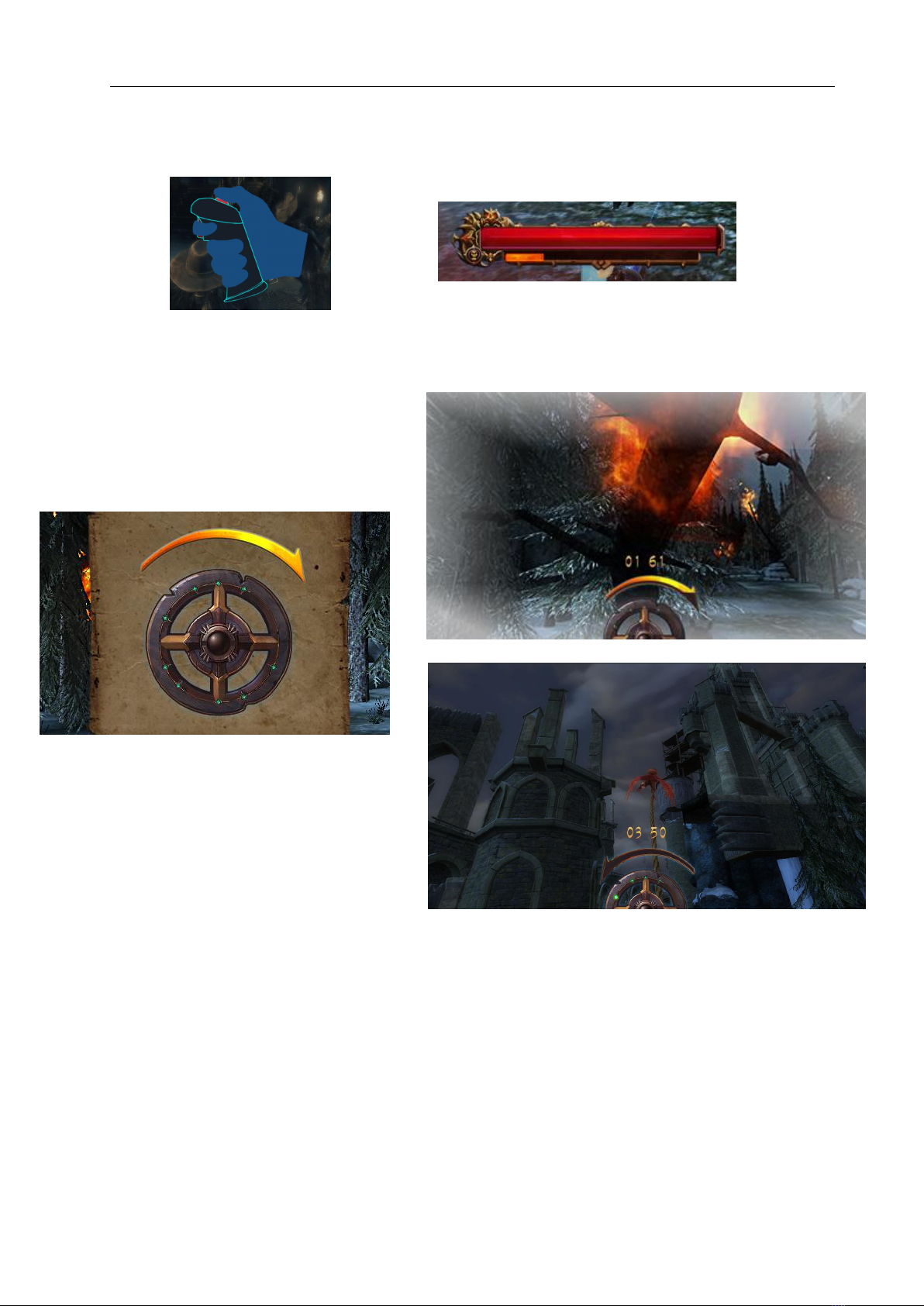

5.4 Use the wheel to dodge or turn the wheel quickly as prompt on the monitor.

Night Hunter Manual
06/06/2019
16
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Calibrating Gun
Input Test
Output Test
Game Reset
Date/Time Setting
Bookkeeping
Daily Record
Back to Game
Free Play
OFF/ON
Volume
0-10
Difficulty
1/2/3
Coins Per Game
1-50
Demo Music
OFF/ON
Back
OFF/ON
Open the coin door and there is a
meter panel. Press Settings button to
enter into the setting menu.
Settings
Test
Reset
6.2.2 Basic Setting
6.2.3 Calibrating Gun
1P Calibrating Gun
2P Calibrating Gun
Back
Coin Button
OFF/ON
Select Button
OFF/ON
Test Button
OFF/ON
Confirm Button
OFF/ON
1P Emergency Stop Button
OFF/ON
2P Emergency Stop Button
OFF/ON
Steering Wheel
Turn L, L side on，R side off.
Turn R, R side on, L side off
1PIndex Finger Key
OFF/ON
2PIndex Finger Key
OFF/ON
1PThumb Key
OFF/ON
2PThumb Key
OFF/ON
1P Change The Gun Key
OFF/ON
2P Change The Gun Key
OFF/ON
Back
6.2.4 Input Test

Night Hunter Manual
06/06/2019
17
6.2.4 Output Test
6.2.8 Daily Record
Blow
OFF/ON
Pneumatic Platform 1
OFF/ON
Pneumatic Platform 2
OFF/ON
Pneumatic Platform 3
OFF/ON
Pneumatic Platform 4
OFF/ON
6.2.5 Game Reset
Factory Restore
YES/NO
Reset Basic Settings
YES/NO
Reset Customized Settings
YES/NO
Clear All Records
YES/NO
Clear Owed Tickets
YES/NO
Clear Unused Coin
YES/NO
Back
6.2.6 Date/Time Setting
Year
2010-2100
Month
1-12
Day
1-31
Hour(24)
0-23
Minute
0-59
Second
0-59
Go Back & Save
Back
Player Coins Runtime
1 0 0.00
Back
Date Weekday RunTime Coins Tickets Payout
2014-06-061 Fri 00:01 0 0 0.00
Prev. Page
Next Page
Clear
Back
6.2.7 Bookkeeping

Night Hunter Manual
06/06/2019
18
7. TROUBLESHOOTING
7.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom
Possible Cause
Recommended action
Game will not
start
Frame assembly connector is
loose.
Check connector.
Frame assembly fault
Contact with UNIS Service.
Power off
Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
No sound
Low volume
Raise the volume.
Connector loose.
Check connector.
Speaker fault.
Check speaker.
POT installation error.
Install POT correctly.
POT fault.
Change POT.
Audio cable problem.
Reconnect the audio cable or change
it.
PC crash.
Restart or system recovery.
Driver problem
Restart the audio driver.
Display black
screen
Check connectors.
Plug in connector tightly
Display fault.
Utilize another source such as a PC to
verity if the display is operational.
RAM is loose.
Remove and reinsert RAM.
Display blue
screen
PC power cord is loose
Check PC power cord whether is loose.
VGA signal cable is loose.
Check VGA cable
PC video card is loose.
Reseat video card.
“0X000000A” code appears.
Conflict between computer drive
and software.
Contact service
Note: After replacing component from pc (except for RAM), and replacing monitor, the
game should be recovered again with the recovery stick attached to the machine.

Night Hunter Manual
06/06/2019
19
7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.)
1. Turn off the game. Remove recovery stick from the machine. (Note: This process may
take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery.
4. Once system recovery is partially finished (as shown below), and the ICON appears,
remove the recovery stick from the computer. The game will continue the install process.
5. Assure that the recovery stick has been properly secured for future use.
WARNING: The recovery stick should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.
OK to remove the recovery stick.
