UNIS Fantastic Prize User manual

Operation Manual
IMPORTANT

Fantastic Prize GMP(Skill) Manual
08/09/2022
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]
www.unispartsandservice.com
When contacting Service, you will need the following information
and the name of your authorized distributor.

Fantastic Prize GMP(Skill) Manual
08/09/2022
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS.......................................................................3
1. SPECIFICATIONS....................................................................................................5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 6
3. PART NAME............................................................................................................7
4. SET UP & INSTALLATION...................................................................................... 8
5. LOCATION OPERATION INSTRUCTIONS............................................................ 11
6. HOW TO PLAY......................................................................................................11
7. GAME OPTION..................................................................................................... 13
8. TROUBLESHOOTING............................................................................................17
9. MAINTENANCE & INSPECTION.......................................................................... 20
10. OVERALL CONSTRUCTION............................................................................... 22
Appendix: Linking Instructions.............................................................................. 32
WIRING DIAGRAM

Fantastic Prize GMP(Skill) Manual
08/09/2022
3
Thank you for purchasing Fantastic Prize GMP. We hope you enjoy the
product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.

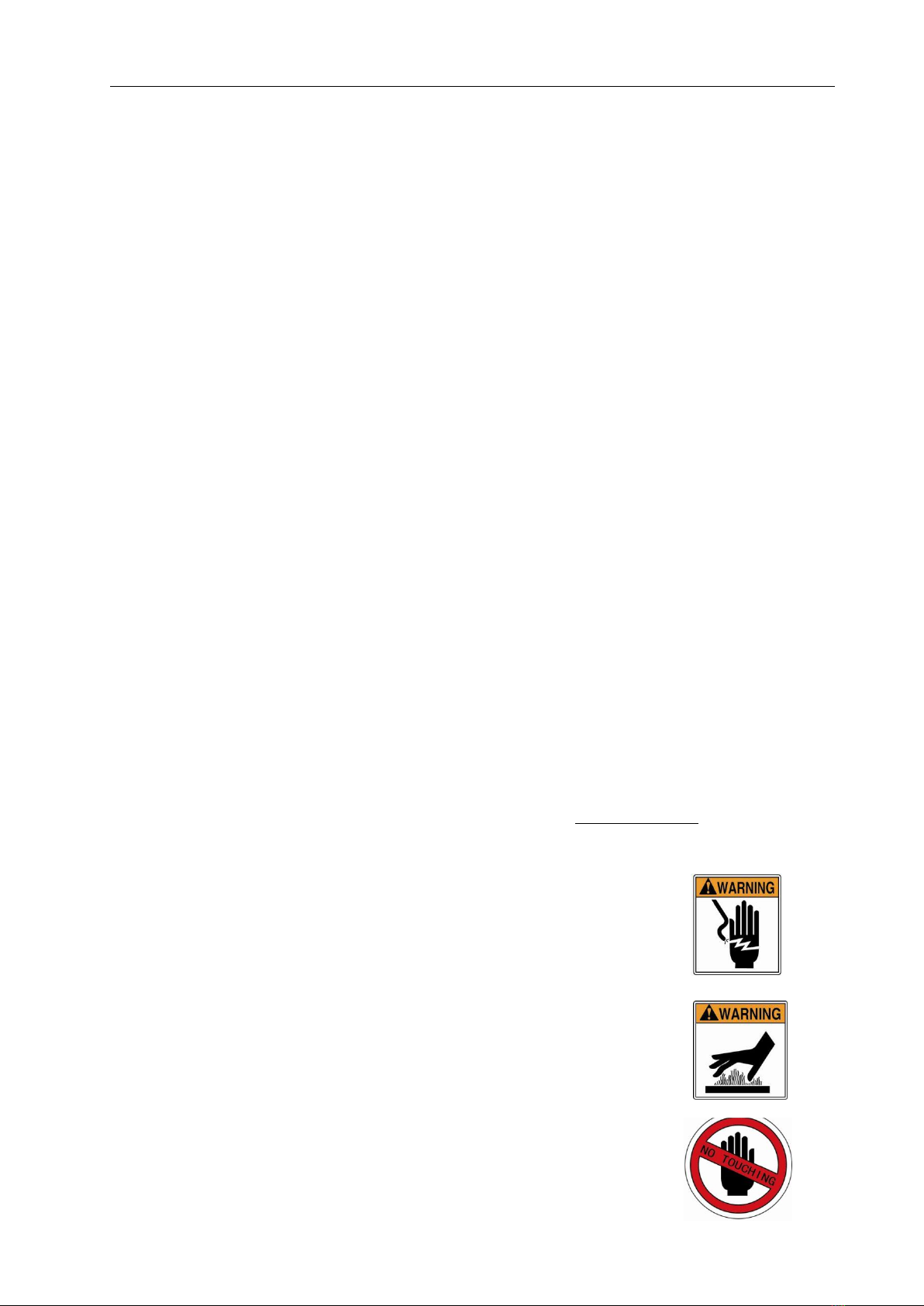

It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Fantastic Prize GMP(Skill) Manual
08/09/2022
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Fantastic Prize GMP(Skill) Manual
08/09/2022
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz;
Min. Power consumption: 260W
Max. Power consumption: 350W
Dimension: W31.73×D37.36×H77.77+12.99(Marquee) in
W806 ×D949 ×H1975.5+330(Marquee) mm
Weight：Approximately 458.56 lb/ 208kg
Model No: C-716
Part No: F160
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: Game specifications are subject to change without notice.
31.73 in
34.01 in
(31.37 in)
37.36 in
12.99 in
(77.77 in)
90.76 in
42.40 in

Fantastic Prize GMP(Skill) Manual
08/09/2022
6
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
Following accessories
No.
Part No.
Drawing No.
Name/SPEC
Qty
1
F160-0327-00
/
Key switch key(blue)
1
2
F160-0301-00
TYJ0078
Door key(red)
2
3
F160-0302-00
TYJ0077
Coin box key(yellow)
1
4
F160-0305-00
XC0120
Power cord
1
5
F160-0306-00
/
String
1
6
F160-0304-00
/
Communication cable
1
7
F160-0303-00
/
Manual
1
8
F160-0310-00
/
Phillips screwdriver
1
9
F160-0311-00
TYJ0029
2.5mm Allen wrench
1
10
F160-0312-00
TYJ0028
3mm Allen wrench
1
11
F160-0307-00
/
Blade
2
12
F160-0308-00
/
Blade pressing plate
1 set
13
F160-0309-00
/
Screws
/
14
F160-0324-00
WJWL0146
Coin mech. blank plate
1
15
F160-0326-00
/
Fuse
1
NOTE: Part models are subject to change without notice.

Fantastic Prize GMP(Skill) Manual
08/09/2022
7
3. PART NAME
Key Components
Marquee Assembly
Coin mechanism
Scissor
Button
v
v

Fantastic Prize GMP(Skill) Manual
08/09/2022
8
Leveler
About 0.2 in/5mm
Leveler
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
Place the unit on a dry level surface.
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in/5mm. Repeat the same for all
levelers.
We do not recommend using power tools as they may cause damage.
NOTICE
Make sure the machine is level.
NOTICE
Leveler
Leveler

Fantastic Prize GMP(Skill) Manual
08/09/2022
9
4.3 Machine Installation
Step 1 Take out the marquee from the cabinet inside;
Step 2 Loosen 4 screws on the top ;
Step 3 Place the marquee on the top, connect 2 connectors for marquee, and tighten 4
screws;
Connector
Marquee

Fantastic Prize GMP(Skill) Manual
08/09/2022
10
Step 4 Marquee installation completed↓
FINISH!
v
v

Fantastic Prize GMP(Skill) Manual
08/09/2022
11
5. LOCATION OPERATION INSTRUCTIONS
5.1 First Power On Operation
Step 1. When first power on the machine, only need to confirm and adjust below
parameter ↓
No.
Parameter
Recommend
How to Set
1
Coins/Game
(How many
coins per play)
3-5 coins
Screen:SetUp-Password(9999)-Coin/Ga
me-Input
Warning: All the other parameters have been fully tested by factory technical personnel
before shipped. Do not adjust until you have read the manual & instructions in detail.
5.2 Prize Hanging Important Notice
Note: Please follow the process to hang the prize!
Step 1. Take out the String from accessory bag (see below picture).
Open front Prize door with door key,
there is a Keyboard near the Coin box.
Press “Program” button to enter the
setting menu.

Fantastic Prize GMP(Skill) Manual
08/09/2022
12
Step 2. Tie one end of String to the Hook and the other end of String to the Prize; The String
must be tied inside the middle lowest point of Hook, and must be fixed straight;
(One end of String to the hook↑） (The other end of String to the Prize↑）
Two Ways of Placing Prize: Prize can be hung or place onto the Platform
Prize Hung Weight Limit: 33.06 lb
Step 3. When pull the string to pass through the prize bar, please make sure the string
pass both Limit hole A and Limit hole B, requests 2-3 circles to go through Limit hole B;
6. HOW TO PLAY
1. Insert Coin(s) or Tap/Swipe Card to Start.
2. Press and hold the button to extend the scissors.
3. Release the button in a good timing to cut the string.
4. If String cut: Door will open, the prize drops and player wins the prize. If String not cut:
player should try again.
Note: Attendant should refill the prize after prize is collected by player.
Limit hole B
Limit hole A
Prize bar
Hook
Scissor
Prize
Prize Platform Bearing Weight Limit: 176.36 lb

Fantastic Prize GMP(Skill) Manual
08/09/2022
13
7. GAME OPTION
7.1 Keyboard instruction
After entering the menu, use the keyboard to control mini screen cursor to up, down, left
and right to choose, press “Confirm” button to enter or save.
Options
Description
L
Move mini screen cursor to left
R
Move mini screen cursor to right
up
Move mini screen cursor to up
Down
Move mini screen cursor to down
Program
Key button to enter setting menu from gameplay
freegame
Service coin to activate plays
Confirm
To confirm every selection
7.2 Setting menu
7.2.1 Main menu: The first interface while entering the setting menu
Options
Description
Accounts
Refer to 7.2.2
Open Door
Refer to 7.2.3
Set Up
Refer to 7.2.4
Test
Refer to 7.2.5
Sys Info
Refer to 7.2.6
Exit
Open front Prize door with door key,
there is a Keyboard near the Coin box.
Press “Program” button to enter the
setting menu.

Fantastic Prize GMP(Skill) Manual
08/09/2022
14
7.2.2 Accounts: operation records are included as below
Options
Description
Coins
The total number of coins inserted.
Games
The number of games
Gifts
The total number of prize out.
Linking total accounts(In No.1 machine)
Options
Description
Coins
The total number for all cabinets of coins.
Games
The number of games for all cabinets
Gifts
The total number of prize out by all connected
machines.
7.2.3 Open Door: a short cut to open front glass door
7.2.4 Set Up: Basic set up & Advance set up are included as below
Basic set up
Enter a 4 digits password (initial password “9999”), then press “Confirm”
button.
Note: Basic set up initial passwords can be changed by operator in “Password”
option.
Options
Adjustable
value
Default
Description
Coin/Game
1-20
2
The number of coins for each game.
2Pat/Game
1-2
2
How many pats per game.
Auto Door
Y/N
On
The open or close status of front glass door
Y: Glass door can open at prize winning time or
when no prize is hanging.
N: Glass door cannot be opened all the time.
Standby Mus
Y/N
On
Y:Turn on Standby Music
N: turn off Standby Music
Calibration
Scissors calibration
Please refer to 9.5
Clear Bill
Clear account and the number of games
Password
Change Basic Set Up password
Back
Back to the front page

Fantastic Prize GMP(Skill) Manual
08/09/2022
15
Advance set up (Special for Factory Service Usage)
Enter a 4 digits password (initial password “4321”), then press “Confirm”
button.
Note: Advance set up initial passwords can not be changed in any way!
Options
Adjustable value
Default
Description
Free Games
Y/N
OFF
Y:Free play
N:No free game
Cut Width
120-180
150
For prize out usage: The distance between
the scissor and the rope. It is to help prize
out, the biggest the number, more helpful
for prize out.
Length
1850
The farthest distance of the scissor.
Key Open
On/Off
On
On: glass door can only open one time
while player winning a prize;
Off:glass door can open while player
winning a prize or no prize hanging;
Machine No.
Stand-Alone/No.1-No12
Stand-Alone: Single Mode
No.1-No.12:Linking Mode machine No.
Factory
Reset
To reset the machine
Language
Use Cn: Y/N
To switch language between English and
Chinese;
Back
Do not recommend to change here without consulting UNIS factory
servicing center. Change settings may cause the machine to be faulty.
Factory settings already set these data with a proper default, therefore do
not recommend.
NOTICE

Fantastic Prize GMP(Skill) Manual
08/09/2022
16
7.2.5 Test
7.2.5.1 Test
7.2.5.2 Cut Test:Test the crane to cut the string.
7.2.6 System Information
Options
Description
Test
Test the electrical components.
Cut Test
Test the crane to cut the string.
Exit test
Back to the front page
Options
Description
Win signal
Test the Prize sensor.
Coin signal
Test the coin mechanism.
F/B Move
Test the Front and back motor and reset sensor.
Scissors
Test the Scissors motor and reset sensor.
Music test
Test all sound effects.
Net Test
Test all linking effects when the machine is in linking mode
Options
Description
INFO
Game Version, such as “L13000”
Ver.
Program version, such as “J 197T”
DATE
Software update date, such as
“May 30 2022”

Fantastic Prize GMP(Skill) Manual
08/09/2022
17
8. TROUBLESHOOTING
8.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom
Possible Cause
Recommended action
Game will not
start
Frame assembly connector is
loose.
Check connector.
Frame assembly fault
Contact with UNIS Service.
Power off
Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
No sound
Low volume
Raise the volume.
Connector loose.
Check connector.
Speaker fault.
Check speaker.
POT installation error.
Install POT correctly.
POT fault.
Change POT.
Audio cable problem.
Reconnect the audio cable or change
it.
The prize door
can’t open.
Door lock is faulty
Replace the door lock.
The door holder stuck with the
lock.
Remove the door holder.
The door stuck with the cabinet
frame.
Utilize key to open.
Linking failure
Linking failure
Linking again.
Mainboard 485 connector and
communication connector
became loose during transport.
Check connector.
Machines number are the same.
Make sure each machine number is
unique.
Few linking machine.
Machine less than 3 units cannot be
connected.

Fantastic Prize GMP(Skill) Manual
08/09/2022
18
If you see following error signs showing on the display, please try the recommended action.
Display
Possible Cause
Recommended action
2 Door is Open
The prize door is not been
closed.
Close the prize door
The prize door lock is faulty.
Replace the prize door lock.
5 Y reset err
The crane do not touch the
Back limited sensor.
Restart the machine.
Connector became loose
during transport.
Check and reconnect the Back limited
sensor and Front&back motor
connector.
Back limited sensor is faulty.
Replace Back limited sensor.
Front and back motor is faulty.
Replace Front and back motor motor.
6 Z reset err
The scissors are not cut or
continuously cutting during the
game.
Restart the machine.
Connector became loose
during transport.
Check and reconnect the sensor and
motor connector.
Scissors sensor screw loosen
Adjust the scissors sensor screw.
Scissors sensor is faulty.
Replace scissors sensor.
Scissors motor is faulty.
Test the scissors motor.(Refer to 8.4).
If the motor is faulty, replace scissors
motor.
15 coin err
The coin mechanism signal is
faulty.
Turn the NO/NC switch to the NO
position.
The coin mechanism is faulty.
Replace coin mechanism.
7 No present
No prize on the cabinet.
Add prize.
The prize is too light
The prize weight should be over 0.5kg.
Hook sensor is faulty.
Replace Hook sensor.
24 Wait
Rs485 Link
Mainboard 485 connector
became loose during transport.
please check whether 484
communication is loose.

Fantastic Prize GMP(Skill) Manual
08/09/2022
19
8.2 System Update Operation (NOTE: Do not disconnect power during this process.)
1. Turn off the game. Insert the SD card into the SD card socket of the mainboard.
2. Restart machine; The system will automatically start update.
3. Wait for several seconds, remove SD card.
4. Assure that the SD card has been properly secured for future use.
WARNING: The SD card should only be used to update system. Using it for other
purposes may cause unexpected results and damages.
