UNIS Big Foot Crush User manual

IMPORTANT
Operation Manual

Big Foot Crush GMP Manual
11/26/2020
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]
www.unispartsandservice.com
When contacting Service, you will need the following information
and the name of your authorized distributor.

Big Foot Crush GMP Manual
11/26/2020
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS.......................................................................3
1. SPECIFICATIONS....................................................................................................5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 6
3. PART NAME............................................................................................................7
4. SET UP & INSTALLATION...................................................................................... 8
5. HOW TO PLAY......................................................................................................11
6. GAME OPTION..................................................................................................... 13
7. TROUBLESHOOTING............................................................................................16
8. MAINTENANCE & INSPECTION..........................................................................19
9. OVERALL CONSTRUCTION................................................................................. 20
10. WIRING DIAGRAM............................................................................................ 42

Big Foot Crush GMP Manual
11/26/2020
3
Thank you for purchasing Big Foot Crush GMP. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Big Foot Crush GMP Manual
11/26/2020
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Big Foot Crush GMP Manual
11/26/2020
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz (It is subject to the nameplate on
the back of the machine.)
Min. Power consumption: 250W
Max. Power consumption: 300W

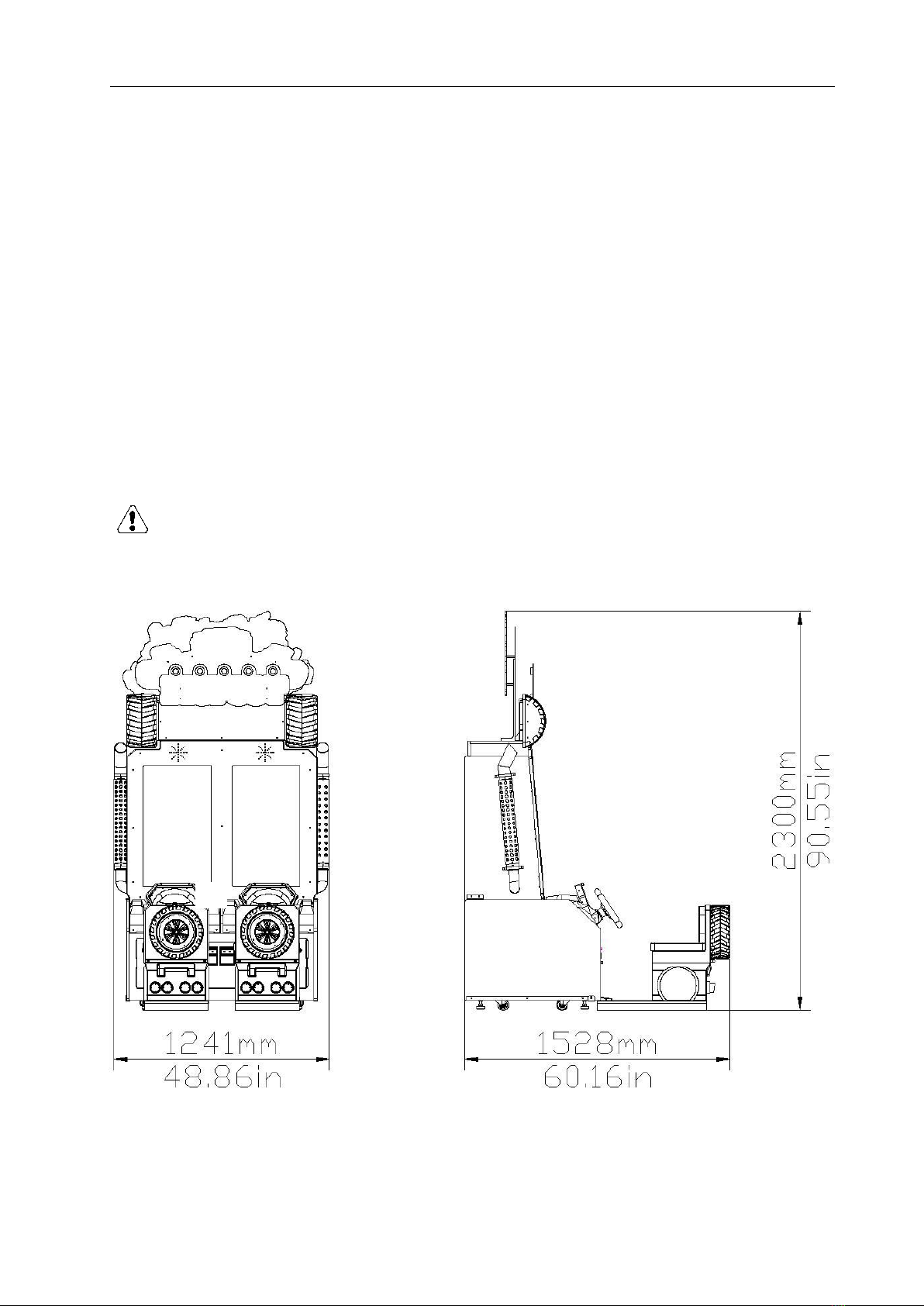

Dimension: W48.86×D60.16×H90.55 in
W1241 ×D1528 ×H2300 mm
Weight：Approximately 507.06 lb/230 kg
Part No: B138
Model No: C-630
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Big Foot Crush GMP Manual
11/26/2020
6
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
Following accessories
NOTE: Part models are subject to change without notice.
No.
Part No.
Code
Name
Qty
1
B138-0002-00
2.33.01.010020
Power cord
3×16AWG
1
2
B138-0342-00
2.19.01.000012
Fuse
Φ5×20mm
T5A/250VAC
1
3
B138-0004-00
4.14.40000360
Manual
1
4
B138-0005-00
2.53.00171002
171A key
2
5
B138-0006-00
2.53.00172002
171B key
2

Big Foot Crush GMP Manual
11/26/2020
7
Coin Mechanism
Steering Wheel
Marquee Assembly
Ticket Dispenser
Monitor
Seat Assembly

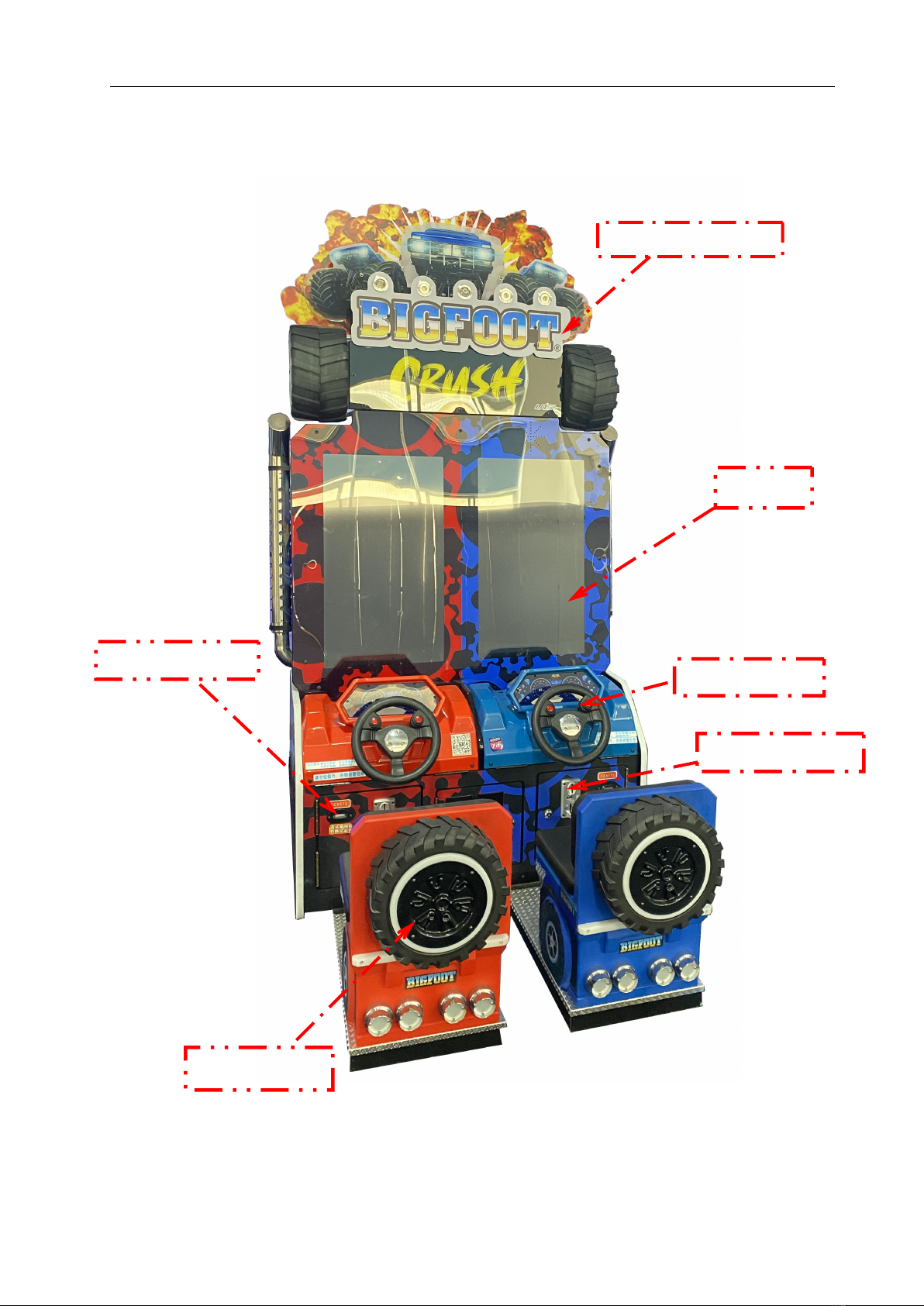

3. PART NAME
Key Components

Big Foot Crush GMP Manual
11/26/2020
8
Leveler
About 0.2 in/5mm
We do not recommend using power tools as they may cause damage.
NOTICE
Make sure the machine is level.
NOTICE
Leveler
Leveler
Leveler
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
Place the unit on a dry level surface.
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment

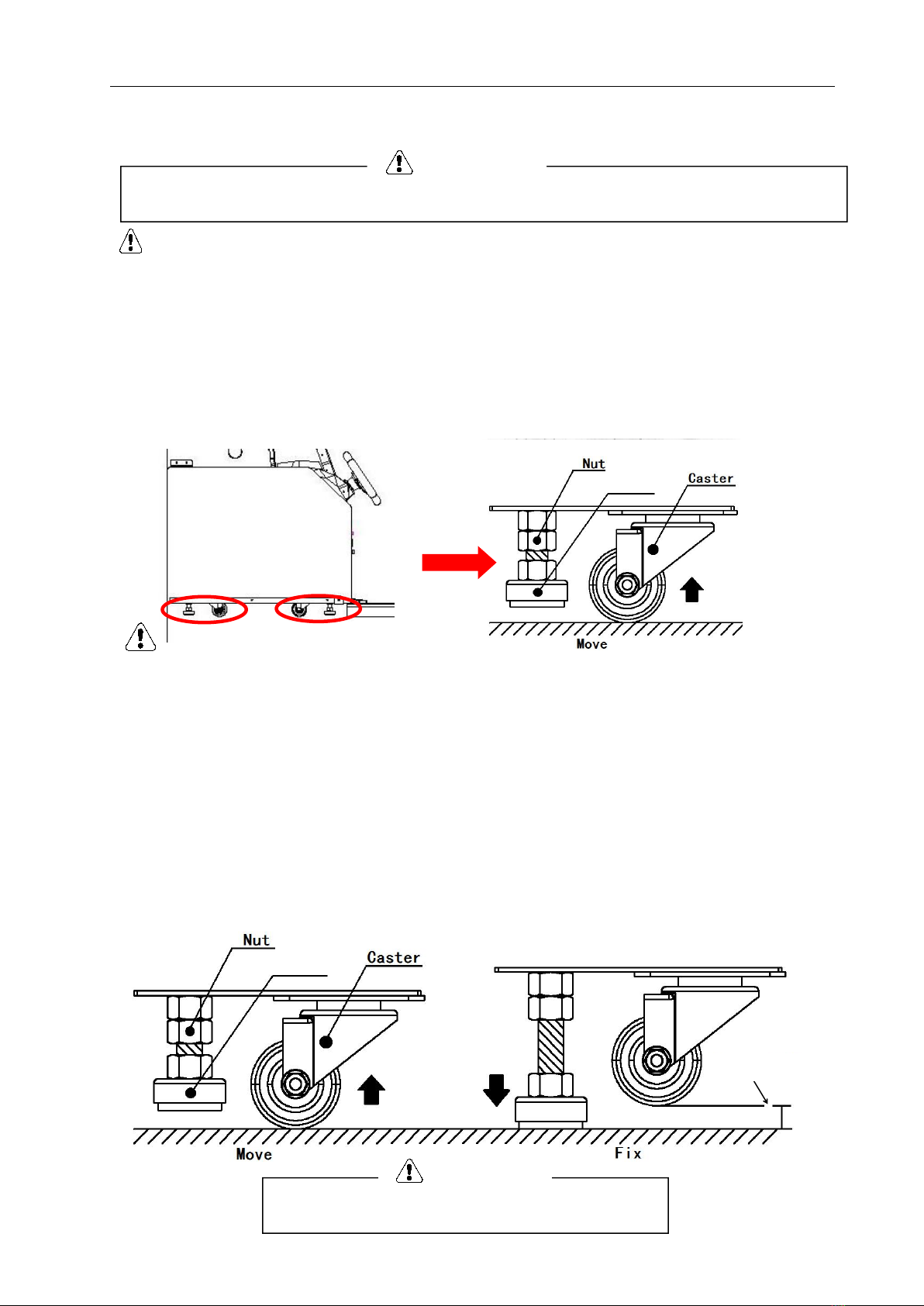

Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in/5mm. Repeat the same for all
levelers.

Big Foot Crush GMP Manual
11/26/2020
9
Your unit must be leveled to operate properly.
NOTICE
Play area
Service area
4.3 Play Zone

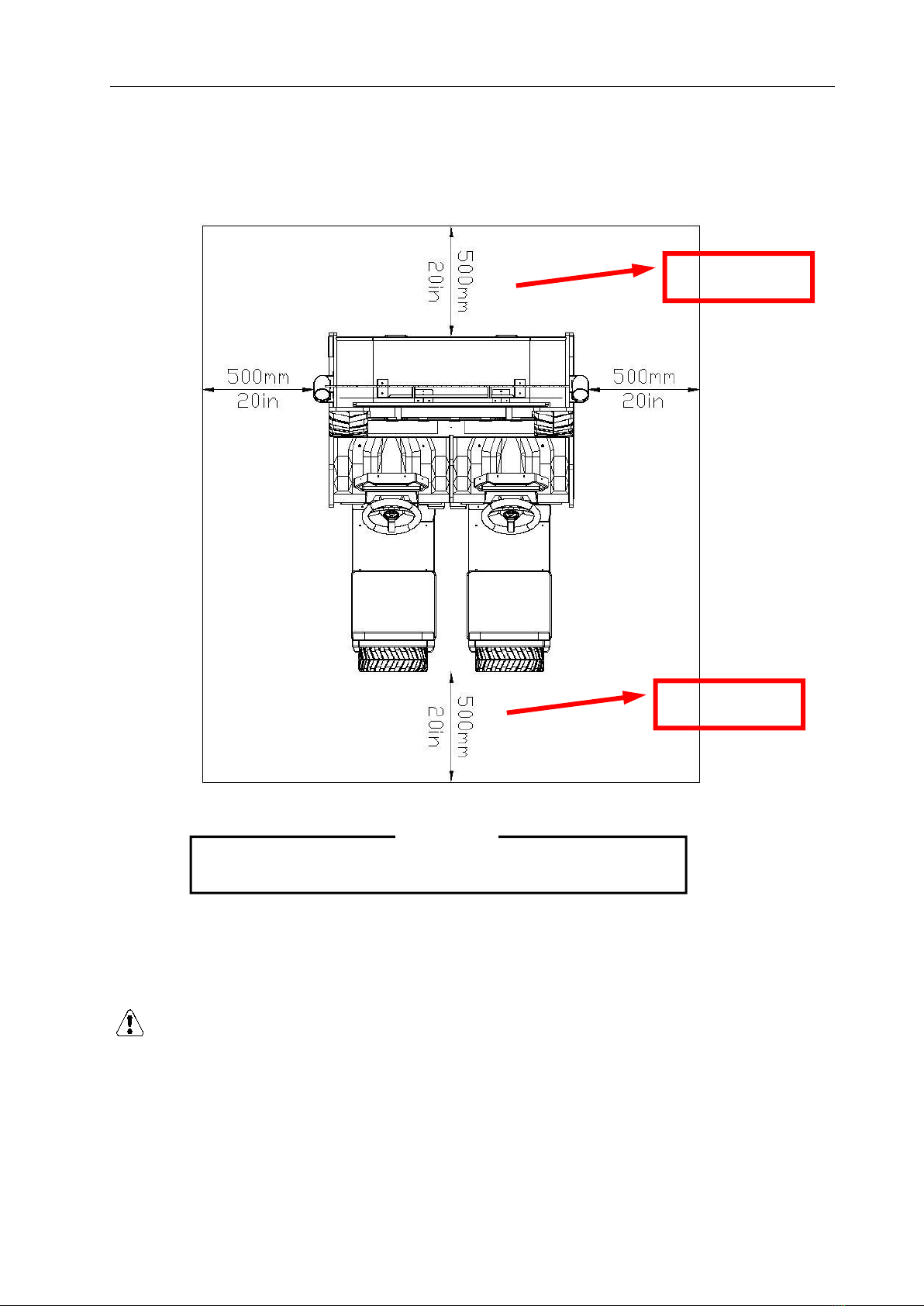

This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
4.4 Card Reader Installation Safety Notice
Take precaution to assure that all wiring voltages are confirmed prior to installation
of card reader. All warranties are void if not properly installed resulting in logic board
damage.
Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize
this wiring for Card reader installation.

Big Foot Crush GMP Manual
11/26/2020
10
Seat assembly
Cabinet
POP assembly
Cabinet
4.5 Machine Installation
Step 1 Utilize screw sets to fix the POP assembly to the cabinet.
Step 2 Align the Car assembly with the cabinet. Connect all cables. Utilize screws to fix the
Seat assembly to the cabinet.
Finish!
Name
Cross recessed
pan head screw
set
SPEC
M4×12
Name
Hexagon flat
head screw
SPEC
M5×12

Big Foot Crush GMP Manual
11/26/2020
11
5. HOW TO PLAY

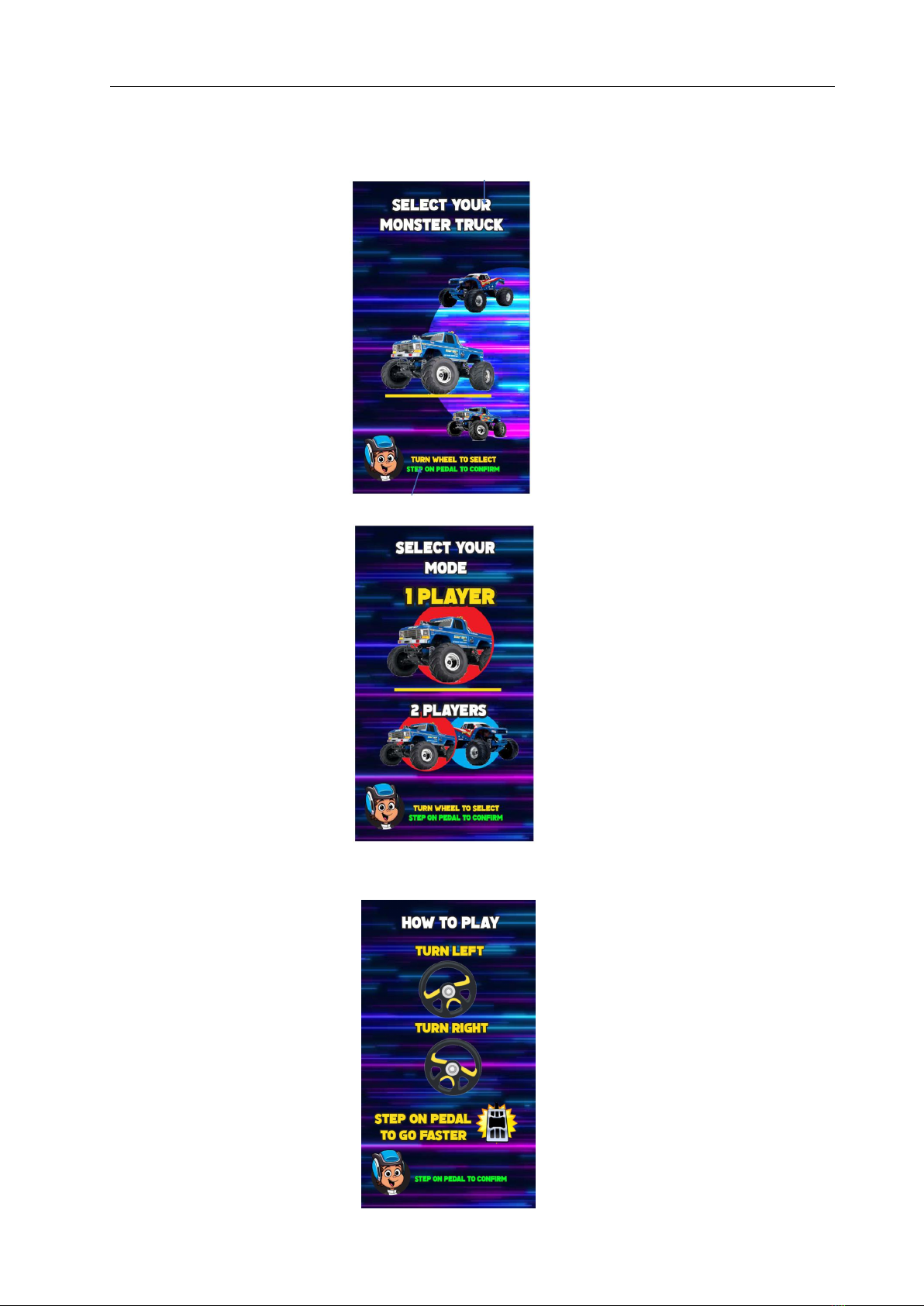

5.1 Insert coins to play. Turn the wheel to select car. Step on pedal to confirm.
5.2 Turn the wheel to select mode. Step on pedal to confirm.
5.3 Turn the wheel to control the car. Step on pedal to go faster.

Big Foot Crush GMP Manual
11/26/2020
12
5.4 About game:

Big Foot Crush GMP Manual
11/26/2020
13
Settings
6.2.2 Basic Setting
Free Play
OFF_ON
Tickets Out
OFF_ON
Out Of Tickets
Store Tickets in
Memory_Call Attendant
Demo Music
OFF_ON
Memory Save
OFF_ON
Volume
1_10
Coins Per Game
1_10
Pay Mode
Coins_Card_Insert
Coins/Swipe Card
Back&Save
Back
Multiplayer Join Time
5_20
Game Time
40~480
Divided By 2
OFF_ON
Fixed Ticket Mode
OFF_ON
Fixed Ticket
0~300
Rank 1ST Ticket
1_300
Rank 2nd Ticket
1_300
Back & Save
Back
Test
Reset
Open the coin door and there is a
meter panel. Press Settings button to
enter the setting menu.
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Customized Setting
Input Test
Output Test
Steering Wheel Calibration
Game Reset
Date/Time Setting
Language/语言
Bookkeeping
Daily Record
Back to game
6.2.3 Customized Setting

Big Foot Crush GMP Manual
11/26/2020
14
Turn Steering Wheel To The Center and Hold On,Press
Accelerator Pedal To Save
Press Settings Button to Back
6.2.8 Date/Time Setting
6.2.7 Game Reset
6.2.4 Input Test 6.2.5 Output Test
6.2.6 Wheel Calibration
1P Coin
2P Coin
1P Steering Wheel
2P Steering Wheel
1P Accelerator Pedal
2P Accelerator Pedal
Back
Side Light
Top Light
Seat Light
Seat Back Light
1P Ticket Drive
2P Ticket Drive
Back
Factory Restore
CANCEL_CLEAR
Reset Basic Setting
CANCEL_CLEAR
Reset Customized Setting
CANCEL_CLEAR
Clear All Records
CANCEL_CLEAR
Clear Owed Tickets
CANCEL_CLEAR
Clear Unused Coins
CANCEL_CLEAR
Back
Year
2010-2100
Month
1-12
Day
1-31
Hour(24)
0-23
Minute
0-59
Second
0-59
Go Back & Save
Back

Big Foot Crush GMP Manual
11/26/2020
15
6.2.8 Bookkeeping
6.2.9 Daily Record
Date Weekday RunTime Coins Tickets Payout
2014-06-061 Fri 00:01 0 0 0.00
Prev. Page
Next Page
Clear
Back
Player1 Coins Tickets Payout
1 0 0 0.00
Back

Big Foot Crush GMP Manual
11/26/2020
16
7. TROUBLESHOOTING
7.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom
Possible Cause
Recommended action
Game will not
start
Frame assembly connector is
loose.
Check connector.
Frame assembly fault
Contact with UNIS Service.
Power off
Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
No ticket
dispensing
Out of ticket.
Add ticket and press reset button
Ticket jamming.
Remove the jammed tickets and press
reset button.
The connector is loose.
Plug the connector tightly.
No sound
Low volume
Raise the volume.
Connector loose.
Check connector.
Speaker fault.
Check speaker.
POT installation error.
Install POT correctly.
POT fault.
Change POT.
Audio cable problem.
Reconnect the audio cable or change
it.
PC crash.
Restart or system recovery.
Driver problem
Restart the audio driver.
Display black
screen
Check connectors.
Plug in connector tightly
Display fault.
Utilize another source such as a PC to
verity if the display is operational.
RAM is loose.
Remove and reinsert RAM.
Display blue
screen
PC power cord is loose
Check PC power cord whether is loose.
VGA signal cable is loose.
Check VGA cable
PC video card is loose.
Reseat video card.
“0X000000A” code appears.
Conflict between computer drive
and software.
Contact service
Note: After replacing component from PC (except for RAM), and replacing monitor, the
game should be recovered again with the recovery stick attached to the machine.

Big Foot Crush GMP Manual
11/26/2020
17
If you see following error signs showing on the display, please try the recommended action.
Display
Possible Cause
Recommended action
The connection part of the
IO board and PC is loose.
Check and reconnect the
loose part of the PC or IO
board.
Cable became loose during
transport.
Check and reconnect the
loose cables of the PC or IO
board.
Cable quality problem
Change the cable after
checking the connection
between IO board and PC.
IO board is faulty.
Reboot the game after
checking connection and
cable problem, if the problem
remains unresolved, please
call the service department
for assistance.
Ticket jam
Remove jammed tickets.
Out of ticket
Refill with tickets.
Loose connection of the
ticket dispenser
Check and reconnect the
loose cables to the ticket
dispenser.
Ticket dispenser is faulty.
Change the ticket dispenser.

Big Foot Crush GMP Manual
11/26/2020
18
OK to remove the recovery stick.
OK to remove the recovery stick.

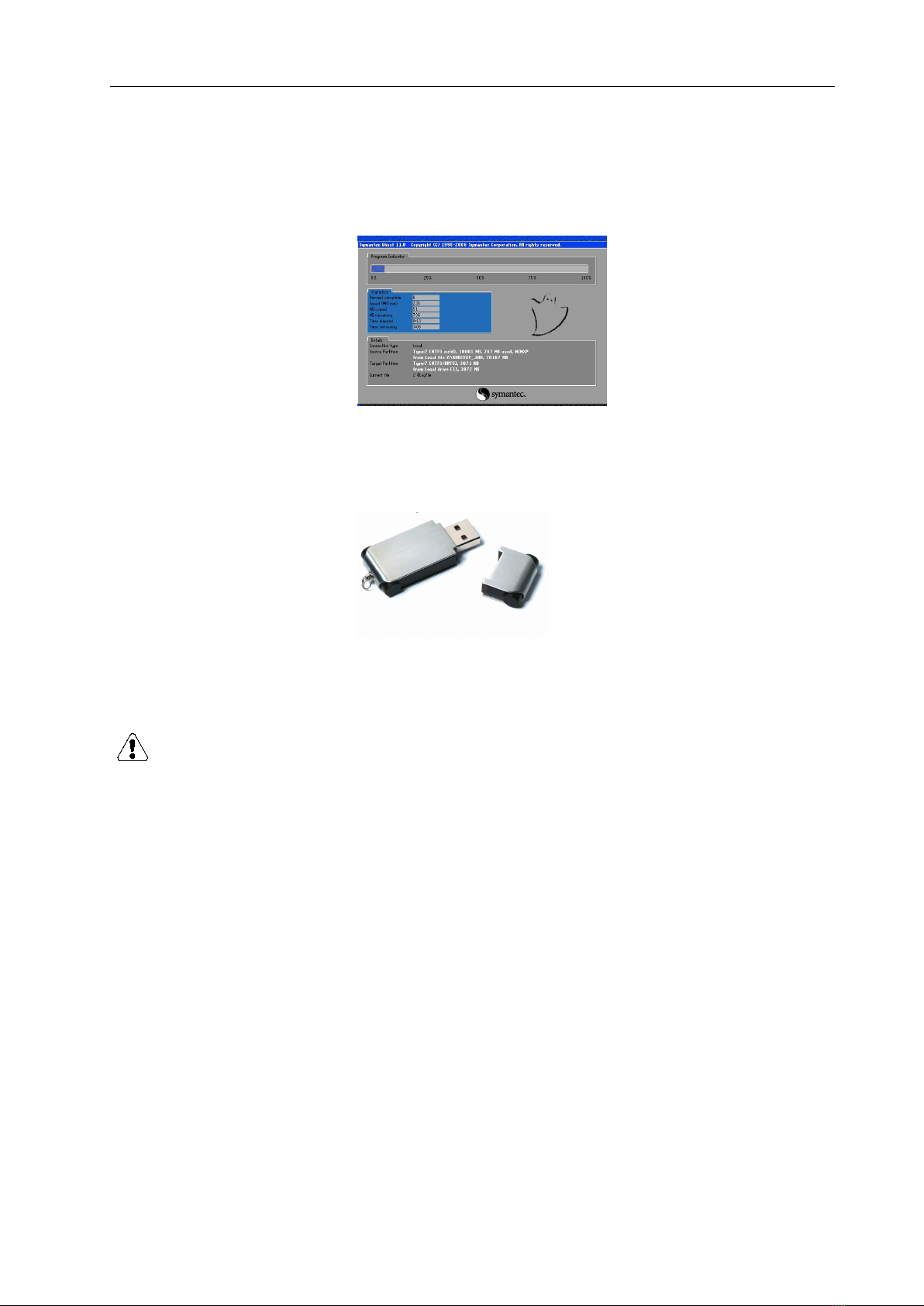

7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.)
1. Turn off the game. Remove the recovery stick from the machine. (Note: This process
may take up to 60 minutes) Insert the recovery stick into the port at the back of the
computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery.
4. Once system recovery is partially finished (as shown below), and the ICON appears,
remove the recovery stick from the computer. The game will continue the install process.
5. Assure that the recovery stick has been properly secured for future use.
WARNING: The recovery stick should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.

Big Foot Crush GMP Manual
11/26/2020
19
We do not recommend using power tools as they may cause damage.
NOTICE
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Test game before operation each day.
2. Conduct monthly routine checks of game components to ensure good working
condition.
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to maintain proper
operation.
8.2 Handling Precautions
When installing or inspecting the machine, be very careful and pay attention to ensure that
the player can enjoy the game safely.
Inappropriate handling running counter to the cautionary matters can cause personal injury
or damage to the machine.
