UNIS UP&AWAY User manual

Operation Manual
www.universal-space.com

1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
IMPORTANT SAFETY INSTRUCTIONS............................................................... 2
1. SPECIFICATIONS........................................................................................... 4
2. PACKAGE CONTENTS ................................................................................... 5
3. PART NAME .................................................................................................. 6
4. SET UP & INSTALLATION.............................................................................. 7
5. HOW TO PLAY ............................................................................................. 13
6. GAME OPTIONS .......................................................................................... 14
7. MAINTENANCE, INSPECTION ..................................................................... 17
8. OVERALL CONSTRUCTION ......................................................................... 18
9. Decal........................................................................................................... 33
IO chart ........................................................................................................... 37
Wiring diagram............................................................................................... 39

2
Thank you for purchasing UP&AWAY from Universal Space.We hope you enjoy the
product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of product
operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel should
under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and understand
these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury. Unplug the game from the outlet when not in use, when
moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on
the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Use the following safety guidelines to help ensure your own personal safety and to help protect
your equipment and surrounding environment from potential damage.

3
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury and/or
machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to
ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

4
1. SPECIFICATIONS
Rated power supply: AC110V /60Hz
Min. Power consumption: 70W
Max. Power consumption：450W
Dimensions：W1100×D2505×H2546.5 (mm)
Weight：Approximately 300kg
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: The contents of this manual may be updated without notice.

5
2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1 x Body Assembly
Following accessories
If any items are found to be missing, please contact your sales representative for
help immediately.
NOTE: Part models are subject to change without notice.
No.
Part No.
Code
Name
Spec.
Qty
1
23301000001
Power code
10A/250V-1.8M
1
2
21901000013
Fuse
Φ5×20mm
T10A 250VAC
1
3
41000000114
Ball
VBS75
50
4
41411301001
Manual
1
5
25300171002
Lock
171
1
6
25300172002
Lock
171B
1

6
3. PART NAME

7
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by wall.

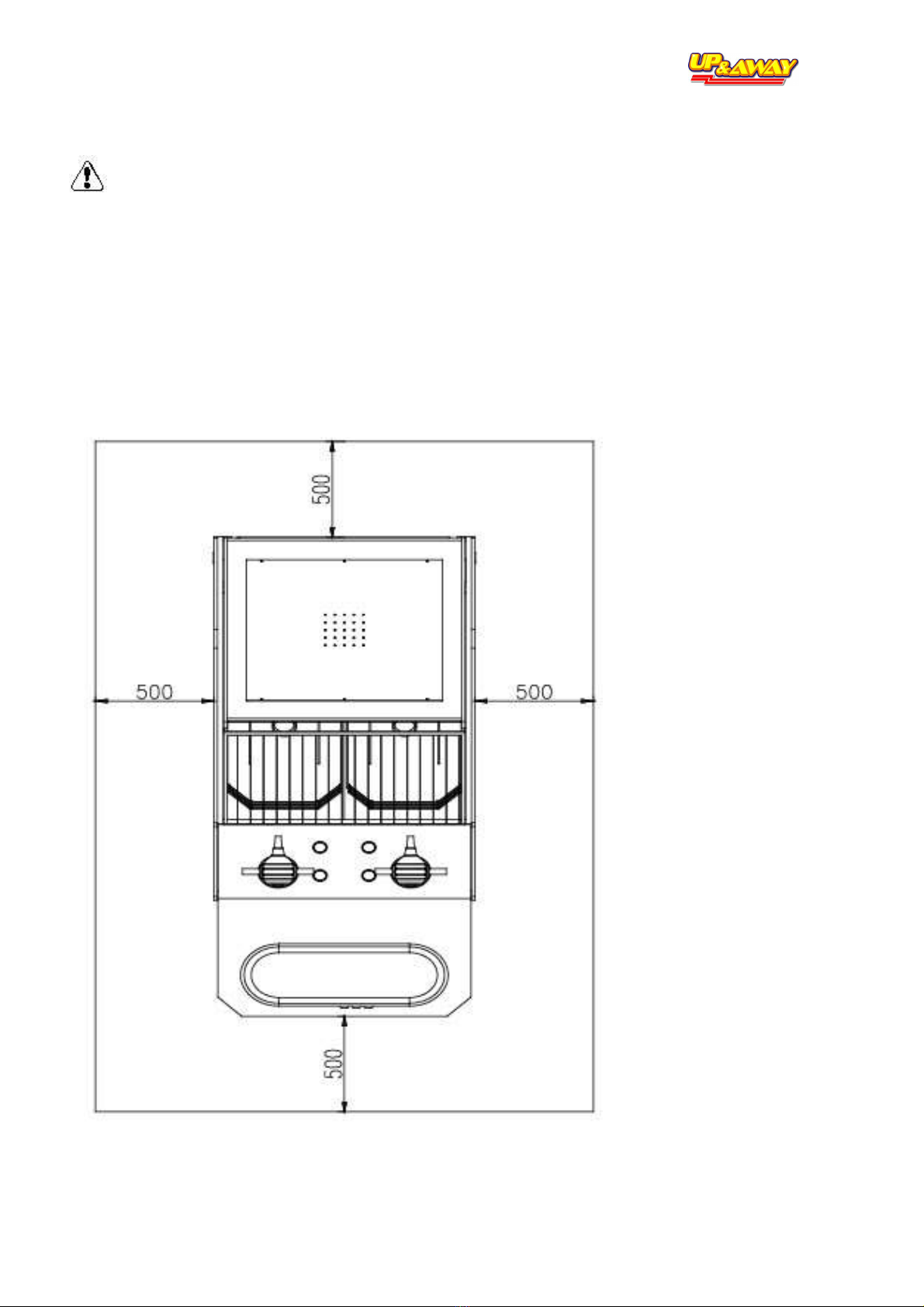

4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service Area: 500mm
Play Area: 500mm
Play zone

8

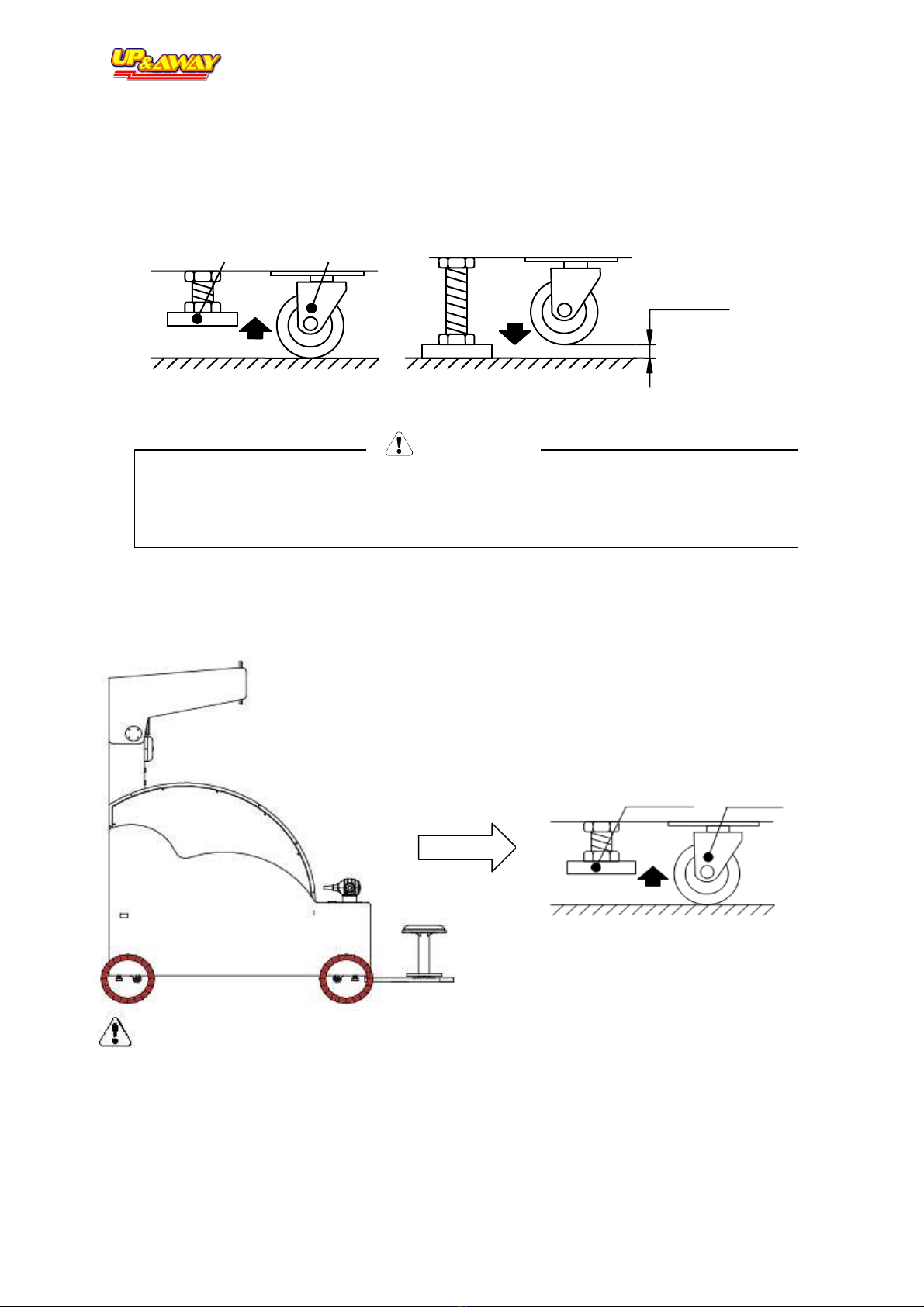

4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the
ground by 5mm. Repeat the same for all levelers.
4.3 Transporting the Machine
If you need to move the game, adjust the levelers back to an “up” position so the casters touch
the ground.
NOTICE
Be careful not to damage the machine during transport.
The machine should be handled with care when bringing it down from a higher level.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
Leveler
Caster
Move
About 5 mm
Fix
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE
Leveler
Caster
Fix

9
4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to an
electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not
sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped
on or tripped over.
Power socket
Power outlet
Power plug
Power cord
Power plug

10

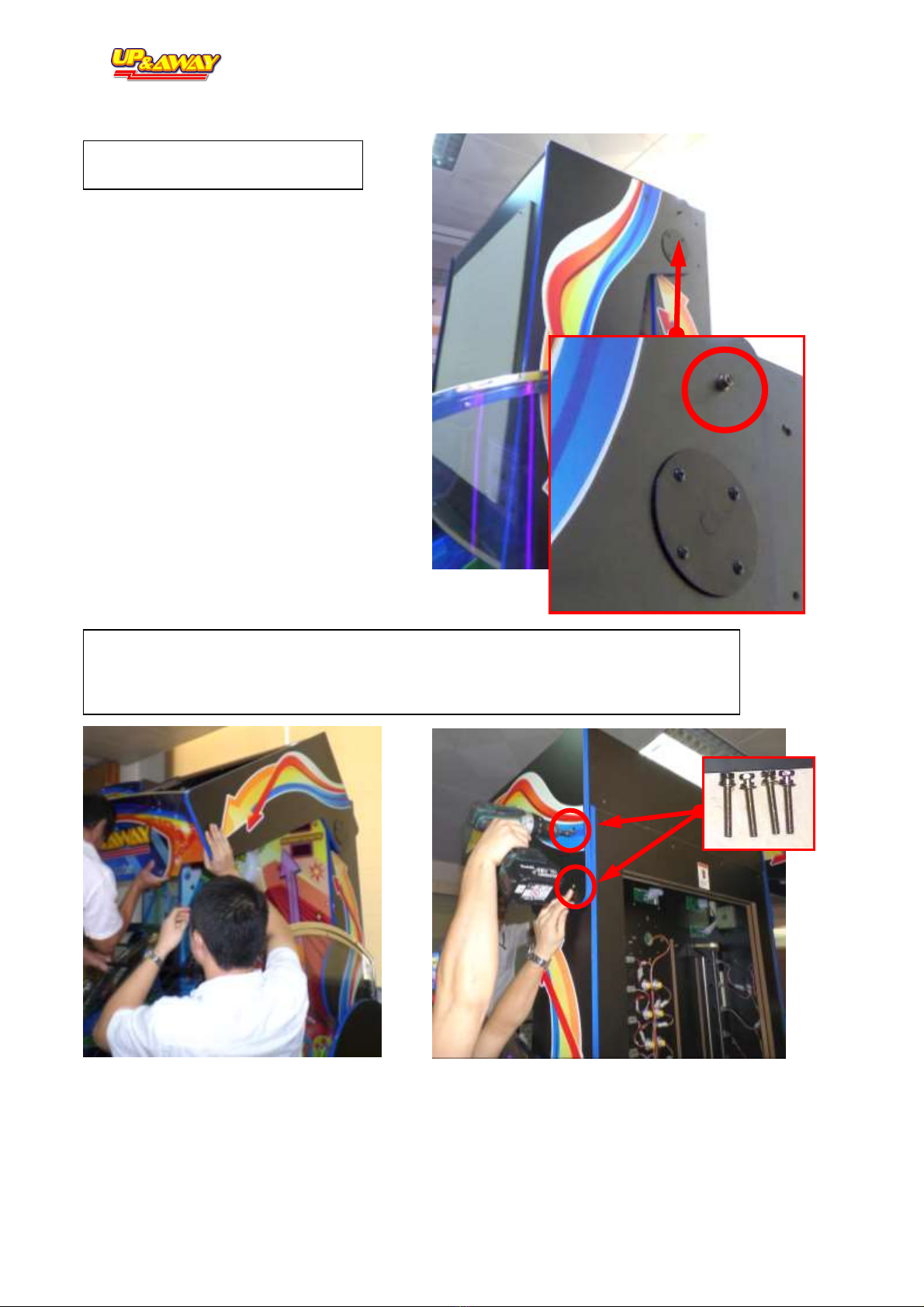

4.4 How To Install Marquee Assy.
Step 1: Remove 1 screw from both
sides on top of the cabinet.
Step 2: Lift up the marquee in the correct position by 2 people. One needs to
support the marquee in the front. The other needs to install 4 provided screws
(M6*40) from the accessory box to fix the marquee.

11
Step 3: Take the connection metal
plate from accessory box. Fix it to
the cabinet with 8 screws (M6*20)
as the picture shown.
Step 4: Find the cable connector at the back of the cabinet. Then connect it to the other end
from the top marquee hole.

12

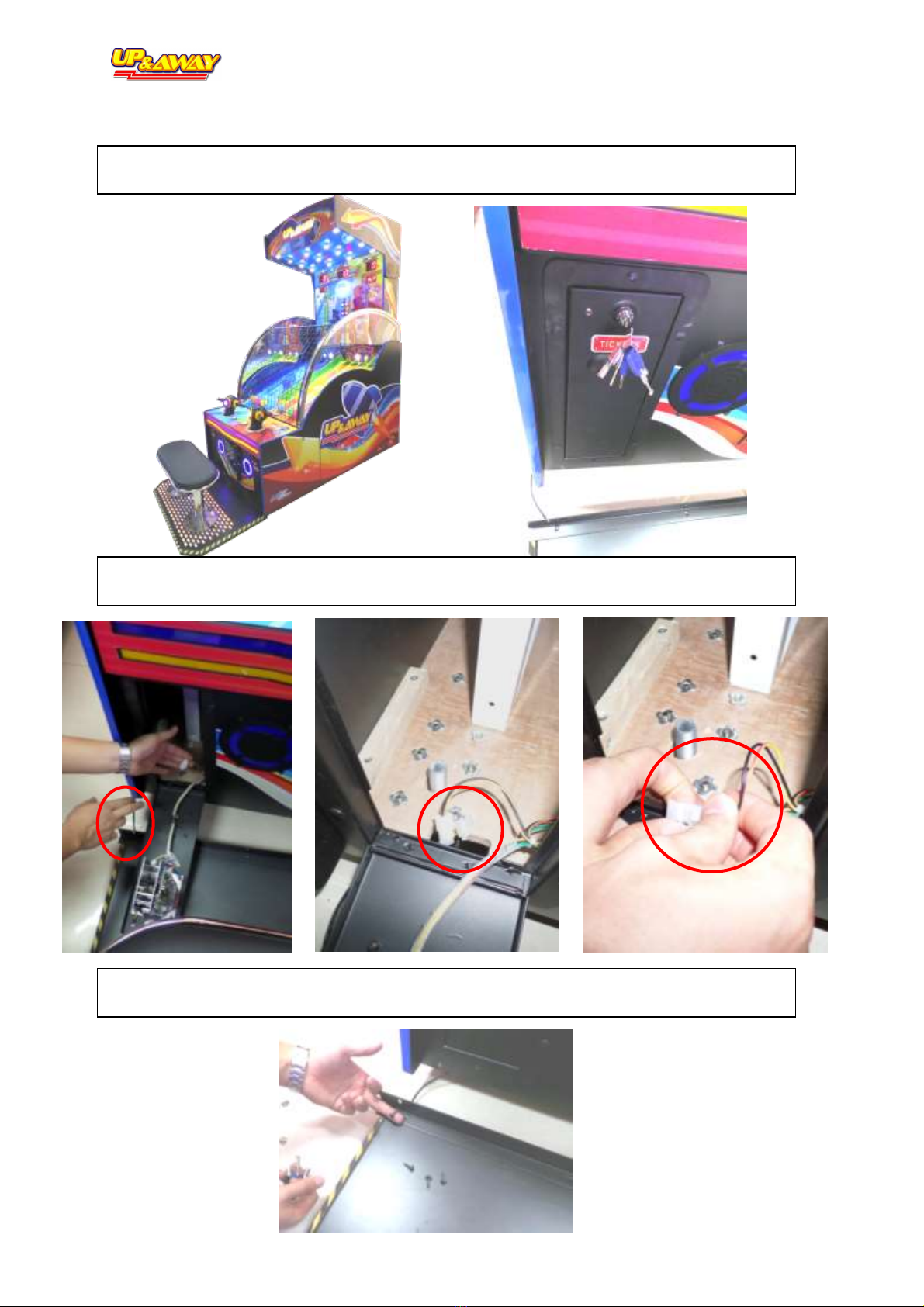

4.5 How To Install Seat Assy.
Step 1: Push the seat assembly at the front of the cabinet. Make seat assembly
mounting holes and cabinet mounting holes horizontal alignment.
Step 2: Take out seat light cable connector, and get it though the hole on the bottom of
the cabinet. Then connect it to the other end from the ticket door.
Step 3: Put the seat assembly against the cabinet, aligning the seat mounting holes
with cabinet mounting holes

13
5. HOW TO PLAY

14
6. GAME OPTIONS
Check the attached I/O chart and schematic diagram, PC plan available machine input and
output correspond to each connection position. Based on the DIP adjustment can be set the
machine control signal.
DIP regulating reference I/O list, capital letters for factory Settings, user can adjust
themselves according to the operation condition.

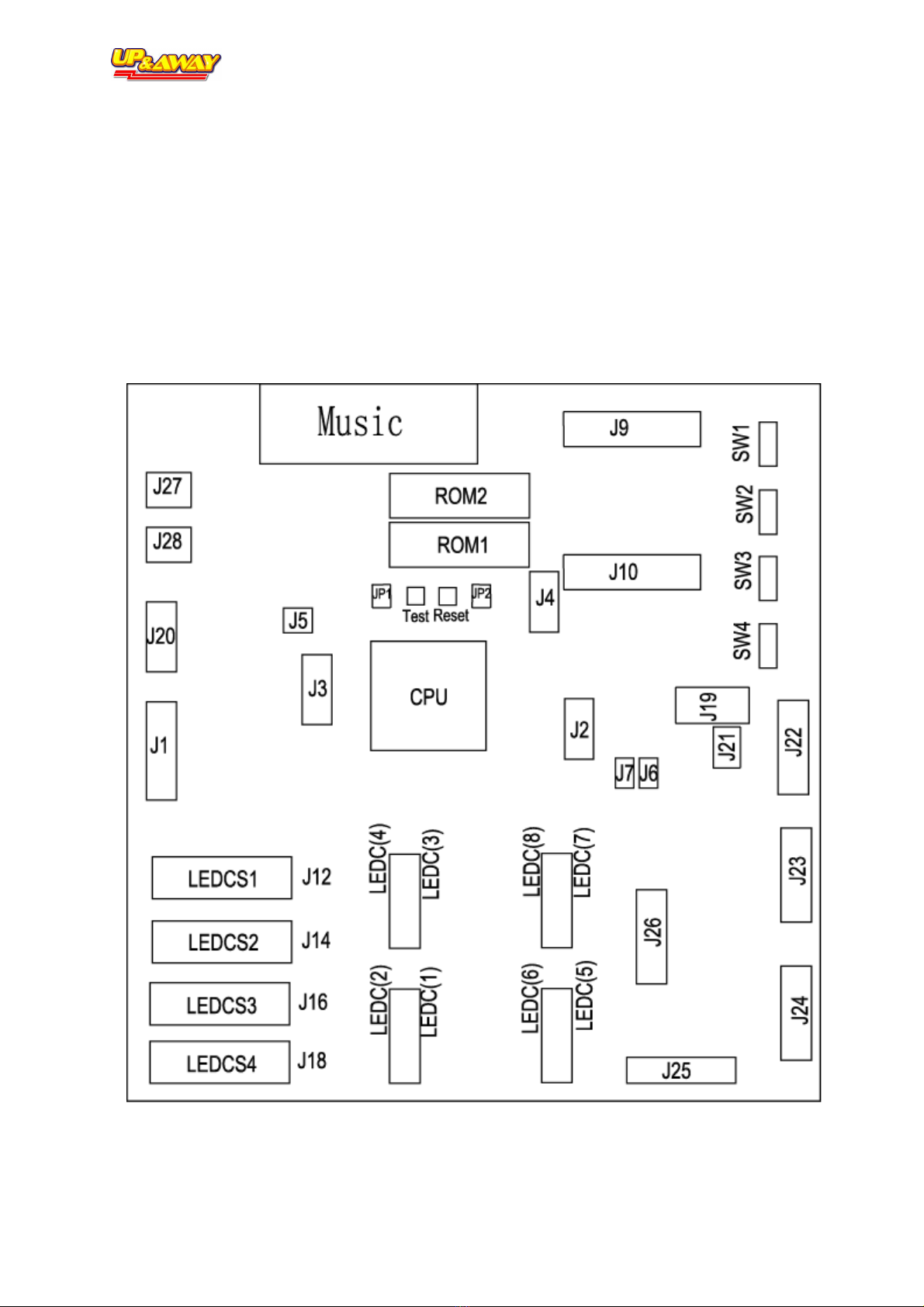

Main Board

15
Display:
1P TIME LED<1>1-2 BONUS LED<1>3-5 2P TIME LED<1>7-8
1P TICKET LED<2>1-3 2P TICKET LED<2>4-6
Error display:
If the input signal is not normal when you turn on the machine, The score LED displays SW
numbers with wrong.
Clear memory：
Hold on TEST button and press Reset button, then unclinch Reset button.
The memory must be cleared if game machine is passed when shipped out.
Error code
E01 Ticket reset button E11 1P target sensor 1 E31 1P hole sensor 1
E02 Free play button E12 1P target sensor 2 E32 1P hole sensor 2
E03 1P pop up motor sensor E13 1P target sensor 3 E33 1P hole sensor 3
E04 2P pop up motor sensor E14 1P target sensor 4 E34 1P hole sensor 4
E05 1P single play button
E06 1P link button
E07 2P single play button E21 2P target sensor 1 E41 2P hole sensor 1
E08 2P link button E22 2P target sensor 2 E42 2P hole sensor 2
E83 Coin mech. 1 E23 2P target sensor 3 E43 2P hole sensor 3
E84 Coin mech. 2 E24 2P target sensor 4 E44 2P hole sensor 4

16

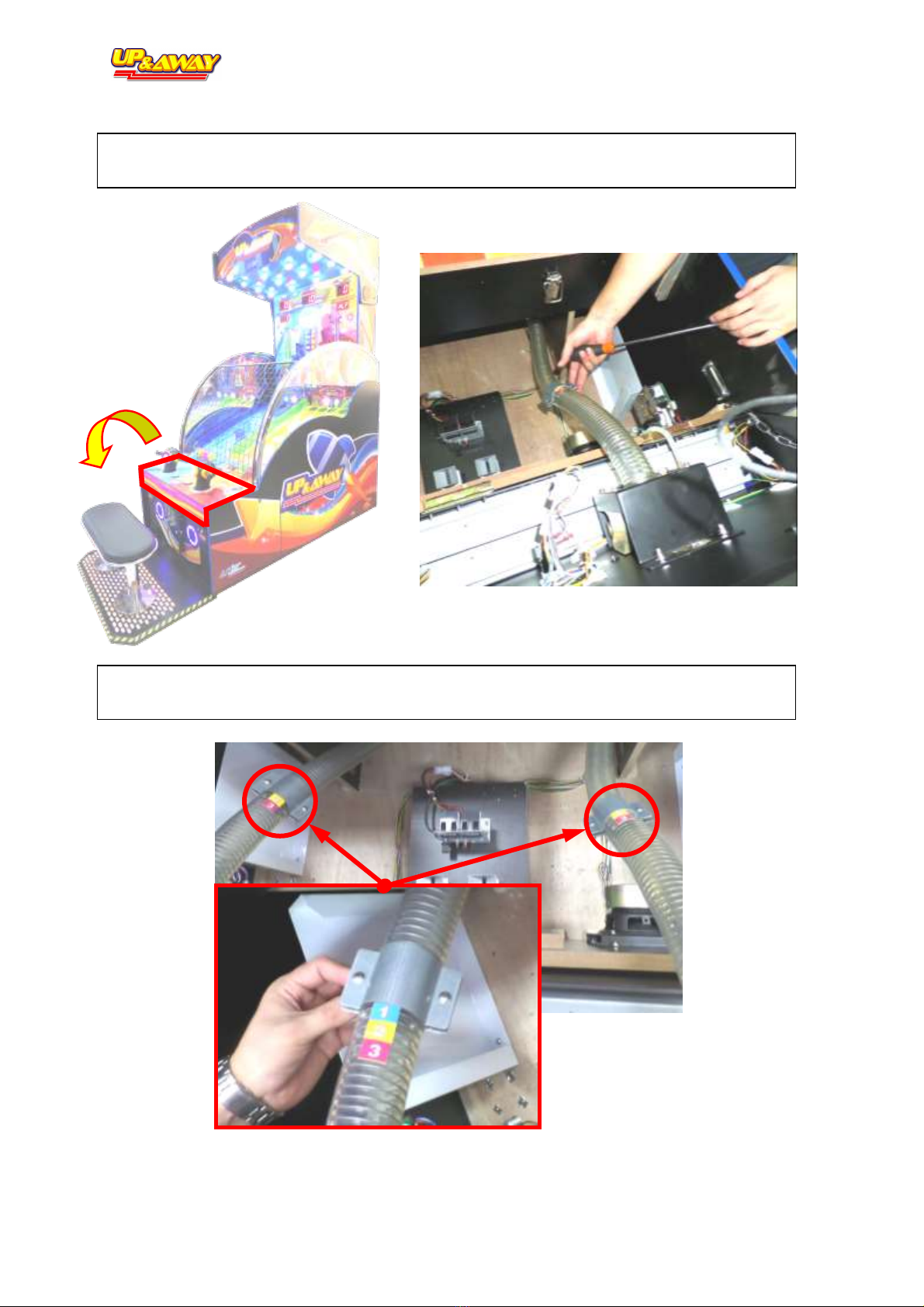

How To Adjustment Blowing Rate:
Step 1: Open control panel, there are 2 metals on the windpipe, you can use these 2
metals to adjust air volume.
Step 2: You can loosen windpipe metal to adjust degree. 1 degree is maximum air
volume. 3 degree is minimum air volume.

17
7. MAINTENANCE, INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly.
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine.
•Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
•To avoid electric shock or short circuit, do not plug then unplug the power quickly
•Do not expose power cords and earth wires, these are susceptible to damage.
•Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
•When or after installing the product, avoid pulling the power cord to prevent unnecessary
wear and tear. Use the power button to disconnect power.
•In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire, electric
shock or leakage.
•Perform grounding appropriately. Inappropriate grounding can cause electric shock.
•Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
•Should a problem occur, turn off the power immediately and stop operating the machine.
Unplug the power cord of the service outlet. Operating the machine without correcting the
problem may cause a fire or injuries.
•Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
•To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the labels are
not hidden behind other game machines.
WARNING

18

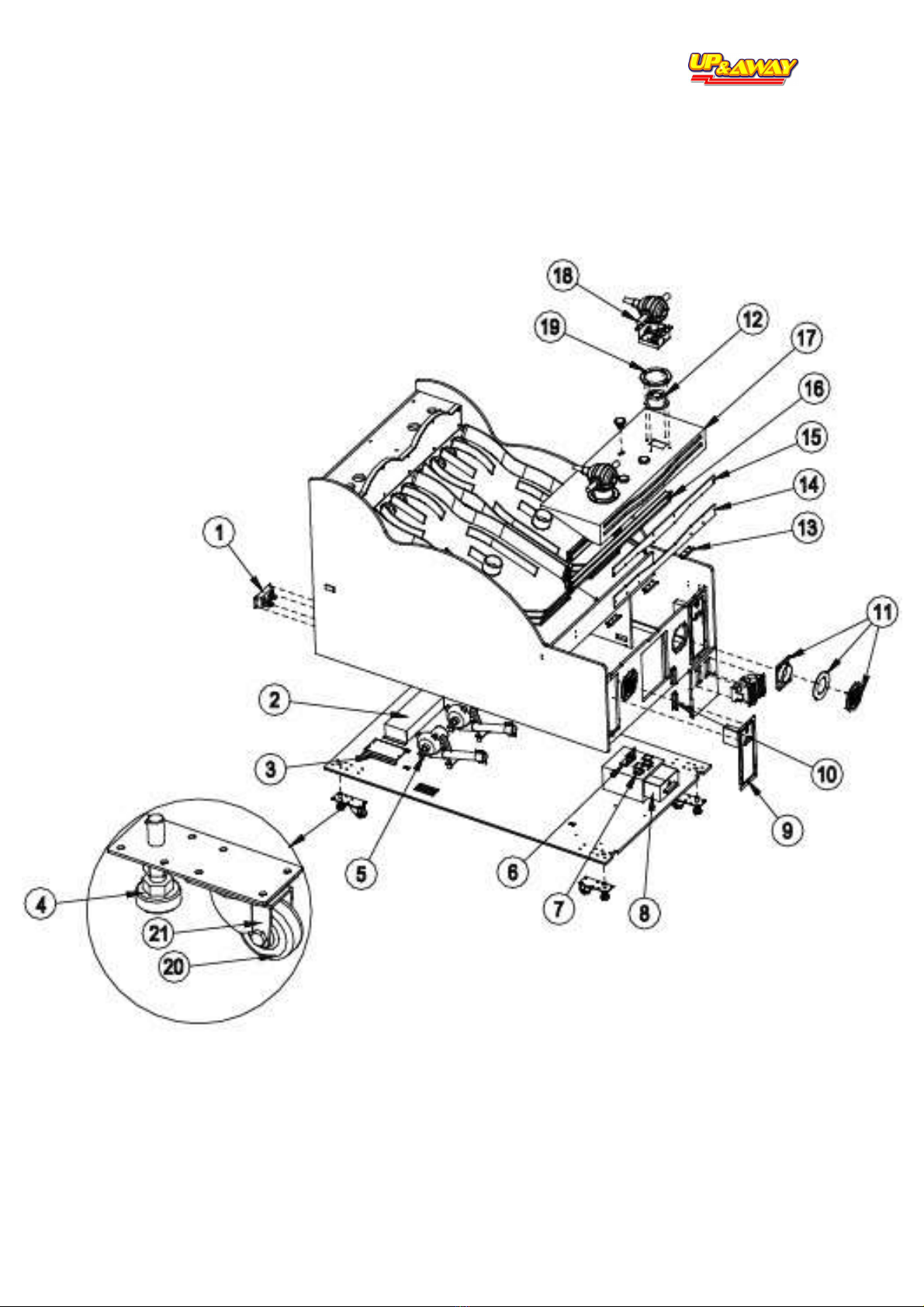

8. OVERALL CONSTRUCTION
8.1 Mechanical Part
8.1.1 Side door assy.
No.
Part No.
Code
Name
Qty
1
U103-101-000
20211301002
L bend
1
2
U103-601-000
20611301002
L side plexi.
1
3
U103-102-000
20211301005
Safety net
1
4
U103-601-000
20611301002
R side plexi.
1
5
U103-103-000
20211301003
R bend
1

19
8.1.2 Control panel, front door assy.
