UNIS Seaway Submarine User manual

Operation Manual
www.universal-space.com

Seaway Submarine manual
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 2
1. SPECIFICATIONS............................................................................................. 4
2. PACKAGE CONTENTS ...................................................................................... 5
3. PART NAMES ................................................................................................... 6
4. SET UP & INSTALLATION ................................................................................ 7
5. HOW TO PLAY ................................................................................................ 10
6. MAINTENANCE & INSPECTION .................................................................... 11
7. OVERALL CONSTRUCTION ............................................................................ 12
8. WIRING DIAGRAM......................................................................................... 28
WARNING

Seaway Submarine manual
2
Thank you for purchasing Seaway Submarine. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of product
operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and troubleshooting
guide. If the product fails to function properly, non-technical personnel should under no
circumstance attempt to service the machine. Contact your distributor or manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and understand
these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury. Unplug the game from the outlet when not in use, when moving
from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on the
potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Seaway Submarine manual
3
Use the following safety guidelines to help ensure your own personal safety and to help protect
your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury and/or
machine malfunctioning:
 Places subject to rain/moisture, or places subject to high humidity.
 Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to
ensure that it is used within the specified operating range.
 Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
 On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
 Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL RISKS.
Note: The contents of this manual may be updated without notice

Seaway Submarine manual
4

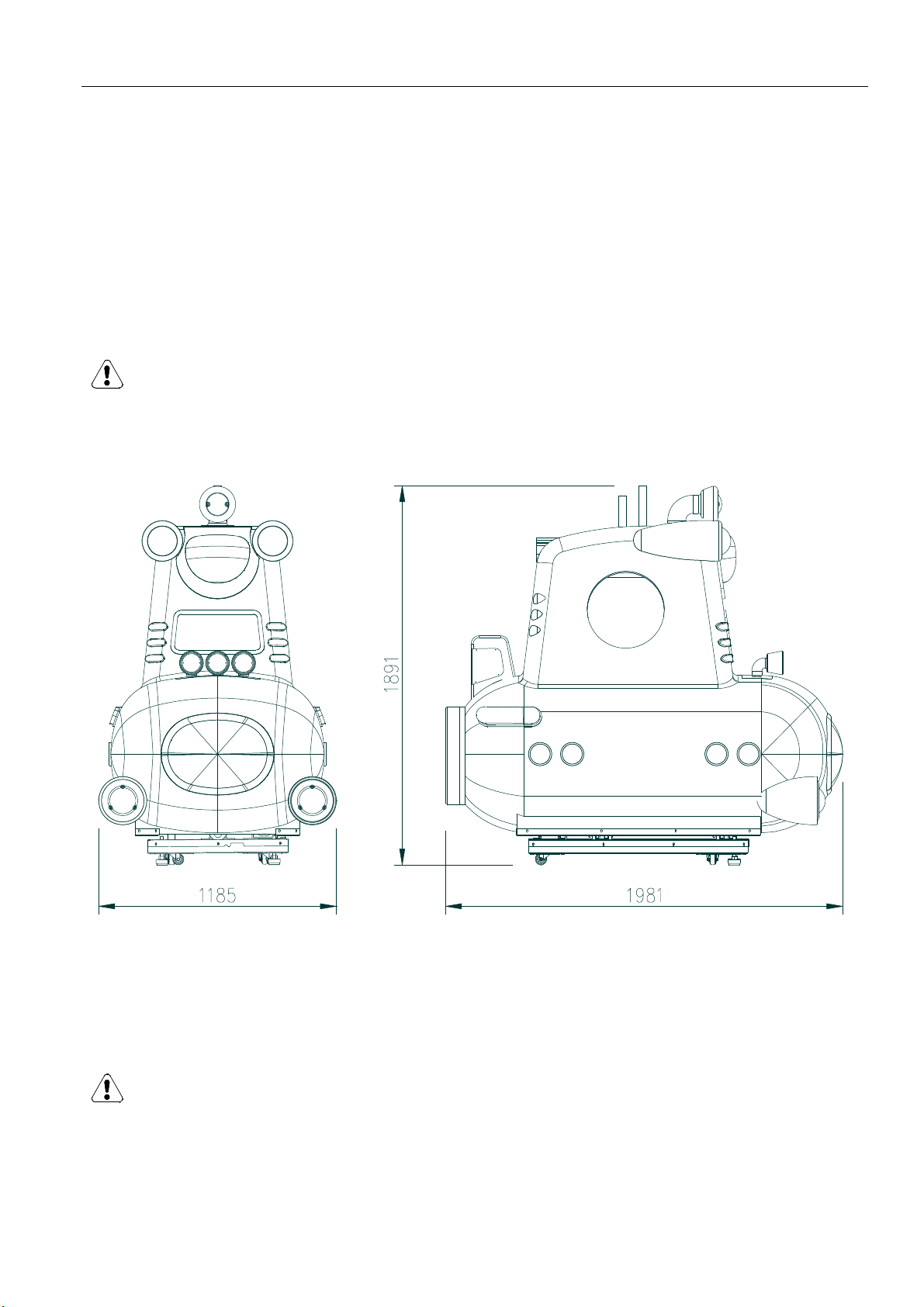

1. SPECIFICATIONS
Rated power supply： 110V, 50/60Hz
Min. Power consumption： 90W
Max. Power consumption： 380W
Dimensions： W1185×D1981×H1891 (mm)
Weight： Approximately 400KG
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: Game parameters are subject to change without notice.
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.

Seaway Submarine manual
5
2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
 1 x Body Assembly
 Following accessories
If any items are found to be missing, please contact your sales representative for
help immediately.
NOTE: Part models are subject to change without notice.
No. Part No. Draw No. Name SPEC. Qty
1 S119-401-000 21901000014 Fuse Φ6×30mm
T10A 250VAC 1
2 S119-402-000 22402000201 Catch fish button 57-1820-02
white 1
3 S119-403-000 22401040003
Small button with light
Yellow Φ24
2428 1
4 S119-404-000 25300171002 Key 171 1
5 S119-405-000 25300172002 Key 171B 1

Seaway Submarine manual
6

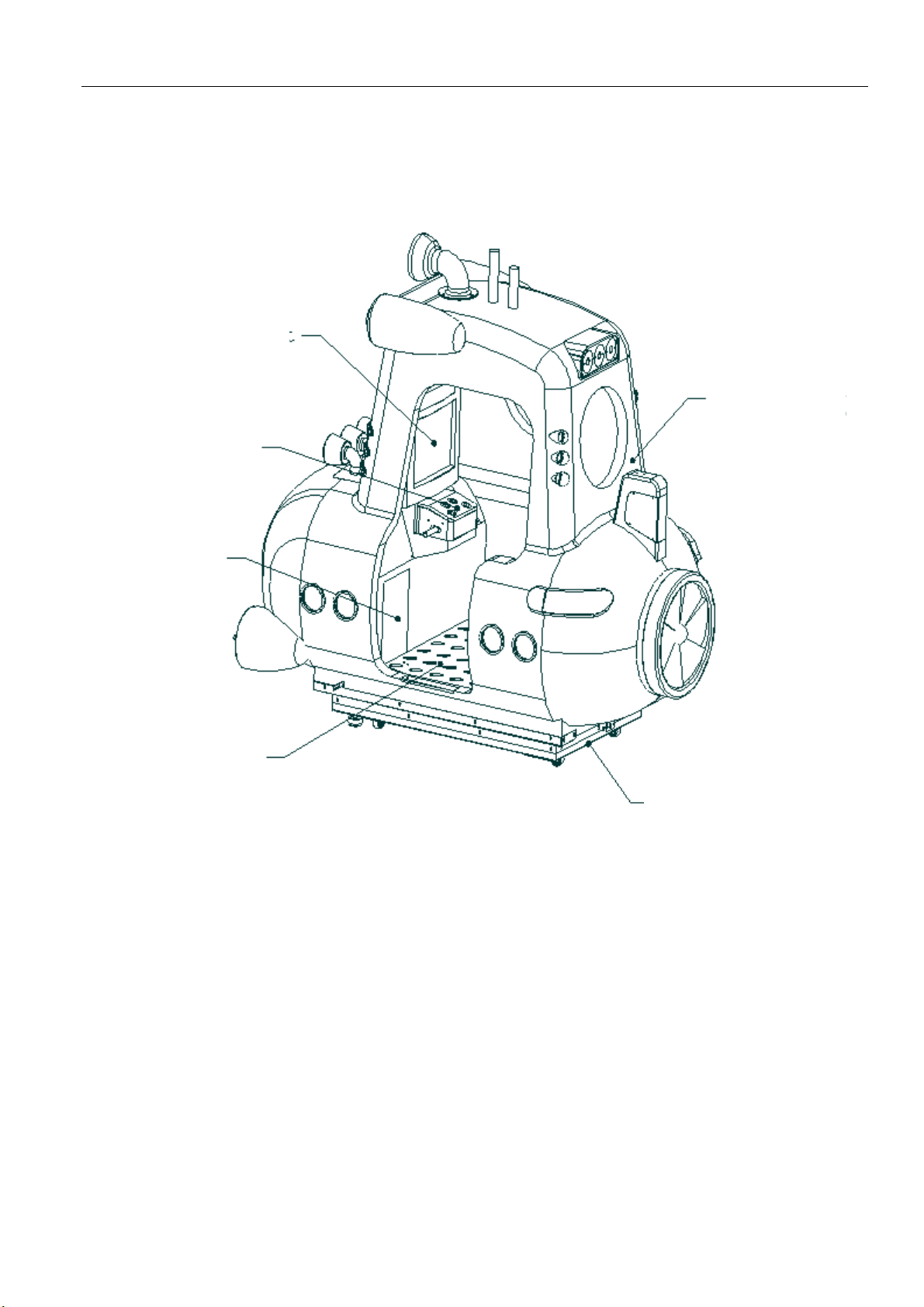

3. PART NAMES
Motion base
Pedal
Monitor
Control panel
Coin mech
Fiberglass

Seaway Submarine manual
7
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
 Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
 Place the unit on a dry level surface
 Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Play area: 100cm
Play area
Passageway

Seaway Submarine manual
8
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game.
If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the
ground by 5mm. Repeat the same for all levelers.
4.3 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position so the casters touch
the ground. The bedplate of the machine is provided with two wheels in its rear side. On a level
surface the machine can be moved by using a trolley.
NOTICE
 Be careful not to damage the machine during transport.
 The machine should be handled with care when bringing it down from a higher level.
 Always unplug the game before moving.
 Keep the machine in upright position during transport.
 For longer distance transport, package the game properly to prevent damages
Leveler
Cas
ter
About0.19 inches
Move
Fix
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE

Seaway Submarine manual
9

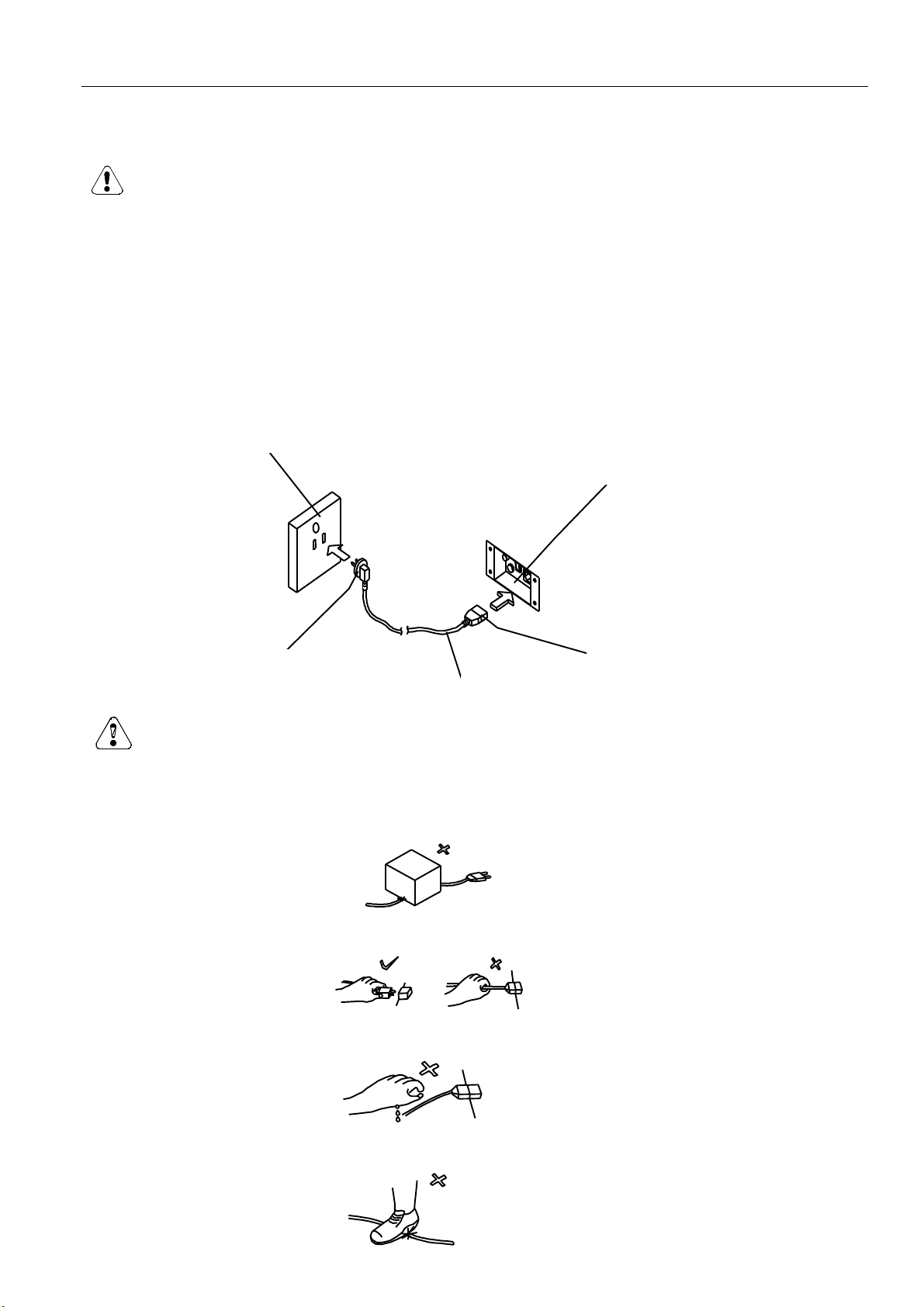

4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to an
electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
 Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
 Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
 Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not
sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped on
or tripped over.
Power socket
Power outlet
Power plug
Power cord
Power plug

Seaway Submarine manual
10
5. HOW TO PLAY
Insert coins to begin your adventure!
Explore the ocean floor in your submarine.
Capture interesting sea creatures to learn more about them.
Change the color of your submarine and try out some special effects.
Happy Sailing!
CHANGE SUBMARINE
COLOR
SPECIAL EFFECT ACCELERATE
CATCH FISH

Seaway Submarine manual
11
6. MAINTENANCE & INSPECTION
6.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly
6.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent unnecessary
wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire, electric
shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the machine.
Unplug the power cord of the service outlet. Operating the machine without correcting the
problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating, resulting in
fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the labels are
not hidden behind other game machines.
WARNING

Seaway Submarine manual
12
7. OVERALL CONSTRUCTION

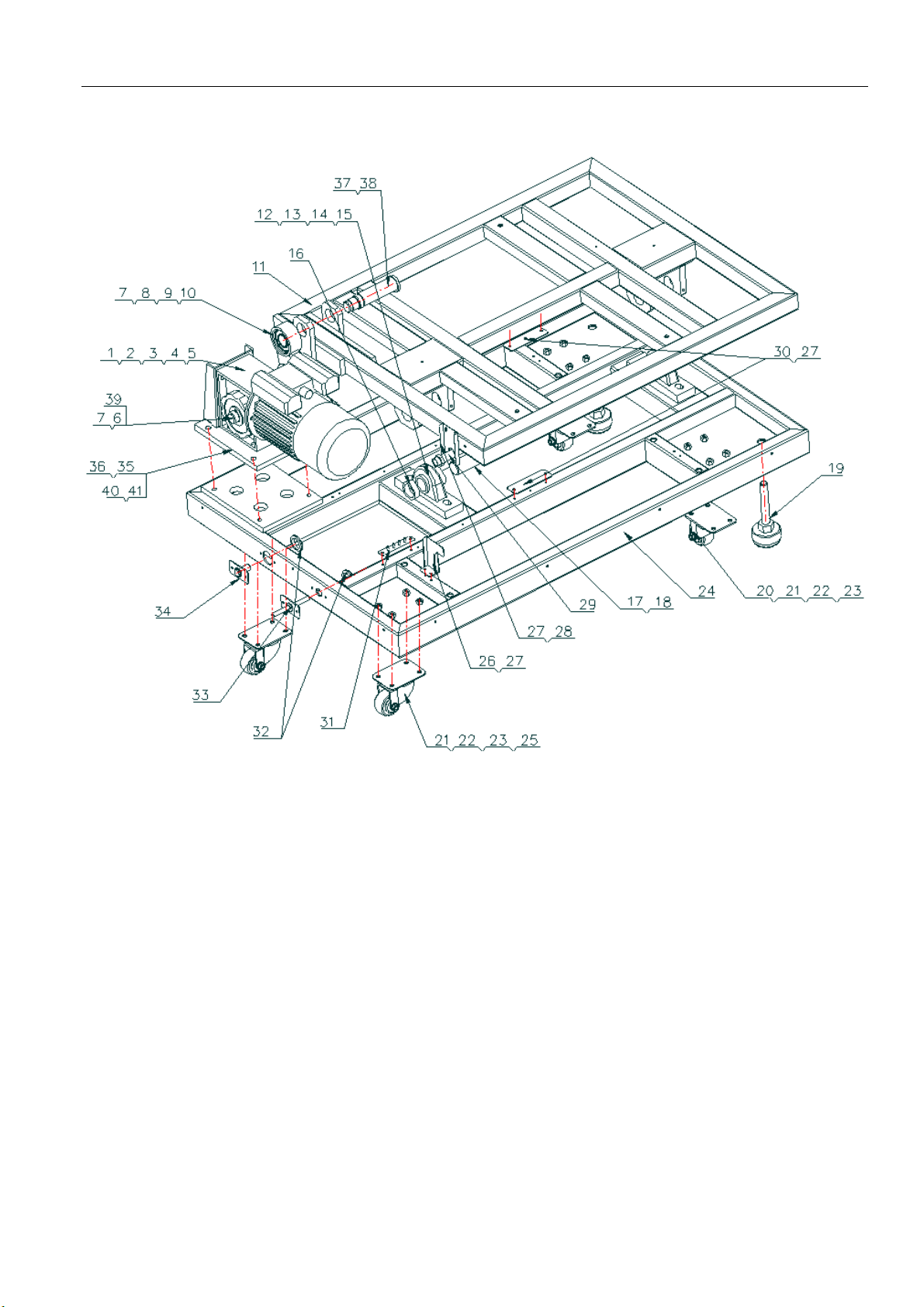

7.1 Base mechanism 1
No. Part No. Code Name Material Qty
1 S119-1480-000 20251302068 Skirt metal strip A Q235 2
2 S119-301-000 20101010029 Cross recessed pan head screws Q235 1
3 S119-302-000 20113010053 C class flat washer Q235 30
4 S119-342-000 20101048007 Hexagon flat round head screw Q235 4
5 S119-149-000 20251302069 Skirt metal strip B Q235 2
6 S119-151-000 20251302071 Skirt metal strip D Q235 4
7 S119-150-000 20251302070 Skirt metal strip C Q235 2

Seaway Submarine manual
13

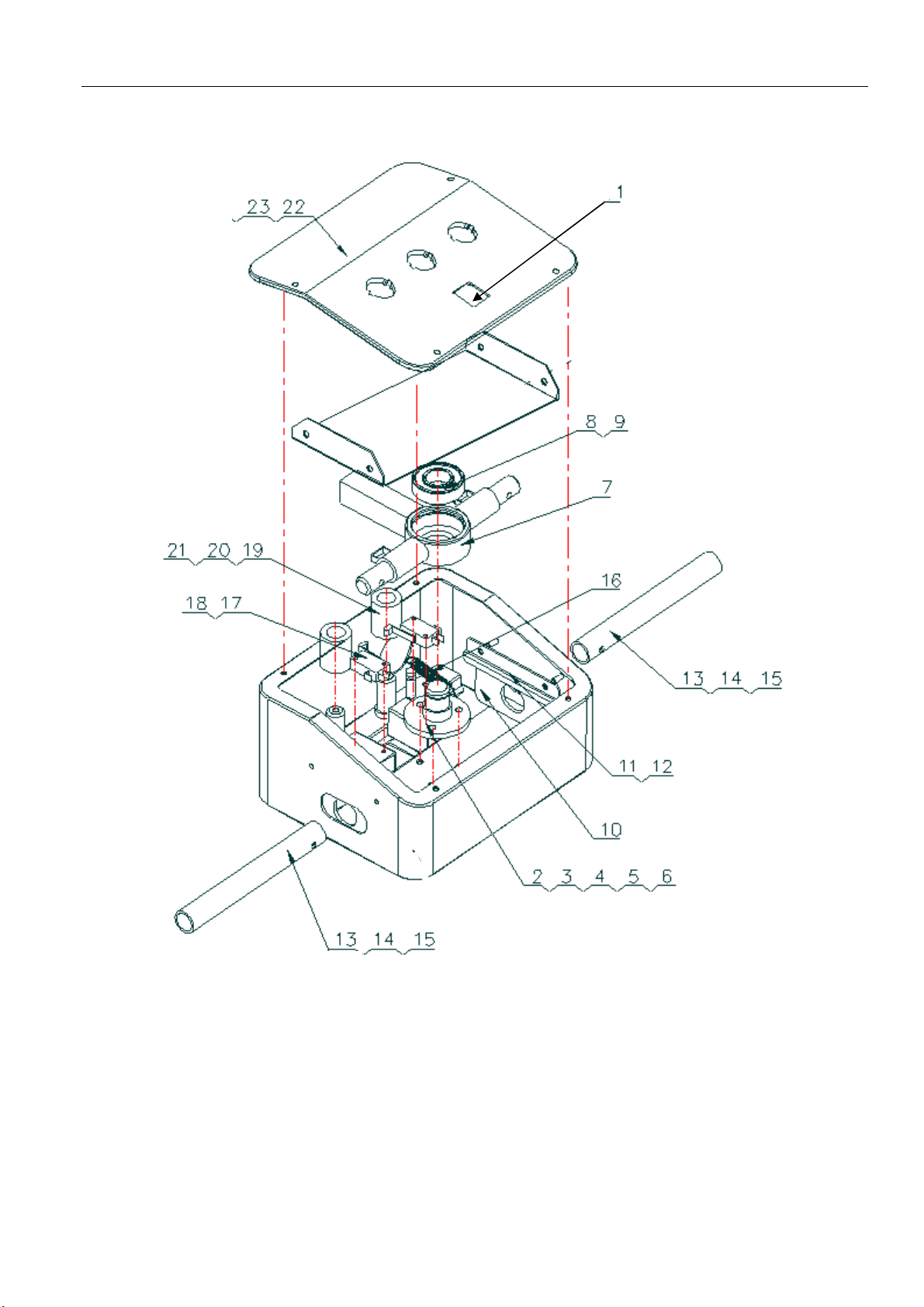

7.2 Base mechanism 2

Seaway Submarine manual
14
No. Part No. Code Name Material Qty
1 S119-458-000 23405010010 Motor 1
2 S119-303-000 20104040030 Hexagon bolt 1
3 S119-304-000 20113000005 Standard spring washer 8
4 S119-305-000 20113000051 C class flat washer 8
5 S119-306-000 20102000013 Hexagon nut Q235 8
6 S119-101-000 20251302027 Eccentric shaft 45# 1
7 S119-465-000 20105000197 A type circlip for shaft 3
8 S119-102-000 20251302026 Connected plate 1
9 S119-459-000 20106000057 Deep groove BD. 2
10 S119-466-000 20105000210 A type circlip for hole 2
11 S119-103-000 20251302072 Movable flame 1
12 S119-460-000 20106130158 Ball BD with seat 2
13 S119-309-000 20104031004 Hexagon bolt Q235 4
14 S119-310-000 20113000004 Standard spring washer Q235 4
15 S119-311-000 20113000054 C class flat washer Q235 4
16 S119-104-000 20251302025 Shaft sleeve Q235 2
17 S119-105-000 20251302024 Connecting shaft 45# 2
18 S119-467-000 20107000116 Cotter pin 2
19 S119-106-000 26000008000 Leveler Q235 2
20 S119-461-000 20851302003 Caster 2
21 S119-313-000 20104100030 Hexagon bolt Stainless steel 16
22 S119-305-000 20113000051 C class flat washer 8
23 S119-304-000 20113000005 Standard spring washer 8
24 S119-107-000 20251302073 Basic frame Q235 1
25 S119-462-000 20851302002 Rigid caster 2
26 S119-108-000 20251302028 Reset part Q235 1
27 S119-314-000 20101000024 Cross recessed pan head screws 8
28 S119-109-000 20251302029 Reset switch bracket Q235 1
29 S119-449-000 21501000004 Sensor 1
30 S119-110-000 20651302001 Insulating spacer PVC 2
31 S119-111-000 20251302031 Grounded plate Metal 2
32 S119-454-000 23313000265 Bushings 2
33 S119-112-000 20251302A001 Cable fixed plate 202 steel 1
34 S119-113-000 20251302033 Fuse mounted plate 202 steel 1
35 S119-114-000 20251302034 Mtor mounted bracket Q235 1
36 S119-315-000 20104000008 Hexagon bolt Q235 4
37 S119-115-000 20251302035 Connected rod 45# 1
38 S119-468-000 20105000024 A type circlip for shaft 1
39 S119-116-000 20251302030 General flat key 45# 1
40 S119-317-000 20113000102 Standard spring washer Q235 4
41 S119-318-000 20113000052 C class flat washer 4

Seaway Submarine manual
15
7.4 Main Body Part 1
No. Part No. Code Name Material Qty
1 S119-606-000 20651302002 Fiberglass body Fiberglass 1
2 S119-117-000 20251302039 propellers plate Q235 1
3 S119-319-000 20103020001
Cross recessed pan head self-tapping
screw Q235 6
4 S119-118-000 20251302040 Propellers light mounted plate Q235 1
5 S119-417-000 29751302003 Propellers light board 1
6 S119-320-000 20101000021 Cross recessed pan head screws 8
7 S119-601-000 20651302003 Propellers light cover White plastic 1
8 S119-445-000 22204060002 Upper orange light cover with socket 1
9 S119-321-000 20101000006 Hexagon flat round head screw 23
10 S119-602-000 20651302004 Spoiler light cover White plastic 1
11 S119-413-000 29741003001 Spoiler light board 1
12 S119-439-000 22204030008 Side upper light cover Violet 6
13 S119-322-000 20103020008
Cross recessed pan head self-tapping
screw Q235 12
14 S119-603-000 20651302005 Back upper light cover plastic 1
15 S119-442-000 22204060001 Upper green light cover with socket 1
16 S119-323-000 20101000048 Cross recessed pan head screws 16
17 S119-444-000 22003020003 Upper white light 1

Seaway Submarine manual
16
No. Part No. Code Name Material. Qty
18 S119-326-000 20101000052 Cross recessed pan head screws 4
19 S119-341-000 20113000055 C class flat washer Q235 3
20 S119-337-000 20101000202 Cross recessed pan head bolt suite Q235 4
21 S119-321-000 20101000006 Hexagon flat round head screw 4
22 S119-436-000 21201017003 17" monitor 1
23 S119-324-000 20101000025 Cross recessed pan head screws 6
24 S119-119-000 20251302062 Monitor mounted plate Q235 1
25 S119-338-000 20102000017 1 type hexagon nut Q235 4
26 S119-001-000 26000031000 Coin door assy. 1
27 S119-339-000 20104000018 Round head square neck bolt 6
28 S119-120-000 20251302063 Foot rest plate Aluminum
plate 1
29 S119-340-000 20111000008 Flat round head blind rivet 7
30 S119-121-000 20251302064 Foot rest stainless steel plate Stainless steel 1
31 S119-713-000 20551302007 Right side decal Clear plastic 1
32 S119-712-000 20551302006 Left side decal Clear plastic 1
33 S119-438-000 22204070001 Side round light cover 8
34 S119-604-000 20651302010 Side long strip light cover White plastic 2
35 S119-336-000 20101000007 Hexagon flat round head screw 8
36 S119-605-000 20651302011 Side long strip light mounted plate PVC 2
37 S119-322-000 20103020008
Cross recessed pan head self-tapping
screw Q235 12

Seaway Submarine manual
17

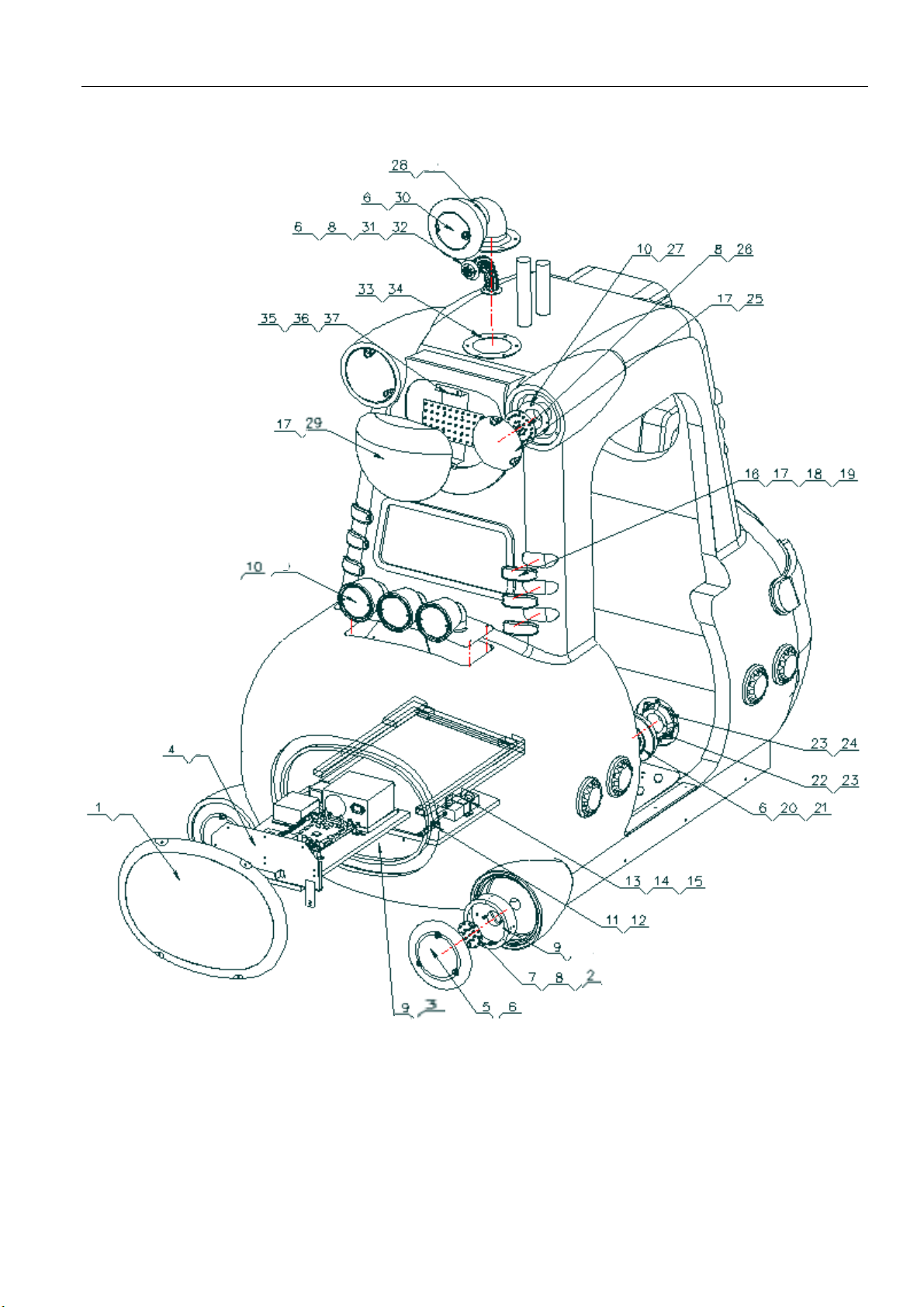

7.5 Main Body Part 2

Seaway Submarine manual
18
No. Part No. Code Name Material Qty
1 S119-709-000 20551302002 Front head vacuum form PET 1
2 S119-456-000 23313000266 Headlight bushings 3
3 S119-617-000 20651302022 Front head light mounted plate B PVC 1
4 S119-321-000 20101000006 Hexagon flat round head screw 2
5 S119-710-000 20551302003 Headlight vacuum form cover PET 2
6 S119-321-000 20101000006 Hexagon flat round head screw 6
7 S119-411-000 29710914004 Red LED board red 2
8 S119-314-000 20101000024 Cross recessed pan head screws 12
9 S119-616-000 20651302021 Front head light mounted plate A PVC 1
10 S119-619-000 20651302020 Searchlight fiberglass Fiberglass 1
11 S119-111-000 20251302031 Grounded plate Metal 1
12 S119-324-000 20101000025 Cross recessed pan head screws 2
13 S119-134-000 20251302080 Monitor power mounted bracket Q235 1
14 S119-324-000 20101000025 Cross recessed pan head screws 2
15 S119-451-000 21602000076 DC power supply 1
16 S119-608-000 20651302013 Front side light cover White plastic 6
17 S119-336-000 20101000007 Hexagon flat round head screw 12
18 S119-609-000 20651302014 Front side light mounted plate PVC 6
19
S119-322-000 20103020008
Cross recessed pan head self-tapping
screw Q235 12
20 S119-610-000 20651302015 Speaker cover White plastic 2
21 S119-135-000 20251302081 Speaker grill Q235 2
22 S119-136-000 20251302082 Speaker light bracket Q235 2
23 S119-324-000 20101000025 Cross recessed pan head screws 16
24 S119-448-000 22801000047 Speaker 1
25 S119-611-000 20651302016 Top side light cover White plastic 2
26 S119-418-000 29751302004 Top side light blue 2
27 S119-137-000 20251302083 Top side light mounted plate Q235 2
28 S119-612-000 20651302017 Periscope light PE 1
29 S119-701-000 20551302A001 Top light vacuum form plastic 1
30 S119-613-000 20651302018 Periscope light cover red plastic 1
31 S119-138-000 20251302084 Periscope light bracket Q235 1
32 S119-408-000 29751302002 Periscope red light board 1
33 S119-614-000 20251302085 Periscope light mounted plate Q235 1
34 S119-340-000 20111000008 Flat round head blind rivet 3
35 S119-615-000 20651302019 Front light bracket PVC 1
36
S119-322-000 20103020008
Cross recessed pan head self-tapping
screw Q235 4
37 S119-414-000 29740917007 Front light board white 1

Seaway Submarine manual
19
7.6 Control Panel Part
