UNIS RACE CAR PHOTO RIDE User manual

Operation Manual
Distributed by: Amusements Worldwide
www.amusementsworldwide.com
Tel: [phone]
SERIAL NUMBER: DATE OF INSTALLATION:
CEC Version

RACE CAR PHOTO RIDE Rev.1.11
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
Important Safety Instructions ................................................................................. 2
1. SPECIFICATIONS ..................................................................................................... 4
2. PACKAGE CONTENTS ............................................................................................. 5
3. PART NAMES ........................................................................................................... 6
4. SET UP & INSTALLATION ....................................................................................... 7
5. HOW TO PLAY........................................................................................................11
6. GAME OPTION .......................................................................................................12
7. MAINTENANCE, INSPECTION...............................................................................18
8. OVERALL CONSTRUCTION ...................................................................................19
WARNING

RACE CAR PHOTO RIDE Rev.1.11
2
Thank you for purchasing RACE CAR PHOTO RIDE. We hope you enjoy the
product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.

RACE CAR PHOTO RIDE Rev.1.11
3
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Use the following safety guidelines to help ensure your own personal
safety and to help protect your equipment and surrounding environment from potential
damage.
This product is an indoor game machine. Do not install
outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
•Places subject to rain/moisture, or places subject to high humidity.
•Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
•Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
•On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
•Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
All repairs must be done to original manufacturer specifications.
Failure to do so will void all warranties and operator assumes all
risks.
Note: The contents of this manual may be updated without notice

RACE CAR PHOTO RIDE Rev.1.11
4
1. SPECIFICATIONS
Rated power supply：110V, 50/60Hz
Min. Power consumption：418W
Max. Power consumption：600W
Dimensions：D83.85 x W35.43 x H53.15 (inches)
Weight：Approximately 551 (lbs)
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game parameters are subject to change without notice.

RACE CAR PHOTO RIDE Rev.1.11
5
2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
•1 x Body Assembly
•Following accessories
No. Part No. Name Spec. Qty. Illustration Note
1 R106-432-000 Bulb 12V 3W 4
2 R106-440-000 Fuse
Φ6×30
T15A/250VAC(
Fuse wavy)
1
Choose by
area
3 R106-725-000 Manual English 1
Choose by
area
4 R106-451-000
Key
C582 2
Service
door
5 R106-452-000 2233 2
Coin box
door
6 R106-453-000
L Hexagon
spanner CR-V2.5mm 1
If any items are found to be missing, please contact your sales representative
for help immediately.
Warranty: Universal Space provides 90 days warranty for all electrical and mechanical
components, when used under normal operating conditions. Any modification or abuse of
these items immediately voids the warranty. Graphic and consumable items are exempt
from any warranty.
NOTE: Part models are subject to change without notice.

RACE CAR PHOTO RIDE Rev.1.11
6
3. PART NAMES
SIDE VIEW
BACK VIEW
Character fiberglass
Film box assembly
Printer drawer assembly
Electrical box assembly
LED light
Coin mechanism
Camera
Base Fiberglass
Car fiberglass

RACE CAR PHOTO RIDE Rev.1.11
7
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install
outdoors.
zRefer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
zPlace the unit on a dry level surface
zVentilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area：20 inches
安全遮板
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause a malfunction.
To fix the game, adjust the Leveler down until it touches the floor, lifting the casters off the
ground by 5mm. Repeat the same for all levelers.
Leveler Caster
About0.19 inches
Move Fix
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE
20 inches
20 inches
20
inches
20
inches

RACE CAR PHOTO RIDE Rev.1.11
8
4.3 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position so the casters
touch the ground.

NOTICE
•Be careful not to damage the machine during transport.
•The machine should be handled with care when bringing it down from a higher
level.
•Always unplug the game before moving.
•Keep the machine in upright position during transport.
•For longer distance transport, package the game properly to prevent damages.
Leveler Caster
Move

RACE CAR PHOTO RIDE Rev.1.11
9
4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment
to an electrical outlet to ensure that the required voltage and frequency
match the available power source. Please refer the label of the machine.
•Do not plug the equipment power cables into an electrical outlet if the power cable
is damaged.
•Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
•Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet
does not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the
cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be
stepped on or tripped over.

RACE CAR PHOTO RIDE Rev.1.11
10

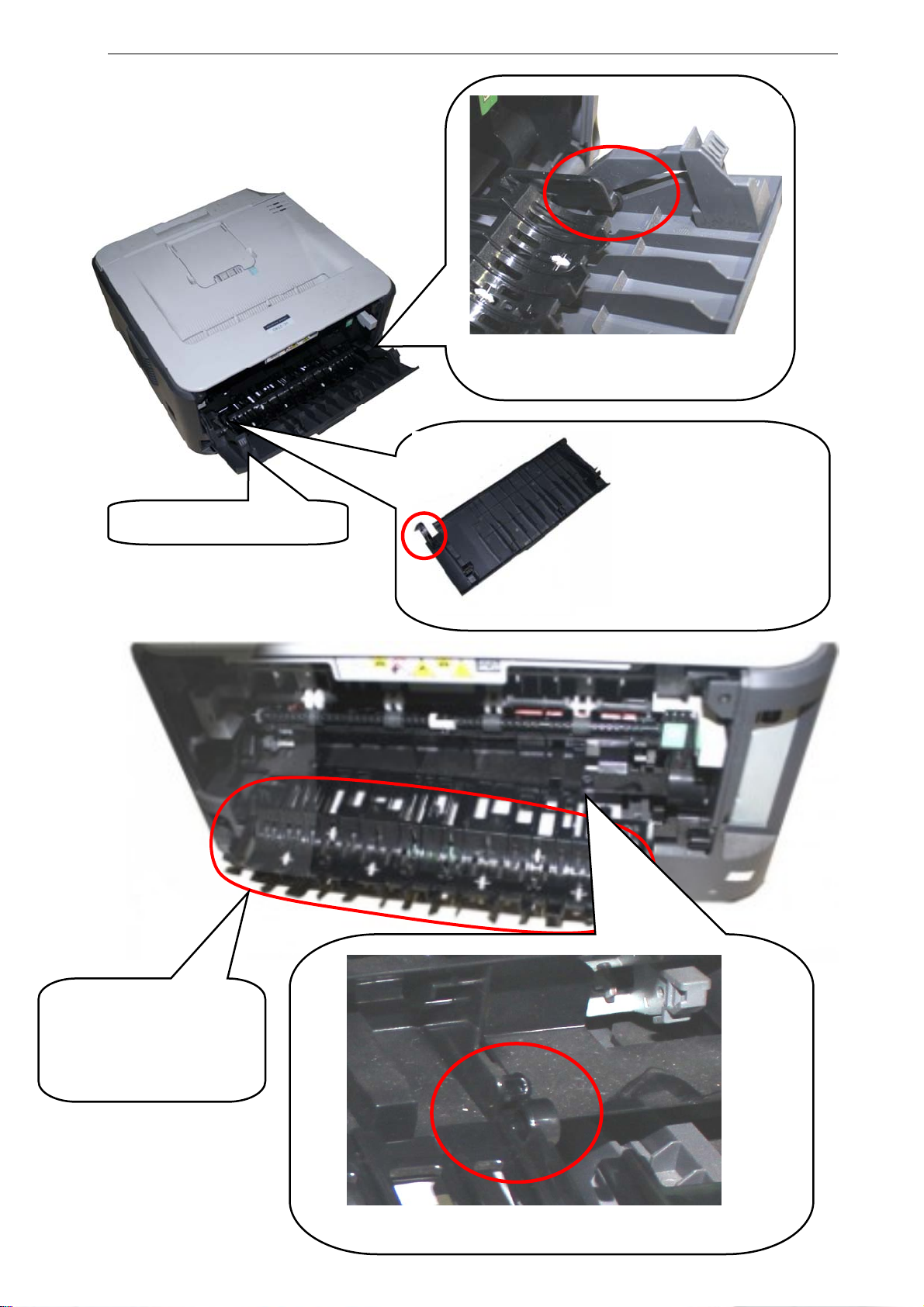

4.5 How to install the printer
1. Open the back panel.
3. Pull the hook out from each side
and take the back panel out
2. Pull the hook
5.Take this inner back
panel out. And then
install the printer to the
machine.
4. Pull the hook out of the inner plate on both sides.

RACE CAR PHOTO RIDE Rev.1.11
11

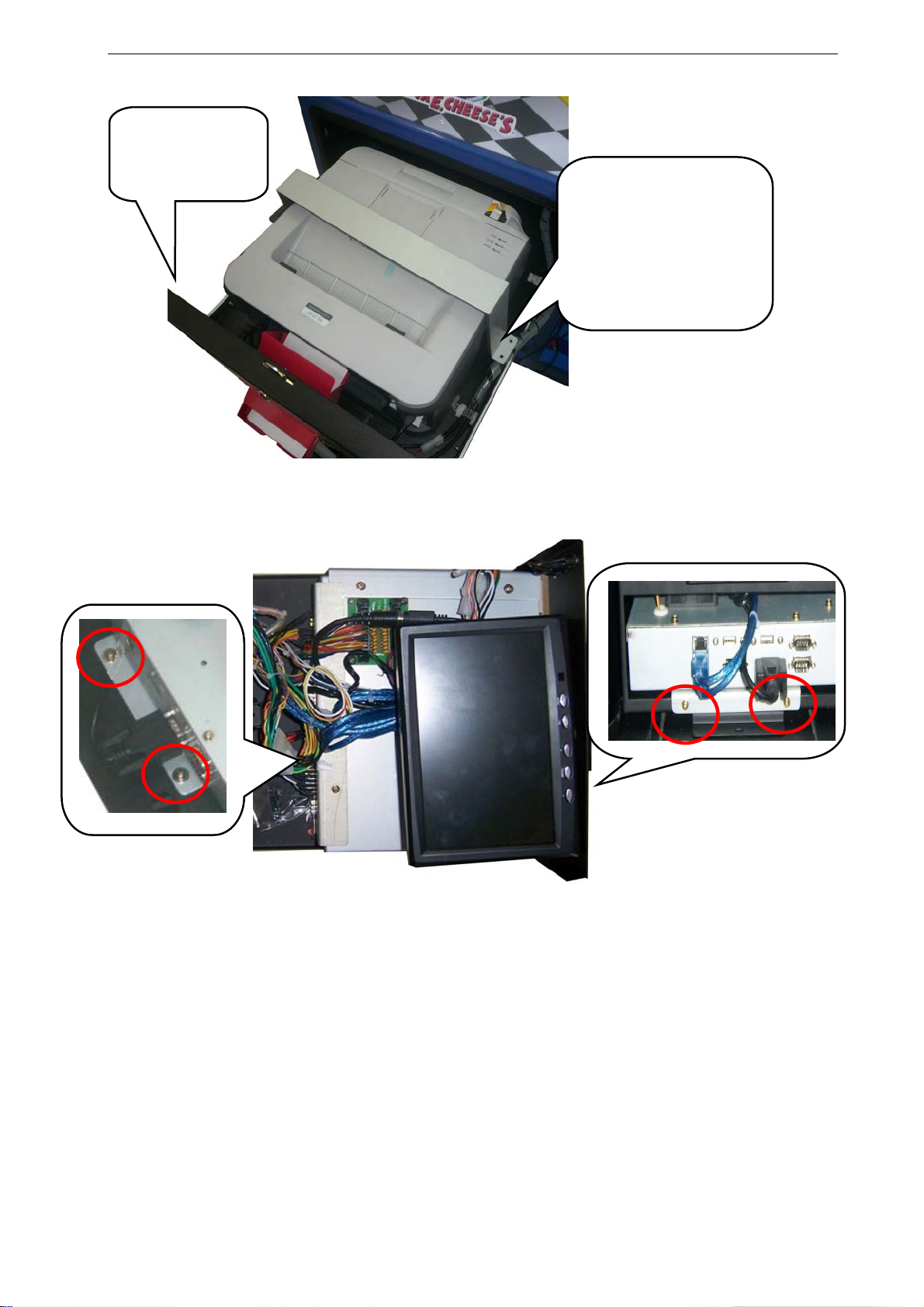

4.6 How to take the printer out

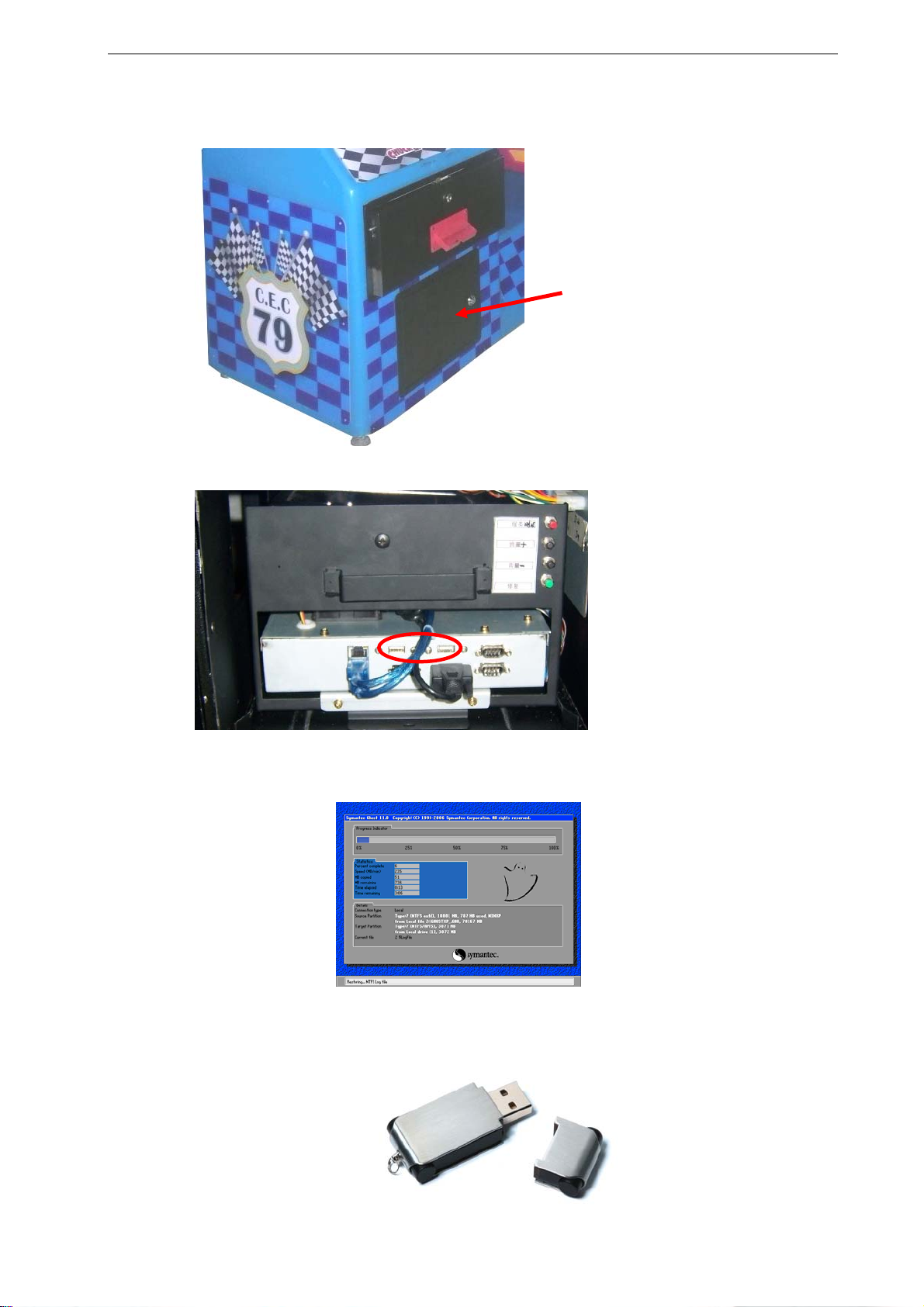

4.7 How to take the computer out
Take 4 mounted screws out to remove the computer box.
5. HOW TO PLAY
zFasten the seat belt. Insert coin(s).
zThe ride will start automatically.
zDuring the riding, look at the camera and it will take a shot.
zTake your photo from the side opening after the game is over.
2. Open the
computer door
2. Remove two
screws on both side
to take the bracket
out. Then take the
computer out.

RACE CAR PHOTO RIDE Rev.1.11
12
6. GAME OPTIONS
6.1 Get into the Setting Menu and Button Function Description
Open the Electrical side door in order to access to the setting monitor. Press any button to
display the content shown on the screen.
Service Button: Get into the setting menu.
Volume+ Button: Change the value and confirm.
Volume- Button: Change the value and confirm.
Printer reset Button: Go to the next item.
6.2 Setting Menu
Press the Service button on the electrical box to display the following Setting Menu.
Service

Volume+

Volume-

Printer Reset

Main Menu
Game Mode
Input Test
Output test
Game Reset
Language
Date/Time Setting
Bookkeeping
Daily Record
Adjust Camera
Exit & Without Save
Exit & Save
Race Car Photo Ride
2011 Ver2.2

RACE CAR PHOTO RIDE Rev.1.11
13
6.2.1 Game Mode
Free Play: OFF- -Play by credits; ON- -Play for free. Default setting: OFF.
Printer: OFF- -Photo printing function is available; ON- -Photo printing function is not
available. Default setting: ON.
Demo Music: OFF- -No demo music during demo mode; ON- - Play demo music during
demo mode. Default setting: OFF
Save Coins: OFF- -Clear credit memory when power is off；ON- - Keep credit memory
when power is off. Default setting: ON
Volume: Volume adjustment. The range is 0~10. Default setting: 10.
Coins Per Round: Set the number of required credits per game. The range is 1~20.
Default setting: 1.
Each Round Time: Set the time of each game. The range is 1~300 seconds. Default setting:
45 seconds. Suggest setting the time no less than the default. Make sure there is enough
time to print the photo out during playing.
Paper format: One Shot- -1 shot shown in a photo; Four Shot- - 4 shots shown in a photo.
Default setting: One Shot.
Ride with printer error: OFF- - Stop playing when printer error is detected. Keep playing
when printer error is detected. Default setting: ON.
Back: Back to the Main menu.
6.2.2 Input Test
Press each button one time to check its function whether in good condition. If OFF turn to
ON when pressing one of the button, it means the button signal is good.
FreePlay: OFF
Printer: ON
DemoMusic: OFF
SaveCoins: ON
Volume: 10
CoinsPerRound: 1
EachRoundTime: 45
Paperformat: OneShot
Ride with printer error: ON
Back
Input Test, Press Service Button to exit
Coin1 OFF
MusicButton1 OFF
MusicButton2 OFF
MusicButton3 OFF
MusicButton4 OFF
MusicButton5 OFF
Volume+ OFF
Volume- OFF
TestButton OFF
RepairButton OFF

RACE CAR PHOTO RIDE Rev.1.11
14
6.2.3 Output Test
Press the Printer Reset button to select any item to be tested. Then press Volume button to
confirm. When the corresponding light is on, it means the status is good.
6.2.4 Game Reset
Reset Game Setting: Reset all parameter to the default.
Delete All Record: Delete all data record.
Back:Back to the Main Menu.
6.2.5 Language
Select the language that the game used. There are Chinese and English can be selected.
OutputTest
Front Wheel Light_L 1
Front Wheel Light_L 2
Front Light_L
Head Light_L
Front Wheel Light_R 1
Front Wheel Light_R 2
Front Light_R
Head Light_R
Back Wheel Light_L 1
Back Wheel Light_L 2
Back Wheel Light_R 1
Back Wheel Light_R 2
Tail Light_L
Tail Light_R
Back
Game Reset
Reset Game Setting
Delete All Record
Back
English

RACE CAR PHOTO RIDE Rev.1.11
15
6.2.6 Date/Time Setting
Set the date and time of the game.
Save & Back: The changes will be saved and back to the Main Menu.
Back: Back to the Main Menu without saving.
6.2.7 Date/Time Setting
Player 1 /Coins: Record the coin amount from one coin mech.
Sum/Coins: Record the total coin amount from more than one coin mech.
Reset: Clear the record.
Back: Back to the Main Menu.
6.2.8 Daily Record
Record the daily run time and credits amounts.
Reset: Clear the existing record.
Back: Back to the Main Menu.
6.2.9 Adjust Camera
Camera screen viewport is open in order to adjust the camera. Press Service button and
back to the main menu.
Year: 2011
Month: 5
Day: 24
Hour (24): 9
Minute: 11
Second: 52
Save & Back
Back
Player Coins
1 0
Sum 0
Reset
Back
Date Weekday RunTime Coins
2011-05-24 TUE 00:10 0
Reset
Back P1/1
Press Service Button to Exit

RACE CAR PHOTO RIDE Rev.1.11
16
6.3 Screen Display & Error Message Explanation
Printer operation information is shown on the screen. It is divided into 6 areas from A to F
shown as above.
A: Display what the camera is viewing during play. It shows “Demo” during Demo Mode.
B: Preview the picture which is going to print out.
C: Display the remaining time of the existing game.
D: Display the status. “Playing” means in play mode. “Not play” means in Demo Mode.
E&F: Display error message.
6.3.1 Error Message
No Error Message Cause Countermeasures
1 Can’t set video format to
YUY2 320x240!!
Usb Camera Error, Please
check camera usb connect!!
Camera is
malfunctioning.
Please check to ensure that the
camera connection is good and
then press the Printer Reset button
or restart the game.
2 Printer Error Printer is
malfunctioning.
Please check #3~#7
countermeasure.
3
Printer Off Line, Please
Check Printer usb connect
and power, Then restart!!
Printer is off
line.
Please check the printer
connection and power and then
press Printer Reset button.
4
Printer no paper, Please put
new paper and press GO
button!!
Out of paper.
Refill paper then hold and press
Go button on the printer. If any
error happens, please restart the
game and check what other error
message will display.
5
Printer toner life end, and
exchange a new toner,
Press Reset button!!
Out of cartridge
Replace a new one. It will reset
automatically. If any other error
happens, please restart the game
and check what error message will
display.
6 Printer Front Door is no
close, Please Check!!
Printer door is
open. Close the printer door.
7 Printer status can’t find,
Restart to check!!
Error cause
can’t be found.
Reconnect the printer and restart
the game. If error is still happen,
please contact program supplier.
A B
C
D
E
F

RACE CAR PHOTO RIDE Rev.1.11
17
6.4 Recovery Instruction
1. Turn off the game. Open the computer service door.
2. Insert the USB into the USB interface.
3. Turn on the game. It will get into the system recovery process automatically (below
picture will be shown). The recovery process will take about 5 minutes.
4. When system recovery is completed, the below picture will be shown. Then please
remove the USB. The computer will restart automatically.

RACE CAR PHOTO RIDE Rev.1.11
18
7. MAINTENANCE, INSPECTION
7.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running
smoothly
7.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and
pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to
the cautionary matters herein stated can cause personal injury or damage to the machine
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the
machine. Unplug the power cord of the service outlet. Operating the machine without
correcting the problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the
labels are not hidden behind other game machines.
WARNING

RACE CAR PHOTO RIDE Rev.1.11
19
8. OVERALL CONSTRUCTION
8.1 Main Assembly
No. Part No. Name Qty.
1 R-106-001-000
Film mechanism assembly
1
2 R-106-002-000
Printer drawer assembly 1
3 R-106-003-000
Computer box assembly 1
4 R-106-004-000
Fiberglass base assembly 1
5 R-106-005-000 Fiberglass car assembly 1
1
3
4
5
2
