UNIS Wildlife PICs User manual

Operation Manual
www.universal-space.com

Wildlife PICs Manual
11/06/2017
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual. Failing
to comply can cause severe accidents such as electric shock or other
serious injuries. All repairs must be performed to original manufacturer
specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
IMPORTANT SAFETY INSTRUCTIONS........................................................................ 2
1. SPECIFICATIONS ..................................................................................................... 4
2. PACKAGE CONTENTS.............................................................................................. 5
3. PART NAME ............................................................................................................. 6
4. SET UP & INSTALLATION........................................................................................ 7
5. HOW TO PLAY ........................................................................................................13
6. GAME OPTION .......................................................................................................14
7. TROUBLE SHOOTINGS AND RECOVERY............................................................. 17
8. MAINTENANCE & INSPECTION ...........................................................................21
9. OVERALL CONSTRUCTION ...................................................................................22
WIRING DIAGRAM.....................................................................................................35

Wildlife PICs Manual
11/06/2017
2
Thank you for purchasing Wildlife PICs. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.

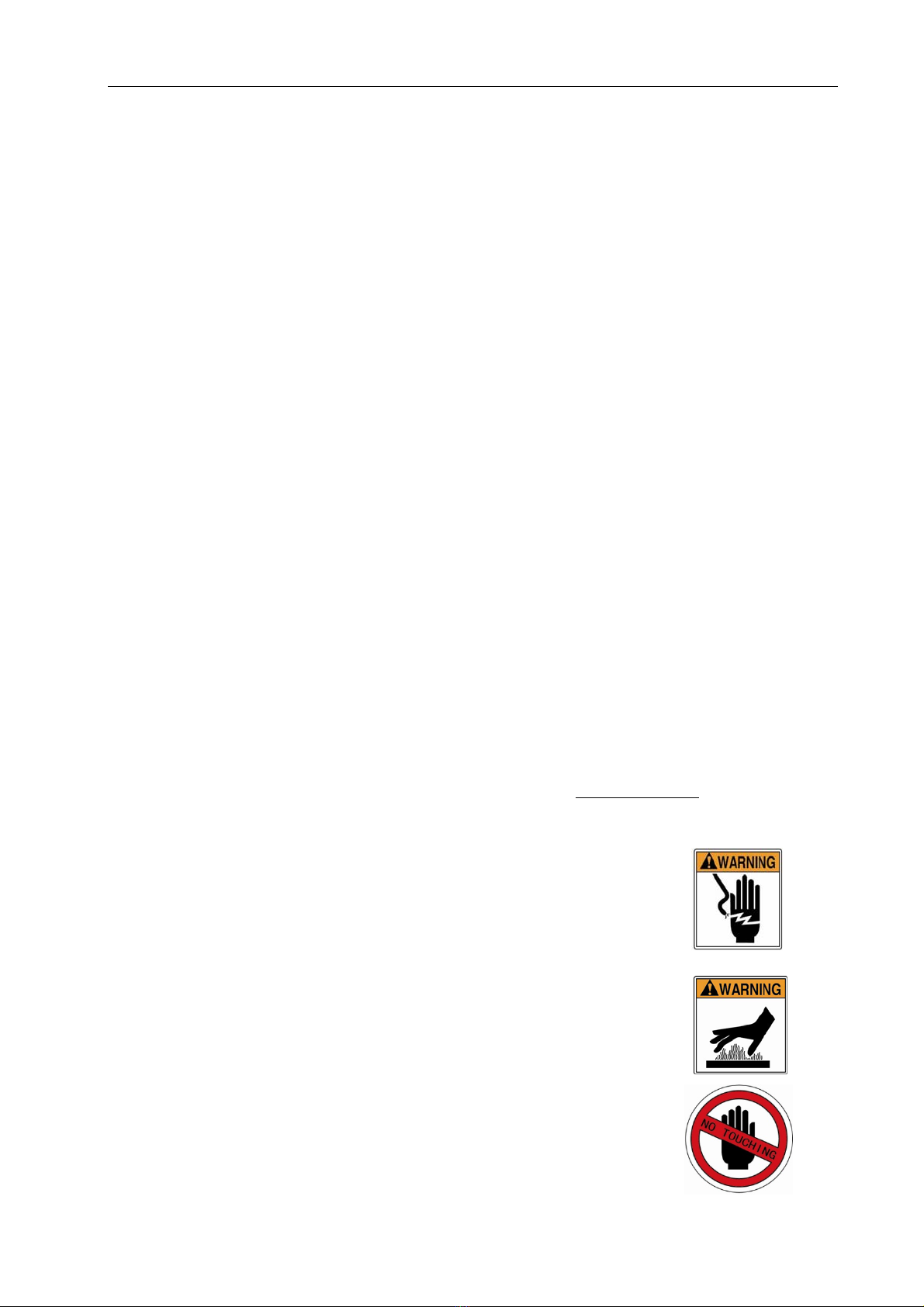

It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Wildlife PICs Manual
11/06/2017
3
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install
outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Wildlife PICs Manual
11/06/2017
4

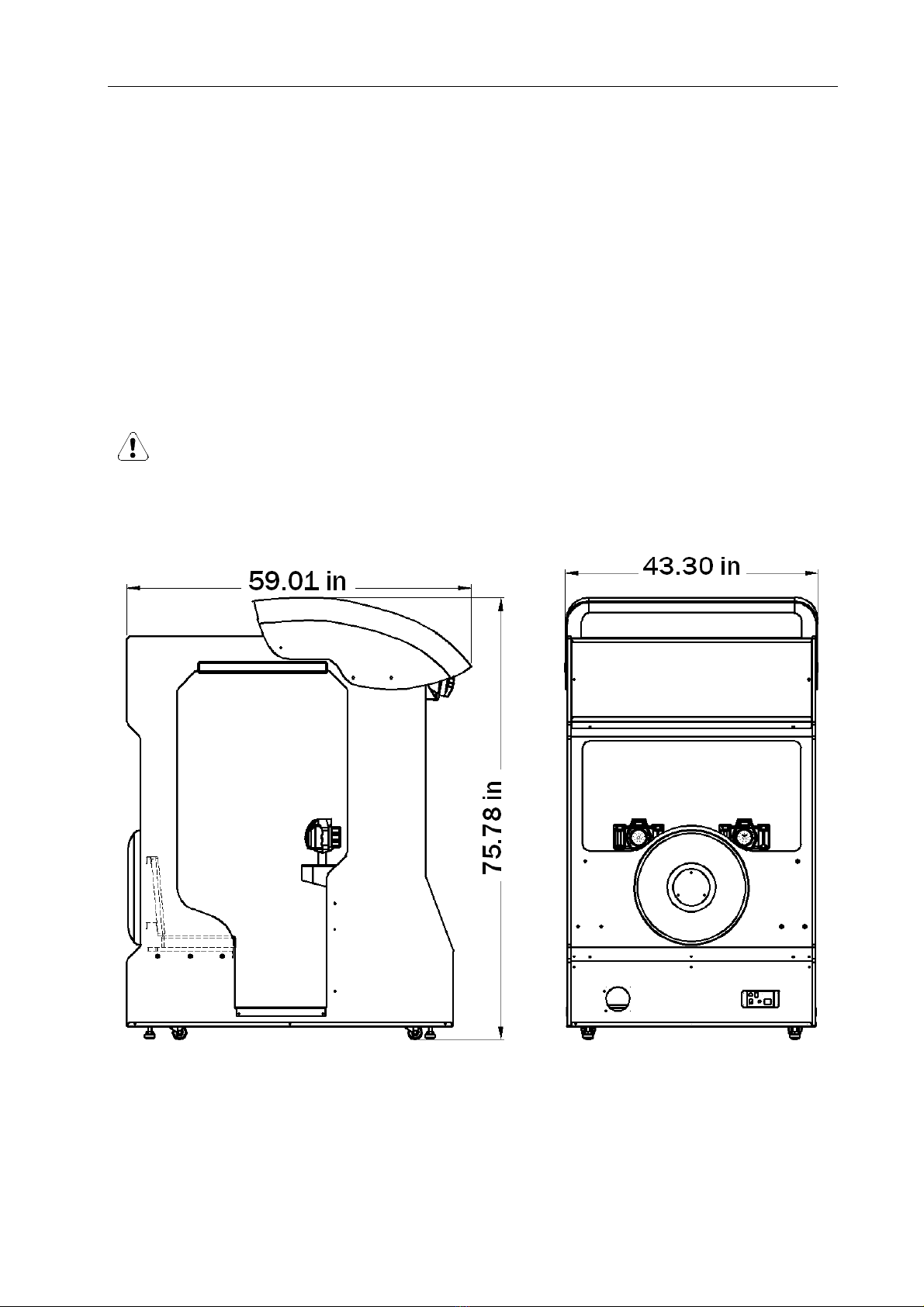

1. SPECIFICATIONS
Rated power supply: AC220V 50/60Hz; AC110V 50/60Hz
Min. Power consumption: 250W
Max. Power consumption: 220W
Dimension: W43.30×D59.01×H75.78 in
Weight: 507 lb
Part No: W115
Model No: C-498
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game parameters are subject to change without notice.

Wildlife PICs Manual
11/06/2017
5

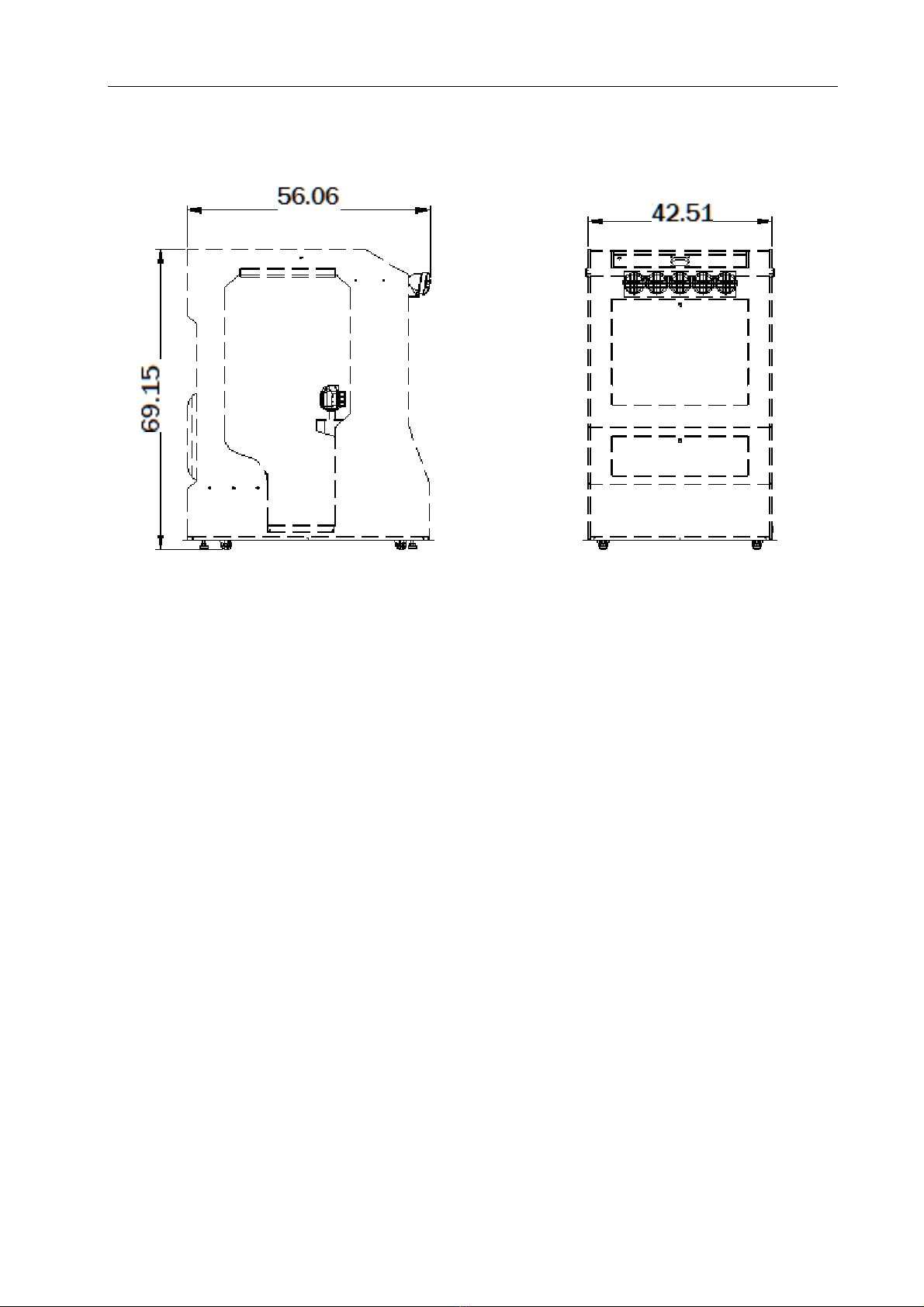

This is the dimension after unpacking. (Top shed assy. need to install)
Dimension: W42.51×D56.06×H69.15 in

Wildlife PICs Manual
11/06/2017
6

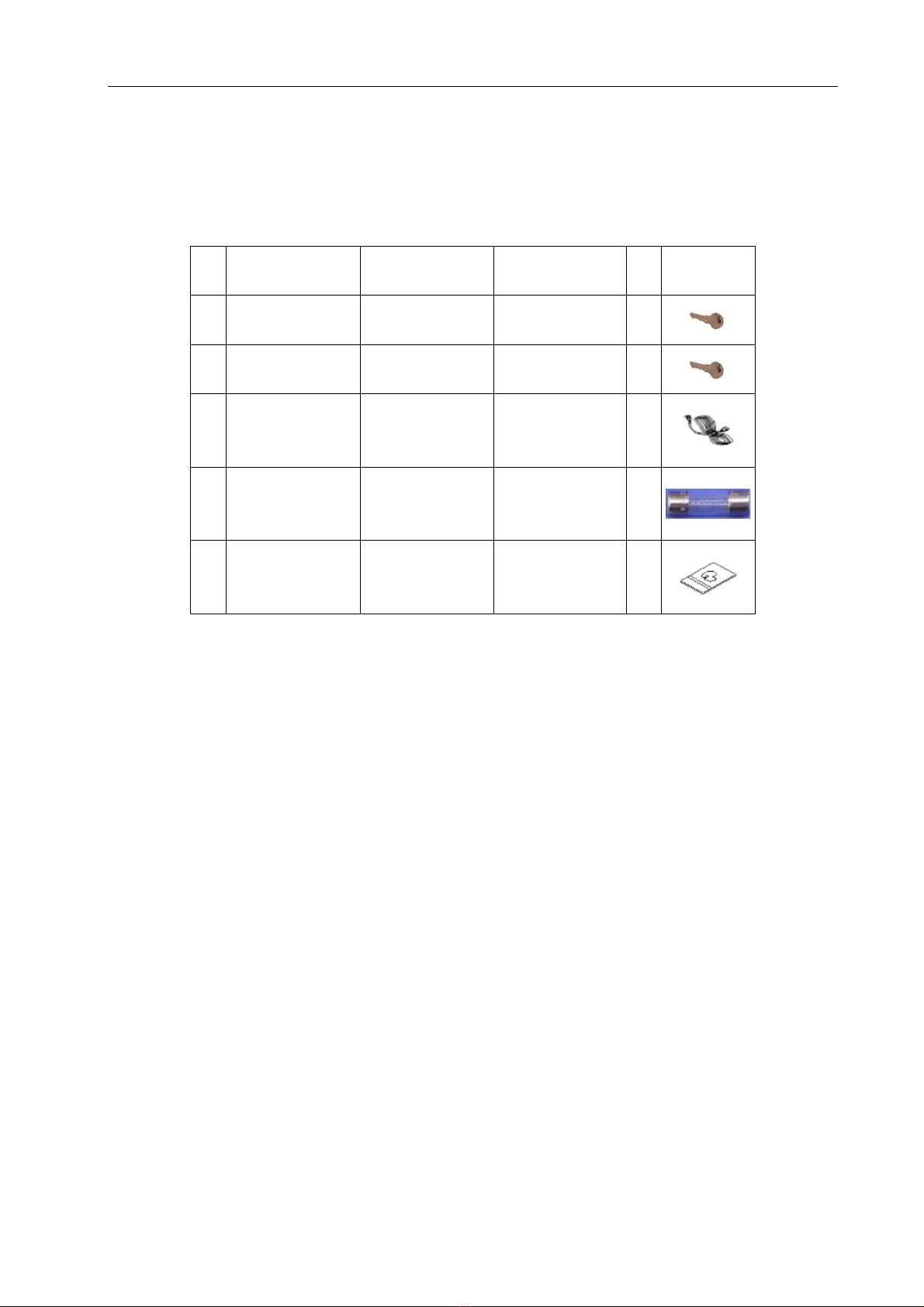

2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1. Following accessories
NOTE: Part models are subject to change without notice.
No. Part No Code Name Qty Picture
1 W115-802-000 25300171002 Key 6
2 W115-803-000 25300172002 Key 1
3 W115-804-000 23301000001
Power cord
3×16AWG
1.8M
1
4 W115-416-000 21901000012
Fuse
T5A 250VAC 1
5 W115-801-000 41440000225 Manual 1

Wildlife PICs Manual
11/06/2017
7
3. PART NAME
Ticket dispenser Assy.
Coin mech. Assy.
Mar
q
uee Ass
y
.
Display
Camera Assy.
To
p
shed ass
y
.

Wildlife PICs Manual
11/06/2017
8
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install
outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move F
i
Caster Leveler
About 0.2 in
Move Fix
NOTICE
Make sure the machine is level.

Wildlife PICs Manual
11/06/2017
9

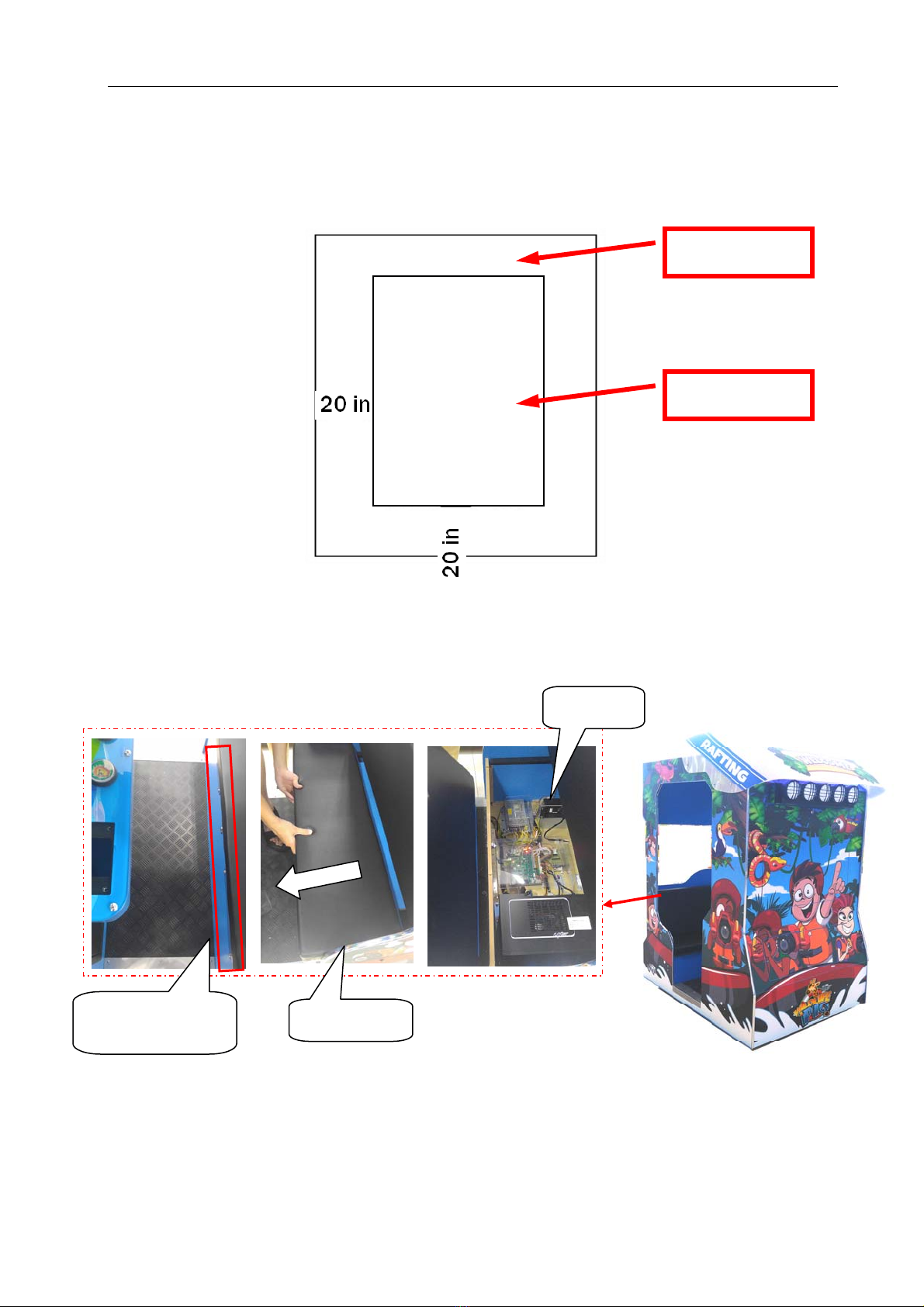

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Notice: Please open the seat for service electrical parts and find the POWER SWITCH of the
game,
Service area
Play area
Loose four screws
and open the lock.
Pull out seat.
Power SW

Wildlife PICs Manual
11/06/2017
10

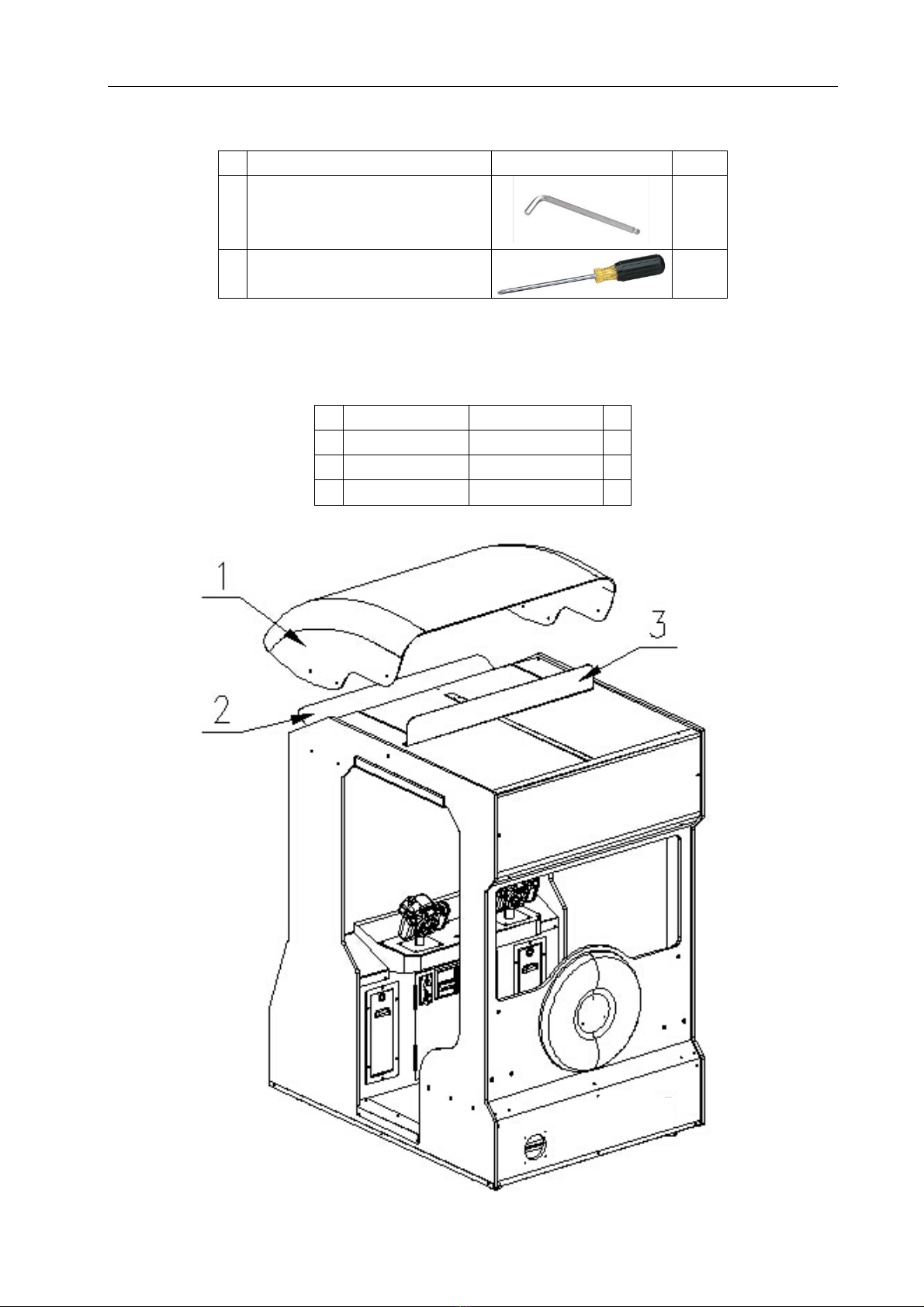

4.4Top shed assy. Installation Instruction
Please prepare the following tools before installation.
No. Part No. Name Qty
1 W115-125-000 Top plastic shed 1
2 W115-122-000 Top shed plate 1 1
3 W115-123-000 Top shed plate 1
No. Name Picture Qty
1 Allen key 1
2 Cross screwdriver 1
Unpack the machine and install the following 3 parts.

Wildlife PICs Manual
11/06/2017
11
Step 1 Place and install Top shed plate 1& Top shed plate as following picture.
No. Part No Name Qty
1 W115-313-000 Cross recessed pan head screw 8
2 W115-122-000 Top shed plate 1 1
3 W115-123-000 Top shed plate 1
Step 2 Place and install Top plastic shed as following picture.
No.
Part No Name Qty
1 W115-125-000 Top plastic shed 1
2 W115-126-000 Rubber washer 6
3 W115-319-000 Hexagon flat round head screws 6
2
3
6 screws
1
2
3
1
4 screws
4 screws

Wildlife PICs Manual
11/06/2017
12

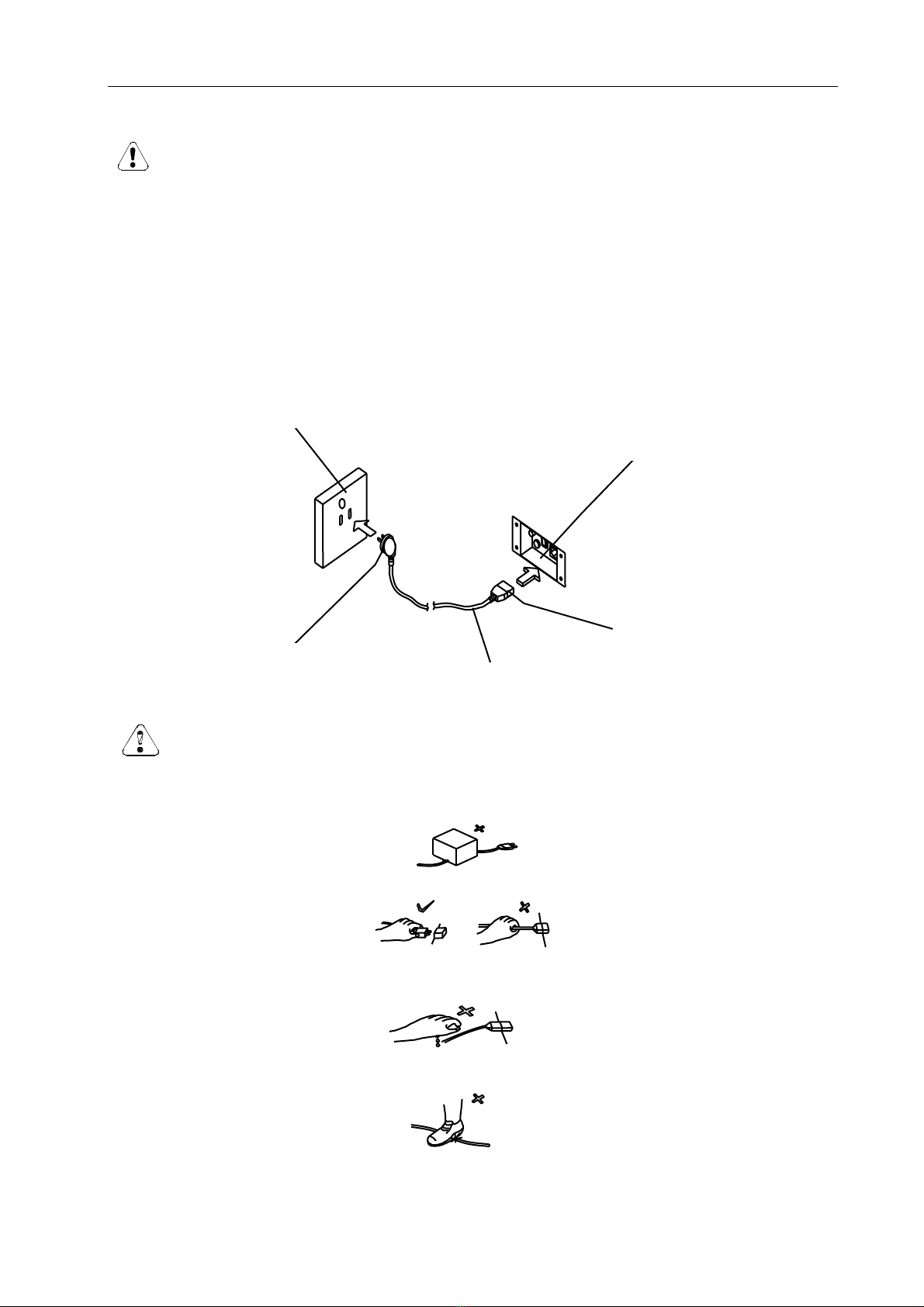

4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to
an electrical outlet to ensure that the required voltage and frequency match
the available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable
is damaged.
Avoid overloading on one electrical outlet as it could generate heat and fire resulting
from overload.
Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet
does not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the
cord.
To prevent electric shock, do not touch the power plug if your hand is wet.
Ensure the power cord is not located where it can be stepped on or tripped over.
Power plug
Power outlet
Power socket
Power plug
Power cord

Wildlife PICs Manual
11/06/2017
13
5. HOW TO PLAY
5.1 Press left or right button to snap a photo
5.2 Aim perfectly to get 3 stars
5.3 Complete tasks to earn MEDALS!

Wildlife PICs Manual
11/06/2017
14
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Customized Setting
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言
Bookkeeping
Daily Record
Camera Calibration
About This Game
Back to game
6.2.2 Basic Setting
6.2.5 Output Test
1P Camera Light
1P Start Light
2P Camera Light
2P Start Light
Game Horn Test
1P Ticket out
2P Ticket out
Back
Open the coin door and there is a
meter panel. Press test button to get
into the setting menu.
Settin
g
s Test Reset
Free Play OFF/ON
Demo Audio OFF/ON
Volume 1
Coins Per Game 2
Scene Per Level 2
Play Mode Insert coin and play one stage
/Insert coin and play five stage
Difficulty 1
Out of Ticket Call the Attendant/Store in memory
Memory Save OFF/ON
Reward mode OFF/ticket out
Back_ Save OFF/ON
Back
6.2.3 Customized Setting
Fix Ticket 0
Divided by 2 False
Snapshot Master Ticket 2
Photography Genius Ticket 4
Shooting Expert Ticket 6
Little photographer Ticket 8
Photography Artist Ticket 10
Back_ Save
Back

Wildlife PICs Manual
11/06/2017
15
6.2.4Input Test
6.2.8Bookkeeping
6.2.9 Daily Record
1P Coin In OFF/ON
1P confirm button OFF/ON
1P Left Button OFF/ON
1P Right Button OFF/ON
2P Coin In OFF/ON
2P confirm button OFF/ON
2P Left Button OFF/ON
2P Right Button OFF/ON
Setting Button OFF/ON
Reset Button OFF/ON
1P Position
2P Position
Back
6.2.6 Game Reset
Restore Factory Settings
Restore Basic Settings
Restore Customized Setting
Clear Unused Coin
Clear Owed Ticket
Clear All Records
Back
6.2.7 Date/Time Setting
Year 2010-2100
Month 1-12
Day 1-31
Hour(24) 0-23
Minute 0-59
Second 0-59
Back & Save
Back

Date Weekday RunTime Coins Tickets Payout
2014-06-061 Fri 00:01 0 0 0.00
Prev. Page
Next Page
Clear
Back


Player1 Coins Tickets Payout
1 0 0 0.00
Back

6.2.10 About This Game
CPU Intel(R) Pentium(R) CPU
[email protected]
Main board ITX-M61X11F
HDD FORESEE NCSSDMS-016G
mSATA
RAM 3566MB
Video Card NVIDIA GeForce GT 730
Screen 1920*1080
Version Ver1.0A
Back

Wildlife PICs Manual
11/06/2017
16

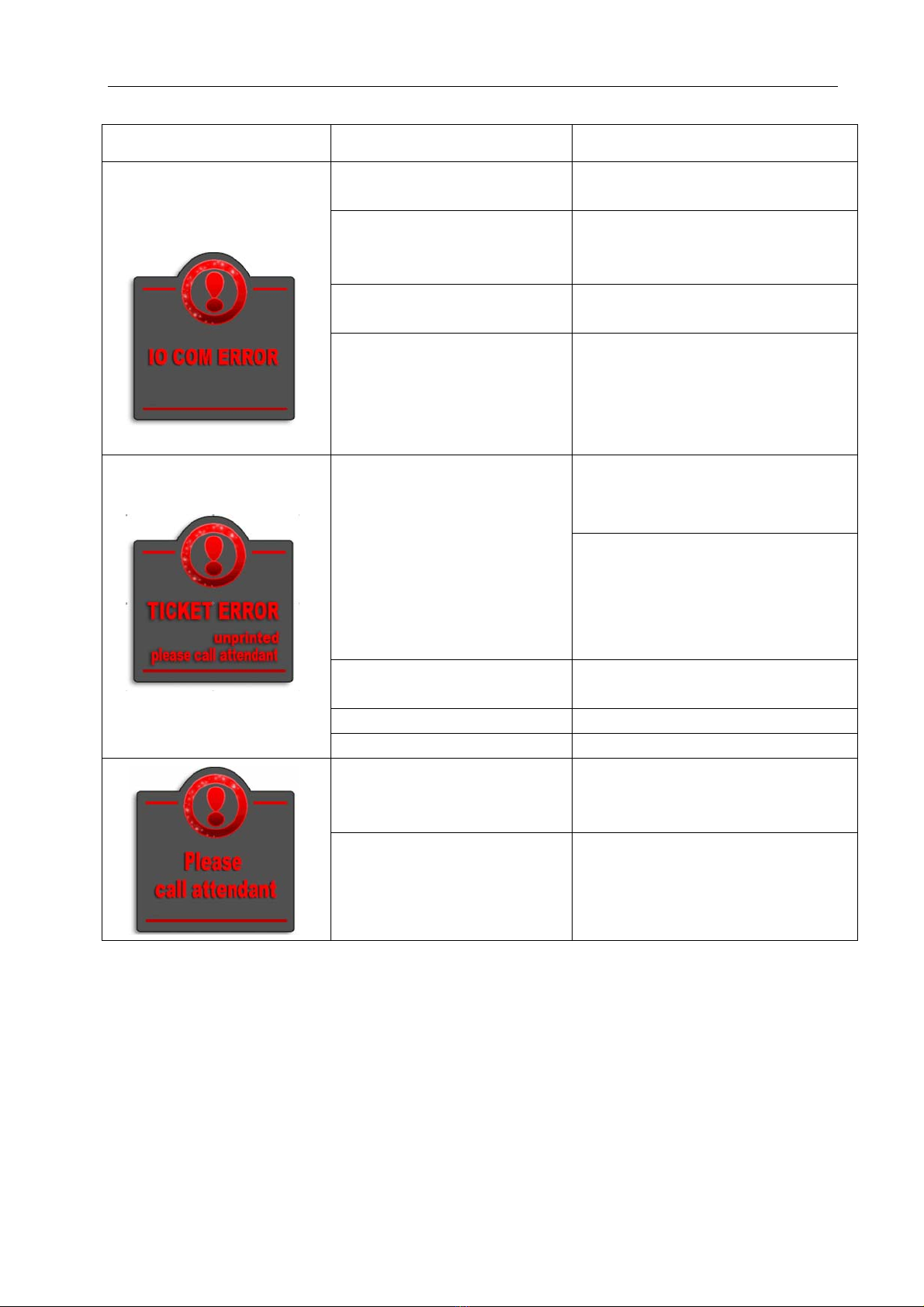

7. TROUBLE SHOOTINGS
7.1 Common Problem
Please confirm whether every connector connected tightly.
Symptom Possible Cause Recommended action
Game will not
start
Frame assembly connector is
loose. Plug the connector tightly.
Frame assembly fault Contact with UNIS Service.
Power cutting Circuit protector make power SW
in cutting state
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
Game will not
coin up
Coin mech. fault or sample coin
not installed. Change coin mech. or sample coin.
Coin mech. signal cable loose. Check coin mech. signal cable loose.
IO control board no signal. Change IO board.
No ticket
dispensing
Out of ticket. Add ticket and press reset button
Ticket jamming. Remove the jammed tickets and press
reset button.
Wrong connection. Check the connections.
No sound
Volume set too low. Raise the volume.
Connector loose. Plug in connector tightly.
PCB fault. Change PCB.
Speaker fault. Change speaker.
POT installation error. Install POT correctly.
POT fault. Change POT.
Audio cable problem. Reconnect the audio cable or change
it.
PC crash. Restart or system recovery.
Driver problem Restart the audio driver.
Display black
screen
Check connectors. Plug in connector tightly
Display fault. Vitalize another source such as a PC to
verity if the display is operational.
RAM is loose. Pull it out and insert it again or change
main board or RAM.
Display blue
screen
PC power cord is loose Check PC power cord whether is loose.
VGA signal cable is loose. Check VGA cable
PC video card is loose. Reseat video card.
PC into protection
Open front cover, if power on, light
flash all the time. Press power button
30s, then restart.
“0X000000A” code appears.
Conflict between computer drive
and software.
Uninstall or disable the new drivers or
software.

Wildlife PICs Manual
11/06/2017
17
Symptom Possible Cause Recommended action
Display blue screen
when playing
Software problem. Update the driver of the video card or
reinstall the system.
Hardware problem. Check the hardware one by one.
Playing normal, but
appear system
halted
Video card is loose or poor
contact Plug video card again.
PC crash Restart or system recovery
Display abnormal
color
Bad connection between the
video card and the display
video cable.
Reconnect the video card and the
display video cable.
Video card driver problem. Restart the video driver.
Display can not
show the whole
desktop.
Screen resolution problem.
For WIN 7, right-click in the blank
space at the desktop
---Click “screen resolution”
---Click “change the appearance of the
display” to adjust the screen
resolution.
Bouncing motion of
the display Screen resolution problem.
---Click “screen resolution”
---Click “change the appearance of the
display” to adjust the screen refresh
rate.
No response in
BIOS
Battery is loose. Reinstall the battery of the main board
and restart the game or change the
main board.
Main board fault.
Fail to save the
BIOS setting Battery fault. Change the battery of the main board.
PC restart or crash
repeatedly
Poor heat dissipation
Add silicon on the cooling fin.
Check or change the CPU fan if
needed.
RAM or main board fault. Change the RAM or change the main
board.
Power source problem. Change the power source.
Fail to install the
driver Driver fault. Download “Driver Genius” or something similar and try again.
CPU fan off and on. Main board fault. Change the main board.
Slow computer
start-up times after
reinstalling the
system.
Hard disk problem. Please let the PC automatically run the
software, or change the hard disk.

Wildlife PICs Manual
11/06/2017
18
If you see following error signs showing on the display, please try the recommended action.
Display Possible Cause Recommended action
The connection part of the
IO board and PC are loose.
Check and reconnect the loose
ports of the PC or IO board.
USB cable quality problem
Change the USB cable after
checking the connection between
IO board and PC.
USB cable is loose during
transportation.
Check and reconnect the loose
ports of the PC or IO board.
IO board broken.
Reboot the game after checking
USB connection and USB cable
problem, if the problem remains
unresolved, please call after sale
department for help.
Out of ticket.
Refill tickets and press Reset
button.
The owed tickets will be printed.
Press Setting button, enter into
setting menu and choose “Game
Reset” and choose “Clear Owed
Tickets”. Then refill tickets, the
owed tickets will not be printed.
Loose connection of the
ticket dispenser’s cables.
Check and reconnect the loose
ports of ticket dispenser.
Ticket dispenser broken. Change the ticket dispenser.
Tickets jam. Clean up the blocked tickets.
Out of ticket. Same as above-mentioned.
Ticket dispenser broken. Change the ticket dispenser.

Wildlife PICs Manual
11/06/2017
19

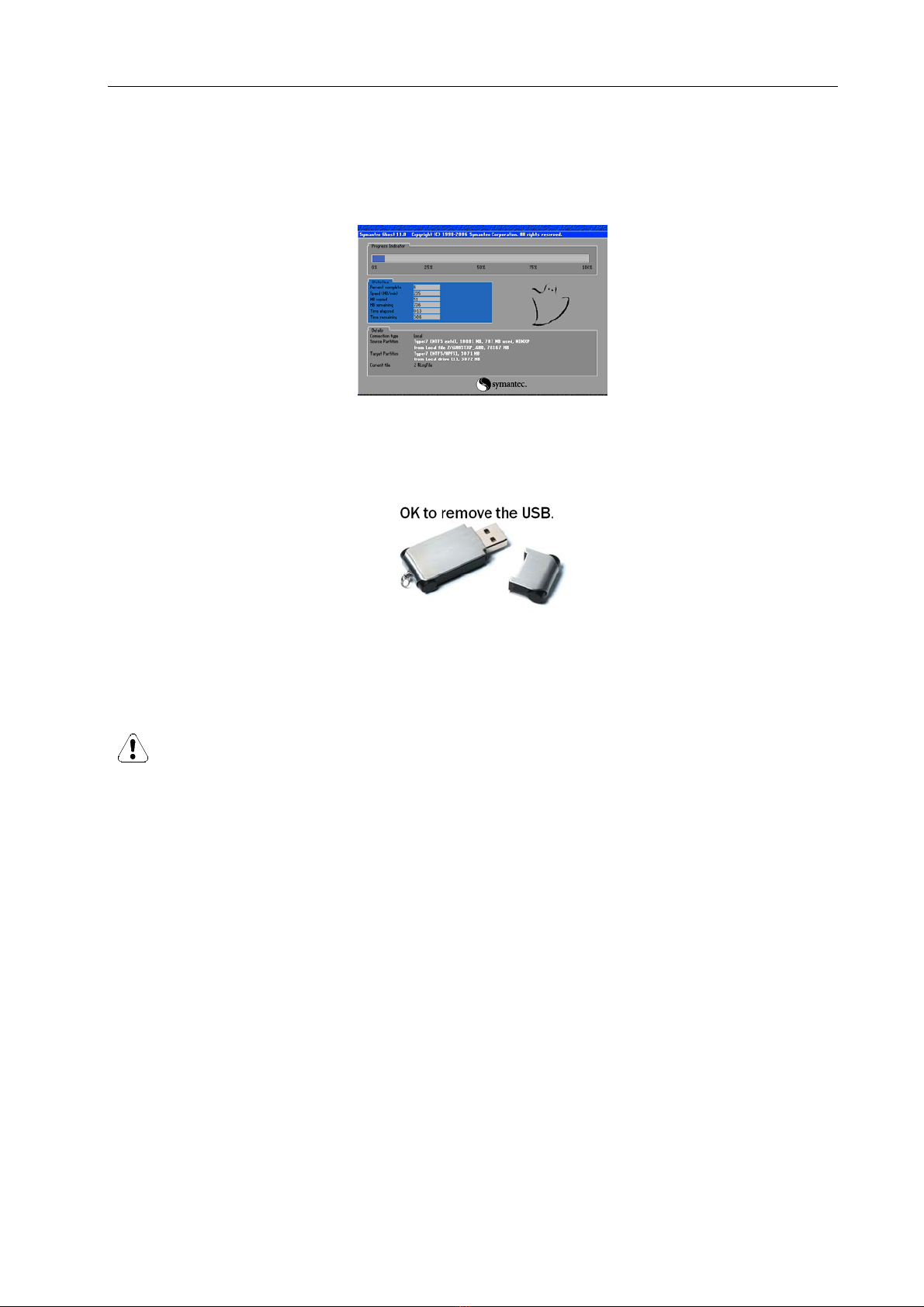

7.2 System Recovery Operation
1. Turn off the game. Remove recovery USB from the cabinet. (Note: This process may take
30-45 minutes to reform.) Insert the memory stick into the USB port at the back of the
computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery.
4. Once system recovery is finished (as shown below), and the remove screen appears,
remove the USB flash drive from the computer. The game will run automatically without
power off and on the machine.
5. Assure that the recovery USB has been properly secured for future use.
WARNING: the USB flash drive should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.
