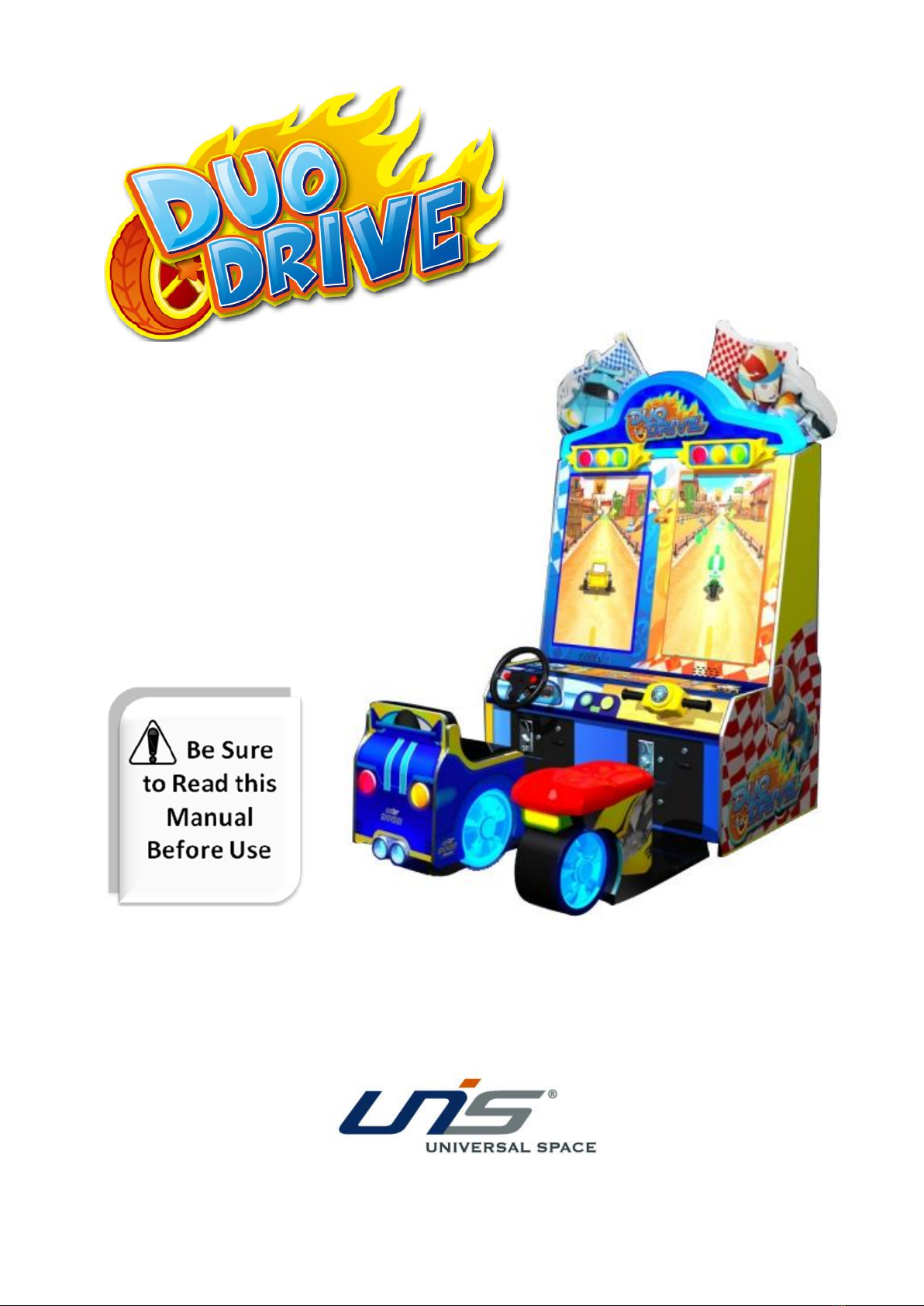

UNIS DUO DRIVE User manual

Operation Manual
www.universal-space.com

DUO DRIVE
06/15/2019
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
IMPORTANT SAFETY INSTRUCTIONS......................................................... 2
1. SPECIFICATIONS...................................................................................... 4
2. PACKAGE CONTENTS.............................................................................. 5
3. PART NAME..............................................................................................6
4. SET UP & INSTALLATION.........................................................................7
5. HOW TO PLAY........................................................................................ 11
6. GAME OPTION....................................................................................... 11
7. ERROR MESSAGE AND RECOVERY..................................................... 14
8. MAINTENANCE & INSPECTION.............................................................17
9. OVERALL CONSTRUCTION....................................................................18

DUO DRIVE
06/15/2019
2
Thank you for purchasing DUO DRIVE. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel should
under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause
fire, electric shock or personal injury. Unplug the game from the outlet when not in use, when
moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on
the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

DUO DRIVE
06/15/2019
3
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to
ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL RISKS.
Note: The contents of this manual may be updated without notice.

DUO DRIVE
06/15/2019
4
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz;
Min. Power consumption: 320W
Max. Power consumption：360W
Dimensions：W43.50×D 58.07×H 78.93 in
Weight：Approximately 485.01 lb
Part No: D120
Model No: C-419
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: Game parameters are subject to change without notice.

DUO DRIVE
06/15/2019
5

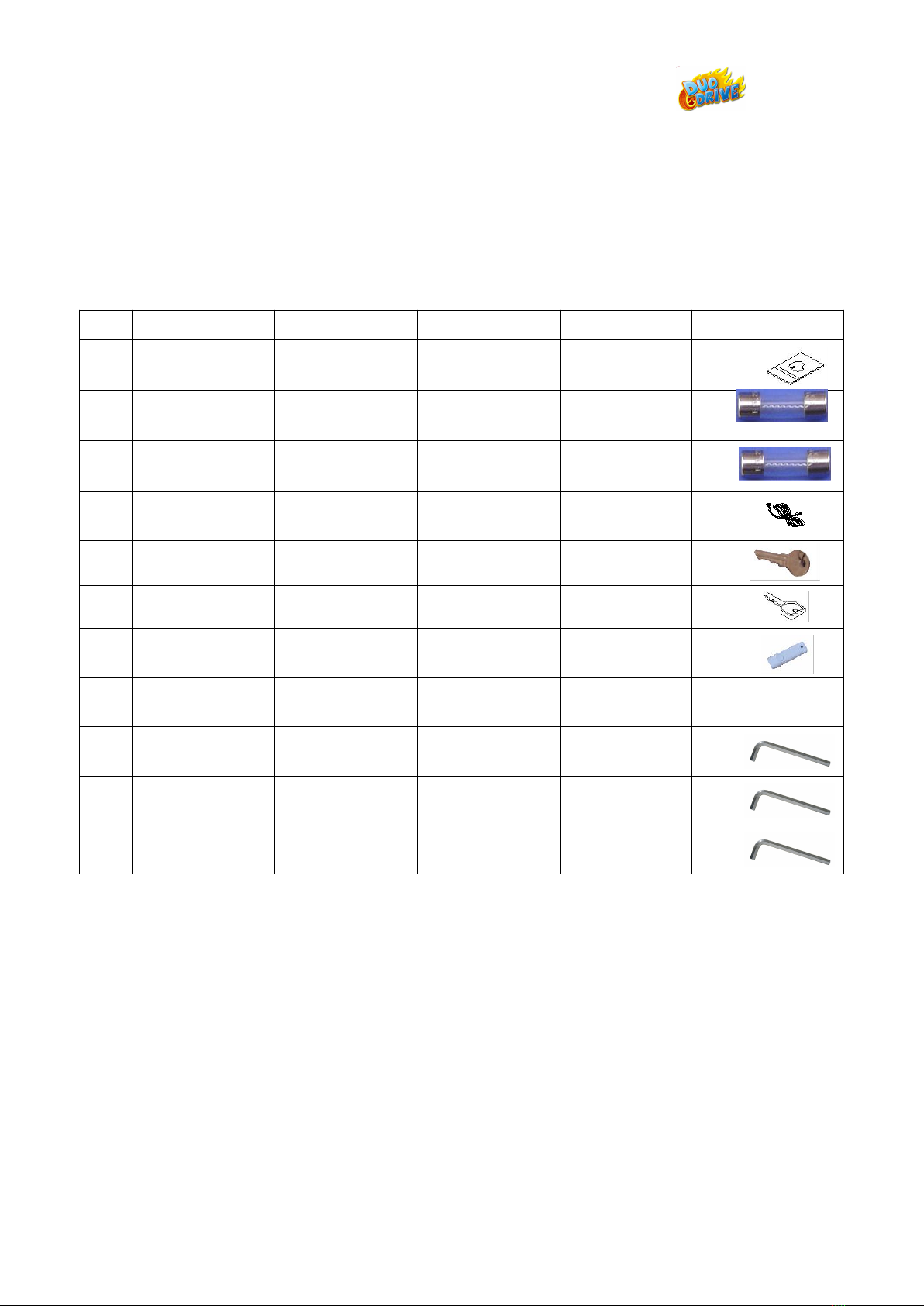

2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1 x Body Assembly
Following accessories
NOTE: Part models are subject to change without notice.
NO.
Part NO.
Code No.
Name
Spec.
Qty
Illustration
1
D120-801-000
Manual
English
(170401)
1
2
D120-802-000
21901000012
Fuse(220V)
Φ5×20mm
T5A 250VAC
1
3
D120-803-000
21901000013
Fuse(110V)
Φ5×20mm
T5A 125VAC
1
4
D120-804-000
23301050002
Power cable
3×0.75mm
0.5m
1
5
D120-805-000
25300171001
Key
171
4
6
D120-806-000
25300172001
Key
171B
1
7
D120-807-000
22501000030
Potentiometer
RVQ24YN03
25F B502
1
8
D120-808-000
20101000007
Inner hexagon
screw
M4*20
(black)
5
9
D120-809-000
40607000013
Inner hexagon
spanner
2.5mm
1
10
D120-810-000
40607000014
Inner hexagon
spanner
3mm
1
11
D120-811-000
40607000001
Inner hexagon
spanner
4mm
1

DUO DRIVE
06/15/2019
6
3. PART NAME
Marquee Assy.
Control panel Assy.
Seat Assy.
Speaker
Wooden box Assy.
Ticket dispenser
Monitor Assy.
Coin mech.

DUO DRIVE
06/15/2019
7
Leveler
About 5mm/0.2 in
Leveler
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it touches
the floor, lifting the casters off the ground by 5mm/0.2 in. Repeat the same for all levelers.
Make sure the machine is level.
NOTICE

DUO DRIVE
06/15/2019
8
Before processing with assembly assure you have the following tools.
Step 1 Connect cables
Step 2 Connect the L&R POP board to the main cabinet.
No.
Part No.
Code No.
Name
Qty
1
D121-326-000
20101100025
Cross recessed pan head screw
6
Step 3 Connect the seat assembly to the main cabinet.
No.
Part No.
Code No.
Name
Qty
2
D121-312-000
20101010011
Hexagon flat round head screws
6
No.
Name
1
Cross screwdriver
1. Use the key to open the
right ticket door.
2. Find the cable from the base at the right corner.
3.Pull the cable through the
small hole of the main cabinet at
the bottom.
4. Connect the cable.
5.Installation is finished.

DUO DRIVE
06/15/2019
9
4.4 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Play area: 20 in
The machine
Service
Play Area
Step 2
Connect the L&R POP board
to the main cabinet.
Step 3
Connect the seat assembly
to the main cabinet.

DUO DRIVE
06/15/2019
10

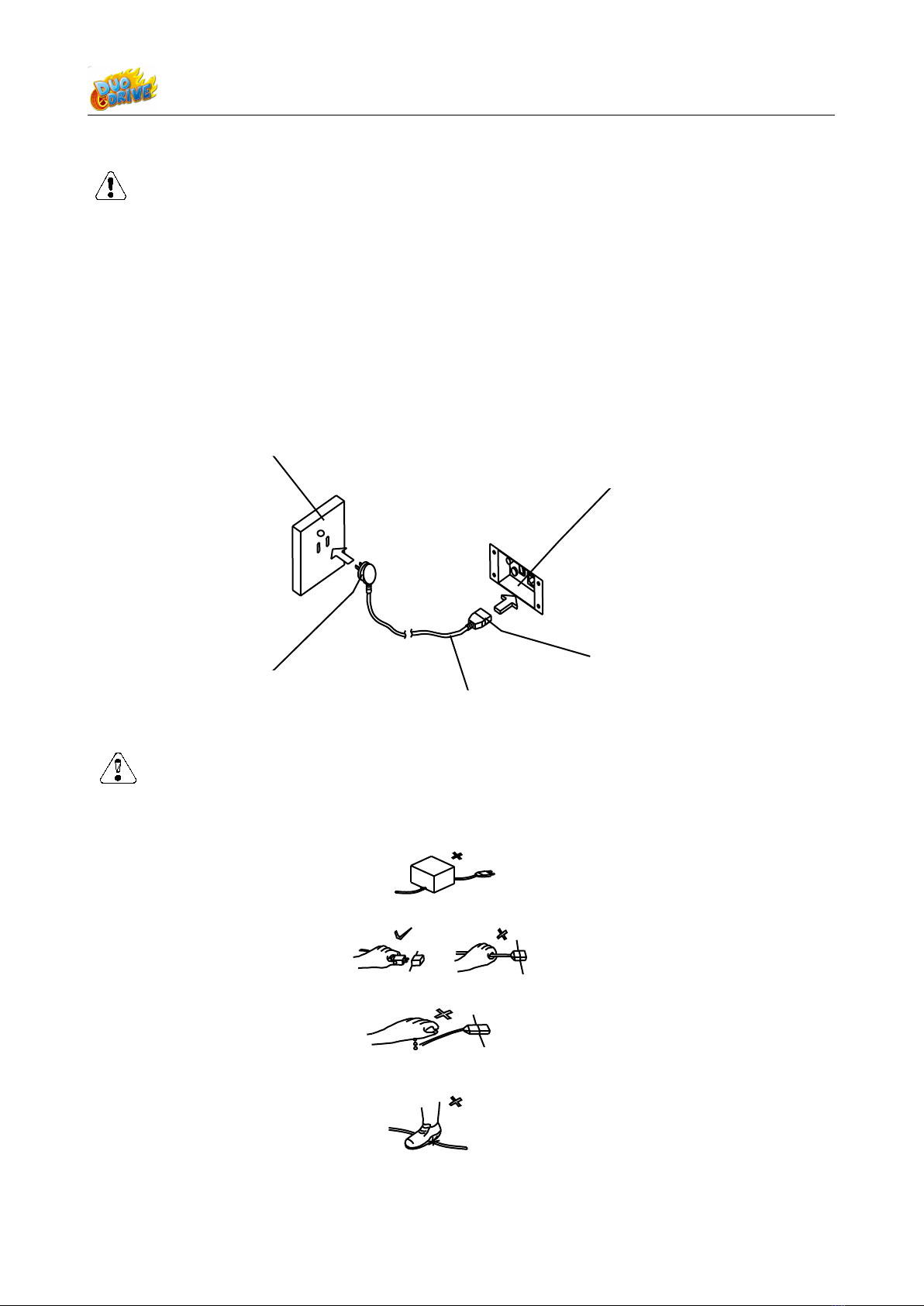

4.5 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to
an electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
Avoid overloading on one electrical outlet as it could generate heat and fire resulting
from overload.
Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does
not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug if your hand is wet.
Ensure the power cord is not located where it can be stepped on or tripped over.
Power plug
Power outlet
Power socket
Power plug
Power cord

DUO DRIVE
06/15/2019
11
5. HOW TO PLAY
1. Insert coin(s) to start.
2. Select 1 player or 2 players.
3. Use the steering wheel to dodge obstacles and pick up special props.
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main Menu
Test
Service
Reset
Open the coin door there is a meter
panel. Press Test button to get into the
setting menu.
Game Mode
Input
Test
Output test
Game reset
Language 语言
Date/Time setting
PC information
Book keeping
Daily Record
Exit & without save
Exit & save

DUO DRIVE
06/15/2019
12
6.2.2 Game Mode
Note:
No.
Item
Option
Explanation
1
Free Play
ON/OFF
Play game without credit in.
2
Tickets Out
ON/OFF
Whether payout tickets after game over.
3
Attract Mode
ON/OFF
Whether play with sounds during demo
4
Save Tickets
ON/OFF
Whether save tickets when power is off.
5
Volume
0~10
0 is mute. 10 are max.
6
Coins per Game
1~10
Coins to play one game.
7
Reward Tickets
1~15
Tickets for the winner.
8
Mercy Tickets
0-10
Tickets for the 2nd place.
9
Game time(s)
45-60---80-100
Game play time (seconds).
10
Game Difficult
Easy/Normal/Hard
Set the difficulty to win.
11
Score mode
Star –Ring-Gold coin
Select star or ring gold or token stands
for score display on the screen.
12
Ticket Mode
Store tickets in memory/
call attendant
Whether continue to play the game when
ticket is owed.
6.2.2 Input Test 6.2.3 Output Test
Coin 1 NO/OFF
Coin 2 NO/OFF
Service button NO/OFF
Reset button NO/OFF
Select Button1 NO/OFF
Select Button2 NO/OFF
Wheel POT1 0~255
Wheel POT2 0~255
Select Button1 light
Select Button2 light
Ticket Drive 1
Ticket Drive 2
Back
Free Play OFF
Tickets Out ON
Attract Mode ON
Save Coins ON
Volume 10
Coins Per Game 1
Reward Tickets 10
Mercy Tickets 0
Game time(s) 60
Game Difficulty easy
Score mode star
Ticket mode call Attendant
Back

DUO DRIVE
06/15/2019
13
6.2.4 Game reset
6.2.5 Select Language
6.2.6 Date/Time setting 6.2.7 PC information
6.2.8 Bookkeeping 6.2.9 Daily Record
6.2.10 Exit & without save
6.2.11 Exit & save
Reset Game Setting
Delete A1 Record
Clear Tickets
Back
English
中文
Year 2013
Month 8
Day 27
Hour 15
Minute 22
Second 22
Save&back
Back
CPU
Mother board
Disk Drive
Memory
Display adapter
Display RAM size
Press Test button to exit
Player Coin Tickets Payout
1 0 0 0
2 0 0 0
Sum 0 0 0
Reset
Back
Save?
No
Yes
Date Weekday RunTime Coins Tickets Payout
2013-8-27 SAT 00:10 0 0 0.00
Reset
Back
Save?
No
Yes
Note:
Reset Game setting: Reset all settings to default.
Delete All Record: Clear all bookkeeping data,
Clear Ticket: Clear owed tickets.

DUO DRIVE
06/15/2019
14
7. TROUBLE SHOOTINGS
7.1 Common Problem
Please confirm whether every connector connected tightly.
Symptom
Possible Cause
Recommended action
Game will not
start
Frame assembly connector fell or
is loose
Plug in connector tightly.
Frame assembly fault
Contact with CEC technical support.
Power cutting
Circuit protector make power SW
in cutting state
Turn on power SW again. If appeared
again and again, machine has anomaly.
Please contact with CEC technical
support.
Game will not
coin up
Coin mech. fault or sample coin
not installed.
Change coin mech. or sample coin.
Coin mech. signal cable loose.
Check coin mech. signal cable loose.
IO control board no signal.
Change IO board.
No sound
Volume set too low.
Raise the volume.
Connector loose.
Plug in connector tightly.
PCB fault.
Change PCB.
Speaker fault.
Change speaker.
POT installation error.
Install POT correctly.
POT fault.
Change POT.
Audio cable problem.
Reconnect the audio cable or change it.
PC crash.
Restart or system recovery.
Driver problem
Restart the audio driver.
No ticket
dispensing
Out of ticket.
Add ticket and press reset button
Ticket jamming.
Remove the jammed tickets and press
reset button.
Wrong connection.
Check the connections.
Display black
screen
Check connectors.
Plug in connector tightly
Display fault.
Vitalize another source such as a PC to
verity if the display is operational.
RAM is loose.
Pull it out and insert it again or change
main board or RAM.
Display blue
screen
PC power cord is loose
Check PC power cord whether is loose.
VGA signal cable is loose.
Check VGA cable
PC video card is loose.
Reseat video card.
PC into protection
Open front cover, if power on, light flash
all the time. Press power button 30s, then
restart.
“0X000000A” code appears.
Conflict between computer drive
and software.
Uninstall or disable the new drivers or
software.
PC crash
Restart or system recovery

DUO DRIVE
06/15/2019
15
Symptom
Possible Cause
Recommended action
Display blue screen
when playing
Software problem.
Update the driver of the video card or
reinstall the system.
Hardware problem.
Check the hardware one by one.
Playing normal, but
appear system
halted
Video card is loose or poor
contact
Plug video card again.
PC crash
Restart or system recovery
Display abnormal
color
Bad connection between the
video card and the display
video cable.
Reconnect the video card and the
display video cable.
Video card driver problem.
Restart the video driver.
Display can not
show the whole
desktop.
Screen resolution problem.
For WIN 7, right-click in the blank
space at the desktop
---Click “screen resolution”
---Click “change the appearance of the
display” to adjust the screen
resolution.
Bouncing motion of
the display
Screen resolution problem.
---Click “screen resolution”
---Click “change the appearance of the
display” to adjust the screen refresh
rate.
No response in
BIOS
Battery is loose.
Reinstall the battery of the main board
and restart the game or change the
main board.
Main board fault.
Fail to save the
BIOS setting
Battery fault.
Change the battery of the main board.
PC restart or crash
repeatedly
Poor heat dissipation
Add silicon on the cooling fin.
Check or change the CPU fan if
needed.
RAM or main board fault.
Change the RAM or change the main
board.
Power source problem.
Change the power source.
Fail to install the
driver
Driver fault.
Download “Driver Genius” or
something similar and try again.
CPU fan off and on.
Main board fault.
Change the main board.
Slow computer
start-up times after
reinstalling the
system.
Hard disk problem.
Please let the PC automatically run the
software, or change the hard disk.
Note: After replacing component from pc (except for RAM), and replacing monitor, the game
should be recovered again with the recovery stick attached to the machine.

DUO DRIVE
06/15/2019
16
If you see following error signs showing on the display, please try the recommended action.
Display
Possible Cause
Recommended action
The connection part of the
IO board and PC are loose.
Check and reconnect the
loose ports of the PC or IO
board.
Cable quality problem
Change the cable after
checking the connection
between IO board and PC.
Cable became loose during
transportation.
Check and reconnect the
loose cables of the PC or IO
board.
IO board is faulty.
Reboot the game after
checking connection and
cable problem, if the problem
remains unresolved, please
call the service department
for assistance.
Out of ticket.
Refill ticket
Loose connection of the
ticket dispenser’s cables.
Check and reconnect the
loose cables to the ticket
dispenser.
Ticket dispenser is faulty.
Change the ticket dispenser.
Ticket jam.
Remove jammed tickets.

DUO DRIVE
06/15/2019
17
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Test game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to maintain proper operation.
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine.
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the machine.
Unplug the power cord of the service outlet. Operating the machine without correcting the
problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the labels
are not hidden behind other game machines.
WARNING

DUO DRIVE
06/15/2019
18
9. OVERALL CONSTRUCTION
9.1 Assembly drawing

DUO DRIVE
06/15/2019
19
No
Part No.
Code No.
Name
SPEC.
Qty
1
D120-001-000
29941317B001
Wooden cabinet
748×1203×1739
1
2
D120-002-000
29941317002
PC assembly
Assembly
1
3
D120-003-000
29941317B003
Control panel assembly
Assembly
1
4
D120-101-000
20641317B001
Console plate
δ1 black EVA
1
5
D120-102-000
20541317B003
Console level decal
Transparent plastic
1
6
D120-103-000
20541317B002
Display decal
Transparent plastic
1
7
D120-004-000
DZPPL-00-01
Coin door assembly
Assembly
1
8
D120-005-000
29941317B004
L_Display assembly
Assembly
1
9
D120-006-000
29941317B005
R_Display assembly
Assembly
1
10
D120-007-000
29941317B008
Indicator light assembly
Assembly
1
11
D120-008-000
29941317B009
Marquee assembly
Assembly
1
12
D120-009-000
29941317B010
L_Top decal assembly
Assembly
1
13
D120-010-000
29941317B011
R_Top decal assembly
Assembly
1
14
D120-104-000
20241317B002
Speaker net
δ1 black Q235
2
15
D120-105-000
20241317B003
Lower pressure-plate
Q235
1
16
D120-011-000
29941317B006
Car seat assembly
Assembly
1
17
D120-012-000
29941317B007
Motorcycle seat assembly
Assembly
1
18
D120-106-000
20241317007
Both side plate
δ1.2 black
2
19
D120-222-000
20241317B053
Back plate
δ1.5 black
1
20
D120-108-000
26000008000
2.5”leveler
Q235
4
D120-109-000
26000010000
2.5”caster bracket
Q235
4
D120-110-001
25501000047
2.5”caster
3-2689-52
4
21
D120-111-000
20241317B030
Car connection plate
Q235
1
22
D120-112-000
20241317B039
Motorcycle connection
plate
Q235
1
23
D120-215-000
20241317B001
Marquee back cover plate
Q235
1
24
D120-216-000
20241317B046
Plastic bracket
δ2
5
25
D120-217-000
20641317B018
Marquee shell
δ3
1
