UNIS Lane Master Pro User manual

www.universal-space.com
Operation Manual
IMPORTANT

Lane Master Pro GMP Manual
02/27/2020
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]

Lane Master Pro GMP Manual
02/27/2020
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS...................................................................... 3
1. SPECIFICATIONS................................................................................................... 5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 7
3. PART NAME........................................................................................................... 8
4. SET UP & INSTALLATION...................................................................................... 9
5. HOW TO PLAY......................................................................................................12
6. GAME OPTION.....................................................................................................13
7. TROUBLE SHOOTINGS........................................................................................ 19
8. MAINTENANCE & INSPECTION..........................................................................22
9. OVERALL CONSTRUCTION................................................................................. 23
10. WIRING DIAGRAM............................................................................................39

Lane Master Pro GMP Manual
02/27/2020
3
Thank you for purchasing Lane Master Pro. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Lane Master Pro GMP Manual
02/27/2020
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Lane Master Pro GMP Manual
02/27/2020
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz;
Min. Power consumption: 250W
Max. Power consumption: 300W
Dimension: W26.4×D96.6×H101.2 in
W 670×D2452.5 ×H2568.8 mm
Weight：Approximately 474 lb
Approximately 215 kg
Part No: L114
Model No: C-501
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Lane Master Pro GMP Manual
02/27/2020
6
This machine will be divided into two parts during transportation.
Back Cabinet: W26.4×D24.2×H82.3 in
W670×D615×H2089 mm
Ally part: W26.4×D72.4×H25.9 in
W670×D1837.5×H658 mm
Note: Game specifications are subject to change without notice.

Lane Master Pro GMP Manual
02/27/2020
7
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
For 110V
For 220V
NOTE: Part models are subject to change without notice.
No.
Part No.
Code
Name
Qty
1
L114-170-001
20611605027B
Bowling ball
2
2
L114-747-000
40607000012
Wrench
2
3
L114-801-000
25300171002
Key
1
4
L114-430-000
23301010020
Power cord
1
5
L114-803-000
41440000173F
Manual
1
6
L114-802-000
25300172002
Key
1
7
L114-411-000
21901000012
Fuse
4
No.
Part No.
Code
Name
Qty
8
L114-412-000
21901000013
Fuse
2
No.
Part No.
Code
Name
Qty
8
L114-411-000
21901000012
Fuse
2

Lane Master Pro GMP Manual
02/27/2020
8
3. PART NAME
Key Components
Ball exit
43” Monitor
Lane
Ticket dispenser
27” Monitor
Marquee Assy.
Coin mechanism

Lane Master Pro GMP Manual
02/27/2020
9
Leveler
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.

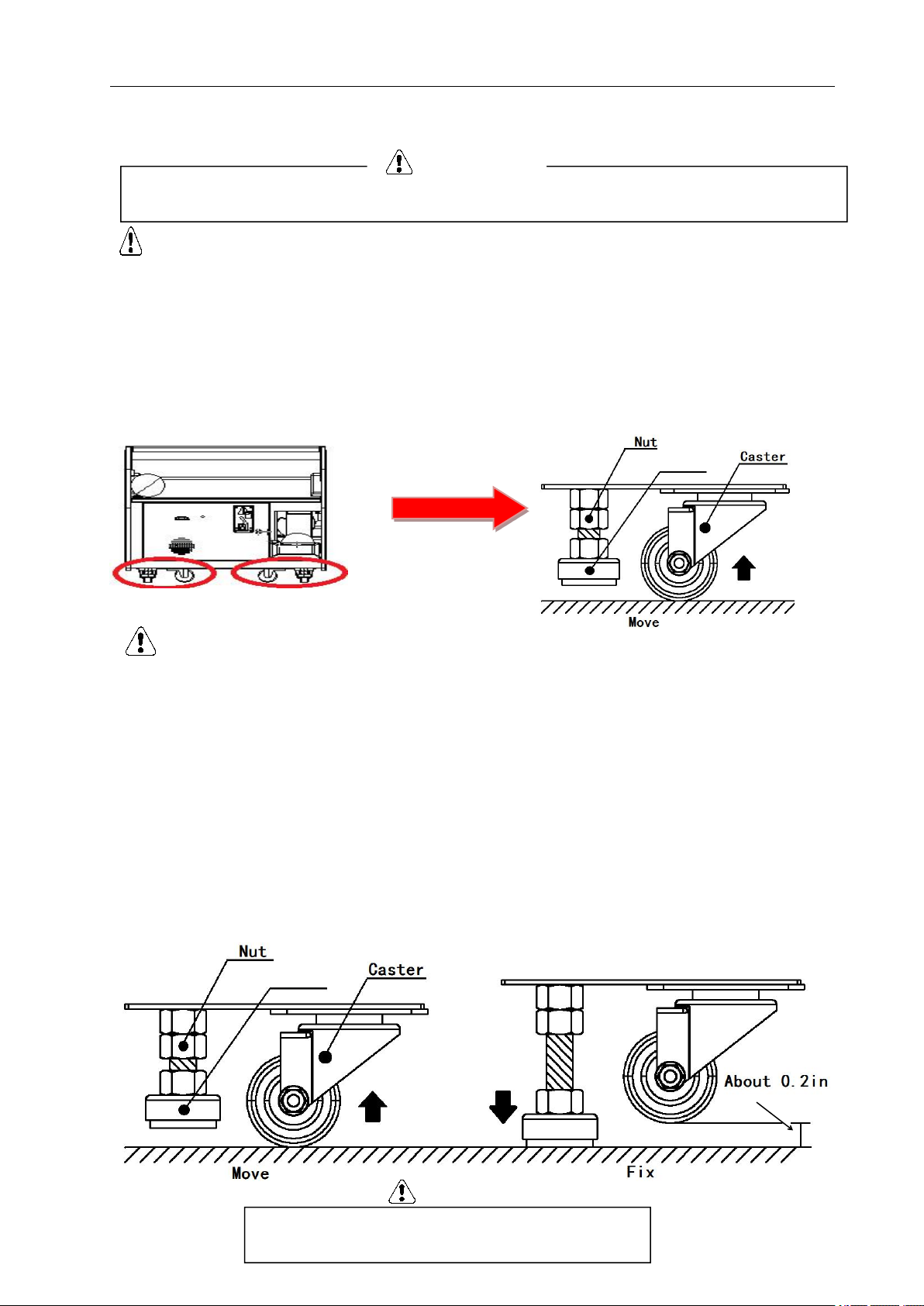

4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in. Repeat the same for all
levelers.
We do not recommend using power tools as they may cause damage.
NOTICE
NOTICE
Make sure the machine is level.
leveler

Lane Master Pro GMP Manual
02/27/2020
10
4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Your unit must be leveled to operate properly.
NOTICE

Lane Master Pro GMP Manual
02/27/2020
11
4.4Machine Installation
4.4.1 Marquee Installation
Before processing with assembly assure you have the following tool.
Step 1 Upright the marquee and use Allen hexagon wrench to install two screws as picture
shown.
No.
Name
1
Allen hexagon wrench
Please install the screws as red arrow shown

Lane Master Pro GMP Manual
02/27/2020
12
4.4.2 Connect Lane Assembly & Display Assembly
Step 1 Use the Allen hexagon wrench (Provided) to lock the back box with the lanes as
indicated.
Step 2 Lower leg levelers into place for initial leveling of the back box and the lanes if the
floor is uneven.
Step 3 Add ball to each lane and apply power.
Step 4 Once game is powered on and operational place it in position. Utilizing the leg
levelers to assure the back box and lanes are level with each other.
Lock
Unlock

Lane Master Pro GMP Manual
02/27/2020
13

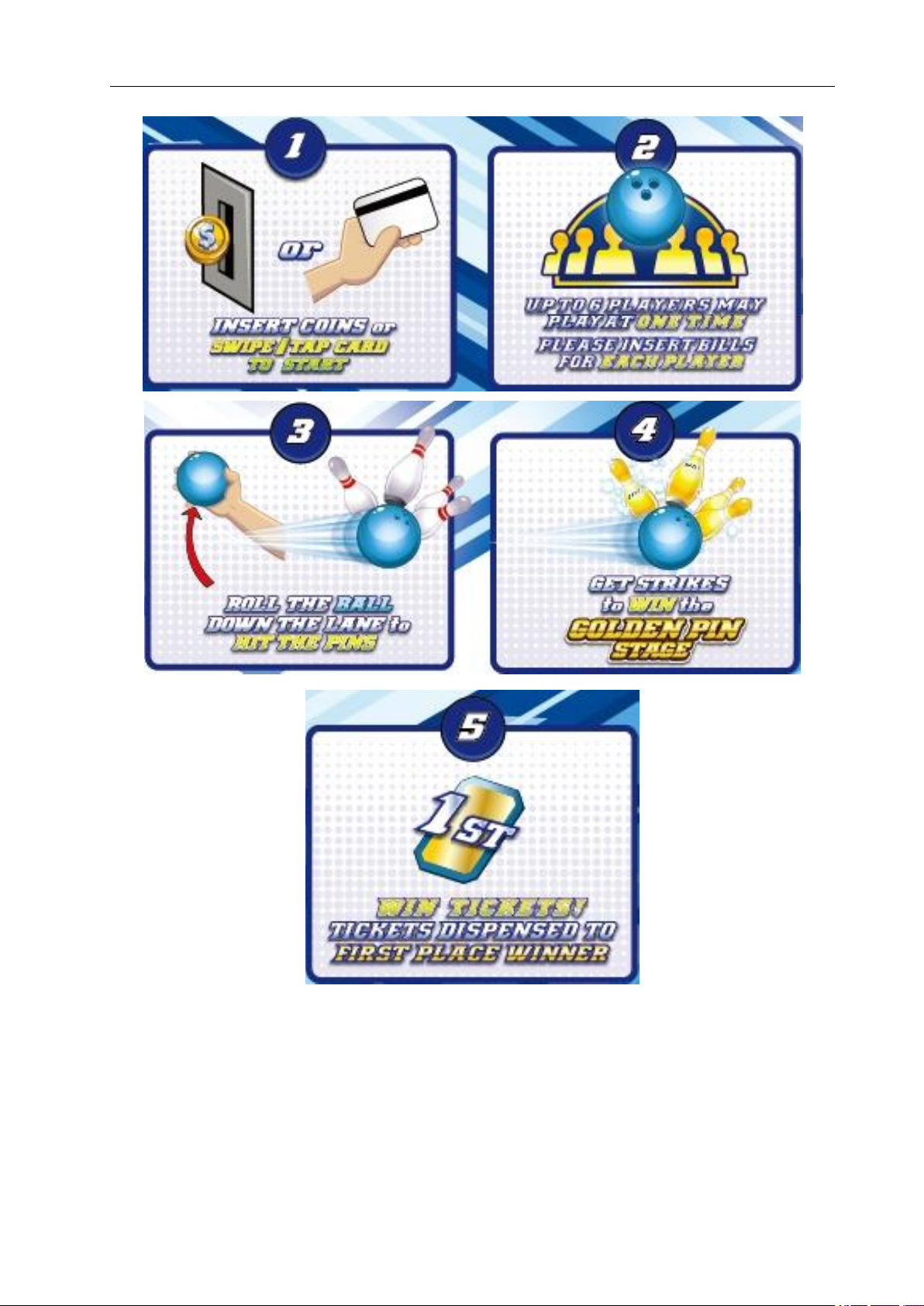

5. HOW TO PLAY

Lane Master Pro GMP Manual
02/27/2020
14
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Customized Setting
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言
About This Game
Bookkeeping
Daily Record
Back to game
6.2.3 Customized Setting
Game Mode
Coupon
Mode_Tickets
Mode(Tickets Mode)
Printer Mode
OFF/ON(ON)
Coupon input option
Prize input/Score
input
Regulation Mode
OFF/ON(ON)
Alternating Ball Color
OFF/ON(ON)
Number of Frames
Frame 1-10(3)
Multiplayer Join Time
5-60(20)
Number Of Strike(s)
To Activate Golden Pin
Stage
1-3(1)
Golden Pin Stage
OFF/ON(ON)
Golden Pins Set
10-100(100)
Open the coin door and there is a
meter panel. Press Settings button to
enter into the setting menu.
6.2.2 Basic Setting
Free Play
OFF_ON(OFF)
Tickets Out
OFF_ON(ON)
Out Of Tickets
Store in memory_Call
Attendant(Call Attendant)
Demo Music
OFF_ON(ON)
Memory Save
OFF_ON(ON)
Volume
1_10(7)
Coins Per Game
1_10(1)
Pay Mode
Coins_Insert Coins/Swipe
Card_Card_Insert Bills(Coins)
Go Back&Save
Back
Settings
Test
Reset
Each Golden
Pin Score
1-10(ON)
Bumper
Version
OFF/ON(ON)
Strike Zone
Game Level
Easy/Normal/Difficult
(Normal)
No Ball Found
OFF/ON (ON)
Type In Player
Name After
Credit In/ Game Over
(Game Over)
Top Ranking
OFF/ON(ON)
Type In Name
Time
5-60(20)
Number of
Top Players
5-20(20)
Minimum
Score to show
on Ranking
100-200-500-600-800-
1000-1200-1500-2000
(100)
Go Back & Save
Back

Lane Master Pro GMP Manual
02/27/2020
15
6.2.4 Coupon content setting
Prize Input: Score Input:
Shop name
(Enter the shop name)
Prize content
1 ST (enter prize name)
2 ND (enter prize name)
3 RD (enter prize name)
4 TH (enter prize name)
5 TH (enter prize name)
6 TH (enter prize name)
Comments
(Enable to enter 256 characters)
Save
Clear All
Test
Exit
6.2.4 Input Test
Coin
OFF_ON
Ticket Error
OFF_ON
Enter Button
OFF_ON
Left Button
OFF_ON
Right Button
OFF_ON
Send Ball Sensor Initial
Position
OFF_ON
Ball Detect
OFF_ON
Ball Signal
OFF_ON
Ball Location
0-100
Ball Speed
0-100
Ball Direction
0-180
Detection Time for Ball to
Pass Sensor1
0
6.2.5 Output Test
Ticket Test
Enter Button Light
Left Button Light
Detection Time for Ball to
Pass Sensor2
0
Detection Time for Ball to
Pass Sensor3
0
Detection Time for Ball to
Pass Sensor4
0
Detection Time for Ball to
Pass Sensor5
0
Infrared1
OFF_ON
Infrared2
OFF_ON
Infrared3
OFF_ON
Infrared4
OFF_ON
Infrared5
OFF_ON
SendBall Error
OFF_ON
Back
Right Button Light
Ball Release Test
Back
Note: Before processing this setting, please set
the Coupon Input Option first.
Shop Name
(Enter the shop name)
Comments
(Enable to enter 1000 characters)
Save
Clear All
Test
Exit

Lane Master Pro GMP Manual
02/27/2020
16
6.2.6 Game Reset
Factory Restore
CANCEL_CLEAR
Reset Basic Setting
CANCEL_CLEAR
Reset Customized Setting
CANCEL_CLEAR
Clear All Records
CANCEL_CLEAR
Clear Owed Ticket
CANCEL_CLEAR
Clear Unused Coin
CANCEL_CLEAR
Reset Top Ranking Score
CANCEL_CLEAR
Back
6.2.7 Date/Time Setting
Year
Month
Day
Hour(24)
6.2.8 About This Game
CPU
Motherboard
HDD
RAM
Display Adapter
6.2.9 Bookkeeping
Player
Bills
Tickets
Payout
These Settings Are Non-Resettable
Back
6.2.10 DailyRecord
Date
Weekday
Runtime
Bills
Tickets
Payout
Clear
Back
Minute
Second
Go Back&Save
Back
Monitor
Screen
Version
Press the Test Button to Go Back

Lane Master Pro GMP Manual
02/27/2020
17
6.3 Display Advertisement Operation
In Version 1.05 or higher version for Lane Master, operator can put advertisement to the
machine and display on the top monitor.
Please note that the advertisement video format has to be AVI.
Please prepare a mouse,a keyboard and a memory stick.
Step 1
Power down the machine. Plug in a mouse and a keyboard. Power up the machine. Insert a
memory stick after the pc shows system interface.
Note: Please do not put any ghost system file to the memory stick and do not insert the
memory stick before powering up the machine. This may cause damage to the system.
Step 2
1&2.Click “Start” and choose ”Computer”
1
1

Lane Master Pro GMP Manual
02/27/2020
18
3.Click” GameDGho”
4.Click ”Videos”
5.Copy the AVI file from memory stick into “Videos” folder.
Step 3
Unplug the memory stick. Power off and restart the machine. The advertisement video will
be shown on the top screen. If the video format is not AVI. It will show an error as below.

Lane Master Pro GMP Manual
02/27/2020
19
7. TROUBLE SHOOTINGS
7.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom
Possible Cause
Recommended action
Game will not
start
Frame assembly connector is
loose.
Check connector.
Frame assembly fault
Contact with UNIS Service.
Power off
Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
No sound
Low volume
Raise the volume.
Connector loose.
Check connector.
Speaker fault.
Check speaker.
POT installation error.
Install POT correctly.
POT fault.
Change POT.
Audio cable problem.
Reconnect the audio cable or change
it.
PC crash.
Restart or system recovery.
Driver problem
Restart the audio driver.
Display black
screen
Check connectors.
Plug in connector tightly
Display fault.
Utilize another source such as a PC to
verity if the display is operational.
RAM is loose.
Remove and reinsert RAM.
Display blue
screen
PC power cord is loose
Check PC power cord whether is loose.
VGA signal cable is loose.
Check VGA cable
PC video card is loose.
Reseat video card.
“0X000000A” code appears.
Conflict between computer drive
and software.
Contact service
Note: After replacing component from pc (except for RAM), and replacing monitor, the
game should be recovered again with the recovery stick attached to the machine.
