Operation Manual
IMPORTANT

Disc it for Tickets (Twin Version) Manual
11/15/2019
1

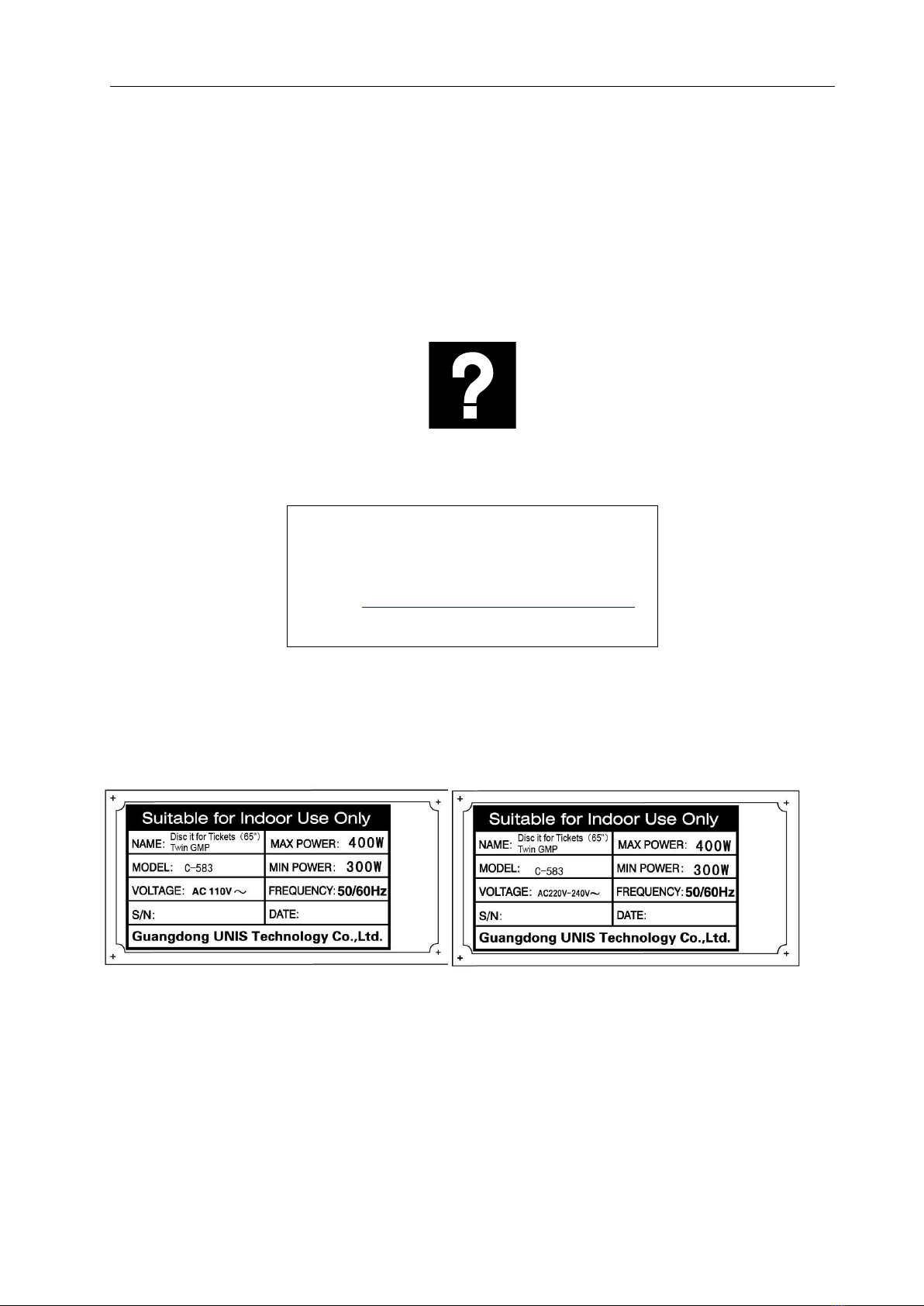

WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]
When contacting Service, you will need the following information
and the name of your authorized distributor.

Disc it for Tickets (Twin Version) Manual
11/15/2019
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS.......................................................................3
1. SPECIFICATIONS....................................................................................................5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 7
3. PART NAME............................................................................................................8
4. SET UP & INSTALLATION...................................................................................... 9
5. HOW TO PLAY......................................................................................................20
6. GAME OPTION..................................................................................................... 21
7. TROUBLESHOOTING............................................................................................24
8. MAINTENANCE & INSPECTION.......................................................................... 27
9. OVERALL CONSTRUCTION................................................................................. 28
10. WIRING DIAGRAM............................................................................................ 55

Disc it for Tickets (Twin Version) Manual
11/15/2019
3
Thank you for purchasing Disc it for Tickets GMP (Twin Version). We hope you
enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Disc it for Tickets (Twin Version) Manual
11/15/2019
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Disc it for Tickets (Twin Version) Manual
11/15/2019
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz
Min. Power consumption: 300W
Max. Power consumption: 400W
Dimension: W79.4×D102.7×H120.2in
W2017 ×D2609 ×H3055 mm
Weight：Approximately 1543lb/700kg
Model No: C-583
Part No: D162
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Disc it for Tickets (Twin Version) Manual
11/15/2019
6
This machine will be divided into two parts during transportation.
Control panel: W39.46×D23.74×H45.54 in
W1002 ×D603 ×H1157 mm
Back cabinet: W39.37×D31.50×H80.00 in
W1000 ×D800 ×H2030 mm
Note: Game specifications are subject to change without notice.

Disc it for Tickets (Twin Version) Manual
11/15/2019
7
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
NOTE: Part models are subject to change without notice
No.
Part No.
Code No.
Name
SPEC
Qty
1
D162-411-000
41001000012
Red disc
PVC
/
12
2
D162-412-000
41001000013
Blue disc
PVC
/
12
3
D162-802-000
25300171002
Key
171
2
4
D162-803-000
25300172002
Key
171B
1
5
D162-312-000
20101040005
Hexagon socket
flat head screw
M4×12 Nickel
plating
16
6
D162-109-000
26000040000A
5mm screw
holder
Black
16
7
D162-114-000
26000052000
Washer
δ1
16
8
D162-313-000
20101040024
Cross recessed
pan head screw
M4×12 Nickel
plating
128
9
D162-315-000
20101040027
Cross recessed
pan head screw
M4×25 Nickel
plating
16
10
D162-309-000
20101020038
Cross recessed
pan head screw
set
M4×25 Color zinc
16
11
D162-327-000
20104020002
Cross recessed
hexagon screw
set
M6×16 Color zinc
40
12
D162-428-000
21901000030B
Fuse
Ф5×20mm T10A
250VAC (PSE UL)
2
13
D162-804-000
23301010020
Power cord
3×16AWG 1.8M
2
14
D162-470-000
23302000011
Network cable
T568A-T568A 1.5M
/
1
15
D162-801-000
41440000293A
Manual
1
16
D162-433-000
21901000012
Fuse
Φ5×20mm T5A
250VAC
2

Disc it for Tickets (Twin Version) Manual
11/15/2019
8
Disc Exit
Marquee Assembly
Ticket Dispenser
Monitor
Coin Mechanism
3. PART NAME
Key Components

Disc it for Tickets (Twin Version) Manual
11/15/2019
9
Leveler
About 0.2 in/5mm
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
Place the unit on a dry level surface.
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.

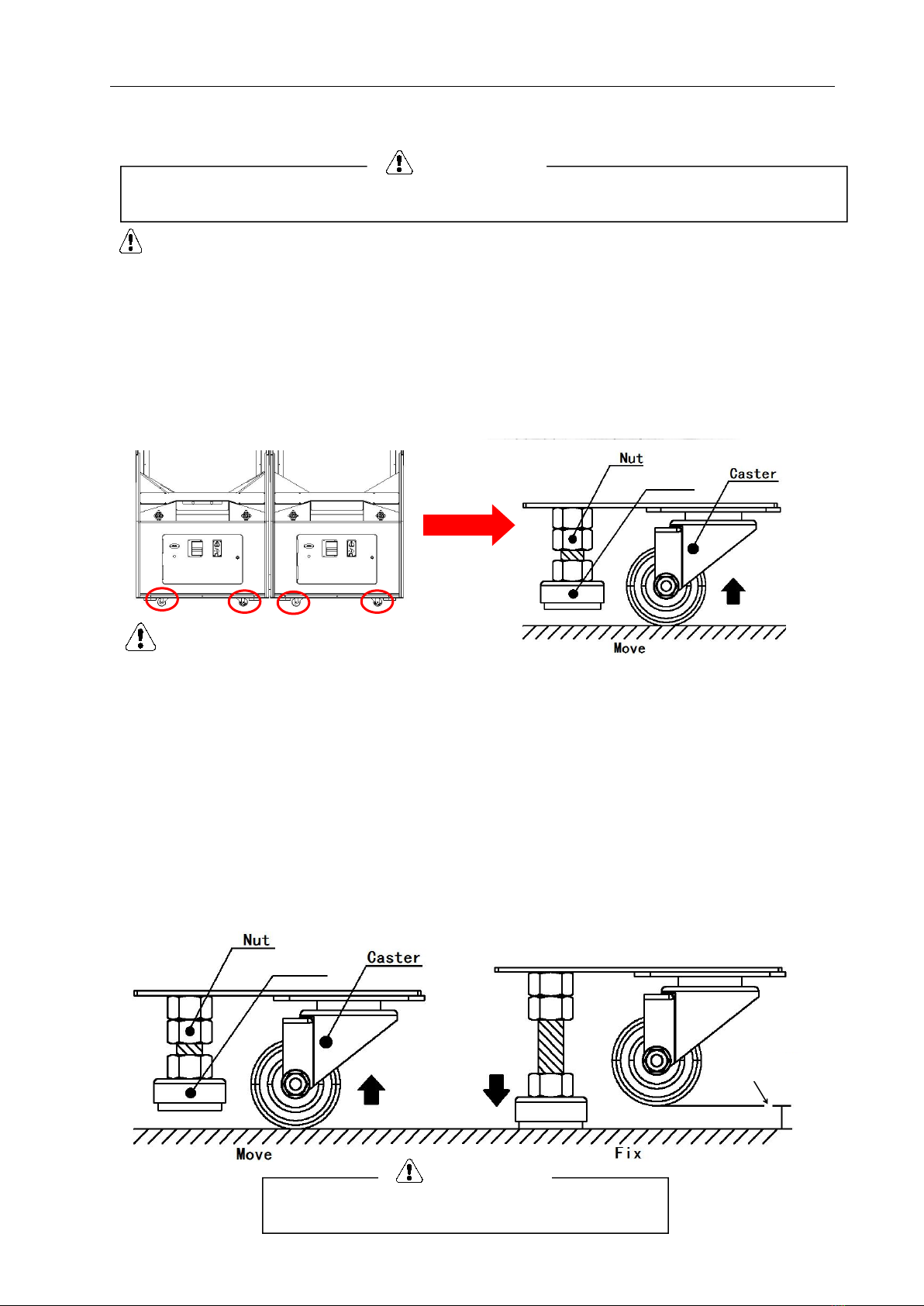

4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in/5mm. Repeat the same for all
levelers.
We do not recommend using power tools as they may cause damage.
NOTICE
Make sure the machine is level.
NOTICE
Leveler
Leveler
Leveler

Disc it for Tickets (Twin Version) Manual
11/15/2019
10

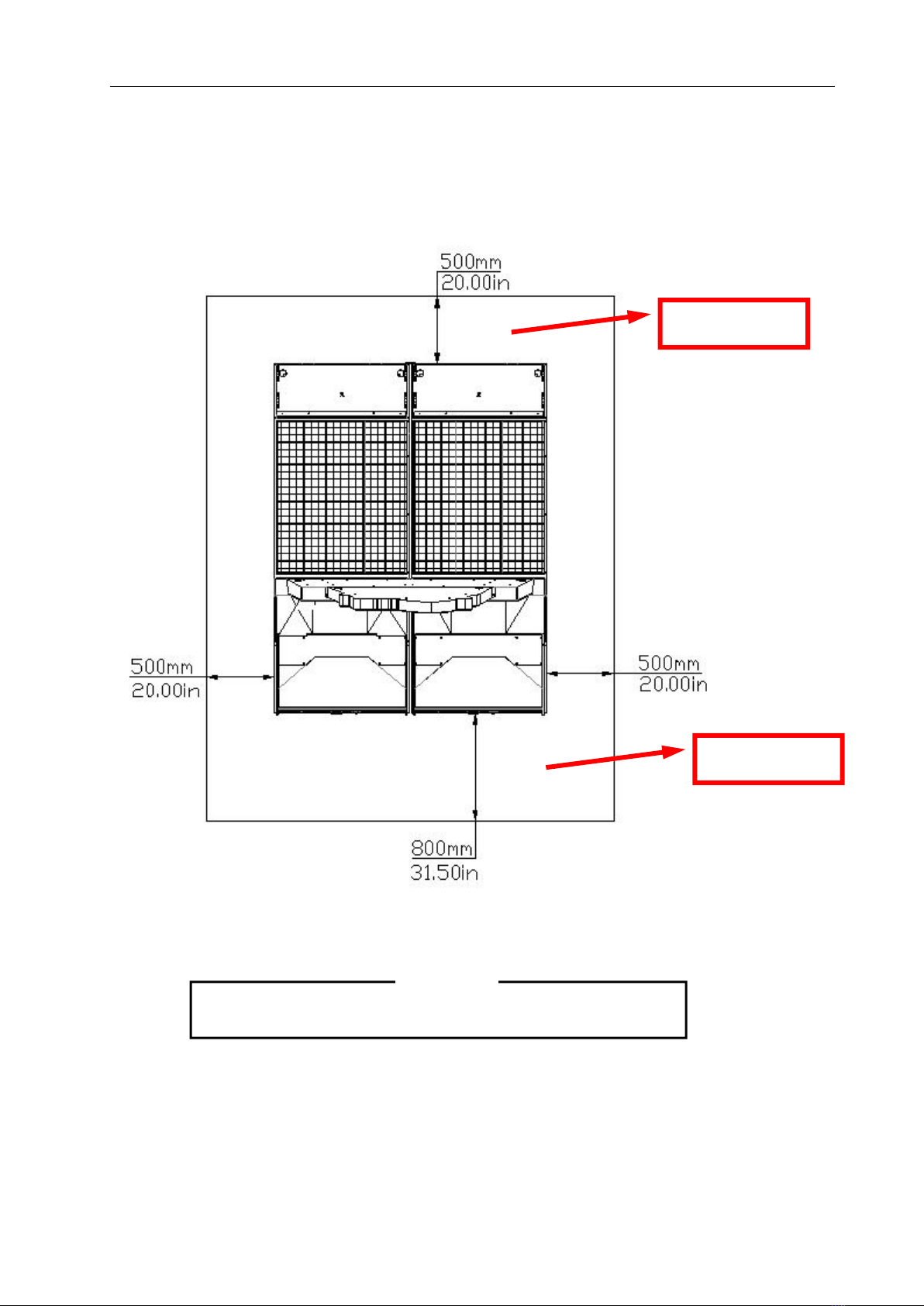

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Your unit must be leveled to operate properly.
NOTICE

Disc it for Tickets (Twin Version) Manual
11/15/2019
11

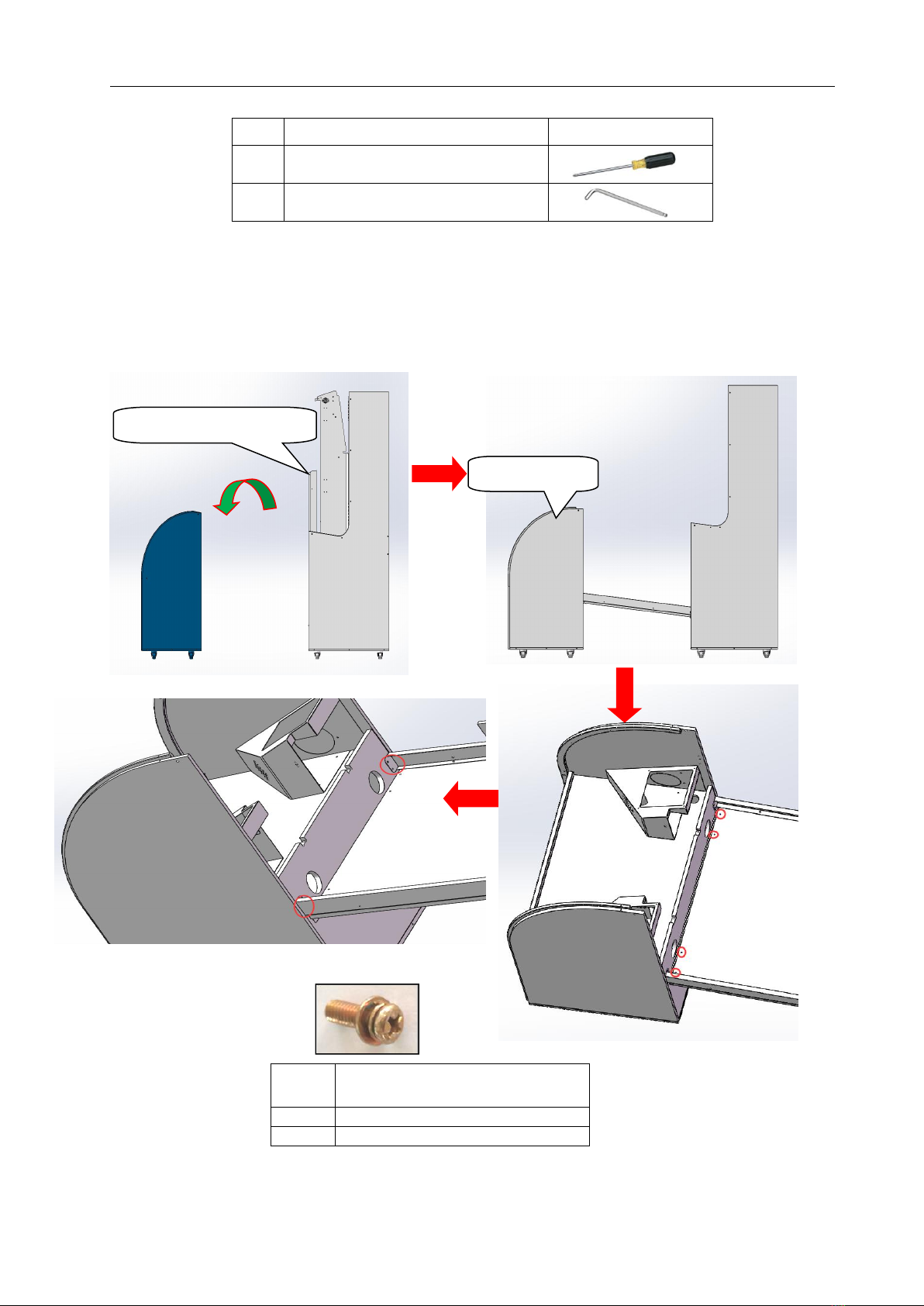

Before processing with assembly assure you have the following tools.
4.4 Machine Installation
Step 1 Turn the Bottom lane assembly down indicated by arrow. Utilize Phillips screwdriver
to tighten 8 screw sets to fix Bottom lane assembly to Control panel.
No.
Name
1
Phillips screwdriver
2
Allen wrench
Name
Cross recessed pan head
screw set
Spec.
M4X25
Qty
8
Bottom lane assembly
Control panel

Disc it for Tickets (Twin Version) Manual
11/15/2019
12
Step 2 Utilize Phillips screwdriver to tighten 4 screw sets to fix Bottom lane assembly to
Main cabinet.
Step 3 Utilize Phillips screwdriver to loosen screws and turn Upper lane assembly
down.Place front side of Upper lane assembly to the slot on the Control panel.
Name
Cross recessed pan
head screw
Spec.
M4X12
Qty
4
Main cabinet
Control panel
Slot

Disc it for Tickets (Twin Version) Manual
11/15/2019
13
Step 4 Place axle on the slot as shown below.
Step 5 Utilize Phillips screwdriver to tighten 2 screw sets to fix Upper lane assembly to Main
cabinet.
Step 6 Utilize Phillips screwdriver to tighten 5 screws to fix Middle side plate to Upper lane
assembly and Main cabinet. The sharp angle side should be placed in front. The same
installation on the other side.
Name
Cross recessed pan
head screw set
Spec.
M6X16
Qty
2
Screw hole
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
10
Middle side plate

Disc it for Tickets (Twin Version) Manual
11/15/2019
14
Step 7 Utilize Phillips screwdriver to tighten 3 screws to fix Side board to Bottom lane
assembly. Plug the connector. The same installation on the other side.
Step 8 Utilize Phillips screwdriver to tighten 2 screws to fix Side plate to Middle side plate.
The same installation on the other side.
Step 9 Place Joint pin on the Side plate and Control panel. Utilize Phillips screwdriver to
tighten 4 screws. The same installation on the other side.
Name
Cross recessed
pan head screw
Spec.
M4X25
Qty
6
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
4
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
8
Side board
Joint pin

Disc it for Tickets (Twin Version) Manual
11/15/2019
15

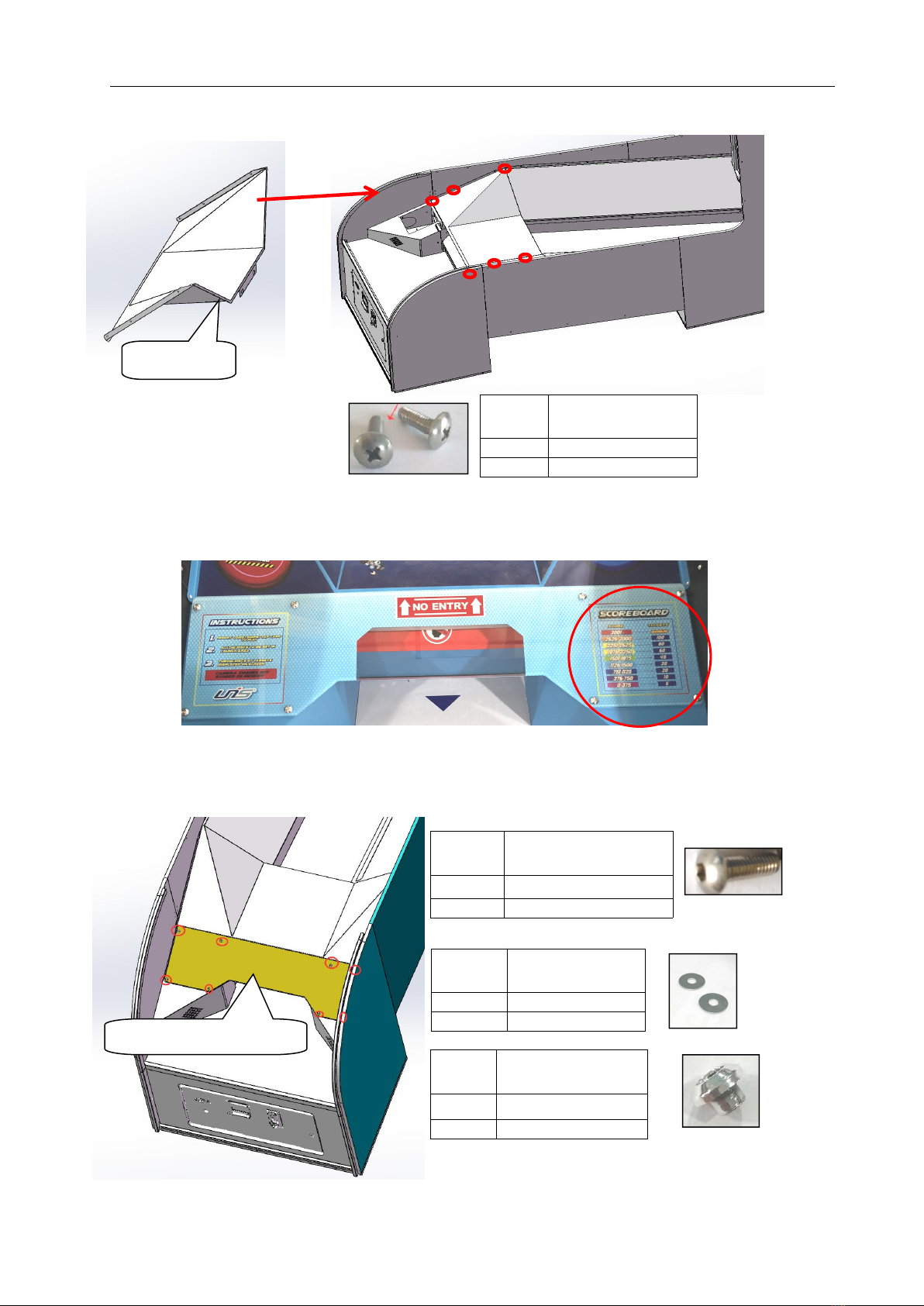

Step 10 Place Front cover on the Upper lane assembly and utilize Phillips screwdriver to
tighten 6 screws.
Step 11 Place Scoreboard decal on the right side of Control panel as shown below, follow
Step 12 to place the Control panel plastic to cover it.
Step 12 Place Control panel plastic on the Control panel. Utilize Allen wrench to tighten 8
screws, washers and screw holders to fix Control panel plastic to Control panel.
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
6
Name
Hexagon socket
flat head screw
Spec.
M4X12
Qty
8
Name
Washer
Spec.
δ1
Qty
8
Name
Screw holder
Spec.
5mm
Qty
8
Front cover
Control panel plastic

Disc it for Tickets (Twin Version) Manual
11/15/2019
16
Step 13 Utilize Phillips screwdriver to tighten 10 screws to fix Net to the Main cabinet. The
same installation on the other side.
Step 14 Utilize Phillips screwdriver to tighten 4 screws to Marquee fixing plate to Net.
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
20
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
4
Marquee fixing plate
Net
Main cabinet

Disc it for Tickets (Twin Version) Manual
11/15/2019
17
Step 15 Utilize Phillips screwdriver to tighten 2 screws to Top Net to the Main cabinet.
Note: Top net hinge side should be placed in top side.
Step 16 Utilize Phillips screwdriver to tighten 11 screws to fix Top Net to 2 Side nets and
Marquee fixed plate.
Note: It is the same installation method on two machines.
Name
Cross recessed pan
head screw set
Spec.
M6X16
Qty
2
Name
Cross recessed
pan head screw
Spec.
M4X12
Qty
11
Top net
Main cabinet

Disc it for Tickets (Twin Version) Manual
11/15/2019
18
4.5 Machine Connection
Step 1 Place Machine connective plate on the back of two machines as shown below.
Utilize Phillips screwdriver to tighten 4 screws to fix it.
Step 2 Place Bottom marquee on the Marquee fixed plate. Utilize Phillips screwdriver to
tighten 8 screws to fix Bottom marquee to Marquee fixed plate.
Name
Cross recessed pan
head screw set
Spec.
M6X16
Qty
4
Name
Cross recessed pan
head screw set
Spec.
M6X16
Qty
8
Bottom marquee
Marquee fixed plate
Machine
connective plate

Disc it for Tickets (Twin Version) Manual
11/15/2019
19
Step 3 Place Top marquee on the Bottom marquee. Utilize Phillips screwdriver to tighten 4
screws to fix Top marquee to Bottom marquee.
Name
Cross recessed pan
head screw set
Spec.
M6X12
Qty
4
Top marquee
Bottom marquee
