Quick Start Guide
MSO/UPO2000 Series Digital Phosphor Oscilloscope

Quick Start Guide MSO/UPO2000 Series
2 / 18
Instruments.uni-trend.com
Copyright Information
Uni-Trend Technology (China) Co., Ltd. All rights reserved.
Trademark Information
UNI-T is the registered trademark of Uni-Trend Technology (China) Co., Ltd.
Document Version
MSO/UPO200020220624-V1.00
Statement
UNI-T products are protected by patent rights in China and foreign countries, including issued and
pending patents.
UNI-T reserves the rights to any product specification and pricing changes.
UNI-T reserves all rights. Licensed software products are properties of Uni-Trend and its subsidiaries
or suppliers, which are protected by national copyright laws and international treaty provisions.
Information in this manual supersedes all previously published versions.

Quick Start Guide MSO/UPO2000 Series
3 / 18
Instruments.uni-trend.com
1. Safety Requirements
This section contains information and warnings that must be followed to keep the instrument operating
under safety conditions. In addition, user should also follow the common safety procedures.
Safety Precautions
Warning
Please follow the following guidelines to avoid possible electric shock and risk to
personal safety.
Users must follow the following conventional safety precautions in operation, service
and maintenance of this device. UNI-T will not be liable for any personal safety and
property loss caused by the user’s failure to follow the following safety precautions.
This device is designed for professional users and responsible organizations for
measurement purposes.
Do not use this device in any way not specified by the manufacturer. This device is
only for indoor use unless otherwise specified in the product manual.
Safety Statement
Warning
“Warning” indicates the presence of a hazard. It reminds users to pay attention to a
certain operation process, operation method or similar. Personal injury or death may
occur if the rules in the “Warning” statement are not properly executed or observed. Do
not proceed to the next step until you fully understand and meet the conditions stated
in the “Warning” statement.
Caution
“Caution” indicates the presence of a hazard. It reminds users to pay attention to a
certain operation process, operation method or similar. Product damage or loss of
important data may occur if the rules in the “Caution” statement are not properly
executed or observed. Do not proceed to the next step until you fully understand and
meet the conditions stated in the “Caution” statement.
Note
“Note” indicates important information. It reminds users to pay attention to
procedures, methods and conditions, etc. The contents of the “Note” should be
highlighted if necessary.
Safety Sign
Danger
It indicates possible danger of electric shock, which may cause
personal injury or death.
Warning
It indicates that you should be careful to avoid personal injury or
product damage.
Caution
It indicates possible danger, which may cause damage to this device or
other equipment if you fail to follow a certain procedure or condition. If
the “Caution” sign is present, all conditions must be met before you
proceed to operation.
Note
It indicates potential problems, which may cause failure of this device if
you fail to follow a certain procedure or condition. If the “Note” sign is

Quick Start Guide MSO/UPO2000 Series
4 / 18
Instruments.uni-trend.com
present, all conditions must be met before this device will function
properly.
AC
Alternating current of device. Please check the region’s voltage range.
DC
Direct current device. Please check the region’s voltage range.
Grounding
Frame and chassis grounding terminal
Grounding
Protective grounding terminal
Grounding
Measure grounding terminal
OFF
Main power off
ON
Main power on
Power
Supply
Standby power supply: when the power switch is turned off, this device
is not completely disconnected from the AC power supply.
CAT I
Secondary electrical circuit connected to wall sockets through transformers or
similar equipment, such as electronic instruments and electronic equipment;
electronic equipment with protective measures, and any high-voltage and low-
voltage circuits, such as the copier in the office
CAT II
CATII: Primary electrical circuit of the electrical equipment connected to the indoor
socket via the power cord, such as mobile tools, home appliances, etc. Household
appliances, portable tools (e.g. electric drill), household sockets, sockets more than
10 meters away from CAT III circuit or sockets more than 20 meters away from CAT IV
circuit
CAT III
Primary circuit of large equipment directly connected to the distribution board and
circuit between the distribution board and the socket (three-phase distributor circuit
includes a single commercial lighting circuit). Fixed equipment, such as multi-phase
motor and multi-phase fuse box; lighting equipment and lines inside large buildings;
machine tools and power distribution boards at industrial sites (workshops)
CAT IV
Three-phase public power unit and outdoor power supply line equipment. Equipment
designed to “initial connection”, such as power distribution system of power station,
power instrument, front-end overload protection, and any outdoor transmission line
Certificati
on
CE indicates a registered trademark of EU。
Certificati
on
UKCA indicates a registered trademark of UK.
Certificati
on
ETL indicates a registered trademark of Intertek.
Waste
This product complies with the marking requirements of WEEE Directive
(2002/96/EC). This additional label indicates that this electrical / electronic product
must not be discarded in household waste.
EFUP
This environment-friendly use period (EFUP) mark indicates that
dangerous or toxic substances will not leak or cause damage within this
indicated time period. The environment-friendly use period of this

Quick Start Guide MSO/UPO2000 Series
5 / 18
Instruments.uni-trend.com
product is 40 years, during which it can be used safely. Upon expiration
of this period, it should enter the recycling system.
Safety Requirements
Warning
Preparation before use
Please connect this device to AC power supply with the power cable
provided;
The AC input voltage of the line reaches the rated value of this device.
See the product manual for specific rated value.
The line voltage switch of this device matches the line voltage;
The line voltage of the line fuse of this device is correct.
Check all terminal rated values
Please check all rated values and marking instructions on the product
to avoid fire and impact of excessive current. Please consult the
product manual for detailed rated values before connection.
Use the power cord properly
You can only use the special power cord for the instrument approved by
the local and state standards. Please check whether the insulation layer
of the cord is damaged or the cord is exposed, and test whether the
cord is conductive. If the cord is damaged, please replace it before
using the instrument.
Instrument Grounding
To avoid electric shock, the grounding conductor must be connected to
the ground. This product is grounded through the grounding conductor
of the power supply. Please be sure to ground this product before it is
powered on.
AC power supply
Please use the AC power supply specified for this device. Please use
the power cord approved by your country and confirm that the
insulation layer is not damaged.
Electrostatic prevention
This device may be damaged by static electricity, so it should be tested
in the anti-static area if possible. Before the power cable is connected
to this device, the internal and external conductors should be grounded
briefly to release static electricity. The protection grade of this device
is 4KV for contact discharge and 8KV for air discharge.
Measurement accessories
Measurement accessories are of lower class, which are definitely not
applicable to main power supply measurement, CAT II, CAT III or CAT IV
circuit measurement.
Use the input / output port of
this device properly
Please use the input / output ports provided by this device in a properly
manner. Do not load any input signal at the output port of this device.
Do not load any signal that does not reach the rated value at the input
port of this device. The probe or other connection accessories should
be effectively grounded to avoid product damage or abnormal function.
Please refer to the product manual for the rated value of the input /
output port of this device.
Power fuse
Please use power fuse of specified specification. If the fuse needs to
be replaced, it must be replaced with another one that meets the
specified specifications (Class T, rated current 5A, rated voltage 250V)
by the maintenance personnel authorized by UNI-T.

Quick Start Guide MSO/UPO2000 Series
6 / 18
Instruments.uni-trend.com
Disassembly and cleaning
There are no components available to operators inside. Do not remove
the protective cover.
Maintenance must be carried out by qualified personnel.
Service environment
This device should be used indoors in a clean and dry environment with
ambient temperature from 0 ℃to 40 ℃.
Do not use this device in explosive, dusty or humid air.
Do not operate in humid
environment
Do not use this device in a humid environment to avoid the risk of
internal short circuit or electric shock.
Do not operate in flammable
and explosive environment
Do not use this device in a flammable and explosive environment to
avoid product damage or personal injury.
Caution
Abnormality
If this device may be faulty, please contact the authorized maintenance
personnel of UNI-T for testing. Any maintenance, adjustment or parts
replacement must be done by the relevant personnel of UNI-T.
Cooling
Do not block the ventilation holes at the side and back of this device;
Do not allow any external objects to enter this device via ventilation
holes;
Please ensure adequate ventilation, and leave a gap of at least 15 cm on
both sides, front and back of this device.
Safe transportation
Please transport this device safely to prevent it from sliding, which may
damage the buttons, knobs or interfaces on the instrument panel.
Proper ventilation
Poor ventilation will cause the device temperature to rise, thus causing
damage to this device. Please keep proper ventilation during use, and
regularly check the vents and fans.
Keep clean and dry
Please take actions to avoid dust or moisture in the air affecting the
performance of this device. Please keep the product surface clean and
dry.
Note
Calibration
The recommended calibration period is one year. Calibration should
only be carried out by qualified personnel.

Quick Start Guide MSO/UPO2000 Series
7 / 18
Instruments.uni-trend.com
2. Introduction of MSO/UPO2000 Series Digital Phosphor
Oscilloscope
MSO/UPO2000 Series digital phosphor oscilloscope includes four models
Model
Analog Channel
Analog bandwidth
LA
AWG
UPO2102
2
100MHz
○
×
UPO2104
4
100MHz
○
×
UPO2202
2
200MHz
○
×
UPO2204
4
200MHz
○
×
MSO2102
2
100MHz
●
×
MSO2104
4
100MHz
●
×
MSO2202
2
200MHz
●
×
MSO2404
4
200MHz
●
×
MSO2102-S
2
100MHz
●
●
MSO2104-S
4
100MHz
●
●
MSO2202-S
2
200MHz
●
●
MSO2204-S
4
200MHz
●
●
○：Optional ●：Standard ×：Not support

Quick Start Guide MSO/UPO2000 Series
8 / 18
Instruments.uni-trend.com
3. Getting Started Guide
This chapter introduces on using the oscilloscope for the first time, the front and rear panels, the user
interface, as well as the built-in help system.
3.1 General Inspection
It is recommended to inspect the instrument follow the steps below before using the MSO/UPO2000 series
for the first time.
(1) Check for Damages caused by Transport
If the packaging carton or the foam plastic cushions are severely damaged, please contact the UNI-T
distributor of this product immediately.
(2) Check Attachment
Please check appendix for the list of accessories. If any of the accessories are missing or damaged,
please contact UNI-T or local distributors of this product.
(3) Machine Inspection
If the instrument appears to be damaged, not working properly, or has failed the functionality test,
please contact UNI-T or local distributors of this product.
If the equipment is damaged due to shipping, please keep the packaging and notify both the transportation
department and UNI-T distributors, UNI-T will arrange maintenance or replacement.
3.2 Before Use
To perform a quick verification of the instrument's normal operations, please follow the steps below:
(1) Connect to the Power Supply
The power supply voltage range is from 100 VAC to 240 VAC, the frequency range is 45 Hz to 440 Hz.
Connect the oscilloscope to the power supply line that came with the oscilloscope or any power supply
line that meets the local country standards. Turn on the power button, which on the back of the
oscilloscope. The soft power button in the front of the oscilloscope should be on red.
(2) Boot Check
Press the soft power button and the light should change to green. The oscilloscope will show a
boot animation, and then enter the normal interface.
(3) Connect Probe
Use probe in the attachment and connect it BNC port to the channel 1 BNC port of the oscilloscope.
Connect the probe’s main alligator clip to the “Compensating signal port” and the ground clip is
connected to the “Ground terminal” shown below. The output of the compensating signal should be
amplitude 3 Vpp, default frequency is 1 kHz.

Quick Start Guide MSO/UPO2000 Series
9 / 18
Instruments.uni-trend.com
Figure 1 Compensating signal and Ground terminal
(4) Function Check
Press the AUTO key, a 3 Vpp 1 kHz square wave should appear. Repeat step 3 for all channels. If the output
is not a square wave with the above descriptions, please perform the probe compensation step in the
next section.
(5) Probe Compensation
When the probe is connected to any input channel for the first time, this step might be adjusted in order
to match the probe and the input channel. Probes that are not compensated may lead to measurement
errors or mistake. Please follow the following steps:
①Set the attenuation coefficient in the probe menu and the switch on the probe to 10x, and connect the
probe to CH1. Make sure the probe’s connector is properly connected with the oscilloscope. Connect the
probe’s main clip and ground clip to the oscilloscope’s compensating signal and ground terminal
respectively. Open CH1 and press the AUTO button.
②View the displayed waveform, as shown in Figure 2.
Excessive Compensation Correct Compensation Insufficient Compensation
Figure 2 Compensating Calibration of Probe
③If the displayed waveform is look like the above “Insufficient Compensation” or “Excessive
Compensation”, use a non-metallic screwdriver to adjust the probe’s variable capacitance until the
display matches the "Correct compensation" waveform.
Warning: To avoid electric shock when using the probe to measure high voltage, please ensure that the probe
insulation is in good condition and avoid physical contact with any metallic part of the probe.
Compensating signal terminal
Ground terminal

Quick Start Guide MSO/UPO2000 Series
10 / 18
Instruments.uni-trend.com
4. Front Panel
Figure 3 Front Panel
Table 1 Front Panel
No.
Description
No.
Description
1
Screen display area
12
Factory setting, LA, AWG, protocol
decoding
2
Multipurpose knob
13
Trigger control (TRIGGER)
3
Recording waveform
14
Horizontal control (HORIZONTAL)
4
Jog dial knob
15
Analog channel input port
5
Function menu
16
Vertical control (VERTICAL)
6
Numeric keypad
17
Menu control soft key
7
Automatic control key
18
USB HOST interface
8
Run/Stop control key
19
Power supply soft key
9
Single trigger control key
20
Digital channel input port
10
Clear all control key
21
HOME menu
11
Compensating signal connector and
ground terminal
7
8
9
10
15
20
12
13
14
16
17
11
18
19
1
5
6
4
2
3
21
○
21

Quick Start Guide MSO/UPO2000 Series
11 / 18
Instruments.uni-trend.com
5. Rear Panel
Figure 4 Rear Panel
Table 2 Rear Panel
No.
Description
No.
Description
1
EXT Trig port
5
LAN
2
AUX Out and arbitrary waveform signal
output
6
AC Power Input Socket
3
VIDEO Out
7
Power Switch
4
USB Device port
8
Safety Lock
1
2
3
4
5
6
7
8

Quick Start Guide MSO/UPO2000 Series
12 / 18
Instruments.uni-trend.com
6. User Interface
Figure 5 User Interface
Table 3 User Interface
No.
Description
No.
Description
1
Trigger status identification
9
System time
2
Time base scale
10
USB DEVICE icon
3
Sampling rate/storage depth
11
CH4 state icon
4
Waveform indicator
12
CH3 state icon
5
Waveform trigger position
13
CH2 state icon
6
Horizontal displacement
14
CH1 state icon
7
Trigger status
15
HOME menu
8
Operation menu
16
Analog channel icon and waveform
15
16
8
10
14
9
7
6
1
2
3
13
12
11
4
5

Quick Start Guide MSO/UPO2000 Series
13 / 18
Instruments.uni-trend.com
7. Touch Screen
MSO2000CS+ series provides 8 inch super capacitive touch screen, multiple point touch control and gesture
control. MSO200CS+ has easily operating system with flexible and high sensitive touch screen features for
great waveform display and excellent user experience. Touch control function includes tap, squeeze, drag
and drawing rectangle.
Hint: The menu displayed on the screen of the oscilloscope can use the touch control function.
7.1 Tap
Use one finger to slightly tap icon or word on the screen as shown in Figure 7. Tap can use for:
Tap menu displayed on the screen and then to setup.
Tap the function guide icon on the left corner of the screen to enable it.
Tap to pop out numeric keypad to set parameter.
Tap virtual keyboard to set label and file name.
Tap message to pop out close button on the right corner to close it.
Tap other window displayed on the screen to setup
Figure 7 Touch Gesture
7.2 Squeeze
Squeeze two fingers together or separate. Squeeze gesture can zoom out or zoom in the waveform. If the
waveform need to zoom out, squeeze two finger together and then slide away; If the waveform need to zoom
out, separate two fingers and then squeeze two fingers together as shown in Figure 8. Squeeze gesture can
use for:
Adjusting horizontal time base of waveform on the horizontal direction.
Adjusting vertical scale of waveform on the vertical direction.
Figure 8 Squeeze Gesture

Quick Start Guide MSO/UPO2000 Series
14 / 18
Instruments.uni-trend.com
7.3 Drag
Use one finger to press and drag the selected item to the aimed position as shown in Figure 9. Drag gesture
can use for:
Drag waveform to change waveform displacement or offset.
Drag window control to change window position (such as numeric keyboard).
Drag cursor to change cursor position.
Figure 9 Drag Gesture
7.4 Drawing Rectangle
Open function guide and tap drawing rectangle icon to switch drawing rectangle mode. Drag finger on the
screen to drawing rectangle as shownin Figure 10(a), 10(b). Move fingeraway from the screen, menu displayed
on the screen, tap to select “Area A enable”, “Area B enable”, “Intersection”, “Non-intersecting”, “Source”. Drag
finger on the screen form bottom right up to top left to drawing the trigger area.
(a) (b)
Figure 10 Drawing Rectangle Gesture
Select “Area A”:
Drawing the area of trigger area A;
Open trigger area A;
Open “trigger area” menu.
Select “Area B”:
Drawing the area of trigger area B;
Open trigger area B;

Quick Start Guide MSO/UPO2000 Series
15 / 18
Instruments.uni-trend.com
Open “trigger area” menu.
Hints: Press “drawing rectangle” icon to switch drawing rectangle and operating waveform mode. Press
“drawing rectangle” icon, if icon displays , which presents the drawing rectangle mode is opened; press
“drawing rectangle” icon, if icon displays , which presents the operating waveform mode is opened.
Operating waveform mode of the oscilloscope is enabled by default.
7.5 Touch Shortcut Operating
Separate two fingers and meanwhile slide two fingers to one direction, this gesture can quickly turn on/off
time measurement and voltage measurement cursor.
a. Time measurement cursor
Slide down in vertical to directly turn on time measurement cursor as shown in Figure 11 (a);
Slide up in vertical to directly turn off time measurement cursor;
b. Voltage measurement cursor
Slide right in horizontal to directly turn on voltage measurement cursor as shown in Figure 11 (b);
Slide left in horizontal to directly turn off voltage measurement cursor;
Note: Turn on/off cursor requires that slide distance should be ＞3div.
(a) (b)
Figure 11

Quick Start Guide MSO/UPO2000 Series
16 / 18
Instruments.uni-trend.com
8. Operation Menu
Press any soft key to activate the corresponding menu; the following icon may be displayed on the menu.
This symbol represents that multipurpose knob on the front panel can be used to select
and adjust parameter.
This symbol represents that there are several options.
This symbol represents that there has next menu.
This symbol represents that the menu has two options.
This symbol represents that multipurpose knob and jog dial on the front panel can be used
to adjust parameter.
This symbolrepresentsthat numeric keypad on the front panel or touchto pop out numeric
keyboard to input content.
This symbol represents that the current page can be flipped up or down.
Circle numbers represents the total pages of menu. Single page has no circle display, two
pages or more have circle display. Use
key to turn page.
9. Remote Control
MSO/UPO2000 series digital phosphor oscilloscope communicates with the computer through USB
interface and LAN interface to achieve remote control. Remote control is implemented based on the SCPI
(Standard Commands for Programmable Instruments) command set.
MSO/UPO2000 series digital phosphor oscilloscope supports three remote control modes:
a. User-defined programming
b. Use PC software (instrument manager)
c. Web Control

Quick Start Guide MSO/UPO2000 Series
17 / 18
Instruments.uni-trend.com
10. Troubleshooting
(1) When press the button, the oscilloscope is blank screen.
a. Check whether the power is correctly connected, power supply is normal or not.
b. Check whether the power switch is really turned on. The soft power switch button should light in
green when the instrument is normal boot. And it should have relay sound.
c. If there is a relay sound, it indicates that the oscilloscope starts normally.
Try the following steps: press the DEFAULT key, then press F1, if device returns to normal, it means
backlight brightness is set too low.
d. After completing the above steps, restart the oscilloscope.
e. If the instrument still cannot work, please contact UNI-T.
(2) After signal acquisition, signal of waveform does not appear on the screen.
a. Check whether BNC port is connected properly.
b. Check whether the signal output channel has turned on.
c. Check whether the input signal channel has turned on.
d. Check whether has DC displacement in signal of information source.
e. Plug out the input signal, check whether the baseline is in the screen range (if not, please perform
auto-calibration.)
f. If the instrument still cannot work, please contact UNI-T.
(3) The measured voltage amplitude value is 10 times larger or smaller than the actual value: Check the
channel probe attenuation coefficient setting is consistent with the used probe attenuation rate.
(4) There is a waveform display but not stable
a. Check the trigger source in the trigger menu and confirm that it matches the input channel of the
actual signal.
b. Check the trigger type: general signal should use “Edge” trigger. The waveform can display stably
only the proper trigger type is used.
c. Change the trigger coupling setting to high-frequency or low-frequency reject, in order to filter out
the high-frequency or low-frequency noise that interferes with the trigger.
(5) No display after pressing Run/Stop button
a. Check whether the mode at the trigger panel (TRIGGER) is on “Normal” or “Single” and whether the
trigger level exceeds the waveform range.
b. If it exceeds，set the trigger level to the middle or set the trigger mode to Auto.
c. Press AUTO button could automatically finish the above setting.
(6) Waveform refresh is very slow:
a. Check whether the acquisition method is average and the average times are large.
b. Check whether the storage depth is the maximum.
c. Check whether the trigger release time is large.
d. Check whether the trigger is normal and the current time base is slow.
e. All the preceding causes slow refreshing of waveforms. Users can restore the factory settings so
that the waveforms can be refreshed normally.

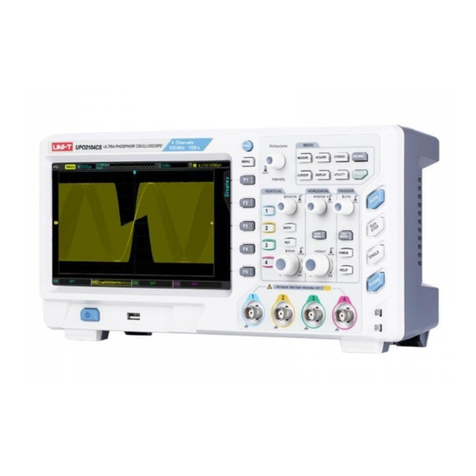

Quick Start Guide MSO/UPO2000 Series
18 / 18
Instruments.uni-trend.com
11. Appendix Contact Us
If the use of this product has caused any inconvenience, if you in mainland China, you can contact UNI-T
company directly.
Service support: 8am to 5.30pm (UTC+8), Monday to Friday or via email. Our email address is infosh@uni-
trend.com.cn
For product support outside mainland China, please contact your local UNI-T distributor or sales center.
Many UNI-T products have the option of extending the warranty and calibration period, please contact your
local UNI-T dealer or sales center.
To obtain the address list of our service centers, please visit our website at URL: http://www.uni-
trend.com
