USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it
should be taken to a specialized company for recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If
the device was damaged in transit, don't install or use it and contact your dealer.
Package contents
•Control panel
•Power adapter
•Ni-Mh rechargeable battery
Optional
•PIR motion sensor (order code CTC1000PIR)
•door contact (order code CTC1000DS)
•remote keypad (order code CTC1000KP)
•remote control (order code CTC1000RC)
•water sensor (order code CTC1000WS)
•external bell box (order code CTC1000SO)
•wireless siren (order code CTC1000SI)
2. Safety Instructions
Keep the device away from children and unauthorised users.
Indoor use only.
Keep this device away from rain, moisture, splashing and dripping liquids.
Remove power before opening the cover. Be very careful, touching live
wires can cause life-threatening electroshocks.
•Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the
dealer will not accept responsibility for any ensuing defects or problems.
•Keep the device away from splashing and dripping liquids.
•Note that damage caused by user modifications to the device is not covered by the warranty.
•This system can provide valuable protection for your home and property if used properly. However, it
cannot guarantee complete protection against burglary or robbery. Therefore, VELLEMAN nv will not be
responsible for any losses or damages which occur during the use of this product.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
•Have the system installed by a qualified installer.
•Respect the legislation in your region when installing an alarm system. If necessary, refer to local
authorities.
•Protect this device from shocks and abuse. Avoid brute force when operating the device.
•Protected the device against extreme heat, dust and moisture.

CTC1000
V. 04 – 11/02/2016 4 ©Velleman nv
•Familiarise yourself with the functions of the device before actually using it.
•All modifications of the device are forbidden for safety reasons.
•The device does not contain any user-serviceable parts except for the battery.
•Only use the device for its intended purpose. Using the device in an unauthorised way will void the
warranty.
4. Features
•30-zone full featured wireless control panel with built-in GSM dialler
•SMS messages
•4 fixed alarm messages for burglar, emergency, fire, and medical alarms
•listen-in feature allows the call recipient to listen in to what is happening on your side
•SMS editing: 14 characters x 4 lines = 56 characters in total
•remote command and access to the system from anywhere via SMS
•16 x 2 characters backlit full text LCD display
•each of the 30 zones can be individually named/edited by the user for quick recognition of designated areas
•built-in transmitter to activate outdoor bell box or wireless siren
•"home" arming option offers full protection while you are at home, yet allows you to move freely inside
without triggering the alarm
•full supervision to ensure problem-free operation
•door open/close monitoring before system arming adds extra security
•error detection and display
•tamper detection protects the unit from unauthorized opening or removal from its mounting surface
5. Overview
Refer to the illustrations on page 2 of this manual.
1
display
2
keypad
3
buzzer
4
yellow LED
- on: an error is detected
- off: no errors, the control panel is in normal mode
5
microphone
6
green LED
- on: AC power is on
- off: AC power failure
7
letters and digits
8
#: used to enter Program mode
9
OK: confirms data or selection
10
Cancel: used in Program mode: cancels a selection, returns to a previous screen...
11
up and down arrows: used in Program mode: moves the cursor up and down to select an item
12
2 mounting holes and tamper
13
DC jack
14
battery switch
15
SIM card compartment
6. Installation
6.1 SIM card (optional)
You can insert a SIM card in the control panel to send alarm reports to your mobile phone (up to six numbers).

CTC1000
V. 04 – 11/02/2016 5 ©Velleman nv
Before you start
•Before inserting the SIM card in the control panel and mounting it, it is recommended to test the country
code format used by your mobile phone provider. See section Country Code in chapter 10.
•Use your phone to remove the pin code from the SIM card.
Inserting a SIM card
The SIM card holder is located at the back of the device.
To insert your SIM card:
1. Unscrew the SIM card compartment.
2. Slide the holder to the right to open it (see the OPEN mark on the holder).
3. Open the holder and insert your SIM card.
4. Slide the holder to the left to close it (see the CLOSE mark on the holder).
5. Close the compartment using the screw.
6.2 Power supply
Use the included AC power adapter to connect the control panel to a wall outlet.
Be sure only to use an adapter with the appropriate AC voltage rating to prevent component damage (see
Technical Specifications below for details).
Rechargeable battery
•A rechargeable battery (included, see Technical Specifications below for details) inside the control panel
serves as a backup in case of power failure.
•During normal operation, the AC power adapter is used to supply power to the control panel and at the
same time recharge the battery.
•When the battery is fully charged, it can provide back-up power for at least 8 hours. It takes approximately
48 hours to fully charge the battery.
WARNING
•Do not puncture or throw batteries in fire as they might explode.
•Keep batteries away from children.
Backlit display
The device has a backlit LCD display for easy operation in the dark. However, when AC power is missing and for
the reason of conservation of rechargeable battery, Backlit feature will be disabled until the AC power is
supplied again.
6.3 Mounting the control panel
Find a suitable location: requirements
Take the following requirements into account when choosing a suitable location for the control panel.
•The control panel requires mains power.
•The control panel should be easily accessible.
•Do not install the control panel in a damp place (bathroom...)
•Do not install the control panel close to a heat source.
•Do not install the control panel alongside other radio transmitting devices such as mobile phones, cordless
phone or wireless computer network (Wi-Fi) devices.
Mounting the control panel
The control panel can be mounted on the wall or wherever desired. Make sure the control panel is fitted at
approximately chest height where the display can be easily seen and the keypad convenient to operate.
1. Use the 2 holes of the wall bracket to mark off the holes’ positions.
2. Drill 2 holes and insert the wall plugs if fixing into plaster or brick.
3. Screw the base to the wall
4. Insert the power supply in the power jack before attaching the panel to the wall.
5. Hook the control panel onto the wall bracket (holding the unit with the front facing you).
6.4 Two level passwords
In order to provide highest security in operating the system, the control panel has 2 levels of authorization.
When you want to program the system, you have to enter your pin code as well as a master code.

CTC1000
V. 04 – 11/02/2016 6 ©Velleman nv
When the control panel asks you to key in ENTER CODE or P-CODE, please enter your user pin code.
When the display panel asks you to key in M-CODE, please enter your master code.
•For details about the pin code, see section 7.4 Pin code.
•For details about the master code, see section 7.7 Master Code.
6.5 First use
Assuming you have found a suitable location:
1. Apply the AC power to the control panel. You will hear a long beep. Alarm On will be displayed on the first
line and 00:01 01 Jan displayed on the second line of the screen indicating the system is in Away Mode
(this is the default Mode)
2. Press button 1 on the keypad.
3. Key in the pin code for user 1 (default code is 1234) within 30 seconds.
You can press to clear the code.
4. Press the OK key (within 30 seconds).
You will hear 2 short beeps and the display will show:
The system is now in alarm off mode.
5. Wait for 2 to 3 minutes for the system to read it status. If the yellow LED turns on, it indicates that there is
an error. Refer to section 14 for details.
Notes
•The control panel has a screen saver function.
The Alarm off message will be displayed for 180 seconds. After that, the display shows only current date
and time.
7. Configuration
To enter Program mode:
1. Make sure the alarm is off (see section 11.4).
2. Press the # key. The display shows:
3. Within 30 seconds, key in 1234 (default User1 pin code) and press OK.
The display shows:
4. Within 30 seconds, enter 1111 (default Master Code) and press OK.
For 2 seconds, the display shows:
5. Then the program menu will be displayed:
It is highly recommended to change the User 1 pin code and the master code on first use.
Cursor
•The cursor is indicated by a flashing dot in the left upper corner.
•Use the keys and to move the cursor.
•Press OK to confirm.

CTC1000
V. 04 – 11/02/2016 7 ©Velleman nv
The Program menu contains the following items:
Notes
•A down arrow V indicates that the list can be scrolled down. The arrow disappears when you reach the
bottom of the list.
•An up arrow Λindicates that the list can be scrolled up. The arrow disappears when you reach the top of
the list.
•Press Cancel to return to the Alarm Off display.
•In Program mode, if no key is pressed within 5 minutes, the control panel will automatically return to alarm
off mode.
7.2 Tel. Setting
In the Tel. Setting menu, you can add, change or delete the mobile phone numbers.
The control panel will use these numbers to report events.
You can add up to 6 numbers.
Notes
•The display only shows the first 11 digits of a number.
•The numbers are listed in order of priority. The system will connect to the phone numbers in that order. If
the control panel fails to connect to the first number, it will try the next one on the list.
To add a phone number
1. Enter Program mode and select Tel. Settings from the menu.
The display lists the phone numbers. This list is empty on first use.
2. Use the arrow keys to select the letter to which you want to assign a number (A to F) and press OK.
3. Key in the phone number and press OK.
oThe number can contain up to 20 digits and characters * & #.
oWhen entering a number, the key acts as backspace.
To change a phone number
1. Enter Program mode and select Tel. Settings from the menu.
The display lists the phone numbers.

CTC1000
V. 04 – 11/02/2016 8 ©Velleman nv
2. Use the arrow keys to select the number you want to change and press OK.
This will clear the phone number.
3. Key in the phone number and press OK.
oThe number can contain up to 20 digits and characters * & #.
oWhen entering a number, the key acts as backspace.
To delete a phone number
1. Enter Program mode and select Tel. Settings from the menu.
The display lists the phone numbers.
2. Use the arrow keys to select the number you want to delete and press OK.
3. Press OK again.
The number is deleted.
7.3 General settings
To access the menu item: enter Program mode and select Gen. Settings from the menu.
The menu items are
7.4 Pin code
Use
•Required to arm and disarm the alarm system.
•Required to access Program mode (together with the master code).
Default value
•User 1: 1234
•User 2 to 4: not set
Properties
•4 digits
•Mandatory
•The code for user 1 cannot be deleted.
•Will be reset to default when resetting the system (see chapter System reset)
•The pin code needs to be different from the master code
To set a pin code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Pin code and press OK.

CTC1000
V. 04 – 11/02/2016 9 ©Velleman nv
2. Use the arrow keys to select the code number you want to set and press OK.
3. Key in a 4 digit code and press OK.
4. Repeat the code and press OK.
5. (optional) Enter a name for the code.
oThis name will be displayed in the list of pin codes and helps you identify the code.
oFor information about entering text, see section 17 Entering text.
oIf you do not want to use a name, leave this field blank.
6. Press OK.
Notes
In the list of codes:
•a pin code with no name will be displayed as ****
•a pin code not yet defined will be displayed as ••••
To change a pin code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Pin code and press OK.
2. Use the arrow keys to select the code you want to change and press OK.
3. Press .
4. Refer to topic To set a pin code above.
To delete a pin code
Pin code 1 cannot be deleted. To delete another code:
1. To access the menu item: enter Program mode, go to Gen. Settings, select Pin code and press OK.

CTC1000
V. 04 – 11/02/2016 10 ©Velleman nv
2. Use the arrow keys to select the code you want to delete and press OK.
3. Press OK again.
7.5 Temp. Code
Use
•Used to arm or disarm the alarm system for a temporary user
•Valid only once for turning the alarm on or off.
•Once used, the code is automatically erased and needs to be reset if necessary
Default value
•Not set
Properties
•4 digits
•Optional
•Will be cleared when resetting the system (see chapter System reset)
To set a temporary code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Temp. Code and press OK.
2. Key in a 4 digit code and press OK.
3. Repeat the code and press OK.
4. Set the option Latch Rpt. (latch key reporting) to on or off.
oThis option is only visible if the Latch Option is set to ON in the Special Settings.
See section Latch Option in chapter 8 Special Settings for detailed information.
5. Press OK.
To change a temporary code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Temp. code and press OK.
2. Press .
3. Refer to topic To set a temporary code above.
To delete a temporary code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Temp. code and press OK.

CTC1000
V. 04 – 11/02/2016 11 ©Velleman nv
2. Press OK again.
7.6 Duress Code
Use
•Can be used to arm or disarm the alarm system.
•Ente
ring the code when under duress from an assailant triggers a silent alarm and
sends a secret message to the programmed mobile phones.
•No siren will sound for duress alarm.
Default value
•Not set
Properties
•4 digits
•Optional
•Will be cleared when resetting the system (see chapter System reset)
To set a duress code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Duress Code and press OK.
2. Key in a 4 digit code and press OK.
3. Repeat the code and press OK.
To change a duress code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Duress Code and press OK.
2. Press .
3. Key in a 4 digit code and press OK.
4. Repeat the code and press OK.
To delete a duress code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Duress Code and press OK.
2. Press OK again.
7.7 Master Code
Use
•Required together with the pin code to enter the device’s Program mode.
Default value
•1111
Properties
•4 digits
•Mandatory
•Cannot be deleted
•Will be reset to default when resetting the system (see chapter System reset)
•The master code needs to be different from the pin codes

CTC1000
V. 04 – 11/02/2016 12 ©Velleman nv
To set a master code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Master Code and press OK.
2. Key in a 4 digit code and press OK.
3. Repeat the code and press OK.
To change a master code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Master Code and press OK.
2. Press .
3. Key in a 4 digit code and press OK.
4. Repeat the code and press OK.
To delete a master code
1. To access the menu item: enter Program mode, go to Gen. Settings, select Master Code and press OK.
2. Press OK again.

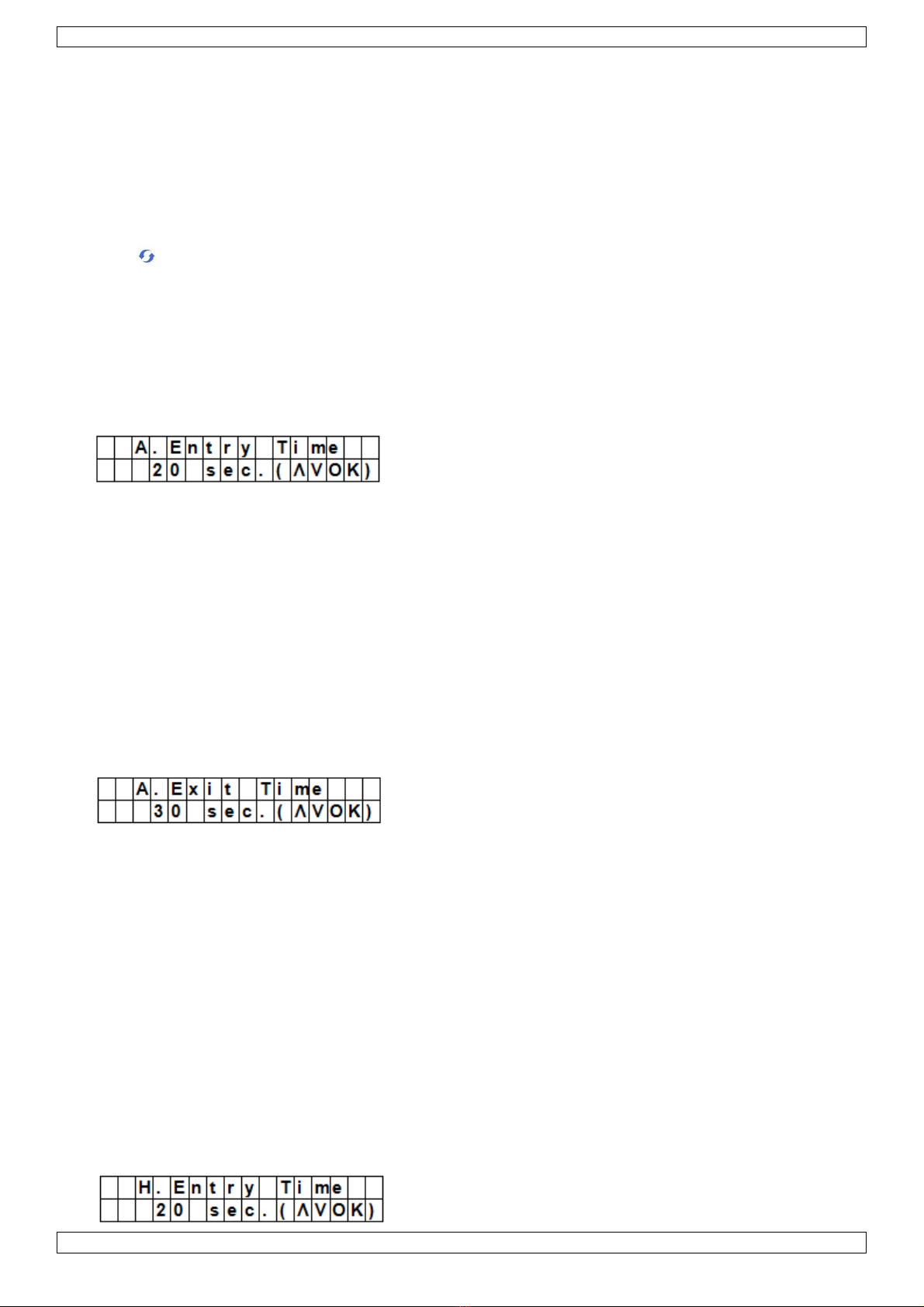

7.8 A. Entry Time
The option A. Entry Time (away entry time) sets the countdown time you have to provide a pin code after
entering the house.
Preconditions:
•Alarm status: away
•Detection devices involved: door contact or PIR sensor set as Entry or Away Entry (see section 9.3).
•Action: the countdown starts when the door contact or PIR sensor is triggered.
•If the pin code has not been given within the time set, the control panel will raise an alarm and send a
report.
•Available timer options: Disable (alarm will be raised without any delay) and delays from 10 to 70 seconds.
•Factory default is 20 seconds.
•To access this menu item: enter Program mode, go to Gen. Settings, select A. Entry Time and press OK.
7.9 A. Exit Time
The option A. Exit Time (away exit time) sets the countdown time you have to leave the house when the alarm
has been set to away by the control panel, a remote control or a remote keypad.
Preconditions:
•Alarm status: set to away by the control panel, a remote control or a remote keypad
•Action: the countdown starts when the alarm is set to away by the control panel, a remote control or a
remote keypad.
•Available timer options: Disable (no exit timer will be set) and delays from 10 to 70 seconds.
•Factory default is 30 seconds.
•To access this menu item: enter Program mode, go to Gen. Settings, select A. Exit Time and press OK.
Notes
•Pressing the Arm button on the remote control will restart the countdown timer.
•Pressing the Disarm button on the remote control will stop the counter and disarm the alarm.
•Entering a pin code on the control panel will stop the counter and disarm the alarm.
7.10 H. Entry Time

CTC1000
V. 04 – 11/02/2016 13 ©Velleman nv
The option H. Entry Time (home entry time) sets the countdown time you have to enter the house when the
system is set in Home mode.
Preconditions:
•Alarm status: home mode
•Detection devices involved: door contact or PIR sensor set as Entry or Home Access (see section 9.3).
•Action: the countdown starts when the door contact or PIR sensor is triggered.
•If the pin code has not been given within the time set, the control panel will raise an alarm and send a
report.
•Available timer options: Disable (alarm will be raised without any delay) and delays from 10 to 70 seconds.
•Factory default is 20 seconds.
•To access this menu item: enter Program mode, go to Gen. Settings, select H. Entry Time and press OK.
7.11 H. Exit Time
The option H. Exit Time (home exit time) sets the countdown time you have to leave the house when the
system is set in Home mode.
Preconditions:
•Alarm status: set to away by the control panel, remote control or remote keypad
•Action: the countdown starts when the alarm is set to away by the control panel, a remote control or a
remote keypad.
•Available timer options: Disable (no exit timer will be set) and delays from 10 to 70 seconds.
•Factory default is 30 seconds.
•To access this menu item: enter Program mode, go to Gen. Settings, select H. Exit Time and press OK.
Notes
•Pressing the Home button on the remote control will restart the countdown timer.
•Pressing the Disarm button on the remote control will stop the counter and disarm the alarm.
•Entering a pin code on the control panel will stop the counter and disarm the alarm.
7.12 Door Chime
The option Door Chime sets the door chime on or off while a door contact or PIR sensor is activated in alarm off
mode.
Preconditions:
•Alarm status: off
•Detection devices involved: door contact or PIR sensor set as Entry or Away Entry (see section 9.3).
•Action: The control panel sounds a door chime while the door contact or PIR sensor is activated in alarm off
mode.
•Factory default is off.
•To access this menu item: enter Program mode, go to Gen. Settings, select Door Chime and press OK.
7.13 Time
The option Time allows setting the current time.
1. To access this menu item: enter Program mode, go to Gen. Settings, select Time and press OK.
2. Use the up and down arrows to set the hours and press OK.
3. Use the up and down arrows to set the minutes and press OK.

CTC1000
V. 04 – 11/02/2016 14 ©Velleman nv

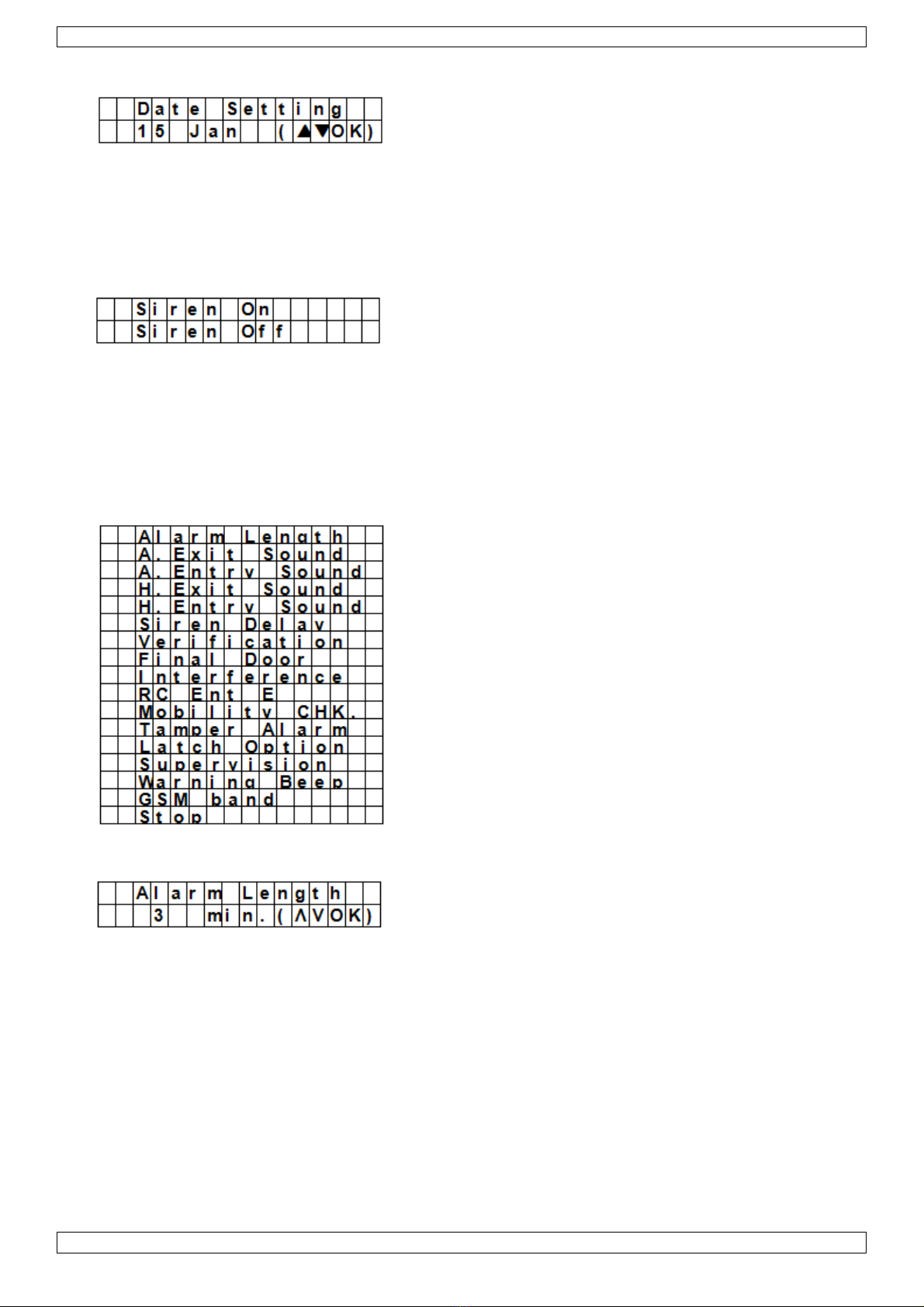

7.14 Date
The option Date allows setting the current date.
1. To access this menu item: enter Program mode, go to Gen. Settings, select Date and press OK.
2. Use the up and down arrows to set the month and press OK.
3. Use the up and down arrows to set the day and press OK.
7.15 Panel Siren
The option Panel Siren allows setting the siren on the control panel to on or off when an alarm event occurs.
1. To access this menu item: enter Program mode, go to Gen. Settings, select Panel Siren and press OK.
2. Use the up and down arrows to select the option and press OK.
8. Special Settings
To access the items from the Spc. Settings menu:
Enter Program mode and go to Spc. Settings.
Alarm Length
Sets the length of the built-in siren when an alarm is activated.
Available options are: Disable (no alarm will be set) and 1 to 15 minutes.
System default is 3 minutes.
Notes
•If Disable is selected, when the control panel receives an alarm signal, the panel siren and internal &
external sirens will not raise an alarm sound.
•If the outdoor siren alarm length is longer than the control panel’s, the system gives priority to the control
panel. (for example when the siren’s alarm length is set to 3 minutes and the panel’s alarm length is set to
1 minute, both alarm siren stop at 1 minute; however, the outdoor siren’s LED keeps flashing for 3
minutes.

CTC1000
V. 04 – 11/02/2016 15 ©Velleman nv
A. Exit Sound
(=away exit sound)
Sets the countdown beeper sounds on or off for the away exit timer.
A. Entry Sound
(=away entry sound)
Sets the countdown beeper sounds on or off for the away entry timer.
H. Exit Sound
(=home exit sound)
Sets the beeper sounds on or off when leaving the house in Home mode.
H. Entry Sound
(=home entry sound)
Sets the beeper sounds on or off when entering the house in Home mode.
Siren Delay
Sets how long the control panel should delay or suppress audible signals for burglar or entry alarms.
Available options are: Off (no sound) and 1 to 10 minutes.
System default is set to off.
Notes
•The Siren Delay option only applies to burglar or entry alarms. Other alarms will not be delayed:
oFire alarm
oWater alarm
oPersonal panic alarm
oMedical emergency
oTamper alarm
oGSM failure
•The alarm reporting will be sent immediately, even if the audible alarm is delayed.

CTC1000
V. 04 – 11/02/2016 16 ©Velleman nv
Verification
Sets the verification sequence for the alarms.
Sequential verification on
•If sequential verification is set to On and
•If there is more than one sensor (door contacts or PIR) with attribute set to Burglar:
oIf the first sensor is triggered, the control panel will send an SMS with burglar.
oIf the second sensor is triggered within 30 minutes, the control panel will send an SMS with Alarm
confirm.
Sequential verification off
•If sequential verification is set to Off, the control panel will only send an SMS with Burglar.
Final Door
•If the Final Door option is set to on and
•If the alarm system is set to away arming and
•a door contact is set as Entry device
The system will automatically full arm once the door contact is detected as closed, even if the countdown period
is not yet finished.
Interference
Allows setting whether the control panel should detect signal jamming or not.
•When Detection is set to On, whenever the signal jamming period lasted longer than 30 seconds, this error
will be logged, reported to the Central Monitoring Station and displayed on the LCD to warn the user.
•When the Detection Off is selected, control panel will not check interference status.
RC Ent E (= remote controller entry enabled)
This feature is used to prevent the alarm from being turned off with a remote control without unlocking a door
first, for example if the remote has been stolen.
•To access the function:
you need to first activate and entry point device to be able to disarm the alarm system.
•If the remote controller entry is set to On:
a remote control can disarm the alarm system without unlocking a door first.
Mobility
This option disables or enables the Mobility Timer and sets a countdown period. Options available are Disable, 4
hours, 8 hours and 12 hours.
If the Mobility Timer is enabled, it will count down the pre-programmed time length. When the timer times out
without being reset, a report will be made to the Programmed phone numbers.

CTC1000
V. 04 – 11/02/2016 17 ©Velleman nv
•When the Mobility timer is set with a specified timer, the control panel will report to the Programmed phone
numbers when the timer runs out unless one of the following actions occurred in advance to reset the
timer:
oIn Home mode: whenever any Home Omit DC, IR is triggered, or whenever any of the keys of the
control panel is pressed;
oIn Disarm mode: whenever any of the DC or IR (except 24 Hr, Fire, Medical Emergency and Water) is
triggered, or whenever any of the keys of the control panel is pressed.
•When the system is set to Away Arm, the timer automatically stops. When the system enters Home Arm or
Disarm mode, the timer automatically starts again.
Tamper Alarm
Allows setting when the siren will sound when the system is being tampered with.
Option
Function
Away Arm Only
•The control panel will only raise a local alarm and send a report to the
monitoring centre when in Away mode.
•If the alarm is in Home or Alarm off modes, the control panel will send
a report but the siren will not sound.
Normal
•The control panel will raise a local alarm and send a report to the
monitoring centre in all modes.
Notes
•Regardless of the siren setting, the panel will report the tamper alarm
by SMS to the first telephone number in all modes.
•
When tamper is restored, the panel also will report the tamper restore
event by SMS to the first telephone number.
Latch Option
The Latch Option logs the arming/disarming actions from all users done on the control panel and remote
control.
Notes
•If the Latchkey Reporting feature is set to Off, the feature will be
hidden from the program menu (see section 7.5 Temp. Code).
•If the Latchkey Reporting feature is set to On, all arming/disarming
actions of all users and the RCs will by default be reported to the
Central Monitoring Station.
•For receiving the SMS-report, set the first telephone number as SMS
report.
Supervision
This option is used to enable system supervision function. When this option is set to ON, the control panel will
be able to receive check-in signals from its devices to indicate their proper functioning.
Options are: Disable, 8 Hours, 12Hours, and 24Hours.
Warning Beep

CTC1000
V. 04 – 11/02/2016 18 ©Velleman nv
•Sets the beep to on or off when the control panel displays an error message.
•The warning beep will disappear when the error message has been read.
GSM band
Depending on service provider’s network settings, you will need to adjust the GSM band setting accordingly.
Check with our local telecom service provider for the appropriate setting.
Stop
Select Stop and press OK key to save your settings and return to the previous menu.
9. Managing devices
The menu Devices+/- allows managing (add, configure, change, remove) devices like door contacts, PIR
sensors, sirens, etc. in up to 30 zones.
Order of installation
Indoor and outdoor sirens and universal receivers are considered auxiliary devices by the system. Before
adding one of these auxiliary devices, you need to add at least one other device first (a door contact, PIR
detector or remote control).
9.2 Add a device
To access the function:
1. Enter Program mode, go to Devices+/-, select Add device and press OK.
2. Press the test button on the device you want to add.
3. If the control panel detects the device, it will show the device type:
The possible devices are:
•Door Contact
•PIR Sensor
•External PIR Sensor
•Remote Controller
•Remote Keypad
•Water Sensor
•Outdoor Siren
•Universal Receiver
4. Press OK to confirm.

CTC1000
V. 04 – 11/02/2016 19 ©Velleman nv
The control panel then displays the unused defense zones (up to 30).
5. Use the arrow keys to select the zone number to which you want to assign the device and press OK.
The procedure will now vary depending on the type of device you want to add.
6. Select Stop and press OK key to save your settings and return to the previous menu.
Notes
•If you are trying to add a sensor that has already been added, an error message will appear.
•To add this device anyway, you will need to remove it first (see section 9.5 Remove a device).
•Pressing the key cancels the procedure.
•Depending on the type of device you want to add, different screens will then be displayed accordingly for
further configuration purpose.
To add a door contact
1. Use the up and down arrows to select a working mode and press OK.
For details about the available working modes, see section 9.3.
2. Provide a zone name.
If you do not want to use a name, leave this field blank.
3. Press OK to confirm installation.

CTC1000
V. 04 – 11/02/2016 20 ©Velleman nv
4. Press OK again to finish.
To add a PIR sensor
Assuming you have assigned a zone number (see section 9.2):
1. Use the up and down arrows to select a working mode and press OK.
For details about the available working modes, see section 9.3.
2. Provide a zone name.
If you do not want to use a name, leave this field blank.
3. Press OK to confirm installation.
4. Press OK again to finish.
To add an external PIR Sensor
Assuming you have assigned a zone number (see section 9.2):
1. Use the up and down arrows to select a PIR type and press OK.
oRegular: device will be added as an ordinary PIR
oExternal: device will be added as an external PIR.
2. Use the up and down arrows to select a working mode and press OK.
For details about the available working modes, see section 9.3.
3. Provide a zone name.
If you do not want to use a name, leave this field blank.
For information about entering text, see section 17.
4. Press OK to confirm installation.
5. Press OK again to finish.
To add a remote control
Assuming you have assigned a zone number (see section 9.2):
