Towbar, wiring, 13-pin
Instruction No Version Part. No.
31346062 1.2 31346058, 31414907
Towbar, wiring, 13-pin
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 1 / 22

Equipment
IMG-345497 IMG-300203 IMG-239664
IMG-273338
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 2 / 22

INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Applies to the S40 (04–) and V50
1
IMG-332193
Applies to the S40 (04–) and V50
Turn the ignition key to position 0.
Note!
Wait at least three minutes before unplugging the connectors
or removing other electrical equipment.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 3 / 22

2
IMG-346192
Remove the four screws for the bumper. The screws are
underneath the bumper and on the sides at the bottom of the
boot lid opening.
3
J8601058
Remove the five screws (1) holding the bumper cover at the rear
edge of the wing liner in the rear wheel arch. Repeat on the
other side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 4 / 22

4
J8504526
Remove the end of the bumper cover. Grasp the bumper cover
inside the wing liner. Pull carefully until the six catches at the top
edge release. Repeat on the other side.
5
J8504527
Remove the bumper cover by pulling it straight backwards.
Applies to the V50
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 5 / 22

6
IMG-273472
Applies to the V50
Remove the cargo compartment carpet.
7
IMG-273474
Prize off the four external clips at the front edge/bottom edge of
the sill trim panel on the tailgate.
Pry up one of the corners of the sill trim panel so that the two
clips at that end release. Use a weatherstrip tool.
Pull up the sill trim panel so the remaining six clips release.
Remove the panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 6 / 22

8
J8504578
Fold the seat cushion and backrest on the right-hand side of the
rear seat forward.
9
J8504708
Grasp the upper edge of the right-hand side cushion. Pull the
side cushion forward so that the clip on the reverse releases.
Slide the side cushion up. Remove the side cushion.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 7 / 22

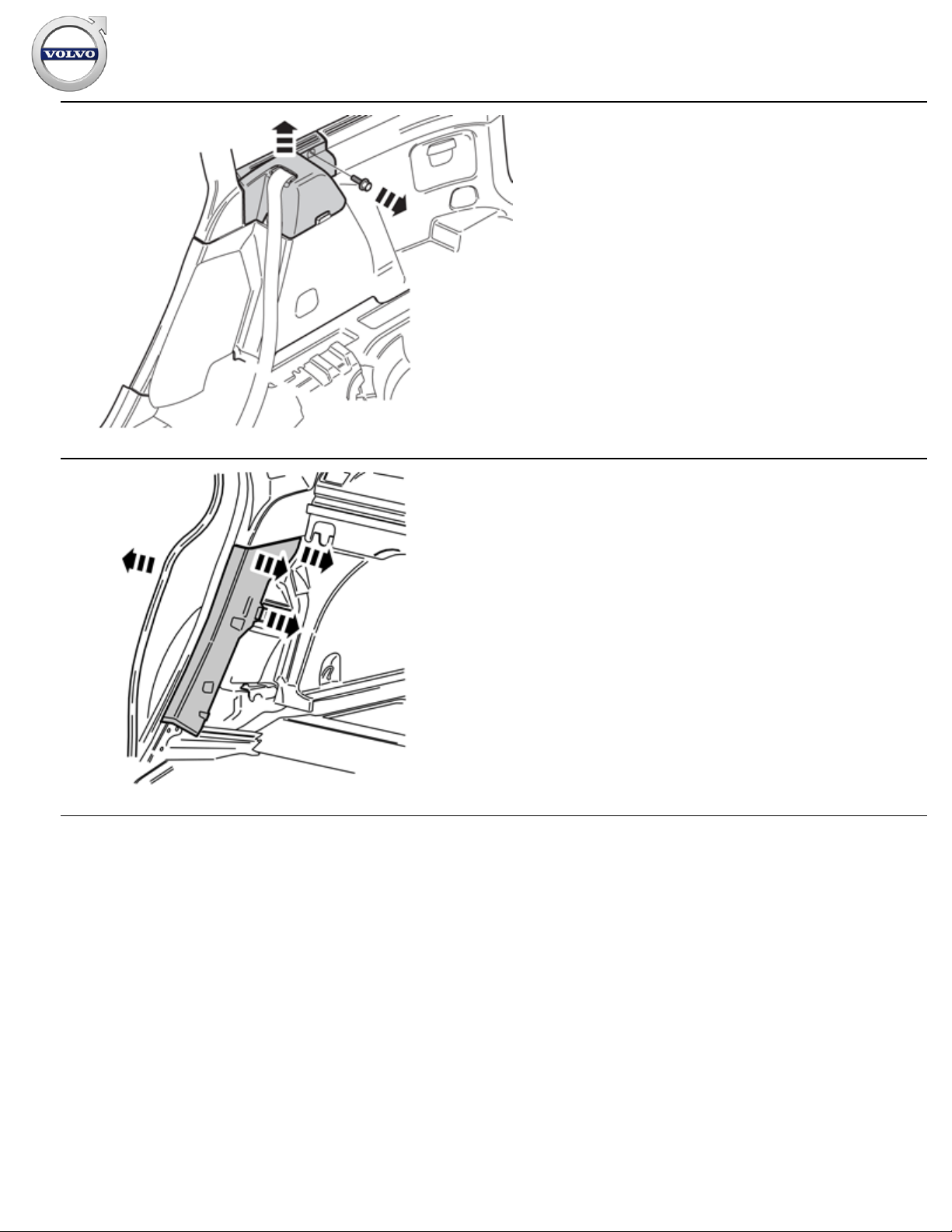

10
IMG-240927
Remove the screw.
Pull the panel upwards so that the four clips on the inside
release. Remove the panel.
11
J8504585
Pull off the rubber strip at the rear of the opening for the right-
hand rear door.
Carefully pry off the lower panel on the C-post on the right-hand
side. Pry the top edge using a weatherstrip tool. Pull in the C-
post panel so that the two upper clips release. Then continue
pulling down until the last two clips release.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 8 / 22

12
IMG-347037
Fold out the anchorage eyelets.
Insert a scriber with an angled tip into the holes in the top of the
covers (1). Turn the scriber so that the tip engages the reverse
of the covers. Pull the covers off.
Remove the screws from the anchorage eyelets (2).
Remove the screw (3).
Pull off the side panel at the top so that the two clips at the
rear/bottom of the side window and the clip at the bottom of the
D-pillar release.
Disconnect the connector for the 12V socket, if present.
Lift out the side panel.
13
J3904767
Applies to cars with reversing warning systems
Remove the back-up (reversing) warning system (PAS) from
behind the right-hand wheel arch, to facilitate access to route the
cable harness to the tow bar. If necessary, disconnect any
surrounding wiring.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 9 / 22

14
J8504615
Remove the insulation panel on the right-hand side. It is secured
with two clips.
Applies to S40 (04-)
15
J8504553
Applies to S40 (04-)
Remove the cargo compartment carpet.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 10 / 22

16
J8504552
Remove the upper floor supports on the left and right-hand sides
if applicable.
17
J8504554
Unscrew the two external clips at the front edge/bottom edge of
the sill trim panel on the tailgate.
Pry up one of the corners of the sill trim panel using a
weatherstrip tool so that the two clips at that end release.
Pull up the sill trim panel at the other end so that the remaining
two clips release. Remove the sill trim panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 11 / 22

18
J8504691
Remove the three clips (1) that hold the right-hand side panel in
the bodywork.
Unhook the side panel from the mounting (2) on the underneath
of the parcel shelf.
Fold out the rear edge of the side panel from the bodywork. At
the same time unhook the side panel from the rear load securing
eyelet. If the car has a 12V socket in the side panel, disconnect
the connector from this socket (if applicable).
Fold out the side panel to access the space in the rear of the
wheel arch.
19
J3904768
Applies to cars with reversing warning systems
Remove the back-up (reversing) warning system (PAS) from
behind the right-hand wheel arch, to facilitate access to route the
cable harness to the tow bar. If necessary, disconnect any
surrounding wiring.
Installing the trailer hitch connector, applies to the S40 (04-)
and V50
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 12 / 22

20
J8903198
Installing the trailer hitch connector, applies to the S40 (04-)
and V50
Install the trailer hitch connector with cable harness to the
bracket on the left-hand side of the tow bar. Use screws and
nuts from the kit.
21
IMG-273184
Applies to S40 (04-)
Pull up the cable to the plastic bracket, route it to the right and
secure it using two cable ties from the kit as illustrated.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 13 / 22

22
IMG-273185
Applies to the V50
Pull up the cable to the plastic bracket, route it to the right and
secure it using two cable ties from the kit as illustrated.
23
IMG-273333
Applies to all models
Route the cable down underneath the collision member's right-
hand mounting and secure it using the joined cable ties from the
kit.
Secure the cable at the collision member with two joined cable
ties from the kit.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 14 / 22

24
J8903624
Take the pliers and widen the hole in the rubber grommet. Pull
the wiring through. Adjust the length of the cable harness up to
the rubber grommet.
25
IMG-272768
Insert the cable harness into the cargo compartment through the
hole in the car body. Press the rubber grommet into place.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 15 / 22

26
J8903538
Applies to V50 models without RTI
Remove the screw and the nut holding the AM/FM tuner module
(AFM) in the bodywork. Disconnect the wiring if necessary.
Place the AM/FM tuner module (AFM) to one side.
27
J8903539
Applies to V50 models with RTI
Remove the screws and the nuts holding the AM/FM tuner
module (AFM) and the traffic message channel module (TMC) in
the bodywork.
Remove the AM/FM tuner module (AFM) and the traffic message
channel module (TMC) from the bodywork. Disconnect the
wiring if necessary.
Place the AM/FM tuner module (AFM) and the traffic message
channel module (TMC) to one side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 16 / 22

28
J8903623
Applies to all models
Pull the cable harness from the towbar.
29
IMG-347737
Take the connector from the kit.
Release the connector's secondary lock.
Use: Electrician's screwdriver
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 17 / 22

30
IMG-359666
Take the connector and install the cable ends as follows:
Position Cable Function
1 Pink Reversing lamp
2 Not used
3 White Ground
4 Not used
5 Grey Power supply
6 Not used
7 Brown Right parking lamps
8 Black Left parking lamps
9 Green Right indicator lamps
10 Yellow Left indicator lamps
11 Red Brake lamp
12 Blue Fog lights
31
IMG-227863
Press the catch back.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 18 / 22

32
IMG-359686
Applies to S40 (04-)
Connect the connector from the wiring to the control module.
33
IMG-359806
Connect the ground lead from the routed cable harness to the
ground terminal under the tail lamp. Tighten the screw.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
Page 19 / 22

34
IMG-359695
Applies to the V50
Connect the connector from the wiring to the control module.
35
IMG-359813
Connect the ground lead from the routed cable harness to the
ground terminal under the tail lamp. Tighten the screw fully.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Towbar, wiring, 13-pin- 31346062 - V1.2
