Xiaomi Mijia M187 User manual

User Manual
Foldable Electric Scooter

Thanks for choosing our product.Have fun with this electric scooter.
Contents
1. The Device& Accessories .................................02
2. Functions .............................................................03
3. Assembling .............................................................04
4. Charging .................................................................05
5. Driving Instructions.................................................05
6. Safety Recommendations ........................................07
7. Folding & Transportation ........................................12
8. Daily Maintenance and Storage...............................13
9. Model Specifications ...............................................15
10. Presence of toxic and harmful substances .............16
11.Warranty ..................................................................17

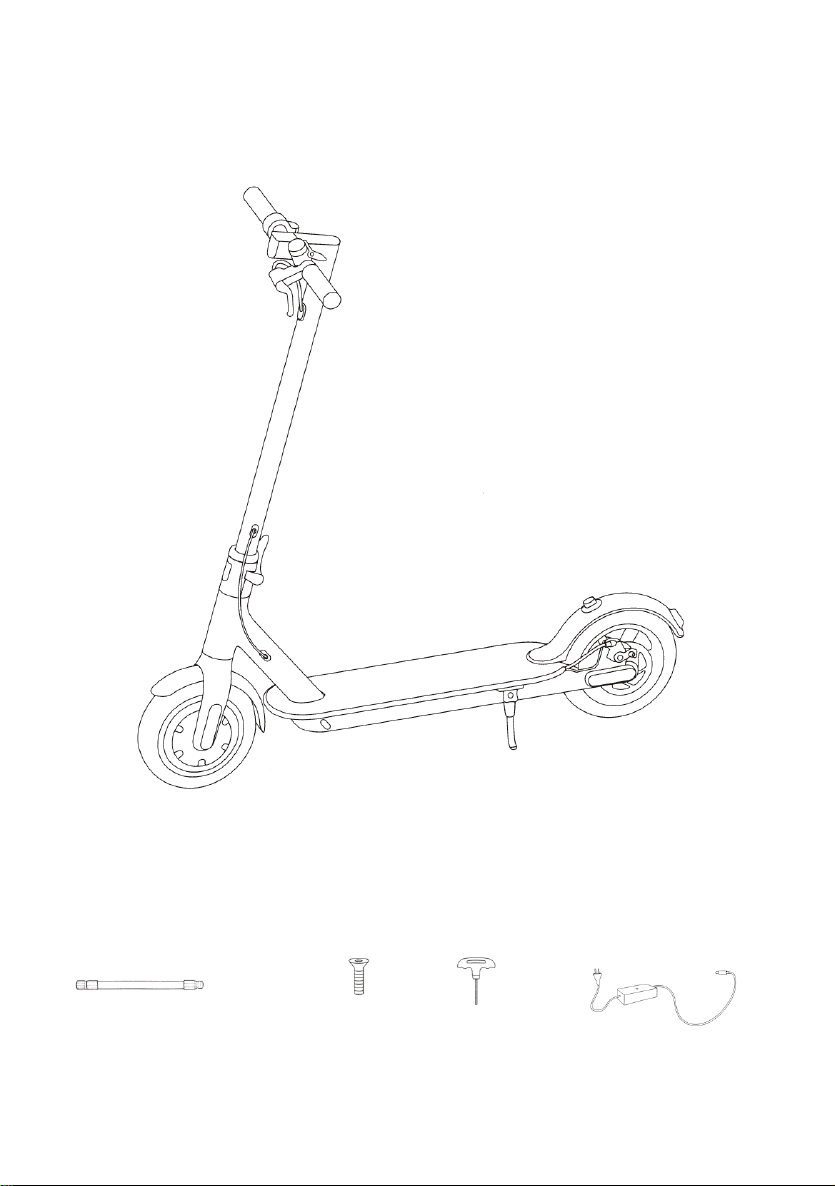

1. The Device& Accessories
Vehicle
Accessories
--------------------------------------------------------------------------------------
Fitting for wheels swap Screws x 2 Hex Wrench Charging Adapter

2. Functions

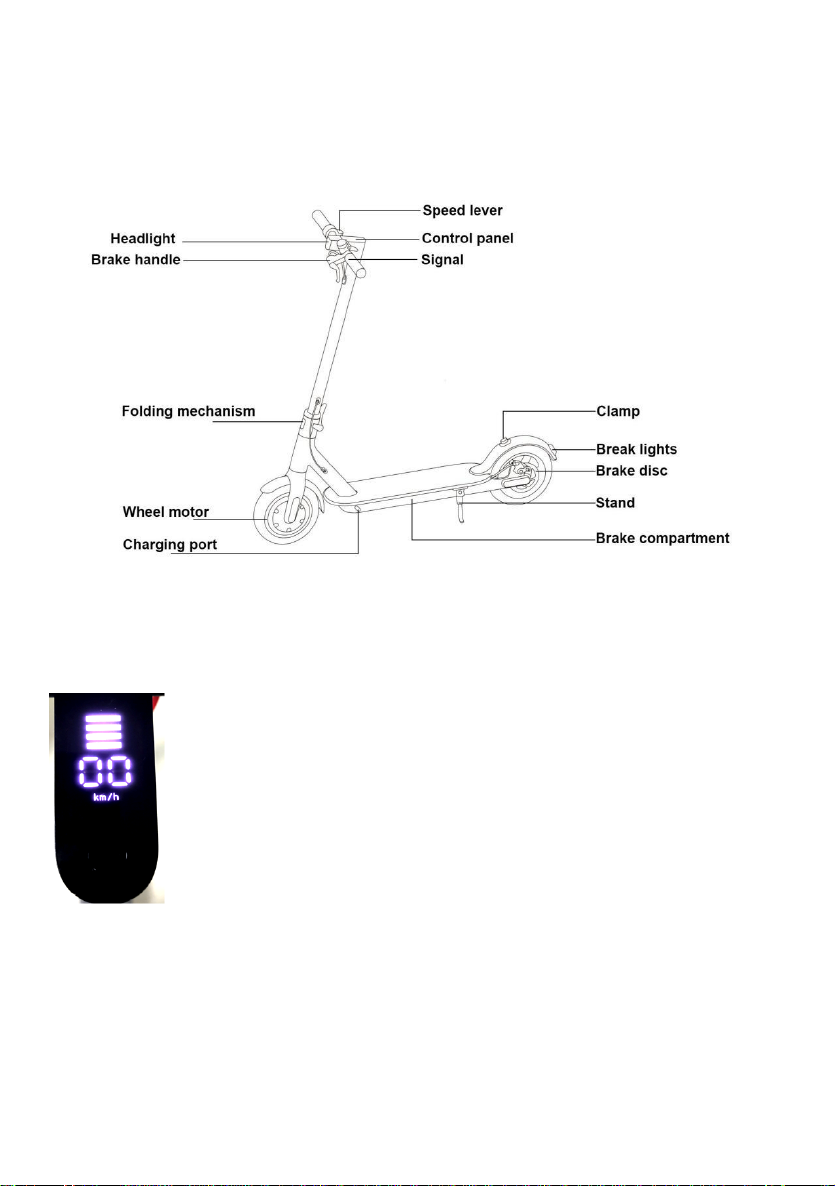

Mode Indicators
The control panel has 4 LEDs, indicating a level of charge.During
consumption of a battery, status indicators are lit, then flashes and
final off one by another. If all 4 LEDs are lit, a battery level is
100%-86%; if 3 LEDs are lit, and one is blinking, charging
level-85%-71%; so all charge level lights begin to flicker, and then
does not light.
1,Press the switch on button for 3 seconds to turn on the scooter;
The lcd shows the battery capacity and real time speed;
2, Press the swith on button one time to change the speed level;
3,Press the switch on button twice to turn on the light, the same way to turn off light;
4,Search firelus on appstore or google play, to install onto the cellphone, open the
bluetooth, open the app, and pair, the code is 888888, then the app is connected
the scooter.

3. Assembling the device
1).fix the steering rod and 2).Set handle bars vertical;
open the parking bridge
Using hex wrench in the packing 4. Testing the power switch after finish
box to tighten the screws assembling
on handle bar
Power Button
Press power button to turn on the vehicle. Press and hold a button for 2 seconds
to turn on the device. When switched on : press power button to turn on/off a
flashlight ; press a power button twice to normal mode and power saving mode.

4.Charging scooter
Open the cover connect the charger close the cover

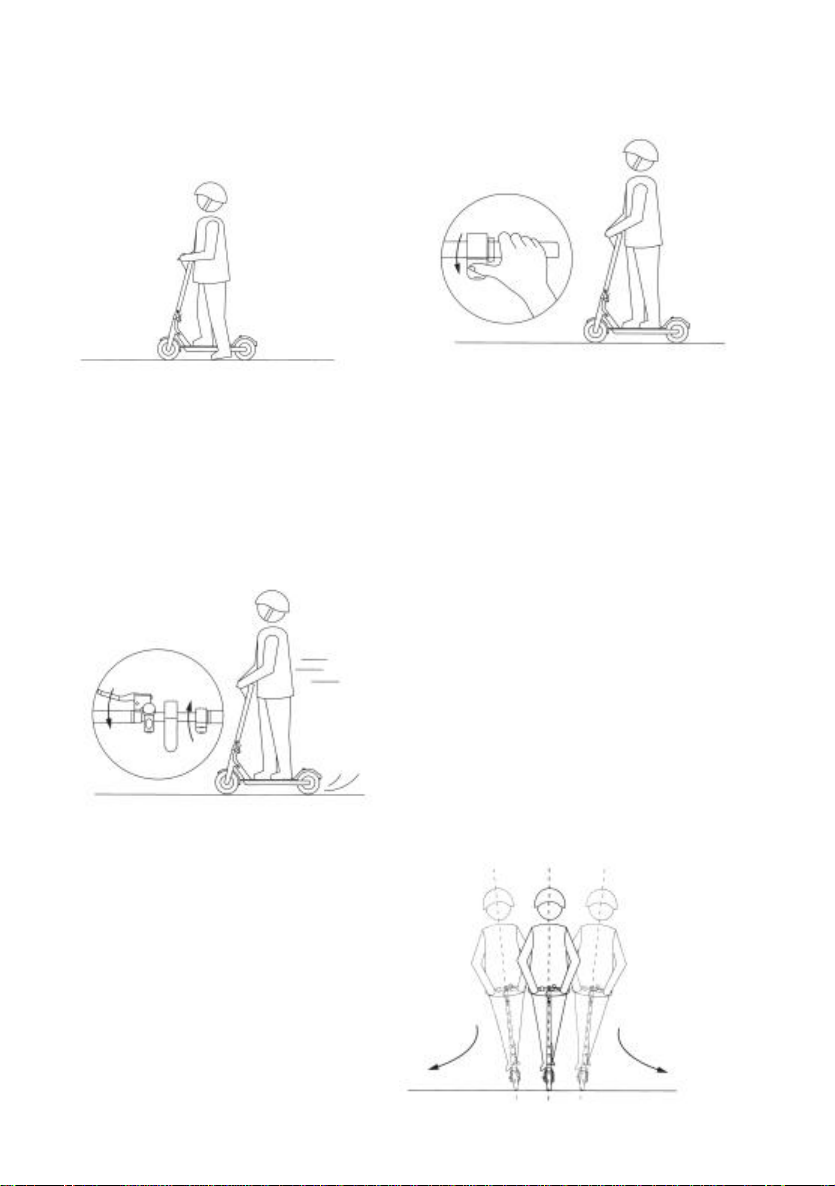

5.Learning driving
Please wear helmet and knee 1 .Power on and check the battery led
pads when practice light

2,.Stand on pedal with one leg,
hit the ground with the other leg
3,.Step on the other leg when the scooter is moving, then press the accelerate
button (only accelerate when the scooter speed is beyond 5km/h)
4.loose the accelerate button when slow down. Energy recovery systems will
open itself to slow down. Press the left disc brake tightly if want to brake
urgently.
5.lean your body left slightly to turn left,
lean your body right slightly to turn right.
And turn the handlebar slowly

6 Safety Instructions
It is not recommended driving on the rain It is recommend to slightly bend
knees to better adjust to a
rough road.If you are
travelling on a rough
road,stick to low speed
(5-10km/h)
Entering into any room, elevator, etc.
Be careful not be injured by a door frame.
Please not add speed when descending a hill

While walking with a scooter,
do not press a speed knob When driving it is recommended to
go around various obstacles on
a road
Please do not hang backpacks and When driving is forbidden to place
one foot
other heavy objects on handle bars on the running board or on the
ground

Preventing dangerous driving
It is forbidden to leave a scooter on It is forbidden to sharply turn a
a scooter wheel at high roadway for a residential area with a large
motor vehicles or ride flow of passers-by
in at a high speed
It is forbidden to drive through puddles, Never rider a scooter more than or
to which exceeds depth of 2cm. one person, hold a child in your arms.

Do not tread the back of the fende
r
Do not touch the disc brake
Do not driving leaving your hands Do not riding electric scooter up,
down steps or jump over obstacles

Satety Recommendations
1) Electric scooter - it is only a device for entertainment, not vehicle.But once
you driving to public area, the electric scooter brings certian risks for your
safety .For the sake of your safety and others safety, you must strictly follow the
instructions, outlined in this driving manual .
2) You should understand that is you ride a scooter in a public place , you must
comply with all recommendations for safety. Also do not forget that there is a
possiblity of collision, due to violation of pedestrians or vehicles traffic rules ,
there is also a risk of injury , due to improper operation of the unit. As in other
types of vehicles, the higher a speed of electric scooter, the greater a braking
distance. On some smooth road emergency braking may cause skidding of
scooter, loss of balance and even fall. Therefore, during moving of scooter you
need to be vigilant,to adhere to an appropriate speed , keep a safe distance from
pedestrians and / or with other vehicles . Riding on unfamiliar terrain, keep
vigilance and appropriate speed.
3) While riding scooter , respect rights of pedestrians . Do not scare
them,especially children.Reduce speed,passing by them.If you are moving in the
same direction with pedestrians,try to stick to the left side as much as
possible(for right-hand traffic countries ).If you are moving in the opposite
direction, stick to the right and slow down.
4) Please strictly following your country road rules to driving,and also strictly
abide by rules , set out in the instructions and safety recommendations.
Violation of the above rules may result financial expenses, personal injury,
occurrence of traffic accidents, legal disputes, conflict and other unpleasant
situations. Our company does not bear any direct or joint and serveral liability.
5) To avoid personal injury , do not loan electric scooter to others whom do not
know how to drive. Please spend a training before you transfer your scooter to
friends, as well as teach he(her)must be wear the proper safety gear .

6) Please do inspect scooter carefully before each use.If you find shattered
parts ,battery life has decreased obviously, tires leak air or there are signs of
excessive wear, uncharacteristic sounds when turning or other abnormal
symptoms, please discontinue use of the scooter immediately , don't drive it
reluctantly.

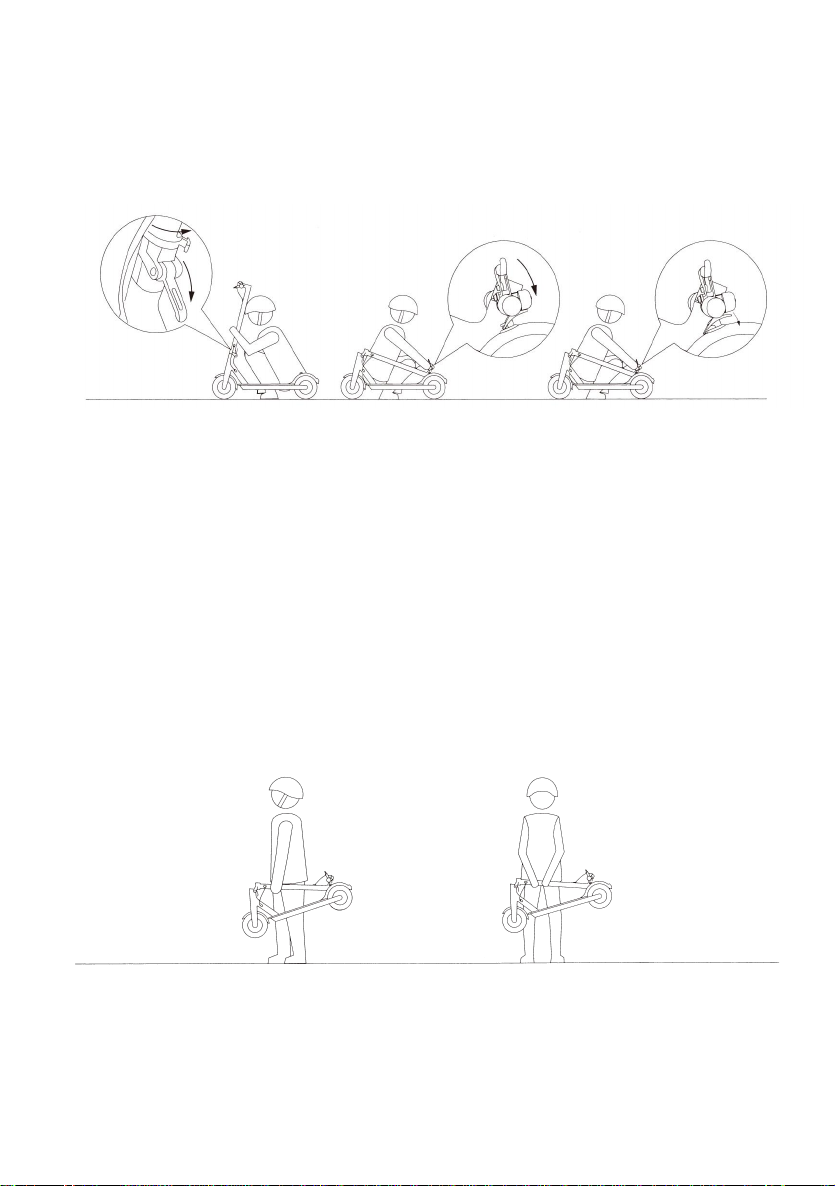

7.Fold and Transportation
Fold
Make sure scooter be off , hold the front pole , loosen a lock lever and lower a
steering rack . Adding a steering rack in a horizontal position and secure it by
inserting a hook through a special ring , which is located on the rear wheel
mudguard . To Assemble the scooter ,disconnect a steering rack lock from a hook
of a mudguard , and then lift it into a vertical position and lock a lever .
Transportation
You can transfer folded scooter with one hand

8.Care and Storage
Clean and store Electric Scooter
If you find any stains on electric scooter housing, use a soft,damp cloth to wipe
the vehicle;You can use toothpaste and a toothbrush to clean the scooter from
stains, and then wipe it clean with a damp cloth. If you find scratched on parts ,
made of plastic, use sandpaper or other grinding materials for their polishing .
Warning : Do not use alcohol, petrol,kerosene or other corrosive solutions ,
volatile chemical solvents to clean the vehicle. Otherwise,it will cause serious
damage to the scooter body and can disrupt a structure of internal elements. Do
not wash electric scooter under a strong pressure of the water, make sure the
scooter in the off status. In addition, after charging of the vehicle, it is necessary
to insert a plug back to a charging connector,otherwise you may get an electric
shock ，or may have serious water damage cause from water falling into this
hole ,may have serious water damage.
If you do not use the scooter ,store it in a dry ,cool place and do not leave the unit
for a long time on the street.Leaving the device under the sun/in extremely high
temperature/over-low temperature can cause rapid aging of an outer body and
wheels of Electric Scooter or reduce battery life.
Maintenance of Electric Scooter battery
1)Do not use batteries from other brands in order to avoid a dangerous situation;
2)Do not open or disassemble the battery to prevent electric shock.Avoid contact
with metal objects to prevent an occurrence of a short circuit. Otherwise,the
battery may have malfunction or can injure the user;
3)It is recommended to use an AC adapter,that comes in original configuration of

the device,to prevent an occurrence of an accident or fire of the vehicle;
4)Improper disposal of used batteries and accumulators is the cause of severe
environmental pollution.Please,dispose of batteries in accordance with local
laws.Please do not dispose of batteries together with food waste.Protecting the
environment together!
5)After each use of the device,charge the battery to prolong its service life.
Do not store the scooter battery in rooms with temperatures,that exceed
50℃or-20℃(for example,do not leave the battery of Electric Scooter and other
batteries in cars in summer time on the hot sun),do not leave the battery near
fire.As a result of these actions may deteriorate the battery,overheating and can
even cause inflammation.
If within 30 days the scooter is not used,charge the battery and keep the device in
a cool,dry place.Every 60 days you need to charge the battery,otherwise there is
the likelihood of its failure,which is not subject to warranty services.
Avoid a full discharge of the device,it will to extend battery life.When using the
device at normal room temperature,the battery will be able to ride much greater
distance and its performance will be better;but if you use the scooter at
temperatures below 0C,vehicle performance and permeability decrease.
At-20C a traveled distance is less,than the scooter in the normal conditions of half
or even less.If a temperature rises,a traveled distance by the vehicle will also
increase.You can check remaining distance in the Application.
Note:A fully charge scooter runs about 120-180 days of standby time.The battery
has a smart chip,that stores information about its charging-discharging.If you are
not charging the battery for a long time,it can cause serious damage,for which it
is impossible to charge the device again.This kind of damage is not included in
free warranty service.(Caution:Do not disassemble the device by unauthorized
people,as there is a risk of electric shock or serious injury as result of a short
circuit.

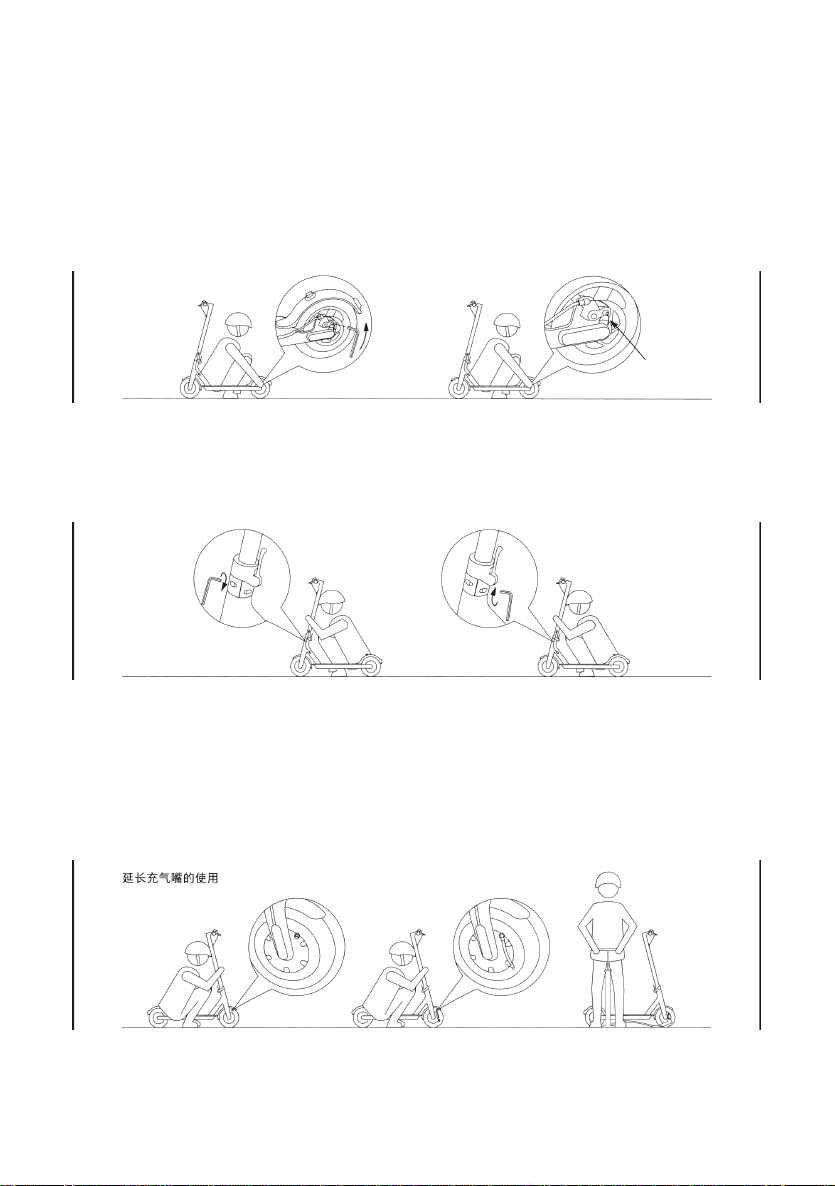

Adjusting a brake disc
If a brake is very tight:using M5 hex wrench and scroll counterclockwise screws
of brake disc tensioner pulley,slightly shorten a length of a tail brake cable,then
tighten a tensioner pulley.If you think that brake is very free,loosen a tension
pulley,pull a brake cable to slightly increase a length of its tail.Tighten a tension
pulley.
Adjusting a handle bars
Staggering of steering rack: using a M5 hex wrench,tighten two screws near the
folding mechanism.
Using a connecting pipe to pump wheels
If a rear wheel of Electric Scooter deflated,connect a connecting pipe to a wheel
nipple to pump it .First,remove the a cap of pin,then tighten a fitting,and then you
start to pump a wheel.

9.Parameters
Operating parameters Name M187 parameters Pro Edition
Dimensions Length x Width x
Height[1] (cm)
106 x 42 x 48
Folded:Length x
Width x Height(cm)
106 x 42 x48
weight Gross weight 12kg 12.5kg
Conditions Max load 120
Age 16-50
Height(cm) 120-200
Main Parameters Max speed(km/h) 25
Possibility in average
condition [2] (km)
20 30
Maximum slope(%) 11 14
Suitable area Solid road surface,smooth clay
surface to overtime,obstacles
high less than 1cm,a depth of
pools no more than 2cm
Operating
temperature
range(℃)
-10-40
Temperature of
storage(℃)
-20-45
Waterproof level IP54
Battery Parameters Rated
voltages(VDC)
36B
Max voltage of
charging(VDC)
42B

Rated power(Wh) 187 280
Smart battery
management system
Stress,insufficient voltage,short
circuit,auto sleep/wake
up,overheating
protection,control of battery
using
Motor Parameters Rated power(W) 200 250
Max power(w) 400 500
power adaptor
parameters
Rated power(W) 71
Rated input
voltage(VAC)
100-240B
Rated output
voltage(VDC)
42V
Rated current(A) 1.7
Certificate CCC,RoHs
Charging time(h) Est . 3.5 Est. 5

10.Presence of toxic and harmful substances
Name Toxic and harmful substances elements
Pb Hg Cd Cr6+ PBB PBDE
Power
adaptor
X O O O O O
Battery X O O O O
Connecti
ng pipe
X O O O O
Charging
port
X O O O O
Indicators X O O X X X
Circuit
board
X O O X X X
Motor X O O X O O
Housing X O O O O O
Date provided in accordance with provisions of SJ/T 11364.
O:toxic and harmful substances in all components of the device are contained in
an amount below the limit value,according to standard GB/T 26572-2011.
X:presence of toxic and hazardous substances at least one of components of the
device in an amount,that exceeds the threshold,according to GB/T 26572-2011
