Introducon
The informaon provided in this manual covers three-phase 20kVA uninterrupble power systems, its basic func-
ons, operang procedures, opons available and emergency situaons. It also includes informaon on how to
ship, store, handle, and install the equipment. Only detailed requirements of the UPS units are described herein,
and installaon must be carried out in accordance with this manual. Electrical installaon must also carefully
follow local legislaon and regulaons. Only qualied personnel should conduct these installaons as failure to
acknowledge electrical hazards could prove to be fatal.
Product Descripon
Many dierent kinds of sensive electrical equipment can be protected by an Uninterrupble Power Supply (UPS)
including computers, workstaons, process control systems, telecommunicaons systems, sales terminals, other
crical instrumentaon, etc. The purpose of the UPS is to protect these systems from poor quality ulity power,
complete loss of power, or other associated problems.
Electrical interference exists in many forms, causing problems in AC power, from lightning, power company ac-
cidents and radio transmission motors, air condioners, and vending machines. Protecon of sensive electrical
equipment is vital to protect against power outages, low or high voltage condions, slow voltage uctuaons,
frequency variaons, dierenal and common-mode noise, transients, etc.
To prevent power line problems from reaching crical systems causing damage to soware, hardware, and equip-
ment malfuncons, the UPS maintains constant voltage, isolang crical load output and cleaning the ulity AC
power.
Main Features
This is a three phase input / three phase output high-frequency online UPS. The UPS protects against power fail-
ures, power sag, power surge, under-voltage, over-voltage, line noise, frequency variaons, switching transients,
and harmonic distoron which can all cause crical problems to supported sensive electronic equipment in the
market today.
Funcons and Features
• 3 phase input/output high-density UPS
• Digital Control
o The UPS is controlled by Digital Signal Processor (DSP) which increases reliability, performance,
self-protecon, self-diagnoscs, etc.
• Modular Design
• Baery Conguraon
o The baery voltage can be congured based on needs
• Charging Conguraon
o The charging current can be customized to meet site requirements
• Intelligent Charging Method
o 1st stage = high current constant current charging to restore baeries to 90% capacity
o 2nd stage = constant current charging to assure baeries remain fully charged
o 3rd stage = oat charge
The 3-stage charging method extends the life of the baeries and guarantees rapid recharging
• LCD Display
o Both LED and LCD displays allow for ease of use and availability of crical UPS status and opera-
onal parameters, including: input/output voltage, frequency and load %, baery %, ambient tem-

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 7
Uninterrupble Power Supply
perature, etc.
• EPO Funcon
System Conguraon
The UPS device and the external baeries make up the system. Depending on the site and load requirements of
the installaon, certain addional opons are available for the soluon.
Planning a UPS system, the following should be taken into consideraon:
• The total demand of the protected system shall dictate the output power rang (VA). Allow a margin for
future expansion or calculaon inaccuracies from measured power requirements.
• Backup me required will indicate the baery size needed. If the load is less than the UPS nominal power
rang, then actual backup me is longer.
• The following opons are available:
o Connecvity Opons –SNMP/WEB card
o Extended Baery Packs - minimum 1 required
See the Specicaon secon of this manual for addional model informaon.
Unpacking the UPS
1. Do not lean the UPS against anything when moving it out of the packaging.
2. Check the physical appearance of the UPS to see if it was damaged during transportaon. Do not switch on the
UPS if damage is found. Please contact your dealer or distributor immediately for assistance.
3. Check the accessories according to the packing list to assure that you have all required pieces.
R91-20K front view
Baery
Connecon
Input
Breaker
Input Terminals Output Terminals
RS485 /
RS232
Parallel
Port 1
Parallel
Port 2
SNMP
Port
EPO
Maintain-AUXSWS
R91-20KVA rear view diagram

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 8
Uninterrupble Power Supply
Front panel
Installaon Notes
• Place the UPS in a clean, stable environment, avoiding vibraon, dust, humidity, ammable gas and liquid,
corrosive objects, etc. Check the operang temperature of the room where the UPS is being installed to
assure it is within range of UPS specicaon.
• Baeries should be installed in an environment where the temperature is within the required specica-
ons of the product. Temperature is a major factor in determining baery life and capacity. Normal baery
installaon requires the temperature be maintained from 15°C to 25°C. Keep baeries away from heat
sources and main air venlaon areas.
WARNING!
Typical baery performance data is quoted for an operang temperature between 20°C and 25°C. Operang
above this range will reduce the baery life while operaon below this range will reduce the baery capacity. If
the equipment is not to be installed immediately, it must be stored in a room so as to protect it against excessive
heat and humidity sources.
CAUTION!
An unused baery must be recharged every 6 months. Temporarily connecng the UPS to a suitable AC source and
acvang the UPS for the me required to recharge the baeries is required.
• To monitor the UPS with the soware, simply connect the RS232 cable to the UPS and to a computer.
External Protecve Devices
For safety reasons, it is necessary to install an external circuit breaker at the input AC ulity and to the baery.
External Baery
The UPS and its associated baeries are protected against the eect of over-current through a DC compable
thermo-magnec circuit breaker located close to the baery.

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 9
Uninterrupble Power Supply
UPS Output
Any external distribuon board used for load distribuon shall be ed with protecve devices so as to avoid the
risk of UPS overload.
Over-Current Protecon
A protecon device shall be installed at the distribuon panel of the incoming ulity power, and should idenfy
the power cables current capacity as well as the overload capacity of the system.
CAUTION!
Select a thermo-magnec circuit-breaker with an IEC 60947-2 trip curve D (normal) for 125% of the current as
listed below. 40A Input Circuit Breaker required.
Power Cables
The cable design shall comply with the voltages and currents provided in this secon, and in accordance with local
electrical codes.
WARNING!
UPON STARTING, PLEASE ENSURE THAT YOU ARE AWARE OF THE LOCATION AND OPERATION OF THE EXTERNAL
ISOLATORS WHICH ARE CONNECTED TO THE UPS INPUT/BYPASS SUPPLY OF THE UTILITY DISTRIBUTION PANEL.
CHECK TO SEE IF THESE SUPPLIES ARE ELECTRICALLY ISOLATED, AND POST ANY NECESSARY WARNING SIGNS TO
PREVENT ANY INADVERTENT OPERATION
Cable Sizes
UPS MODEL CABLE SIZES (THHW wiring at 75°C)
AC INPUT AC OUTPUT DC INPUT GROUNDING
R91-20K 8 awg 8 awg 6 awg 8 awg
CAUTION!
Protecve earth ground cable: connect each cabinet to an earth ground, following the shortest route possible.
WARNING!
FAILURE TO FOLLOW ADEQUATE GROUNDING PROCEDURES MAY RESULT IN ELECTROMAGNETIC INTERFERENCE
OR IN HAZARDS INVOLVING ELECTRICAL SHOCK AND FIRE.
Power Cables Connecon
Aer the equipment has been properly posioned and secured, connect the power cables as described below.
Verify the UPS is totally isolated from its external power source and all circuit breakers to the UPS are open. Check
to see that everything is electrically isolated, and post any necessary warning signs to prevent inadvertent opera-
on of the breakers.

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 10
Uninterrupble Power Supply
Power cable connecon diagram
Select the appropriate power cable size, paying aenon to the diameter of the connecon terminal of the cable,
which should be greater than or equal to the connecon posts.
Wiring diagram

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 11
Uninterrupble Power Supply
WARNING!
IF THE LOAD EQUIPMENT IS NOT READY TO ACCEPT POWER WHEN THE UPS INSTALLATION IS OCCURRING, ENSURE
THAT THE UPS OUTPUT CABLES ARE SAFELY ISOLATED AT THE CABLE ENDS.
CAUTION!
The earth ground and neutral bonding arrangement must be in accordance with local and/or naonal electrical
code pracces.
Baery Connecon
The CYCLON baery pack contains four idencal baery trays. Each tray contains 60 5AH CYCLON cells connected
in series. The four trays are then connected in series. The following three diagrams respecvely display baery
pack internal connecons, internal cell connecons in each individual tray and baery pack external connecons
to UPS and another baery pack.
R91-BPSYS baery pack wiring diagram
R91-BPSYS baery module connecon

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 12
Uninterrupble Power Supply
CAUTION!
Ensure correct polarity of the baery string series connecon. DO NOT mix baeries with dierent capacity or dif-
ferent brands, or new or old baeries.
WARNING!
ENSURE CORRECT POLARITY OF STRING END CONNECTIONS TO THE BATTERY CIRCUIT BREAKER, AND FROM THE
BATTERY CIRCUIT BREAKER TO THE UPS TERMINALS (I.E. (+) TO (+) / (-) TO (-) / (N) TO (N)). DISCONNECT ONE OR
MORE BATTERY CELL LINKS IN EACH TIER. DO NOT RECONNECT THESE LINKS AND DO NOT CLOSE THE BATTERY
CIRCUIT BREAKER UNLESS ALL CONNECTIONS ARE PROPERLY CHECKED AND APPROVED.
R91-20K to R91-BPSYS baery connecon

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 13
Uninterrupble Power Supply
UPS Mul-Module Installaon
The basic installaon procedure for a parallel system consisng of two or more R91-20KVA modules is that same
as that of a single module. The following provides installaon procedures related to a parallel system.
Cabinet Installaon
Connect all R91-20KVA UPS required in the parallel system as shown in the diagram below.
WARNING!
MAKE SURE THE N, A(L1), B(L2), AND C(L3) WIRING IS CORRECT, AND THAT GROUND IS CONNECTED.

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 14
Uninterrupble Power Supply
Parallel Cable Installaon

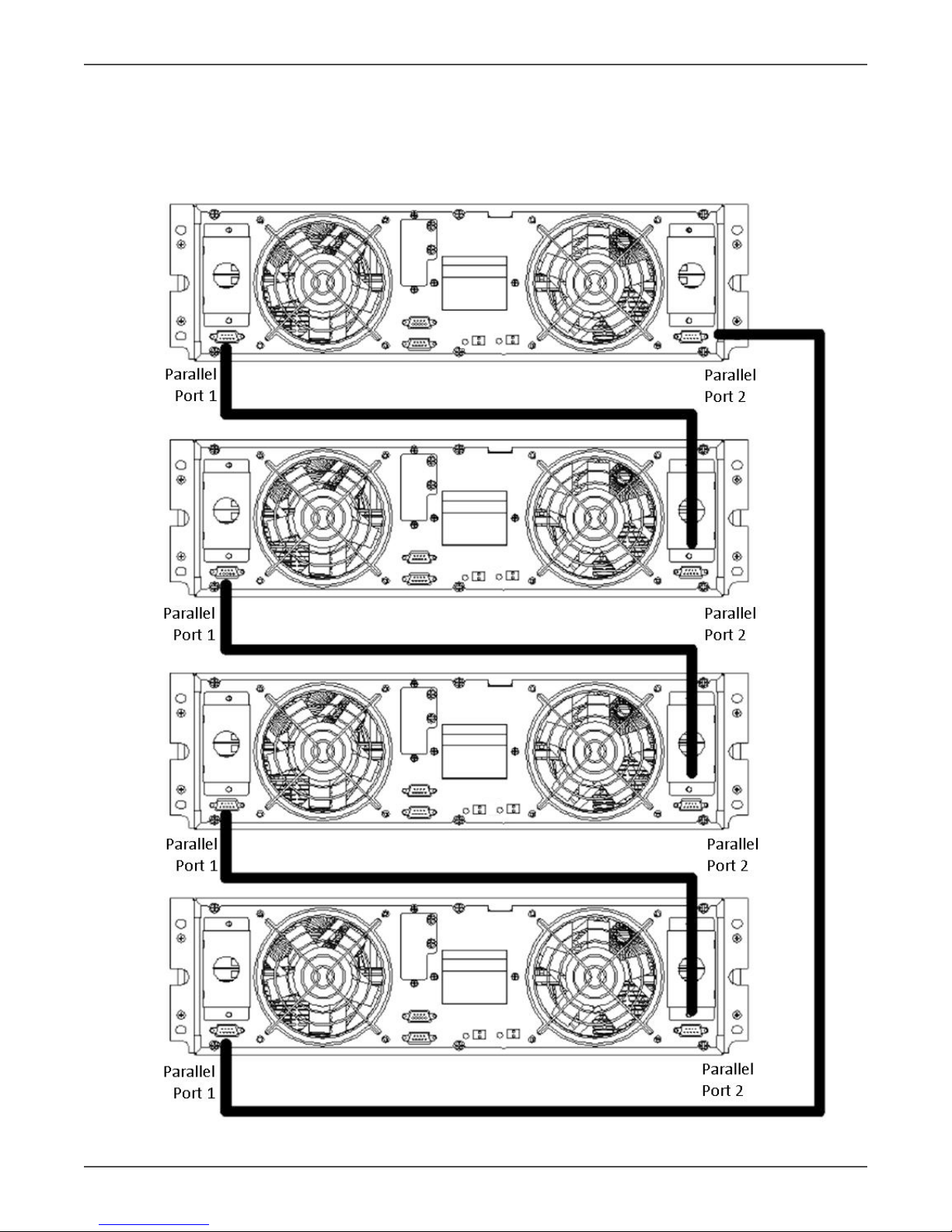

The shielded and double insulated control cables must be interconnected in a ring-conguraon between UPS
modules as shown in the diagram below. The parallel control board is mounted in each UPS module. The ring-
conguraon ensures high-reliability of the control funcon.
Parallel connecon of UPS

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 15
Uninterrupble Power Supply
Remote Emergency Power O (EPO) for Parallel Systems
EPO for parallel systems must be connected in parallel and installed as shown below. Once the EPO funcon of one
of the UPS in the parallel system is acvated, the UPS will send out a remote command and shut down the other
UPS’s in the parallel system.
CAUTION!
The remote emergency kill switch must be voltage-free and “normally open”.
EPO connecons for parallel systems

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 16
Uninterrupble Power Supply
Requirements for a Parallel System
A group of parallel UPS modules behave as one large UPS system with the advantage of presenng higher reli-
ability. In order to assure that all modules are equally ulized and comply with relevant wiring regulaons, please
follow the requirements below.
1. All UPS modules must be of the same rang and be connected to the same bypass source.
2. The Bypass and Ulity input sources must be referenced to the same neutral potenal.
3. The outputs of all the UPS modules must be connected to a common output bus.
4. The length and specicaon of power cables including the bypass input cables and the UPS output cabi-
nets should be the same size. This facilitates load sharing when operang in bypass mode.
5. Up to 4 UPS modules may be paralleled with common baery if desired.
Operaon
Operaon Modes
The UPS is a double-conversion online UPS that may operate in the following alternave modes.
Normal Mode
The recer / charger derives power from the AC input ulity and supplies DC power to the inverter while oang
and boost charging the baery simultaneously. The inverter then converts the DC power to AC power and supplies
the load.
Baery Mode (stored energy mode)
If the AC input ulity power fails, the inverter, which is operang from power supplied by the baery, supplies the
crical AC loads with power from the baeries. There is no power interrupon to the crical load. The UPS will
automacally return to Normal Mode when AC input ulity recovers.
Bypass Mode
If the inverter is not funconing correctly, or if an overload occurs, the stac transfer switch will be acvated to
transfer the load from the inverter supply to bypass supply without interrupon to the crical load. In the event
that the inverter output is not synchronized with the bypass AC source, the stac switch will perform a transfer of
the load from the inverter to the bypass with power interrupon to the crical AC loads. This is to avoid paralleling
of unsynchronized AC sources. This interrupon is programmable but typically set to be less than one electrical
cycle (less than 15ms at 50Hz or less than 13.3ms at 60Hz).
ECO Mode
When the UPS is in AC Model and the requirement to the load is not crical, the UPS can be set to ECO Mode in
order to increase the eciency of the power supplied. In ECO Mode, the UPS works in line-interacve mode, so
the UPS will transfer to bypass ulity. When the AC is out of the set window, the UPS will transfer from bypass to
inverter and supply power from the baeries, with the LCD displaying all related informaon.
Parallel Redundancy Mode (system expansion)
To achieve higher capacity and / or increase reliability, the output of up to four (4) UPS modules can be pro-
grammed to operate in parallel, with the built-in parallel controller in each UPS ensuring automac load sharing.

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 17
Uninterrupble Power Supply
Turn On / O the UPS
Connecng with Ulity
CAUTION!
MAKE SURE PROPER GROUNDING IS IN PLACE.
• Set the Baery Breaker to the “ON/Closed” posion according to the user manual.
• Switch “ON/Closed” the Ulity Breaker
• Switch “ON/Closed” the UPS
CAUTION!
Check to see if the load is safely connected to the output of the UPS. If the load is not ready to receive power from
the UPS, make sure that it is safely isolated from the UPS output terminals.
The internal fan of the UPS will start spinning; the UPS will perform self-diagnoscs. The UPS then goes to bypass,
bypass LED turn Amber, the inverter is now starng. When the inverter is checked “normal”, the UPS goes to Nor-
mal Mode (Green LED) and the load is supplied power by the inverter.
Cold Start Procedure
CAUTION!
Follow these procedures when there is an input AC Ulity Failure but the baeries are normal.
• Turn on the baery switch.
»The baery will feed the Auxiliary power board.
• Trigger the Cold Start Buons of the modules respecvely using the ON BUTTON shown in the above dia-
gram.
»When baery is normal, the recer starts operaon. 30 seconds later the inverter starts and
operates, INV and Output light up.
CAUTION!
Wait for approximately 30 seconds before pressing the ON BUTTON.
Inverter O
When the Ulity is normal, press OFF BUTTON for approximately 3 seconds and li o and you will hear a beep.
The INVERTER LED will exnguish, the BYPASS LED will be illuminated, then the UPS turns to bypass supply.
Disconnecng from Ulity
CAUTION!
This procedure should be followed to completely shut down the UPS and the LOAD. Aer all power switches, isola-
tors, and circuit breakers are opened, there will be no output power from the UPS.

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 18
Uninterrupble Power Supply
• Aer the inverter is o, turn the Ulity and Baery breakers to “OFF”. The LCD display will exnguish com-
pletely and the fan stops spinning in 60 seconds. If there are external baery packs connected, turn the
Baery breakers on each baery pack to the “OFF/Open” posion.
WARNING!
Wait about 5 minutes for the internal DC bus bar capacitors to be completely discharged.
Computer Access
• Connect one end of the RS232 communicaons cable to a computer and the other end to the RS232 port
on the UPS
• Open the soware Muser4000, and choose “system” buon

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 19
Uninterrupble Power Supply
• Choose “Soware Parameter Seng” and set selecons as shown below and then save sengs
o COM = COM1
o Baud Rate = 9600
o Protocol = HIP
• On the main page of Muser4000, choose the “Append” buon, place the UPS name into “Equipment
Name”, and UPS ID address into “Equipment address”. Choose the “Append” buon, then the connecon
between UPS and computer is complete.

Xtreme Power Conversion Corporaon
R91 User’s Manual
Page 20
Uninterrupble Power Supply
Parallel Seng
• Connect the UPS with a computer. Power ON the UPS.
• Open Muser4000 soware and choose “System” > “User Set”
