User Guide YDR3110
YDR3110


CONTENTS
2 3
INTRO
Thank you for choosing a YALE product.
We welcome you to this new door solution world of YALE that is the leading brand in the
world digital door lock industry.
Please find comfort and security in yourself through perfectly combined digital and analog
technologies presented by YALE .
This user manual enables you to operate the product more convenient and safer.
Be sure to read this completely before using it.
Safety Cautions
Product Features
Quick Instruction
4
5
6
Getting Started
Instructions
Extra Features
20
22
23
Option
Remote Control Module
Remote Control
Emergency Power
Emergency Power Supply for
Discharged Batteries
Product Specification
8
9
10
14
17
Components Overview
Identification
How to Use
Password
Card key
Lock Door
Open Door from Inside
Settings
Manual Lock Mode Alarm
Volume Setting
Forced Lock
Auto / Manual Feature
Safety Feature
Alarm Feature
3-minute Lock Feature
Open Door with fake Password

Safety Cautions Product Features
4 5
Do not install the unit in outdoor
environment.
Do not use an inappropriate tool
that can cause damage or
malfunction of the product.
Please keep your Password
safely.
Do not use water and any type of
solvent such as gasoline or
benzene as they can cause
damage to electronic circuit,
deterioration and or paint peel-off.
Keep foreign materials away from
the fingerprint sensor to maintain
it cleanly and do not use it with
wet fingers.
Make sure the door is securely
locked whenever you leave
your house, especially in the
manual lock mode.
Must Read This!!! Please read this carefully for your own safety.
Make sure to follow the above instructions to avoid any injuries or damages on the properties .
Caution
Getting Started
󱎲Smart Pad Feature



󱎳Easy re-registration of keys


󱎴Verification with the palm


󱎵Remote control (Option)



Do not attempt to disassemble
the unit by yourself. That can
cause an electronic shock and
product damage.

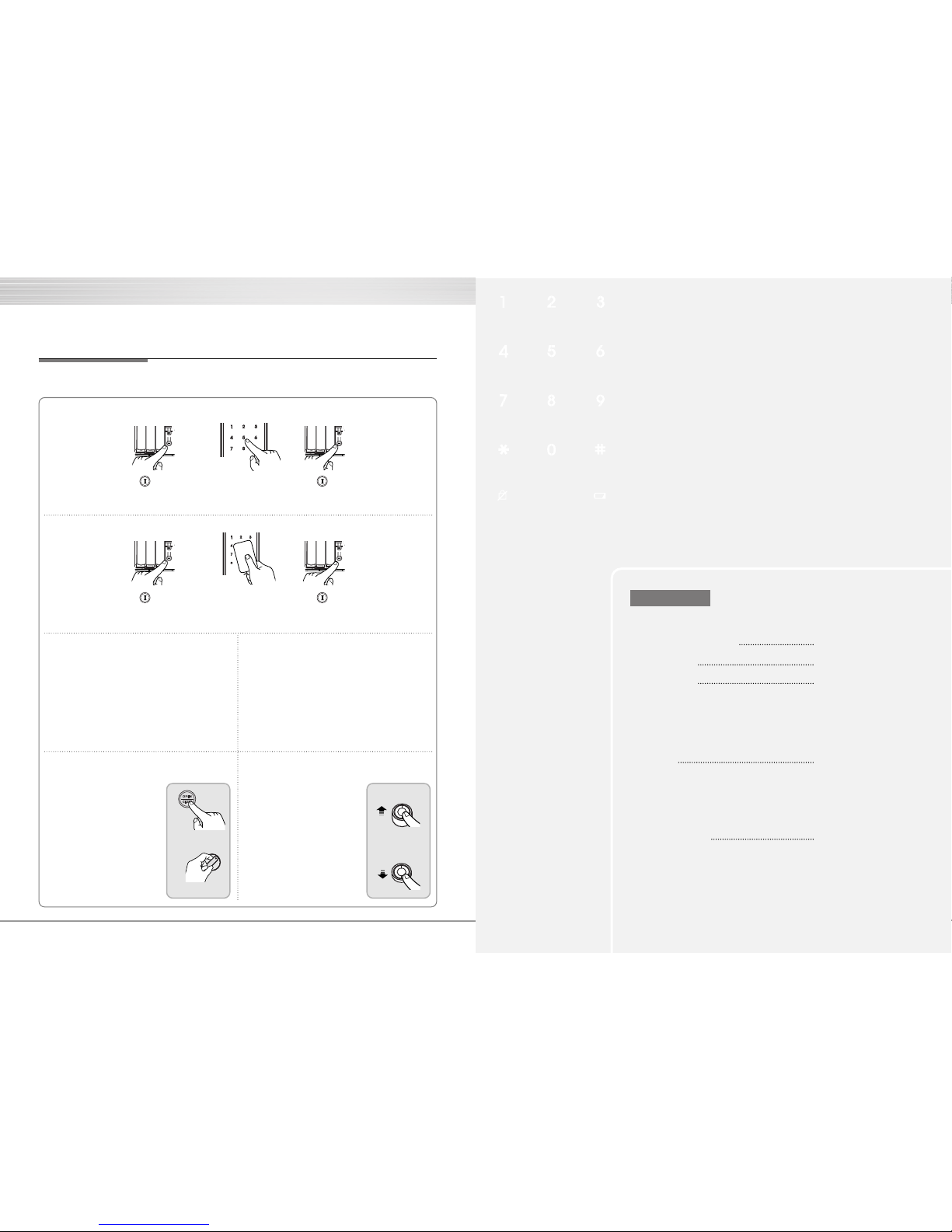

Quick Instruction
6
󱎲 Register Password
󱎳Register Card key
➞➞
➞➞













󱎴Locking the Door from the outside 󱎵Unlocking the Door from the outside
 

 


 


 
Instructions
8
9
10
14
17
Components Overview
Identification
How to Use
Password
Card key
Lock Door
Open Door from Inside
Settings
Manual Lock Mode Alarm
Volume Setting
Forced Lock
Auto / Manual Feature
Safety Feature
Alarm Feature
3-minute Lock Feature
Open Door with fake Password
 
 

󱎶Locking / Unlocking the Door from
the inside






󱎷Set Auto/ Manual Lock Mode
Auto Set
Manual Set
open/close Button
Manual thumb turn

8
❷
❾
❿
❶ ❹
󱆌
❺
󱆍󱆎
❻ ❼❸ ❽
❶Battery Cover
❷ Remote Control Module Slot (Option)
❸ 1.5V AA Alkaline Batteries
❹Volume Control Switch
❺ Auto / Manual Lock Button
❻ Open / Close button
❼Manual Thumb Turn
❽Forced Lock Switch
❾Dead Bolt
❿Edge Bolt (Auto Lock Sensor)
󱆌Registration Button
󱆍Menu Button
󱆎 Low Battery Indicator
Front (Front Body) Back (Main Body) Main Bracket Strike
Users Guide
•Remote control
•Remote control module
》Option
Card keys
Batteries
Screws
Installation Template

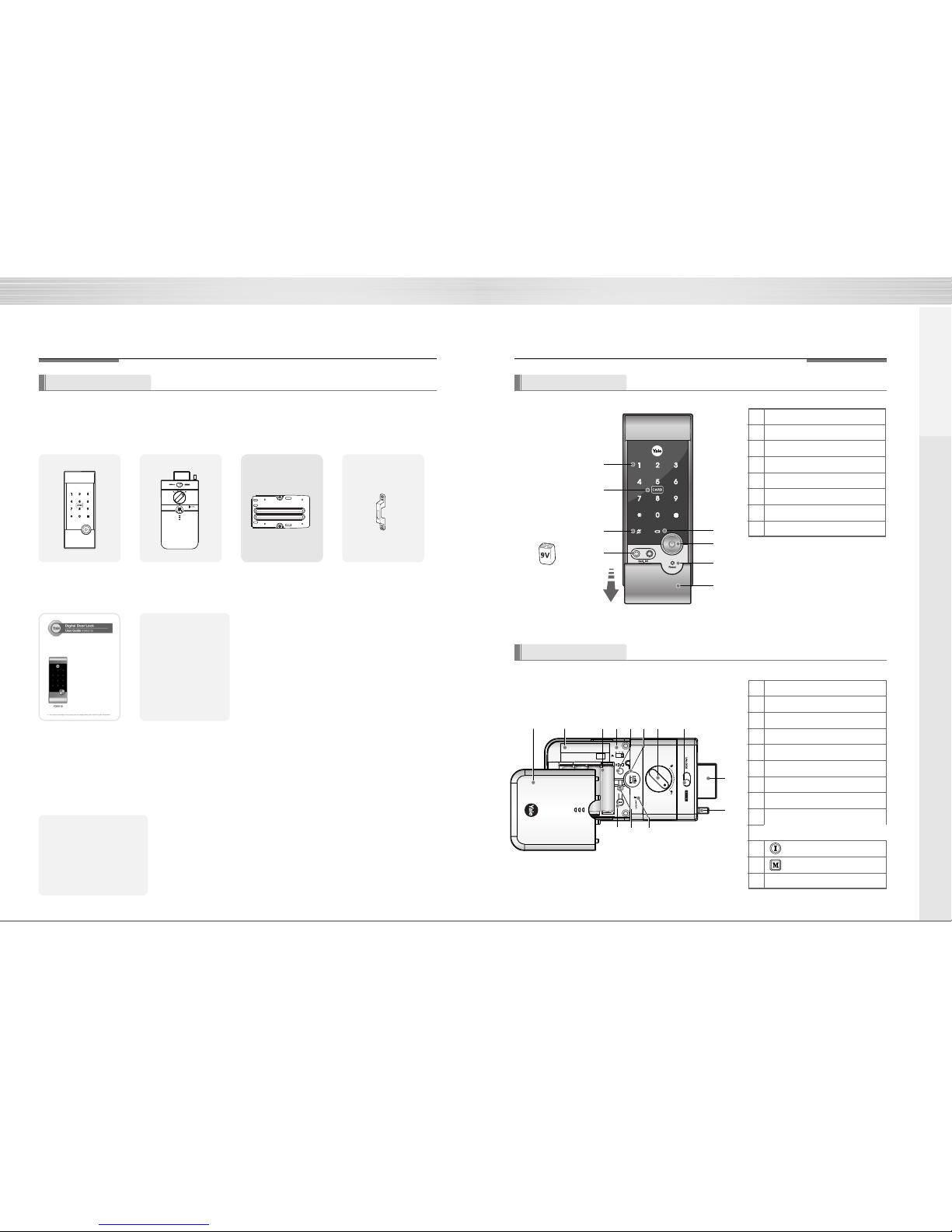

Components Overview
》Basic Contents
Basic Contents
The contents of this product may be subject to change without notice for performance or quality improvement.
9
Identification
Front
Back
(Front Body, install on the outside of the door)
(Back Body, install on the inside of the door)
Instructions
❶
❷
❸
❹
❻
❺
❼
❽
9V Emergency battery
(Optional)
❶ Keypad (10-Key)
❷Card Key Reader
❸ Dead Bolt Jam Lamp
❹ Emergency Power Supply Terminal
❺ Low Battery Indicator
❻
❼
❽
Card Wake up Button
Reset Button
Emergency Cover

10 11

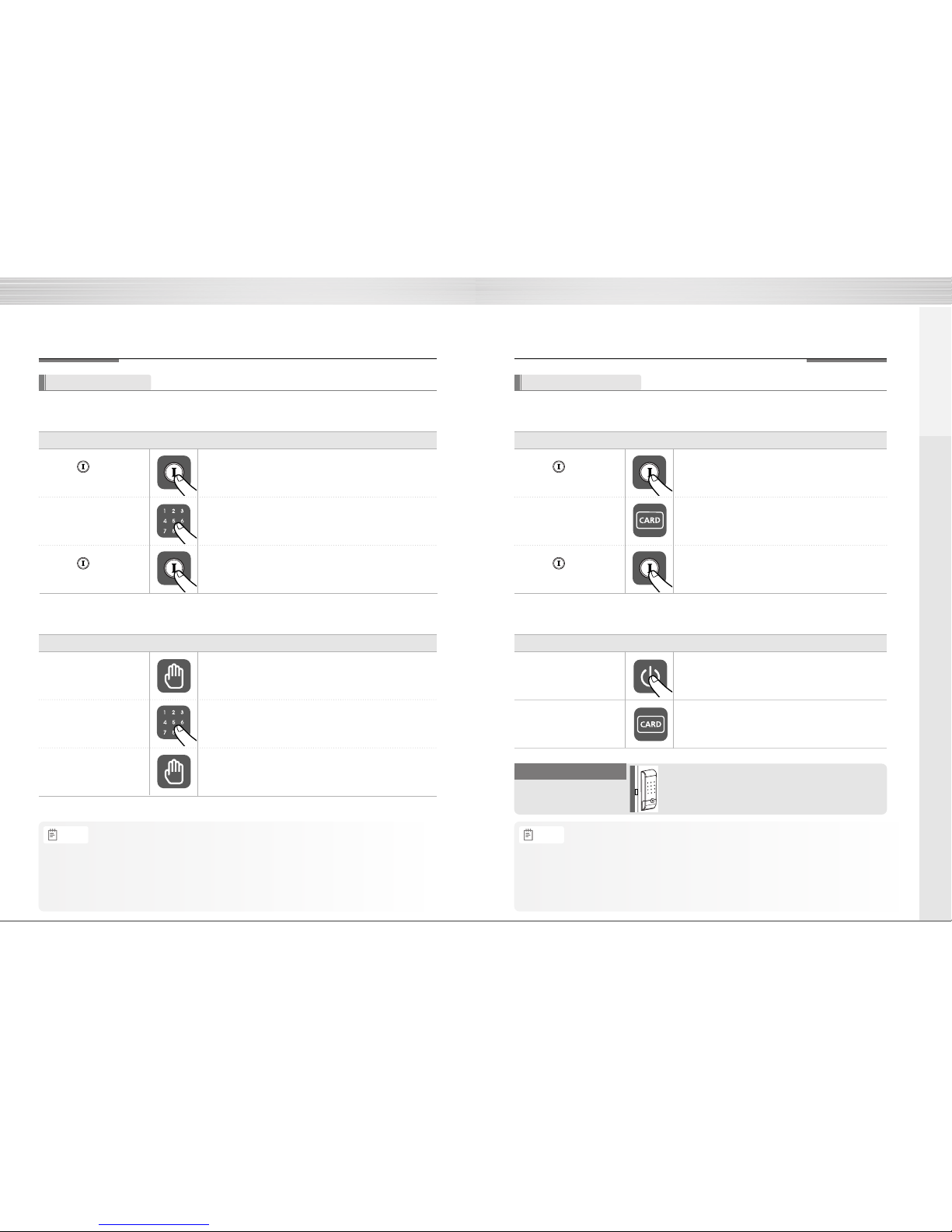

To Use Password
Passwords should be selected from 4 to 12 digits. [ *
] and [ # ] are not allowed.
How to Use
󱎳 Enter the Password
》 To Register Password
》 To Open Door with Password
Order Play Description
 Ⓘ 

 
󱎲 Touch with palm
󱎳 Enter Password
󱎴
Touch with palm
Order Play Description

󱄽


• Make sure to leave the door open when registering a Password because you may accidentally lock
a door while trying to register or change a Password the first time.
• The previously registered Password will automatically be deleted when the new Password is registered.
• When registering a Password, the registered Password will be displayed on the keypad
(Smart Pad) in sequential order and, then, be disappeared.
󱎲
Press (Registration)
button

 Ⓘ 
󱎴 Press (Registration)
button
Note
󱎲 Press (Registration)
button
󱎳 Contact all the Card keys
you wish to register on the
Card key reader one by one
󱎴 Press (Registration)
button
To Use Card key
》 To Register Card key
Order Play Description
 Ⓘ 



Ⓘ 



Make sure to examine if the door opens normally with
the registered Password after the registration is
complete.
Check the door opening
• Keep the door open while you register Card key to prevent yourself from
accidentally getting locked out.
• The previously registered Card key will automatically be deleted when
the new Card key is registered.
• When registering the Card keys, Keypad displays the number of registered Card keys.
Note
How to Use
Instructions
》 To Open Door with Card key
󱎲 Press Card wake up
button
Order Play Description

󱎳
Enter Card key


Auto Lock status
Manual Lock status
Order Play Description




5 Sec
12
》 Press Open/Close button
Press Open/Close button
(Closed) (Open)
(Closed) (Open)
》 Using Manual thumb turn in Emergency
Turn manual thumb turn to
Unlock to open the lock.
How to Use
Auto Lock status
Manual Lock status
》 To Close Door from Outside
Order Play Description




》 To Close Door from Inside
5 Sec
• Even after a door was locked by the Auto Lock function,
please check again if the door was completely closed and locked.
Note
Lock Door
13
How to Use
Open Door from Inside
Instructions
󱈺
󱈺

15
Forced Lock
Settings
》 Outside Forced Lock Setting - Password
󱎲 Touch with palm
󱎳 Enter Password
Order Play Description





󱎴 Press button for
5 seconds
•If you try to open a door with the Manual thumb turn from inside while the Outside Forced Lock is set, the alarm goes off.
•If the Inside Forced Lock is set, any attempt to open a door from outside whether it’d be a Card key or a Password won’t work.
•When setting the Outside/Inside Forced Lock, enter the number on the keypad (Smart Pad) and
the numbers will flicker from left to right and repeat twice.
Note
Instructions
》 Outside Forced Lock Setting - Card key
󱎲 Press Card wake up
button
Order Play Description

󱎳 Contact Card key


14
Settings

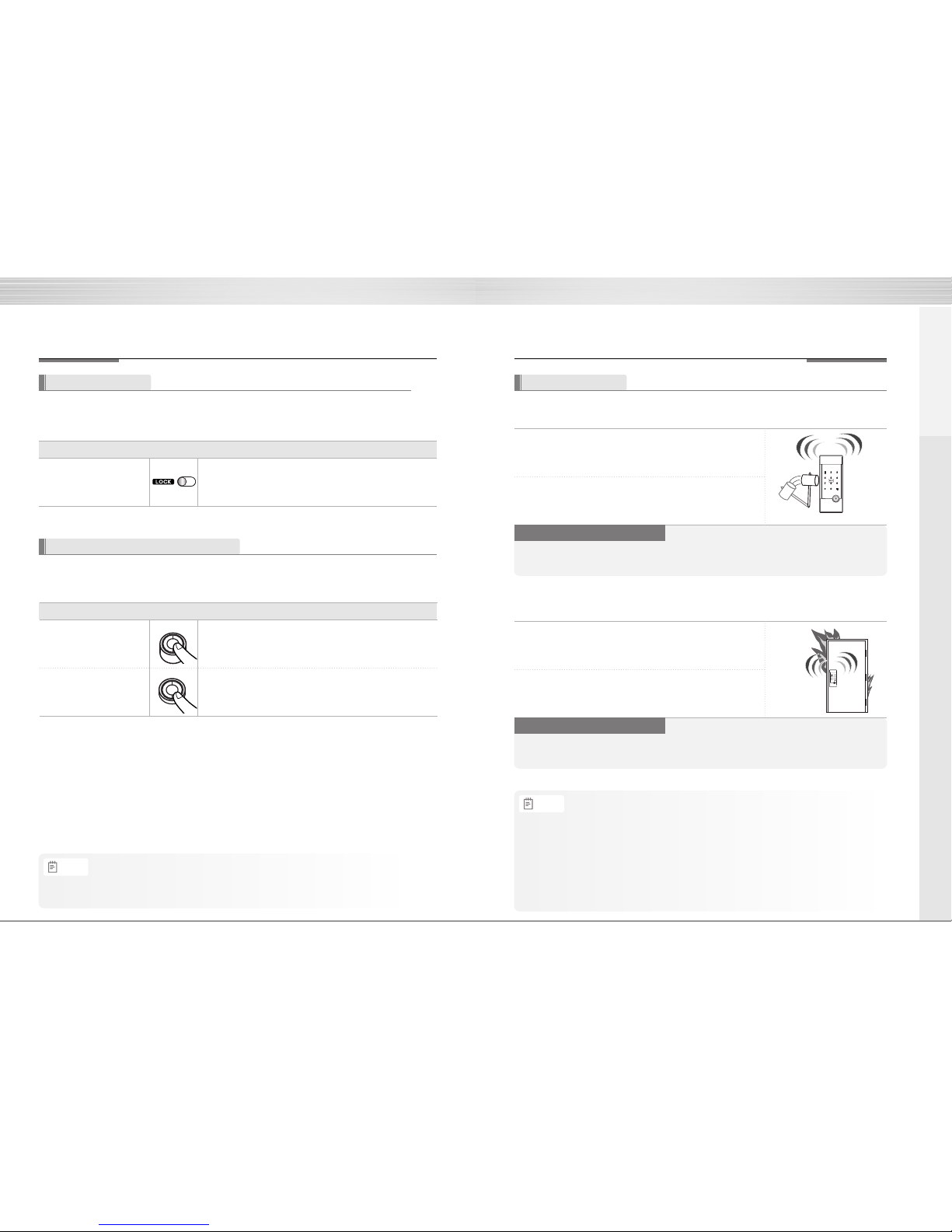

Manual Lock Mode Alarm
》 Toggling the Manual Lock Mode Alarm Setting
Order Play Description




󱎲 Press button
󱎳
Press 0, 8 button
󱎴
Press button
Volume Setting
It enables you adjust the volume of various sounds from the product.
》 Volume Setting
To set volume switch
Order Play Description



•
Even when the operation sound is set as ‘Mute,’the error and alarm sounds will go off.
Note
In the default setting, manual lock mode does not ring off the alarm when it unlocked
by manual thumb turn.
However, the users can change it for their own security need.

16 17
Settings
Auto Lock setting locks a door within 5 seconds after the door is closed.
》 To Set Auto/Manual Feature
Auto Lock Setting
Manual Lock Setting
Order Play Description




Automatic / Manual Lock Setting
Safety Feature
》 Break-in / Damage Alarm
Break-in: When someone tries to Break-in by opening
a door when it is locked, the alarm will go off.
Damage: When the front body was damaged
due to forced separation or drilling,
the alarm will go off.
Alarm Feature The alarm sound continues for 30 minutes or until it is disarmed.
Method ❶ Enter the registered Password.
Method ❷ Enter the registered Card key.
Method ❸ Press the interior Ⓘ button for 5 seconds.
• Even when the Inside Forced Lock mode is set,
the High Temperature Alarm releases the lock status
automatically.
》 High Temperature Alarm
•When there’s fire, it detects the temperature of the inside.
It not only goes off an alarm but also releases the lock
status automatically.
Method ❶ Enter the registered Password.
Method ❷ Enter the registered Card key.
Method ❸ Press the interior Ⓘ button for 5 seconds.
•If a door is open when the Auto Lock is not properly operated, the Trespass Alarm might go off.
•If the Back body is exposed to direct sunlight for a long time, the temperature sensor may operate and
go off an alarm.
•Even when the Inside Forced Lock mode is set, the lock status will automatically be released if the High
Temperature Alarm goes off.
•If the alarm goes off due to damage, fire, or trespass, the numbers on the keypad will light up clockwise.
(It repeats the status for 30 minutes with alarm sound.)
Note
Instructions
• Even after a door was locked by the Auto Lock function, please check again
if the door was completely locked.
Note
Release High Temperature Alarm
Release Trespass/Damage Alarm
Forced Lock
》 Inside Forced Lock Setting
Set / Release Inside
Forced Lock Switch
Order Play Description
When the door is closed, move the Inside Forced Lock Switch
to LOCK position so that a red sticker can be seen.

18

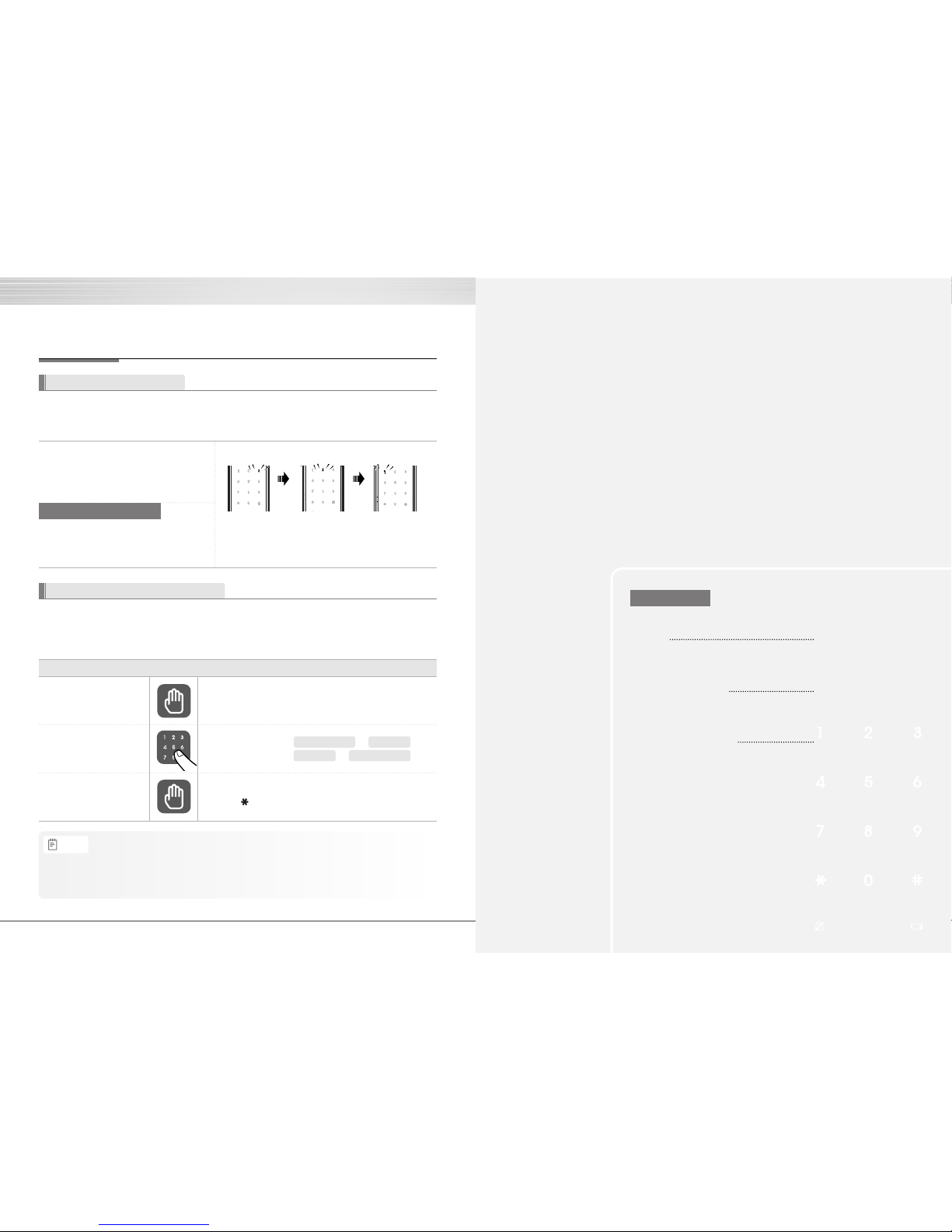

Safety Feature
》 3-minute Lock Mode Display
•If a Password or a Card key that is yet
to be registered is entered for 5
consecutive times, 3-minute Lock mode
is on and nothing will work for 3 minutes.
Method ❶ Press the Open/Close button.
Method ❷ Press the Back body Ⓘ button.
Open Door with fake Password
It is the most effective feature when you are concerned about your Password being accidentally exposed
when you have company or in the similar situations.
  
1 minute
passes.
2 minute
passes.
The number [ 3 ]
lights up.
The number [ 2 ]
lights up.
The number [
1 ]
lights up.
3-minute Lock Feature
At 3-minute Lock mode, no button, besides those in the back body, will work.
To Release 3-minute Lock
•3-minute Lock mode won’t affect any alarm and is sustained even after the product is rebooted.
•Once 3-minute Lock mode is on, the fake Password mode won’t work until the next normal verification
(Card key verification, normal Password, open door from inside). In this case, please open a door with your correct Password.
Note
Extra Features
20
22
23
Option
Remote Control Module
Remote Control
Emergency Power
Emergency Power Supply for
Discharged Batteries
Product Specification

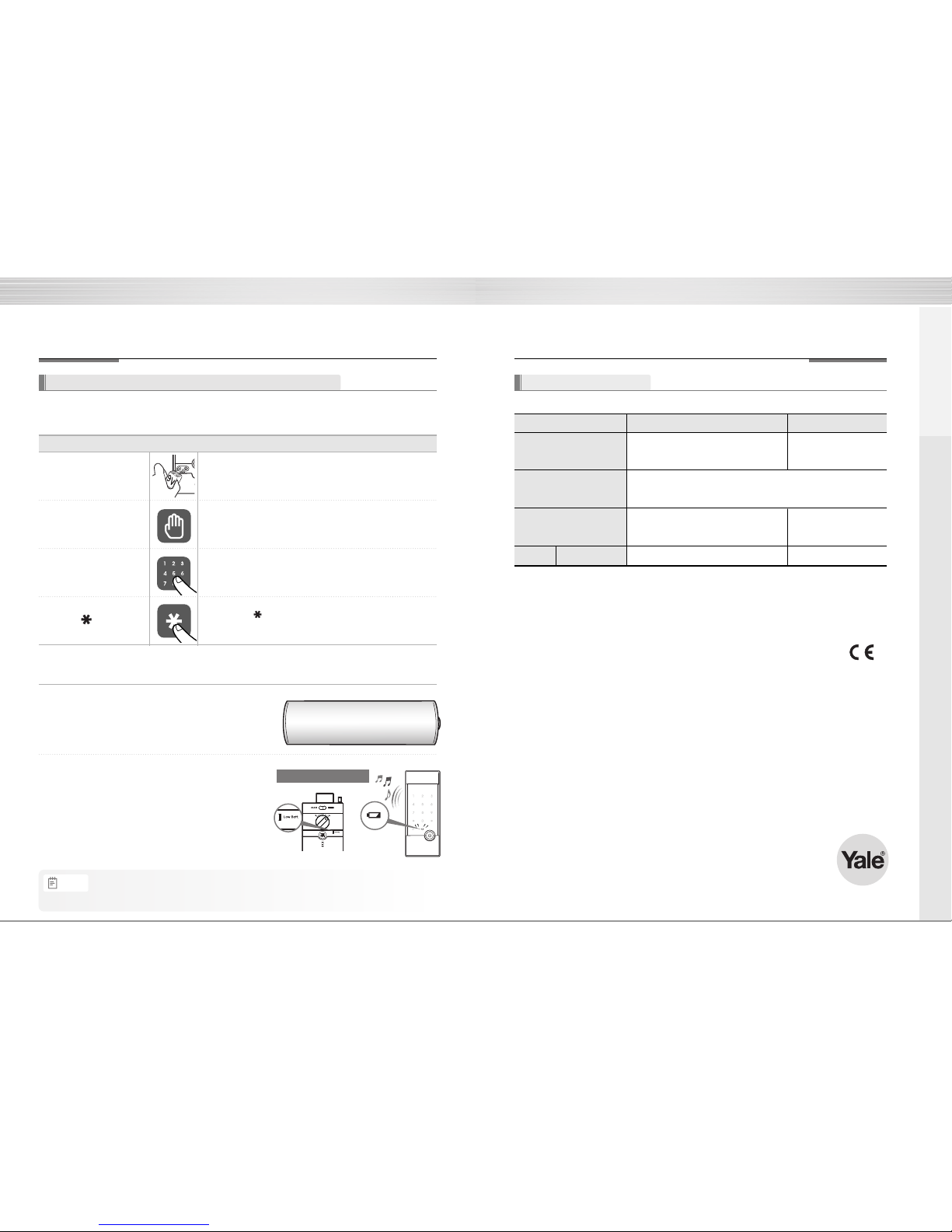

》 To Open Door with fake Password
󱎲 Touch with a palm
󱎴 Touch with a palm
Order Play Description



󱎳
Enter the fake Password
and a Password
Method ❶ 󱈺 
Method ❷ 󱈺 

Extra Features
20 21

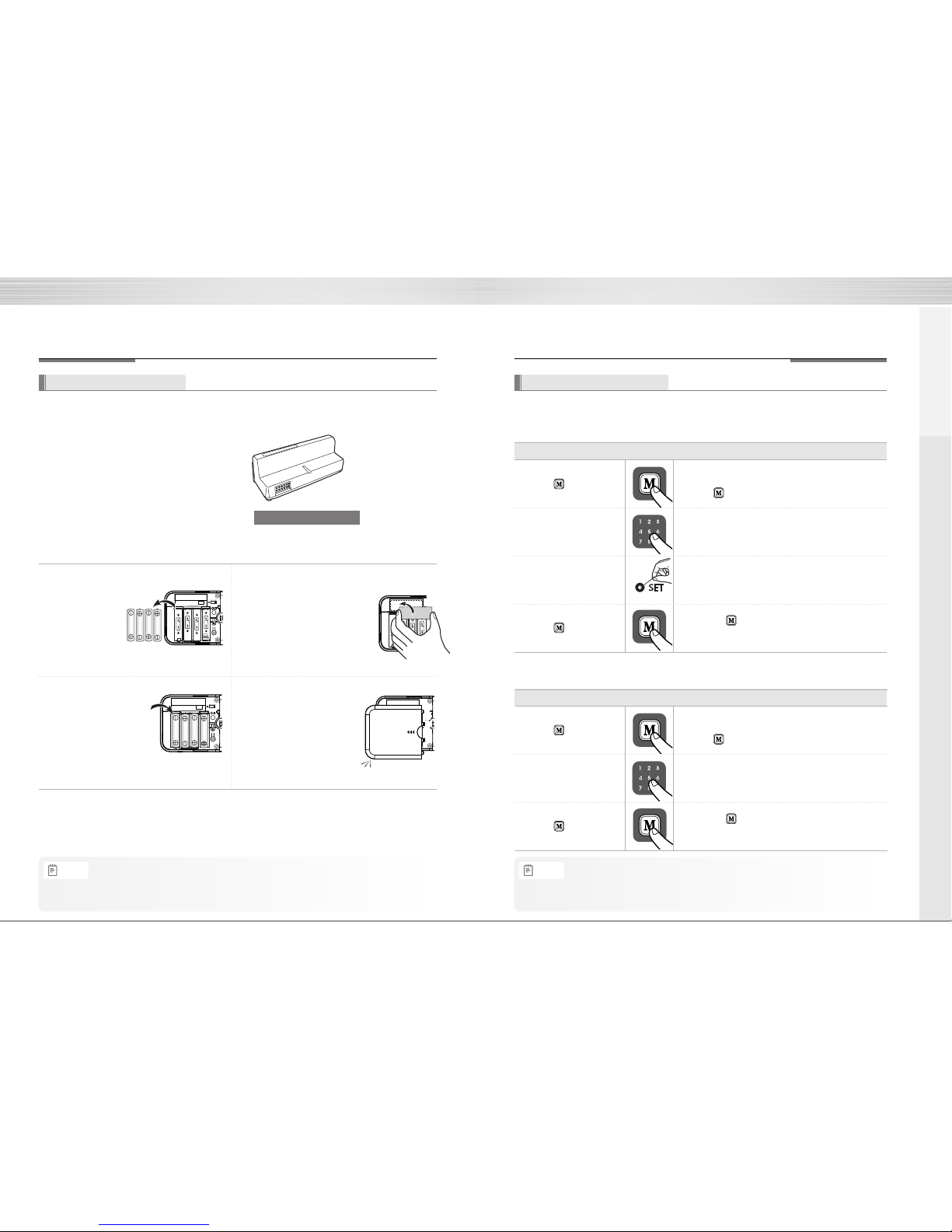

Remote Control Module
Remote control Module
》 Install Remote Control Module
󱎲 Remove batteries
󱎴 Insert batteries
󱎳 Install Remote Control Module
󱎵 Confirm the installation





Buy the Remote control Module and install it to link the remote control.







 󱆸  󱆹 

Option
Ting-a-ling
•The operation status may only be examined through the remote control.
Note
Not only FSK method but also the wireless encryption algorithm has been applied.
Remote Control(Option)
》 To Register Remote Control
》 To Release Remote Control
Option
•The wireless encryption algorithm resorts to the floating ID technology where the wireless
Password is changed every time the remote control is operated.
Note
Order Play Description

󱎳 Enter number 7, 5
on the keypad
󱎳 Enter number 0 and
5 on the keypad
󱎴 Register Remote Control
Order Play Description





󱎲 Press button 

󱎵 Press button
󱎲 Press button 



󱎵 Press button

22
Emergency Power
One
- on - one real - life size

Low Battery Lamp (red)
》 To Replace Battery
󱎲
Expiry Period
󱎳 Low Battery Alarm


(Users are advised to use authentic alkaline batteries.)
You must replace all 4 batteries for the following cases:




•The battery duration varies in the temperature, humidity, the number of use, and the quality of the battery.
Note
front bodyback body
Specifications
23
Specifications
Specifications
Front (Front Body)
Back (Main Body)
Battery
19(D)×64.6(W)×160.2(H)
Zinc die-casting
36(D)×85(W)×158(H)
Fiber-glass plastic
4EA 1.5V AA alkaline batteries
(Operating voltage: 4.5 ~ 6 V)
Operating temperature :
-15~55℃ (5~131˚F)
Last up to 1 year
(10 times used a day)
Remarks
 

 
 
Option Remote Control
Wireless Optional
Parts
Extra Features
Emergency Power Supply for Discharged Batteries
You may open a door by contacting the 9V battery
》 To Supply Emergency Power
󱎲 Contact the
9V battery
󱎳Touch with palm
󱎴 Enter the
registered Password.
Order Play Description
󱎵
Press button
Open the emergency cover. Keep contacting the 9V
battery onto the emergency power supply terminal.

Enter the registered Password.
Press the button.

※ RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCODING TO THE NATIONAL CODE OR
RECYCLING PROGRAM.
