Yale YDM 3111 User manual

YDM 3111

※ The functions and design of this product can be changed without prior notice for quality improvement.
※ Chinese manual is from 23 page.

CONTENTS
2 3
Safety Cautions
Product Features
Simplified Directions
4
5
6
Getting Started
Directions
Extra Features
20
22
44
Option
Remote Control Module
Remote Control
Emergency Power
Emergency Power Supply for
Discharged Batteries
Product Specification
8
10
14
17
Directions
Components Overview•Identification
How to Use
Password
Card Key
Lock Door
Open Door from Inside
Settings
Safe Handle Feature
Volume Setting Feature
Forced Lock
Auto / Manual Feature
Safety Feature
Alarm Feature
3-minute Lock Feature
Open Door with fake password
To get peace of mind, you need to secure yourself, your home and your personal belongings.
Yale Digital Door Locks take care of all this so that you can enjoy your life without any worries.
In these products we have combined our long experience in making secure and reliable locks with
the latest technology for convenience and safety.
With all the functions for convenience and safety, Yale Digital Door Locks clearly offer you more than
just security. In addition to this, we have also put a lot of effort in the aesthetic design of these
products, so that your Yale Digital Door lock can actually enhance the appearance of your door while
securing it at the same time.
The future of locking is already here and ready for use. Get rid of all your concerns regarding the
security of your home and use a Yale Digital Door Lock to unlock the door to the potential of your life.
Unlock your life!
http://www.yalegateman.com.cn
INTRO

Product Features
4 5

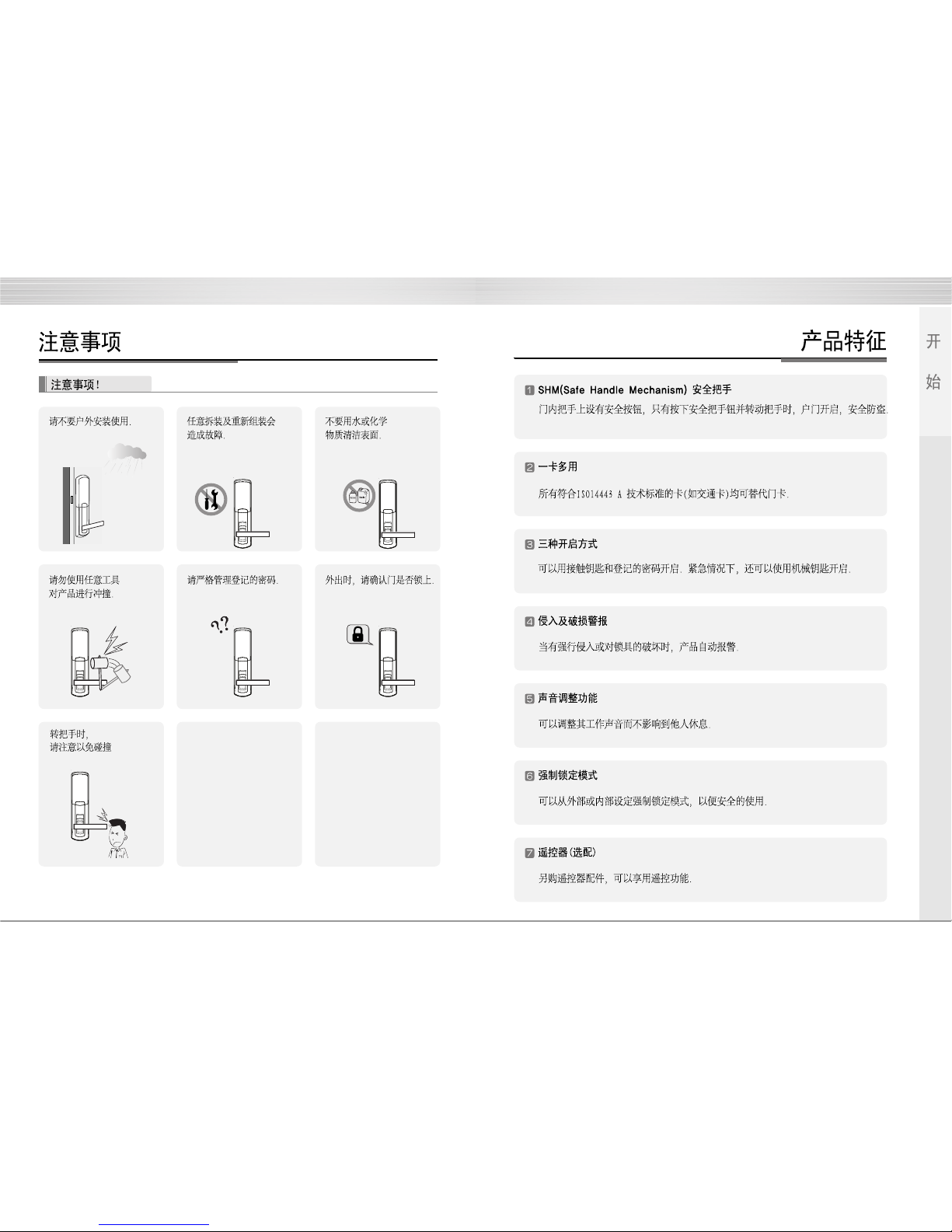

Safety Cautions
Do not install the unit in outdoor
environment.
Be careful not to let
unauthorized user know
your Password.
Do not use force with a tool onto
the product.
Please keep your password
safely.
Do not spray water directly to the
product or wipe it with chemical
substances such as benzene,
thinner, or alcohol when cleaning
the product.
Be careful not to hit the handle
as it may cause injuries.
Make sure to lock the door
tight when you go out.
Make sure to follow the above instructions to avoid any injuries or damages on the properties .
Must Read This!!! Please read this carefully for your own safety.
Caution
󱎲SHM(Safe Handle Mechanism) Technology


󱎳Proximity card identification


󱎴Triple access


󱎵Break-in / Damage alarm

󱎶Volume control

󱎷Forced lock mode


󱎸Remote Control (Option)

Getting Started

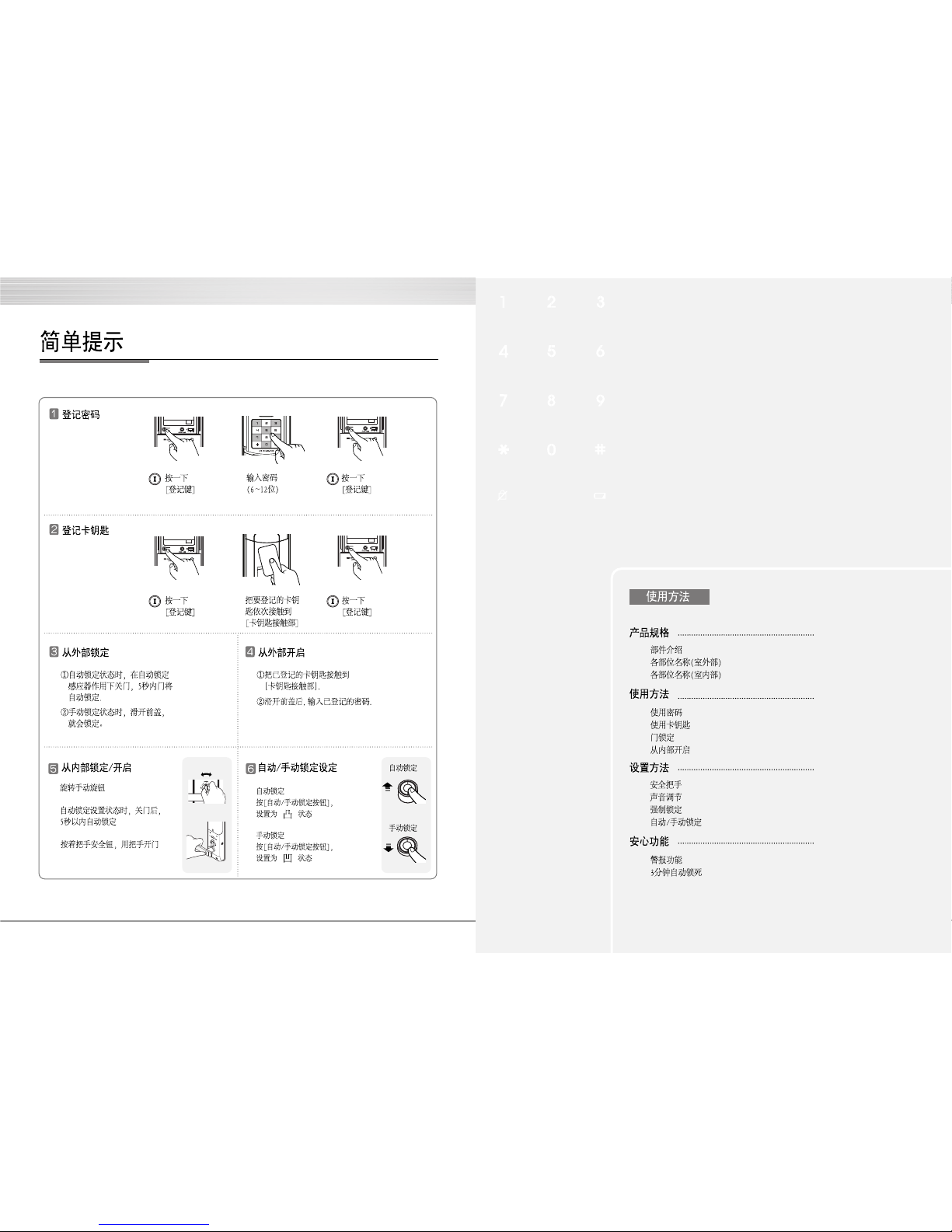

Simplified Directions
6
󱎲 Register Password


󱈺󱈺
󱎳Register Cardkey
󱈺



󱈺
Directions








󱎴Lock Door from Outside 󱎵Open Door from Outside
 
 

 
 


 


 


 


 


󱎶Lock/Open Door from Inside






󱎷Set Auto/ Manual Mode
Auto Set
Manual Set
8
10
14
17
Directions
Components Overview•Identification
How to Use
Password
Card Key
Lock Door
Open Door from Inside
Settings
Safe Handle Feature
Volume Setting Feature
Forced Lock
Auto / Manual Feature
Safety Feature
Alarm Feature
3-minute Lock Feature
Open Door with fake password

8 9
❶
❷
❸
❺
❻
❼
Pull up Cover
Front (Front Body) Back (Main Body) Installation Template Lock case
Strike Plate Users Guide
•Remote control
•Remote control module
》Option
4 Card Keys
8 Batteries
Screws
Components Overview
》Basic Contents
Basic Contents
The contents of this product may be subject to change without notice for performance or quality improvement.
❶ Keypad Cover
❷ Lever
❸CardKey Reader
❹ Reset button
❺
❻
Emergency Power Supply
Terminal
❼
Keypad
Emergency key
Identification
Front
Back
(Front Body, install on the outside of the door)
(Back Body, install on the inside of the door)
Directions
9V Emergency battery
(Optional)
❶Battery Cover
❷Slot for Remote control
module(Option)
❸Registration button
❹ Battery Change Lamp
❺Forced Lock Switch
❻Manual thumb turn
❼Lever
❽ 1.5V AA Alkaline Batteries
❾ Auto / Manual Lock button
❿Volume Control Switch
󱆌Lock case
󱆍 Automatic Locking Sensor
󱆎Dead Bolt
󱆏
󱆐
Latch Bolt
Safe handle button
❶
❼
❸
❷
❹
❺
❻
❽
❾
❿
󱆎
󱆏
󱆐
󱆌
󱆍
❹

󱎲 Press (Registration)
button
󱎳 Contact all the card keys
you wish to register on the
[card key reader] one by one
󱎴 Press (Registration)
button
How to Use
10 11
To Use Cardkey
》 To Register Cardkey
》 To Open Door with Cardkey
Order Play Description
 Ⓘ 



Ⓘ 



■ Contact cardkey
Order Play Description

Make sure to examine if the door opens normally with
the registered password after the registration is
complete.
Check if the door opens!
To Use Password
Passwords should be selected from 6 to 12 digits. [ * ] and [ # ] are not allowed.
How to Use
󱎳 Enter the password
》 To Register Password
》 To Open Door with Password
Order Play Description
 Ⓘ 

 
󱎲 Open the cover
󱎳 Enter password
󱎴 Close the cover
Order Play Description
 󱄽



•
Make sure to leave the door open when registering a password because you may accidentally lock
a door while trying to register or change a password the first time.
• The previously registered password will automatically be deleted when the new password is registered.
󱎲 Press (Registration)
button

 Ⓘ 
󱎴 Press (Registration)
button
Note
Directions
• Keep the door open while you register card key to prevent yourself from
accidentally getting locked out.
• The previously registered Card key will automatically be deleted when
the new Card key is registered.
Note

12 13
•
비상상황을 대비하여 수동개폐장치 조작방법과 세이프핸들 조작방법을 숙지하시기 바랍니다.
How to Use How to Use
Auto Lock status
Manual Lock status
》 To Close Door from Outside
Order Play Description




Auto Lock status
Manual Lock status
》 To Close Door from Inside
Order Play Description




5 Sec
5 Sec
•
Even after a door was locked by the Auto Lock function,
please check again if the door was completely closed and locked.
Note
Lock Door
The default setting is Safe Handle Setting.
Open Door from Inside
》 To Open Door from Safe Handle Setting
Keep pressing the Safe Handle
button. And then, lower and push
the handle at the same time. The
Safe Handle button is found on the
interior handle.
》 To Open Door from Safe Handle Setting Locked
Lower and push the interior
handle at the same time.
(Closed) (Open)
(Closed) (Open)
(Closed) (Open)
》 To Open with Manual Device for Emergencies
Turn the Manual thumb turn to Open
side. Keep pressing the Safe Handle
button. And then, lower and push the
handle at the same time. The Safe
Handle button is found on the interior
handle.
•
Make sure to fully familiarize yourself with the operations for the Manual Device and
the Safe Handle in preparation for emergencies.
Note
Directions

14 15
》 Outside Forced Lock Setting - CARD
Forced Lock
Contact card key
Order Play Description


Settings Settings
》 To Release Safe Handle Setting
󱎲 Open the battery cover and
take out a hex wrench.
󱎳 Keep pressing the Safe Handle button.
Turn the set bolt found in next to
the handle to clockwise.
》 To Set Safe Handle
󱎲 Open the battery cover and
take out a hex wrench.
󱎳 Turn the set bolt found in next to the
handle to Counter clockwise until the
Safe Handle button comes out.
Volume Setting Feature
It enables you adjust the volume of various sounds from the product.
》 Volume Setting
To set volume switch
Order Play Description



Safe Handle Feature
The technology to prevent a forced attempt to drill a hole in the door and unlock the Doorlock has been applied.
•
Be careful that the set bolt won’t detach when modifying the Safe Handle Setting.
•
Even when the operation sound is set as ‘Mute,’the error and alarm sounds will go off.
Note
》 Inside Forced Lock Setting
Set / Release Inside
Forced Lock Switch
Order Play Description
When the door is closed, move the Inside Forced Lock
Switch to LOCK position so that a red sticker can be seen.
》 Outside Forced Lock Setting - Password
󱎲 Open the cover
󱎳 Enter password
Order Play Description




󱎴 Press button for
5 seconds
•If you try to open a door with the handle or the Manual Open/Close Device from inside when the Outside Forced Lock is set,
the alarm goes off.
•If the Inside Forced Lock is set, any attempt to open a door from outside whether it’d be a cardkey or a password won’t work.
Note
Directions

16 17
Settings
Auto Lock setting locks a door within 5 seconds after the door is closed.
》 To Set Auto/Manual Feature
Auto Lock Setting
Manual Lock Setting
Order Play Description




Auto / Manual Feature
Safety Feature
》 Break-in / Damage Alarm
Break-in: When someone tries to Break-in by opening
a door when it is locked, the alarm will go off.
Damage: When the front body was damaged
due to forced separation or drilling,
the alarm will go off.
Alarm Feature The alarm sound continues for 30 minutes or until it is disarmed.
Method ❶ Enter the registered password.
Method ❷ Enter the registered cardkey.
Method ❸ Press the interior Ⓘ button for 5 seconds.
Directions
•
Even after a door was locked by the Auto Lock function, please check again
if the door was completely locked.
Note
Release Trespass/Damage Alarm

18
Extra Features
20
22
23
Option
Remote Control Module
Remote Control
Emergency Power
Emergency Power Supply for
Discharged Batteries
Product Specification
Safety Feature
Open Door with fake password
It is the most effective feature when you are concerned about your password being accidentally
exposed when you have company or in the similar situations.
》 To Open Door with fake password
󱎲 Open the cover
󱎴 Close the cover
Order Play Description


Method ❶
󱈺 
Method ❷ 󱈺 
•3-minute Lock mode won’t affect any alarm and is sustained even after the product is rebooted.
•Once 3-minute Lock mode is on, the fake PIN code mode won’t work until the next normal verification
(Card verification, normal password, open door from inside). In this case, please open a door with your correct password.
Note
󱎳
Enter the fake password
and a password
5times 5times
》 3-minute Lock Mode Display
•If a password or a cardkey that is yet
to be registered is entered for 5
consecutive times, 3-minute Lock mode
is on and nothing will work for 3 minutes.
Method ❶ Press the Back body Ⓘ button.
Method ❷ Turn the Back body handle.
3-minute Lock Feature
At 3-minute Lock mode, no button, besides those in the back body, will work.
To Release 3-minute Lock

20 21
Remote Control Module
Remote control Module
》 Install Remote Control Module
󱎲 Remove batteries
󱎴 Insert batteries
󱎳 Install Remote Control Module
󱎵 Confirm the installation





Buy the Remote control Module and install it to link the remote control.







 󱆸  󱆹 

Option
Ting-a-ling
•The operation status may only be examined through the remote control.
Note
Not only FSK method but also the wireless encryption algorithm has been applied.
Remote Control
》 To Register Remote Control
》 To Release Remote Control
Option
Extra Features
•The wireless encryption algorithm resorts to the floating ID technology where the wireless
password is changed every time the remote control is operated.
Note
Order Play Description

󱎳 Enter number 7 and
5 on the keypad
󱎲 Press (Registration)
button and button

 Ⓘ   
 Ⓘ 

󱎴
Press (Registration)
button
󱎳 Enter number 0 and
5 on the keypad
󱎴 Register Remote control
Order Play Description



 Ⓘ 

󱎵 Press (Registration)
button
󱎲 Press (Registration)
button and button

 Ⓘ   

22

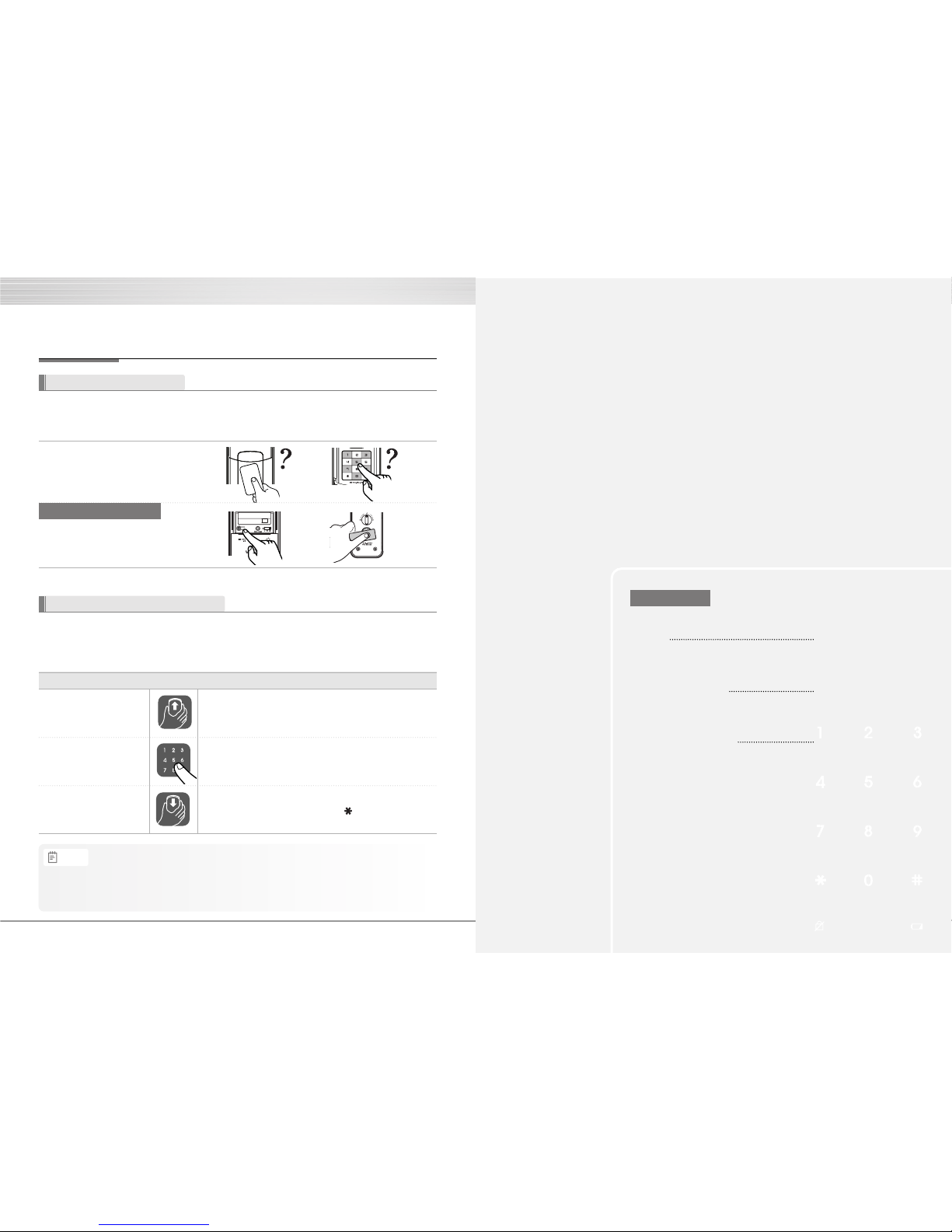

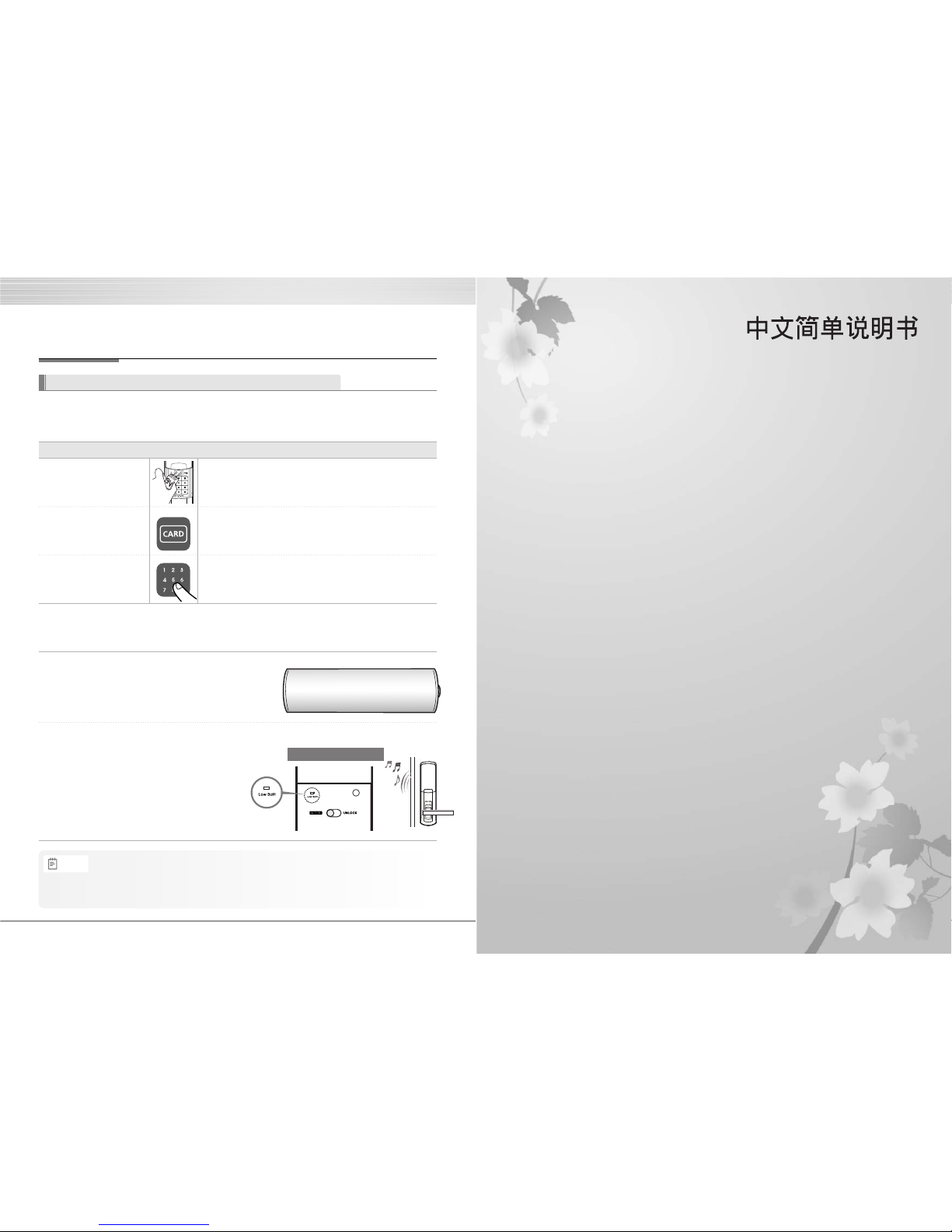

Emergency Power
Emergency Power Supply for Discharged Batteries
You may open a door by contacting the 9V battery
One - on - one real - life size

》 To Replace Battery
󱎲 Expiry Period
󱎳 Low Battery Alarm


(Users are advised to use authentic alkaline batteries.)
You must replace all 8 batteries for the following cases:



•The battery duration varies in the temperature, humidity, the number of use, and the quality of the battery.
Note
》 To Supply Emergency Power
Contact the
9V battery
Method ❶
Contact card key
Method ❷
Enter password
Order Play Description




Low Battery Lamp (red)
back body

24 25

26
28
30
34
37
󱈺󱈺
󱈺󱈺

28 29
❶
❷
❸
❶
❼
❸
❷
❹
❺
❻
❽
❾
❿
󱆎
󱆏
󱆐
󱆌
󱆍
❺
❻
❼
❹

30 31

32 33

34 35

36 37

38
추가구성
40
42
44
󱈺
󱈺
