Yale EC800 User manual

外部面板 內部面板

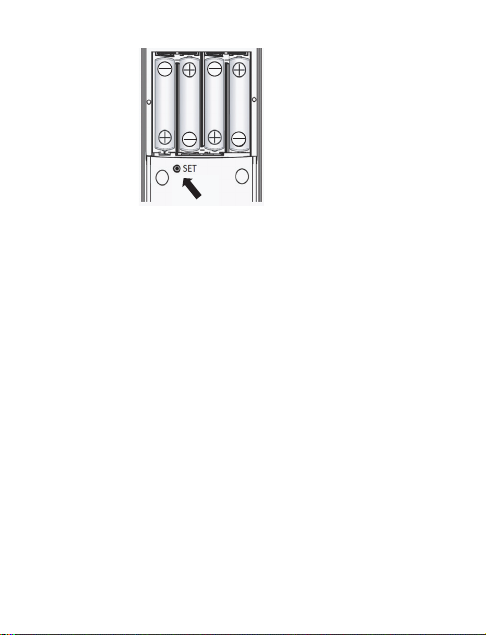

Press and hold the "SET" button, and in ve seconds you will
hear "Du...Du...Du...DuDu", release the button, voice prompt
"successfully", represents reset Ok, then release the "SET"
butto.
Factory default administrator PIN Code is 123456
Note: After initializing, any CARD or factory default PIN code
123456 can unlock.
●
Register administrators
●Press "SET" button or press "*" then "#" keys to activate the
setting mode.
Voice broadcast: "Add administrator", Please enter card
or PIN code to add.
●
Register Users

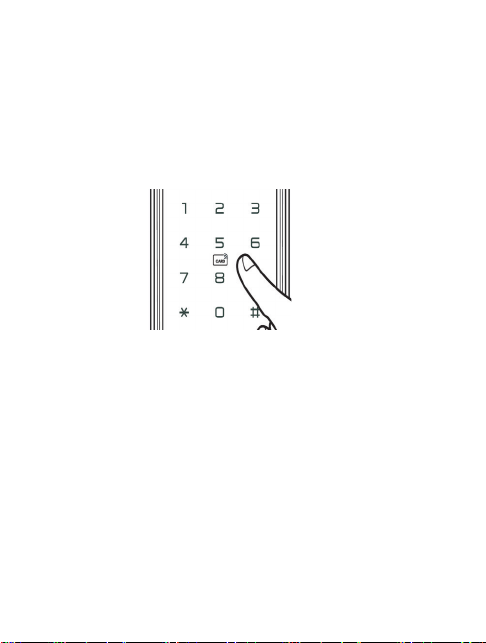

Touch lights up the keyboard, press " *" and then "# ";
Or short press the " SET " button, voice broadcast:
"Please verify admin" and then enter the administrator
information
●
●
Modication
Delete user information
Touch lights up the keyboard, press " *" and then " #";
Or short press the " SET " button, voice broadcast:
"Please verify admin" and then enter the administrator
information
●
●
2.1
2.2
3.1
Enter a new PIN code (6 to 12 digits) and then press “ # ”or
swipe the RF card.
Note: The lock will exit the setting mode after 12 seconds
if no operation or press “ * ” key to exit the setting mode.
Factory default PIN code 123456 will be invalidated after
Administrator registration completed.
Voice broadcast after verication
"1 Add User 2 Delete User 3 Lock Settings 4 Add Admin"
Press 1 to enter the Add User according to Voice guide.
Enter a PIN code or card to enter user information
Note: 1.The lock will exit the setting mode after 12 seconds
if no operation or press “ * ” key to exit the setting
mode.
2.Repeated registered -PIN code is not allowed.
Voice guide after verication
"1 Add User 2 Delete User 3 Lock Settings 4 Add Admin"
Press 2 to enter the Delete User state and voice
broadcast:"Delete user"
Swipe the key card or enter the user number or PIN code
on the keyboard sensor area, press "#" to conrm the input,
and then press "#" to conrm the deletion.
Note: The lock will exit the setting mode after 12 seconds if no
operation or press “ * ” key to exit the setting mode.
Delete all user information
According to operation 3.1, enter the delete user state
and enter 000#.
Voice broadcast "DuDu" and then press " #" to conrm
deleting all users.
●
3.2
Note: 1.The lock will exit the setting mode after 12 seconds
if no operation or press “ * ” key to exit the setting
mode.
2.After all deletion, only users are deleted, not admini-
strators.
Add administrator
Touch lights up the keyboard, press " *" and then " #";
Or short press the set button, voice broadcast:
"Please verify admin" and then enter registered administrator
PIN code.
●
●
2.3
Voice broadcast after verication
"1 Add User 2 Delete User 3 Lock Settings 4 Add Admin"
Press 4 to enter the Add Admin state and voice
broadcast:"add admin"
Enter a PIN code or card to enter administration information.
Note: Maximum 9 administrators can be saved.
The administrator has the authorization to enter to Setting
mode and open door.
Usage
Open Door by PIN Code
●
●
4.1

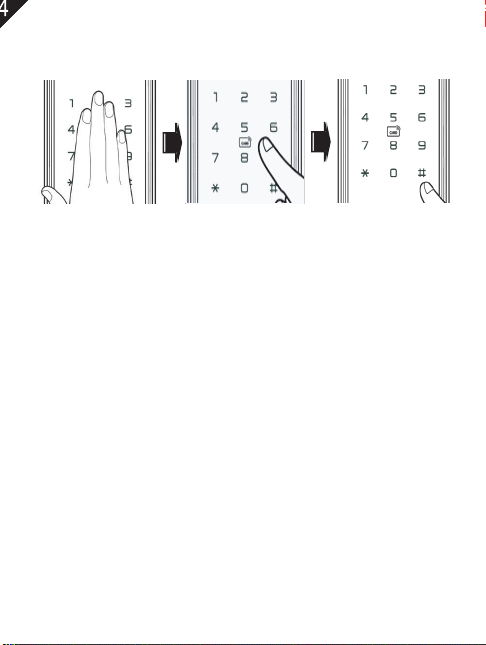

Touch the keypad. Enter 6~16 digits (PIN code and fake PIN
code) and press “ # ” to conrm. The conrmation sound will
be heard if the PIN code is correct. Then turn lever to open the
door within 8 seconds. After that, The conrmation sound will
be heard again and door will be locked.
(Fake PIN code can input before and after the PIN code.)
The RED light will ON and a voice prompt will be heard if PIN
code is NOT matched.
( RED light will be ON and the system will lock for 1 minute
after 5 consecutive failed try by key card/PIN code.)
Open Door by KeyCard
●
4.2

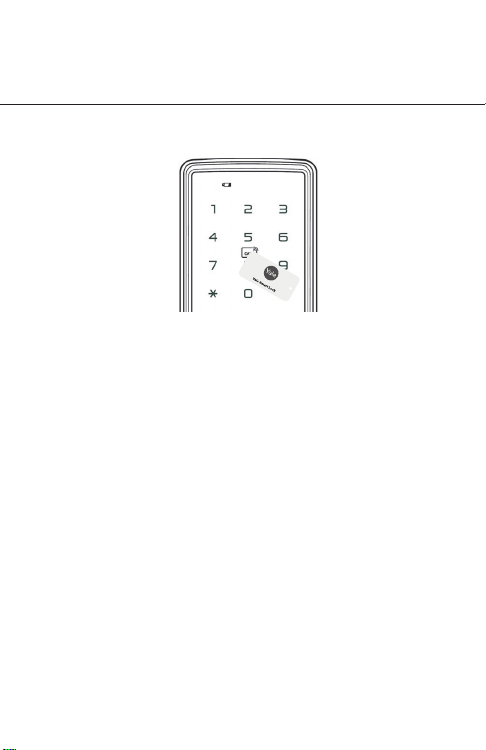

Touch the keypad. Swipe the KeyCard on keypad induction
zone. Then turn lever to open the door within 8 seconds.
The RED light will ON and a voice prompt will be heard if the
key card is NOT matched.
( RED light will be ON and the system will lock for 1 minute
after 5 consecutive failed try by key card/PIN code.)
Ver1.04
Factory Reset
1.3
Start Up
（"successfully" will be heard after successful registration.）
Entry door lock setting
lock setting
Voice broadcast after verication
"1 Add User 2 Delete User 3 Lock Settings 4 Add Admin"
Press 3 to enter the Lock Setting state.
Voice broadcast:
"1 Function Settings 2 Volume Setting 3 Language Settings"
Verication
administrator
1 Add User
2 Delete User
3 Lock
Settings
4 Add Admin
1 Function
Setting
2 Volume
Setting
3 Language
Setting
1 Enable Passage
2 Enable Dual Verify
3 Enable Mute
1 Volume Up
2 Volume Down
1 Chinese
2 English
Before Installation
Preparation
Door Preparation
●54mm hole saw
●25mm hole saw
●
Fixing
●
Screwdriver
●Drill
Key x 3
M4 Machined
Screw x 3
M4 Wooden
Screw x 4
Spring
Latch KeyCard x 2
Outside Panel Inside Panel
Alkaline Batteries
(AAA x 4)
All dimensions in millimetres
Yale EC800 Smart Lock
USER MANUAL
Components
1.1
1.2
Spindle
Chisel and hammer
StrikeDust Box
