Yealink W56P IP DECT Phone Release Notes of Version
80
Table of Contents
Yealink W56P IP DECT Phone Release Notes of Version 80 ....................................................... 1
Yealink W56P IP DECT Phones Release Notes of Version x.80.0.15............................................ 2
1. Introduction ..............................................................................................................................2
2. New Features ............................................................................................................................2
3. Optimization..............................................................................................................................2
4. Bug Fixes....................................................................................................................................2
5. New Features Descriptions .......................................................................................................3
6. Optimization Descriptions.........................................................................................................5
7. Configuration Parameters Enhancements ................................................................................6
Yealink W56P IP DECT Phone Release Notes of Version 25.80.0.10 ......................................... 15
1. Introduction ............................................................................................................................15
2. New Features ..........................................................................................................................15
3. Optimization............................................................................................................................15
4. Bug Fixes..................................................................................................................................16
5. New Features Descriptions .....................................................................................................16
6. Optimization Descriptions.......................................................................................................23
7. Configuration Parameters Enhancements ..............................................................................33

2
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
Yealink W56P IP DECT Phones Release Notes of Version
x.80.0.15
1. Introduction
Firmware Version:
Base Version: 25.80.0.10 upgrades to 25.80.0.15.
W56H: 61.80.0.10 upgrades to 61.80.0.15
Applicable Models: Base for W52P/W56P, W56H
Release Date: July 14th, 2016.
Note: Yealink W56P IP DECT Phone uses the same base station with W52P IP DECT
Phone. If the base is upgraded from V73 to V80, it can be used with both W56H and
W52H, but the newly added features in V80 base only apply to W56H. While if you
are still using the base in V73, only W52H is applicable.
2. New Features
1. Added the feature of RTCP-XR.
2. Added the feature of IPv6 support.
3. Added the feature that you can customize your own web user interface for W56P
IP DECT phone.
4. Added the feature that users can login the web user interface quickly of the IP
DECT phone.
3. Optimization
1. Deleted two languages- Czech and Hebrew from W56P IP DECT phone.
2. Optimized the feature of Screen Activation.
4. Bug Fixes
None

3
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
5. New Features Descriptions
1. Added the feature of RTCP-XR.
Description: The RTCP-XR mechanism, complaint with RFC 3611-RTP Control
Extended Reports (RTCP XR), provides the metrics contained in RTCP-XR packets
for monitoring the quality of calls. These metrics include network packet loss,
delay metrics, analog metrics and voice quality metrics.
The parameters in the auto provision template are described as follows:
voice.rtcp_xr.enable =
phone_setting.rtcp_xr_report.enable =
phone_setting.vq_rtcpxr.session_report.enable =
phone_setting.vq_rtcpxr.interval_report.enable =
phone_setting.vq_rtcpxr_interval_period =
phone_setting.vq_rtcpxr_moslq_threshold_warning =
phone_setting.vq_rtcpxr_moslq_threshold_critical =
phone_setting.vq_rtcpxr_delay_threshold_warning =
phone_setting.vq_rtcpxr_delay_threshold_critical =
phone_setting.vq_rtcpxr.states_show_on_web.enable =
account.x.vq_rtcpxr.collector_server_host =
account.x.vq_rtcpxr.collector_name =
account.x.vq_rtcpxr.collector_server_port =
To configure RTCP-XR feature via web user interface:
Press Settings -> Voice Monitoring.
2. Added the feature of IPv6 support.

4
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
Description: IPv6 is developed by the Internet Engineering Task Force (IETF) to
deal with the long-anticipated problem of IPv4 address exhaustion. IPv6 uses a
128-bit address, consisting of eight groups of four hexadecimal digits separated
by colons; for example, 2026:1234:1:1:215:65ff:fe1f:caa. VoIP network based on
IPv6 can provide end-to-end security capabilities, enhanced Quality of Service
(QoS), a set of service requirements to deliver performance guarantee while
transporting traffic over the network.
The parameters in the auto provision template are described as follows:
network.ip_address_mode =
network.ipv6_static_dns_enable =
network.ipv6_prefix =
network.ipv6_primary_dns =
network.ipv6_secondary_dns =
network.ipv6_internet_port.type =
network.ipv6_internet_port.ip =
network.ipv6_internet_port.gateway =

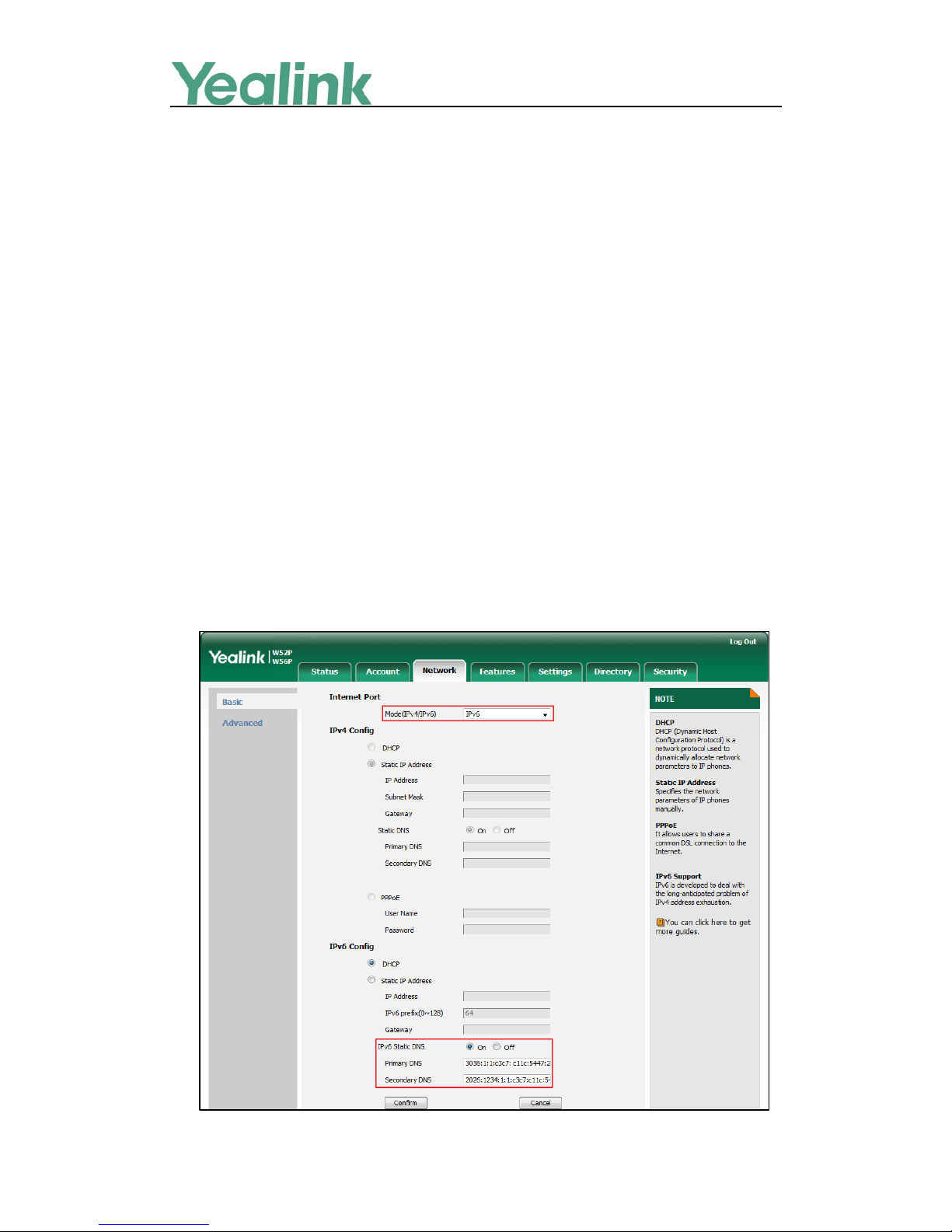

To configure IPv6 address assignment method via web user interface:
Click on Network->Basic.

5
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
3. Added the feature that you can customize your own web user interface for
W56P IP DECT phone.
Description: Using the related configuration parameters, you can configure the
link to a page when clicking the logo on the web navigation bar, the web title of
the IP phones, the model name on web navigation bar, the access URL of web
theme file, the access URL of web navigation bar file and delete all web
navigation bar files.
The parameters in the auto provision template are described as follows:
web_setting.logo_link =
web_setting.title =
web_setting.model_name =
web_setting.color.url =
web_setting.picture.url =
web_setting.picture.delete =
4. Added the feature that users can login the web user interface quickly of the IP
DECT phone.
Description: Users can login the web user interface quickly of the IP DECT phone
using https://username:password@IP (for example,
https://admin:admin@192.168.0.1), instead of entering the user name and
password manually in the pop-up box on the web user interface.
The parameters in the auto provision template are described as follows:
wui.quick_login =
6. Optimization Descriptions
1. Deleted two languages- Czech and Hebrew from W56P IP DECT phone.
Description: The IP DECT phones support multiple languages. Languages used on
the handset user interface and web user interface can be specified respectively
as required.
The following table lists the supported languages on the handset user interface
and the web user interface.
Handset
Web User Interface
English
English

6
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
Handset
Web User Interface
French
German
Italian
Polish
Portuguese
Spanish
Turkish
Swedish
Russian
French
German
Italian
Polish
Portuguese
Spanish
Turkish
Russian
2. Optimized the feature of Screen Activation.
Description: When the handset is under Screen Saver state or entering
power-saving mode, press keys on the handset to activate related functions. For
instance: while the handset is under Screen Saver state, press the "OK" key, and
the handset will directly go to the Menu.
7. Configuration Parameters Enhancements
Auto Provision Template Flies Change Log
Firmware Version：[x.80.0.10]-[ x.80.0.15]
Feature
Provisioning syntax
Comparison
Permitted
Values
Default
Value
Action
Description
File
x. 80.0.10
x.80.0.15
RTCP-XR
voice.rtcp_xr
.enable =
0 or 1
0
Add
It enables or disables the IP
phone to send RTCP-XR
packets.
0-Disabled
1-Enabled
common.
cfg
RTCP-XR
phone_setti
ng.rtcp_xr_r
eport.enable
=
0 or 1
0
Add
It enables or disables the IP
phone to periodically (every
5 seconds) send RTCP-XR
packets to another
participating phone during a
call for call quality
monitoring and diagnosing.
0-Disabled
common.
cfg

7
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
1-Enabled
Note: It works only if the
value of the parameter
“voice.rtcp_xr.enable” is set
to 1 (Enabled).
RTCP-XR
phone_setti
ng.vq_rtcpxr.
session_repo
rt.enable =
0 or 1
0
Add
It enables or disables the IP
phone to send a session
quality report to the central
report collector at the end
of each call.
0-Disabled
1-Enabled
common.
cfg
RTCP-XR
phone_setti
ng.vq_rtcpxr.
interval_rep
ort.enable =
0 or 1
0
Add
It enables or disables the IP
phone to send an interval
quality report to the central
report collector periodically
throughout a call.
0-Disabled
1-Enabled
common.
cfg
VQ-RTCPX
R
phone_setti
ng.vq_rtcpxr
_interval_pe
riod =
Integer from
5 to 20
20
Add
It configures the interval (in
seconds) for the IP phone to
send an interval quality
report to the central report
collector periodically
throughout a call.
Note: It works only if the
value of the parameter
“phone_setting.vq_rtcpxr.int
erval_report.enable” is set
to 1 (Enabled).
common.
cfg
VQ-RTCPX
R
phone_setti
ng.vq_rtcpxr
_moslq_thre
shold_warni
ng =
15 to 40
Blank
Add
It configures the threshold
value of listening MOS score
(MOS-LQ) multiplied by 10.
The threshold value of
MOS-LQ causes the phone
to send a warning alert
quality report to the central
report collector.
For example, a configured
value of 35 corresponds to
the MOS score 3.5. When
common.
cfg

8
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
the MOS-LQ value
computed by the phone is
less than or equal to 3.5, the
phone will send a warning
alert quality report to the
central report collector.
When the MOS-LQ value
computed by the phone is
greater than 3.5, the phone
will not send a warning alert
quality report to the central
report collector.
If it is set to blank, warning
alerts are not generated due
to MOS-LQ.
VQ-RTCPX
R
phone_setti
ng.vq_rtcpxr
_moslq_thre
shold_critica
l =
15 to 40
Blank
Add
It configures the threshold
value of listening MOS score
(MOS-LQ) multiplied by 10.
The threshold value of
MOS-LQ causes the phone
to send a critical alert
quality report to the central
report collector.
For example, a configured
value of 28 corresponds to
the MOS score 2.8. When
the MOS-LQ value
computed by the phone is
less than or equal to 2.8, the
phone will send a critical
alert quality report to the
central report collector.
When the MOS-LQ value
computed by the phone is
greater than 2.8, the phone
will not send a critical alert
quality report to the central
report collector.
If it is set to blank, critical
alerts are not generated due
to MOS-LQ.
common.
cfg
VQ-RTCPX
R
phone_setti
ng.vq_rtcpxr
10 to 2000
Blank
Add
It configures the threshold
value of one way delay (in
common.
cfg

9
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
_delay_thres
hold_warnin
g =
milliseconds) that causes
the phone to send a warning
alert quality report to the
central report collector.
For example, if it is set to
500, when the value of one
way delay computed by the
phone is greater than or
equal to 500, the phone will
send a warning alert quality
report to the central report
collector; when the value of
one way delay computed by
the phone is less than 500,
the phone will not send a
warning alert quality report
to the central report
collector.
If it is set to blank, warning
alerts are not generated due
to one way delay. One-way
delay includes both network
delay and end system delay.
VQ-RTCPX
R
phone_setti
ng.vq_rtcpxr
_delay_thres
hold_critical
=
10 to 2000
Blank
Add
It configures the threshold
value of one way delay (in
milliseconds) that causes
phone to send a critical alert
quality report to the central
report collector.
For example, if it is set to
500, when the value of one
way delay computed by the
phone is greater than or
equal to 500, the phone will
send a critical alert quality
report to the central report
collector; when the value of
one way delay computed by
the phone is less than 500,
the phone will not send a
critical alert quality report
to the central report
collector.
common.
cfg

10
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
If it is set to blank, critical
alerts are not generated due
to one way delay. One-way
delay includes both network
delay and end system delay.
VQ-RTCPX
R
phone_setti
ng.vq_rtcpxr.
states_show
_on_web.en
able =
0 or 1
0
Add
It enables or disables the
voice quality data of the last
call to be displayed on web
interface at path
Status->RTP Status.
0-Disabled
1-Enabled
common.
cfg
VQ-RTCPX
R
(X ranges
from 1 to
5.)
account.x.vq
_rtcpxr.collec
tor_server_h
ost =
IPv4 Address
Blank
Add
It configures the IP address
of the central report
collector that accepts voice
quality reports contained in
SIP PUBLISH messages for
account X.
mac.cfg
VQ-RTCPX
R
(X ranges
from 1 to
5.)
account.x.vq
_rtcpxr.collec
tor_name =
String within
32 characters
Blank
Add
It configures the host name
of the central report
collector that accepts voice
quality reports contained in
SIP PUBLISH messages for
account X.
mac.cfg
VQ-RTCPX
R
(X ranges
from 1 to
5.)
account.x.vq
_rtcpxr.collec
tor_server_p
ort =
Integer from
1 to 65535
5060
Add
It configures the port of the
central report collector that
accepts voice quality reports
contained in SIP PUBLISH
messages for account X.
mac.cfg
WEB
HTTP(S)
wui.quick_lo
gin =
0 or 1
0
Add
It enables or disables the
user to quick login the web
user interface of the IP DECT
phone using
https://username:password
@IP.
0-Disabled
1-Enabled
Example:
https://admin:admin@192.
168.0.1
common.
cfg

11
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
IP Mode
network.ip_
address_mo
de =
0, 1 or 2
0
Add
It configures the IP address
mode.
0-IPv4
1-IPv6
2-IPv4 & IPv6
mac.cfg
IPv6
network.ipv6
_static_dns_
enable =
0 or 1
0
Add
It triggers the static IPv6
DNS feature to on or off.
0-Off
1-On
If it is set to 0 (Off), the IP
DECT phone will use the
DNS obtained from DHCP.
If it is set to 1 (On), the IP
DECT phone will use
manually configured static
DNS.
Note: It works only if the
value of the parameter
“network.ipv6_internet_por
t.type” is set to 0 (DHCP).
mac.cfg
IPv6
network.ipv6
_prefix =
Integer from
0 to 128
64
Add
It configures the IPv6 prefix.
Note: It works only if the
value of the parameter
“network.ip_address_mode
” is set to 1 (IPv6) or 2 (IPv4
& IPv6), and
"network.ipv6_internet_por
t.type" is set to 1 (Static IP
Address).
mac.cfg
IPv6
network.ipv6
_primary_dn
s =
IPv6 address
Blank
Add
It configures the primary
IPv6 DNS server.
Example:
network.ipv6_primary_dns
= 3036:1:1:c3c7:
c11c:5447:23a6:256
Note: It works only if the
value of the parameter
“network.ip_address_mode
” is set to 1 (IPv6) or 2 (IPv4
& IPv6). In DHCP
mac.cfg

12
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
environment, you also need
to make sure the value of
the parameter
"network.ipv6_static_dns_e
nable" is set to 1 (On).
IPv6
network.ipv6
_secondary_
dns =
IPv6 address
Blank
Add
It configures the secondary
IPv6 DNS server.
Example:
network.ipv6_secondary_dn
s =
2026:1234:1:1:c3c7:c11c:54
47:23a6
Note: It works only if the
value of the parameter
“network.ip_address_mode
” is set to 1 (IPv6) or 2 (IPv4
& IPv6). In DHCP
environment, you also need
to make sure the value of
the parameter
“network.ipv6_static_dns_e
nable” is set to 1 (On).
mac.cfg
IPv6
network.ipv6
_internet_po
rt.type =
0 or 1
0
Add
It configures the Internet
port (WAN) type for IPv6.
0-DHCP
1-Static IP Address
Note: It works only if the
value of the parameter
“network.ip_address_mode
” is set to 1 (IPv6) or 2 (IPv4
& IPv6).
mac.cfg
IPv6
network.ipv6
_internet_po
rt.ip =
IPv6 address
Blank
Add
It configures the IPv6
address.
Example:
network.ipv6_internet_port.
ip =
2026:1234:1:1:215:65ff:fe1f
:caa
Note: It works only if the
value of the parameter
“network.ip_address_mode
mac.cfg

13
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
” is set to 1 (IPv6) or 2 (IPv4
& IPv6), and
"network.ipv6_internet_por
t.type" is set to 1 (Static IP
Address).
IPv6
network.ipv6
_internet_po
rt.gateway =
IPv6 address
Blank
Add
It configures the IPv6
default gateway.
Example:
network.ipv6_internet_port.
gateway =
3036:1:1:c3c7:c11c:5447:23
a6:255
Note: It works only if the
value of the parameter
“network.ip_address_mode
” is set to 1 (IPv6) or 2 (IPv4
& IPv6), and
“network.ipv6_internet_por
t.type” is set to 1 (Static IP
Address).
mac.cfg
Web
Setting
web_setting.
logo_link =
URL within
511
characters
http://w
ww.yeali
nk.com
Add
It configures the link to a
page when clicking the logo
on the web navigation bar.
common.
cfg
Web
Setting
web_setting.
title =
URL within
511
characters
Yealink
W56P
Phone
Add
It configures the web title of
the IP phones.
common.
cfg
Web
Setting
web_setting.
model_nam
e =
URL within
511
characters
Yealink
W56P
Add
It configures the model
name on web navigation
bar.
common.
cfg
Web
Setting
web_setting.
color.url =
(File
Format:.cfg)
URL within
511
characters
Blank
Add
It configures the access URL
of web theme file. You can
use the file to custom the
menu. For example, you can
custom the color or size of
font.
Example:
web_setting.color.url =
http://192.168.10.25/theme
.cfg During the auto
provisioning process, the IP
phone connects to the
common.
cfg

14
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
provisioning server
“192.168.1.25”, and
downloads the web theme
file “theme.cfg”.
Web
Setting
web_setting.
picture.url =
(File
Format: .tar)
URL within
511
characters
Blank
Add
It configures the access URL
of web navigation bar file.
The web navigation bar file
should be compressed as a
TAR file in advance and then
place it to the provisioning
server. The compressed file
(*.tar) contains the pictures
of format: *.jpg,*.png,*.gif.
You can use the file to
custom the web navigation
bar to display. For example,
you can custom the logo.
Example:
web_setting.picture.url =
http://192.168.10.25/pictur
e.tar
common.
cfg
Web
Setting
web_setting.
picture.delet
e =
http://localho
st/all
Blank
Add
It deletes all web navigation
bar files.
Example:
web_setting.picture.delete
= http://localhost/all
common.
cfg

15
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
Yealink W56P IP DECT Phone Release Notes of Version
25.80.0.10
1. Introduction
Firmware Version:
Base Version: 25.73.0.40 upgrades to 25.80.0.10.
Applicable Models: Base for W52P/W56P
Release Date: April 15th, 2016.
Note: Yealink W56P IP DECT Phone uses the same base station with W52P IP DECT
Phone. If the base is upgraded from V73 to V80, it can be used with both W56H and
W52H, but the newly added features in V80 base only apply to W56H. While if you
are still using the base in V73, only W52H is applicable.
2. New Features
1. Added the feature of customizing a language for web user interface.
2. Added the feature of specifying the default input method when the user searches
for contacts on W56H.
3. Added the feature of exporting and importing CFG configuration files.
4. Added the feature of Location in Time Zone module.

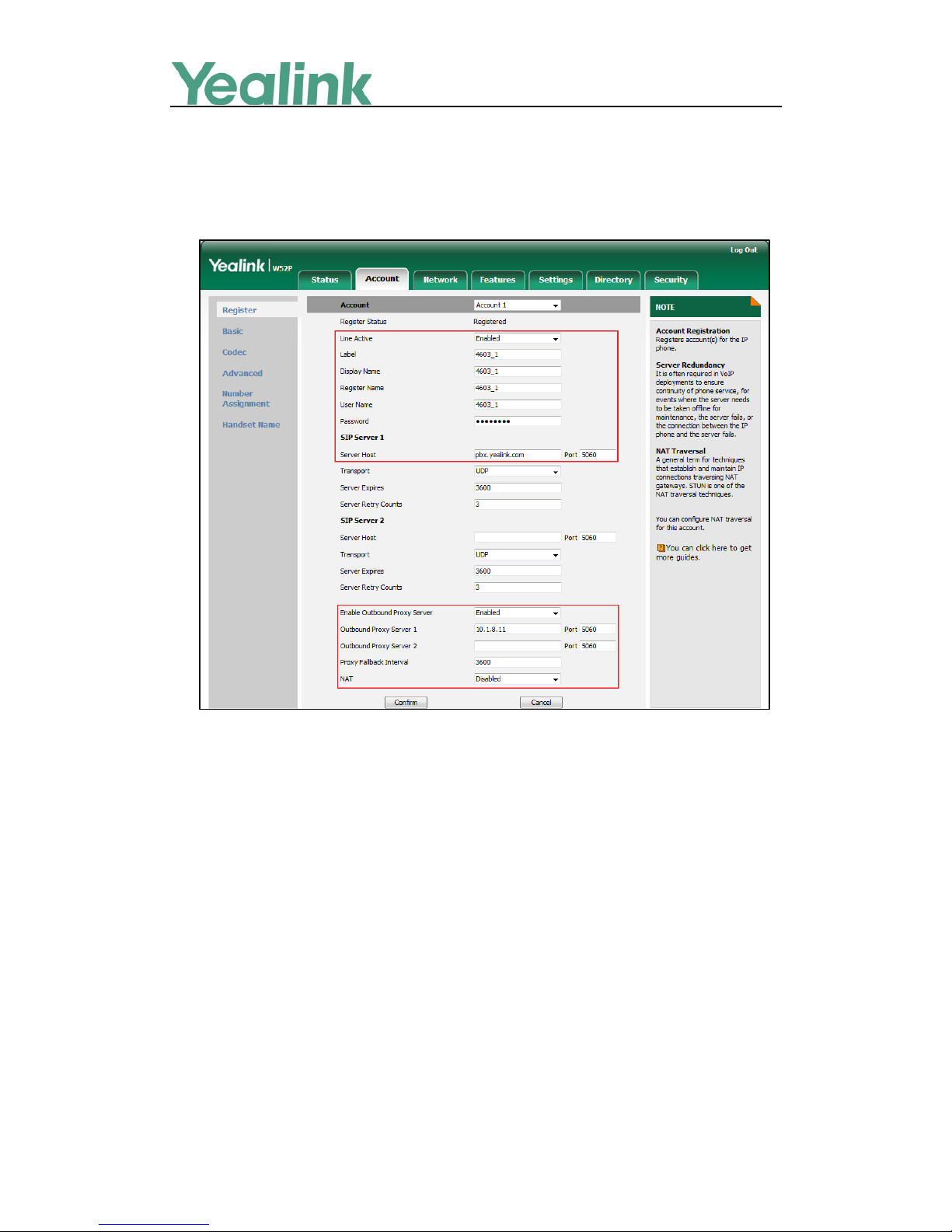

5. Added the feature of Outbound Proxy Server when registering an account via
web user interface.

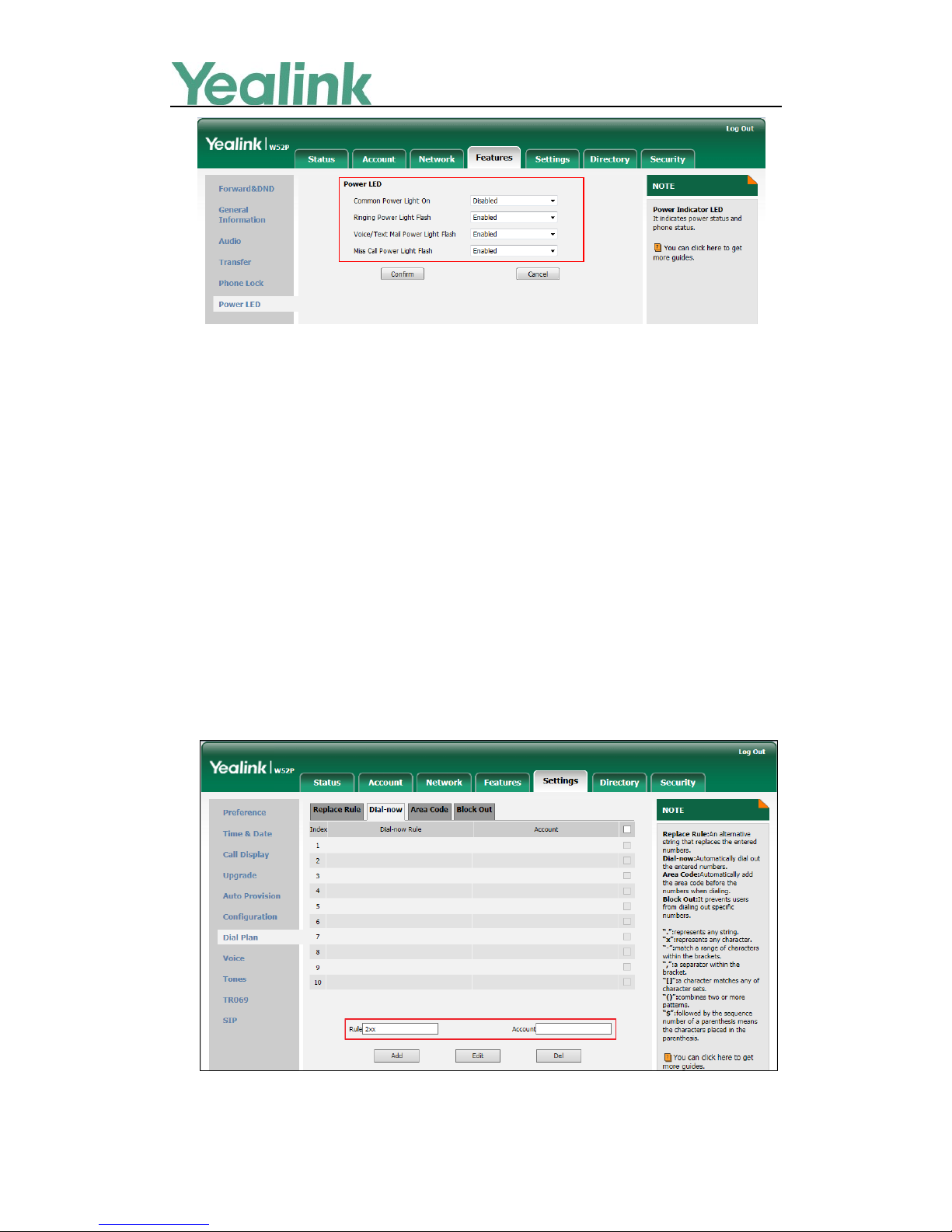

6. Added four configuration options for handset power indicator LED.
7. Added the feature of Dial-now.
8. Added the support for TLS authentication of SHA256 algorithm.
9. Added the feature of LDAP.
10. Added the feature of Key As Send.
11. Added the feature of search source list in dialing.
3. Optimization
1. Changed some configuration paths on web user interface.

16
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
2. Merged the audio codecs iLBC_13_3 and iLBC_15_2 into iLBC.
3. Optimized the call display features.
4. Optimized the display method on dialing.
5. Added the feature of SCA.
6. Optimized the feature of End Call on Hook.
7. Added the configuration parameter of whether the User-Agent in SIP request
messages is with MAC address or not.
8. Added the feature that you can configure the suffix of User-Agent in SIP request
messages from the IP DECT phone for account X.
9. Optimized the feature of accept SIP trust server only.
10. Optimized the feature of Attempt Expired Time (s) of Auto Provision.
11. Optimized the feature of call timeout.
12. Added some built-in certificates.
13. Removed the module for each configuration item on web user interface.
14. Optimized the feature of exporting the log files to the local system and added
one method for exporting System Log.
15. Optimized the feature of STUN.
4. Bug Fixes
None
5. New Features Descriptions
5. Added the feature of customizing a language for web user interface.
Description: You can customize a language for web user interface. When adding a
new language pack for the web user interface, the language pack must be
formatted as “Y.name.js” (Y starts from 10, “name” is replaced with the language
name). If the language name is the same as the existing one, the existing
language file will be overridden by the new uploaded one. We recommend that
the name of the new language file should not be the same as the existing
languages.
The parameters in the auto provision template are described as follows:
wui_lang.url =
wui_lang.delete =
For more information please refer to the

17
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
Yealink IP Dect Phones Adminstrator Guide_V80_10
Yealink IP Dect Phones Description of Configuration Parameters in CFG
Files_V80_10
6. Added the feature of specifying the default input method when the user
searches for contacts on W56H.
Description: In addition to customizing the input method file, you can also
specify the default input method for the IP DECT phone when editing or
searching for contacts. The users can configure the default input method when
searching for contacts in the Local Directory, LDAP, Remote Phone Book or
Blacklist.
To configure the input mode via the handset:
OK -> Settings -> Display -> Input Method
The parameters in the auto provision template are described as follows:
directory.search_default_input_method =
For more information please refer to the
Yealink IP Dect Phones Adminstrator Guide_V80_10
Yealink IP Dect Phones Description of Configuration Parameters in CFG
Files_V80_10
7. Added the feature of exporting and importing CFG configuration files.
Description: The <mac>-all.cfg configuration file contains all changes made via
handset user interface, web user interface and using configuration files. The
<mac>-local.cfg configuration file contains changes made via handset user
interface and web user interface. In the latest version, you can export and import
CFG configuration files on web user interface
To export or import CFG configuration files via web user interface:
Click on Settings -> Configuration.

18
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
8. Added the feature of Location in Time Zone module.
To set the location via web user interface:
Click on Settings -> Time & Date.
The parameters in the auto provision template are described as follows:
local_time.time_zone_name =
9. Added the feature of Outbound Proxy Server when registering an account via
web user interface.
Description: Registering a SIP account makes it easier for the IP DECT phones to
receive an incoming call, dial an outgoing call. The IP DECT phones support SIP

19
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
server redundancy for account registration. In the latest version, you can use
Outbound Proxy Server when registering an account via web user interface.
To configure this feature via web user interface:
Click on Account -> Register
The parameters in the auto provision template are described as follows:
account.X.backup_outbound_host =
account.X.backup_outbound_port =
account.X.outbound_proxy_fallback_interval =
10. Added four configuration options for handset power indicator LED.
Description: Handset power indicator LED indicates power status and phone
status. There are four configuration options for handset power indicator LED:
Common Power Light On, Ringing Power Light Flash, Voice Mail Power Light Flash,
Miss Call Power Light Flash.
To configure the handset power indicator LED via web user interface:
Click on Features -> Power LED.

20
YEALINK NETWORK TECHNOLOGY CO.,LTD.
www.yealink.com
The parameters in the auto provision template are described as follows:
phone_setting.missed_call_power_led_flash.enable =
phone_setting.common_power_led_enable =
phone_setting.ring_power_led_flash_enable =
phone_setting.mail_power_led_flash_enable =
11. Added the feature of Dial-now.
Description: You can configure one or more dial-now rules (up to 100) on your
handset. When the dialed number matches the dial-now string, the number will
be dialed out automatically. For example, a dial-now rule is configured as "2xx",
any entered three-digit string beginning with 2 will then be dialed out
automatically on the phone.
To add a dial-now rule via web user interface:
Click on Settings -> Dial Plan -> Dial-now.
The parameters in the auto provision template are described as follows:
