1. Product Overview
In this section, we introduce the product, outline its application2N VoiceBlue MAX
®
options and highlight the advantages following from its use. This section also includes
safety instructions.
Here is what you can find in this section:
1.1 Product Description
1.2 Safety Precautions
1.3 Firmware Upgrade
1.4 Terms and Symbols Used

52N TELEKOMUNIKACE a.s., www.2n.cz
®
1.1 Product Description
2N VoiceBlue MAX
® is a device that helps directly interconnect a SIP–supporting
VoIP network with GSM networks and can be used for direct connection with a SIP
telephone set. contains 4x FXS ports for analogue2N VoiceBlue MAX
®
e. outgoing and incoming calls, is thetelecommunication equipment. The voice mode, i.
basic function of the gateway. is equipped with all voice mode 2N VoiceBlue MAX
®
functions and provides the highest user comfort. In addition to voice transmission, 2N
enables you to send and receive text messages (SMS). You can use VoiceBlue MAX
®
the web interface or AT commands for all the gateway settings. The programmable
parameters are set in such a way that you can make calls the moment you connect the
system to the Ethernet, connect an antenna and insert the SIM card. 2N VoiceBlue
®
can be combined with the service (remote GSMMAX 2N Mobility Extension
®
extension) for up to 8 users.
2N VoiceBlue MAX
® Basic Features
Compact size
Four GSM/UMTS channels
System rack installation option
Intelligent incoming/outgoing call routing
SMS sending/receiving (web, AT interfaces)
User–friendly web interface
Power over Ethernet (PoE)
A single antenna for 4 GSM modules
Fouri FXS ports
Automatic call records and detailed statistics
support2N Mobility Extension
®
Possibility of SMS sending+receiving via web interface
Tone detection

62N TELEKOMUNIKACE a.s., www.2n.cz
®
1.2 Safety Precautions
It is prohibited to use any transmitters, including the UMTS/GSM devices, in
areas where explosives are used, such as quarries.
It is prohibited to use the GSM gateways at petrol stations where mobile
telephones are also prohibited.
GSM phones may affect sensitive life–saving devices in medical centres.
Therefore, it is forbidden to use GSM/UMTS devices, including the GSM gateways,
in such facilities.
In general, any prohibition regarding mobile phones based on RF energy
radiation applies to GSM/UMTS devices too.
If necessary, the GSM gateways may be installed at a safe distance from the
prohibited area and connected with the original place through an Ethernet cable.
Although GSM gateways are not intended for cars or aeroplanes, all relevant
prohibitions and regulations regarding mobile phones apply to them too.

72N TELEKOMUNIKACE a.s., www.2n.cz
®
1.3 Firmware Upgrade
The manufacturer reserves the right to modify the product in order to improve its
qualities.
In response to the customers' requirements, the manufacturer constantly improves the
software contained in the product (firmware). For the latest firm2N VoiceBlue MAX
®
ware version and the User Manual refer to the .2N web sites

82N TELEKOMUNIKACE a.s., www.2n.cz
®
1.4 Terms and Symbols Used
Symbols in Manual
Safely Warning
Always abide by this information to prevent injury of persons.
Warning
Always abide by this information to prevent damage to the
device.
Cauting
for system functionality.Important information
Tip
Useful advice for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
Future Functions, Innovations
The in this document designates the functions that are undergrey–marked text
preparation or development at present.

92N TELEKOMUNIKACE a.s., www.2n.cz
®
2. Description and Installation
This section describes the proper product installation and2N VoiceBlue MAX
®
connection.
Here is what you can find in this section:
2.1 Before You Start
2.2 Factory Settings
2.3 Brief Installation Guide
2.4 IP Voice Transmission
2.5 2N® VoiceBlue MAX Connection to VoIP
2.6 Available 2N® VoiceBlue MAX Connections

102N TELEKOMUNIKACE a.s., www.2n.cz
®
2.1 Before You Start
Caution
Make sure that you are equipped with all system components
necessary for putting in operation (SIM2N VoiceBlue MAX
®
card, VoIP phone and/or duly configured SIP line of your SIP
Proxy, an available 100BaseT socket and a PC for initial settings,
analogue telephone).
Product Completeness Check
Before installing this product, check whether the delivery2N VoiceBlue MAX
®
complies with the following packing list.
Package pcs
2N VoiceBlue MAX
®1
Power supply adapter 1
Long antenna 1
Ethernet cable 1
CD User Manual and SW 1
Rubber feet 4
Connector Lay–Out
The following connectors are mounted on the bottom:2N VoiceBlue MAX
®
10/100BaseT Ethernet connector with PoE support
4xFXS connector RJ-45
RESET button – press for a short time to restart the GSM gateway and for a long
time to restart the GSM gateway and download the factory settings.
Antenna connector for all GSM/UMTS channels
SIM holder
Find a power supply connector (DC Jack 2.1mm) and type plates at the rear.

112N TELEKOMUNIKACE a.s., www.2n.cz
®

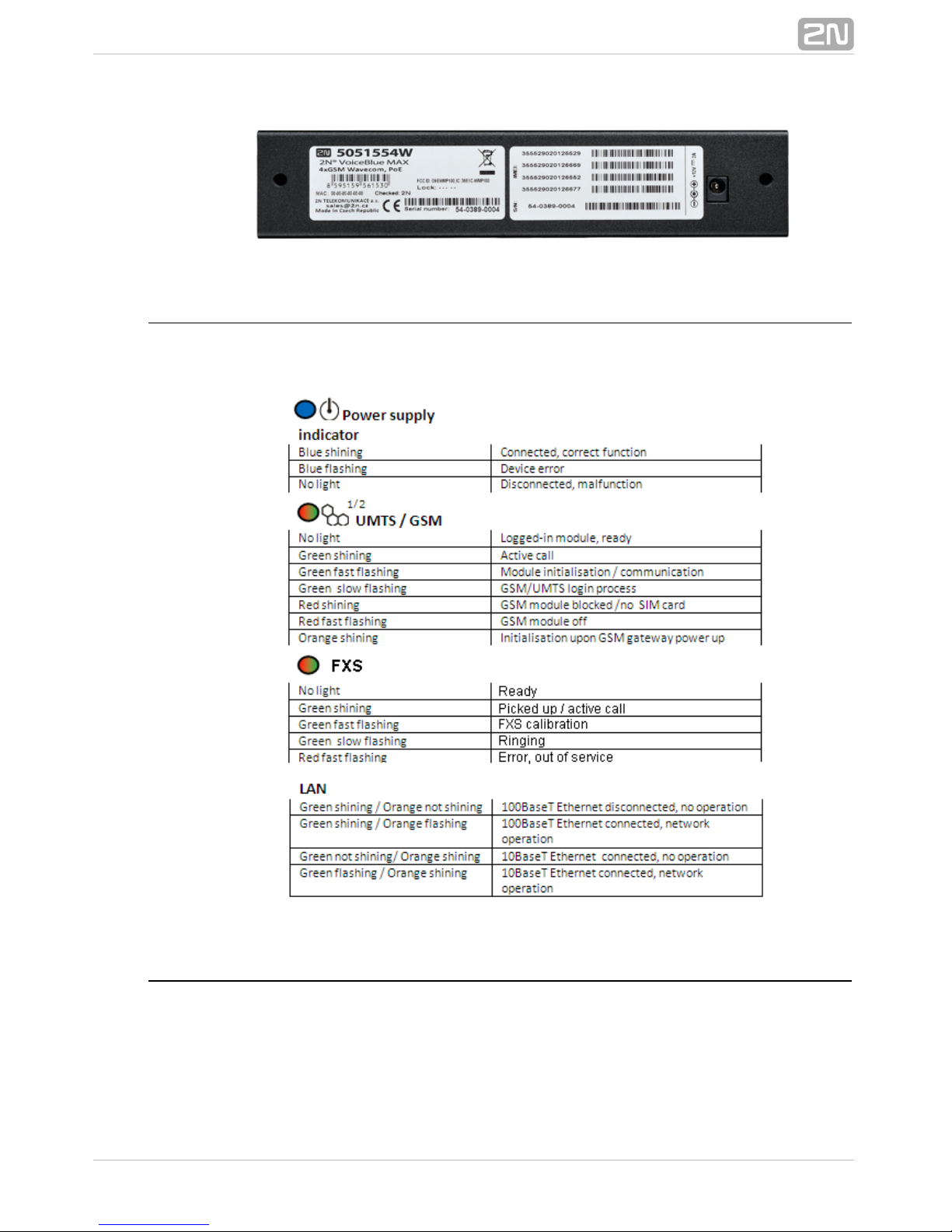

Status LED Indicators
The states are indicated by LEDs on the front and system2N VoiceBlue MAX
®
connector sides. For the LED types see the table below.
SIM Card Placement
Insert a SIM card into one of the four SIM holders on the front 2N VoiceBlue MAX
®
making sure that the chip contacts are at the front bottom. The SIM holders are
equipped with the push&pull technology for facilitation.

122N TELEKOMUNIKACE a.s., www.2n.cz
®
Caution
Remember to call forwarding, call barring, preferentialset
network(s), SMS centre and similar provider and SIM card
services in your mobile phone before inserting the SIM card
in .2N VoiceBlue MAX
®
If two SIM cards are used, both of them must have an
, or must be selected.identical PIN PIN request disable
Disconnect 2N VoiceBlue MAX
®from the power supply
before inserting the SIM cards!
Licences
2N VoiceBlue MAX
® may contain time–limited software licences (SIP signalling,
Mobility Extension, e.g.) that render services for limited hours only. Every gateway
restart adds one hour to the internal licence counter. To check the current licence
status, use the web interface of the gateway (refer to ), or the AT interface ofSubs. 3.4
the Telnet protocol (refer to ).Section 4
Caution
A GSM gateway with an expired licence cannot process any
incoming and/or outgoing calls! To avoid this, ask your dealer
for licence prolongation or an unlimited licence!
GSM/UMTS Network Restriction
Some types may be restricted to certain GSM/UMTS networks2N VoiceBlue MAX
®
only. If so, the red indicator at the given GSM/UMTS module is on and the 'netw–err'
cause is detected. Contact your dealer please for more information.
Tip
Contact your dealer please for more information.

132N TELEKOMUNIKACE a.s., www.2n.cz
®
Potential GSM/UMTS Troubles
All 2N GSM gateways work reliably under a long–time full load. The following problems
may be caused by GSM/UMTS networks:
GSM/UMTS module(s) cannot log in, log in slowly, or log out occasionally. This
problem may be caused by any of the following situations:
The GSM/UMTS signal is low. The minimum signal level should be
approximately . If lower, change the antenna position or type!–80dBm
The GSM/UMTS cell (BTS) to which the GSM/UMTS modules are trying to
log in is overloaded. Change the antenna position or reduce the count of
the logged–in GSM/UMTS modules.
One of the GSM/UMTS modules is permanently logged–out or fails to make
outgoing calls:
The problem indicates a GSM/UMTS network overload on the installation
site. To eliminate the problem, set the parameter to Relax delay 2
(refer to the subsection). If the GSMseconds GSM Basic Parameters
module fails to log in or rejects to make outgoing GSM calls even after the
gateway restart, consult your GSM provider for your SIM card/GSM module
availability.
The manufacturer shall not be held liable for any SIM card or provider service
unavailability in the case of a breach of the provider's SIM terms and conditions for the
SIM card use.

142N TELEKOMUNIKACE a.s., www.2n.cz
®
2.2 Factory Settings
The table below includes the factory settings for the key configuration parameters of
the GSM gateway:
Parameter Value
IP address 192.168.1.2
IP mask 255.255.255.0
IP gateway 192.168.1.1
Username Admin
Password 2n
Caution
Remember to the username and password thechange during
first gateway configuration to avoid unauthorised access!

152N TELEKOMUNIKACE a.s., www.2n.cz
®
2.3 Brief Installation Guide
SIM Card Inserting/Removing
For the correct handling of SIM cards refer to the SIM Card Placement subsection.
Caution
Make sure that the GSM gateway is off before inserting and
removing SIM cards to avoid the GSM/UMTS module damage.
Installation Conditions
The following installation conditions have to be met for proper installation:
2N VoiceBlue MAX
® is to be installed on a site with enough free space.
2N VoiceBlue MAX
® can be mounted on a horizontal surface or into a system
rack. It is possible to operate in another working position2N VoiceBlue MAX
®
too, for a short time for servicing and testing purposes, for example.
Any excess of the allowed working temperature may not affect the 2N®
function immediately but may result in faster ageing and lower VoiceBlue MAX
reliability. For the allowed working temperature and humidity ranges refer to
Section 5
2N VoiceBlue MAX
® is not designed for high–vibration environments such as
means of transport, machine rooms, and similar.
2N VoiceBlue MAX
® is not designed for dusty environments or places exposed
to high humidity and temperature changes.
2N VoiceBlue MAX
® may not be exposed to aggressive gases, acid and solvent
vapours, and so on.
2N VoiceBlue MAX
® is intended for indoor use. It may not be exposed to rain,
flowing water, condensing moisture, fog, and so on.
2N VoiceBlue MAX
® may never be exposed to direct sunshine or placed close
to heat sources (radiators).
A sufficient clearance must be kept over and under for 2N VoiceBlue MAX
®
cabling and air flow to carry off the heat.
A sufficient GSM/UMTS signal intensity has to be provided for 2N VoiceBlue
®
.MAX
An adequate capacity of the GSM/UMTS network has to be ensured (no BTS
overload). Remember that multiple GSM gateways used in one location may
overload the base transceiver station (BTS) you are currently logged in to. This
may lead to a permanent or occasional rejection of GSM/UMTS calls!
No strong electromagnetic radiation is allowed on the 2N VoiceBlue MAX
®
installation site.
No strong electromagnetic reflections are allowed on the 2N VoiceBlue MAX
®
antenna installation site.
An inappropriate location of or its antenna close to2N VoiceBlue MAX
®
television, broadcasting and/or other rf–sensitive sets may impair the function of
these sets.
Being a source of radio frequency emissions, the antenna2N VoiceBlue MAX
®

162N TELEKOMUNIKACE a.s., www.2n.cz
®
1.
2.
3.
should not occur in the close vicinity of the human body. The health hazard is
higher than with mobile phones as, generally, gateways shared by multiple users
show a very high traffic.
Make sure that the VoIP connection has been configured properly according to
the SIP and other VoIP recommendations.
It is recommended that the power supply adapter should be connected to a
network with a UPS back–up and due overvoltage protection.
Horizontal Mounting
2N VoiceBlue MAX
® is ready for mounting on a horizontal support. You can stick
rubber feet (included in the delivery) on the device if necessary. Follow the instructions
below:
Put the GSM gateway carefully on a stable horizontal support with its bottom side
up.
Stick the rubber feet into the corners as shown below.
Place the device on a stable horizontal support.
caution
Refer to the Proper Location subsection for correct placing!
System Rack Mounting
2N VoiceBlue MAX
® can be mounted into a system rack. Purchase the rack
accessories separately under Part No. . The accessory pack includes the5051099E
following components:

172N TELEKOMUNIKACE a.s., www.2n.cz
®
1.
2.
1.
Components Pieces
Short wing 2
Long wing 1
Rear connecting plate 1
Upper connecting plate 1
Mounting screws 12
Rack screws 4
Single Mounting

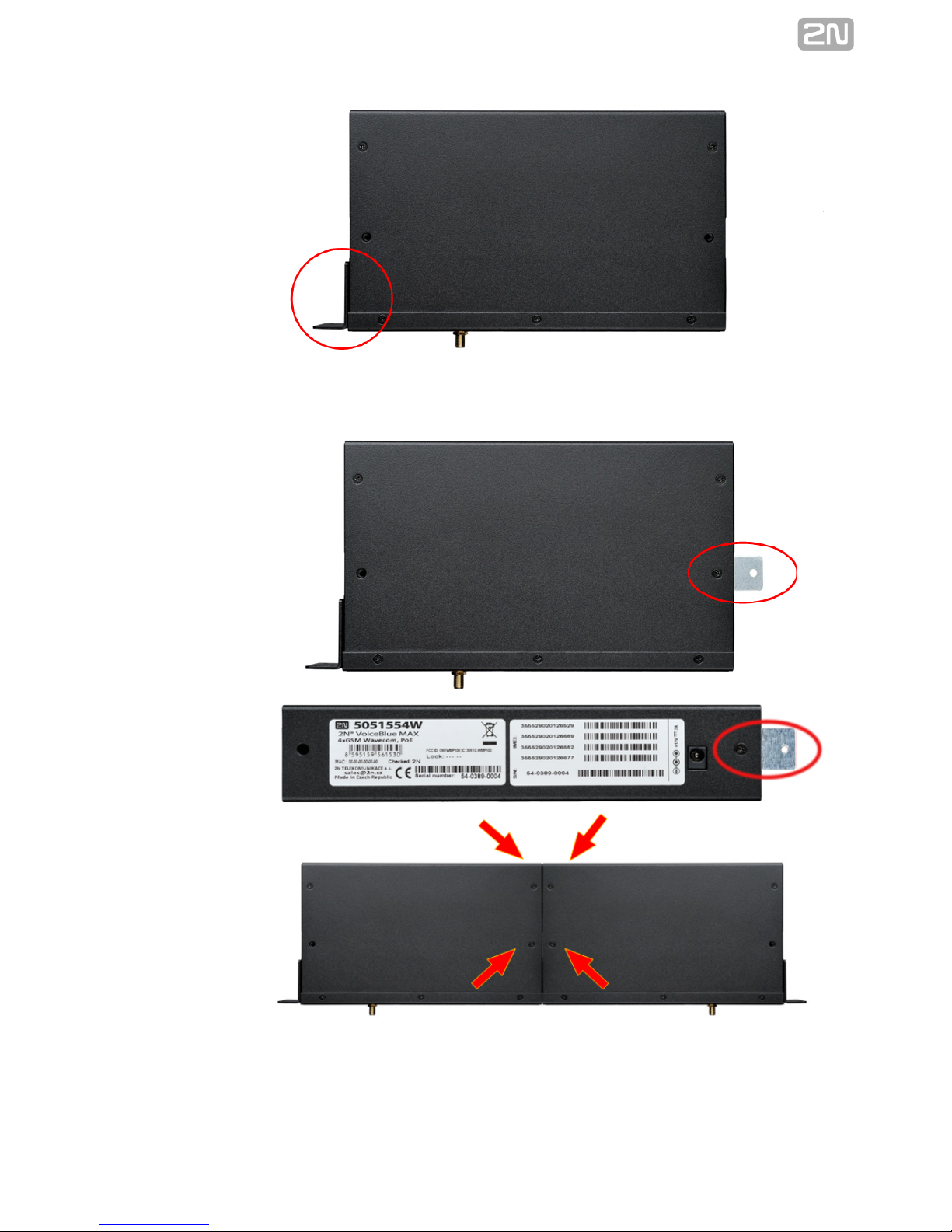

Follow the instructions below to mount a single unit into a system rack:
Fit the rack wings to the right and left sides using four screws for each wing
(included in the package). The positions of the long and short wings are optional
and depend on the installation site conditions.
Having screwed the wings, place the GSM gateway into a free 1U place of the
system rack fitting it with four rack screws (included in the package).
Pair Mounting
Follow the instructions below to rack mount two GSM gateways into one 1U place:
Put the GSM gateways next to each other making their sides touch each other.
Fit the short wings (included in the package) onto the free gateway ends with the
screws enclosed.

182N TELEKOMUNIKACE a.s., www.2n.cz
®
1.
2.
3.
Insert the connecting plates (BE CAREFUL! The rear and upper connecting plates
have different drilled holes – the upper plate holes are larger and without
threading) in the upper and rear holes of one GSM gateway first. Then connect
the other unit.
Place the GSM gateway pair into a free 1U place in the system rack and fit it with
four rack screws (included in the package).

192N TELEKOMUNIKACE a.s., www.2n.cz
®
Caution
The rear and upper connecting plates have different holes – the
upper plate holes are larger and without threading.
Make sure that the plate does not get into the device to avoid
electric short–circuit inside the GSM gateway.
Leave 2 cm free space at least over and under the GSM gateway
for better ventilation (airflow)!
Power Supply Connection
Use only the power supply adapter included, or, with the power over Ethernet, a
certified PoE adapter to feed the gateway. Make sure that the electric distribution
network voltage is in compliance with the data on the supply adapter plate before
plugging the adapter. First plug the supply adapter into the mains socket and only then
connect the adapter connector to the gateway. Refer to the status indicators.
Warning
Connecting a defective or inappropriate power supply adapter
may lead to a temporary or permanent 2N VoiceBlue MAX
®
error!
Never connect using the PoE and a local2N VoiceBlue MAX
®
adapter at the same time to avoid permanent 2N VoiceBlue
®
malfunction!MAX
Check whether the antenna is connected before plugging the
adapter. Feeding the device without antenna connection
may result in the GSM module transmitter damage.
Antenna Connection
2N VoiceBlue MAX
® is equipped with a SMA female antenna connector for all the
GSM/UMTS modules. The external antenna should always be installed vertically on a
site with a good wireless signal.

202N TELEKOMUNIKACE a.s., www.2n.cz
®
Warning
Tighten the antenna – connector gently with your hand
!never use a wrench
Being a source of radio frequency emissions, the 2N®
antenna should not occur in the close vicinity VoiceBlue MAX
of the human body. The is higher than withhealth hazard
mobile phones as, generally, gateways shared by multiple users
show a very high traffic.
Note
The antenna has a sufficient gain for a trouble–free operation
under normal conditions. If the signal is poor or you want to
place your antenna separately from , you2N VoiceBlue MAX
®
can use an antenna with an SMA–connector terminated cable.
The antenna should be mounted vertically.
Refer to the section for the antenna andTechnical Parameters
cable parameters.
Ethernet Cable Connection
To connect into an Ethernet network use a standard straight2N VoiceBlue MAX
®
cable terminated with RJ–45 connectors (included in the package). The GSM gateway
supports the 10BaseT and 100BaseT standards, the Ethernet connection status is
indicated by the status LED indicators located on the RJ–45 connector (refer to Subs.
for details).2.1
For the Ethernet interface factory settings for refer to .2N VoiceBlue MAX
®Subs. 2.2
Caution
Resetting factory values results in a change of the 2N®
Ethernet interface configuration! VoiceBlue MAX
Using a defective Ethernet cable may lead to a high packet loss
rate in the Ethernet network and subsequent instability and poor
quality of all GSM/UMTS calls!
RJ–45 connector for LAN connection
